HYUNDAI VELOSTER 2021 Owners Manual

D DI
IM
ME
EN
NS
SI
IO
ON
NS
S
8-2
Specifications, Consumer information and Reporting safety defects
E
EN
NG
GI
IN
NE
E

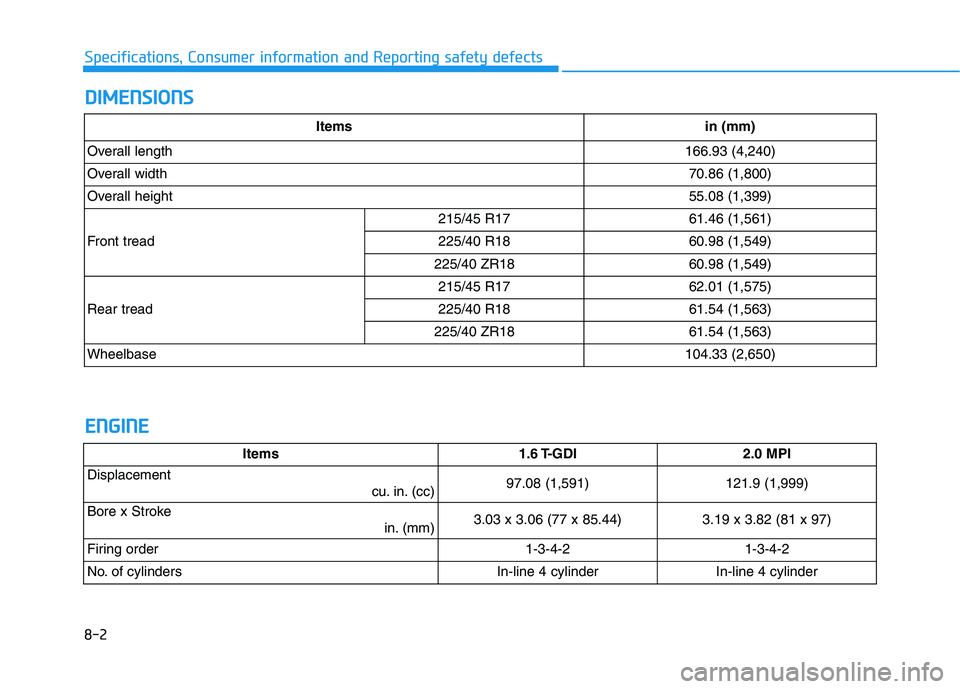

Items 1.6 T-GDI2.0 MPI
Displacement
cu. in. (cc)97.08 (1,591)121.9 (1,999)
Bore x Stroke
in. (mm)3.03 x 3.06 (77 x 85.44)3.19 x 3.82 (81 x 97)
Firing order1-3-4-21-3-4-2
No. of cylindersIn-line 4 cylinderIn-line 4 cylinder
Itemsin (mm)
Overall length166.93 (4,240)
Overall width70.86 (1,800)
Overall height55.08 (1,399)
Front tread
215/45 R1761.46 (1,561)
225/40 R1860.98 (1,549)
225/40 ZR1860.98 (1,549)
Rear tread
215/45 R1762.01 (1,575)
225/40 R1861.54 (1,563)
225/40 ZR1861.54 (1,563)
Wheelbase104.33 (2,650)

B BU
UL
LB
B
W
WA
AT
TT
TA
AG
GE
E
88
Specifications, Consumer information and Reporting safety defects

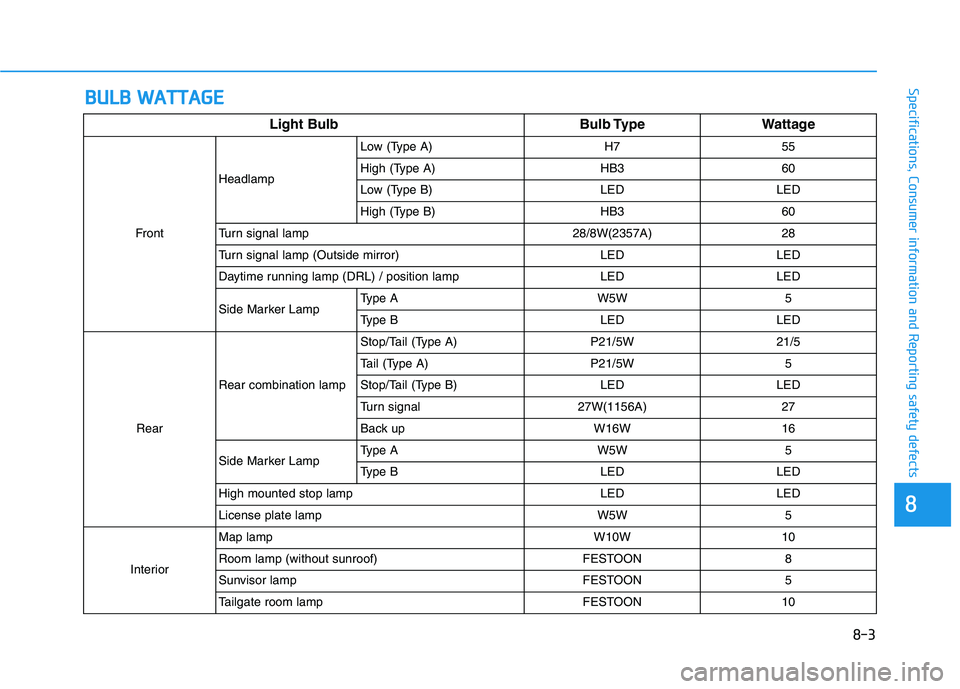

8-3 Light Bulb Bulb Type Wattage
FrontHeadlampLow (Type A) H7 55
High (Type A) HB3 60
Low (Type B) LED LED
High (Type B) HB3 60
Turn signal lamp 28/8W(2357A) 28
Turn signal lamp (Outside mirror) LED LED
Daytime running lamp (DRL) / position lamp LED LED
Side Marker LampType A W5W 5
Type B LED LED
RearRear combination lampStop/Tail (Type A) P21/5W 21/5
Tail (Type A) P21/5W 5
Stop/Tail (Type B) LED LED
Turn signal 27W(1156A) 27
Back up W16W 16
Side Marker LampType A W5W 5
Type B LED LED
High mounted stop lamp LED LED
License plate lamp W5W 5
InteriorMap lamp W10W 10
Room lamp (without sunroof) FESTOON 8
Sunvisor lamp FESTOON 5
Tailgate room lamp FESTOON 10

T TI
IR
RE
ES
S
A
AN
ND
D
W
WH
HE
EE
EL
LS
S
8-4
Specifications, Consumer information and Reporting safety defects

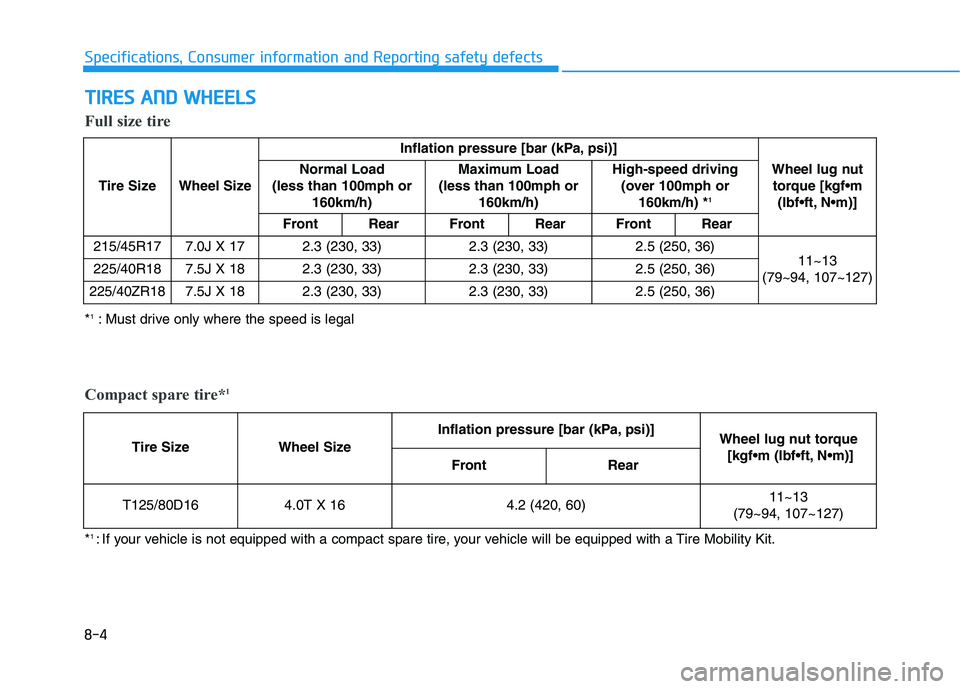

Tire Size Wheel SizeInflation pressure [bar (kPa, psi)]
Wheel lug nut
torque [kgf•m
Normal Load
(less than 100mph or
160km/h)Maximum Load
(less than 100mph or
160km/h)High-speed driving
(over 100mph or
160km/h) *1
Front Rear Front Rear Front Rear
215/45R17 7.0J X 17 2.3 (230, 33) 2.3 (230, 33) 2.5 (250, 36)
11~13
(79~94, 107~127) 225/40R18 7.5J X 18 2.3 (230, 33) 2.3 (230, 33) 2.5 (250, 36)
225/40ZR18 7.5J X 18 2.3 (230, 33) 2.3 (230, 33) 2.5 (250, 36)
Full size tire
*1: Must drive only where the speed is legal
Compact spare tire*1
Tire Size Wheel SizeInflation pressure [bar (kPa, psi)]
Wheel lug nut torque

Front Rear
T125/80D16 4.0T X 16 4.2 (420, 60)11~13
(79~94, 107~127)
*1 : If your vehicle is not equipped with a compact spare tire, your vehicle will be equipped with a Tire Mobility Kit.

8-5
88
Specifications, Consumer information and Reporting safety defects
When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
CAUTION
It is permissible to add 3 psi to the standard tire pressure specification if colder temperatures are expect-
ed soon.
Tires typically loose 1psi (7kPa) for every 12°F temperature drop. If extreme temperature variations are
expected, recheck your tire pressure as necessary to keep them properly inflated.
An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you
plan to drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a prop-
er level. (Air inflation per altitude : +2.4 psi/1 mile)
Must do not exceed maximum inflation pressure shown on equipped tire sidewall.
NOTICE

8-6
Specifications, Consumer information and Reporting safety defects
V VO
OL
LU
UM
ME
E
A
AN
ND
D
W
WE
EI
IG
GH
HT
T
A AI
IR
R
C
CO
ON
ND
DI
IT
TI
IO
ON
NI
IN
NG
G
S
SY
YS
ST
TE
EM
M
Contact an authorized HYUNDAI dealer for more details.
Item
Gasoline Engine
1.6 T-GDI2.0 MPI
M/TDCTM/TA/T
Gross vehicle weight
lbs. (kg)3,814 (1,730)3,858 (1,750)3,748 (1,700)3,748 (1,700)
Luggage volume (SAE)
cu. ft. (l)Behind 1st row : 44.5 (1,261)
Behind 2nd row : 19.9 (565)
ItemsWeight of VolumeClassification
Refrigerant
oz. (g) 15.87 (450) ± 0.88 (25) R-1234yf
Compressor lubricant
oz. (cc) 4.23 (120) ± 0.35 (10)PA G
M/T : Manual transmission
A/T : Automatic transmission
DCT : Dual clutch transmission

8-7
88
Specifications, Consumer information and Reporting safety defects

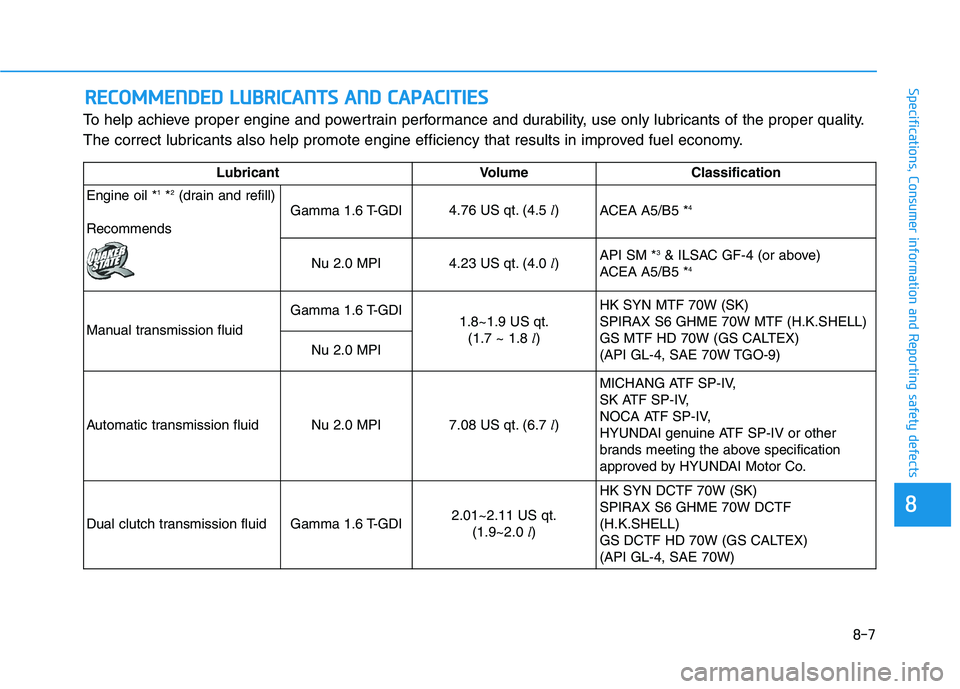

To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
R RE
EC
CO
OM
MM
ME
EN
ND
DE
ED
D
L
LU
UB
BR
RI
IC
CA
AN
NT
TS
S
A
AN
ND
D
C
CA
AP
PA
AC
CI
IT
TI
IE
ES
S
LubricantVolume Classification
Engine oil *
1*2(drain and refill)
RecommendsGamma 1.6 T-GDI4.76 US qt. (4.5 l)
ACEA A5/B5 *4
Nu 2.0 MPI4.23 US qt. (4.0 l)API SM *3& ILSAC GF-4 (or above)
ACEA A5/B5 *4
Manual transmission fluid
Gamma 1.6 T-GDI1.8~1.9 US qt.
(1.7 ~ 1.8 l)HK SYN MTF 70W (SK)
SPIRAX S6 GHME 70W MTF (H.K.SHELL)
GS MTF HD 70W (GS CALTEX)
(API GL-4, SAE 70W TGO-9)
Nu 2.0 MPI
Automatic transmission fluidNu 2.0 MPI7.08 US qt. (6.7 l)
MICHANG ATF SP-IV,
SK ATF SP-IV,
NOCA ATF SP-IV,
HYUNDAI genuine ATF SP-IV or other
brands meeting the above specification
approved by HYUNDAI Motor Co.
Dual clutch transmission fluidGamma 1.6 T-GDI2.01~2.11 US qt.
(1.9~2.0 l)
HK SYN DCTF 70W (SK)
SPIRAX S6 GHME 70W DCTF
(H.K.SHELL)
GS DCTF HD 70W (GS CALTEX)
(API GL-4, SAE 70W)

8-8
Specifications, Consumer information and Reporting safety defects
*1: Refer to the recommended SAE viscosity numbers on the next page.
*2: Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econ-
omy by reducing the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure
in everyday driving, but in a year's time, they can offer significant cost and energy savings.
*
3: If the API service SM engine oil is not available in your country, you are able to use API service SL.

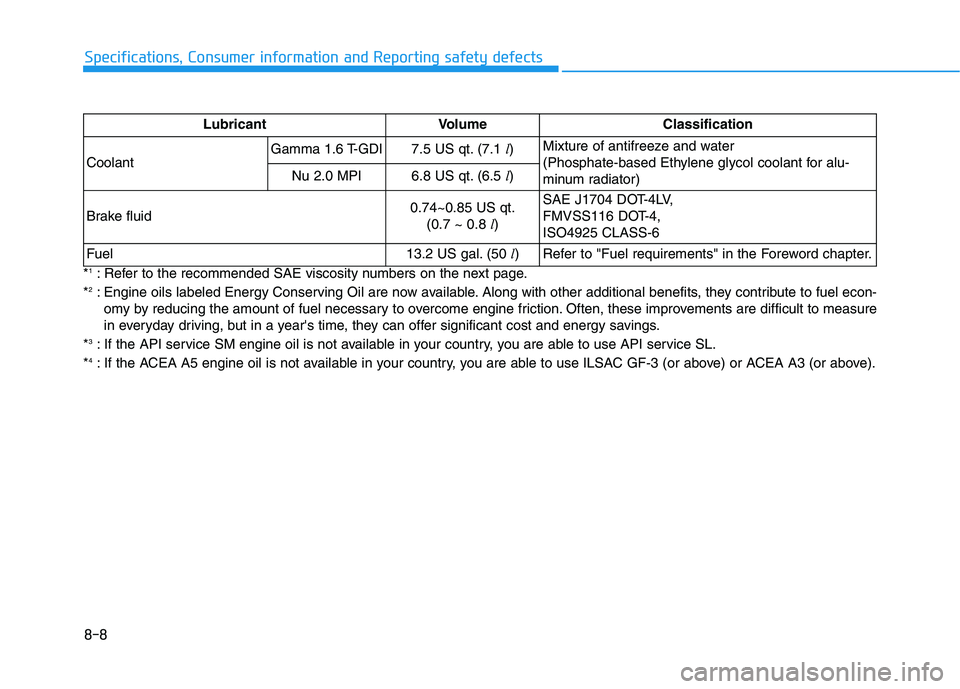

*4: If the ACEA A5 engine oil is not available in your country, you are able to use ILSAC GF-3 (or above) or ACEA A3 (or above).Lubricant
Volume Classification
CoolantGamma 1.6 T-GDI
7.5 US qt. (7.1 l)Mixture of antifreeze and water
(Phosphate-based Ethylene glycol coolant for alu-
minum radiator) Nu 2.0 MPI
6.8 US qt. (6.5 l)
Brake fluid
0.74~0.85 US qt.
(0.7 ~ 0.8 l)SAE J1704 DOT-4LV,
FMVSS116 DOT-4,
ISO4925 CLASS-6
Fuel13.2 US gal. (50 l)Refer to "Fuel requirements" in the Foreword chapter.

8-9
88
Specifications, Consumer information and Reporting safety defects

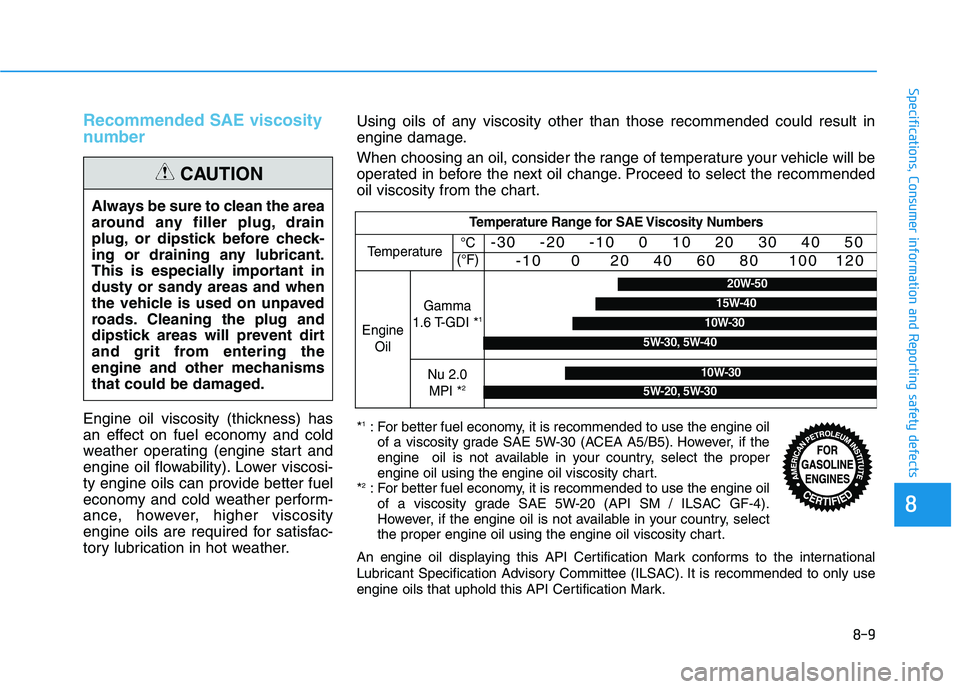

Recommended SAE viscosity
number
Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather.Always be sure to clean the area
around any filler plug, drain
plug, or dipstick before check-
ing or draining any lubricant.
This is especially important in
dusty or sandy areas and when
the vehicle is used on unpaved
roads. Cleaning the plug and
dipstick areas will prevent dirt
and grit from entering the
engine and other mechanisms
that could be damaged.
CAUTION
Temperature Range for SAE Viscosity Numbers
Temperature -30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Engine
Oil
Gamma
1.6 T-GDI *1
Nu 2.0
MPI *2
°C
(°F)
*1: For better fuel economy, it is recommended to use the engine oil
of a viscosity grade SAE 5W-30 (ACEA A5/B5). However, if the
engine oil is not available in your country, select the proper
engine oil using the engine oil viscosity chart.
*
2: For better fuel economy, it is recommended to use the engine oil
of a viscosity grade SAE 5W-20 (API SM / ILSAC GF-4).
However, if the engine oil is not available in your country, select
the proper engine oil using the engine oil viscosity chart.
5W-30, 5W-40
10W-30
15W-40
20W-50
10W-30
5W-20, 5W-30
Using oils of any viscosity other than those recommended could result in
engine damage.
When choosing an oil, consider the range of temperature your vehicle will be
operated in before the next oil change. Proceed to select the recommended
oil viscosity from the chart.
An engine oil displaying this API Certification Mark conforms to the international
Lubricant Specification Advisory Committee (ILSAC). It is recommended to only use
engine oils that uphold this API Certification Mark.

8-10
Specifications, Consumer information and Reporting safety defects

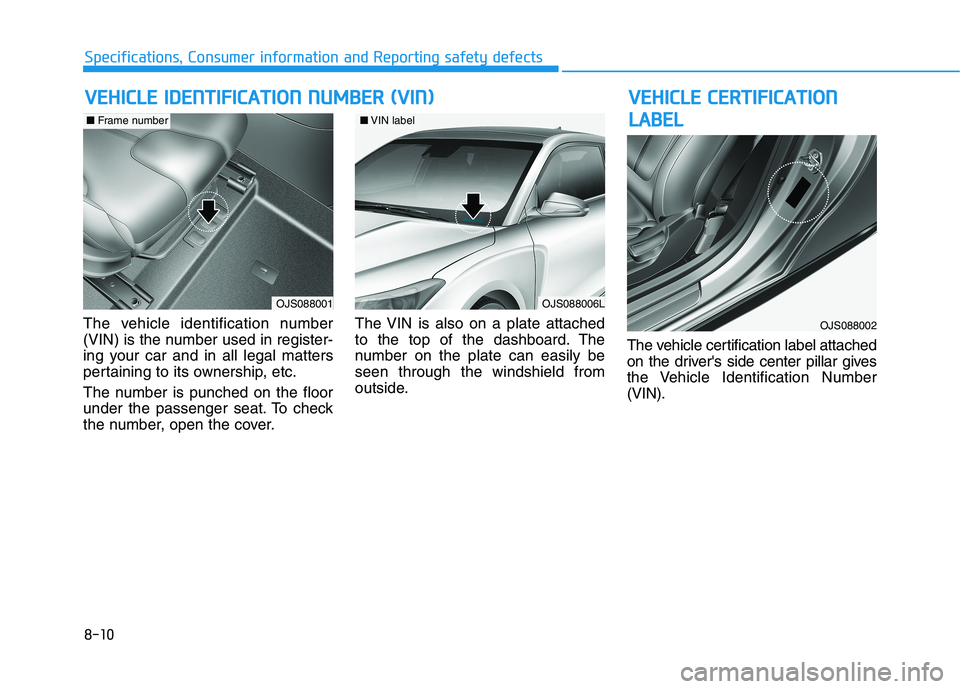

The vehicle identification number
(VIN) is the number used in register-
ing your car and in all legal matters
pertaining to its ownership, etc.
The number is punched on the floor
under the passenger seat. To check
the number, open the cover.The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.The vehicle certification label attached
on the driver's side center pillar gives
the Vehicle Identification Number
(VIN).
V VE
EH
HI
IC
CL
LE
E
I
ID
DE
EN
NT
TI
IF
FI
IC
CA
AT
TI
IO
ON
N
N
NU
UM
MB
BE
ER
R
(
(V
VI
IN
N)
)
OJS088006L
■VIN label
OJS088001
■Frame number
OJS088002
V VE
EH
HI
IC
CL
LE
E
C
CE
ER
RT
TI
IF
FI
IC
CA
AT
TI
IO
ON
N
L LA
AB
BE
EL
L

8-11
88
Specifications, Consumer information and Reporting safety defects

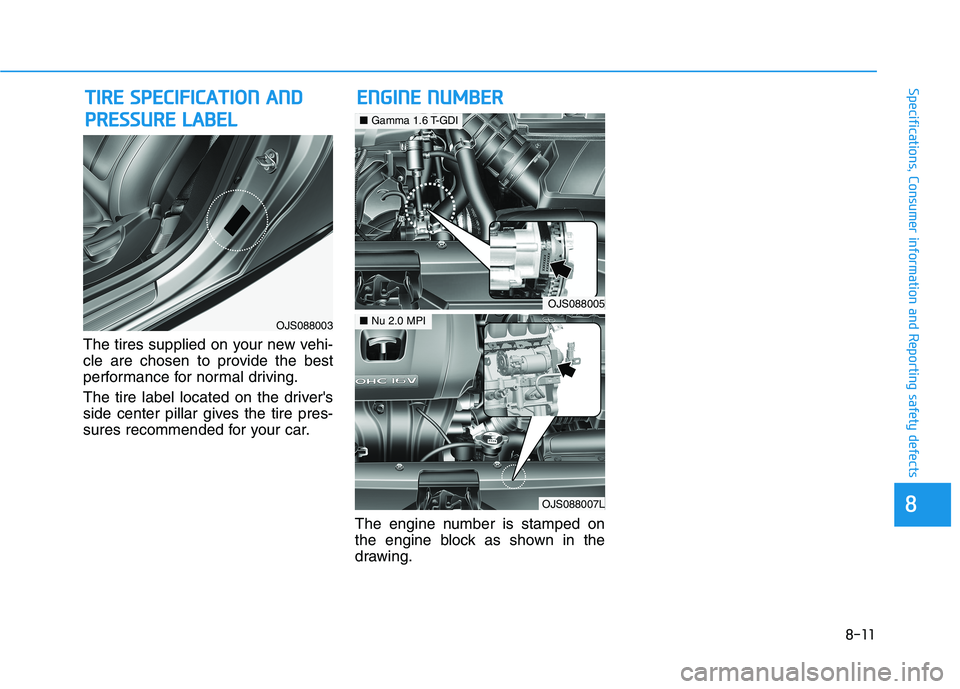

The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your car.
The engine number is stamped on
the engine block as shown in the
drawing.
E EN
NG
GI
IN
NE
E
N
NU
UM
MB
BE
ER
R T
TI
IR
RE
E
S
SP
PE
EC
CI
IF
FI
IC
CA
AT
TI
IO
ON
N
A
AN
ND
D
P PR
RE
ES
SS
SU
UR
RE
E
L
LA
AB
BE
EL
L
OJS088003
OJS088005
■Gamma 1.6 T-GDI
OJS088007L
■Nu 2.0 MPI
