HYUNDAI VENUE 2021 Owners Manual

Convenient Features
5-20

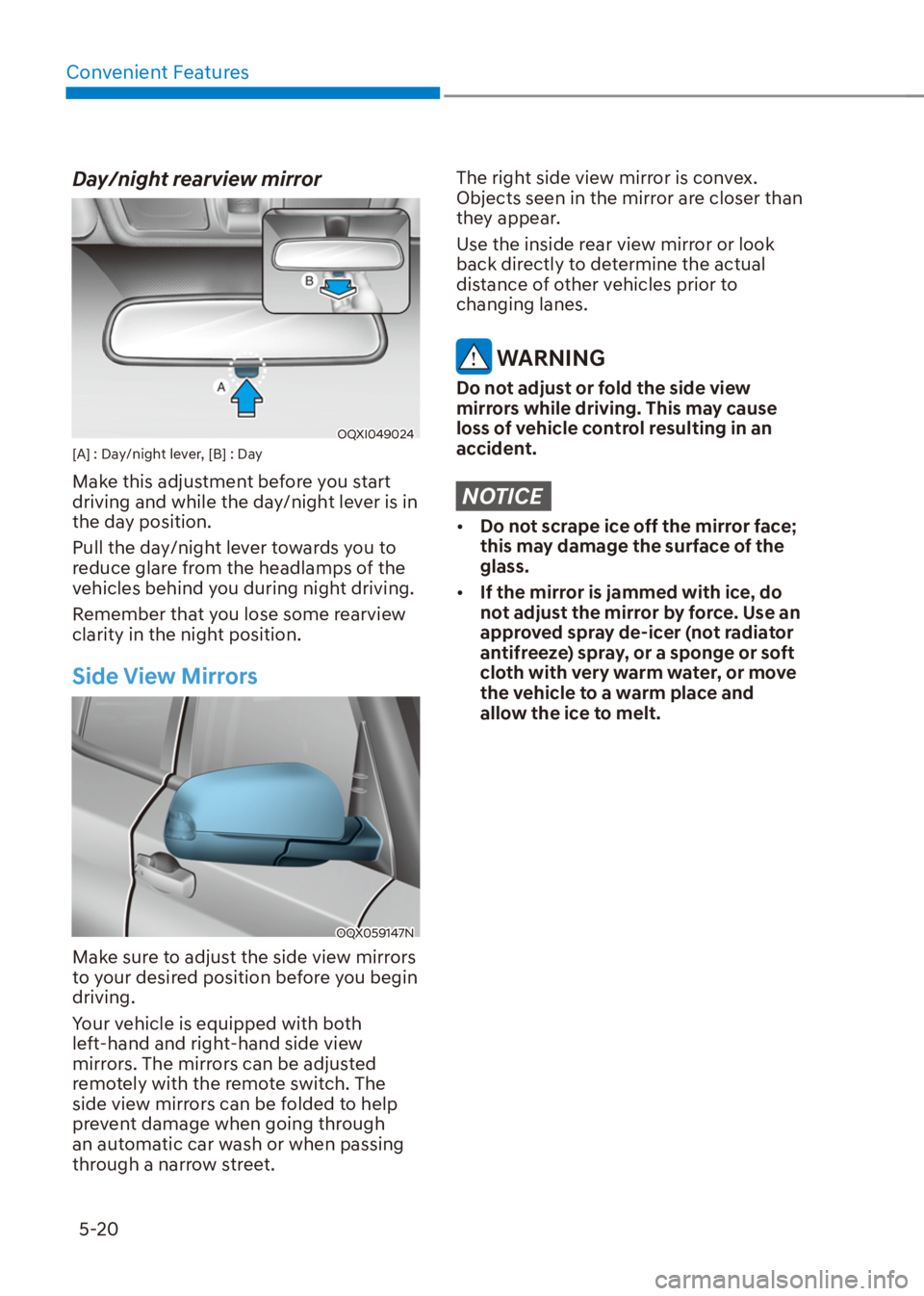

Day/night rearview mirror
OQXI049024[A] : Day/night lever, [B] : Day
Make this adjustment before you start
driving and while the day/night lever is in
the day position.
Pull the day/night lever towards you to
reduce glare from the headlamps of the
vehicles behind you during night driving.
Remember that you lose some rearview
clarity in the night position.
Side View Mirrors
OQX059147N
Make sure to adjust the side view mirrors
to your desired position before you begin
driving.
Your vehicle is equipped with both
left-hand and right-hand side view
mirrors. The mirrors can be adjusted
remotely with the remote switch. The
side view mirrors can be folded to help
prevent damage when going through
an automatic car wash or when passing
through a narrow street.
The right side view mirror is convex.
Objects seen in the mirror are closer than
they appear.
Use the inside rear view mirror or look
back directly to determine the actual
distance of other vehicles prior to
changing lanes.
WARNING
Do not adjust or fold the side view
mirrors while driving. This may cause
loss of vehicle control resulting in an
accident.
NOTICE

[Do not scrape ice off the mirror face;
this may damage the surface of the
glass.

[If the mirror is jammed with ice, do
not adjust the mirror by force. Use an
approved spray de-icer (not radiator
antifreeze) spray, or a sponge or soft
cloth with very warm water, or move
the vehicle to a warm place and
allow the ice to melt.

05
5-21

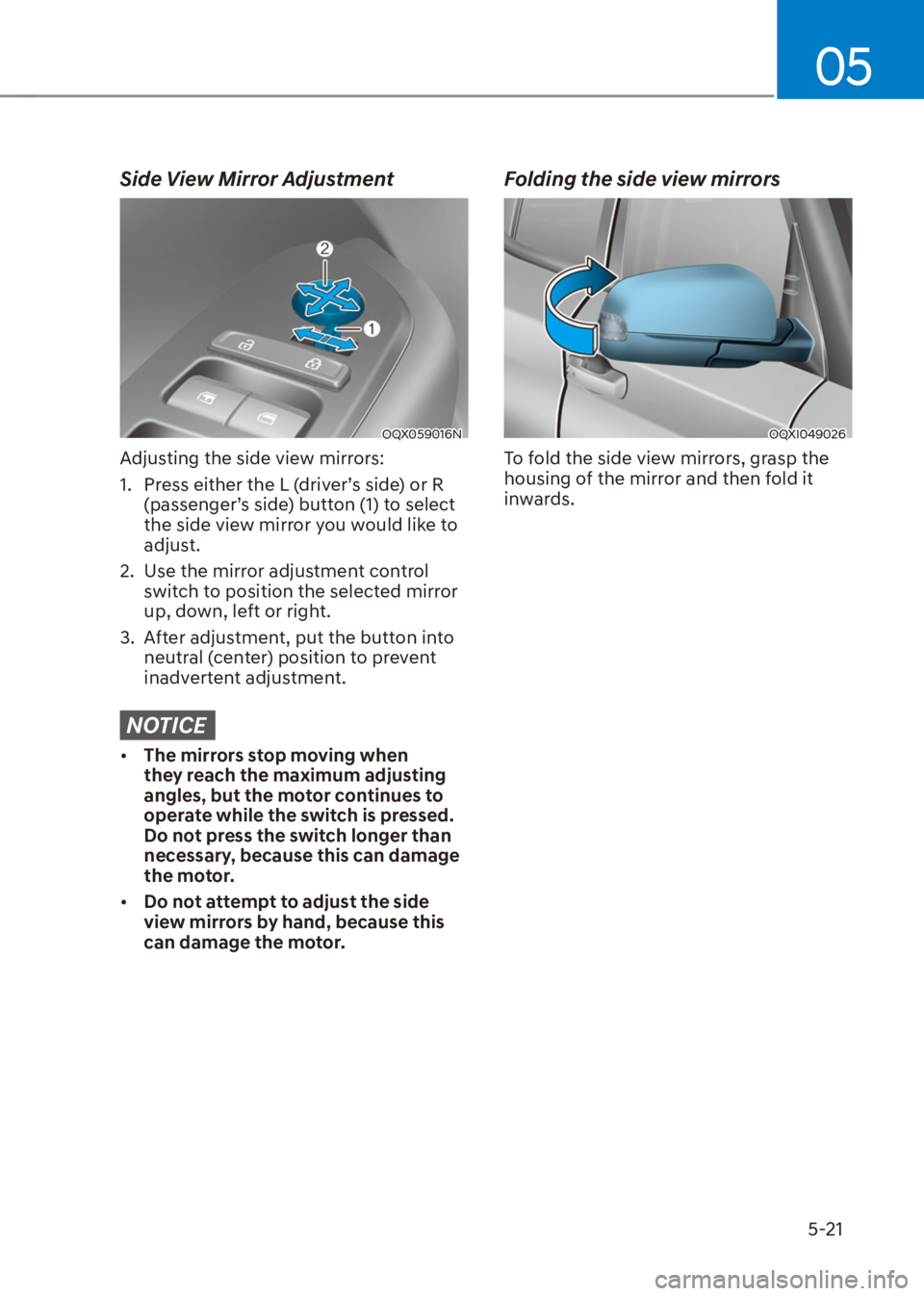

Side View Mirror Adjustment
OQX059016N
Adjusting the side view mirrors:
1. Press either the L (driver’s side) or R
(passenger’s side) button (1) to select
the side view mirror you would like to
adjust.
2. Use the mirror adjustment control
switch to position the selected mirror
up, down, left or right.
3. After adjustment, put the button into
neutral (center) position to prevent
inadvertent adjustment.
NOTICE

[The mirrors stop moving when
they reach the maximum adjusting
angles, but the motor continues to
operate while the switch is pressed.
Do not press the switch longer than
necessary, because this can damage
the motor.

[Do not attempt to adjust the side
view mirrors by hand, because this
can damage the motor.
Folding the side view mirrors
OQXI049026
To fold the side view mirrors, grasp the
housing of the mirror and then fold it
inwards.

5-22
Convenient Features

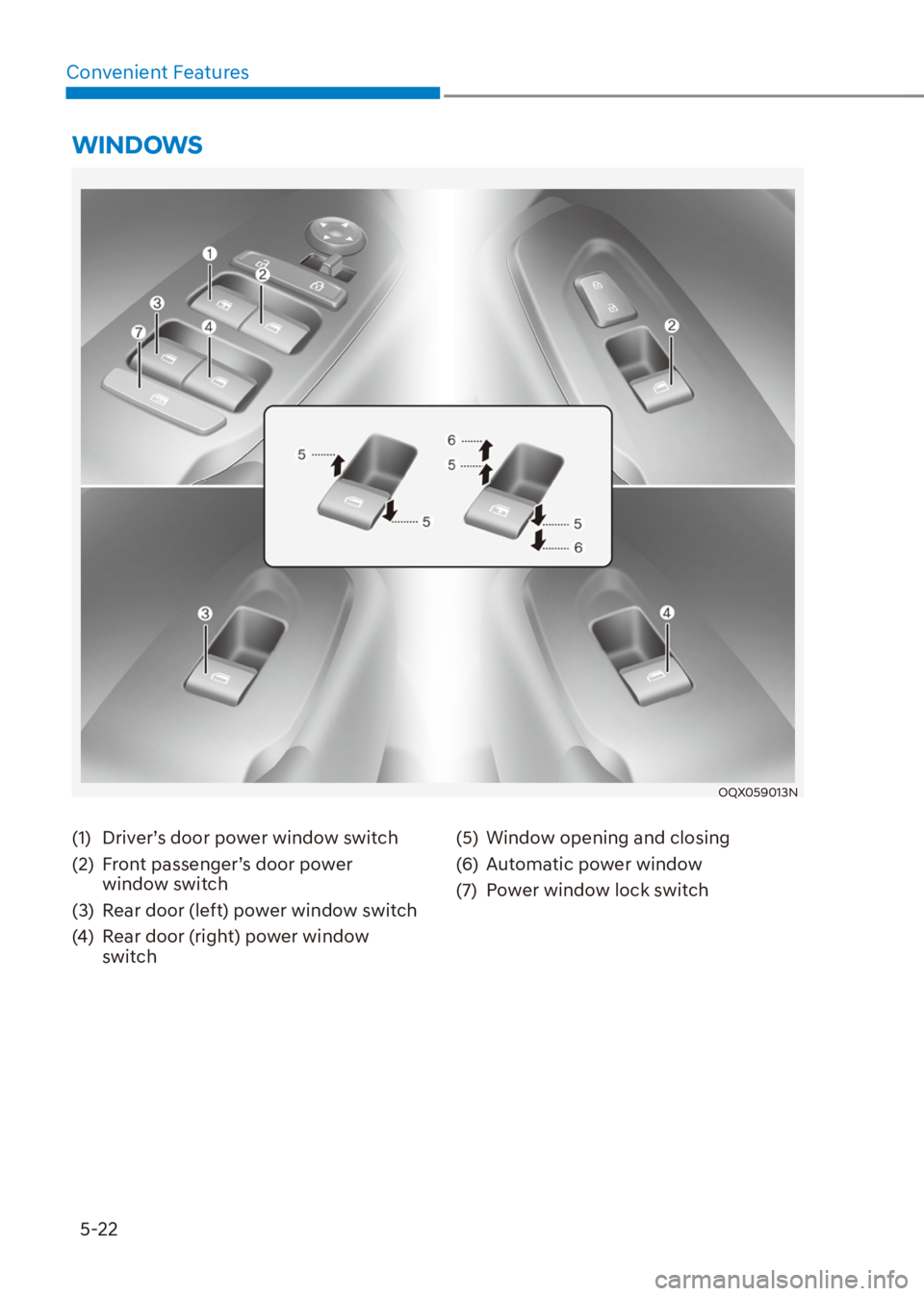

(1) Driver’s door power window switch
(2) Front passenger’s door power
window switch
(3) Rear door (left) power window switch
(4) Rear door (right) power window
switch(5) Window opening and closing
(6) Automatic power window
(7) Power window lock switch
WINDOWS
OQX059013N

05
5-23

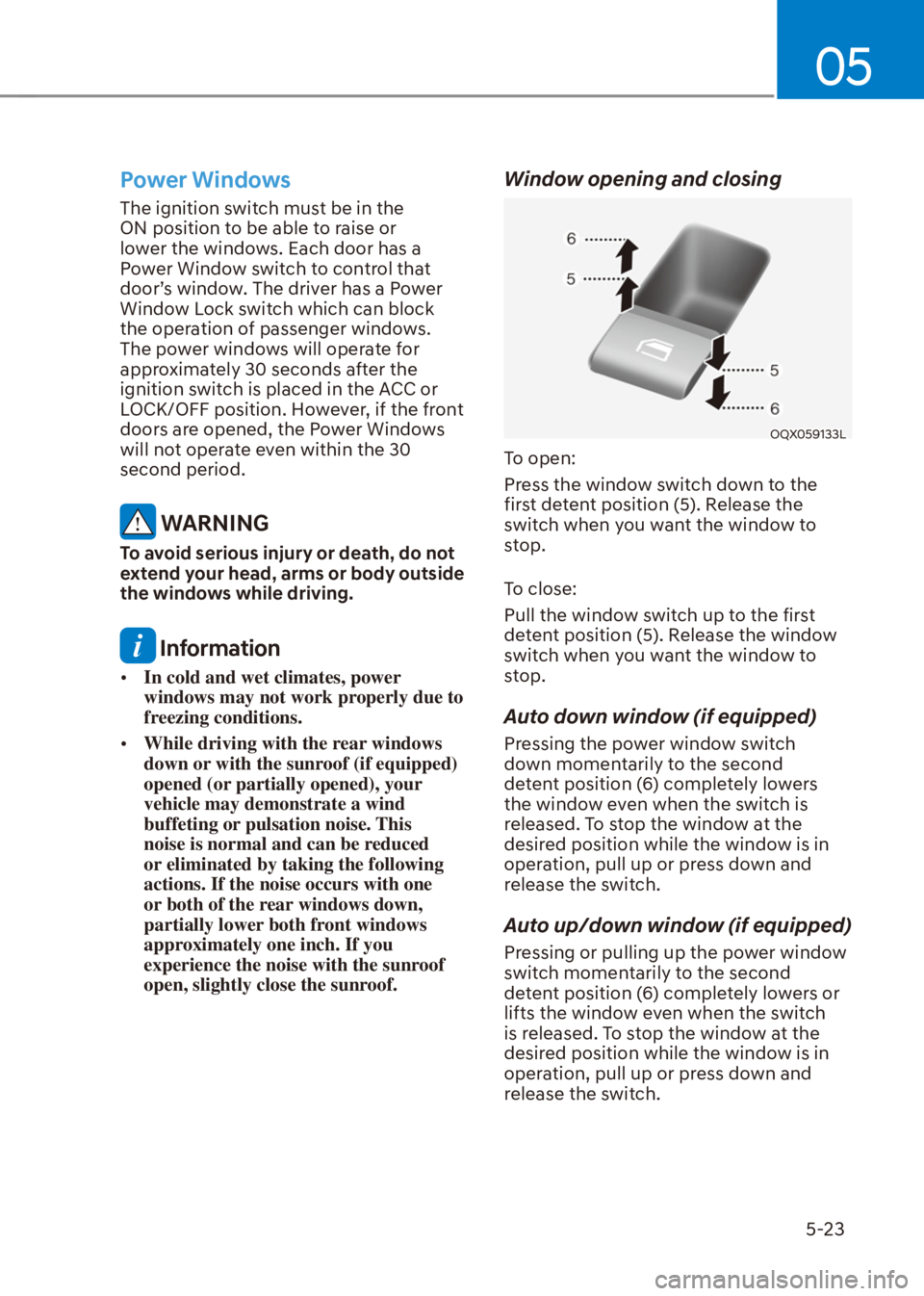

Power Windows
The ignition switch must be in the
ON position to be able to raise or
lower the windows. Each door has a
Power Window switch to control that
door’s window. The driver has a Power
Window Lock switch which can block
the operation of passenger windows.
The power windows will operate for
approximately 30 seconds after the
ignition switch is placed in the ACC or
LOCK/OFF position. However, if the front
doors are opened, the Power Windows
will not operate even within the 30
second period.
WARNING
To avoid serious injury or death, do not
extend your head, arms or body outside
the windows while driving.
Information

[In cold and wet climates, power
windows may not work properly due to
freezing conditions.

[While driving with the rear windows
down or with the sunroof (if equipped)
opened (or partially opened), your
vehicle may demonstrate a wind
buffeting or pulsation noise. This
noise is normal and can be reduced
or eliminated by taking the following
actions. If the noise occurs with one
or both of the rear windows down,
partially lower both front windows
approximately one inch. If you
experience the noise with the sunroof
open, slightly close the sunroof.
Window opening and closing
OQX059133L
To open:
Press the window switch down to the
first detent position (5). Release the
switch when you want the window to
stop.
To close:
Pull the window switch up to the first
detent position (5). Release the window
switch when you want the window to
stop.
Auto down window (if equipped)
Pressing the power window switch
down momentarily to the second
detent position (6) completely lowers
the window even when the switch is
released. To stop the window at the
desired position while the window is in
operation, pull up or press down and
release the switch.
Auto up/down window (if equipped)
Pressing or pulling up the power window
switch momentarily to the second
detent position (6) completely lowers or
lifts the window even when the switch
is released. To stop the window at the
desired position while the window is in
operation, pull up or press down and
release the switch.

Convenient Features
5-24

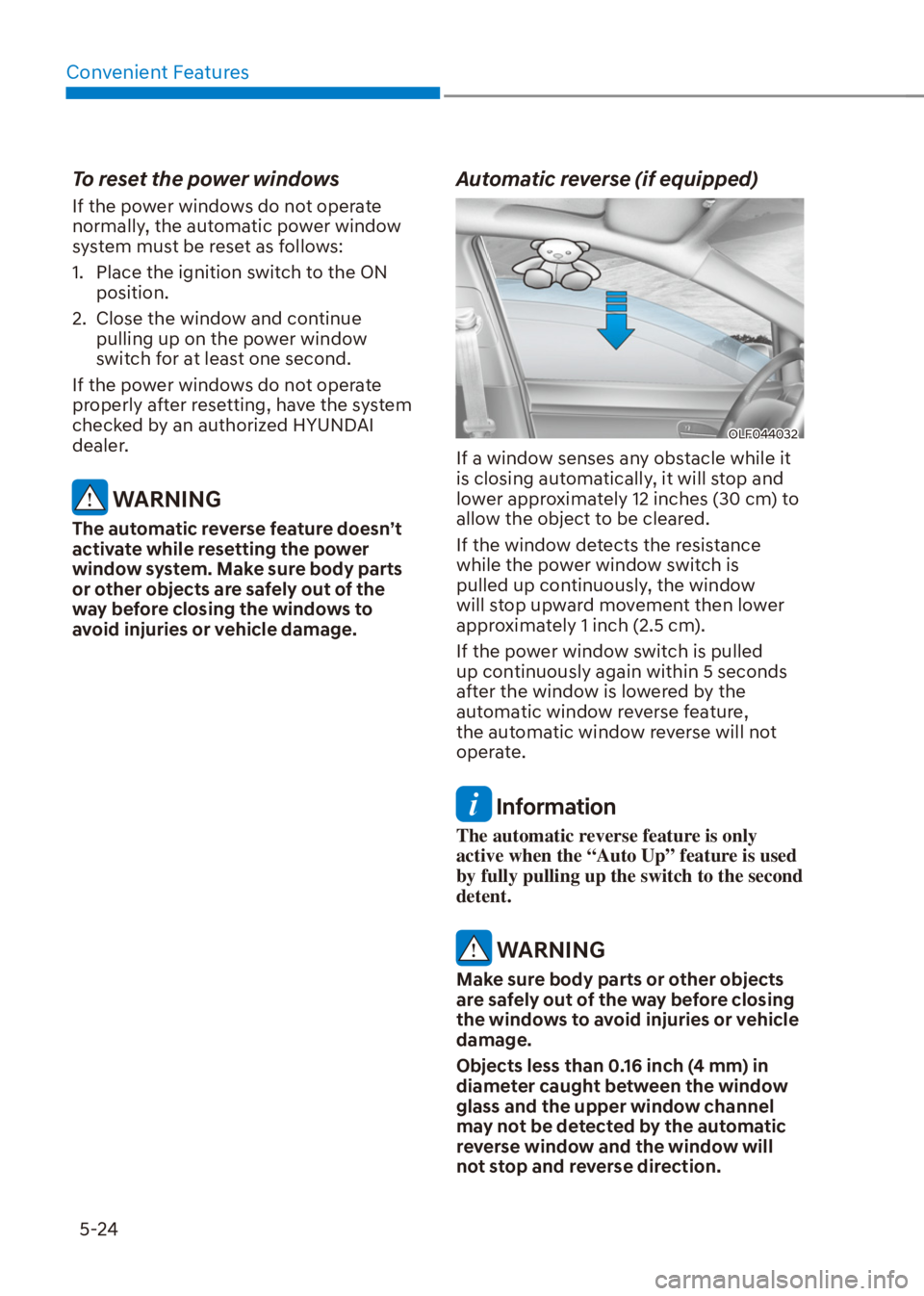

To reset the power windows
If the power windows do not operate
normally, the automatic power window
system must be reset as follows:
1. Place the ignition switch to the ON
position.
2. Close the window and continue
pulling up on the power window
switch for at least one second.
If the power windows do not operate
properly after resetting, have the system
checked by an authorized HYUNDAI
dealer.
WARNING
The automatic reverse feature doesn’t
activate while resetting the power
window system. Make sure body parts
or other objects are safely out of the
way before closing the windows to
avoid injuries or vehicle damage.
Automatic reverse (if equipped)
OLF044032
If a window senses any obstacle while it
is closing automatically, it will stop and
lower approximately 12 inches (30 cm) to
allow the object to be cleared.
If the window detects the resistance
while the power window switch is
pulled up continuously, the window
will stop upward movement then lower
approximately 1 inch (2.5 cm).
If the power window switch is pulled
up continuously again within 5 seconds
after the window is lowered by the
automatic window reverse feature,
the automatic window reverse will not
operate.
Information
The automatic reverse feature is only
active when the “Auto Up” feature is used
by fully pulling up the switch to the second
detent.
WARNING
Make sure body parts or other objects
are safely out of the way before closing
the windows to avoid injuries or vehicle
damage.
Objects less than 0.16 inch (4 mm) in
diameter caught between the window
glass and the upper window channel
may not be detected by the automatic
reverse window and the window will
not stop and reverse direction.

05
5-25

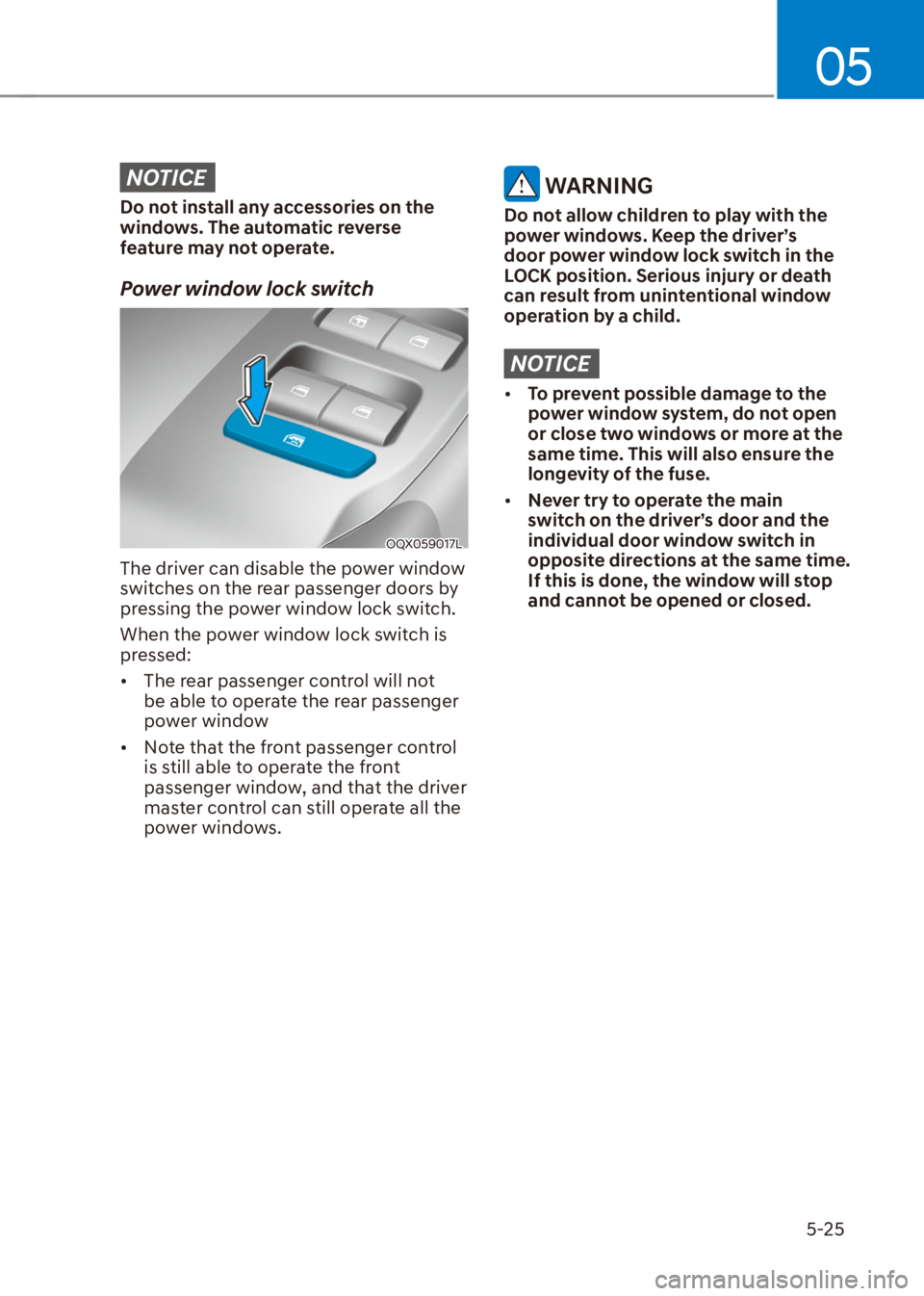

NOTICE
Do not install any accessories on the
windows. The automatic reverse
feature may not operate.
Power window lock switch
OQX059017L
The driver can disable the power window
switches on the rear passenger doors by
pressing the power window lock switch.
When the power window lock switch is
pressed:

[The rear passenger control will not
be able to operate the rear passenger
power window

[Note that the front passenger control
is still able to operate the front
passenger window, and that the driver
master control can still operate all the
power windows.
WARNING
Do not allow children to play with the
power windows. Keep the driver’s
door power window lock switch in the
LOCK position. Serious injury or death
can result from unintentional window
operation by a child.
NOTICE

[To prevent possible damage to the
power window system, do not open
or close two windows or more at the
same time. This will also ensure the
longevity of the fuse.

[Never try to operate the main
switch on the driver’s door and the
individual door window switch in
opposite directions at the same time.
If this is done, the window will stop
and cannot be opened or closed.

Convenient Features
5-26
681522)

05
5-27

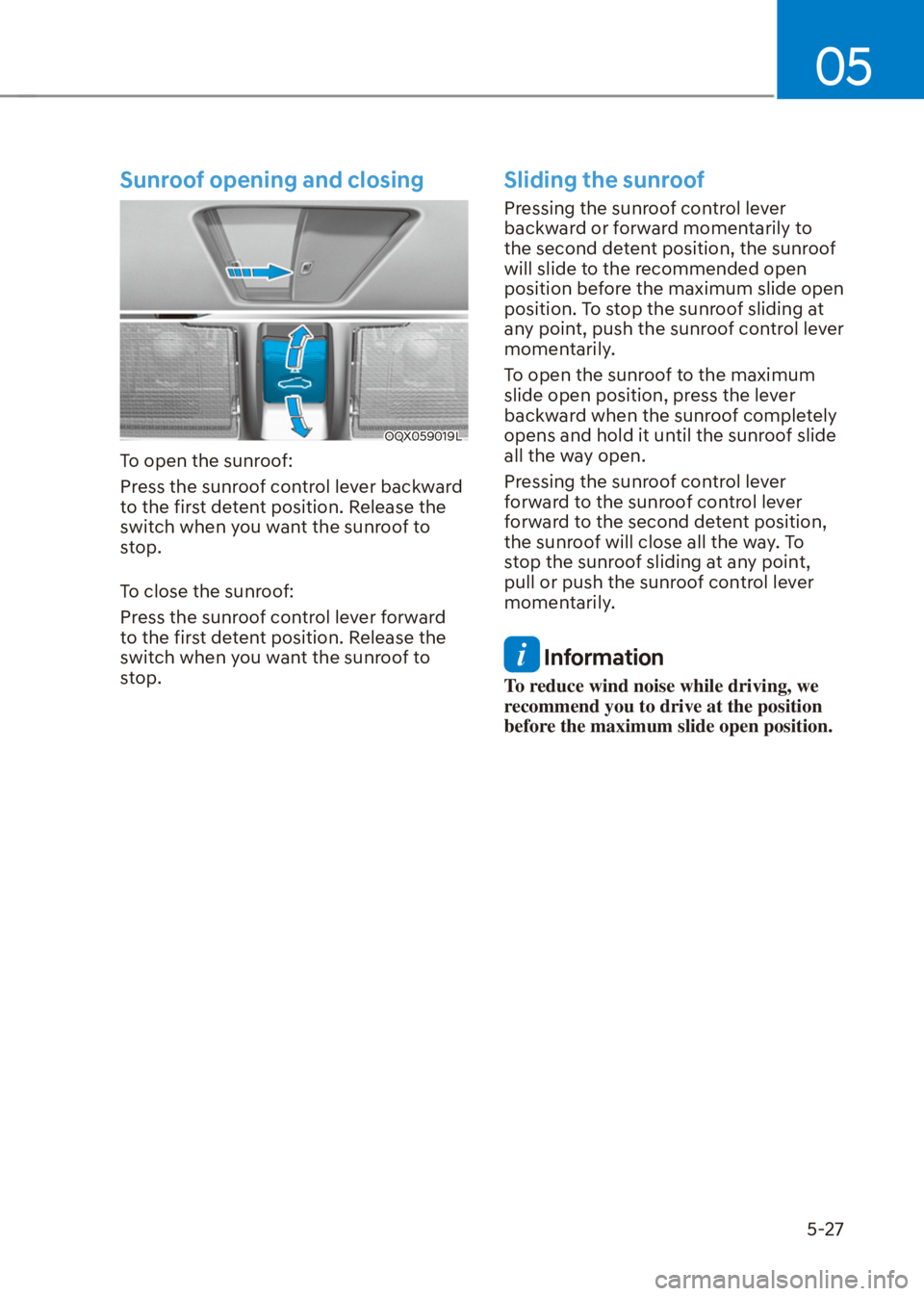

Sunroof opening and closing
OQX059019L
To open the sunroof:
Press the sunroof control lever backward
to the first detent position. Release the
switch when you want the sunroof to
stop.
To close the sunroof:
Press the sunroof control lever forward
to the first detent position. Release the
switch when you want the sunroof to
stop.
Sliding the sunroof
Pressing the sunroof control lever
backward or forward momentarily to
the second detent position, the sunroof
will slide to the recommended open
position before the maximum slide open
position. To stop the sunroof sliding at
any point, push the sunroof control lever
momentarily.
To open the sunroof to the maximum
slide open position, press the lever
backward when the sunroof completely
opens and hold it until the sunroof slide
all the way open.
Pressing the sunroof control lever
forward to the sunroof control lever
forward to the second detent position,
the sunroof will close all the way. To
stop the sunroof sliding at any point,
pull or push the sunroof control lever
momentarily.
Information
To reduce wind noise while driving, we
recommend you to drive at the position
before the maximum slide open position.

Convenient Features
5-28

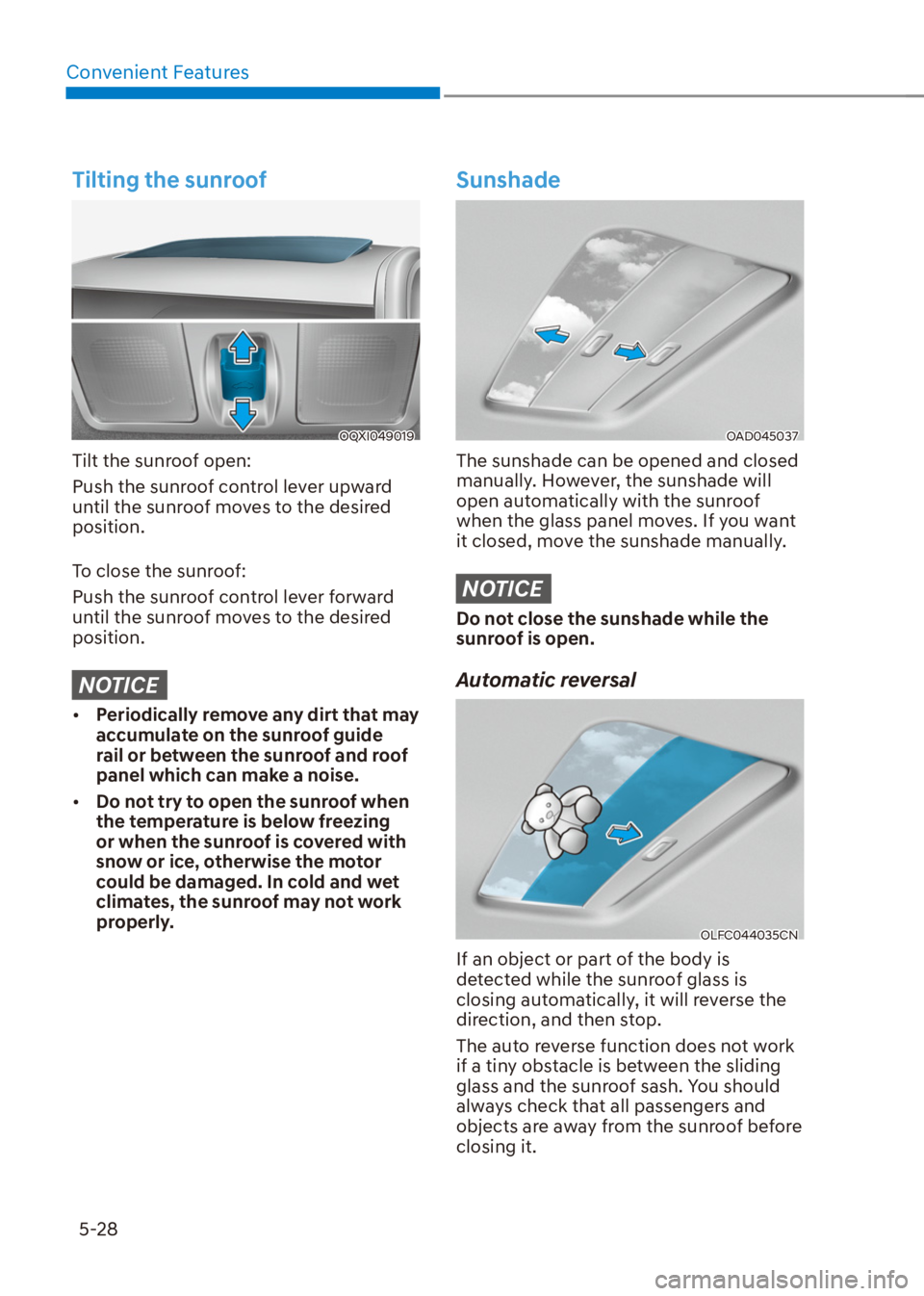

Tilting the sunroof
OQXI049019
Tilt the sunroof open:
Push the sunroof control lever upward
until the sunroof moves to the desired
position.
To close the sunroof:
Push the sunroof control lever forward
until the sunroof moves to the desired
position.
NOTICE

[Periodically remove any dirt that may
accumulate on the sunroof guide
rail or between the sunroof and roof
panel which can make a noise.

[Do not try to open the sunroof when
the temperature is below freezing
or when the sunroof is covered with
snow or ice, otherwise the motor
could be damaged. In cold and wet
climates, the sunroof may not work
properly.
Sunshade
OAD045037
The sunshade can be opened and closed
manually. However, the sunshade will
open automatically with the sunroof
when the glass panel moves. If you want
it closed, move the sunshade manually.
NOTICE
Do not close the sunshade while the
sunroof is open.
Automatic reversal
OLFC044035CN
If an object or part of the body is
detected while the sunroof glass is
closing automatically, it will reverse the
direction, and then stop.
The auto reverse function does not work
if a tiny obstacle is between the sliding
glass and the sunroof sash. You should
always check that all passengers and
objects are away from the sunroof before
closing it.

05
5-29

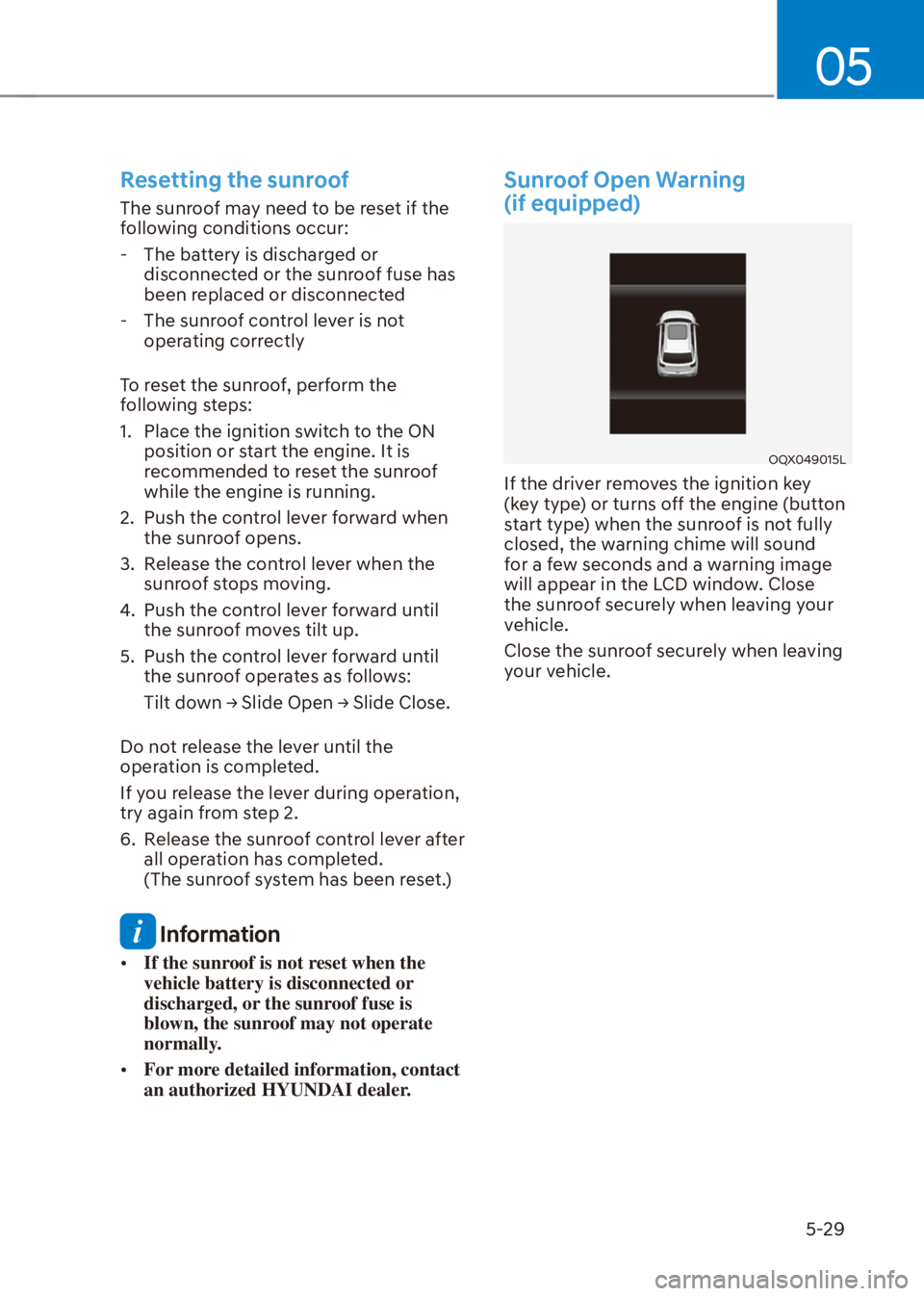

Resetting the sunroof
The sunroof may need to be reset if the
following conditions occur:
- The battery is discharged or
disconnected or the sunroof fuse has
been replaced or disconnected
- The sunroof control lever is not
operating correctly
To reset the sunroof, perform the
following steps:
1. Place the ignition switch to the ON
position or start the engine. It is
recommended to reset the sunroof
while the engine is running.
2. Push the control lever forward when
the sunroof opens.
3. Release the control lever when the
sunroof stops moving.
4. Push the control lever forward until
the sunroof moves tilt up.
5. Push the control lever forward until
the sunroof operates as follows:
7LOWGRZQ
