HYUNDAI VENUE 2021 Owners Manual

Convenient Features
5-30

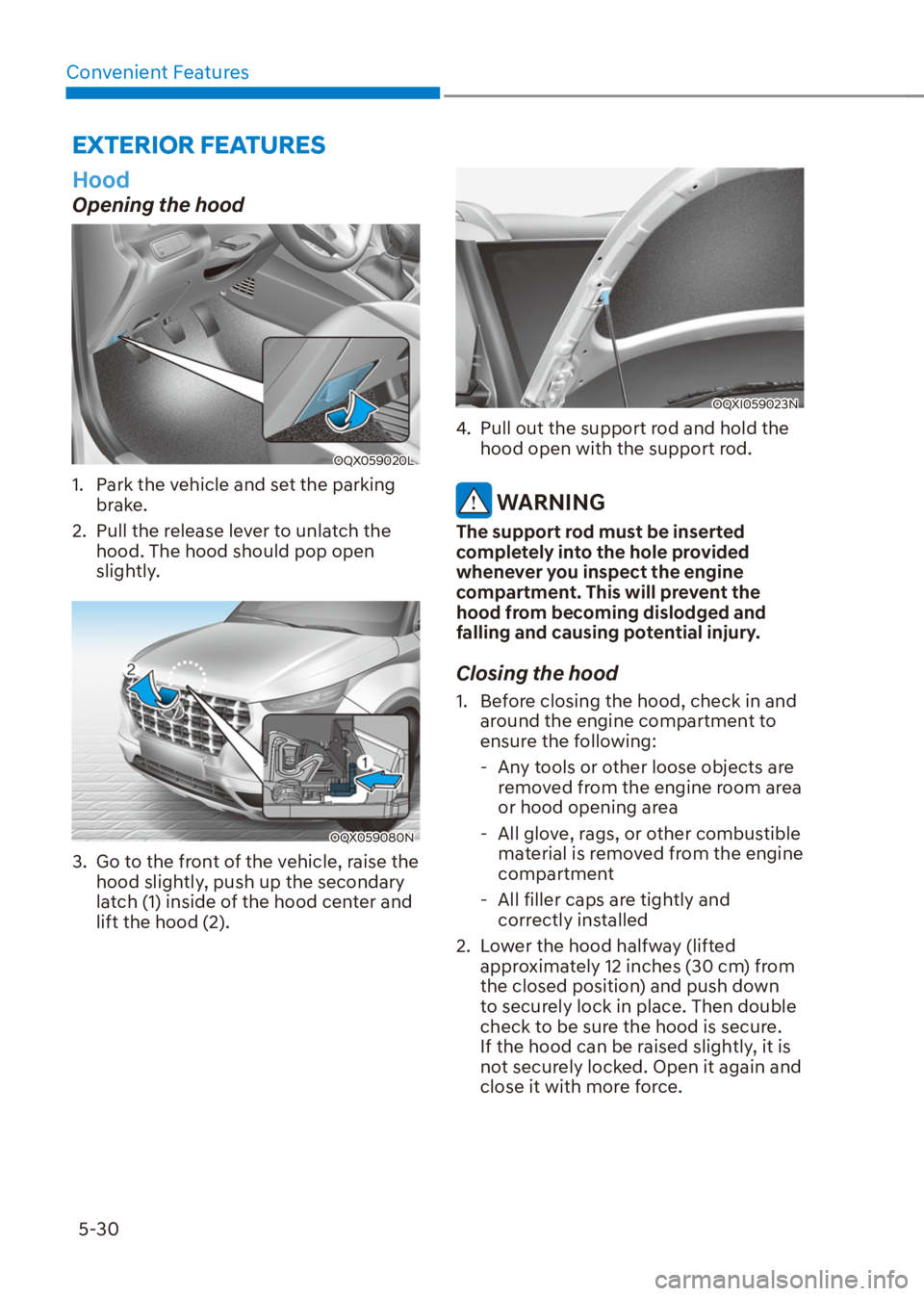

EXTERIOR FEATURES
Hood
Opening the hood
OQX059020L
1. Park the vehicle and set the parking
brake.
2. Pull the release lever to unlatch the
hood. The hood should pop open
slightly.
OQX059080N
3. Go to the front of the vehicle, raise the
hood slightly, push up the secondary
latch (1) inside of the hood center and
lift the hood (2).
OQXI059023N
4. Pull out the support rod and hold the
hood open with the support rod.
WARNING
The support rod must be inserted
completely into the hole provided
whenever you inspect the engine
compartment. This will prevent the
hood from becoming dislodged and
falling and causing potential injury.
Closing the hood
1. Before closing the hood, check in and
around the engine compartment to
ensure the following:
- Any tools or other loose objects are
removed from the engine room area
or hood opening area
- All glove, rags, or other combustible
material is removed from the engine
compartment
- All filler caps are tightly and
correctly installed
2. Lower the hood halfway (lifted
approximately 12 inches (30 cm) from
the closed position) and push down
to securely lock in place. Then double
check to be sure the hood is secure.
If the hood can be raised slightly, it is
not securely locked. Open it again and
close it with more force.

05
5-31

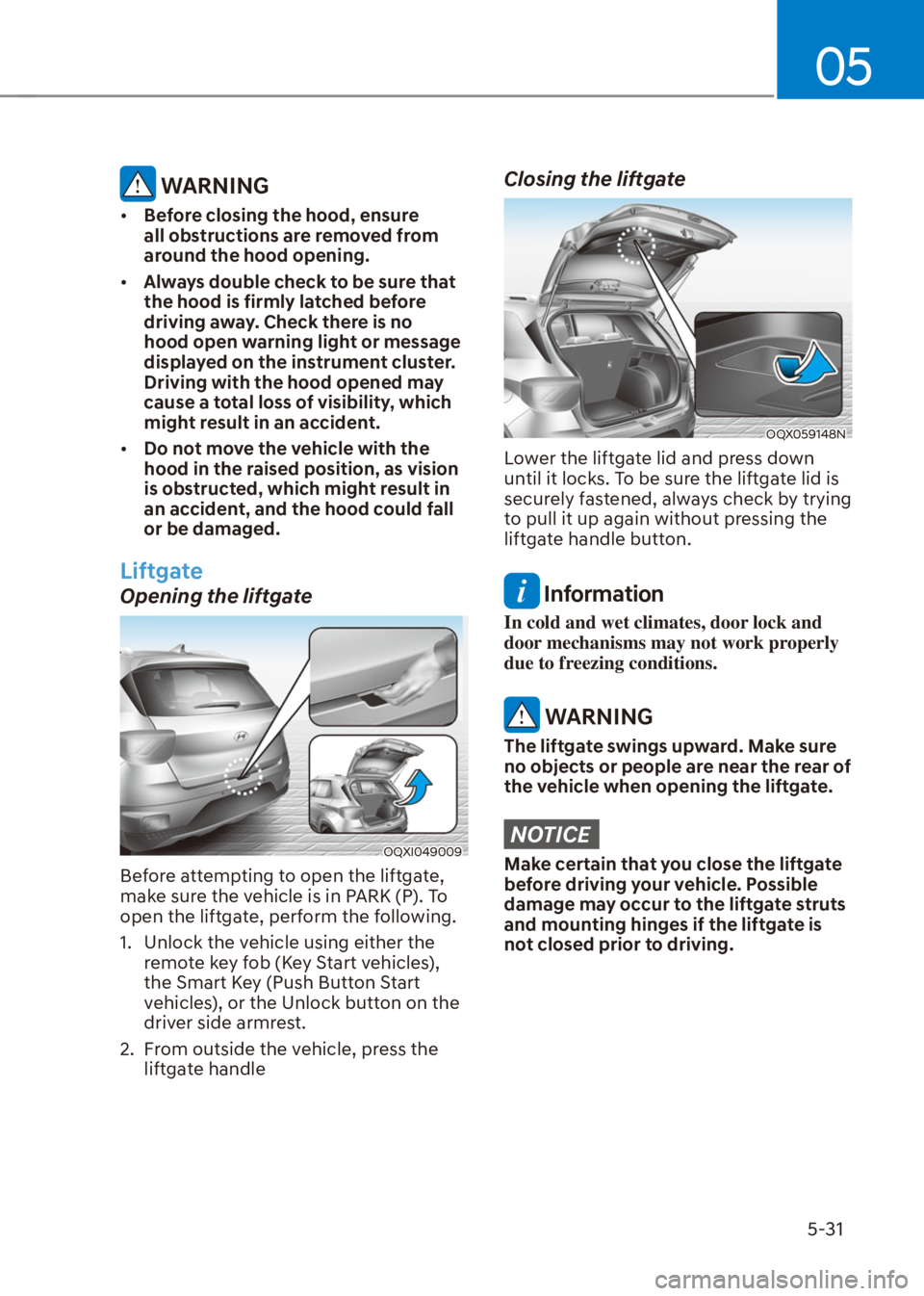

WARNING

[Before closing the hood, ensure
all obstructions are removed from
around the hood opening.

[Always double check to be sure that
the hood is firmly latched before
driving away. Check there is no
hood open warning light or message
displayed on the instrument cluster.
Driving with the hood opened may
cause a total loss of visibility, which
might result in an accident.

[Do not move the vehicle with the
hood in the raised position, as vision
is obstructed, which might result in
an accident, and the hood could fall
or be damaged.
Liftgate
Opening the liftgate
OQXI049009
Before attempting to open the liftgate,
make sure the vehicle is in PARK (P). To
open the liftgate, perform the following.
1. Unlock the vehicle using either the
remote key fob (Key Start vehicles),
the Smart Key (Push Button Start
vehicles), or the Unlock button on the
driver side armrest.
2. From outside the vehicle, press the
liftgate handle
Closing the liftgate
OQX059148N
Lower the liftgate lid and press down
until it locks. To be sure the liftgate lid is
securely fastened, always check by trying
to pull it up again without pressing the
liftgate handle button.
Information
In cold and wet climates, door lock and
door mechanisms may not work properly
due to freezing conditions.
WARNING
The liftgate swings upward. Make sure
no objects or people are near the rear of
the vehicle when opening the liftgate.
NOTICE
Make certain that you close the liftgate
before driving your vehicle. Possible
damage may occur to the liftgate struts
and mounting hinges if the liftgate is
not closed prior to driving.

Convenient Features
5-32

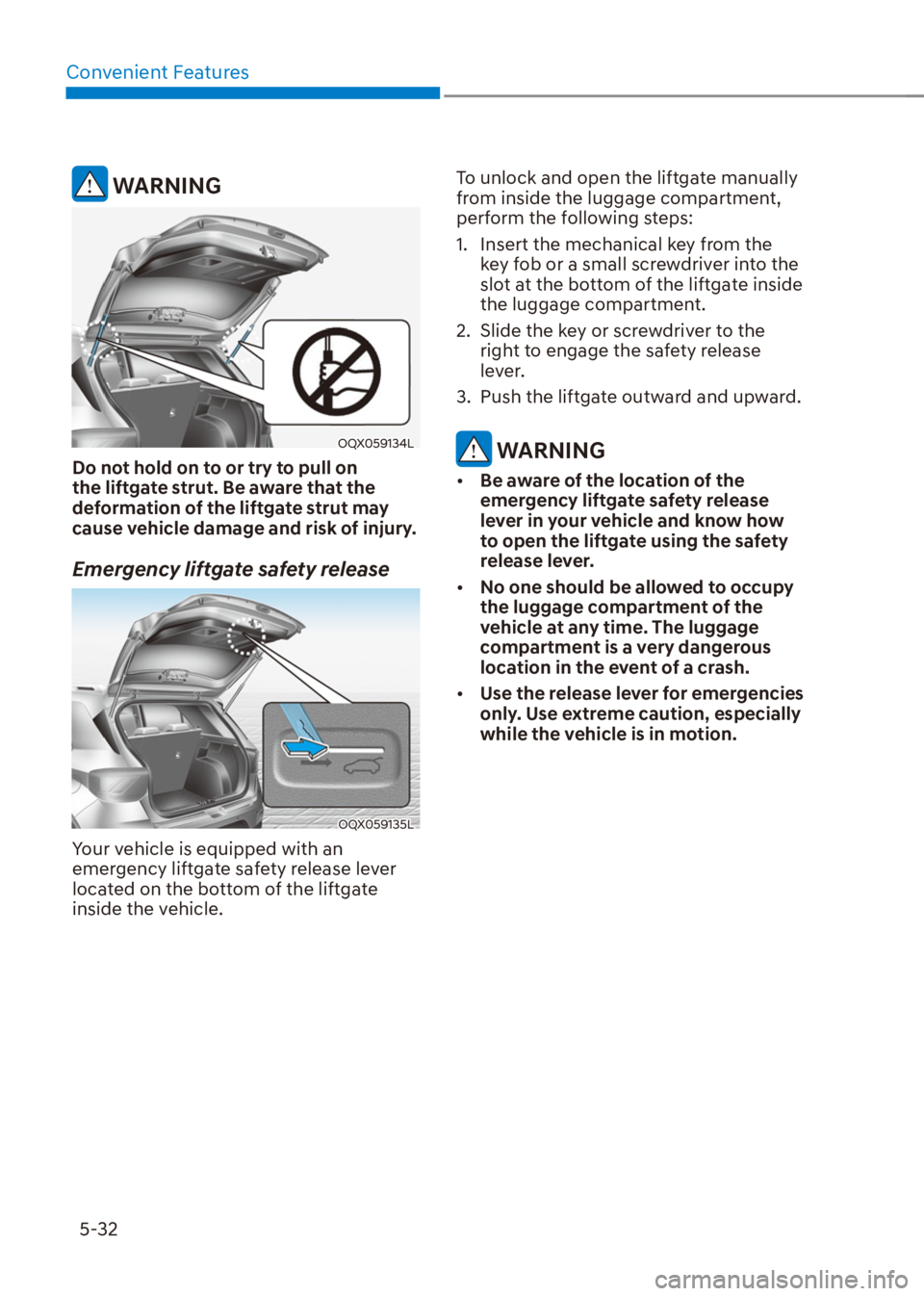

WARNING
OQX059134L
Do not hold on to or try to pull on
the liftgate strut. Be aware that the
deformation of the liftgate strut may
cause vehicle damage and risk of injury.
Emergency liftgate safety release
OQX059135L
Your vehicle is equipped with an
emergency liftgate safety release lever
located on the bottom of the liftgate
inside the vehicle.To unlock and open the liftgate manually
from inside the luggage compartment,
perform the following steps:
1. Insert the mechanical key from the
key fob or a small screwdriver into the
slot at the bottom of the liftgate inside
the luggage compartment.
2. Slide the key or screwdriver to the
right to engage the safety release
lever.
3. Push the liftgate outward and upward.
WARNING

[Be aware of the location of the
emergency liftgate safety release
lever in your vehicle and know how
to open the liftgate using the safety
release lever.

[No one should be allowed to occupy
the luggage compartment of the
vehicle at any time. The luggage
compartment is a very dangerous
location in the event of a crash.

[Use the release lever for emergencies
only. Use extreme caution, especially
while the vehicle is in motion.

05
5-33

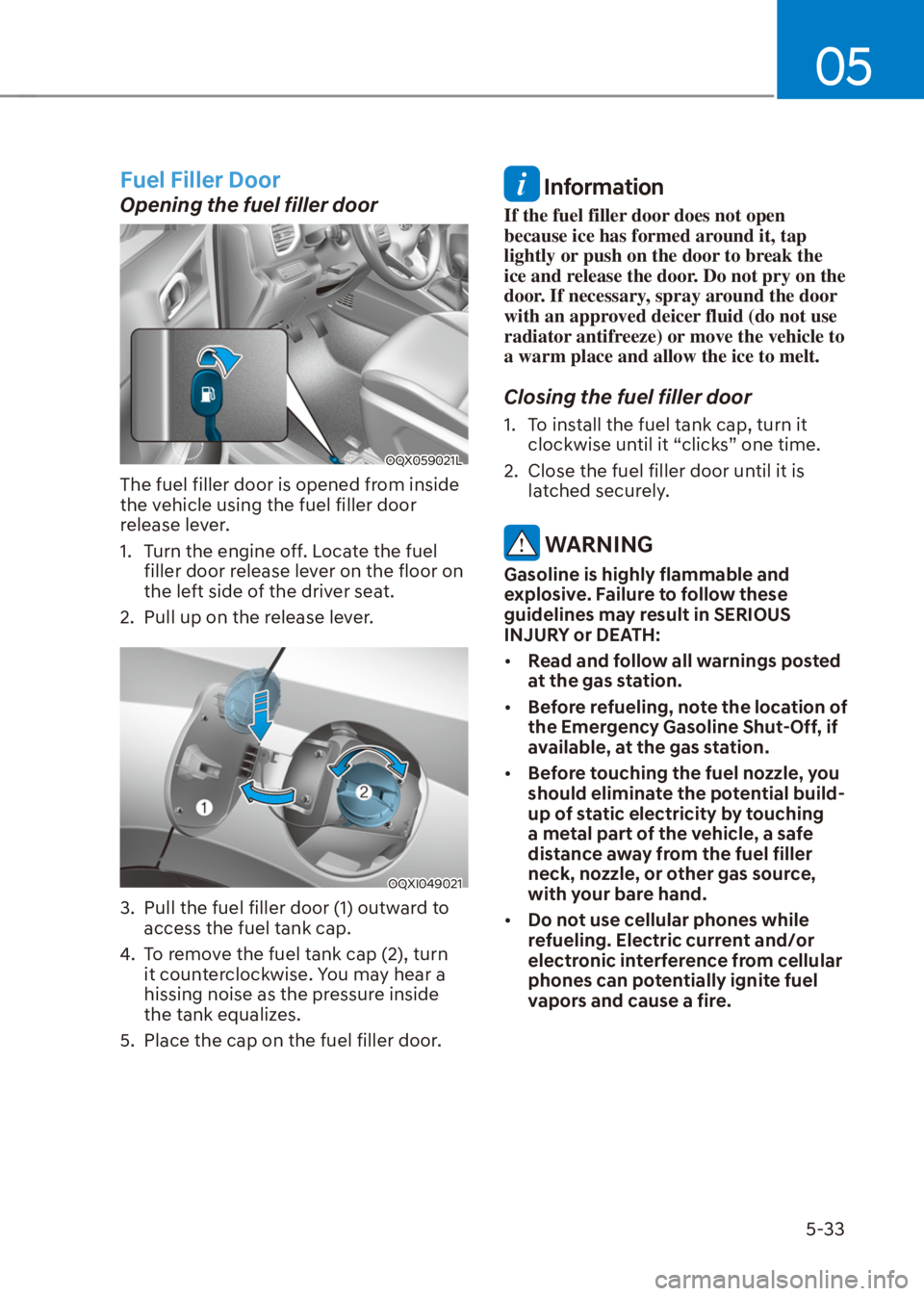

Fuel Filler Door
Opening the fuel filler door
OQX059021L
The fuel filler door is opened from inside
the vehicle using the fuel filler door
release lever.
1. Turn the engine off. Locate the fuel
filler door release lever on the floor on
the left side of the driver seat.
2. Pull up on the release lever.
OQXI049021
3. Pull the fuel filler door (1) outward to
access the fuel tank cap.
4. To remove the fuel tank cap (2), turn
it counterclockwise. You may hear a
hissing noise as the pressure inside
the tank equalizes.
5. Place the cap on the fuel filler door.
Information
If the fuel filler door does not open
because ice has formed around it, tap
lightly or push on the door to break the
ice and release the door. Do not pry on the
door. If necessary, spray around the door
with an approved deicer fluid (do not use
radiator antifreeze) or move the vehicle to
a warm place and allow the ice to melt.
Closing the fuel filler door
1. To install the fuel tank cap, turn it
clockwise until it “clicks” one time.
2. Close the fuel filler door until it is
latched securely.
WARNING
Gasoline is highly flammable and
explosive. Failure to follow these
guidelines may result in SERIOUS
INJURY or DEATH:

[Read and follow all warnings posted
at the gas station.

[Before refueling, note the location of
the Emergency Gasoline Shut-Off, if
available, at the gas station.

[Before touching the fuel nozzle, you
should eliminate the potential build-
up of static electricity by touching
a metal part of the vehicle, a safe
distance away from the fuel filler
neck, nozzle, or other gas source,
with your bare hand.

[Do not use cellular phones while
refueling. Electric current and/or
electronic interference from cellular
phones can potentially ignite fuel
vapors and cause a fire.

Convenient Features
5-34

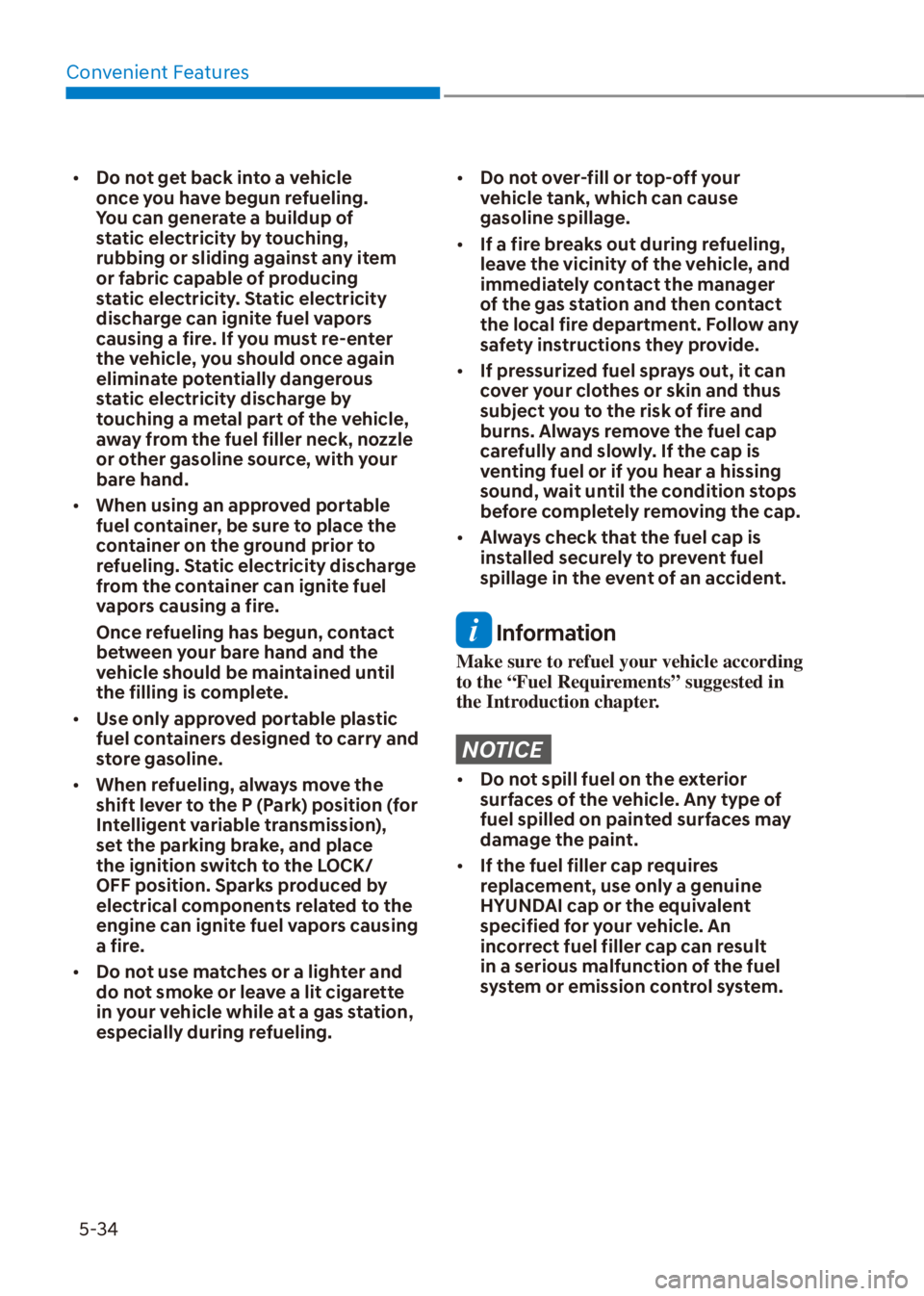

[Do not get back into a vehicle
once you have begun refueling.
You can generate a buildup of
static electricity by touching,
rubbing or sliding against any item
or fabric capable of producing
static electricity. Static electricity
discharge can ignite fuel vapors
causing a fire. If you must re-enter
the vehicle, you should once again
eliminate potentially dangerous
static electricity discharge by
touching a metal part of the vehicle,
away from the fuel filler neck, nozzle
or other gasoline source, with your
bare hand.

[When using an approved portable
fuel container, be sure to place the
container on the ground prior to
refueling. Static electricity discharge
from the container can ignite fuel
vapors causing a fire.
Once refueling has begun, contact
between your bare hand and the
vehicle should be maintained until
the filling is complete.

[Use only approved portable plastic
fuel containers designed to carry and
store gasoline.

[When refueling, always move the
shift lever to the P (Park) position (for
Intelligent variable transmission),
set the parking brake, and place
the ignition switch to the LOCK/
OFF position. Sparks produced by
electrical components related to the
engine can ignite fuel vapors causing
a fire.

[Do not use matches or a lighter and
do not smoke or leave a lit cigarette
in your vehicle while at a gas station,
especially during refueling.
[Do not over-fill or top-off your
vehicle tank, which can cause
gasoline spillage.

[If a fire breaks out during refueling,
leave the vicinity of the vehicle, and
immediately contact the manager
of the gas station and then contact
the local fire department. Follow any
safety instructions they provide.

[If pressurized fuel sprays out, it can
cover your clothes or skin and thus
subject you to the risk of fire and
burns. Always remove the fuel cap
carefully and slowly. If the cap is
venting fuel or if you hear a hissing
sound, wait until the condition stops
before completely removing the cap.

[Always check that the fuel cap is
installed securely to prevent fuel
spillage in the event of an accident.
Information
Make sure to refuel your vehicle according
to the “Fuel Requirements” suggested in
the Introduction chapter.
NOTICE

[Do not spill fuel on the exterior
surfaces of the vehicle. Any type of
fuel spilled on painted surfaces may
damage the paint.

[If the fuel filler cap requires
replacement, use only a genuine
HYUNDAI cap or the equivalent
specified for your vehicle. An
incorrect fuel filler cap can result
in a serious malfunction of the fuel
system or emission control system.

05
5-35

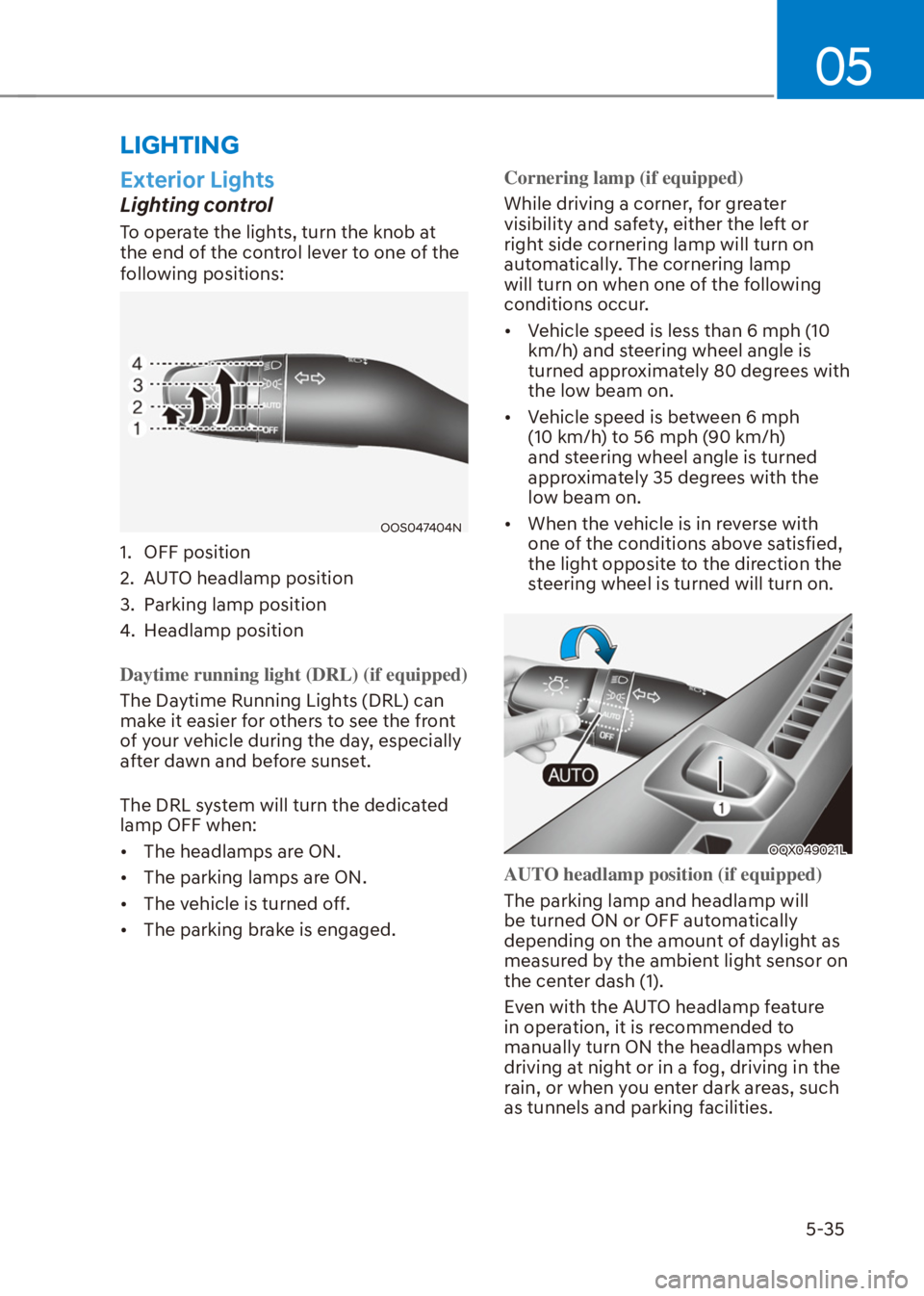

LIGHTING
Exterior Lights
Lighting control
To operate the lights, turn the knob at
the end of the control lever to one of the
following positions:
OOS047404N
1. OFF position
2. AUTO headlamp position
3. Parking lamp position
4. Headlamp position
Daytime running light (DRL) (if equipped)
The Daytime Running Lights (DRL) can
make it easier for others to see the front
of your vehicle during the day, especially
after dawn and before sunset.
The DRL system will turn the dedicated
lamp OFF when:

[The headlamps are ON.

[The parking lamps are ON.

[The vehicle is turned off.

[The parking brake is engaged.
Cornering lamp (if equipped)
While driving a corner, for greater
visibility and safety, either the left or
right side cornering lamp will turn on
automatically. The cornering lamp
will turn on when one of the following
conditions occur.

[Vehicle speed is less than 6 mph (10
km/h) and steering wheel angle is
turned approximately 80 degrees with
the low beam on.

[Vehicle speed is between 6 mph
(10 km/h) to 56 mph (90 km/h)
and steering wheel angle is turned
approximately 35 degrees with the
low beam on.

[When the vehicle is in reverse with
one of the conditions above satisfied,
the light opposite to the direction the
steering wheel is turned will turn on.
OQX049021L
AUTO headlamp position (if equipped)
The parking lamp and headlamp will
be turned ON or OFF automatically
depending on the amount of daylight as
measured by the ambient light sensor on
the center dash (1).
Even with the AUTO headlamp feature
in operation, it is recommended to
manually turn ON the headlamps when
driving at night or in a fog, driving in the
rain, or when you enter dark areas, such
as tunnels and parking facilities.

Convenient Features
5-36

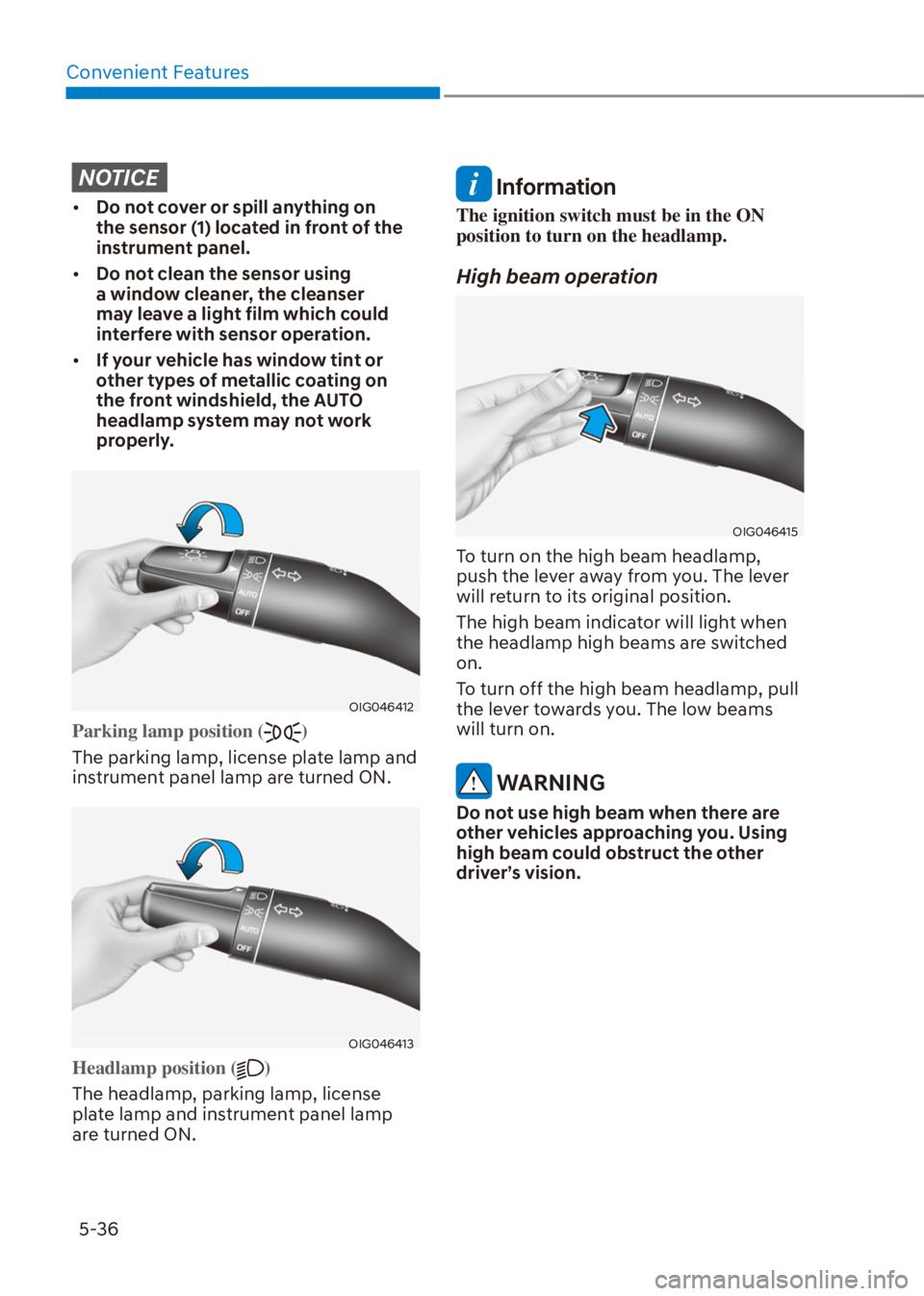

NOTICE

[Do not cover or spill anything on
the sensor (1) located in front of the
instrument panel.

[Do not clean the sensor using
a window cleaner, the cleanser
may leave a light film which could
interfere with sensor operation.

[If your vehicle has window tint or
other types of metallic coating on
the front windshield, the AUTO
headlamp system may not work
properly.
OIG046412
Parking lamp position ()
The parking lamp, license plate lamp and
instrument panel lamp are turned ON.
OIG046413
Headlamp position ()
The headlamp, parking lamp, license
plate lamp and instrument panel lamp
are turned ON.
Information
The ignition switch must be in the ON
position to turn on the headlamp.
High beam operation
OIG046415
To turn on the high beam headlamp,
push the lever away from you. The lever
will return to its original position.
The high beam indicator will light when
the headlamp high beams are switched
on.
To turn off the high beam headlamp, pull
the lever towards you. The low beams
will turn on.
WARNING
Do not use high beam when there are
other vehicles approaching you. Using
high beam could obstruct the other
driver’s vision.

05
5-37

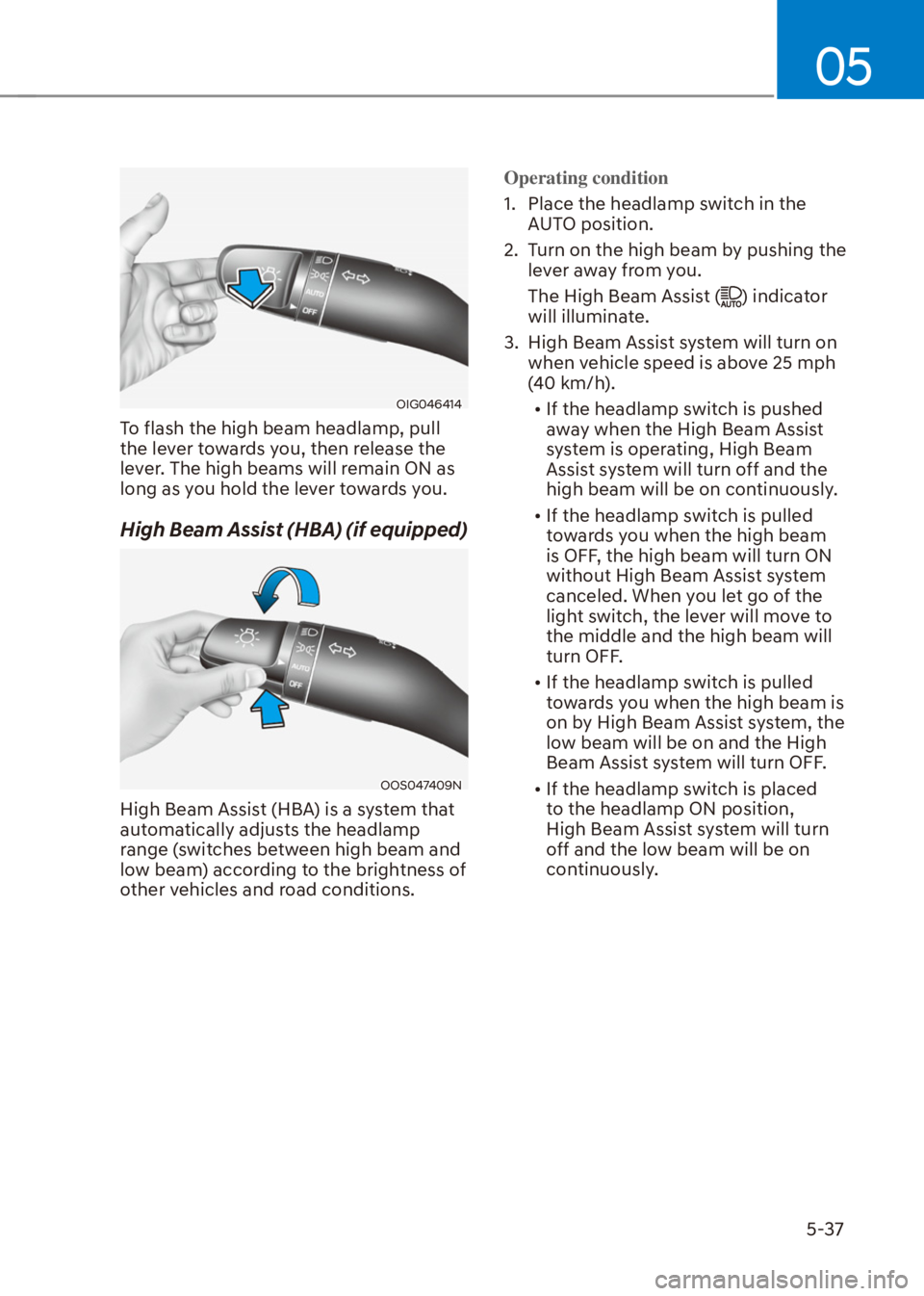

OIG046414
To flash the high beam headlamp, pull
the lever towards you, then release the
lever. The high beams will remain ON as
long as you hold the lever towards you.
High Beam Assist (HBA) (if equipped)
OOS047409N
High Beam Assist (HBA) is a system that
automatically adjusts the headlamp
range (switches between high beam and
low beam) according to the brightness of
other vehicles and road conditions.
Operating condition
1. Place the headlamp switch in the
AUTO position.
2. Turn on the high beam by pushing the
lever away from you.
The High Beam Assist (
) indicator
will illuminate.
3. High Beam Assist system will turn on
when vehicle speed is above 25 mph
(40 km/h).

[If the headlamp switch is pushed
away when the High Beam Assist
system is operating, High Beam
Assist system will turn off and the
high beam will be on continuously.

[If the headlamp switch is pulled
towards you when the high beam
is OFF, the high beam will turn ON
without High Beam Assist system
canceled. When you let go of the
light switch, the lever will move to
the middle and the high beam will
turn OFF.

[If the headlamp switch is pulled
towards you when the high beam is
on by High Beam Assist system, the
low beam will be on and the High
Beam Assist system will turn OFF.

[If the headlamp switch is placed
to the headlamp ON position,
High Beam Assist system will turn
off and the low beam will be on
continuously.

Convenient Features
5-38

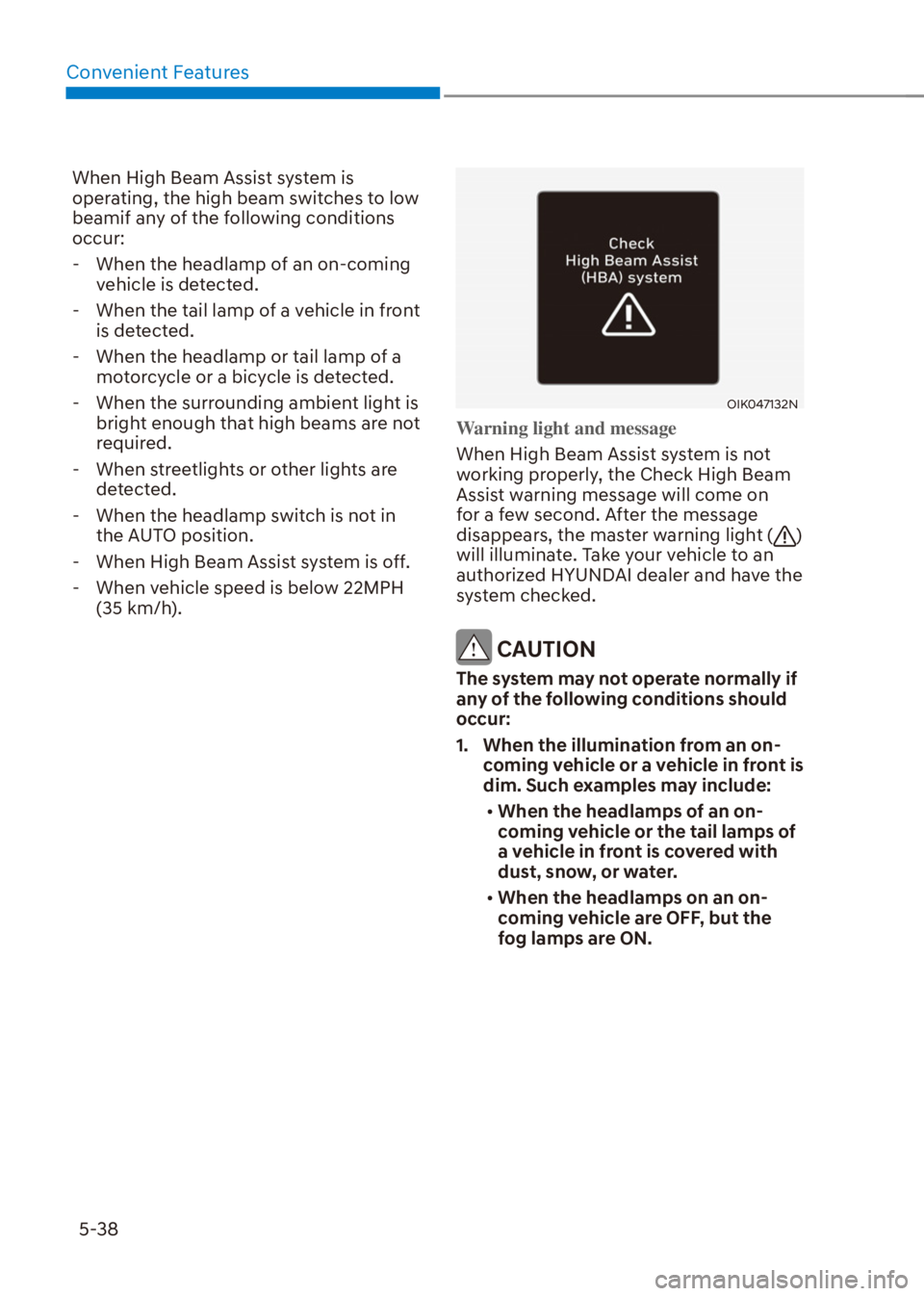

When High Beam Assist system is
operating, the high beam switches to low
beamif any of the following conditions
occur:
- When the headlamp of an on-coming
vehicle is detected.
- When the tail lamp of a vehicle in front
is detected.
- When the headlamp or tail lamp of a
motorcycle or a bicycle is detected.
- When the surrounding ambient light is
bright enough that high beams are not
required.
- When streetlights or other lights are
detected.
- When the headlamp switch is not in
the AUTO position.
- When High Beam Assist system is off.
- When vehicle speed is below 22MPH
(35 km/h).
OIK047132N
Warning light and message
When High Beam Assist system is not
working properly, the Check High Beam
Assist warning message will come on
for a few second. After the message
disappears, the master warning light (
)
will illuminate. Take your vehicle to an
authorized HYUNDAI dealer and have the
system checked.
CAUTION
The system may not operate normally if
any of the following conditions should
occur:
1. When the illumination from an on-
coming vehicle or a vehicle in front is
dim. Such examples may include:

[When the headlamps of an on-
coming vehicle or the tail lamps of
a vehicle in front is covered with
dust, snow, or water.

[When the headlamps on an on-
coming vehicle are OFF, but the
fog lamps are ON.

05
5-39

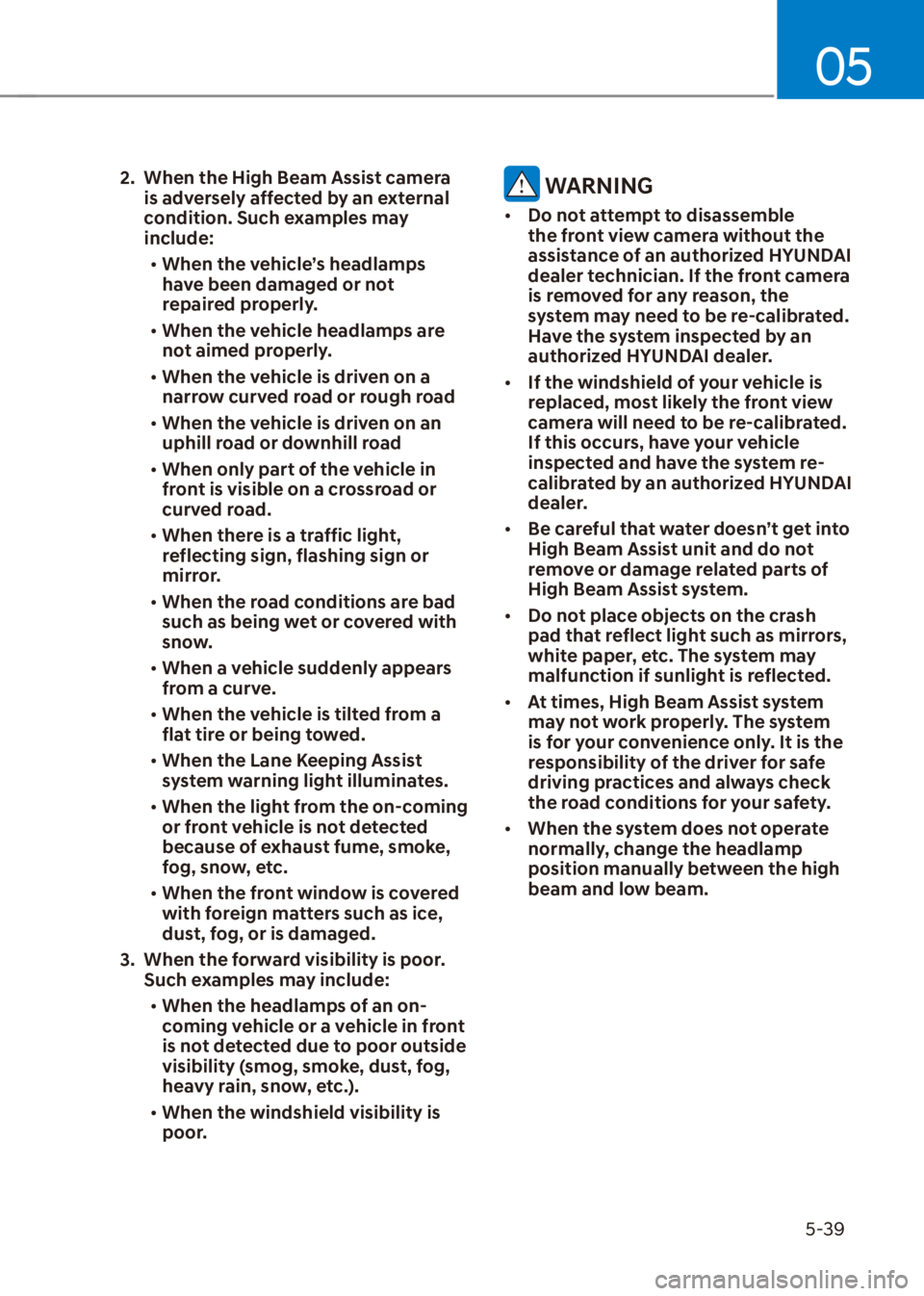

2. When the High Beam Assist camera
is adversely affected by an external
condition. Such examples may
include:

[When the vehicle’s headlamps
have been damaged or not
repaired properly.

[When the vehicle headlamps are
not aimed properly.

[When the vehicle is driven on a
narrow curved road or rough road

[When the vehicle is driven on an
uphill road or downhill road

[When only part of the vehicle in
front is visible on a crossroad or
curved road.

[When there is a traffic light,
reflecting sign, flashing sign or
mirror.

[When the road conditions are bad
such as being wet or covered with
snow.

[When a vehicle suddenly appears
from a curve.

[When the vehicle is tilted from a
flat tire or being towed.

[When the Lane Keeping Assist
system warning light illuminates.

[When the light from the on-coming
or front vehicle is not detected
because of exhaust fume, smoke,
fog, snow, etc.

[When the front window is covered
with foreign matters such as ice,
dust, fog, or is damaged.
3. When the forward visibility is poor.
Such examples may include:

[When the headlamps of an on-
coming vehicle or a vehicle in front
is not detected due to poor outside
visibility (smog, smoke, dust, fog,
heavy rain, snow, etc.).

[When the windshield visibility is
poor. WARNING

[Do not attempt to disassemble
the front view camera without the
assistance of an authorized HYUNDAI
dealer technician. If the front camera
is removed for any reason, the
system may need to be re-calibrated.
Have the system inspected by an
authorized HYUNDAI dealer.

[If the windshield of your vehicle is
replaced, most likely the front view
camera will need to be re-calibrated.
If this occurs, have your vehicle
inspected and have the system re-
calibrated by an authorized HYUNDAI
dealer.

[Be careful that water doesn’t get into
High Beam Assist unit and do not
remove or damage related parts of
High Beam Assist system.

[Do not place objects on the crash
pad that reflect light such as mirrors,
white paper, etc. The system may
malfunction if sunlight is reflected.

[At times, High Beam Assist system
may not work properly. The system
is for your convenience only. It is the
responsibility of the driver for safe
driving practices and always check
the road conditions for your safety.

[When the system does not operate
normally, change the headlamp
position manually between the high
beam and low beam.
