HYUNDAI VENUE 2021 Owners Manual

04
4-33

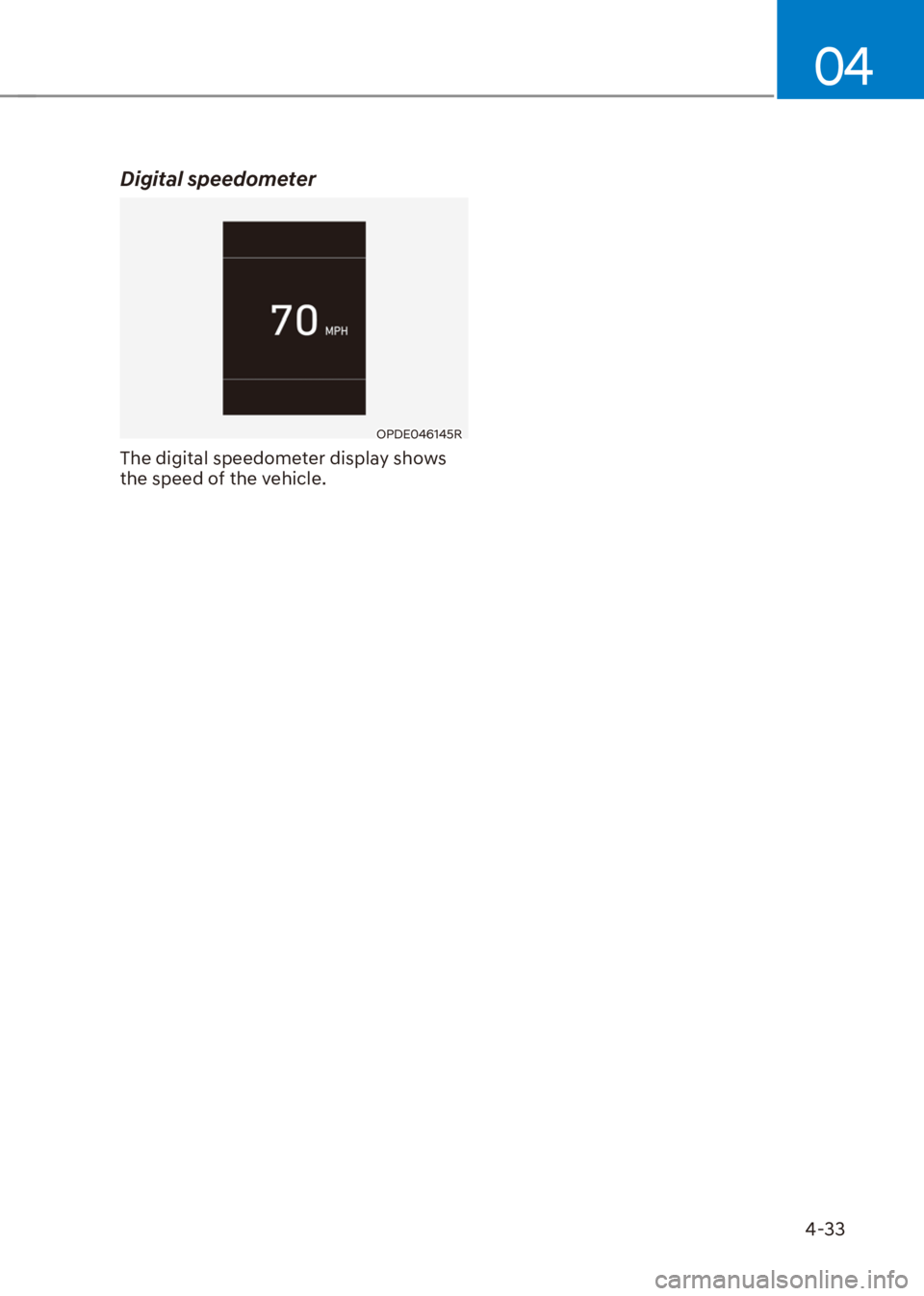

Digital speedometer
OPDE046145R
The digital speedometer display shows
the speed of the vehicle.

5

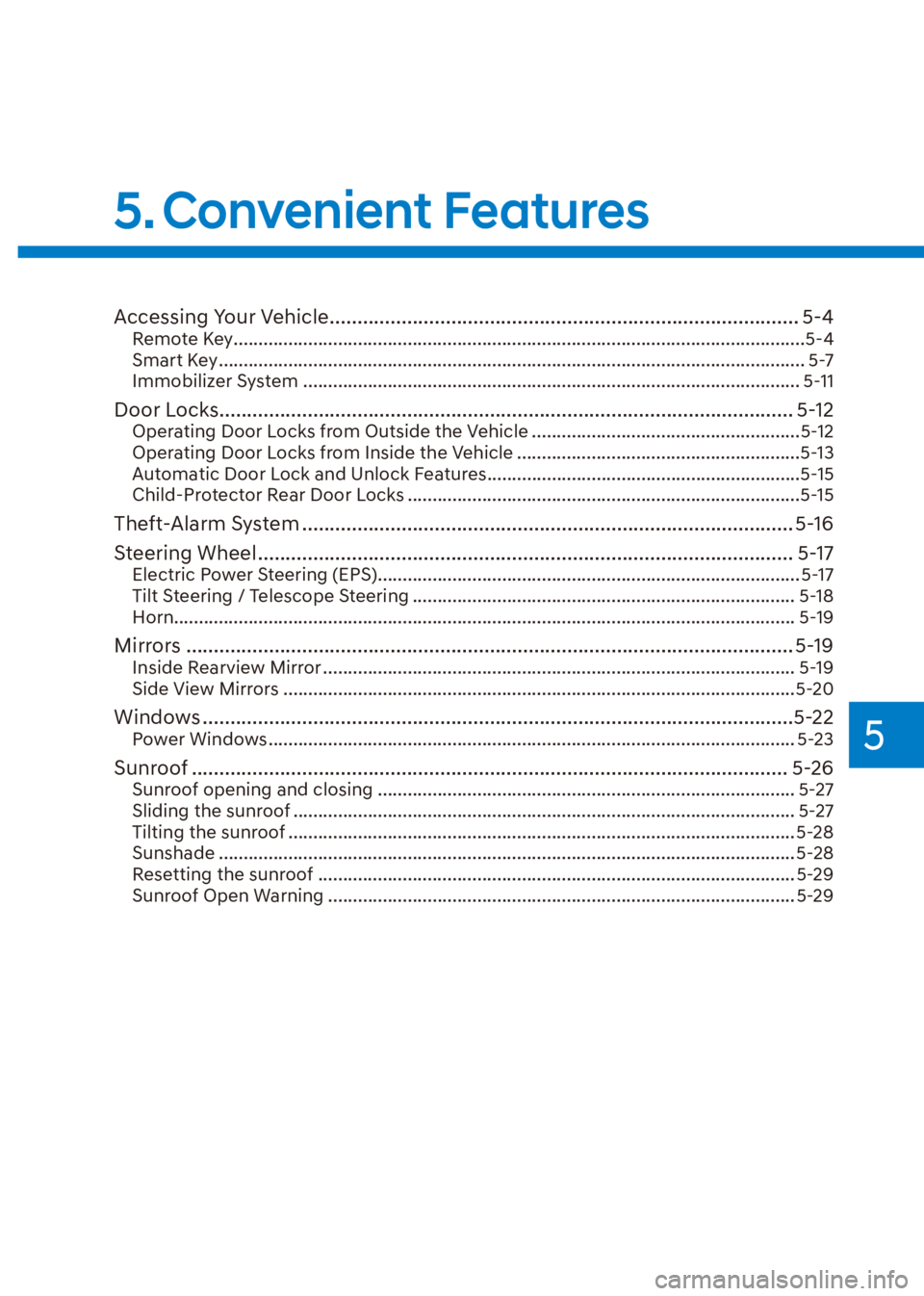

5. Convenient Features
Accessing Your Vehicle ..................................................................................... 5-4Remote Key ...................................................................................................................5-4
Smart Key ......................................................................................................................5-7
Immobilizer System .................................................................................................... 5-11
Door Locks ........................................................................................................ 5-12Operating Door Locks from Outside the Vehicle ......................................................5-12
Operating Door Locks from Inside the Vehicle .........................................................5-13
Automatic Door Lock and Unlock Features ...............................................................5-15
Child-Protector Rear Door Locks ...............................................................................5-15
Theft-Alarm System ......................................................................................... 5-16
Steering Wheel ................................................................................................. 5-17
Electric Power Steering (EPS) ..................................................................................... 5-17
Tilt Steering / Telescope Steering ............................................................................. 5-18
Horn............................................................................................................................. 5-19
Mirrors .............................................................................................................. 5-19Inside Rearview Mirror ............................................................................................... 5-19
Side View Mirrors .......................................................................................................5-20
Windows ...........................................................................................................5-22Power Windows .......................................................................................................... 5-23
Sunroof ............................................................................................................ 5-26Sunroof opening and closing .................................................................................... 5-27
Sliding the sunroof ..................................................................................................... 5-27
Tilting the sunroof ...................................................................................................... 5-28
Sunshade .................................................................................................................... 5-28
Resetting the sunroof ................................................................................................ 5-29
Sunroof Open Warning .............................................................................................. 5-29

5

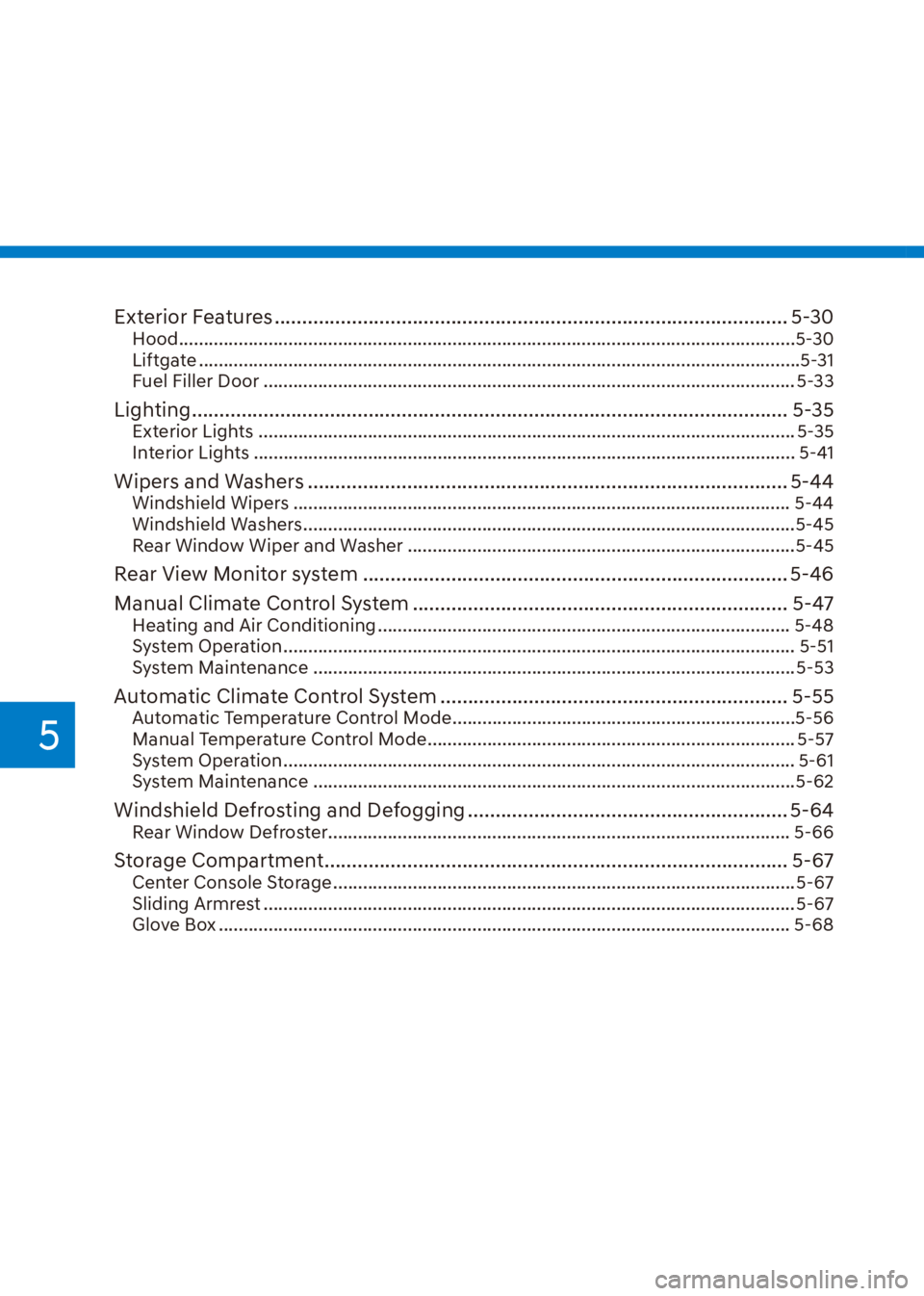

Exterior Features ............................................................................................. 5-30Hood ............................................................................................................................5-30
Liftgate .........................................................................................................................5-31
Fuel Filler Door ........................................................................................................... 5-33
Lighting ............................................................................................................ 5-35Exterior Lights ............................................................................................................ 5-35
Interior Lights ............................................................................................................. 5-41
Wipers and Washers ....................................................................................... 5-44Windshield Wipers .................................................................................................... 5-44
Windshield Washers ...................................................................................................5-45
Rear Window Wiper and Washer ..............................................................................5-45
Rear View Monitor system ............................................................................. 5-46
Manual Climate Control System .................................................................... 5-47
Heating and Air Conditioning ................................................................................... 5-48
System Operation ....................................................................................................... 5-51
System Maintenance .................................................................................................5-53
Automatic Climate Control System ............................................................... 5-55Automatic Temperature Control Mode .....................................................................5-56
Manual Temperature Control Mode .......................................................................... 5-57
System Operation ....................................................................................................... 5-61
System Maintenance .................................................................................................5-62
Windshield Defrosting and Defogging .......................................................... 5-64Rear Window Defroster............................................................................................. 5-66
Storage Compartment .................................................................................... 5-67
Center Console Storage ............................................................................................. 5-67
Sliding Armrest ........................................................................................................... 5-67
Glove Box ................................................................................................................... 5-68

5

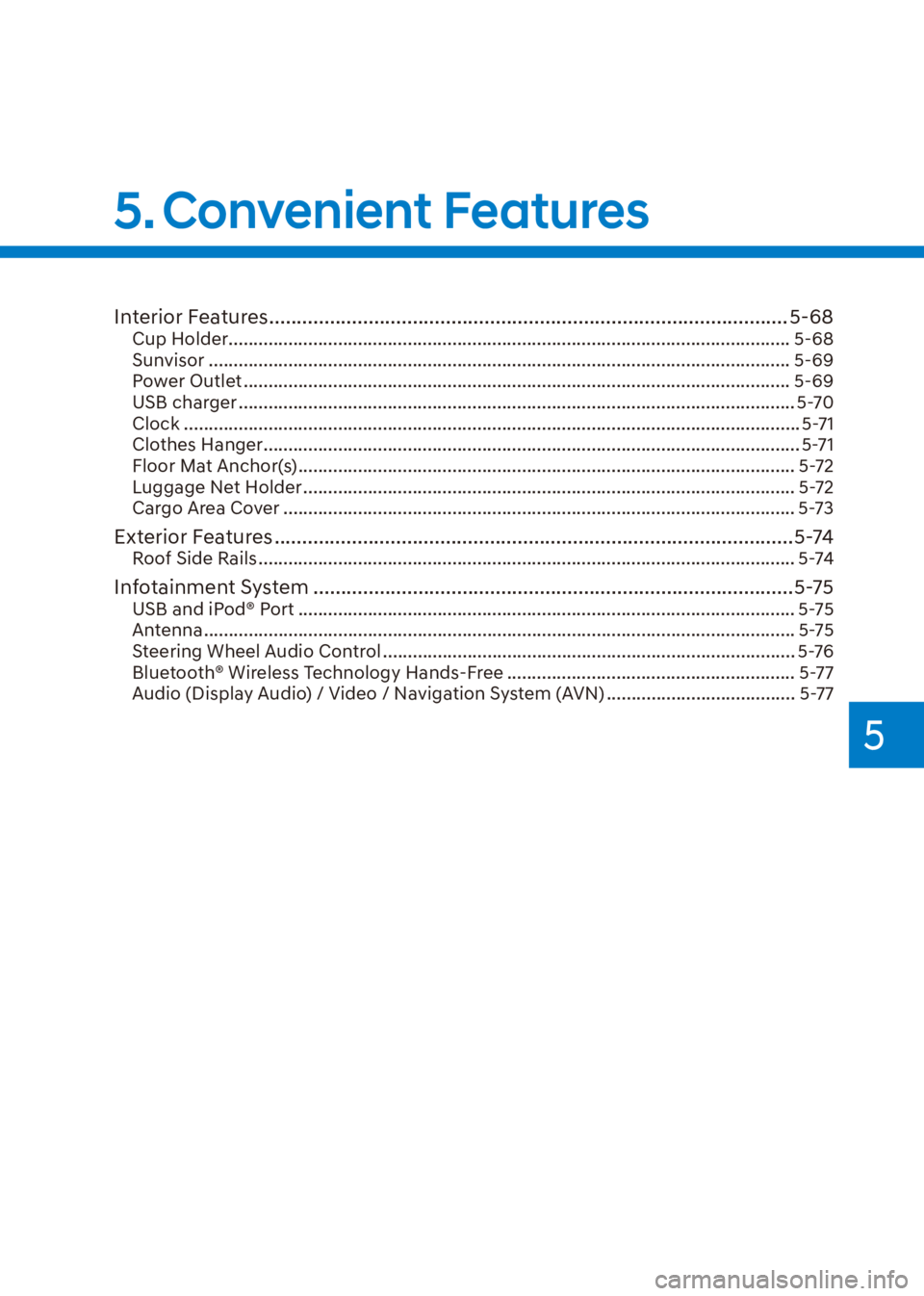

Interior Features .............................................................................................. 5-68Cup Holder ................................................................................................................. 5-68
Sunvisor ..................................................................................................................... 5-69
Power Outlet .............................................................................................................. 5-69
USB charger ................................................................................................................ 5-70
Clock ............................................................................................................................ 5-71
Clothes Hanger ............................................................................................................ 5-71
Floor Mat Anchor(s) .................................................................................................... 5-72
Luggage Net Holder ................................................................................................... 5-72
Cargo Area Cover ....................................................................................................... 5-73
Exterior Features ..............................................................................................5-74Roof Side Rails ............................................................................................................ 5-74
Infotainment System .......................................................................................5-75
USB and iPod® Port .................................................................................................... 5-75
Antenna .......................................................................................................................5-75
Steering Wheel Audio Control ................................................................................... 5-76
Bluetooth® Wireless Technology Hands-Free .......................................................... 5-77
Audio (Display Audio) / Video / Navigation System (AVN) ...................................... 5-77
5. Convenient Features

Convenient Features
5-4

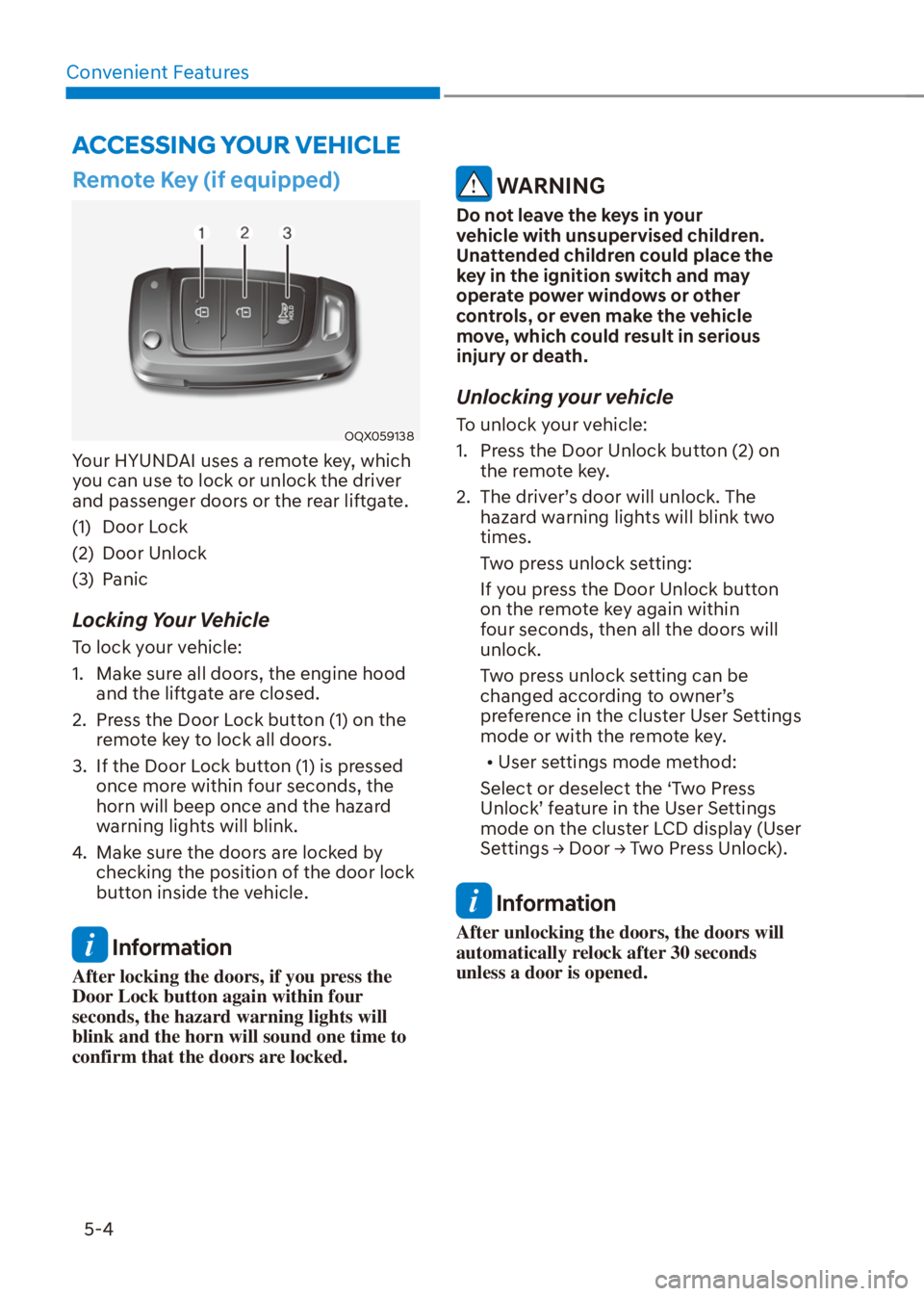

Remote Key (if equipped)
OQX059138
Your HYUNDAI uses a remote key, which
you can use to lock or unlock the driver
and passenger doors or the rear liftgate.
(1) Door Lock
(2) Door Unlock
(3) Panic
Locking Your Vehicle
To lock your vehicle:
1. Make sure all doors, the engine hood
and the liftgate are closed.
2. Press the Door Lock button (1) on the
remote key to lock all doors.
3. If the Door Lock button (1) is pressed
once more within four seconds, the
horn will beep once and the hazard
warning lights will blink.
4. Make sure the doors are locked by
checking the position of the door lock
button inside the vehicle.
Information
After locking the doors, if you press the
Door Lock button again within four
seconds, the hazard warning lights will
blink and the horn will sound one time to
confirm that the doors are locked.
WARNING
Do not leave the keys in your
vehicle with unsupervised children.
Unattended children could place the
key in the ignition switch and may
operate power windows or other
controls, or even make the vehicle
move, which could result in serious
injury or death.
Unlocking your vehicle
To unlock your vehicle:
1. Press the Door Unlock button (2) on
the remote key.
2. The driver’s door will unlock. The
hazard warning lights will blink two
times.
Two press unlock setting:
If you press the Door Unlock button
on the remote key again within
four seconds, then all the doors will
unlock.
Two press unlock setting can be
changed according to owner’s
preference in the cluster User Settings
mode or with the remote key.

[User settings mode method:
Select or deselect the ‘Two Press
Unlock’ feature in the User Settings
mode on the cluster LCD display (User
6HWWLQJV

05
5-5

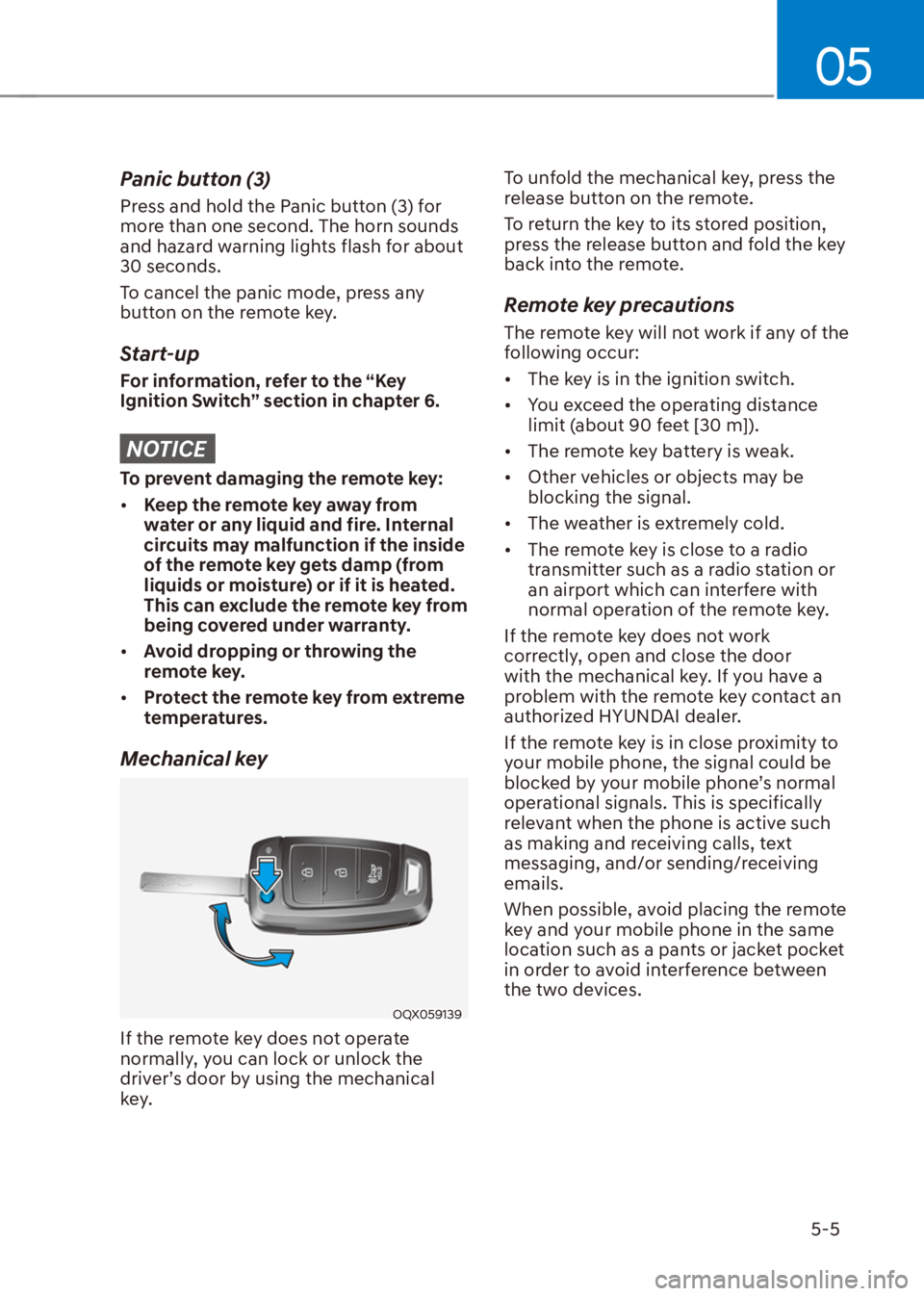

Panic button (3)
Press and hold the Panic button (3) for
more than one second. The horn sounds
and hazard warning lights flash for about
30 seconds.
To cancel the panic mode, press any
button on the remote key.
Start-up
For information, refer to the “Key
Ignition Switch” section in chapter 6.
NOTICE
To prevent damaging the remote key:

[Keep the remote key away from
water or any liquid and fire. Internal
circuits may malfunction if the inside
of the remote key gets damp (from
liquids or moisture) or if it is heated.
This can exclude the remote key from
being covered under warranty.

[Avoid dropping or throwing the
remote key.

[Protect the remote key from extreme
temperatures.
Mechanical key
OQX059139
If the remote key does not operate
normally, you can lock or unlock the
driver’s door by using the mechanical
key.To unfold the mechanical key, press the
release button on the remote.
To return the key to its stored position,
press the release button and fold the key
back into the remote.
Remote key precautions
The remote key will not work if any of the
following occur:

[The key is in the ignition switch.

[You exceed the operating distance
limit (about 90 feet [30 m]).

[The remote key battery is weak.

[Other vehicles or objects may be
blocking the signal.

[The weather is extremely cold.

[The remote key is close to a radio
transmitter such as a radio station or
an airport which can interfere with
normal operation of the remote key.
If the remote key does not work
correctly, open and close the door
with the mechanical key. If you have a
problem with the remote key contact an
authorized HYUNDAI dealer.
If the remote key is in close proximity to
your mobile phone, the signal could be
blocked by your mobile phone’s normal
operational signals. This is specifically
relevant when the phone is active such
as making and receiving calls, text
messaging, and/or sending/receiving
emails.
When possible, avoid placing the remote
key and your mobile phone in the same
location such as a pants or jacket pocket
in order to avoid interference between
the two devices.

Convenient Features
5-6

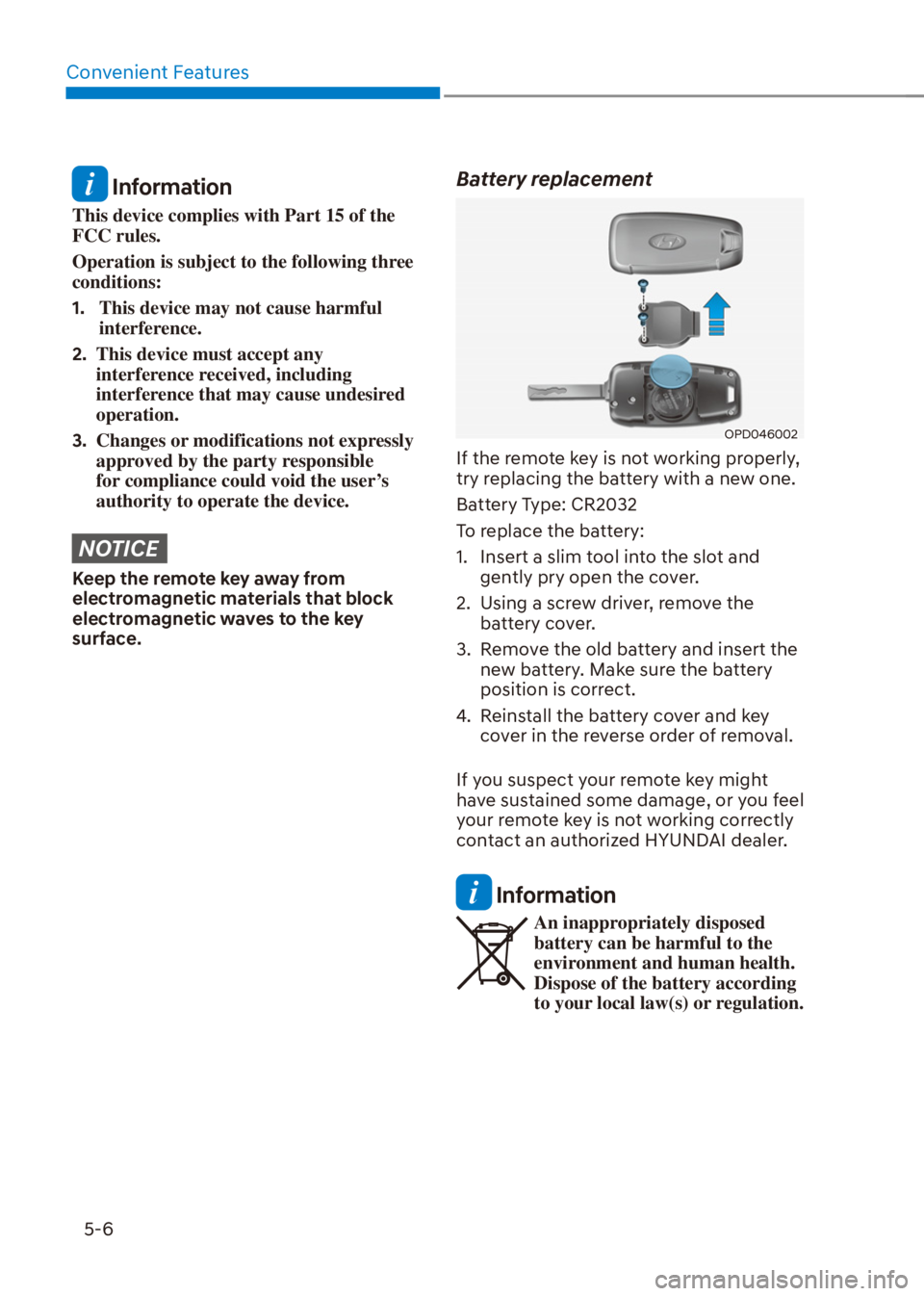

Information
This device complies with Part 15 of the
FCC rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference.
2. This device must accept any
interference received, including
interference that may cause undesired
operation.
3. Changes or modifications not expressly
approved by the party responsible
for compliance could void the user’s
authority to operate the device.
NOTICE
Keep the remote key away from
electromagnetic materials that block
electromagnetic waves to the key
surface.
Battery replacement
OPD046002
If the remote key is not working properly,
try replacing the battery with a new one.
Battery Type: CR2032
To replace the battery:
1. Insert a slim tool into the slot and
gently pry open the cover.
2. Using a screw driver, remove the
battery cover.
3. Remove the old battery and insert the
new battery. Make sure the battery
position is correct.
4. Reinstall the battery cover and key
cover in the reverse order of removal.
If you suspect your remote key might
have sustained some damage, or you feel
your remote key is not working correctly
contact an authorized HYUNDAI dealer.
Information
An inappropriately disposed
battery can be harmful to the
environment and human health.
Dispose of the battery according
to your local law(s) or regulation.

05
5-7

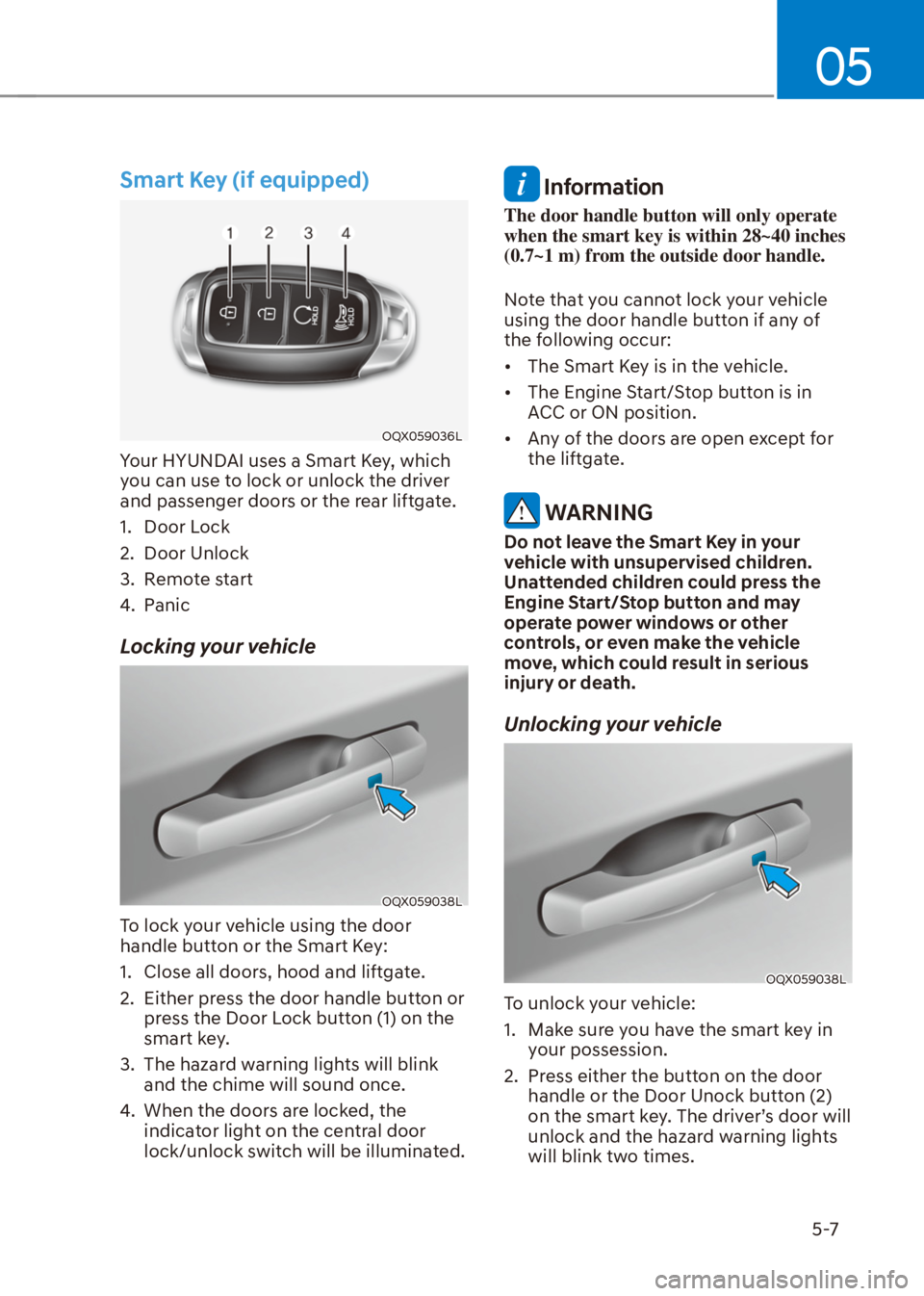

Smart Key (if equipped)
OQX059036L
Your HYUNDAI uses a Smart Key, which
you can use to lock or unlock the driver
and passenger doors or the rear liftgate.
1. Door Lock
2. Door Unlock
3. Remote start
4. Panic
Locking your vehicle
OQX059038L
To lock your vehicle using the door
handle button or the Smart Key:
1. Close all doors, hood and liftgate.
2. Either press the door handle button or
press the Door Lock button (1) on the
smart key.
3. The hazard warning lights will blink
and the chime will sound once.
4. When the doors are locked, the
indicator light on the central door
lock/unlock switch will be illuminated.
Information
The door handle button will only operate
when the smart key is within 28~40 inches
(0.7~1 m) from the outside door handle.
Note that you cannot lock your vehicle
using the door handle button if any of
the following occur:

[The Smart Key is in the vehicle.

[The Engine Start/Stop button is in
ACC or ON position.

[Any of the doors are open except for
the liftgate.
WARNING
Do not leave the Smart Key in your
vehicle with unsupervised children.
Unattended children could press the
Engine Start/Stop button and may
operate power windows or other
controls, or even make the vehicle
move, which could result in serious
injury or death.
Unlocking your vehicle
OQX059038L
To unlock your vehicle:
1. Make sure you have the smart key in
your possession.
2. Press either the button on the door
handle or the Door Unock button (2)
on the smart key. The driver’s door will
unlock and the hazard warning lights
will blink two times.

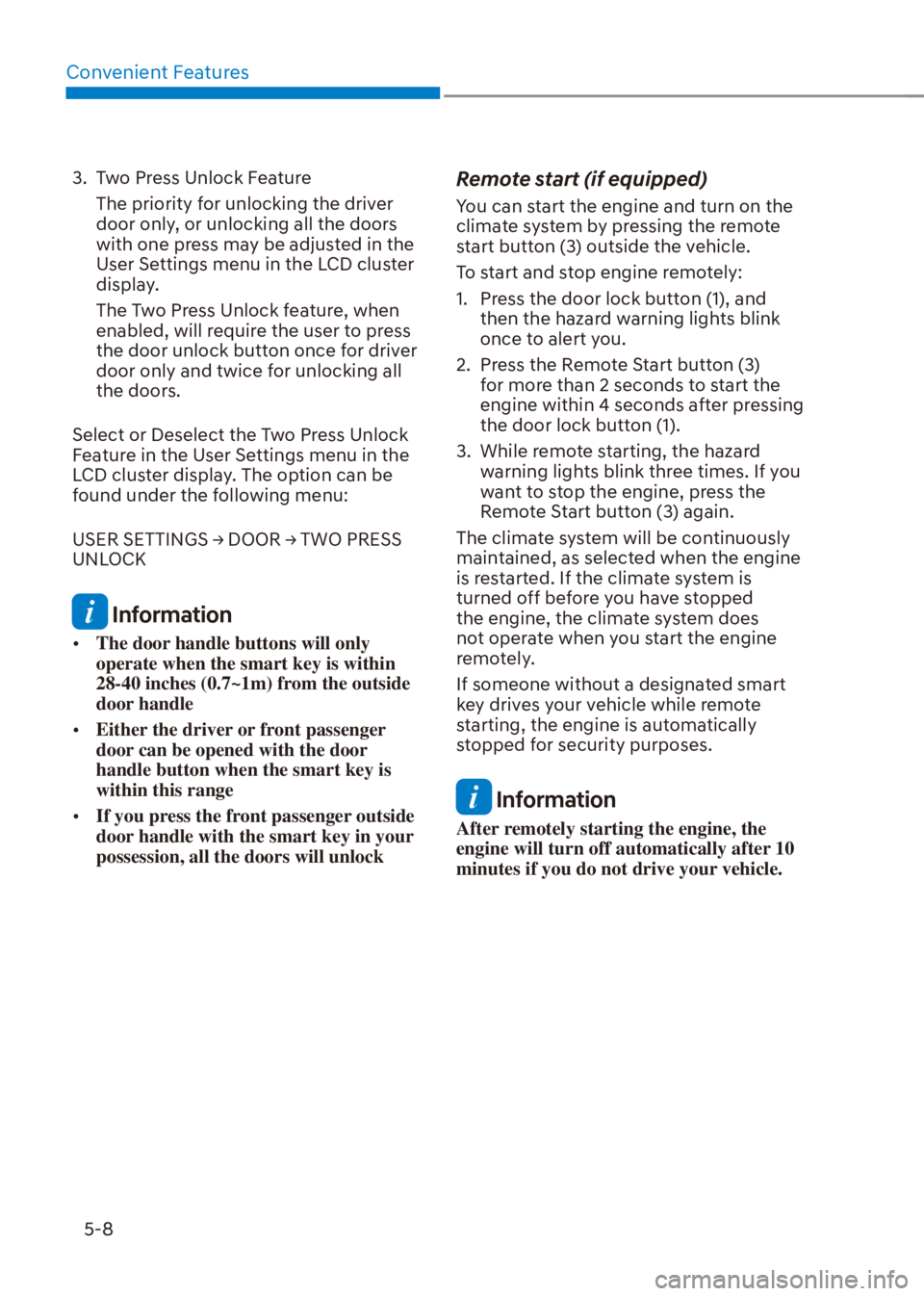

Convenient Features
5-8
3. Two Press Unlock Feature
The priority for unlocking the driver
door only, or unlocking all the doors
with one press may be adjusted in the
User Settings menu in the LCD cluster
display.
The Two Press Unlock feature, when
enabled, will require the user to press
the door unlock button once for driver
door only and twice for unlocking all
the doors.
Select or Deselect the Two Press Unlock
Feature in the User Settings menu in the
LCD cluster display. The option can be
found under the following menu:
86(56(77,1*6
Ÿ'225
Ÿ7:235(66
UNLOCK
Information

[The door handle buttons will only
operate when the smart key is within
28-40 inches (0.7~1m) from the outside
door handle

[Either the driver or front passenger
door can be opened with the door
handle button when the smart key is
within this range

[If you press the front passenger outside
door handle with the smart key in your
possession, all the doors will unlock
Remote start (if equipped)
You can start the engine and turn on the
climate system by pressing the remote
start button (3) outside the vehicle.
To start and stop engine remotely:
1. Press the door lock button (1), and
then the hazard warning lights blink
once to alert you.
2. Press the Remote Start button (3)
for more than 2 seconds to start the
engine within 4 seconds after pressing
the door lock button (1).
3. While remote starting, the hazard
warning lights blink three times. If you
want to stop the engine, press the
Remote Start button (3) again.
The climate system will be continuously
maintained, as selected when the engine
is restarted. If the climate system is
turned off before you have stopped
the engine, the climate system does
not operate when you start the engine
remotely.
If someone without a designated smart
key drives your vehicle while remote
starting, the engine is automatically
stopped for security purposes.
Information
After remotely starting the engine, the
engine will turn off automatically after 10
minutes if you do not drive your vehicle.

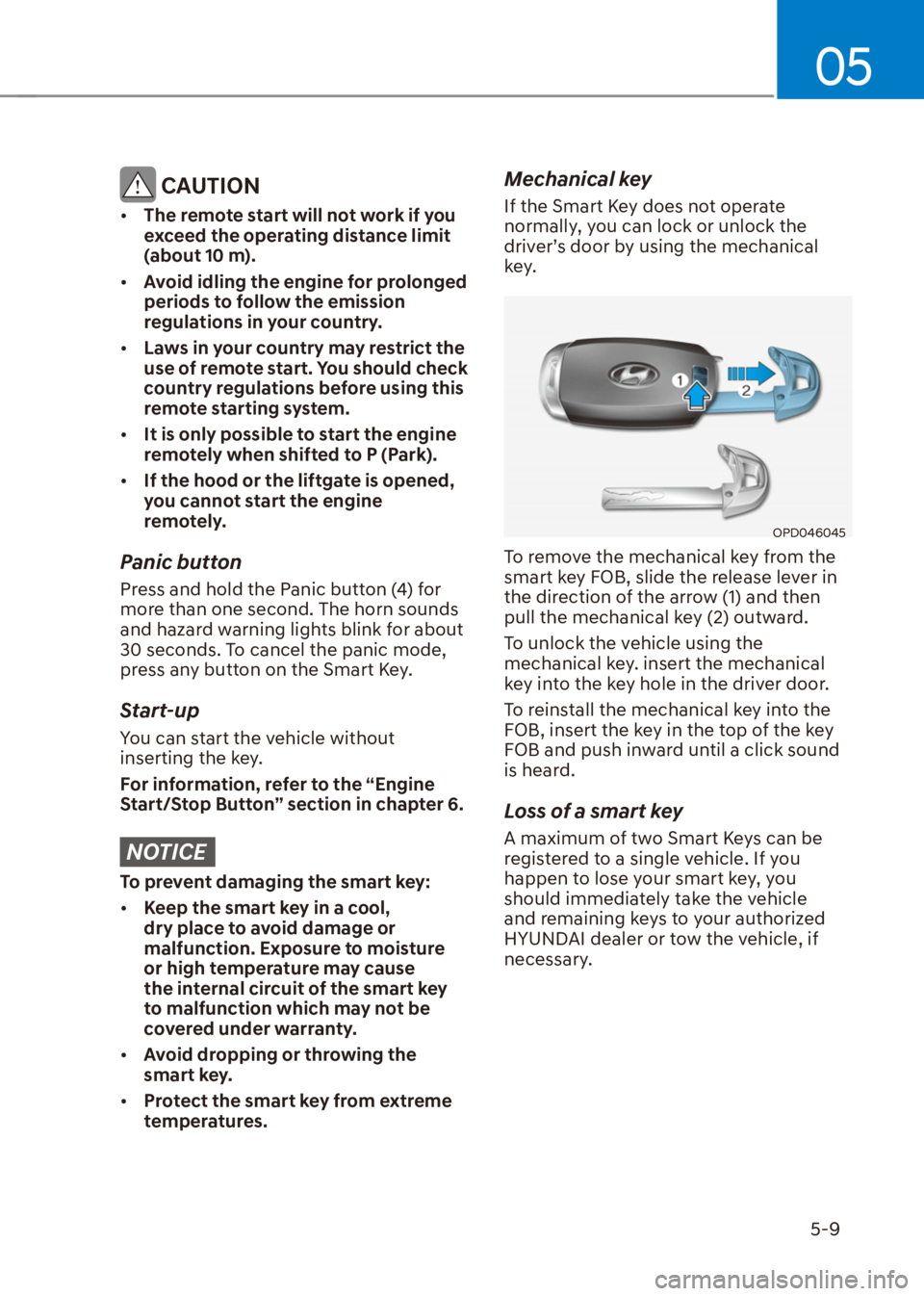

05
5-9
CAUTION

[The remote start will not work if you
exceed the operating distance limit
(about 10 m).

[Avoid idling the engine for prolonged
periods to follow the emission
regulations in your country.

[Laws in your country may restrict the
use of remote start. You should check
country regulations before using this
remote starting system.

[It is only possible to start the engine
remotely when shifted to P (Park).

[If the hood or the liftgate is opened,
you cannot start the engine
remotely.
Panic button
Press and hold the Panic button (4) for
more than one second. The horn sounds
and hazard warning lights blink for about
30 seconds. To cancel the panic mode,
press any button on the Smart Key.
Start-up
You can start the vehicle without
inserting the key.
For information, refer to the “Engine
Start/Stop Button” section in chapter 6.
NOTICE
To prevent damaging the smart key:

[Keep the smart key in a cool,
dry place to avoid damage or
malfunction. Exposure to moisture
or high temperature may cause
the internal circuit of the smart key
to malfunction which may not be
covered under warranty.

[Avoid dropping or throwing the
smart key.

[Protect the smart key from extreme
temperatures.
Mechanical key
If the Smart Key does not operate
normally, you can lock or unlock the
driver’s door by using the mechanical
key.
OPD046045
To remove the mechanical key from the
smart key FOB, slide the release lever in
the direction of the arrow (1) and then
pull the mechanical key (2) outward.
To unlock the vehicle using the
mechanical key. insert the mechanical
key into the key hole in the driver door.
To reinstall the mechanical key into the
FOB, insert the key in the top of the key
FOB and push inward until a click sound
is heard.
Loss of a smart key
A maximum of two Smart Keys can be
registered to a single vehicle. If you
happen to lose your smart key, you
should immediately take the vehicle
and remaining keys to your authorized
HYUNDAI dealer or tow the vehicle, if
necessary.
