INFINITI EX 2012 Owner's Manual

1-2Safety—Seats, seat belts and supplemental restraint system
GUID-9A857634-92CF-4F7D-BCEB-B42451D73ADA
SSS0133
WARNING
. Do not ride in a moving vehicle when the
seatback is reclined. This can be danger-
ous. The shoulder belt will not be
against your body. In an accident, you
could be thrown into it and receive neck
or other serious injuries. You could also
slide under the lap belt and receive
serious internal injuries.
. For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the seat with both feet on the floor and
adjust the seat properly. See
“Precau-
tions on seat belt usage” later in this
section.
. After adjustment, gently rock in the seat
to make sure it is securely locked.
. Do not leave children unattended inside
the vehicle. They could unknowingly
activate switches or controls. Unat-
tended children could become involved
in serious accidents.
. The seatback should not be reclined
further than necessary for comfort. Seat belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seat back is reclined, the
risk of sliding under the lap belt and
being injured is increased.
SEATS

CAUTION
When adjusting the seat positions, be sure
not to contact any moving parts to avoid
possible injuries and/or damages.
SSS1051
Forward and backward:GUID-4D508F5D-FA8E-49D6-A9E2-6F8E76C17033

1-4Safety—Seats, seat belts and supplemental restraint system
SSS1052
Seat lifter:GUID-4D508F5D-FA8E-49D6-A9E2-6F8E76C17033
SSS1028
Type A
Type A
Push the front
*1or back*2end of the
switch to adjust the seatback lumbar area.
SSS0836
Type B
Type B
Move the lever
*1up or down to adjust the
seatback lumbar area.
REAR SEATSGUID-C43447B4-B708-48A6-BC0F-2BF26C6EBAF1
CAUTION
. When folding or returning the seatback
(s) to the upright position, to avoid
injury to yourself and others:
—Make sure that the seat path is
clear before moving the seat.

WARNING
.Never allow anyone to ride in the cargo
area or on the rear seat when it is in the
fold-down position. Use of these areas
by passengers without proper restraints
could result in serious injury in an
accident or sudden stop.
. When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched posi-
tion. If they are not completely secured,
passengers may be injured in an acci-
dent or sudden stop.
. Properly secure all cargo to help prevent
it from sliding or shifting. Do not place
cargo higher than the seatbacks. In a
sudden stop or collision, unsecured
cargo could cause personal injury.SSS0828
Type A
Power foldingGUID-910CAAF9-7121-4A85-8CA9-ACD497522A28
SSS0853
Type B
Luggage room switch (Type B):
GUID-4D508F5D-FA8E-49D6-A9E2-6F8E76C17033

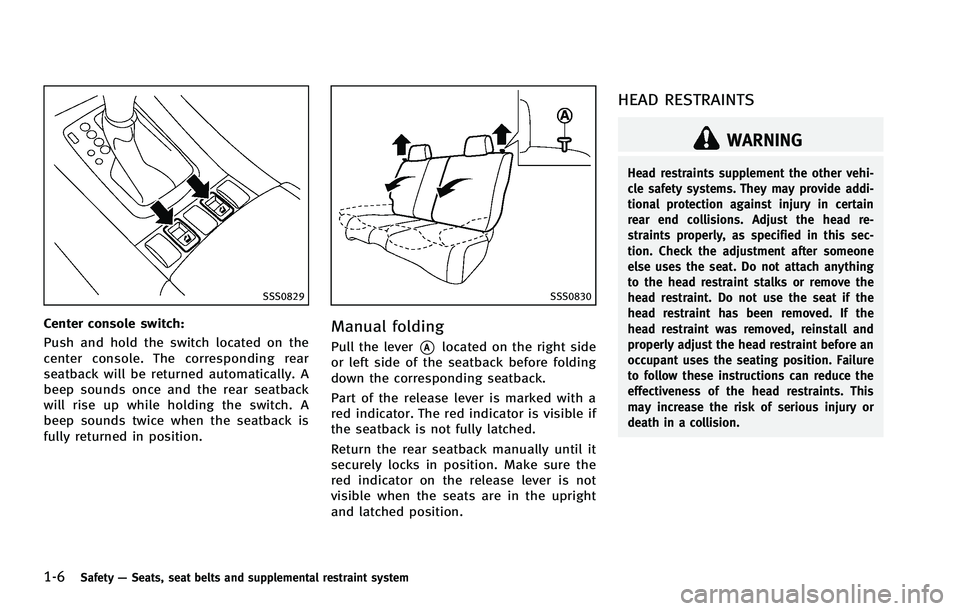

1-6Safety—Seats, seat belts and supplemental restraint system
SSS0829
Center console switch:GUID-4D508F5D-FA8E-49D6-A9E2-6F8E76C17033
SSS0830
Manual foldingGUID-EB52B528-82B6-47A8-AC67-01FCCBCACAB9
WARNING
Head restraints supplement the other vehi-
cle safety systems. They may provide addi-
tional protection against injury in certain
rear end collisions. Adjust the head re-
straints properly, as specified in this sec-
tion. Check the adjustment after someone
else uses the seat. Do not attach anything
to the head restraint stalks or remove the
head restraint. Do not use the seat if the
head restraint has been removed. If the
head restraint was removed, reinstall and
properly adjust the head restraint before an
occupant uses the seating position. Failure
to follow these instructions can reduce the
effectiveness of the head restraints. This
may increase the risk of serious injury or
death in a collision.

SSS1013
The illustration shows the seating posi-
tions equipped with head restraints. The
head restraints are adjustable.
Indicates the seating position is
equipped with a head restraint.
SSS0992
ComponentsGUID-31E01E3B-6950-4D1F-A175-E1E7090970EE
SSS0997
AdjustmentGUID-9419019A-7D7D-419E-9CB9-FA06547300BD

1-8Safety—Seats, seat belts and supplemental restraint system
SSS0993
To raise the head restraint, pull it up.
SSS0994
To lower, push and hold the lock knob and
push the head restraint down.
SSS0995
RemovalGUID-C9782491-976A-4F87-BAA1-662E24B1C9CD

seating position.
SSS0996
InstallGUID-3FC43157-3A84-487C-81EC-49E9C4171CFE
SSS0508
FRONT-SEAT ACTIVE HEAD RE-
STRAINT
GUID-DC5E8063-3B9A-4C83-A93E-0B9331F19AA9

1-10Safety—Seats, seat belts and supplemental restraint system
WARNING
The adjustable headrests supplement the
other vehicle safety systems. They may
provide additional protection against injury
in certain rear end collisions. Adjust the
headrests properly, as specified in this
section. Check the adjustment after some-
one else uses the seat. Do not attach
anything to the adjustable headrest stalks
or remove the adjustable headrests. Do not
use the seat if the adjustable headrests
have been removed. If the headrest was
removed, re-install and properly adjust the
headrest before an occupant uses the
seating position. Failure to follow these
instructions can reduce the effectiveness of
the adjustable headrests. This may increase
the risk of serious injury or death in a
collision.
SSS1014
The illustration shows the seating posi-
tions equipped with adjustable headrests.
The headrests are adjustable.
Indicates the seating position is
equipped with an adjustable headrest.
SSS0992
ComponentsGUID-38520744-3F62-4F05-BB01-0ED710C237AF

SSS0997
AdjustmentGUID-F9C077EF-FE75-4355-8D40-6D492E0D58E2
SSS0993
To raise the headrest, pull it up.
SSS0994
To lower, push and hold the lock knob and
push the headrest down.
Safety—Seats, seat belts and supplemental restraint system1-11
