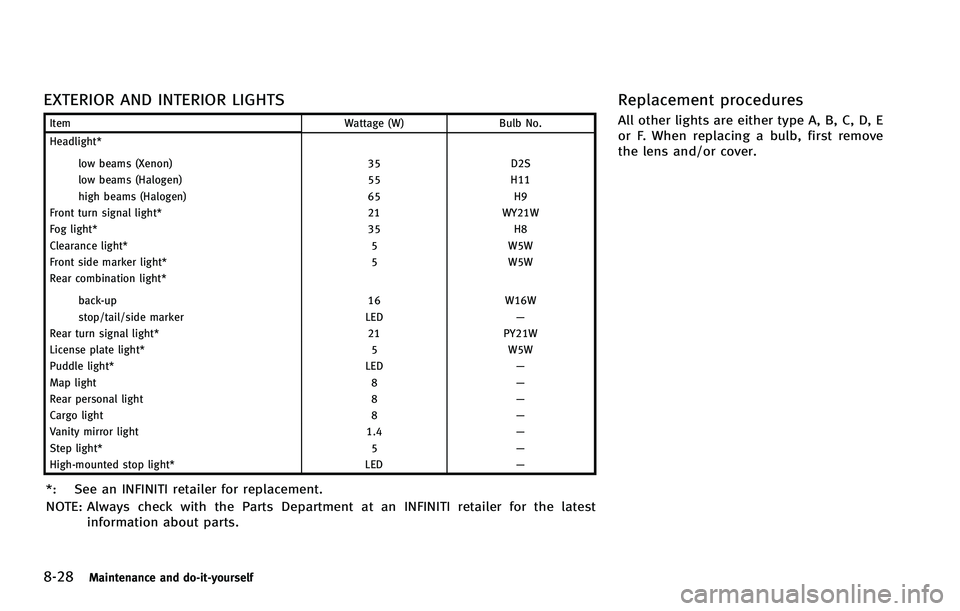

Page 461 of 506
8-28Maintenance and do-it-yourself
EXTERIOR AND INTERIOR LIGHTSGUID-8AAA340C-465D-4E14-ACD2-28F3F2FB7DD3

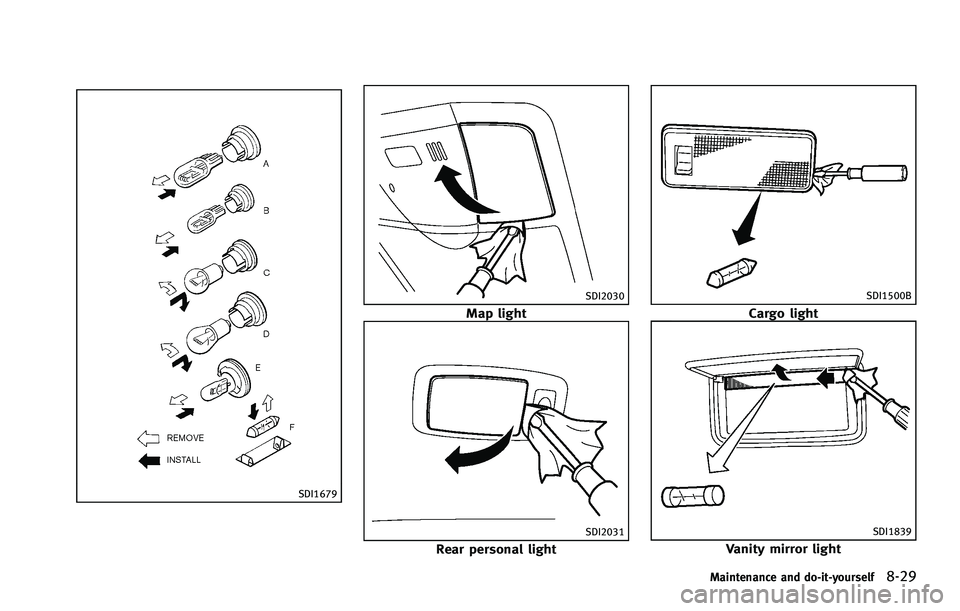

Page 462 of 506
SDI1679
SDI2030
Map light
SDI2031
Rear personal light
SDI1500B
Cargo light
SDI1839
Vanity mirror light
Maintenance and do-it-yourself8-29
Page 463 of 506
8-30Maintenance and do-it-yourself
GUID-32E73463-7DBE-43B0-9ABF-D8632B560633
WARNING
.Improperly inflated tires can fail
suddenly and cause an accident.
. The Gross Vehicle Weight rating
(GVWR) is located on the F.M.V.S.
S./C.M.V.S.S. certification label.
The vehicle weight capacity is
indicated on the Tire and Loading
Information label. Do not load
your vehicle beyond this capacity.
Overloading your vehicle may re-
sult in reduced tire life, unsafe
operating conditions due to pre-
mature tire failure, or unfavorable
handling characteristics and could
also lead to a serious accident.
Loading beyond the specified ca-
pacity may also result in failure of
other vehicle components.
WHEELS AND TIRES
Page 464 of 506

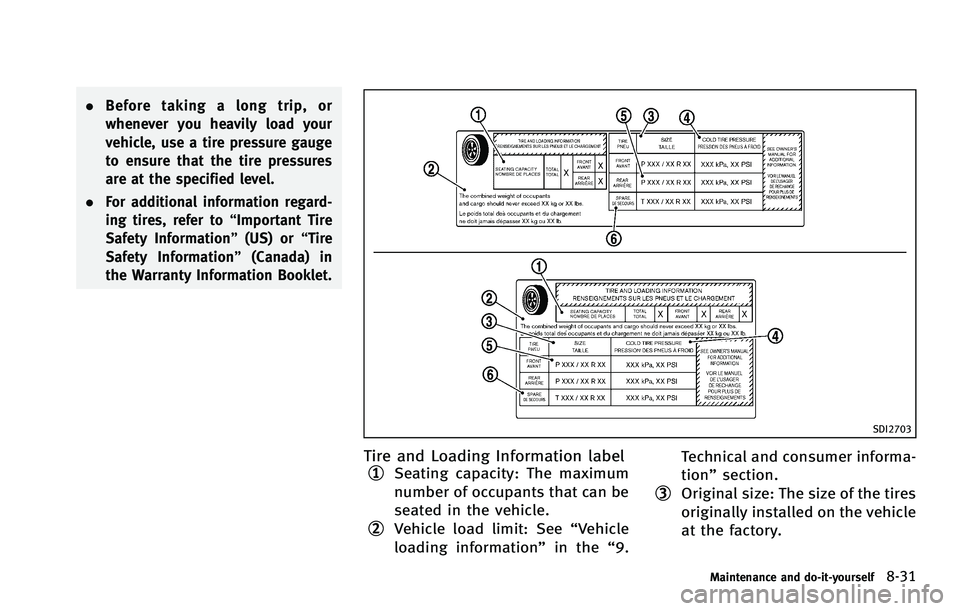

SDI2703
Tire and Loading Information labelGUID-45A97E94-F4F1-4D47-B7D4-863C0A39D3DE

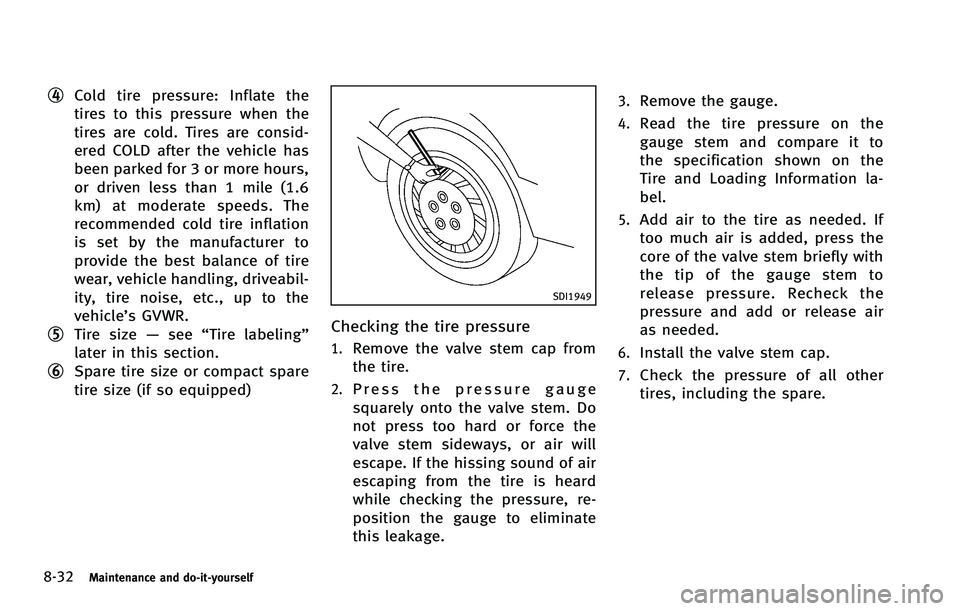

Page 465 of 506
8-32Maintenance and do-it-yourself
*4Cold tire pressure: Inflate the
tires to this pressure when the
tires are cold. Tires are consid-
ered COLD after the vehicle has
been parked for 3 or more hours,
or driven less than 1 mile (1.6
km) at moderate speeds. The
recommended cold tire inflation
is set by the manufacturer to
provide the best balance of tire
wear, vehicle handling, driveabil-
ity, tire noise, etc., up to the
vehicle’s GVWR.
*5Tire size—see “Tire labeling”
later in this section.
*6Spare tire size or compact spare
tire size (if so equipped)
SDI1949
Checking the tire pressureGUID-0E510B4C-5A57-43DD-B375-2BF4468D6DA6
Page 466 of 506
SIZECOLD TIRE
INFLATION
PRESSURE
FRONT
ORIGINAL TIRE P225/55R18 97V
230 kPa,
33 PSI
P245/45R19 98V 230 kPa,
33 PSI
REAR ORI-
GINAL TIRE P225/55R18 97V
230 kPa,
33 PSI
P245/45R19 98V 230 kPa,
33 PSI
SPARE TIRE T165/80R17
420 kPa,
60 PSI
T165/80D17 420 kPa,
60 PSI
SDI1575
Example
TIRE LABELINGGUID-1315CF90-2235-421A-BA3D-3C92FBA7C3A3
SDI1606
Example*1Tire size (example: P215/60R16
94H)
1.P: The
“P”indicates the tire is
designed for passenger vehicles.
(Not all tires have this informa-
tion.)
2.Three-digit number (215): This
number gives the width in milli-
meters of the tire from sidewall
edge to sidewall edge.
3.Two-digit number (60): This num-
ber, known as the aspect ratio,
Maintenance and do-it-yourself8-33
Page 467 of 506

8-34Maintenance and do-it-yourself
gives the tire’s ratio of height to
width.
4.R: The“R”stands for radial.
5.Two-digit number (16): This num-
ber is the wheel or rim diameter in
inches.
6.Two- or three-digit number (94):
This number is the tire’s load
index. It is a measurement of
how much weight each tire can
support. You may not find this
information on all tires because it
is not required by law.
7.H: Tire speed rating. You should
not drive the vehicle faster than
the tire speed rating.
SDI1607
Example*2TIN (Tire Identification Number)
for a new tire (example: DOT XX
XX XXX XXXX)
1.DOT: Abbreviation for the “Depart-
ment of Transportation”. The sym-
bol can be placed above, below or
to the left or right of the Tire
Identification Number.
2.Two-digit code: Manufacturer’s
identification mark
3.Two-digit code: Tire size
4.Three-digit code: Tire type code
(Optional)
5.Three-digit code: Date of Manu-
facture
6.Four numbers represent the week
and year the tire was built. For
example, the numbers 3103
means the 31st week of 2003. If
these numbers are missing, then
look on the other sidewall of the
tire.
*3Tire ply composition and materi-
al
The number of layers or plies of
rubber-coated fabric in the tire.
Tire manufacturers also must
indicate the materials in the tire,
which include steel, nylon,
polyester, and others.
*4Maximum permissible inflation
pressure
This number is the greatest
amount of air pressure that
should be put in the tire. Do
not exceed the maximum per-
Page 468 of 506
WARNING
.When changing or replacing tires, be
sure all four tires are of the same type
(Example: Summer, All Season or Snow)
and construction. An INFINITI retailer
may be able to help you with information
about tire type, size, speed rating and
availability.
. Replacement tires may have a lower
speed rating than the factory equipped
tires, and may not match the potential
maximum vehicle speed. Never exceed
the maximum speed rating of the tire.
. Replacing tires with those not originally specified by INFINITI could affect the
proper operation of the TPMS.
. For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or“Tire Safety Infor-
mation” (Canada) in the Warranty Infor-
mation Booklet.
All season tiresGUID-9BB582D6-5DCB-4079-89B7-C19D2C973375

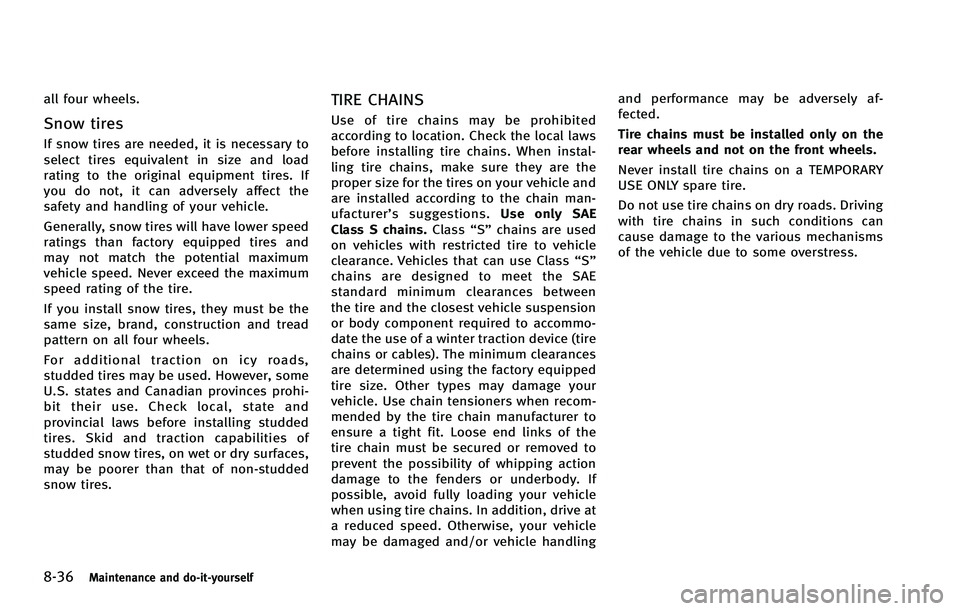

Page 469 of 506
8-36Maintenance and do-it-yourself
all four wheels.
Snow tiresGUID-1617EBA1-AEA7-458D-906D-E62D31D192A0

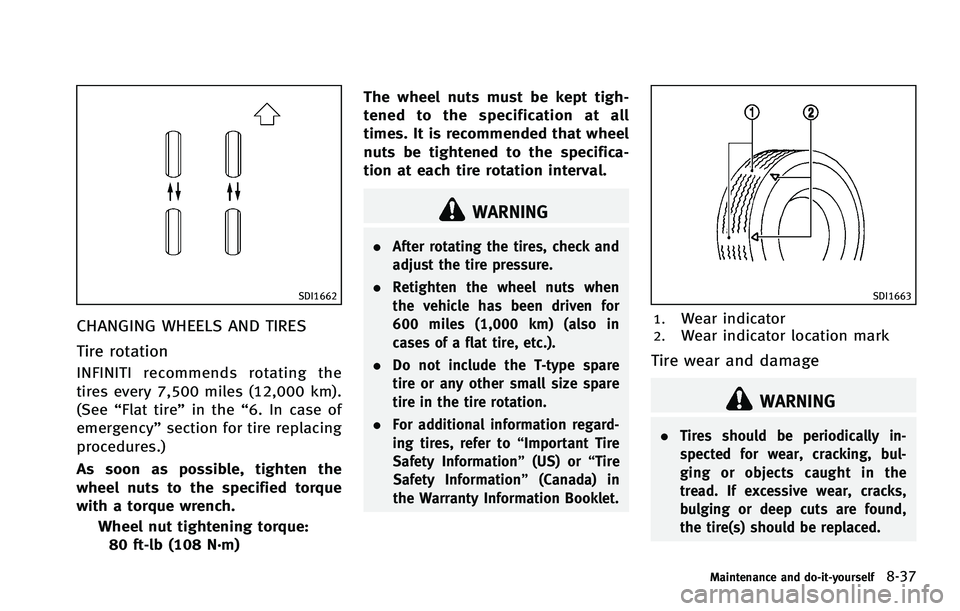

Page 470 of 506
SDI1662
CHANGING WHEELS AND TIRESGUID-81405E82-4D15-4ACE-AA84-102DEBB9562F
WARNING
.After rotating the tires, check and
adjust the tire pressure.
. Retighten the wheel nuts when
the vehicle has been driven for
600 miles (1,000 km) (also in
cases of a flat tire, etc.).
. Do not include the T-type spare
tire or any other small size spare
tire in the tire rotation.
. For additional information regard-
ing tires, refer to “Important Tire
Safety Information ”(US) or “Tire
Safety Information ”(Canada) in
the Warranty Information Booklet.
SDI1663
1.Wear indicator
2.Wear indicator location mark
Tire wear and damageGUID-73B3B29C-D000-40B4-B762-CF56C054B9A7
WARNING
. Tires should be periodically in-
spected for wear, cracking, bul-
ging or objects caught in the
tread. If excessive wear, cracks,
bulging or deep cuts are found,
the tire(s) should be replaced.
Maintenance and do-it-yourself8-37
