INFINITI EX 2012 Owners Manual

9-8Technical and consumer information

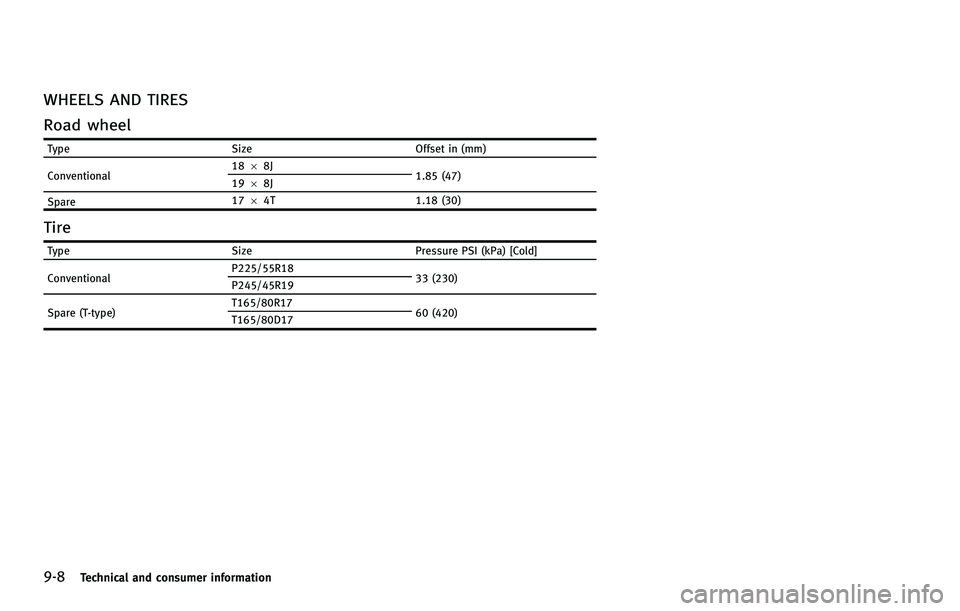

WHEELS AND TIRESGUID-156A4A86-2C83-4FAF-83B4-86E6214B2D57

DIMENSIONSGUID-9D5D71DE-B989-4F79-921A-1CE5D9B20312

9-10Technical and consumer information
GUID-4F85AFE9-A53D-415A-A8B9-CABE556010A7
STI0431
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
GUID-FA4C5D17-AB7E-460A-8874-424E098BD812
STI0492
VEHICLE IDENTIFICATION NUMBER
(chassis number)
GUID-AD65EDD6-579B-4A7E-8B50-55343AB882BE

STI0509
ENGINE SERIAL NUMBERGUID-ECC32CF8-AB9D-49B6-8673-A299713870E8
STI0493
F.M.V.S.S./C.M.V.S.S. CERTIFICA-
TION LABEL
GUID-924DD608-E217-44EA-9F95-0DE84D29E5AA
STI0422
EMISSION CONTROL INFORMATION
LABEL
GUID-CB1B1A15-E95B-41C6-A618-F665330A8982

9-12Technical and consumer information
STI0567
TIRE AND LOADING INFORMATION
LABEL
GUID-5560E6CE-0473-4838-8716-5DCDF0EF1759
STI0495
AIR CONDITIONER SPECIFICATION
LABEL
GUID-26756EE6-382F-4B8B-8561-150FCAF0E8CD

GUID-BA7A7E2B-FED9-4B05-95A2-63F0F924904F
STI0569
Use the following steps to mount the
license plate.
Before mounting the license plate, confirm
that the following parts are enclosed in the
plastic bag.
.License plate bracket
. J-nut 62
. Screw 62
. Screw grommet 62
Only use the recommended mounting
position, otherwise an Intelligent Cruise
Control (ICC) sensor obstruction (if so
equipped) may result.
1. Park the vehicle on flat, level ground.
2. Place the license plate bracket with the positioner
*Afit to the bumper pillar
*Band the side end surface of the
bracket aligned with the bumper
*C.
3. Mark the center of the hole
*Dwith a
felt-tip pen.
4. Carefully drill two pilot holes using a 0.39 in (10 mm) drill bit at the marked
locations. (Be sure that the drill only
goes through the bumper fascia.)
5. Insert grommets into the hole on the fascia.
Technical and consumer information9-13
INSTALLING FRONT LICENSE PLATE

9-14Technical and consumer information
WARNING
.It is extremely dangerous to ride
in a cargo area inside the vehicle.
In a collision, people riding in
these areas are more likely to be
seriously injured or killed.
. Do not allow people to ride in any
area of vehicle that is not
equipped with seats and seat
belts.
. Be sure everyone in your vehicle is
in a seat and using a seat belt
properly.
TERMSGUID-018337C2-BD16-4CCC-8103-3404EC98C824

of the load (passengers and car-
go) for the vehicle. This is the
maximum combined weight of
occupants and cargo that can be
loaded into the vehicle. If the
vehicle is used to tow a trailer,
the trailer tongue weight must be
included as part of the cargo load.
This information is located on the
Tire and Loading Information la-
bel.
.Cargo capacity - permissibleweight of cargo, the weight of
total occupants weight subtracted
from the load limit.STI0365
VEHICLE LOAD CAPACITYGUID-6B30F71E-CCCD-42A5-93C6-95AD0B91DCBE

9-16Technical and consumer information
WARNING
.Properly secure all cargo to help
prevent it from sliding or shifting. Do not place cargo higher than the
seatbacks. In a sudden stop or
collision, unsecured cargo could
cause personal injury.
. Do not load your vehicle any
heavier than the GVWR or the
maximum front and rear GAWRs.
If you do, parts of your vehicle can
break, tire damage could occur, or
it can change the way your vehicle
handles. This could result in loss
of control and cause personal
injury.
. Overloading could not only short-
en the life of your vehicle and the
tires, but also could lead to
hazardous vehicle handling and
long braking distance. This may
cause a premature tire malfunc-
tion, which could result in a
serious accident and personal in-
jury. Failures caused by overload-
ing are not covered by the
vehicle’s warranty.

CAUTION
.Failure to follow these guidelines can
result in severe transmission damage.
. Whenever flat towing your vehicle, al-
ways tow forward, never backward.
. DO NOT tow any automatic transmission
vehicle with all four wheels on the
ground (flat towing). Doing so WILL
DAMAGE internal transmission parts
due to lack of transmission lubrication.
. DO NOT tow an All-Wheel Drive (AWD)
vehicle with any of the wheels on the
ground. Doing so may cause serious and
expensive damage to the powertrain.
. For emergency towing procedures refer
to“Towing recommended by INFINITI” in
the “6. In case of emergency” section ofthis manual.
Automatic transmissionGUID-B0EBCC14-A907-44C9-823E-9D26E811B44F
