0-2Illustrated table of contents
GUID-F3FFAE0C-D43A-43BA-A95E-BC6C67C179DC
SSI0417
1. Rear seat power folding/return switch(Page 1-4)
2. Child restraint anchor points (for top tether strap child restraint) (P.1-35)
3. Head restraints (P.1-6)
4. Seat belts (P.1-13) 5.
Roof-mounted curtain side-impact
supplemental air bags (P.1-39)
6. Supplemental front-impact air bags (P.1-39)
7. LATCH (Lower Anchors and Tethers for CHildren) system (P.1-23) 8. Rear armrest (P.1-12)
9. Rear seats (P.1-4)
—Child restraints (P.1-21)
10. Front seat-mounted side-impact sup- plemental air bags (P.1-39)
11. Seat belt pretensioner (P.1-51)
12. Occupant classification sensor (pat- tern sensor) (P.1-44)
13. Front passenger air bag status light (P.1-46)
SEATS, SEAT BELTS AND SUPPLEMENTAL
RESTRAINT SYSTEM (SRS)

GUID-C0DAB6C4-2638-4210-92D1-C51ED7B201A0
SSI0383
1. Hood (P.3-16)
2. Headlight and turn signal (P.2-35)—Bulb replacement (P.8-28)
— Adaptive Front lighting System
(AFS) (if so equipped) (P.2-38)
3. Windshield wiper and washer (P.2-33) —
Maintenance (P.8-20)
4. Moonroof (if so equipped) (P.2-56)
5. Roof rack (if so equipped) (P.2-52)
6. Power windows (P.2-53)
7. Outside mirrors (P.3-23) —
Side view camera (if so equipped)
(P.4-31)
— Welcome light (P.2-57)
8. Doors —Keys (P.3-2)
— Door locks (P.3-4)
— Intelligent Key system (P.3-6)
— Remote keyless entry system
(P.3-13)
9. Recovery hook (P.6-14)
10. Front view camera (if so equipped) (P.4-31)
11. Sonar sensor —Around View Monitor (if so
equipped) (P.4-31)
12. Fog light (P.2-40)
13. Tires —Wheel and tires (P.8-30, P.9-8)
— Flat tire (P.6-2)
— Tire pressure monitoring system
(TPMS) (P.2-15, P.5-4)
Illustrated table of contents0-3
EXTERIOR FRONT

0-4Illustrated table of contents
GUID-22C3CD44-5E1E-4FA8-BA99-B089AFCA0ADD
JVC0192X
1. Rearview camera (if so equipped)(P.4-24, P.4-31)
2. Lift gate (P.3-17) —Intelligent Key system (P.3-6)
— Remote keyless entry system
(P.3-13) 3. Rear window defroster (P.2-35)
4. High-mounted stop light (bulb repla-
cement) (P.8-26)
5. Rear window wiper and washer (P.2-34)
—Maintenance (P.8-21) 6. Antenna (P.4-97)
7. Sonar sensor
—Around View Monitor (if so
equipped) (P.4-31)
8. Rear combination light (bulb replace- ment) (P.8-26)
9. Fuel-filler door (P.3-17) —Fuel recommendation (P.9-3)
10. Child safety rear door locks (P.3-6)
EXTERIOR REAR

1-44Safety—Seats, seat belts and supplemental restraint system
SSS0854
1. Crash zone sensor
2. Supplemental front-impact air bag
modules (INFINITI Advanced Air Bags)
3. Front seat-mounted side-impact sup- plemental air bag modules
4. Occupant classification sensor (pat- tern sensor) 5. Occupant classification system con-
trol unit
6. Roof-mounted curtain side-impact
supplemental air bags
7. Roof-mounted curtain side-impact
supplemental air bag inflators 8. Air bag Control Unit (ACU)
9. Satellite sensors
10. Seat belt pretensioner
INFINITI ADVANCED AIR BAG SYS-
TEM (front seats)
GUID-B58D3611-FF95-4895-8D3A-C3E079E7176F

dual stage air bag inflators. The system
monitors information from the crash zone
sensor, the Air bag Control Unit (ACU), the
diagnosis sensor unit, seat belt buckle
sensors and the occupant classification
sensor (pattern sensor). Inflator operation
is based on the severity of a collision and
seat belt usage for the driver. For the front
passenger, the occupant classification
sensor is also monitored. Based on in-
formation from the sensors, only one front
air bag may inflate in a crash, depending
on the crash severity and whether the front
occupants are belted or unbelted. Addi-
tionally, the front passenger air bag may
be automatically turned OFF under some
conditions, depending on the information
provided by the occupant classification
sensor. If the front passenger air bag is
OFF, the passenger air bag status light will
be illuminated (if the seat is unoccupied,
the light will not be illuminated, but the air
bag will be off). (See“Front passenger air
bag and status light” later in this section
for further details.) One front air bag
inflating does not indicate improper per-
formance of the system.
If you have any questions about your air
bag system, contact INFINITI or an INFINITI retailer. If you are considering modification
of your vehicle due to a disability, you may
also contact INFINITI. Contact information
is contained in the front of this Owner’s
Manual.
When a front air bag inflates, a fairly loud
noise may be heard, followed by release of
smoke. This smoke is not harmful and does
not indicate a fire. Care should be taken
not to inhale it, as it may cause irritation
and choking. Those with a history of a
breathing condition should get fresh air
promptly.
Front air bags, along with the use of seat
belts, help to cushion the impact force on
the head and chest of the front occupants.
They can help save lives and reduce
serious injuries. However, an inflating front
air bag may cause facial abrasions or other
injuries. Front air bags do not provide
restraint to the lower body.
Even with INFINITI advanced air bags, seat
belts should be correctly worn and the
driver and passenger seated upright as far
as practical away from the steering wheel
or instrument panel. The front air bags
inflate quickly in order to help protect the
front occupants. Because of this, the force
of the front air bag inflating can increasethe risk of injury if the occupant is too
close to, or is against, the air bag module
during inflation.
The front air bags deflate quickly after a
collision.
The front air bags operate only when the
ignition switch is in the ON position.
After pushing the ignition switch to the ON
position, the supplemental air bag warn-
ing light illuminates. The supplemental air
bag warning light will turn off after about
7 seconds if the system is operational.
Safety
—Seats, seat belts and supplemental restraint system1-45

may be turned OFF, however, if the
occupant does not sit in the seat properly
(for example, by not sitting upright, by
sitting on an edge of the seat, or by
otherwise being out of position), this could
cause the sensor to turn the air bag OFF.
Always be sure to be seated and wearing
the seat belt properly for the most effective
protection by the seat belt and supple-
mental air bag.
INFINITI recommends that pre-teens and
children be properly restrained in a rear
seat. INFINITI also recommends that appro-
priate child restraints and booster seats be
properly installed in a rear seat. If this is
not possible, the occupant classification
sensor is designed to operate as described
above to turn the front passenger air bag
OFF for specified child restraints. Failing to
properly secure child restrains and to use
the ALR mode (child restraint mode) may
allow the restraint to tip or move in an
accident or sudden stop. This can also
result in the passenger air bag inflating in
a crash instead of being OFF. (See“Child
restraints” earlier in this section for proper
use and installation.)
If the front passenger seat is not occupied,
the passenger air bag is designed not to inflate in a crash. However, heavy objects
placed on the seat could result in air bag
inflation, because of the object being
detected by the occupant classification
sensor. Other conditions could also result
in air bag inflation, such as if a child is
standing on the seat, or if two children are
on the seat, contrary to the instructions in
this manual. Always be sure that you and
all vehicle occupants are seated and
restrained properly.
Using the passenger air bag status light,
you can monitor when the front passenger
air bag is automatically turned OFF with the
seat occupied. The light will not illuminate
when the front passenger seat is unoccu-
pied.
If an adult occupant is in the seat but the
passenger air bag status light is illumi-
nated (indicating that the air bag is OFF), it
could be that the person is a small adult,
or is not sitting on the seat properly.
If a child restraint must be used in the front
seat, the passenger air bag status light
may or may not be illuminated, depending
on the size of the child and the type of
child restraint being used. If the passenger
air bag status light is not illuminated
(indicating that the air bag might inflatein a crash), it could be that the child
restraint or seat belt is not being used
properly. Make sure that the child restraint
is installed properly, the seat belt is used
properly and the occupant is positioned
properly. If the passenger air bag status
light is still not illuminated, reposition the
occupant or child restraint in a rear seat.
If the passenger air bag status light will not
illuminate even though you believe that the
child restraint, the seat belts and the
occupant are properly positioned, the
system may be sensing an unoccupied
seat (in which case the air bag is OFF). Your
INFINITI retailer can check that the system
is OFF by using a special tool. However,
until you have confirmed with your retailer
that your air bag is working properly,
reposition the occupant or child restraint
in a rear seat.
The INFINITI Advanced Air Bag System and
passenger air bag status light will take a
few seconds to register a change in the
passenger seat status. However, if the seat
becomes unoccupied, the air bag status
light will remain off.
If a malfunction occurs in the front
passenger air bag system, the supplemen-
tal air bag warning light
, located in the
Safety
—Seats, seat belts and supplemental restraint system1-47

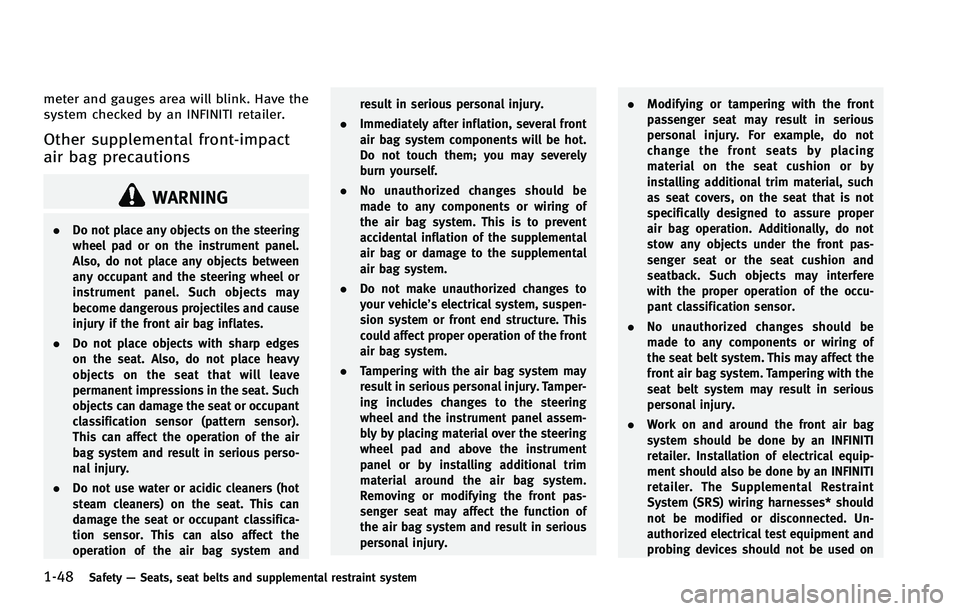

1-48Safety—Seats, seat belts and supplemental restraint system
WARNING
. Do not place any objects on the steering
wheel pad or on the instrument panel.
Also, do not place any objects between
any occupant and the steering wheel or
instrument panel. Such objects may
become dangerous projectiles and cause
injury if the front air bag inflates.
. Do not place objects with sharp edges
on the seat. Also, do not place heavy
objects on the seat that will leave
permanent impressions in the seat. Such
objects can damage the seat or occupant
classification sensor (pattern sensor).
This can affect the operation of the air
bag system and result in serious perso-
nal injury.
. Do not use water or acidic cleaners (hot
steam cleaners) on the seat. This can
damage the seat or occupant classifica-
tion sensor. This can also affect the
operation of the air bag system and result in serious personal injury.
. Immediately after inflation, several front
air bag system components will be hot.
Do not touch them; you may severely
burn yourself.
. No unauthorized changes should be
made to any components or wiring of
the air bag system. This is to prevent
accidental inflation of the supplemental
air bag or damage to the supplemental
air bag system.
. Do not make unauthorized changes to
your vehicle’s electrical system, suspen-
sion system or front end structure. This
could affect proper operation of the front
air bag system.
. Tampering with the air bag system may
result in serious personal injury. Tamper-
ing includes changes to the steering
wheel and the instrument panel assem-
bly by placing material over the steering
wheel pad and above the instrument
panel or by installing additional trim
material around the air bag system.
Removing or modifying the front pas-
senger seat may affect the function of
the air bag system and result in serious
personal injury. .
Modifying or tampering with the front
passenger seat may result in serious
personal injury. For example, do not
change the front seats by placing
material on the seat cushion or by
installing additional trim material, such
as seat covers, on the seat that is not
specifically designed to assure proper
air bag operation. Additionally, do not
stow any objects under the front pas-
senger seat or the seat cushion and
seatback. Such objects may interfere
with the proper operation of the occu-
pant classification sensor.
. No unauthorized changes should be
made to any components or wiring of
the seat belt system. This may affect the
front air bag system. Tampering with the
seat belt system may result in serious
personal injury.
. Work on and around the front air bag
system should be done by an INFINITI
retailer. Installation of electrical equip-
ment should also be done by an INFINITI
retailer. The Supplemental Restraint
System (SRS) wiring harnesses* should
not be modified or disconnected. Un-
authorized electrical test equipment and
probing devices should not be used on

1-52Safety—Seats, seat belts and supplemental restraint system
SSS1016
SUPPLEMENTAL AIR BAG WARNING
LABELS
GUID-90FD8F2E-5B90-46B9-BF6E-B90D67C31851
SPA1097
SUPPLEMENTAL AIR BAG WARNING
LIGHT
GUID-9A4521F2-422E-479F-A044-73A23997117A
in the instrument panel,
monitors the circuits of the supplemental
front-impact air bag, front seat-mounted
side-impact supplemental air bag, roof-
mounted curtain side-impact supplemental
air bag, and seat belt pretensioner sys-
tems. The monitored circuits include the Air
bag Control Unit (ACU), satellite sensors,
occupant classification sensor, crash zone
sensor, front air bag modules, side air bag
modules, curtain air bag modules, preten-
sioners, front passenger air bag status light and all related wiring.
When the ignition switch is in the ON
position, the supplemental air bag warning
light illuminates for about 7 seconds and
then turns off. This means the system is
operational.
If any of the following conditions occur, the
front air bag, side air bag, curtain air bag
and pretensioner systems need servicing:
.
The supplemental air bag warning light
remains on approximately 7 seconds
after the ignition switch is pushed to
the ON position.
. The supplemental air bag warning light
flashes intermittently.
. The supplemental air bag warning light
does not come on at all.
Under these conditions, the front air bag,
side air bag, and curtain air bag or
pretensioner systems may not operate
properly. They must be checked and
repaired. Take your vehicle to the nearest
INFINITI retailer.
WARNING
If the supplemental air bag warning light is
on, it could mean that the front air bag, side

SAA0642A
Be sure not to put anything on top of the
photo sensor
*Alocated on the top of the
instrument panel. The photo sensor con-
trols the autolight; if it is covered, the
photo sensor reacts as if it is dark and the
headlights will illuminate.
SIC3269
Headlight beam selectGUID-EA7A0F6C-B5B7-4790-B290-65E1EB4D3057
position. Pull it back to select the
low beam.
*3Pulling the lever toward you will flash
the headlight high beam even when
the headlight switch is in the OFF
position.
Battery saver systemGUID-664B23EC-0053-44E4-A83B-5CAB720E9A9C
orposition and the ignition switch
in the ACC, OFF or LOCK position.
When the headlight switch is in the
orposition while the ignition switch is in
the ON position, the lights will automati-
cally turn off 5 minutes after the ignition
switch has been pushed to the OFF
position.
When the headlight switch remains in the
orposition after the lights
automatically turn off, the lights will turn
on when the ignition switch is pushed to
the ON position.
CAUTION
. When you turn on the headlight switch
again after the lights automatically turn
off, the lights will not turn off auto-
matically. Be sure to turn the light
switch to the OFF position when you
leave the vehicle for extended periods of
time, otherwise the battery will be
discharged.
Instruments and controls2-37

GUID-3516DC6E-9566-4A0B-B66F-0C326A5AC4A3
SSD1156
The warning systems switch will turn on
and off the Lane Departure Warning (LDW)
system, the Blind Spot Warning (BSW)
system and the Forward Collision Warning
(FCW) system at the same time.
The LDW system will sound a warning
chime and blink the lane departure warn-
ing light (orange) to alert the driver if the
vehicle is traveling close to either the left
or the right of a traveling lane with
detectable lane markers. (See“Lane De-
parture Warning (LDW) system/Lane De-
parture Prevention (LDP) system” in the“5.
Starting and driving” section.)
The BSW system will illuminate the Blind Spot Warning (BSW) indicator lights, lo-
cated next to the outside mirrors, when the
radar sensors detect a vehicle in the
detection zone. If the turn signal is
activated in the direction of the detected
vehicle, a chime sounds twice and the BSW
indicator light will flash. (See
“Blind Spot
Warning (BSW) system” in the“5. Starting
and driving” section.)
The FCW system will sound a warning
chime and the vehicle ahead detection
indicator light blinks to alert the driver if
the vehicle is traveling close to the vehicle
ahead. (See “Forward Collision Warning
(FCW) system” in the“5. Starting and
driving” section.)
The warning systems switch is automati-
cally turned on when the engine is started,
and the warning systems ON indicator
*1on the switch illuminates.
To cancel the warning systems, push the
warning systems switch to turn off the
system. The warning systems ON indicator
will turn off.
NOTE:
If you continue to push the warning
systems switch from off to on for over 4
seconds, a chime will sound. This will change the default status of the LDW, BSW
and FCW systems to OFF so that these
systems will not automatically turn on
when the engine is started. If this proce-
dure is repeated, the default status will
return to ON.
Instruments and controls2-43
WARNING SYSTEMS SWITCH (if so
equipped)
