Check the fluid level in each cell (Remove the
battery cover if it is necessary). It should be
between the UPPER LEVEL
1and LOWER LEVEL
2lines.
If it is necessary to add fluid, add only distilled
water to bring the level to the indicator in each
filler opening. Do not overfill.
1. Remove the cell plugsA.
2. Add distilled water up to the UPPER LEVEL
1line.
If the side of the battery is not clear, check
the distilled water level by looking directly
above the cell; the condition
1indicates
OK and the conditions
2needs more to be
added.
3. Tighten cell plugsA.
Vehicles operated in high temperatures or un-
der severe conditions require frequent checks
of the battery fluid level.
JUMP STARTING
If jump starting is necessary, see “JUMP START-
ING” in the “6. In case of emergency” section. If
the engine does not start by jump starting, the
battery may have to be replaced. Contact an
INFINITI retailer.
DI0137MASDI1480C
8-16Maintenance and do-it-yourself
—
—
08/03/09—pattie


CAUTION
●Do not ground accessories directly to the
battery terminal. Doing so will bypass the
variable voltage control system and the ve-
hicle battery may not charge completely.
● Use electrical accessories with the engine
running to avoid discharging the vehicle
battery.
The variable voltage control system measures
the amount of electrical discharge from the
battery and controls voltage generated by the
generator.
1. Water pump
2. Alternator
3. Crankshaft pulley
4. Power steering fluid pump
5. Air conditioner compressor 1. Power steering fluid pump
2. Alternator
3. Crankshaft pulley
4. Air conditioner compressor
5. Drive belt auto-tensioner
WARNING
Be sure the ignition switch is in the OFF or LOCK
position before servicing drive belts. The en-
gine could rotate unexpectedly.
VK50VE engine
SDI1411B
VQ35HR engine
SDI2152
VARIABLE VOLTAGE CONTROL SYSTEM DRIVE BELTS
Maintenance and do-it-yourself8-17
—
—
08/03/09—pattie


1. Visually inspect each belt for signs ofunusual wear, cuts, fraying or looseness.
If the belt is in poor condition or loose,
have it replaced or adjusted by an INFINITI
retailer.
2. Have the belts checked regularly for con- dition and tension in accordance with the
maintenance schedule in your “INFINITI
Service and Maintenance Guide”.WARNING
Be sure the engine and the ignition switch are
off and that the parking brake is engaged
securely.
CAUTION
Be sure to use the correct socket to remove the
spark plugs. An incorrect socket can damage
the spark plugs.
REPLACING SPARK PLUGS
If replacement is required, see an INFINITI re-
tailer for servicing.
Iridium-tipped spark plugs
It is not necessary to replace the iridium-tipped
spark plugs as frequently as the conventional
type spark plugs since they will last much
longer. Follow the maintenance schedule in
“INFINITI Service and Maintenance Guide”, but
do not reuse them by cleaning or regapping.
Always replace spark plugs with recommended
or equivalent ones.
SDI2020
SPARK PLUGS
8-18Maintenance and do-it-yourself
—
—
08/03/09—pattie


Remove the retainers1as illustrated and pull
out the filter element
2.
The filter element should not be cleaned and
reused. Replace it according to the mainte-
nance intervals. See “INFINITI Service and Main-
tenance Guide” for maintenance intervals. When replacing the filter, wipe the inside of the
air cleaner housing and the cover with a damp
cloth.
WARNING
●
Operating the engine with the air cleaner
removed can cause you or others to be
burned. The air cleaner not only cleans the
air, it stops flame if the engine backfires. If it
isn’t there, and the engine backfires, you
could be burned. Do not drive with the air
cleaner removed, and be careful when work-
ing on the engine with the air cleaner
removed.
● Never pour fuel into the throttle body or at-
tempt to start the engine with the air cleaner
removed. Doing so could result in serious
injury.
CLEANING
If your windshield is not clear after using the
windshield washer or if a wiper blade chatters
when running, wax or other material may be on
the blade or windshield.
Clean the outside of the windshield with a
washer solution or a mild detergent. Your wind-
shield is clean if beads do not form when
rinsing with clear water.
Clean each blade by wiping it with a cloth
soaked in a washer solution or a mild deter-
gent. Then rinse the blade with clear water. If
your windshield is still not clear after cleaning
the blades and using the wiper, replace the
blades.
Worn windshield wiper blades can damage the
windshield and impair driver vision.
SDI2033
AIR CLEANER WINDSHIELD WIPER BLADES
Maintenance and do-it-yourself8-19
—
—
08/03/09—pattie


REPLACING
Replace the wiper blades if they are worn.
1. Pull the wiper arm.
2. Push the release tab
A, and then move
the wiper blade down the wiper arm
1
while pushing the release tab to remove.
3. Insert the new wiper blade onto the wiper arm until a click sounds.
4. Rotate the wiper blade so the dimple is in the groove.
CAUTION
●After wiper blade replacement, return the
wiper arm to its original position;
otherwise it may be damaged when the hood
is opened.
● Make sure the wiper blades contact the
glass; otherwise the arm may be damaged
from wind pressure. Be careful not to clog the washer nozzle
A.
This may cause improper windshield washer
operation. If the nozzle is clogged, remove any
objects with a needle or small pin
B.Be
careful not to damage the nozzle.
SDI2048
SDI2362
8-20Maintenance and do-it-yourself
—
—
03/16/10—tbrooks


Contact an INFINITI retailer if checking or re-
placement is required.If the brakes do not operate properly, have the
brakes checked by an INFINITI retailer.
SELF-ADJUSTING BRAKES
Your vehicle is equipped with self-adjusting
brakes.
The disc-type brakes self-adjust every time the
brake pedal is applied.
WARNING
See an INFINITI retailer for a brake system
check if the brake pedal height does not return
to normal.
BRAKE PAD WEAR WARNING
The disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion. This scraping sound
will first occur only when the brake pedal is
depressed. After more wear of the brake pad,
the sound will always be heard even if the brake
pedal is not depressed. Have the brakes
checked as soon as possible if the wear warn-
ing sound is heard.
Under some driving or climate conditions, occa-
sional brake squeak, squeal or other noise may
be heard. Occasional brake noise during light tomoderate stops is normal and does not affect
the function or performance of the brake sys-
tem.
Proper brake inspection intervals should be fol-
lowed.
For additional information, see the main-
tenance log section of your “INFINITI Service
and Maintenance Guide” for maintenance inter-
vals.
REAR WINDOW WIPER BLADES BRAKES
Maintenance and do-it-yourself8-21
—
—
08/03/09—pattie


ENGINE COMPARTMENT
CAUTION
Never use a fuse of a higher or lower amperage
rating than that specified on the fuse box cover.
This could damage the electrical system or
cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to the OFF or LOCK position and the head-
light switch is turned to OFF.
2. Open the engine hood and remove the cover on the battery. 3. Remove the fuse/fusible link holder
cover.
4. Remove the fuse with the fuse puller.
5. If the fuse is open
A, replace it with a
new fuse
B. Spare fuses are stored in the
passenger compartment fuse box.
6. If a new fuse also opens, have the elec- trical system checked and repaired by an
INFINITI retailer.
Fusible links
If any electrical equipment does not operate
and fuses are in good condition, check the
fusible links. If any of these fusible links are
melted, replace only with genuine INFINITI
parts.
SDI1479ASDI1754
FUSES
8-22Maintenance and do-it-yourself
—
—
08/03/09—pattie


PASSENGER COMPARTMENT
CAUTION
Never use a fuse of a higher or lower amperage
rating than that specified on the fuse box cover.
This could damage the electrical system or
cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to the OFF or LOCK position and the head-
light switch is turned to OFF.
2. Open the fuse box lid.
3. Remove the fuse with the fuse puller
A. 4. If the fuse is open, replace it with a new
fuse.
5. If a new fuse also opens, have the electri- cal system checked and repaired by an
INFINITI retailer. Spare fuses are stored in
the fuse box.
Replace the battery as follows:
1. Release the lock knob at the back of theIntelligent Key and remove the mechanical
key.
2. Insert a flat-blade screwdriver
A
wrapped with a cloth into the slitBof
the corner and twist it to separate the
upper part from the lower part.
SDI2034SPA1875
INTELLIGENT KEY BATTERY REPLACEMENT
Maintenance and do-it-yourself8-23
—
—
08/03/09—pattie


3. Replace the battery with a new one.
Recommended battery: CR2032 or equiva-
lent.
● Do not touch the internal circuit and
electric terminals as it could cause a
malfunction.
● Hold the battery by the edges. Holding
the battery across the contact points will
seriously deplete the storage capacity.
● Make sure that the + side faces the
bottom of the case.
4. Align the tips of the upper and lower parts, and then push them together until
it is securely closed.
5. Push the buttons two or three times to check its operation.
See an INFINITI retailer if you need any assis-
tance for replacement. FCC Notice:
This equipment has been tested and found to
comply with the limits for a Class B digital device
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential in-
stallation. This equipment generates, uses and
can radiate radio frequency energy and, if not
installed and used in accordance with the in-
structions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment off and on, the user is encouraged
to try to correct the interference by one or more
of the following measures:
–
Reorient or relocate the receiving antenna
– Increase the separation between the equip-
ment and the receiver
– Connect the equipment into an outlet on a
circuit different from that to which the re-
ceiver is connected.
– Consult the retailer or an experienced
radio/TV technician for help.
SDI2285
8-24Maintenance and do-it-yourself
—
—
08/03/09—tbrooks

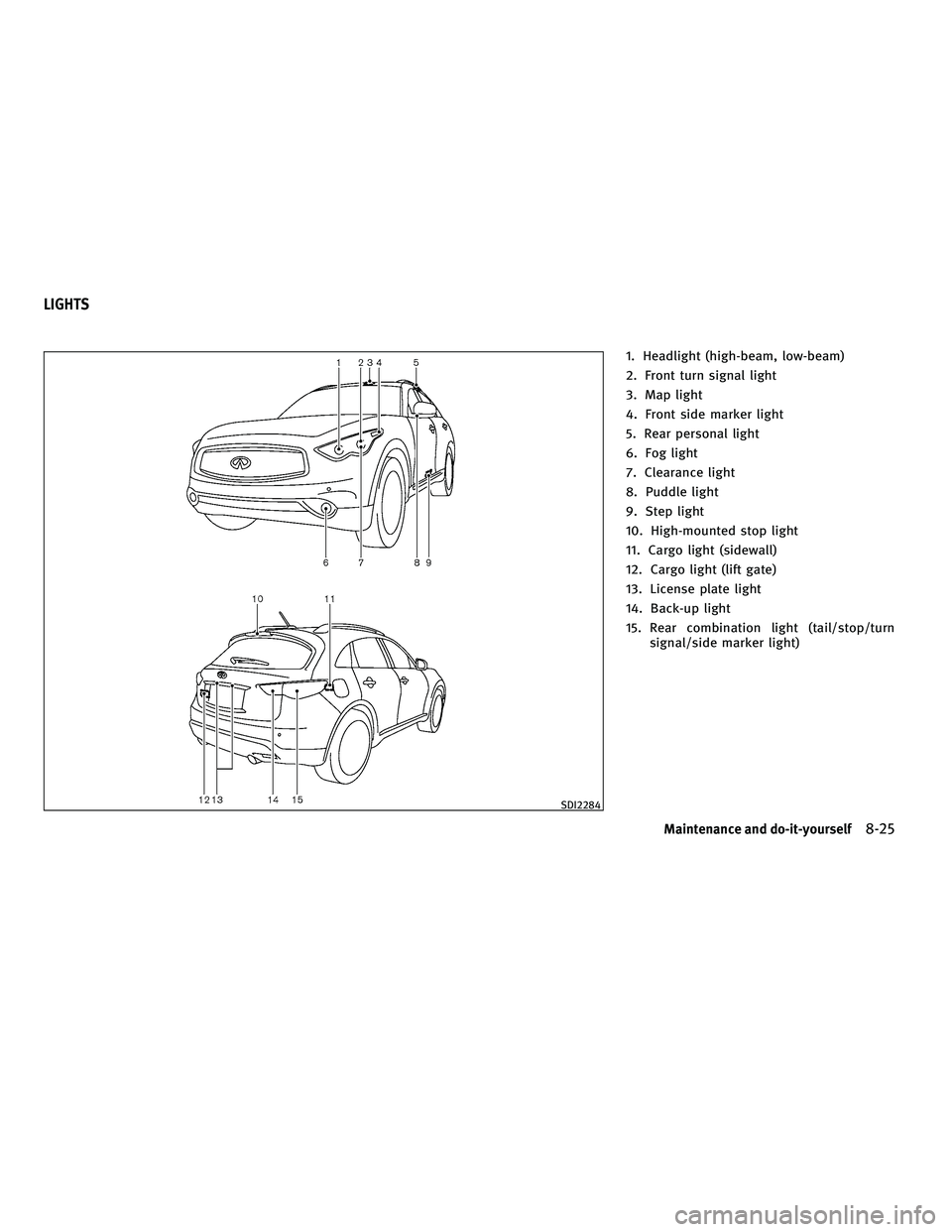

1. Headlight (high-beam, low-beam)
2. Front turn signal light
3. Map light
4. Front side marker light
5. Rear personal light
6. Fog light
7. Clearance light
8. Puddle light
9. Step light
10. High-mounted stop light
11. Cargo light (sidewall)
12. Cargo light (lift gate)
13. License plate light
14. Back-up light
15. Rear combination light (tail/stop/turnsignal/side marker light)
SDI2284
LIGHTS
Maintenance and do-it-yourself8-25
—
—
08/03/09—pattie
