weight of occupants and cargo that
can be loaded into the vehicle. If the
vehicle is used to tow a trailer, the
trailer tongue weight must be in-
cluded as part of the cargo load. This
information is located on the Tire and
Loading Information label.
●Cargo capacity - permissible weight of
cargo, the weight of total occupants
weight subtracted from the load limit.
VEHICLE LOAD CAPACITY
Do not exceed the load limit of your
vehicle shown as “The combined weight
of occupants and cargo” on the Tire and
Loading Information label. Do not ex-
ceed the number of occupants shown as
“Seating Capacity” on the Tire and Load-
ing Information label.
To get “the combined weight of occu-
pants and cargo”, add the weight of all
occupants, then add the total luggage
weight. Examples are shown in the illus-
tration.
STI0445
9-16Technical and consumer information
—
—
08/03/09—pattie


Steps for determining correct load
limit
1.Locate the statement “The combined
weight of occupants and cargo should
never exceed XXX kg or XXX lbs” on
your vehicle’s placard.
2.Determine the combined weight of
the driver and passengers that will be
riding in your vehicle.
3.Subtract the combined weight of the
driver and passengers from XXX kg or
XXX lbs.
4.The resulting figure equals the avail-
able amount of cargo and luggage
load capacity. For example, if the XXX
amount equals 1400 lbs. and there
will be five 150 lb. passengers in your
vehicle, the amount of available
cargo and luggage load capacity is
650 lbs. (1400 750 (5 x 150) = 650
lbs) or (640 340 (5 x 70) = 300 kg.)
5.Determine the combined weight of
luggage and cargo being loaded on
the vehicle. That weight may not
safely exceed the available cargo and
luggage load capacity calculated in
Step 4.
6.If your vehicle will be towing a trailer,
load from your trailer will be trans-
ferred to your vehicle. Consult this
manual to determine how this re-
duces the available cargo and lug-
gage load capacity of your vehicle.
Before driving a loaded vehicle, confirm
that you do not exceed the Gross Vehicle
Weight Rating (GVWR) or the Gross Axle
Weight Rating (GAWR) for your vehicle.
(See “MEASUREMENT OF WEIGHTS” later
in this section.)
Also check tires for proper inflation pres-
sures. See the Tire and Loading Informa-
tion label.
SECURING THE LOAD
There are tie down hooks located in the cargo
area as shown. The tie down hooks can be used
to secure cargo with ropes or other types of
straps.
Do not apply a total load of more than 22 lb.
(98 N) to a single hook when securing cargo.
WARNING
● Properly secure all cargo with ropes or
straps to help prevent it from sliding or shift-
ing. Do not place cargo higher than the seat-
backs. In a sudden stop or collision, unse-
cured cargo could cause personal injury.
SIC3849
Technical and consumer information9-17
—
—
08/03/09—tbrooks


●The child restraint top tether strap may be
damaged by contact with items in the cargo
area. Secure any items in the cargo area.
Your child could be seriously injured or killed
in a collision if the top tether strap is
damaged.
● Do not load your vehicle any heavier than the
GVWR or the maximum front and rear
GAWRs. If you do, parts of your vehicle can
break, tire damage could occur, or it can
change the way your vehicle handles. This
could result in loss of control and cause per-
sonal injury.

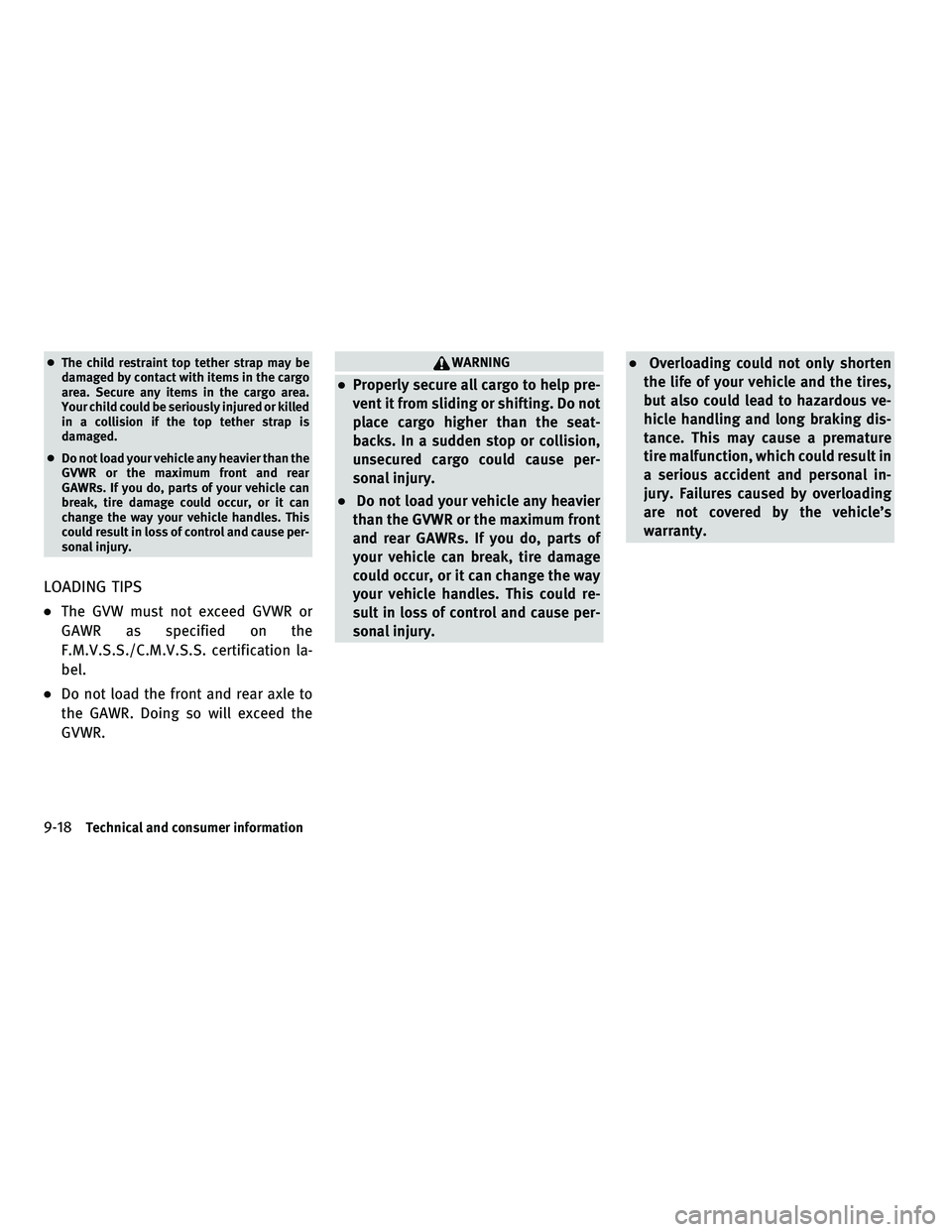

LOADING TIPS
●The GVW must not exceed GVWR or
GAWR as specified on the
F.M.V.S.S./C.M.V.S.S. certification la-
bel.
●Do not load the front and rear axle to
the GAWR. Doing so will exceed the
GVWR.
WARNING
●Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
unsecured cargo could cause per-
sonal injury.
●Do not load your vehicle any heavier
than the GVWR or the maximum front
and rear GAWRs. If you do, parts of
your vehicle can break, tire damage
could occur, or it can change the way
your vehicle handles. This could re-
sult in loss of control and cause per-
sonal injury.
●Overloading could not only shorten
the life of your vehicle and the tires,
but also could lead to hazardous ve-
hicle handling and long braking dis-
tance. This may cause a premature
tire malfunction, which could result in
a serious accident and personal in-
jury. Failures caused by overloading
are not covered by the vehicle’s
warranty.
9-18
Technical and consumer information
—
—
08/03/09—tbrooks


MEASUREMENT OF WEIGHTS
Secure loose items to prevent weight
shifts that could affect the balance of
your vehicle. When the vehicle is loaded,
drive to a scale and weigh the front and
the rear wheels separately to determine
axle loads. Individual axle loads should
not exceed either of the gross axle
weight ratings (GAWR). The total of the
axle loads should not exceed the gross
vehicle weight rating (GVWR). These rat-
ings are given on the vehicle certifica-
tion label. If weight ratings are ex-
ceeded, move or remove items to bring
all weights below the ratings.
WARNING
Overloading or improper loading of a trailer and
its cargo can adversely affect vehicle handling,
braking and performance and may lead to
accidents.
CAUTION
●Do not tow a trailer or haul a heavy load for
the first 500 miles (800 km). Your engine,
axle or other parts could be damaged.
● For the first 500 miles (800 km) that you tow
a trailer, do not drive over 50 MPH (80 km/h)
and do not make starts at full throttle. This
helps the engine and other parts of your ve-
hicle wear in at the heavier loads.
Your new vehicle was designed to be used
primarily to carry passengers and cargo. Re-
member that towing a trailer places additional
loads on your vehicle’s engine, drivetrain, steer-
ing, braking and other systems.
An INFINITI Towing Guide (U.S. only) is available
on the website at
www.InfinitiUSA.com. This guide includes infor-
mation on trailer towing capability and the
special equipment required for proper towing.
MAXIMUM LOAD LIMITS
Maximum trailer loads
Never allow the total trailer load to exceed the
value specified in the “Towing
Load/Specification” chart. The total trailer load
equals trailer weight plus its cargo weight.
● When towing a trailer load of 1,000 lbs (454
kg) or more, trailers with a brake system
MUST be used.
The maximum GCWR (Gross Combined Weight
Rating) should not exceed the value specified in
the following “Towing Load/Specification”
chart.
TOWING A TRAILER
Technical and consumer information9-19
—
—
08/03/09—pattie


The GCWR equals the combined weight of the
towing vehicle (including passengers and
cargo) plus the total trailer load. Towing loads
greater than these or using improper towing
equipment could adversely affect vehicle han-
dling, braking and performance.
The ability of your vehicle to tow a trailer is not
only related to the maximum trailer loads, but
also the places you plan to tow. Tow weights
appropriate for level highway driving may have
to be reduced on very steep grades or for low
traction situations (for example, on slippery
boat ramps).
Temperature conditions can also affect towing.
For example, towing a heavy trailer in high
outside temperatures on graded roads can af-fect engine performance and cause overheat-
ing. The transmission high fluid temperature
protection mode, which helps reduce the
chance of transmission damage, could activate
and automatically decrease engine power. Ve-
hicle speed may decrease under high load. Plan
your trip carefully to account for trailer and
vehicle load, weather and road conditions.
WARNING
Overheating can result in reduced engine
power and vehicle speed. The reduced speed
may be lower than other traffic, which could
increase the chance of a collision. Be especially
careful when driving. If the vehicle cannot
maintain a safe driving speed, pull to the side
of the road in a safe area. Allow the engine to
cool and return to normal operation. See “IF
YOUR VEHICLE OVERHEATS” in the “6. In case of
emergency” section of this manual.
CAUTION
Vehicle damage resulting from improper tow-
ing procedures are not covered by INFINITI
warranties.
Tongue load
When using a weight carrying or a weight
distributing hitch, keep the tongue load be-
tween 10 to 15% of the total trailer load within
the maximum tongue load limits shown in the
following “Towing Load/Specification” chart. If
the tongue load becomes excessive, rearrange
cargo to allow for proper tongue load.
STI0541STI0542
9-20Technical and consumer information
—
—
08/03/09—pattie


MAXIMUM GROSS VEHICLE WEIGHT
(GVW)/MAXIMUM GROSS AXLE
WEIGHT (GAW)
The GVW of the towing vehicle must not exceed
the Gross Vehicle Weight Rating (GVWR) shown
on the F.M.V.S.S./C.M.V.S.S. certification label.
The GVW equals the combined weight of the
unloaded vehicle, passengers, luggage, hitch,
trailer tongue load and any other optional
equipment. In addition, front or rear GAW must
not exceed the Gross Axle Weight Rating
(GAWR) shown on the F.M.V.S.S./C.M.V.S.S.
certification label.
Towing capacities are calculated assuming a
base vehicle with driver and any options re-
quired to achieve the rating. Additional passen-gers, cargo and/or optional equipment, such as
the trailer hitch, will add weight to the vehicle
and reduce your vehicle’s maximum towing
capacity and trailer tongue load.
The vehicle and trailer need to be weighed to
confirm the vehicle is within the GVWR, Front
GAWR, Rear GAWR, Gross Combined Weight
Rating (GCWR) and Towing capacity.
All vehicle and trailer weights can be measured
using platform type scales commonly found at
truck stops, highway weigh stations, building
supply centers or salvage yards.
To determine the available payload capacity for
tongue load, use the following procedure.
1. Locate the GVWR on the
F.M.V.S.S./C.M.V.S.S. certification label.
2. Weigh your vehicle on the scale with all of the passengers and cargo that are nor-
mally in the vehicle when towing a trailer.
3. Subtract the actual vehicle weight from the GVWR. The remaining amount is the
available maximum tongue load.
To determine the available towing capacity, use
the following procedure.
1. Find the GCWR for your vehicle on the“Towing Load/Specification” chart found
later in this section. 2. Subtract the actual vehicle weight from
the GCWR. The remaining amount is the
available maximum towing capacity.
To determine the Gross Trailer Weight, weigh
your trailer on a scale with all equipment and
cargo, that are normally in the trailer when it is
towed. Make sure the Gross trailer weight is not
more than the Gross Trailer Weight Rating
shown on the trailer and is not more than the
calculated available maximum towing capacity.
Also weigh the front and rear axles on the scale
to make sure the Front Gross Axle Weight and
Rear Gross Axle Weight are not more than Front
Gross Axle Weight and Rear Gross Axle Weight
on the F.M.V.S.S./C.M.V.S.S. certification label.
The cargo in the trailer and vehicle may need to
be moved or removed to meet the specified
ratings.
Example:
●Gross Vehicle Weight (GVW) as weighed on a
scale - including passengers, cargo and
hitch - 5,073 lb. (2,301 kg).
● Gross Vehicle Weight Rating (GVWR) from
F.M.V.S.S./C.M.V.S.S. certification label -
5,301 lb. (2,404 kg).
● Gross Combined Weight Rating (GCWR) from
“Towing Load/Specification” chart - 7,355 lb.
(3,336 kg).
TI1012M
Technical and consumer information9-21
—
—
08/03/09—pattie


●Maximum Trailer towing capacity from “Tow-
ing Load/Specification” chart - 2,000 lb.
(907 kg).
5,301 lb. (2,404 kg) GVWR
 5,073 lb. (2,301 kg)GVW
= 228 lb. (103 kg) Available for
tongue weight
7,355 lb. (3,336 kg) GCWR
 5,073 lb. (2,301
kg) GVW
= 2,282 lb. (1,035 kg) Capacity available
for towing
228 lb. (103 kg) / Available tongue
weight
2,282 lb. (1,035 kg) Available capacity = 10 % tongue weight
The available towing capacity may be less than
the maximum towing capacity due to the pas-
senger and cargo load in the vehicle. Remember to keep trailer tongue weight be-
tween 10 to 15% of the trailer weight. If the
tongue load becomes excessive, rearrange the
cargo to obtain the proper tongue load. Do not
exceed the 10 to 15% tongue weight specifica-
tion even if the calculated available tongue
weight is greater than 15%. If the calculated
tongue weight is less than 10%, reduce the total
trailer weight to match the available tongue
weight.
Always verify that available capacities are
within the required ratings.
9-22Technical and consumer information
—
—
08/03/09—pattie


TOWING LOAD/SPECIFICATION
TOWING LOAD/SPECIFICATION CHARTUnit: lb (kg)
VQ35HR VK50VE
Two-Wheel Drive (2WD) model All-Wheel Drive
(AWD) model All-Wheel Drive
(AWD) model
MAXIMUM TRAILER WEIGHT*1 —2,000 (907) 3,500 (1,588)
MAXIMUM TONGUE LOAD —200 (91) 350 (159)
GROSS COMBINED WEIGHT
RATING —
7,355 (3,336)*38,
825 (4,003)*4 9,109 (4,128)*39,
098 (4,127)*4
RECOMMENDED EQUIP-
MENT*2 Sway Control Device (SCD)
1: All towing above 1,000 lb (454 kg) requires the use of trailer brakes. INFINITI recommends the use of a tandem axle trailer whenever towing above 3,000 lb (1,361 kg).
2: A sway control device is recommended for all towing above 2,000 lb (907 kg). Sway control devices are not offered by INFINITI. See a professional trailer/hitch outlet for a properly designed
sway control device for your trailer.
3: For US
4: For Canada
TOWING SAFETY
Trailer hitch
Choose a proper hitch for your vehicle and
trailer. A genuine INFINITI trailer hitch is avail-
able from an INFINITI retailer. Make sure the
trailer hitch is securely attached to the vehicle
to help avoid personal injury or property dam-
age due to sway caused by crosswinds, rough
road surfaces or passing trucks.
WARNING
Trailer hitch components have specific weight
ratings. Your vehicle may be capable of towing
a trailer heavier than the weight rating of the
hitch components. Never exceed the weight
rating of the hitch components. Doing so can
cause serious personal injury or property
damage.
Hitch ball
Choose a hitch ball of the proper size and
weight rating for your trailer:
● The required hitch ball size is stamped on
most trailer couplers. Most hitch balls also
have the size printed on top of the ball.
● Choose the proper class hitch ball based on
the trailer weight.
Technical and consumer information9-23
—
—
08/03/09—pattie


●The diameter of the threaded shank of the
hitch ball must be matched to the ball mount
hole diameter. The hitch ball shank should
be no more than 1/16 smaller than the hole
in the ball mount.
● The threaded shank of the hitch ball must be
long enough to be properly secured to the
ball mount. There should be at least 2
threads showing beyond the lock washer
and nut.
Sway control device
Sudden maneuvers, wind gusts and buffeting
caused by other vehicles can affect trailer han-
dling. Sway control devices may be used to help
control these affects. If you choose to use one,
contact a reputable trailer hitch supplier to
make sure the sway control device will work
with the vehicle, hitch, trailer and the trailer’s
brake system. Follow the instructions provided
by the manufacturer for installing and using the
sway control device.
Class I hitch
Class I trailer hitch equipment (receiver, ball
mount and hitch ball) can be used to tow
trailers of a maximum weight of 2,000 lb
(907 kg).
Class II hitch
Class II trailer hitch equipment (receiver, ball
mount and hitch ball) can be used to tow
trailers of a maximum weight of 3,500 lb
(1,588 kg).
CAUTION
● Special hitches which include frame rein-
forcements are required for towing above
2,000 lb (907 kg). Suitable genuine INFINITI
hitches for pickup trucks and sport utility
vehicles are available at an INFINITI retailer.
● The hitch should not be attached to or affect
the operation of the impact-absorbing
bumper.
● Do not use axle-mounted hitches.
● Do not modify the vehicle exhaust system,
brake system, etc. to install a trailer hitch.
● To reduce the possibility of additional dam-
age if your vehicle is struck from the rear,
where practical, remove the hitch and/or re-
ceiver when not in use. After the hitch is
removed, seal the bolt holes to prevent ex-
haust fumes, water or dust from entering the
passenger compartment.
● Regularly check that all trailer hitch mount-
ing bolts are securely mounted.
Tire pressures
●When towing a trailer, inflate the ve-
hicle tires to the recommended cold
tire pressure indicated on the Tire and
Loading Information label.
●Trailer tire condition, size, load rating
and proper inflation pressure should
be in accordance with the trailer and
tire manufacturers’ specifications.
Safety chains
Always use a suitable chain between your ve-
hicle and the trailer. The safety chains should
be crossed and should be attached to the hitch,
not to the vehicle bumper or axle. The safety
chains can be attached to the bumper if the
hitch ball is mounted to the bumper. Be sure to
leave enough slack in the chains to permit
turning corners.
9-24Technical and consumer information
—
—
08/03/09—pattie


Trailer lights
CAUTION
When splicing into the vehicle electrical sys-
tem, a commercially available power-type
module/converter must be used to provide
power for all trailer lighting. This unit uses the
vehicle battery as a direct power source for all
trailer lights while using the vehicle tail light,
stoplight and turn signal circuits as a signal
source. The module/converter must draw no
more than 15 milliamps from the stop and tail
lamp circuits. Using a module/converter that
exceeds these power requirements may dam-
age the vehicle’s electrical system. See a repu-
table trailer retailer to obtain the proper equip-
ment and to have it installed.
Trailer lights should comply with federal and/or
local regulations. For assistance in hooking up
trailer lights, contact an INFINITI retailer or
reputable trailer retailer.
Trailer brakes
If your trailer is equipped with a braking sys-
tem, make sure it conforms to federal and/or
local regulations and that it is properly in-
stalled.
WARNING
Never connect a trailer brake system directly to
the vehicle brake system.
Pre-towing tips
● Be certain your vehicle maintains a level
position when a loaded or unloaded trailer is
hitched. Do not drive the vehicle if it has an
abnormal nose-up or nose-down condition;
check for improper tongue load, overload,
worn suspension or other possible causes of
either condition.
● Always secure items in the trailer to prevent
load shift while driving.
● Keep the cargo load as low as possible in the
trailer to keep the trailer center of gravity
low.
● Load the trailer so approximately 60% of the
trailer load is in the front half and 40% is in
the back half. Also make sure the load is
balanced side to side.
● Check your hitch, trailer tire pressure, ve-
hicle tire pressure, trailer light operation,
and trailer wheel lug nuts every time you
attach a trailer to the vehicle.
● Be certain your rearview mirrors conform to
all federal, state or local regulations. If not, install any mirrors required for towing before
driving the vehicle.
● Determine the overall height of the vehicle
and trailer so the required clearance is
known.Trailer towing tips
In order to gain skill and an understanding of
the vehicle’s behavior, you should practice turn-
ing, stopping and backing up in an area which
is free from traffic. Steering stability, and brak-
ing performance will be somewhat different
than under normal driving conditions.
● Always secure items in the trailer to prevent
load shift while driving.
● Lock the trailer hitch coupler with a pin or
lock to prevent the coupler from inadvert-
ently becoming unlatched.
● Avoid abrupt starts, acceleration or stops.
● Avoid sharp turns or lane changes.
● Always drive your vehicle at a moderate
speed. Some states or provinces have spe-
cific speed limits for vehicles that are towing
trailers. Obey the local speed limits.
● When backing up, hold the bottom of the
steering wheel with one hand. Move your
hand in the direction in which you want the
trailer to go. Make small corrections and
Technical and consumer information9-25
—
—
08/03/09—pattie
