Abs INFINITI FX35 2004 Service Manual

OIL PUMP
LU-17
[VQ35DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2004 November 2004 FX35/FX45
OIL PUMPPFP:15010
Removal and InstallationABS004SY
CAUTION:
Before installation, apply new engine oil to the parts as instructed in the figure.
REMOVAL
1. Remove oil pan (lower and upper) and oil strainer. Refer to EM-30, "OIL PAN AND OIL STRAINER" .
2. Remove front timing chain case and timing chain (primary). Refer to EM-63, "
TIMING CHAIN" .
3. Remove oil pump assembly.
INSTALLATION
Note to the following, and install in the reverse order of removal.

When installing, align crankshaft flat faces with oil pump inner rotor flat faces.
INSPECTION AFTER INSTALLATION
1. After warming up engine, check for engine oil leakage.
2. Check the engine oil level and add engine oil. Refer to LU-7, "
ENGINE OIL" .
Disassembly and AssemblyABS004SZ
DISASSEMBLY
1. Remove oil pump cover.
2. Remove oil pump inner rotor and oil pump outer rotor from oil pump body.
3. After removing regulator valve plug, remove regulator valve spring and regulator valve.
1. Oil pump body 2. Oil pump outer rotor 3. Oil pump inner rotor
4. Oil pump cover 5. Regulator valve plug 6. Regulator valve spring
7. Regulator valve
SBIA0481E

LU-20
[VQ35DE]
SERVICE DATA AND SPECIFICATIONS (SDS)
Revision: 2004 November 2004 FX35/FX45
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Standard and LimitABS004T0
ENGINE OIL PRESSURE
OIL PUMP
Unit: mm (in)
REGULATOR VALVE
Unit: mm (in)
ENGINE OIL CAPACITY (APPROXIMATE)
Unit: (US qt, lmp qt) Engine speed (rpm)
Approximate discharge pressure [kPa (kg/cm
2 , psi)]
Idle speed More than 98 (1.0, 14)
2,000 More than 294 (3.0, 43)
Oil pump body to oil pump outer rotor radial clearance 0.114 - 0.260 (0.0045 - 0.0102)
Oil pump inner rotor to oil pump outer rotor tip clearance Below 0.180 (0.0071)
Oil pump body to oil pump inner rotor axial clearance 0.030 - 0.070 (0.0012 - 0.0028)
Oil pump body to oil pump outer rotor axial clearance 0.050 - 0.110 (0.0020 - 0.0043)
Oil pump inner rotor to brazed portion of housing clearance 0.045 - 0.091 (0.0018 - 0.0036)
Regulator valve to oil pump cover clearance 0.040 - 0.097 (0.0016 - 0.0038)
Drain and refill With oil filter change 4.7 (5, 4-1/8)
Without oil filter change 4.4 (4-5/8, 3-7/8)
Dry engine (Overhaul)5.4 (5-3/4, 4-3/4)

PRECAUTIONS
LU-21
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2004 November 2004 FX35/FX45
[VK45DE]PRECAUTIONSPFP:00001
Precautions for Liquid GasketABS006IZ
LIQUID GASKET APPLICATION PROCEDURE
1. Remove old liquid gasket adhering to the liquid gasket application surface and the mating surface.

Remove liquid gasket completely from the liquid gasket application surface, mounting bolts, and bolt
holes.
2. Wipe the liquid gasket application surface and the mating surface with white gasoline (lighting and heating
use) to remove adhering moisture, grease and foreign materials.
3. Attach liquid gasket tube to tube presser [SST: WS39930000
(—)].
Use Genuine RTV Silicone Sealant or equivalent. Refer to
GI-48, "
RECOMMENDED CHEMICAL PRODUCTS AND
SEALANTS" .

Within five minutes of liquid gasket application, install the mat-
ing component.

If liquid gasket protrudes, wipe it off immediately.

Do not retighten mounting bolts or nuts after the installation.

After 30 minutes or more have passed from the installation, fill
engine oil and engine coolant.EMA0622D

LU-22
[VK45DE]
PREPARATION
Revision: 2004 November 2004 FX35/FX45
PREPARATIONPFP:00002
Special Service ToolsABS006J0
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolsABS006J1
Tool number
(Kent-Moore No.)
Tool nameDescription
ST25051001
(J25695-1)
Oil pressure gaugeMeasuring oil pressure
Maximum measuring range:
2,452 kPa (25 kg/cm
2 , 356 psi)
ST25052000
(J25695-2)
HoseAdapting oil pressure gauge to cylinder block
KV10115801
(J38956)
Oil filter wrenchRemoving and installing oil filter
a: 64.3 (2.531 in)
WS39930000
(—)
Tube presserPressing the tube of liquid gasket
S-NT050
S-NT559
S-NT375
S-NT052
Tool nameDescription
Power toolLoosening bolts and nuts
Deep socketRemoving and installing oil pressure switch
a: 24 mm (0.94 in)
PBIC0190E
PBIC2072E

LUBRICATION SYSTEM
LU-23
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2004 November 2004 FX35/FX45
LUBRICATION SYSTEMPFP:15010
Lubrication CircuitABS006J2
PBIC1663E

LU-24
[VK45DE]
LUBRICATION SYSTEM
Revision: 2004 November 2004 FX35/FX45

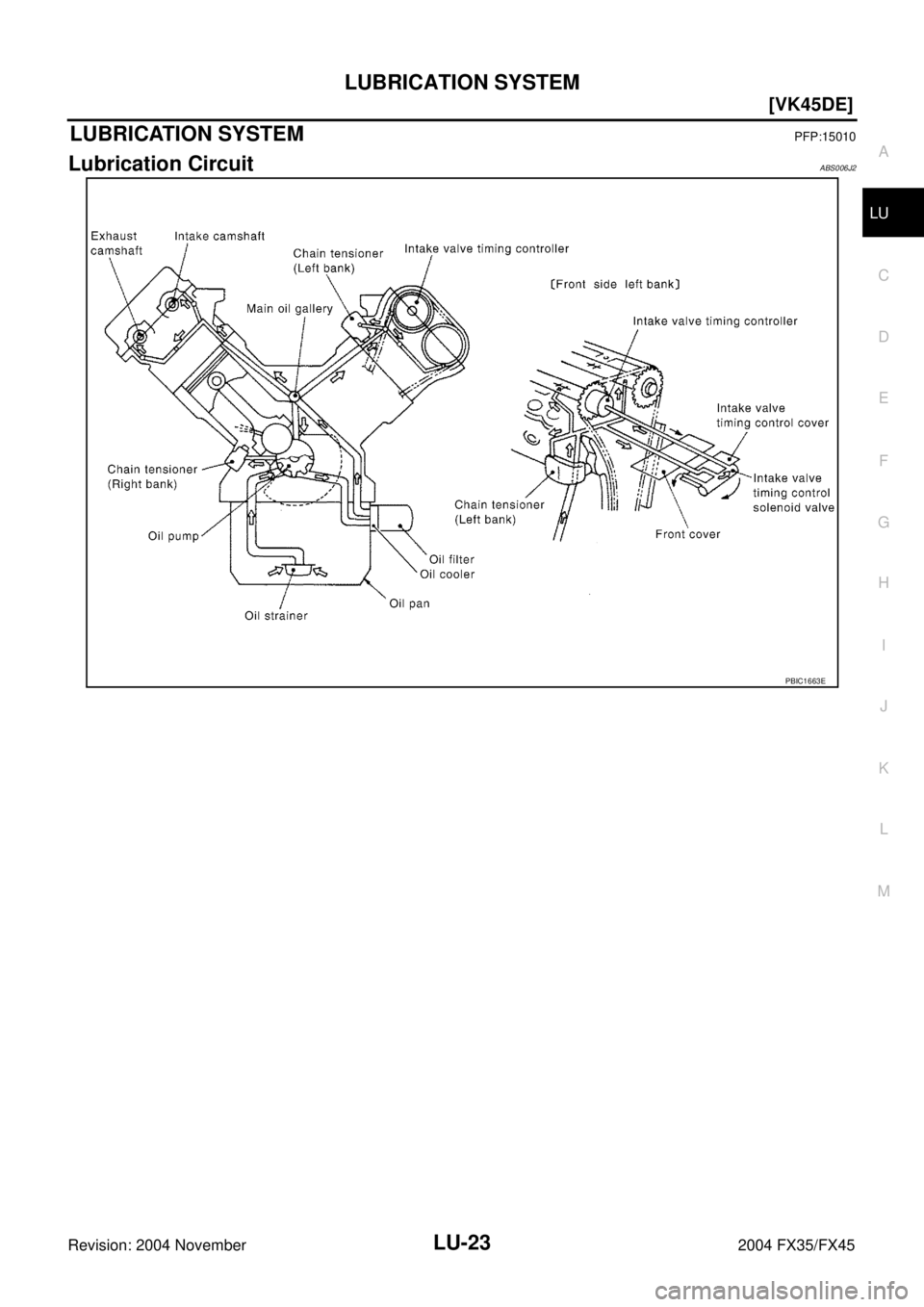

System DrawingABS006J3
PBIC1664E

ENGINE OIL
LU-25
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2004 November 2004 FX35/FX45
ENGINE OILPFP:KLA92
InspectionABS006J4
ENGINE OIL LEVEL
NOTE:
Before starting engine, put vehicle horizontally and check the engine oil level. If the engine is already started,
stop it and allow 15 minutes before checking.
1. Pull out oil level gauge and wipe it clean.
2. Insert oil level gauge and make sure the engine oil level is within
the range shown in the figure.
3. If it is out of range, adjust it.
ENGINE OIL APPEARANCE

Check engine oil for white turbidity or heavy contamination.

If engine oil becomes turbid and white, it is highly probable that it is contaminated with engine coolant.
Repair or replace damaged parts.
ENGINE OIL LEAKAGE
Check for oil leakage around the following area.

Oil pan

Oil pan drain plug

Oil pressure switch

Oil filter

Oil cooler

Intake valve timing control cover

Intake valve timing control solenoid valve

Front cover

Chain tensioner cover

Mating surface between cylinder block and cylinder head

Mating surface between cylinder head and rocker cover

Crankshaft oil seals (front and rear)
OIL PRESSURE CHECK
WARNING:

Be careful not to burn yourself, as engine oil may be hot.

Oil pressure check should be done in “Parking position”.
1. Check engine oil level. Refer to LU-25, "
ENGINE OIL LEVEL" .
2. Remove front engine undercover with power tool.
PBIC0801E

LU-26
[VK45DE]
ENGINE OIL
Revision: 2004 November 2004 FX35/FX45
3. Disconnect oil pressure switch harness connector.
4. Remove oil pressure switch.
5. Install oil pressure gauge and hose (SST).
6. Start engine and warm it up to normal operating temperature.
7. Check oil pressure with engine running under no-load.
NOTE:
When engine oil temperature is low, engine oil pressure becomes high.
Engine oil pressure [Engine oil temperature at 80°C (176°F)]
If difference is extreme, check oil passage and oil pump for oil leaks.
8. After the inspections, install oil pressure switch as follows:
a. Remove old liquid gasket adhering to oil presser switch and engine.
b. Apply liquid gasket and tighten oil pressure switch to specification.
Use Genuine Thread Sealant or equivalent. Refer to GI-48, "
RECOMMENDED CHEMICAL PROD-
UCTS AND SEALANTS" .
Changing Engine OilABS006J5
WARNING:

Be careful not to burn yourself, as engine oil may be hot.

Prolonged and repeated contact with used engine oil may
cause skin cancer; try to avoid direct skin contact with
used engine oil. If skin contact is made, wash thoroughly
with soap or hand cleaner as soon as possible.
1. Remove front engine undercover with power tool.
2. Warm up engine, put vehicle horizontally and check for oil leak-
age from engine components. Refer to LU-25, "
ENGINE OIL
LEAKAGE" .
3. Stop engine and wait for 15 minutes.
4. Loosen oil filler cap, and then remove drain plug.
PBIC1524E
SLC926
Engine speed
rpm Approximate discharge pressure
kPa (kg/cm2 , psi)
Idle speed More than 98 (1.0, 14)
2,000 More than 294 (3.0, 43)
: 14.8 N·m (1.5 kg-m, 11 ft-lb)
PBIC0993E

LU-28
[VK45DE]
OIL FILTER
Revision: 2004 November 2004 FX35/FX45
OIL FILTERPFP:15208
Removal and InstallationABS006J6
REMOVAL
1. Remove front engine undercover with power tool.
2. Using the oil filter wrench (SST), remove the oil filter.
CAUTION:

Oil filter is provided with relief valve.
Use Genuine Nissan Oil Filter or equivalent.

Be careful not to get burned when engine and engine oil
may be hot.

When removing, prepare a shop cloth to absorb any
engine oil leakage or spillage.

Do not allow engine oil to adhere to drive belts.

Completely wipe off any engine oil that adhere to engine
and vehicle.
INSTALLATION
1. Remove foreign materials adhering to oil filter installation surface.
2. Apply engine oil to the oil seal circumference of the new oil filter.
3. Screw oil filter manually until it touches the installation surface,
then tighten it by 2/3 turn. Or tighten to specification.
INSPECTION AFTER INSTALLATION
1. After warming up engine, check for engine oil leakage.
2. Stop engine and wait for 15 minutes.
3. Check the engine oil level and add engine oil. Refer to LU-25, "
ENGINE OIL" .
PBIC1525E
SMA010
Oil filter:
:17.7 N·m (1.8 kg-m, 13 ft-lb)
SMA229B

OIL COOLER
LU-29
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: 2004 November 2004 FX35/FX45
OIL COOLERPFP:21305
Removal and InstallationABS007ZK
WARNING:
Be careful not to get burn yourself, as engine oil and engine coolant are hot.
REMOVAL
1. Remove front engine undercover with power tool.
2. Remove oil filter. Refer to LU-28, "
OIL FILTER" .
CAUTION:
Do not spill engine oil on drive belts.
3. Disconnect water hoses from oil cooler, while pinching hoses near oil cooler to prevent engine coolant
form spilling.
CAUTION:

Perform this step when engine is cold.

Do not spill engine coolant on the drive belt.
4. Remove connector bolt, and remove oil cooler.
INSPECTION AFTER REMOVAL
Oil Cooler
Check oil cooler for cracks. Check oil cooler for clogging by blowing through engine coolant inlet. If necessary,
replace oil cooler.
Relief Valve
Check relief valve for movement, cracks and breaks by pushing the ball. If replacement is necessary, remove
relief valve by prying it out with suitable tool. Install a new valve in place by tapping it.
1. Oil filter 2. Connector bolt 3. Water hose
4. Water pipe 5. Oil cooler 6. O-ring
7. Oil pan (left side) 8. Water hose 9. Relief valve
PBIC2385E
