CAN SYSTEM (TYPE 1)
Revision: 2004 November 2004 FX35/FX45
Case 9
Check steering angle sensor circuit. Refer to LAN-45, "Steering Angle Sensor Circuit Check" .
PKIA7936E
SKIA6566E

CAN SYSTEM (TYPE 1)
LAN-37
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45

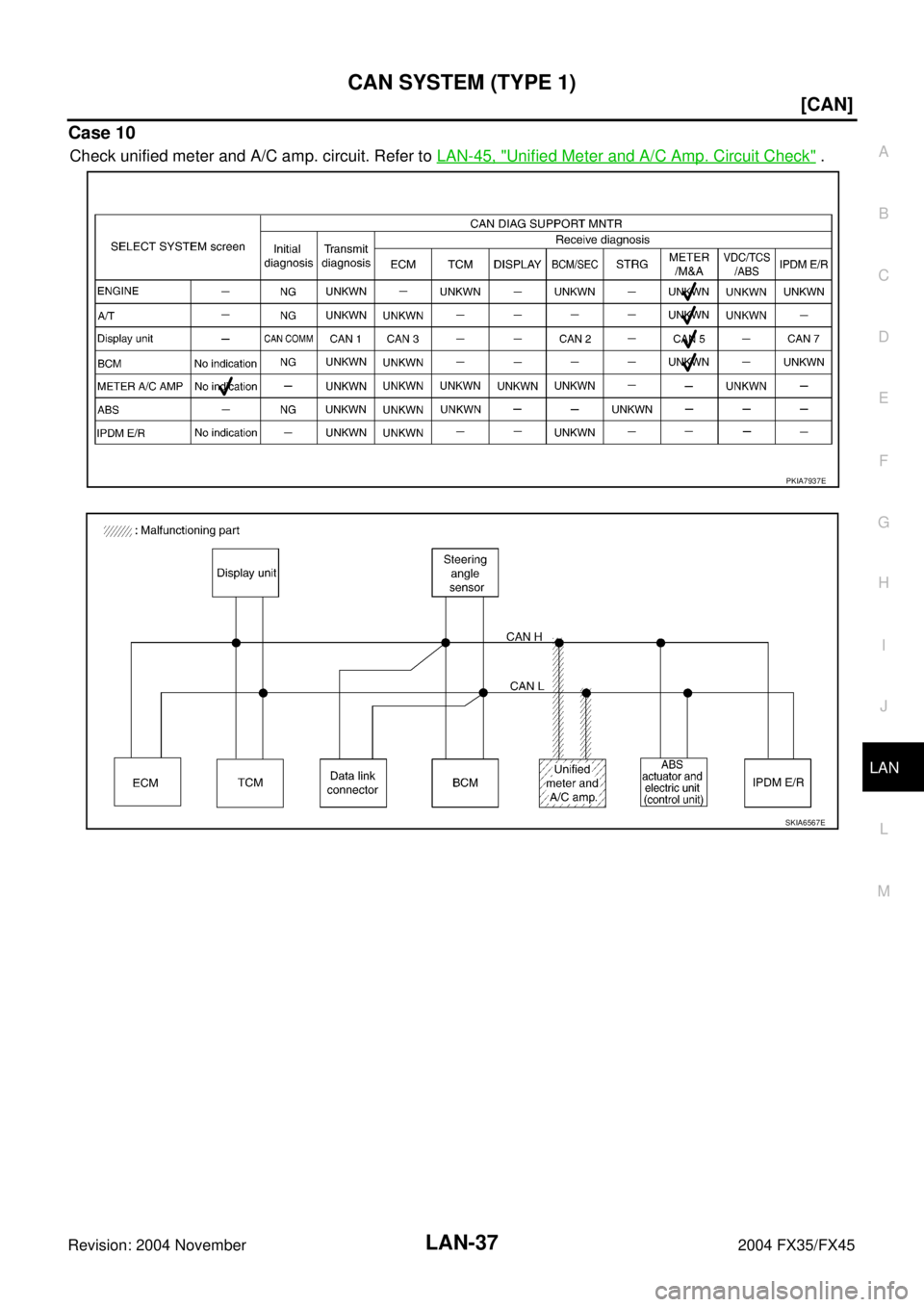

Case 10
Check unified meter and A/C amp. circuit. Refer to LAN-45, "Unified Meter and A/C Amp. Circuit Check" .
PKIA7937E
SKIA6567E

LAN-38
[CAN]
CAN SYSTEM (TYPE 1)
Revision: 2004 November 2004 FX35/FX45
Case 11
Check ABS actuator and electric unit (control unit) circuit. Refer to LAN-46, "ABS Actuator and Electric Unit
(Control Unit) Circuit Check" .
PKIA7938E
SKIA6568E

CAN SYSTEM (TYPE 1)
LAN-39
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
Case 12
Check IPDM E/R circuit. Refer to LAN-46, "IPDM E/R Circuit Check" .
PKIA7939E
SKIA6569E

LAN-40
[CAN]
CAN SYSTEM (TYPE 1)
Revision: 2004 November 2004 FX35/FX45
Case 13
Check CAN communication circuit. Refer to LAN-47, "CAN Communication Circuit Check" .
Case 14
Check IPDM E/R ignition relay circuit continuously sticks “OFF”. Refer to LAN-51, "IPDM E/R Ignition Relay
Circuit Check" .
PKIA7940E
PKIA7942E

CAN SYSTEM (TYPE 1)
LAN-41
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
Case 15
Check IPDM E/R ignition relay circuit continuously sticks “ON”. Refer to LAN-51, "IPDM E/R Ignition Relay Cir-
cuit Check" .
Circuit Check Between TCM and Data Link ConnectorAKS00BZB
1. CHECK HARNESS FOR OPEN CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Disconnect ECM connector and harness connector M82.
4. Check continuity between harness connector M82 terminals
14H (L), 15H (R) and data link connector M5 terminals 6 (L), 14
(R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-24, "
Work Flow" .
NG >> Repair harness.
Circuit Check Between Data Link Connector and Unified Meter and A/C Amp.AKS00BZC
1. CHECK HARNESS FOR OPEN CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Disconnect ECM connector and unified meter and A/C amp. connector.
4. Check continuity between data link connector M5 terminals 6
(L), 14 (R) and unified meter and A/C amp. harness connector
M55 terminals 1 (L), 11 (R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-24, "
Work Flow" .
NG >> Repair harness.
PKIA7941E
14H (L) - 6 (L) : Continuity should exist.
15H (R) - 14 (R) : Continuity should exist.
SKIA6861E
6 (L) - 1 (L) : Continuity should exist.
14 (R) - 11 (R) : Continuity should exist.
SKIA6862E

LAN-42
[CAN]
CAN SYSTEM (TYPE 1)
Revision: 2004 November 2004 FX35/FX45
Circuit Check Between Unified Meter and A/C Amp. and ABS Actuator and Elec-
tric Unit (Control Unit)
AKS00BZD
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connectors for damage, bend and loose connection (connector side and
harness side).
–Harness connector M41
–Harness connector E211
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect unified meter and A/C amp. connector and harness connector M41.
2. Check continuity between unified meter and A/C amp. harness
connector M55 terminals 1 (L), 11 (R) and harness connector
M41 terminals 15G (L), 14G (R).
OK or NG
OK >> GO TO 3.
NG >> Repair harness.
3. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Check continuity between harness connector E211 terminals
15G (L), 14G (R) and ABS actuator and electric unit (control
unit) harness connector E56 terminals 11 (L), 15 (R).
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to
LAN-24, "
Work Flow" .
NG >> Repair harness.
ECM Circuit CheckAKS00BZE
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of ECM for damage, bend and loose connection (control module side and
harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.1 (L) - 15G (L) : Continuity should exist.
11 (R) - 14G (R) : Continuity should exist.
SKIA6863E
15G (L) - 11 (L) : Continuity should exist.
14G (R) - 15 (R) : Continuity should exist.
SKIA6864E

CAN SYSTEM (TYPE 1)
LAN-43
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ECM connector.
2. Check resistance between ECM harness connector M90 termi-
nals 94 (L) and 86 (R).
OK or NG
OK >> Replace ECM.
NG >> Repair harness between ECM and harness connector
M82.
TCM Circuit CheckAKS00BZF
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side
and harness side).
–A/T assembly connector
–Harness connector F102
–Harness connector M82
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect A/T assembly connector.
2. Check resistance between A/T assembly harness connector
F44 terminals 3 (L) and 8 (R).
OK or NG
OK >> Replace control valve with TCM.
NG >> Repair harness between A/T assembly and display unit.
Display Unit Circuit CheckAKS00BZG
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of display unit for damage, bend and loose connection (unit side and har-
ness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.94 (L) - 86 (R) : Approx. 108 - 132Ω
SKIA6865E
3 (L) - 8 (R) : Approx. 54 - 66Ω
SKIA6866E

LAN-44
[CAN]
CAN SYSTEM (TYPE 1)
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect display unit connector.
2. Check resistance between display unit harness connector M62
terminals 14 (L) and 16 (R).
OK or NG
OK >> Replace display unit.
NG >> Repair harness between display unit and harness con-
nector M82.
Data Link Connector Circuit CheckAKS00BZH
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check data link connector and terminals for damage, bend and loose connection (connector side and har-
ness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
Check resistance between data link connector M5 terminals 6 (L)
and 14 (R).
OK or NG
OK >> Diagnose again. Refer to LAN-24, "Work Flow" .
NG >> Repair harness between data link connector and BCM.
BCM Circuit CheckAKS00BZI
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of BCM for damage, bend and loose connection (control module side and
harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.14 (L) - 16 (R) : Approx. 54 - 66Ω
SKIA6867E
6 (L) - 14 (R) : Approx. 54 - 66Ω
SKIA6868E

CAN SYSTEM (TYPE 1)
LAN-45
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect BCM connector.
2. Check resistance between BCM harness connector M3 termi-
nals 39 (L) and 40 (R).
OK or NG
OK >> Replace BCM. Refer to BCS-15, "Removal and Installa-
tion of BCM" .
NG >> Repair harness between BCM and data link connector.
Steering Angle Sensor Circuit CheckAKS00BZJ
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of steering angle sensor for damage, bend and loose connection (sensor
side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect steering angle sensor connector.
2. Check resistance between steering angle sensor harness con-
nector M14 terminals 4 (L) and 5 (R).
OK or NG
OK >> Replace steering angle sensor.
NG >> Repair harness between steering angle sensor and data
link connector.
Unified Meter and A/C Amp. Circuit CheckAKS00BZK
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of unified meter and A/C amp. for damage, bend and loose connection
(meter side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.39 (L) - 40 (R) : Approx. 54 - 66Ω
SKIA6869E
4 (L) - 5 (R) : Approx. 54 - 66Ω
SKIA6870E
