Lan system INFINITI FX35 2004 Service Manual

LAN-46
[CAN]
CAN SYSTEM (TYPE 1)
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect unified meter and A/C amp. connector.
2. Check resistance between unified meter and A/C amp. harness
connector M55 terminals 1 (L) and 11 (R).
OK or NG
OK >> Replace unified meter and A/C amp.
NG >> Repair harness between unified meter and A/C amp.
and harness connector M41.
ABS Actuator and Electric Unit (Control Unit) Circuit CheckAKS00BZL
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check terminals and connector of ABS actuator and electric unit (control unit) for damage, bend and loose
connection (control unit side and harness side).
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Check resistance between ABS actuator and electric unit (con-
trol unit) harness connector E56 terminals 11 (L) and 15 (R).
OK or NG
OK >> Replace ABS actuator and electric unit (control unit).
NG >> Repair harness between ABS actuator and electric unit
(control unit) and harness connector E205.
IPDM E/R Circuit CheckAKS00BZM
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side
and harness side).
–IPDM E/R connector
–Harness connector E205
–Harness connector B5
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.1 (L) - 11 (R) : Approx. 54 - 66Ω
SKIA6871E
11 (L) - 15 (R) : Approx. 54 - 66Ω
SKIA6872E

CAN SYSTEM (TYPE 1)
LAN-47
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR OPEN CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check resistance between IPDM E/R harness connector E9 ter-
minals 48 (L) and 49 (R).
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness between IPDM E/R and ABS actuator
and electric unit (control unit).
CAN Communication Circuit CheckAKS00BZN
1. CHECK CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect the negative battery terminal.
3. Check following terminals and connectors for damage, bend and loose connection (control module side,
unit side, sensor side, meter side, control unit side and harness side).
–ECM
–A/T assembly
–Display unit
–BCM
–Steering angle sensor
–Unified meter and A/C amp.
–ABS actuator and electric unit (control unit)
–IPDM E/R
–Between ECM and IPDM E/R
–Between ECM and A/T assembly
OK or NG
OK >> GO TO 2.
NG >> Repair terminal or connector.48 (L) - 49 (R) : Approx. 108 - 132Ω
SKIA6873E

LAN-48
[CAN]
CAN SYSTEM (TYPE 1)
Revision: 2004 November 2004 FX35/FX45
2. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect following connectors.
–ECM connector
–Harness connector M82
–Display unit connector
–BCM connector
–Steering angle sensor connector
–Unified meter and A/C amp. connector
–Harness connector M41
2. Check continuity between data link connector M5 terminals 6 (L)
and 14 (R).
OK or NG
OK >> GO TO 3.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.

Harness between data link connector and ECM

Harness between data link connector and harness
connector M82

Harness between data link connector and display unit

Harness between data link connector and BCM

Harness between data link connector and steering angle sensor

Harness between data link connector and unified meter and A/C amp.

Harness between data link connector and harness connector M41
3. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between data link connector M5 terminals 6 (L), 14
(R) and ground.
OK or NG
OK >> GO TO 4.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.

Harness between data link connector and ECM

Harness between data link connector and harness
connector M82

Harness between data link connector and display unit

Harness between data link connector and BCM

Harness between data link connector and steering angle sensor

Harness between data link connector and unified meter and A/C amp.

Harness between data link connector and harness connector M41 6 (L) - 14 (R) : Continuity should not exist.
SKIA6868E
6 (L) - Ground : Continuity should not exist.
14 (R) - Ground : Continuity should not exist.
SKIA6874E

CAN SYSTEM (TYPE 1)
LAN-49
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
4. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect A/T assembly connector.
2. Check continuity between A/T assembly harness connector F44
terminals 3 (L) and 8 (R).
OK or NG
OK >> GO TO 5.
NG >> Repair harness between A/T assembly and harness
connector F102.
5. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between A/T assembly harness connector F44 ter-
minals 3 (L), 8 (R) and ground.
OK or NG
OK >> GO TO 6.
NG >> Repair harness between A/T assembly and harness
connector F102.
6. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect ABS actuator and electric unit (control unit) connector and harness connector E205.
2. Check continuity between ABS actuator and electric unit (control
unit) harness connector E56 terminals 11 (L) and 15 (R).
OK or NG
OK >> GO TO 7.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.

Harness between ABS actuator and electric unit (con-
trol unit) and harness connector E211

Harness between ABS actuator and electric unit (con-
trol unit) and harness connector E205 3 (L) - 8 (R) : Continuity should not exist.
SKIA6866E
3 (L) - Ground : Continuity should not exist.
8 (R) - Ground : Continuity should not exist.
SKIA6875E
11 (L) - 15 (R) : Continuity should not exist.
SKIA6872E

LAN-50
[CAN]
CAN SYSTEM (TYPE 1)
Revision: 2004 November 2004 FX35/FX45
7. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between ABS actuator and electric unit (control
unit) harness connector E56 terminals 11 (L), 15 (R) and ground.
OK or NG
OK >> GO TO 8.
NG >> Check the following harnesses. If any harness is dam-
aged, repair the harness.

Harness between ABS actuator and electric unit (con-
trol unit) and harness connector E211

Harness between ABS actuator and electric unit (control unit) and harness connector E205
8. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between harness connector B5 terminals 3 (L) and
10 (R).
OK or NG
OK >> GO TO 9.
NG >> Repair harness between harness connector B5 and har-
ness connector B5.
9. CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between harness connector B5 terminals 3 (L), 10
(R) and ground.
OK or NG
OK >> GO TO 10.
NG >> Repair harness between harness connector B5 and har-
ness connector B5.
10. CHECK HARNESS FOR SHORT CIRCUIT
1. Disconnect IPDM E/R connector.
2. Check continuity between IPDM E/R harness connector E9 ter-
minals 48 (L) and 49 (R).
OK or NG
OK >> GO TO 11.
NG >> Repair harness between IPDM E/R and harness con-
nector E205. 11 (L) - Ground : Continuity should not exist.
15 (R) - Ground : Continuity should not exist.
SKIA6876E
3 (L) - 10 (R) : Continuity should not exist.
SKIA6877E
3 (L) - Ground : Continuity should not exist.
10 (R) - Ground : Continuity should not exist.
SKIA6878E
48 (L) - 49 (R) : Continuity should not exist.
SKIA6873E

CAN SYSTEM (TYPE 1)
LAN-51
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
11 . CHECK HARNESS FOR SHORT CIRCUIT
Check continuity between IPDM E/R harness connector E9 termi-
nals 48 (L), 49 (R) and ground.
OK or NG
OK >> GO TO 12.
NG >> Repair harness between IPDM E/R and harness con-
nector E205.
12. ECM/IPDM E/R INTERNAL CIRCUIT INSPECTION
Check components inspection. Refer to LAN-51, "
ECM/IPDM E/R INTERNAL CIRCUIT INSPECTION" .
OK or NG
OK >> Connect all the connectors and diagnose again. Refer to LAN-24, "Work Flow" .
NG >> Replace ECM and/or IPDM E/R.
IPDM E/R Ignition Relay Circuit CheckAKS00BZO
Check the following. If no malfunction is found, replace the IPDM E/R.

IPDM E/R power supply circuit. Refer to PG-28, "IPDM E/R Power/Ground Circuit Inspection" .

Ignition power supply circuit. Refer to PG-12, "IGNITION POWER SUPPLY - IGNITION SW. IN “ON”
AND/OR “START”" .
Component InspectionAKS00BZP
ECM/IPDM E/R INTERNAL CIRCUIT INSPECTION

Remove ECM and IPDM E/R from vehicle.

Check resistance between ECM terminals 94 and 86.

Check resistance between IPDM E/R terminals 48 and 49.48 (L) - Ground : Continuity should not exist.
49 (R) - Ground : Continuity should not exist.
SKIA6879E
Unit TerminalResistance value (Ω)
(Approx.)
ECM 94 - 86
108 - 132
IPDM E/R 48 - 49
LKIA0037E

LAN-52
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2004 November 2004 FX35/FX45
CAN SYSTEM (TYPE 2)PFP:23710
System DescriptionAKS00BZQ
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
Component Parts and Harness Connector LocationAKS00BZR
SKIA7125E

CAN SYSTEM (TYPE 2)
LAN-53
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45

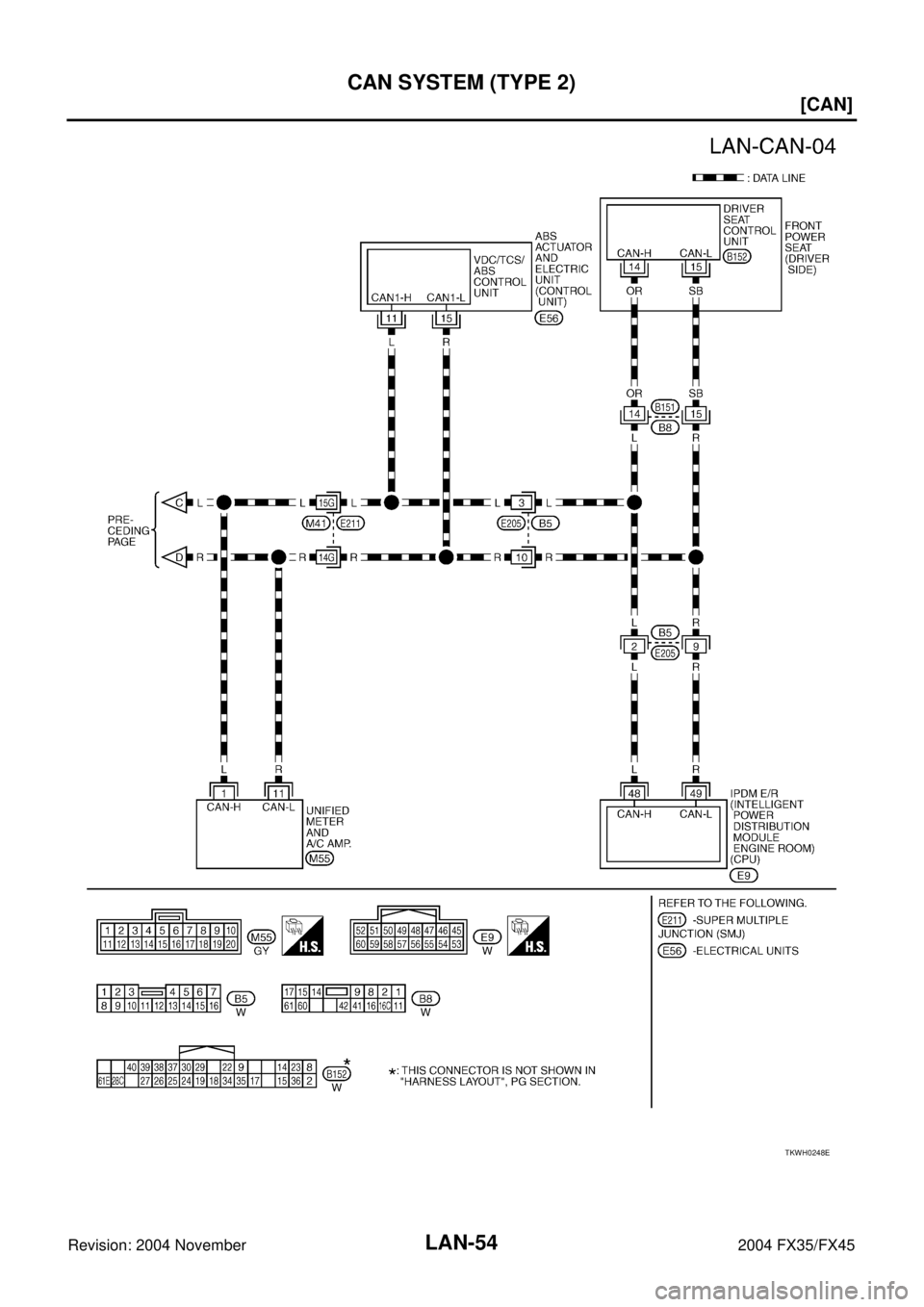

Wiring Diagram - CAN -AKS00BZS
TKWM1293E

LAN-54
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2004 November 2004 FX35/FX45
TKWH0248E

CAN SYSTEM (TYPE 2)
LAN-55
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
Work FlowAKS00BZT
1. When there are no indications of “BCM”, “METER A/C AMP”, “AUTO DRIVE POS.” or “IPDM E/R” on
“SELECT SYSTEM” display of CONSULT-II, print the “SELECT SYSTEM”.
2. Print all the data of “SELF-DIAG RESULTS” for “ENGINE”, “A/T”, “BCM”, “METER A/C AMP”, “ABS”,
“AUTO DRIVE POS.”, and “IPDM E/R” displayed on CONSULT-II.
3. Print all the data of “CAN DIAG SUPPORT MNTR” for “ENGINE”, “A/T”, “BCM”, “METER A/C AMP”,
“ABS”, “AUTO DRIVE POS.”, and “IPDM E/R” displayed on CONSULT-II.
4. Attach the printed sheet of “SELECT SYSTEM”, “SELF-DIAG RESULTS” and “CAN DIAG SUPPORT
MNTR” onto the check sheet. Refer to LAN-57, "
CHECK SHEET" .
5. Based on the indications of “SELECT SYSTEM” and the results of “CAN DIAG SUPPORT MNTR”, put
marks “v” onto the items with “No indication”, “NG”, or “UNKWN” in the check sheet table. Refer to LAN-
57, "CHECK SHEET" .
NOTE:

If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” as “CAN DIAG SUPPORT MNTR” for the diag-
nosed control unit, replace the control unit.

The “CAN DIAG SUPPORT MNTR” items, which are not in check sheet table, are not related to diag-
nostic procedure on service manual.
So it is not necessary to check the status of “CAN DIAG SUPPORT MNTR” items which are not indi-
cated in check sheet table.
6. Check CAN communication line of the integrated display system. Refer to AV- 8 5 , "
CAN Communication
Line Inspection" .
7. Attach the CAN DIAG MONITOR check sheet onto the check sheet. Refer to LAN-57, "
CHECK SHEET" .
8. Mark the “NG” or “UNKWN” item of the check sheet table with “v” from the result of CAN DIAG MONITOR
check sheet. Refer to LAN-57, "
CHECK SHEET" .
PKIA2093E
