Lan system INFINITI FX35 2004 Service Manual

LAN-56
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2004 November 2004 FX35/FX45
NOTE:
If “NG” is displayed on “CAN COMM” as “CAN DIAG MNTR” for the diagnosed control unit, replace the
control unit. Refer to AV- 8 5 , "
CAN Communication Line Inspection" .
9. According to the check sheet results (example), start inspection. Refer to LAN-59, "
CHECK SHEET
RESULTS (EXAMPLE)" .

CAN SYSTEM (TYPE 2)
LAN-57
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45

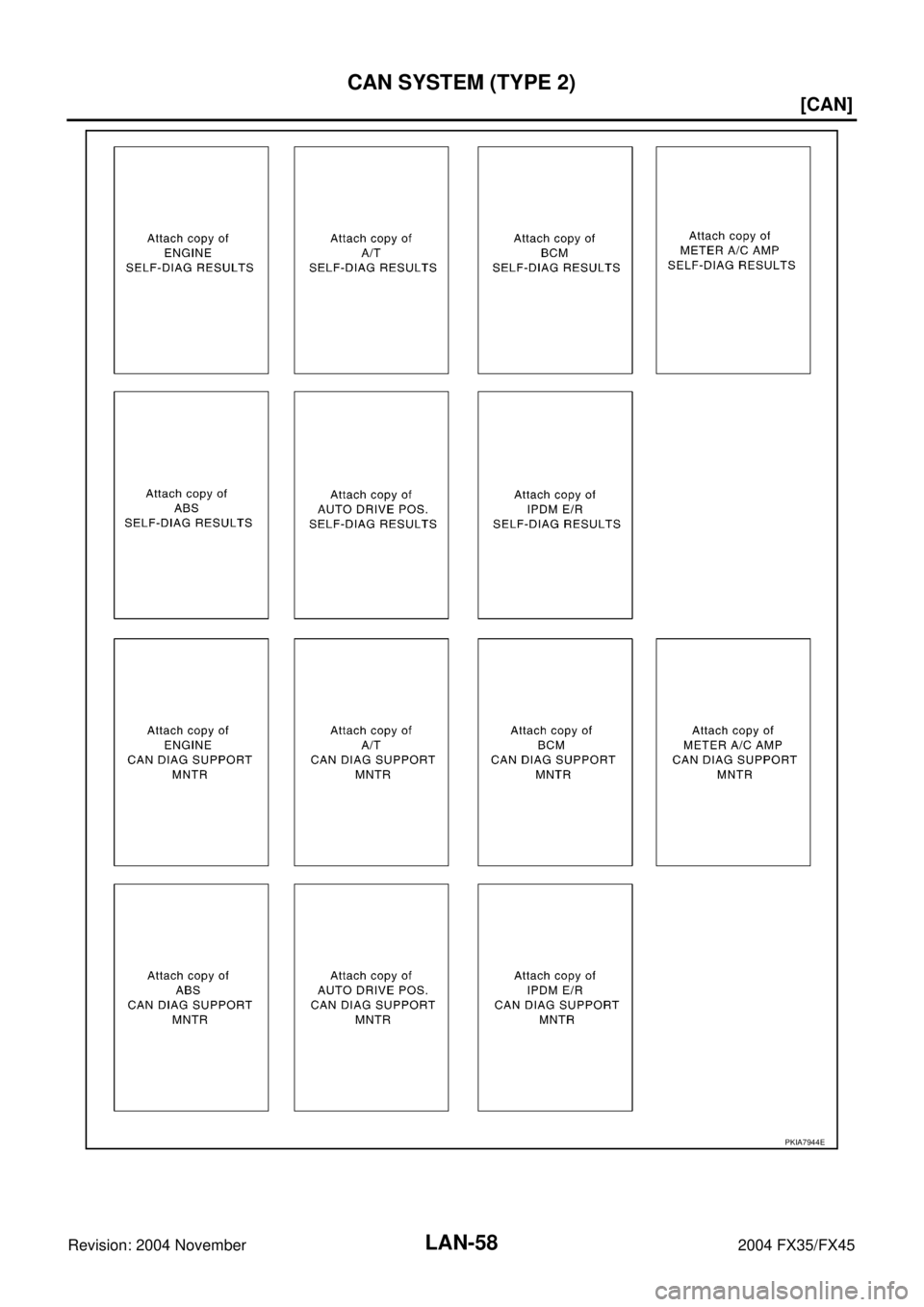

CHECK SHEET
NOTE:
If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” or “CAN COMM” for the diagnosed control unit,
replace the control unit.
PKIA7943E

LAN-58
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2004 November 2004 FX35/FX45
PKIA7944E

CAN SYSTEM (TYPE 2)
LAN-59
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
CHECK SHEET RESULTS (EXAMPLE)
NOTE:
If “NG” is displayed on “INITIAL DIAG (Initial diagnosis)” or “CAN COMM” for the diagnosed control unit,
replace the control unit.
Case 1
Check harness between TCM and data link connector. Refer to LAN-74, "Circuit Check Between TCM and
Data Link Connector" .
PKIA7945E
SKIA6570E

LAN-60
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2004 November 2004 FX35/FX45

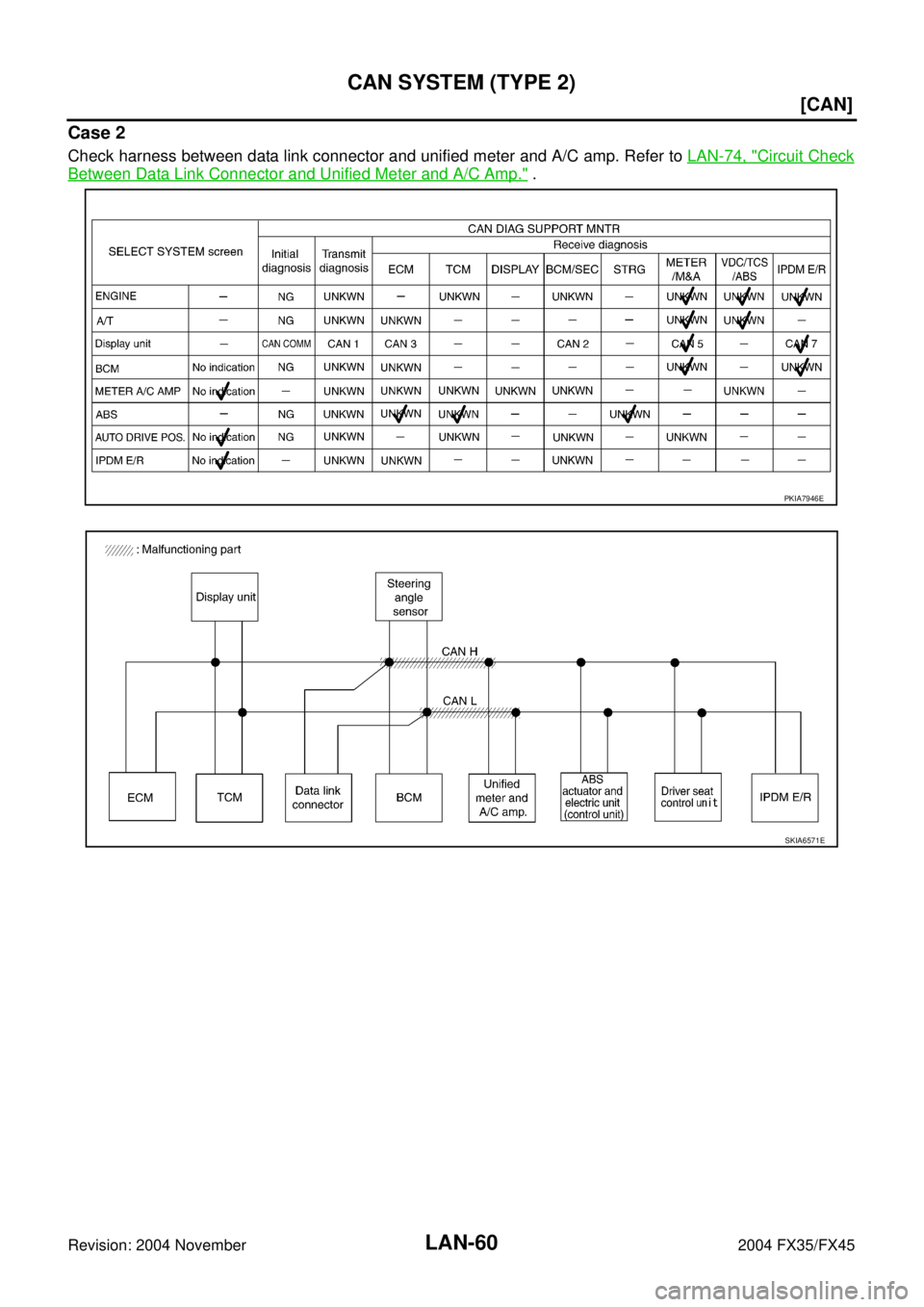

Case 2
Check harness between data link connector and unified meter and A/C amp. Refer to LAN-74, "Circuit Check
Between Data Link Connector and Unified Meter and A/C Amp." .
PKIA7946E
SKIA6571E

CAN SYSTEM (TYPE 2)
LAN-61
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
Case 3
Check harness between unified meter and A/C amp. and ABS actuator and electric unit (control unit). Refer to
LAN-75, "
Circuit Check Between Unified Meter and A/C Amp. and ABS Actuator and Electric Unit (Control
Unit)" .
PKIA7947E
SKIA6572E

LAN-62
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2004 November 2004 FX35/FX45
Case 4
Check harness between ABS actuator and electric unit (control unit) and driver seat control unit. Refer to LAN-
76, "Circuit Check Between ABS Actuator and Electric Unit (Control Unit) and Driver Seat Control Unit" .
PKIA7948E
SKIA6573E

CAN SYSTEM (TYPE 2)
LAN-63
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45

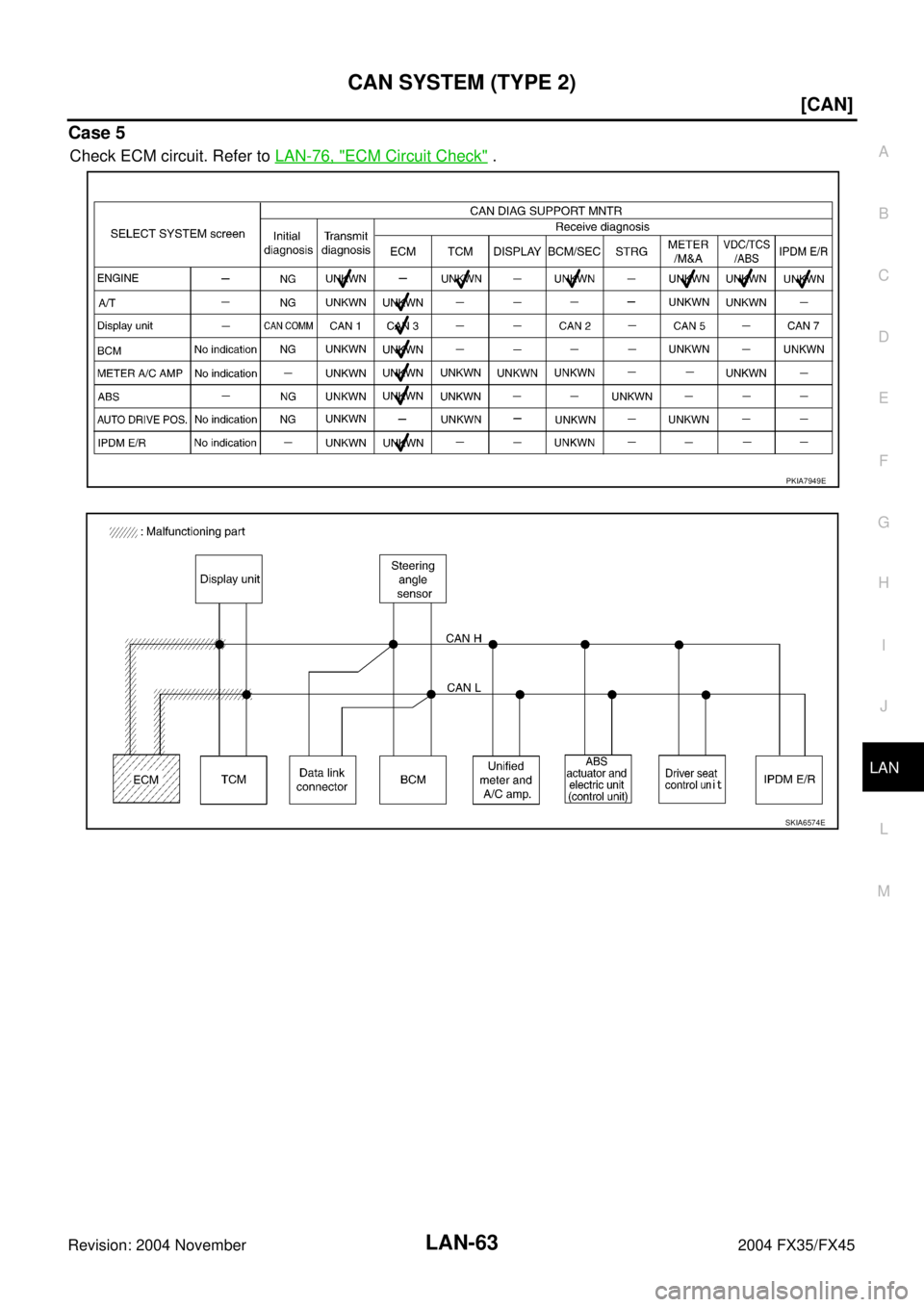

Case 5
Check ECM circuit. Refer to LAN-76, "ECM Circuit Check" .
PKIA7949E
SKIA6574E

LAN-64
[CAN]
CAN SYSTEM (TYPE 2)
Revision: 2004 November 2004 FX35/FX45

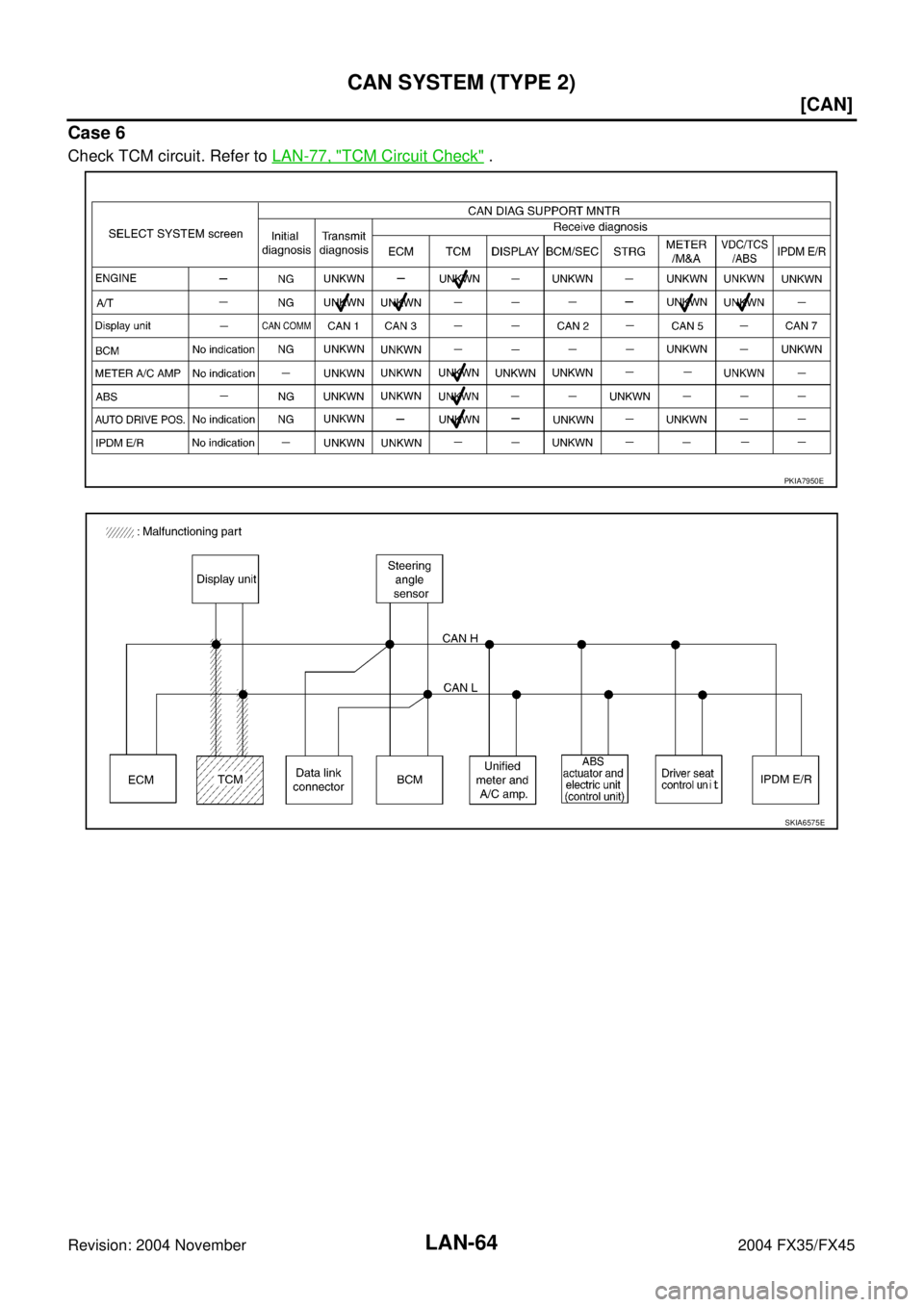

Case 6
Check TCM circuit. Refer to LAN-77, "TCM Circuit Check" .
PKIA7950E
SKIA6575E

CAN SYSTEM (TYPE 2)
LAN-65
[CAN]
C
D
E
F
G
H
I
J
L
MA
B
LAN
Revision: 2004 November 2004 FX35/FX45
Case 7
Check display unit circuit. Refer to LAN-77, "Display Unit Circuit Check" .
PKIA7951E
SKIA6576E
