TROUBLE DIAGNOSIS
AT-97
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2004 November 2004 FX35/FX45
How to Erase Self-diagnostic Results
1. Perform “CONSULT-II SETTING PROCEDURE” Refer to AT- 9 3 ,
"CONSULT-II SETTING PROCEDURE" .
2. Touch “SELF-DIAG RESULTS”.
3. Touch ”ERASE”. (The self-diagnostic results will be erased.)
DATA MONITOR MODE
Operation Procedure
1. Perform “CONSULT-II SETTING PROCEDURE” Refer to AT- 9 3 ,
"CONSULT-II SETTING PROCEDURE" .
2. Touch “DATA MONITOR”.
NOTE:
When malfunction is detected, CONSULT-II performs
“REAL-TIME DIAGNOSIS”. Also, any malfunction detected
while in this mode will be displayed at real time.
Display Items List
X: Standard, —: Not applicable
SCIA5304E
PCIA0061E
SCIA5304E
Monitored item (Unit)Monitor Item Selection
Remarks ECU
INPUT
SIGNALSMAIN SIG-
NALSSELEC-
TION
FROM
MENU
VHCL/S SE·A/T (km/h) X X X Revolution sensor
VHCL/S SE·MTR (km/h) X — X
ACCELE POSI (0.0/8) X — X Accelerator pedal position signal
THROTTLE POSI (0.0/8) X X XDegree of opening for accelerator recognized by
the TCM
For fail-safe operation, the specific value used
for control is displayed.
CLSD THL POS (ON-OFF display) X — X
Signal input with CAN communications
W/O THL POS (ON-OFF display) X — X
BRAKE SW (ON-OFF display) X — X Stop lamp switch

AT-98
TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45
GEAR — X XGear position recognized by the TCM updated
after gear-shifting
ENGINE SPEED (rpm) X X X
TURBINE REV (rpm) X X X
OUTPUT REV (rpm) X X X
GEAR RATIO — X X
TC SLIP SPEED (rpm) — X XDifference between engine speed and torque
converter input shaft speed
F SUN GR REV (rpm) — — X
F CARR GR REV (rpm) — — X
ATF TEMP SE 1 (V) X — X
ATF TEMP SE 2 (V) X — X
ATF TEMP 1 (°C) — X X
ATF TEMP 2 (°C) — X X
BATTERY VOLT (V) X — X
ATF PRES SW 1 (ON-OFF display) X X X (for FR/B solenoid)
ATF PRES SW 2 (ON-OFF display) X X X (for LC/B solenoid)
ATF PRES SW 3 (ON-OFF display) X X X (for I/C solenoid)
ATF PRES SW 5 (ON-OFF display) X X X (for D/C solenoid)
ATF PRES SW 6 (ON-OFF display) X X X (for HLR/C solenoid)
PNP SW 1 (ON-OFF display) X — X
PNP SW 2 (ON-OFF display) X — X
PNP SW 3 (ON-OFF display) X — X
PNP SW 4 (ON-OFF display) X — X
1 POSITION SW (ON-OFF display) X — X
SLCT LVR POSI — X XSelector lever position is recognized by the
TCM.
For fail-safe operation, the specific value used
for control is displayed.
OD CONT SW (ON-OFF display) X — X
Not mounted but displayed. POWERSHIFT SW (ON-OFF display) X — X
HOLD SW (ON-OFF display) X — X
MANU MODE SW (ON-OFF display) X — X
NON M-MODE SW (ON-OFF display) X — X
UP SW LEVER (ON-OFF display) X — X
DOWN SW LEVER (ON-OFF display) X — X
SFT UP ST SW (ON-OFF display) — — X
Not mounted but displayed.
SFT DWN ST SW (ON-OFF display) — — X
ASCD·OD CUT (ON-OFF display) — — X
ASCD·CRUISE (ON-OFF display) — — X
ABS SIGNAL (ON-OFF display) — — X
ACC OD CUT (ON-OFF display) — — X
ICC (intelligent cruise control)
ACC SIGNAL (ON-OFF display) — — XMonitored item (Unit)Monitor Item Selection
Remarks ECU
INPUT
SIGNALSMAIN SIG-
NALSSELEC-
TION
FROM
MENU

TROUBLE DIAGNOSIS
AT-99
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2004 November 2004 FX35/FX45
TCS GR/P KEEP (ON-OFF display) — — X
TCS SIGNAL 2 (ON-OFF display) — — X
TCS SIGNAL 1 (ON-OFF display) — — X
TCC SOLENOID (A) — X X
LINE PRES SOL (A) — X X
I/C SOLENOID (A) — X X
FR/B SOLENOID (A) — X X
D/C SOLENOID (A) — X X
HLR/C SOL (A) — X X
ON OFF SOL (ON-OFF display) — — X LC/B solenoid
TCC SOL MON (A) — — X
L/P SOL MON (A) — — X
I/C SOL MON (A) — — X
FR/B SOL MON (A) — — X
D/C SOL MON (A) — — X
HLR/C SOL MON (A) — — X
ONOFF SOL MON (ON-OFF display) — — X LC/B solenoid
P POSI IND (ON-OFF display) — — X
R POSI IND (ON-OFF display) — — X
N POSI IND (ON-OFF display) — — X
D POSI IND (ON-OFF display) — — X
4TH POSI IND (ON-OFF display) — — X
3RD POSI IND (ON-OFF display) — — X
2ND POSI IND (ON-OFF display) — — X
1ST POSI IND (ON-OFF display) — — X
MANU MODE IND (ON-OFF display) — — X
POWER M LAMP (ON-OFF display) — — X
F-SAFE IND/L (ON-OFF display) — — X
ATF WARN LAMP (ON-OFF display) — — X Not mounted but displayed
BACK-UP LAMP (ON-OFF display) — — X
STARTER RELAY (ON-OFF display) — — X
PNP SW3 MON (ON-OFF display) — — X
C/V CLB ID1 — — X
C/V CLB ID2 — — X
C/V CLB ID3 — — X
UNIT CLB ID1 — — X
UNIT CLB ID2 — — X
UNIT CLB ID3 — — X
TRGT GR RATIO — — X
TRGT PRES TCC (kPa) — — X
TRGT PRES L/P (kPa) — — XMonitored item (Unit)Monitor Item Selection
Remarks ECU
INPUT
SIGNALSMAIN SIG-
NALSSELEC-
TION
FROM
MENU

AT-100
TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45
DTC WORK SUPPORT MODE
Operation Procedure
1. Perform “CONSULT-II SETTING PROCEDURE” Refer to AT- 9 3 ,
"CONSULT-II SETTING PROCEDURE" .
2. Touch “DTC WORK SUPPORT”.
3. Touch select item menu.
TRGT PRES I/C (kPa) — — X
TRGT PRE FR/B (kPa) — — X
TRGT PRES D/C (kPa) — — X
TRG PRE HLR/C (kPa) — — X
SHIFT PATTERN — — X
DRV CST JUDGE — — X
START RLY MON — — X
NEXT GR POSI — — X
SHIFT MODE — — X
MANU GR POSI — — X
VEHICLE SPEED (km/h) — X X Vehicle speed recognized by the TCM.
Voltage (V) — — XDisplays the value measured by the voltage
probe.
Frequency (Hz) — — X
The value measured by the pulse probe is dis-
played. DUTY-HI (high) (%) — — X
DUTY-LOW (low) (%) — — X
PLS WIDTH-HI (ms) — — X
PLS WIDTH-LOW (ms) — — XMonitored item (Unit)Monitor Item Selection
Remarks ECU
INPUT
SIGNALSMAIN SIG-
NALSSELEC-
TION
FROM
MENU
SCIA5304E
SCIA0512E

AT-104
TROUBLE DIAGNOSIS
Revision: 2004 November 2004 FX35/FX45

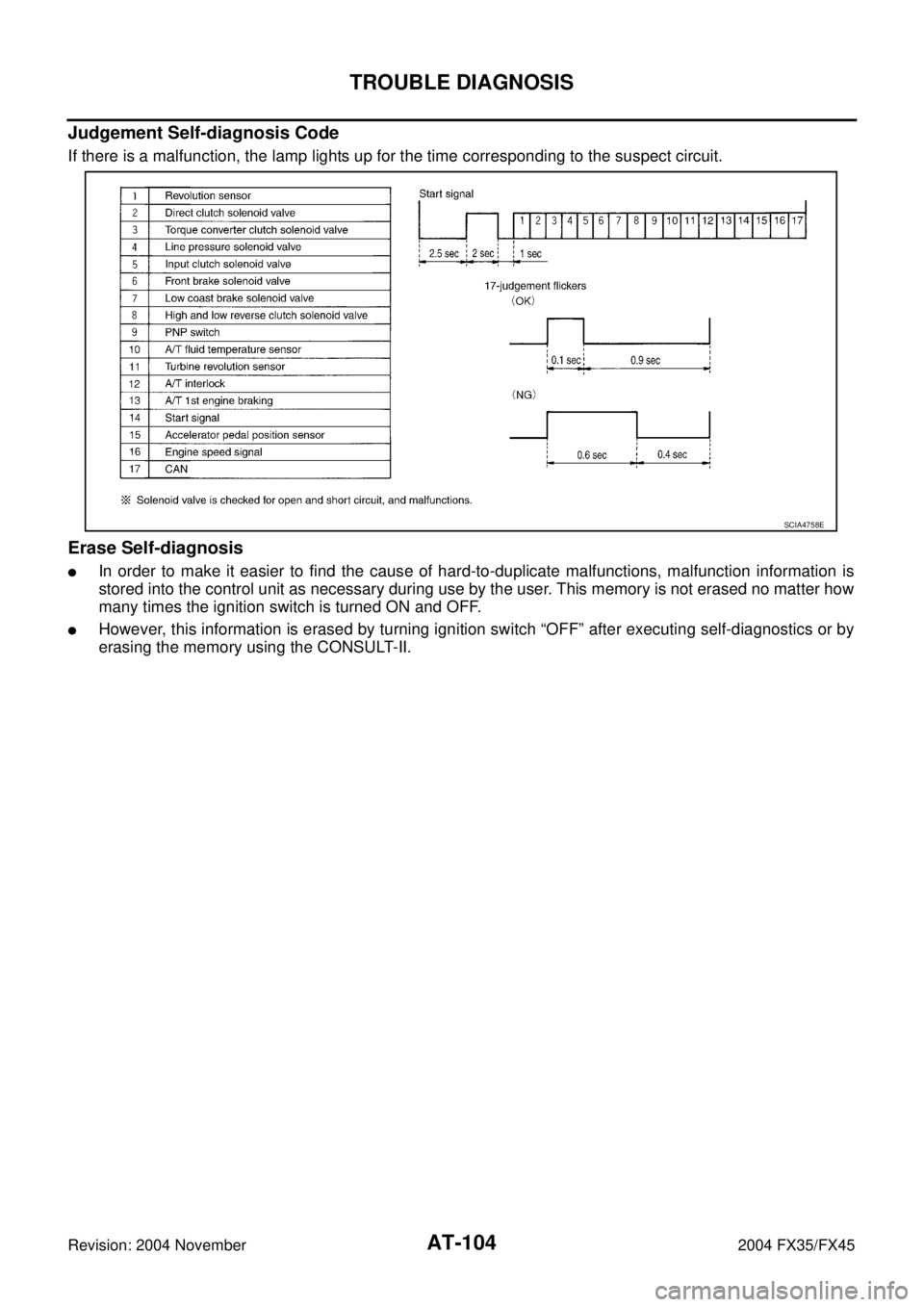

Judgement Self-diagnosis Code
If there is a malfunction, the lamp lights up for the time corresponding to the suspect circuit.
Erase Self-diagnosis

In order to make it easier to find the cause of hard-to-duplicate malfunctions, malfunction information is
stored into the control unit as necessary during use by the user. This memory is not erased no matter how
many times the ignition switch is turned ON and OFF.

However, this information is erased by turning ignition switch “OFF” after executing self-diagnostics or by
erasing the memory using the CONSULT-II.
SCIA4758E

AT-108
DTC P0615 START SIGNAL CIRCUIT
Revision: 2004 November 2004 FX35/FX45
DTC P0615 START SIGNAL CIRCUITPFP:25230
DescriptionACS007AQ
Prohibits cranking other than at “P” or “N” position.
CONSULT-II Reference ValueACS007AR
On Board Diagnosis LogicACS007AS

This is not an OBD-II self-diagnostic item.

Diagnostic trouble code “STARTER RELAY/CIRC” with CONSULT-II or 14th judgement flicker without
CONSULT-II is detected when starter relay is switched “ON” other than at “P” or “N” position. (Or when
switched “OFF” at “P” or “N” position).
Possible CauseACS007AT

Harness or connectors
(Starter relay and TCM circuit is open or shorted.)

Starter relay circuit
DTC Confirmation ProcedureACS007AU
NOTE:
If “DTC Confirmation Procedure” has been previously conducted, always turn ignition switch “OFF”
and wait at least 10 seconds before conducting the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Start engine.
4. Vehicle start for at least 2 consecutive seconds.
5. If DTC is detected, go to AT- 11 0 , "
Diagnostic Procedure" .
Item name Condition Display value
STARTER RELAYSelector lever in N and P positions. ON
Selector lever in other positions. OFF
SAT014K

AT-112
DTC P0705 PARK/NEUTRAL POSITION SWITCH
Revision: 2004 November 2004 FX35/FX45
DTC P0705 PARK/NEUTRAL POSITION SWITCHPFP:32006
DescriptionACS007AX

The park/neutral position (PNP) switch includes a transmission range switch.

The transmission range switch detects the selector lever position and sends a signal to the TCM.
CONSULT-II Reference ValueACS007AY
On Board Diagnosis LogicACS007AZ

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “PNP SW/CIRC” with CONSULT-II or P0705 without CONSULT-II is detected
under the following conditions.
–When TCM does not receive the correct voltage signal from the PNP switch 1, 2, 3, 4 based on the gear
position.
–When no other position but “P” position is detected from “N” positions.
Possible CauseACS007B0

Harness or connectors
[Park/neutral position (PNP) switch 1, 2, 3, 4 and TCM circuit is open or shorted.]

Park/neutral position (PNP) switch 1, 2, 3, 4
DTC Confirmation ProcedureACS007B1
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “DATA MONITOR” mode for “ENGINE” with CONSULT-II.
3. Start engine.
4. Drive vehicle and maintain the following conditions for at least 2
consecutive seconds.
THRTL POS SEN: More than 1.2V
5. If DTC is detected, go to AT- 11 4 , "
Diagnostic Procedure" .
WITH GST
Follow the procedure “With CONSULT-II”.
Item name Condition Display value
SLCTLVR POSISelector lever in “N” and “P” positions. N/P
Selector lever in “R” position. R
Selector lever in “D” position. D
SAT014K

AT-116
DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)
Revision: 2004 November 2004 FX35/FX45
DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)PFP:32702
DescriptionACS007B4
The revolution sensor detects the revolution of the idler gear parking pawl lock gear and emits a pulse signal.
The pulse signal is sent to the TCM which converts it into vehicle speed.
CONSULT-II Reference ValueACS007B5
On Board Diagnosis LogicACS007B6

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “VEH SPD SEN/CIR AT” with CONSULT-II or P0720 without CONSULT-II is
detected under the following conditions.
–When TCM does not receive the proper voltage signal from the sensor.
–After ignition switch is turned “ON”, irregular signal input from vehicle speed sensor MTR before the vehi-
cle starts moving.
Possible CauseACS007B7

Harness or connectors
(Sensor circuit is open or shorted.)

Revolution sensor

Vehicle speed sensor MTR
DTC Confirmation ProcedureACS007B8
CAUTION:

Always drive vehicle at a safe speed.

Be careful not to rev engine into the red zone on the tachometer.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Drive vehicle and check for an increase of “VHCL/S SE·A/T”
value in response to “VHCL/S SE·MTR” value.
If the check result is NG, go to AT- 11 9 , "
Diagnostic Procedure" .
If the check result is OK, go to following step.
4. Select “DATA MONITOR” mode for “ENGINE” with CONSULT-II.
5. Start engine and maintain the following conditions for at least 5
consecutive seconds.
VHCL SPEED SE: 30 km/h (19 MPH) or more
THRTL POS SEN: More than 1.0/8
Selector lever: “D” position
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
If the check result is NG, go to AT- 11 9 , "
Diagnostic Procedure" .
If the check result is OK, go to following step.
6. Maintain the following conditions for at least 5 consecutive seconds.
ENGINE SPEED: 3,500 rpm or more
THRTL POS SEN: More than 1.0/8
Selector lever: “D” position
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
If the check result is NG, go to AT- 11 9 , "
Diagnostic Procedure" .
Item name Condition Display value (km/h)
VHCL/S SE·A/T During driving Approximately matches the speedometer reading.
SAT014K

DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)
AT-119
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2004 November 2004 FX35/FX45
Diagnostic ProcedureACS007BA
1. CHECK INPUT SIGNALS
With CONSULT-II
1. Turn ignition switch “ON”. (Do not start engine.)
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for
“A/T” with CONSULT-II.
3. Start the engine.
4. Read out the value of “VHCL/S SE·A/T” while driving.
Check the value changes according to driving speed.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2. CHECK TCM
Perform TCM input/output signals inspection. Refer to AT- 9 0 , "
TCM Input/Output Signal Reference Values" .
OK or NG
OK >> GO TO 3.
NG >> GO TO 4.
3. CHECK TERMINAL CORD ASSEMBLY
1. Remove control valve with TCM. Refer to AT- 2 4 2 , "
Control Valve with TCM and A/T Fluid Temperature
Sensor 2" .
2. Disconnect A/T assembly harness connector and control valve with TCM harness connector.
3. Check continuity between A/T assembly harness connector terminal and control valve with TCM harness
connector terminal. Refer to AT- 11 8 , "
Wiring Diagram — AT — VSSA/T" .
4. If OK, check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Replace open circuit or short to ground and short to power in harness or connectors.
4. DETECT MALFUNCTIONING ITEM
Check the following items:

Harness for short or open between battery and A/T assembly harness connector terminals 1, 2

Harness for short or open between ignition switch and A/T assembly harness connector terminal 6

10A fuse (No. 37, located in the fuse and fusible link block) and 10A fuse (No. 83, located in the IPDM E/
R).

Ignition switch, Refer to PG-3, "POWER SUPPLY ROUTING CIRCUIT" .
OK or NG
OK >> GO TO 6.
NG >> Repair or replace damaged parts.
Item name Condition Display value (km/h)
VHCL/S SE·A/T During drivingApproximately matches the
speedometer reading.
SCIA2148E

DTC P0725 ENGINE SPEED SIGNAL
AT-121
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2004 November 2004 FX35/FX45
DTC P0725 ENGINE SPEED SIGNALPFP:24825
DescriptionACS007BC
The engine speed signal is sent from the ECM to the TCM.
CONSULT-II Reference ValueACS007BD
On Board Diagnosis LogicACS007BE

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “ENGINE SPEED SIG” with CONSULT-II or P0725* without CONSULT-II is
detected when TCM does not receive the ignition signal from ECM during engine cranking or running.
* : For VQ35DE engine
Possible CauseACS007BF
Harness or connectors
(ECM to TCM circuit is open or shorted.)
DTC Confirmation ProcedureACS007BG
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch “OFF”
and wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch “ON” and select “DATA MONITOR” mode for
“A/T” with CONSULT-II.
2. Start engine and maintain the following conditions for at least 10
consecutive seconds.
VHCL SPEED SE: 10 km/h (6 MPH) or more
ACCELE POSI: More than 1/8
Selector lever: “D” position
3. If DTC is detected, go to AT- 1 2 1 , "
Diagnostic Procedure" .
WITH GST
Follow the procedure “With CONSULT-II”.
Diagnostic ProcedureACS007BH
1. CHECK CAN COMMUNICATION LINE
Perform self-diagnosis. Refer to AT- 9 4 , "
SELF-DIAGNOSTIC RESULT MODE" , AT- 1 0 3 , "TCM SELF-DIAG-
NOSTIC PROCEDURE (NO TOOLS)" .
Is a malfunction in the CAN communication indicated in the results?
YES >> Check CAN communication line. Refer to AT- 1 0 5 , "DTC U1000 CAN COMMUNICATION LINE" .
NO >> GO TO 2.
Item name Condition Display value (rpm)
ENGINE SPEED Engine running Closely matches the tachometer reading.
SAT014K
