bcm INFINITI FX35 2004 Service Manual

RF-22
SUNROOF
Revision: 2004 November 2004 FX35/FX45

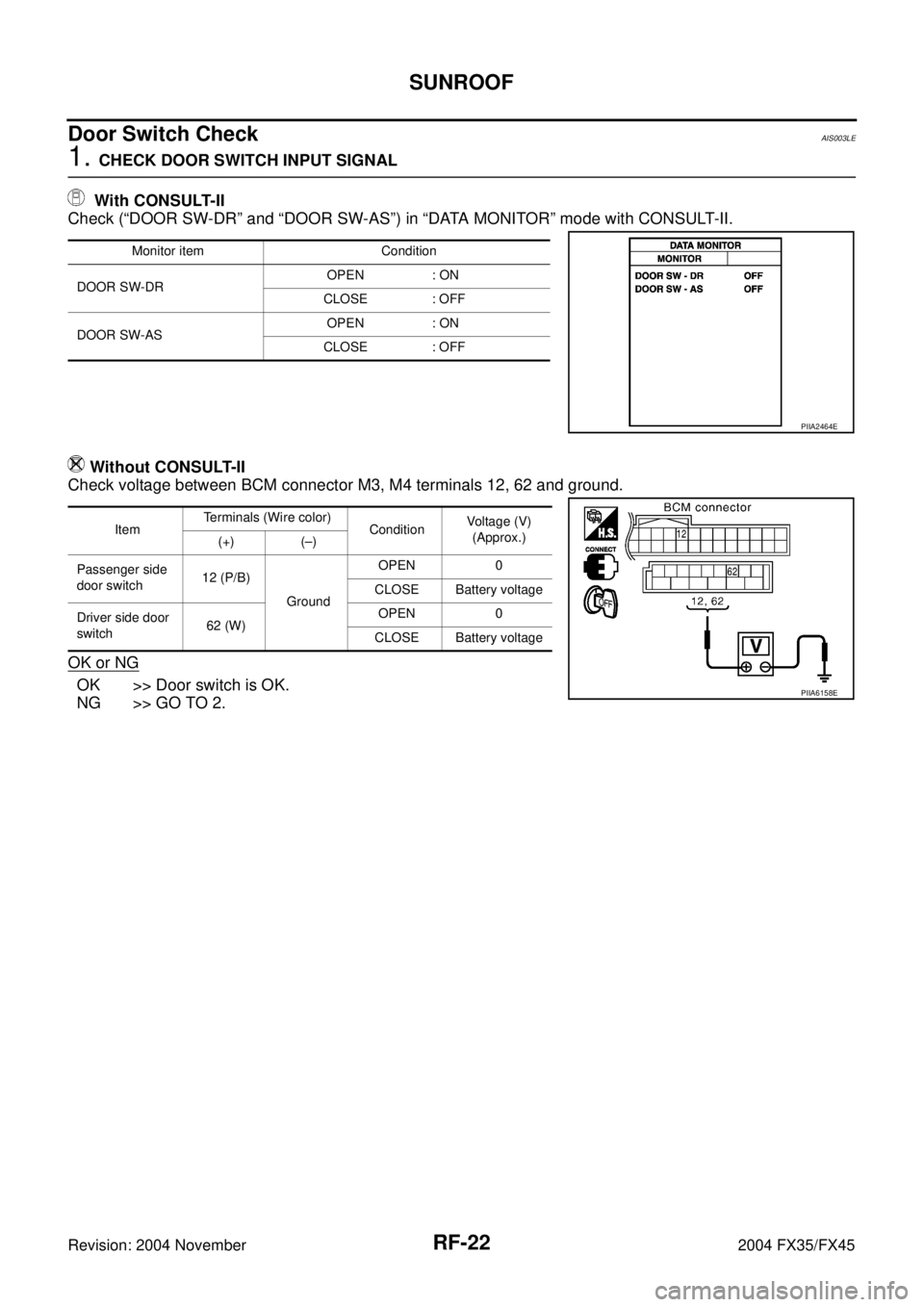

Door Switch Check AIS003LE
1. CHECK DOOR SWITCH INPUT SIGNAL
With CONSULT-II
Check (“DOOR SW-DR” and “DOOR SW-AS”) in “DATA MONITOR” mode with CONSULT-II.
Without CONSULT-II
Check voltage between BCM connector M3, M4 terminals 12, 62 and ground.
OK or NG
OK >> Door switch is OK.
NG >> GO TO 2.
Monitor item Condition
DOOR SW-DROPEN : ON
CLOSE : OFF
DOOR SW-ASOPEN : ON
CLOSE : OFF
PIIA2464E
ItemTerminals (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (–)
Passenger side
door switch 12 (P/B)
GroundOPEN 0
CLOSE Battery voltage
Driver side door
switch62 (W)OPEN 0
CLOSE Battery voltage
PIIA6158E

SUNROOF
RF-23
C
D
E
F
G
H
J
K
L
MA
B
RF
Revision: 2004 November 2004 FX35/FX45
2. CHECK DOOR SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect door switch and BCM connector.
3. Check continuity between BCM connector M3, M4 terminal 12,
62 and door switch connector B26, B36 terminal 1.
4. Check continuity between BCM connector M3, M4 terminals 12,
62 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness.
3. CHECK DOOR SWITCH
Check continuity between door switches terminal 1 and ground part
of door switch.
OK or NG
OK >> GO TO 4.
NG >> Replace malfunction door switch.
4. CHECK BCM OUTPUT SIGNAL
1. Connect BCM connector.
2. Check voltage between BCM connector M3, M4 terminal 12, 62
and ground.
OK or NG
OK >> Further inspection is necessary. Refer to RF-18, "Trou-
ble Diagnosis Chart by Symptom" .
NG >> Replace BCM.Driver side door
62 (W) – 1 (W) : Continuity should exist.
Passenger side door
12 (P/B) – 1 (SB) : Continuity should exist.
12 (P/B) – Ground : Continuity should not exist.
62 (W) – Ground : Continuity should not exist.
PIIA6159E
Terminal Door switch Continuity
1Ground part of
door switchPushed No
Released Yes
PIIA3351E
12 (P/B) – Ground : Battery voltage
62 (W) – Ground : Battery voltage
PIIA6158E

SE-1
SEAT
I BODY
CONTENTS
C
D
E
F
G
H
J
K
L
M
SECTION SE
A
B
SE
Revision: 2004 November 2004 FX35/FX45
SEAT
PRECAUTIONS .......................................................... 3
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” .................................................................. 3
Service Notice .......................................................... 3
Precautions for Work ................................................ 3
PREPARATION ........................................................... 4
Special Service Tools ............................................... 4
Commercial Service Tools ........................................ 4
SQUEAK AND RATTLE TROUBLE DIAGNOSIS ...... 5
Work Flow ................................................................ 5
CUSTOMER INTERVIEW ..................................... 5
DUPLICATE THE NOISE AND TEST DRIVE ....... 6
CHECK RELATED SERVICE BULLETINS ........... 6
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE ...................................................... 6
REPAIR THE CAUSE ........................................... 6
CONFIRM THE REPAIR ....................................... 7
Generic Squeak and Rattle Troubleshooting ........... 7
INSTRUMENT PANEL .......................................... 7
CENTER CONSOLE ............................................. 7
DOORS ................................................................. 7
TRUNK .................................................................. 8
SUNROOF/HEADLINING ..................................... 8
SEATS ................................................................... 8
UNDERHOOD ....................................................... 8
Diagnostic Worksheet .............................................. 9
AUTOMATIC DRIVE POSITIONER ...........................11
System Description ................................................. 11
MANUAL OPERATION ........................................ 11
AUTOMATIC OPERATION .................................. 11
MEMORY STORING AND KEY FOB INTER-
LOCK STORING .................................................. 11
MEMORY SWITCH OPERATION ....................... 13
ENTRY OPERATION .......................................... 13
EXITING OPERATION ........................................ 13
KEY FOB INTERLOCK OPERATION ................. 14
FAIL- SAFE MODE ............................................. 14
CANCEL OF FAIL-SAFE MODE ......................... 14
Component Parts and Harness Connector Location ... 15CAN Communication System Description .............. 16
CAN Communication Unit ....................................... 16
Schematic ............................................................... 17
Wiring Diagram–AUT/DP– ...................................... 19
Terminals and Reference Values for BCM .............. 30
Terminals and Reference Values for Automatic
Drive Positioner Control Unit .................................. 30
Terminals and Reference Values for Driver Seat
Control Unit ............................................................. 32
Work Flow ............................................................... 34
Preliminary Check .................................................. 35
SETTING CHANGE FUNCTION ......................... 35
CHECK POWER SUPPLY AND GROUND ......... 35
CONSULT-II Function ............................................. 38
CONSULT-II INSPECTION PROCEDURE .......... 38
SELF-DIAGNOSIS RESULTS ............................. 39
CAN DIAGNOSIS SUPPORT MONITOR ............ 40
DATA MONITOR ................................................. 40
ACTIVE TEST ..................................................... 41
Can Communication Inspection Using CONSULT-
II (Self-diagnosis) .................................................... 42
Symptom Chart ....................................................... 42
Sliding Motor Circuit Check .................................... 44
Reclining Motor Circuit Check ................................ 45
Front Lifting Motor Circuit Check ............................ 46
Rear Lifting Motor Circuit Check ............................. 48
Telescopic Motor Circuit Check .............................. 49
Tilt Motor Circuit Check .......................................... 51
Driver Side Mirror Motor Circuit Check ................... 52
Passenger Side Mirror Motor Circuit Check ........... 54
Sliding Sensor Circuit Check .................................. 56
Reclining Sensor Circuit Check .............................. 57
Front Lifting Sensor Circuit Check .......................... 58
Rear Lifting Sensor Circuit Check .......................... 59
Telescopic Sensor Circuit Check ............................ 60
Tilt Sensor Circuit Check ........................................ 61
Driver Side Mirror Sensor Circuit Check ................. 62
Passenger Side Mirror Sensor Circuit Check ......... 63
Steering and Door Mirror Sensor Power and Ground
Circuit Check .......................................................... 64

SE-30
AUTOMATIC DRIVE POSITIONER
Revision: 2004 November 2004 FX35/FX45
Terminals and Reference Values for BCMAIS002XG
Terminals and Reference Values for Automatic Drive Positioner Control UnitAIS002XH
TERMINAL WIRE
COLORITEM CONDITIONVOLTAGE (V)
(Approx.)
11 LG/R ACC power supply Ignition switch ACC Battery voltage
37 B/W Key switch signalKey switch ON (key is inserted in
ignition key cylinder)Battery voltage
Key switch OFF (key is removed
from ignition key cylinder)0
38 W/L Ignition power supply Ignition switch ON Battery voltage
39 L CAN-H — —
40 R CAN-L — —
42 L/R Battery power supply (fuse) Ignition switch OFF Battery voltage
49 B Ground (signal) Ignition switch ON 0
52 B Ground (power) Ignition switch ON 0
55 GBattery power supply (Fusible
link)Ignition switch OFF Battery voltage
62 W Front door switch (driver side) ON (Open) → OFF (Closed) 0 → Battery voltage
TERMI-
NALWIRE
COLORITEM CONDITIONVOLTAGE (V)
(Approx.)
1 LG/R Tilt switch UP signalTilt switch turned to upward 0
Tilt switch neutral position 5
2 G/W Changeover switch RH signalWhen changeover switch in RH posi-
tion0
When changeover switch in neutral
position5
3 GY Mirror switch UP signalWhen mirror switch in turned to
upward position0
When mirror switch in neutral position 5
4 Y Mirror switch LEFT signalWhen mirror switch in turned to left-
ward position0
When mirror switch in neutral position 5
5ORPassenger side mirror sensor
(vertical) signalWhen passenger side mirror motor is
UP or DOWN operationChanges between 3 (close to perk)
1 (close to valley)
6P/LDriver side mirror sensor (verti-
cal) signalWhen driver side mirror motor is UP
or DOWN operationChanges between 3 (close to perk)
1 (close to valley)
7 Y/R Tilt sensor inputTilt position, top 1.82
Tilt position, bottom 4.44
10 B UART LINE (TX) Memory switch 1 or 2 operated
11 BR Telescopic switch forward signalTelescoping switch turned to forward 0
Telescoping switch neutral position 5
PIIA4813E

AUTOMATIC DRIVE POSITIONER
SE-35
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2004 November 2004 FX35/FX45
7. Based on the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to SE-42,
"Symptom Chart" .
8. Does the automatic drive positioner system operate normally?
If it is normal, GO TO 8.
If it is not normal, GO TO 3.
9. INSPECTION END
Preliminary CheckAIS002XK
SETTING CHANGE FUNCTION
The settings of the automatic driving positioner system can be changed, using CONSULT-II and the display
unit in the center of the instrument panel.
×: Applicable –: Not applicable
It is possible to set sliding driver seat for entry/exit of vehicle by pressing set switch.
NOTE:
After the setting is registered, the new setting is effective, even if the battery is disconnected.
CHECK POWER SUPPLY AND GROUND
1. CHECK FUSE
Check if any of the following fuses in the BCM are blown.
NOTE:
Refer to SE-15, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blownout, be sure to eliminate cause of malfunction before installing new fuse. Refer to
SE-15, "
Component Parts and Harness Connector Location" .
Setting item ContentCONSULT–II
(WORK SUPPORT)Display unitFactory
setting
Change seat sliding volume
settingThe distance at retain operation
can be selected from the following
3 modes.40 mm
—×
80 mm —
150 mm —
Change the Entry/Exit seat
slide function settingThe seat sliding turnout and return
at entry/exit can be selected: ON
(operated) – OFF (not operated)ON ON: Indicator lamp ON×
OFF OFF: Indicator lamp OFF —
Change the Entry/Exit tilt
steering wheel function settingLift up and backward steering
wheel at entry and exit can be
selected: ON (operated) - OFF (not
operated)ON ON: Indicator lamp ON×
OFF OFF: Indicator lamp OFF —
Reset custom settings All settings to default. —Default: Setting button
OFF—
Content Setting change operation Indicator LEDs
The seat sliding turnout and
steering wheel up/backward at
entry/exit can be operated.
Press the set switch for more than 10 secondsBlinking twice
The seat sliding turnout and
steering wheel up/backward at
entry/exit can be not operated.Blinking ones
Unit Power source Fuse/fusible link No.
BCMACC or ON power supply 6 (10A)
ON or STRAT power supply 1 (15A)
Battery power supply 22 (15A)
Battery power supply M (50A)

SE-36
AUTOMATIC DRIVE POSITIONER
Revision: 2004 November 2004 FX35/FX45
2. CHECK POWER SUPPLY CIRCUIT (BCM)
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check voltage between BCM connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Check harness for open and short between BCM and fuse or fusible link.
3. CHECK GROUND CIRCUIT (BCM)
1. Turn ignition switch OFF.
2. Check continuity between BCM connector and ground.
OK or NG
OK >> BCM circuit is OK. Check the driver seat control unit.
GO TO 4.
NG >> Repair or replace the harness between BCM and ground.
4. CHECK FUSE
Check 10A fuse [No.9, located in fuse block (J/B)].
NOTE:
Refer to SE-15, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 5.
NG >> If fuse is blownout, be sure to eliminate cause of malfunction before installing new fuse. Refer to
SE-15, "
Component Parts and Harness Connector Location" .
ConnectorTe r m i n a l s
(Wire color)Power
sourceConditionVoltage (V)
(Approx.)
(+) (–)
M311 (LG/R) GroundACC
power
supplyIgnition
switch
ACCBattery voltage
38 (W/L) GroundIgnition
power
supplyIgnition
switch
ONBattery voltage
B1442 (L/R)
55 (G)GroundBattery
power
supplyIgnition
switch
OFFBattery voltage
PIIA5083E
ConnectorTe r m i n a l s
(Wire color)
Condition Continuity
(+) (–)
B1449 (B)
52 (B)GroundIgnition switch
OFFContinuity should exist.
PIIA5084E

SE-38
AUTOMATIC DRIVE POSITIONER
Revision: 2004 November 2004 FX35/FX45
8. CHECK GROUND CIRCUIT (AUTOMATIC DRIVE POSITIONER CONTROL UNIT)
Check continuity between the automatic drive positioner control unit connector M50 terminal 40 (B), 48 (B)
and ground.
OK or NG
OK >> Driver seat control unit circuit is OK.
NG >> Repair or replace harness between automatic drive
positioner control unit and ground.
CONSULT-II FunctionAIS002YF
The following functions are performed by combining data received and command transmitted via the commu-
nication line from the driver seat control unit.
*1: For setting automatic drive positioner functions only.
*2: Refer to BL-40, "
Data Monitor" .
*3: During vehicle driving, do not perform active test.
CONSULT-II INSPECTION PROCEDURE
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. Turn ignition switch “OFF”.
2. Connect “CONSULT-II” and “CONSULT-II CONVERTER” to the
data link connector.
3. Turn ignition switch “ON”.40 (B) – Ground : Continuity should exist.
48 (B) – Ground : Continuity should exist.
PIIA5088E
CONSULT-II
diagnosis
itemsInspection item, self-diagnosis mode Content
AUTO DRIVE
POSITIONERWORK SUPPORT*
1Changes the setting for each function.
SELF–DIG RESULTS Check the self-diagnosis results.
DATA MONITOR Selection from menuDisplays the input data to driver seat control unit and automatic
driving positioned control unit on real-time basis.
CAN DIAGNOSTIC SUPPORT MONITORThe results of transmit / receive diagnosis of CAN communica-
tion can be read
ACTIVE TEST
*3Gives a drive signal to a load to check the operation.
DRIVER SEAT CONTROL UNIT PART NUMBER Displays driver seat control unit part No.
BCM*
2DATA MONITOR Selection from menu Displays the input data to BCM on real-time basis
PBIB1503E

AUTOMATIC DRIVE POSITIONER
SE-39
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2004 November 2004 FX35/FX45
4. Touch “START (NISSAN BASED VHCL)”.
5. Touch “AUTO DRIVE POS” and "BCM".
If “AUTO DRIVE POS.” is not indicated, refer toGI-40, "
CON-
SULT-II Data Link Connector (DLC) Circuit" .
6. Select diagnosis mode.
“DATA MONITOR”, “ACTIVE TEST”, “SELF-DIAG RESULTS“,
“ECU PART NUMBER” and “WORK SUPPORT” are available.
SELF-DIAGNOSIS RESULTS
Display Item List
MBIB0233E
PIIA4817E
PIIB1679E
CONSULT-II display Item Malfunction is detected when...Reference
page
CAN COMM CIRC
[U1000]CAN communication Malfunction is detected in CAN communication.SE-42
SEAT SLIDE
[B2112]Seat slide motorWhen any manual and automatic operations are not performed, if
any motor operations of seat slide is detected for 0.1 second or
more, status is judged “Output error”.SE-44
SE-56
SEAT RECLINING
[B2113]Seat reclining motorWhen any manual and automatic operations are not performed, if
any motor operations of seat reclining is detected for 0.1 second or
more, status is judged “Output error”.SE-45
SE-57
SEAT LIFTER FR
[B2114]Seat lifting FR motorWhen any manual and automatic operations are not performed, if
any motor operations of seat lifting FR is detected for 0.1 second or
more, status is judged “Output error”.SE-46
SE-58
SEAT LIFTER RR
[B2115]Seat lifting RR motorWhen any manual and automatic operations are not performed, if
any motor operations of seat lifting RR is detected for 0.1 second or
more, status is judged “Output error”.SE-48
SE-59
TILT OUTPUT
[B2116]Tilt motorWhen any manual and automatic operations are not performed, if
any motor operations of seat tilt is detected for 0.1 second or more,
status is judged “Output error”.SE-51
SE-61

AUTOMATIC DRIVE POSITIONER
SE-43
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2004 November 2004 FX35/FX45
All the automatic operations do not operate.1. Detention switch (P range switch) circuit checkSE-82
2. Key switch and key lock solenoid circuit check (with
intelligent key)SE-83
3. Key switch circuit inspection (without intelligent key)SE-85
4. UART communication line circuit checkSE-89
5. Tilt sensor circuit checkSE-61
6. Telescopic sensor circuit checkSE-74
7. If all the above systems are normal, replace the auto-
matic drive positioner control unit.SE-15
A part of seat system does not operate (only manual
operation).1. Sliding switch circuit checkSE-67
2. Reclining switch circuit checkSE-68
3. Front lifting switch circuit checkSE-70
4. Rear lifting switch circuit checkSE-71
5. If the above systems are normal, replace the driver
seat control unit.SE-15
A part of steering tilt, telescopic and door mirror does not
operate (only manual operation).1. Door mirror remote control (change over switch) circuit
check SE-78
2. Door mirror remote control (mirror switch) switching cir-
cuit check SE-80
3. Tilt switch checkSE-76
4. Telescopic switch checkSE-74
5. If the above systems are normal, replace the automatic
drive positioner control unit.SE-15
Only memory switch operation dose not operate.1. Seat memory switch circuit checkSE-862. If the above systems are normal, replace the driver
seat control unit.SE-15
Seat memory indicator lamps 1 and 2 do not illuminate.1. Seat memory indicator lamp circuit checkSE-882. If all the above systems are normal, replace the driver
seat control unit.SE-15
The Entry/Exiting does not operated when door is opened
and closed.
(The Entry/Exiting operates with key switch)1. Front door switch (driver side) circuit checkSE-65
2. If all the above systems are normal, replace the BCMBCS-15
Only door mirror system dose not operated (only auto-
matic operation).Steering and door mirror sensor power supply and ground
circuit checkSE-64
Only seat sliding and seat reclining operation does not
operationSliding switch and reclining switch ground circuit checkSE-72
Only sear lifting (front and rear) operation does not opera-
tionFront lifting switch and rear lifting switch ground circuit
checkSE-73
Only lumber support does not operate Lumber support circuit checkSE-91
Symptom Diagnoses / service procedureReference
page

AUTOMATIC DRIVE POSITIONER
SE-51
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2004 November 2004 FX35/FX45
4. CHECK BCM OUTPUT SIGNAL
1. Connect the automatic drive positioner control unit connector.
2. Check voltage between automatic drive positioner control unit connector and ground.
OK or NG
OK >> Replace tilt and telescopic motor.
NG >> Replace automatic drive positioner control unit.
Tilt Motor Circuit CheckAIS002YA
1. CHECK STEERING WHEEL TILT MECHANISM
Check following.

Operation malfunction caused by steering wheel tilt mechanism deformation or pinched harness and
other foreign materials

Operation malfunction and interference with other parts by poor installation
OK or NG
OK >> GO TO 2.
NG >> Repair the malfunctioning part.
2. CHECK FUNCTION
With CONSULT-II
Check operation with “TILT MOTOR” in ACTIVE TEST.
Without CONSULT-II
GO TO 3.
OK or NG
OK >> Steering tilt motor circuit is OK.
NG >> GO TO 3.
ConnectorTe r m i n a l s
(Wire color)
ConditionVoltage (V)
(Approx.)
(+) (–)
M5036 (L/R)
GroundTelescopic switch turned to
upwardBattery voltage
Telescopic switch neutral
position0
44 (L/W)Telescopic switch turned to
downwardBattery voltage
Telescopic switch neutral
position0
PIIA5068E
Test item Description
TILT MOTOR The tilt motor is activated by receiving the drive signal.
PIIA0280E
