LT-92
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2004 November 2004 FX35/FX45
Connected form BCM terminals 45 and 46 to rear combination lamp control unit terminals 4 and 5,
rear turn signal (LED) turns on
through rear combination lamp control unit terminal 11
to rear combination lamp LH terminal 3
through rear combination lamp LH terminal 4
to rear combination lamp control unit terminal 10
through rear combination lamp control unit terminal 9
to rear combination lamp RH terminal 3
through rear combination lamp RH terminal 4
to rear combination lamp control unit terminal 8.
BCM sends signal to unified meter and A/C amp. through CAN communication lines, and turns on turn signal
indicator lamp with combination meter.
With power and input supplied, the BCM controls the flashing of the hazard warning lamps when keyfob is
used to activate the remote control entry system.
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
CAN Communication System DescriptionAKS007CX
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitAKS0080W
Refer to LAN-6, "CAN Communication Unit" .
Page 3903 of 4449
PG-68
HARNESS
Revision: 2004 November 2004 FX35/FX45
H/AIM LT Headlamp Aiming Control System
H/LAMP LT Headlamp
HORN WW Horn
HSEAT SE Heated Seat
I/KEY BL Intelligent Key System
I/MIRR GW Inside Mirror (Auto Anti-Dazzling Mirror)
IATS EC Intake Air Temperature Sensor
ICC ACS Intelligent Cruise Control System
ICC/BS EC ICC Brake Switch
ICC/SW EC ICC Steering Switch
ICCBOF EC ICC Brake Switch
IGNSYS EC Ignition System
ILL LT Illumination
INF/D AV Vehicle Information and Integrated Switch System
INJECT EC Injector
IVCB1 EC Intake Valve Timing Control Solenoid Valve Bank 1
IVCB2 EC Intake Valve Timing Control Solenoid Valve Bank 2
IVCSB1 EC Intake Valve Timing Control Position Sensor Bank 1
IVCSB2 EC Intake Valve Timing Control Position Sensor Bank 2
IVTB1 EC Intake Valve Timing Control System (Bank 1)
IVTB2 EC Intake Valve Timing Control System (Bank 2)
KEYLES BL Remote Keyless Entry System
KS EC Knock Sensor
M/ANT AV Manual Antenna
MAFS EC Mass Air Flow Sensor
MAIN EC Main Power Supply And Ground Circuit
MES AV Mobile Entertainment System
METER DI Speedometer, Tachometer, Temp., And Fuel Gauges
MIL/DL EC Mil&Data Link Connectors
MIRROR GW Power Door Mirror
MMSW AT Manual Mode Switch
NATS BL Nissan Anti - Theft System
NAVI AV Navigation System
NONDTC AT Non-Detective Items
O2H1B1 EC Heated Oxygen Sensor 1 Heater Bank 1
O2H1B2 EC Heated Oxygen Sensor 1 Heater Bank 2
O2H2B1 EC Heated Oxygen Sensor 2 Heater Bank 1
O2H2B2 EC Heated Oxygen Sensor 2 Heater Bank 2
O2S1B1 EC Heated Oxygen Sensor 1 Bank 1
O2S1B2 EC Heated Oxygen Sensor 1 Bank 2
O2S2B1 EC Heated Oxygen Sensor 2 Bank 1
O2S2B2 EC Heated Oxygen Sensor 2 Bank 2
P/SCKT WW Power Socket
PGC/V EC Evap Canister Purge Volume Control Solenoid Valve Code Section Wiring Diagram Name
Page 4131 of 4449
SE-2Revision: 2004 November 2004 FX35/FX45Front Door Switch (Driver Side) Circuit Check ....... 65
Sliding Switch Circuit Check ................................... 67
Reclining Switch Check .......................................... 68
Front Lifting Switch Circuit Check ........................... 70
Rear Lifting Switch Circuit Check ........................... 71
Sliding Switch and Reclining Switch Ground Circuit
Check ..................................................................... 72
Front Lifting Switch and Rear Lifting Switch Ground
Circuit Check .......................................................... 73
Telescopic Switch Circuit Check ............................. 74
Tilt Switch Circuit Check ......................................... 76
Door Mirror Remote Control Switch (Changeover
switch) Circuit Check .............................................. 78
Door Mirror Remote Control Switch (Mirror Switch)
Circuit Check .......................................................... 80
Detention Switch (P Range Switch) Circuit Check ... 82
Key Switch and Key Lock Solenoid Circuit Check
(With Intelligent Key) .............................................. 83
Key Switch Circuit Check (Without Intelligent Key) ... 85
Seat Memory Switch Circuit Check ........................ 86
Memory Indicator Lamp Circuit Check .................... 88
Uart Communication Line Circuit Check ................. 89
Lumber Support Circuit Check ............................... 91
POWER SEAT ........................................................... 93
Automatic Drive Positioner Interlocking Power Seat ... 93
Schematic ............................................................... 94Wiring Diagram–SEAT– / For Driver Seat ............... 95
Wiring Diagram–SEAT– / For Passenger Seat ....... 97
HEATED SEAT .......................................................... 98
Description .............................................................. 98
Wiring Diagram – HSEAT – .................................... 99
FRONT SEAT ..........................................................101
Removal and Installation .......................................101
REMOVAL ..........................................................103
INSTALLATION ..................................................104
REMOVAL OF SEATBACK TRIM AND PAD .....104
INSTALLATION OF SEATBACK TRIM AND PAD .105
REMOVAL OF SEAT CUSHION TRIM AND PAD .105
INSTALLATION OF SEAT CUSHION TRIM AND
PAD ....................................................................106
REAR SEAT .............................................................107
Removal and Installation .......................................107
REMOVAL ..........................................................109
INSTALLATION ..................................................109
REMOVAL OF SEAT CUSHION TRIM AND PAD .109
INSTALLATION OF SEAT CUSHION TRIM AND
PAD ....................................................................110
REMOVAL OF SEATBACK TRIM AND PAD .....110
INSTALLATION OF SEATBACK TRIM AND PAD .110
REMOVAL OF REMOTE CONTROL LEVER .... 111
INSTALLATION OF REMOTE CONTROL
LEVER ............................................................... 111
Page 4140 of 4449
AUTOMATIC DRIVE POSITIONER
SE-11
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2004 November 2004 FX35/FX45
AUTOMATIC DRIVE POSITIONERPFP:28491
System Description AIS002XB
The system automatically moves the driver seat to facilitate entry/exit to/from the vehicle. The automatic
driver positioner control unit can also store the optimum driving positions (driver seat, pedal position and
door mirror position) for 2 people. If the driver is changes, one-touch operation allows changing to the
other driving position.
The settings (ON/OFF) of the automatic sliding seat (Entry/Exiting operation) at entry/exit can be changed
as desired, using the display unit in the center of the instrument panel. The set content is transmitted by
CAN communication, from display unit (without NAVI) or display control unit (with NAVI) to driver seat con-
trol unit.
Using CONSULT-II, the seat slide amount at entry/exit setting can be changed.
MANUAL OPERATION
The driving position [seat position, steering wheel position (tilt, telescopic) and door mirror position] can be
adjusted with the power seat switch or ADP steering switch or door mirror remote control switch.
NOTE:
The seat can be manually operated with the ignition switch OFF.
The door mirrors can be manually operated with the ignition switch turned ACC or ON.
A U T O M AT I C O P E R AT I O N
NOTE:
Disconnecting the battery erases the stored memory.
After connecting the battery, insert the key into the ignition cylinder and turn the driver door switch ON (open)→OFF (close)→ON
(open), the Entry/ Exiting operation becomes possible.
After exiting operation is carried out, return operation can be operated.
NOTE:
During automatic operation, if the ignition switch is turned ON→START, the automatic operation is suspended. When the ignition switch
returns to ON, it resumes.
MEMORY STORING AND KEY FOB INTERLOCK STORING
Store the 2 driving positions and shifts to the stored driving position with the memory switch.
Function Description
Memory switch operation The seat, steering and door mirror move to the stored driving position by pushing
memory switch (1 or 2).
Entry/Exiting functionExiting operation At exit, the seat moves backward and steering wheel moves forward/upward.
Entry operationAt entry, the seat and steering wheel returns from the exiting position to the previous
driving position.
Key fob interlock operationPerform memory operation, exiting operation and entry operation by pressing key fob
unlock button.
Auto operation temporary stop
conditions.When ignition switch turned to START during memory switch operation and return opera-
tion, memory switch operation and entry operation is stopped.
Auto operation stop conditions.
When the vehicle speed becomes 7 km/h (4 MPH) or higher.
When the setting switch, memory switch 1, or 2 are pressed.
When A/T selector lever is in any position other than P.
When the door mirror remote control switch is operated (when ignition switch turned to
ON or ACC).
When power seat switch turned ON.
When ADP steering switch turned ON (telescopic operation or tilt operation).
When door mirror operates (only memory switch operation).
When driver seat sliding Entry/Exiting setting is OFF (only entry/exiting operation).
When steering wheel tilt and telescopic Entry/Exiting setting is OFF (only entry/exiting
operation).
When the tilt and telescopic sensor malfunction is detected.
Page 4169 of 4449
SE-40
AUTOMATIC DRIVE POSITIONER
Revision: 2004 November 2004 FX35/FX45
NOTE:
The displays of CAN communication and P range switch display error detecting condition from memory
erase to the present on “TIME”.
–If error is detected in the past and present error is detected, “CRNT” is displayed.
–If error is detected in the past and present error is not detected, “PAST” is displayed.
–If error has never been detected, nothing is displayed on “TIME”.
Any items other than CAN communication and P range switch count error detection frequency occurred
after erase history to “1-127”.
–If error was detected in the past, error detection frequency from memory erase to the present is displayed
on “TIME”.
–If error has never been detected, nothing is displayed on “TIME”.
–Can clear the detected memory.
Normal: Clear memory in normal condition, history is erased and nothing is displayed on “TIME”.
Error: Clear memory in error condition, error is detected again and “1” is displayed on “TIME”.
CAN DIAGNOSIS SUPPORT MONITOR
Can Diagnosis Support Monitor
DATA MONITOR
Selection from Menu
TILT SENSOR
[B2118]Tilt sensorWhen tilt sensor detects 0.1V or lower, or 4.9V or higher, for 0.5 sec-
onds or more.SE-61
TELESCO SEN-
SOR
[B2119]Telescopic sensorWhen telescopic sensor detects 0.1V or lower, or 4.9V or higher, for
0.5 seconds or more.SE-60
P RANGE SW
[B2125]P RANGE SWWith the A/T selector lever in P position (P range switch ON), if the
vehicle speed of 7 km/h (4 MPH) or higher was input the detente
switch input system is judged malfunctioning.SE-82
UART COMM
[B2128]UART communica-
tionMalfunction is detected in UART communication.SE-89
CONSULT-II display Item Malfunction is detected when...Reference
page
Monitor item [UNIT] Contents
CAN COMM [OK/NG] When CAN communication circuit is abnormal, it displays “NG”.
CAN CIRC 1 [OK/UNKWN]
Displays [OK/UNKWN] condition of the CAN communication judged by signal
input. CAN CIRC 2 [OK/UNKWN]
CAN CIRC 3 [OK/UNKWN]
CAN CIRC 4 [OK/UNKWN]
Monitor item [OPERATION or UNIT] Contents
SLIDE SW–FR “ON/OFF” ON/OFF status judged from the sliding switch (FR) signal is displayed.
SLIDE SW–RR “ON/OFF” ON/OFF status judged from the sliding switch (RR) signal is displayed.
RECLN SW–FR “ON/OFF” ON/OFF status judged from the reclining switch (FR) signal is displayed.
RECLN SW–RR “ON/OFF” ON/OFF status judged from the reclining switch (RR) signal is displayed.
LIFT FR SW–UP “ON/OFF” ON/OFF status judged from the FR lifter switch (UP) signal is displayed.
LIFT FR SW–DN “ON/OFF” ON/OFF status judged from the FR lifter switch (DOWN) signal is displayed.
LIFT RR SW–UP “ON/OFF” ON/OFF status judged from the RR lifter switch (UP) signal is displayed.
LIFT RR SW–DN “ON/OFF” ON/OFF status judged from the RR lifter switch (DOWN) signal is displayed.
MIR CON SW–UP “ON/OFF”ON/OFF status judged from the door mirror remote control switch (UP) signal is
displayed.
MIR CON SW–DN “ON/OFF”ON/OFF status judged from the door mirror remote control switch (DOWN) signal
is displayed.
Page 4170 of 4449
AUTOMATIC DRIVE POSITIONER
SE-41
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2004 November 2004 FX35/FX45
ACTIVE TEST
CAUTION:
During vehicle driving, do not perform active test.
NOTE:
If active test is performed, reset seat memory and key fob interlock drive positioner after performing work.
Display Item List
MIR CON SW–RH “ON/OFF”ON/OFF status judged from the door mirror remote control switch (RIGHT) signal
is displayed.
MIR CON SW–LH “ON/OFF”ON/OFF status judged from the door mirror remote control switch (LEFT) signal s
displayed.
MIR CHNG SW–R “ON/OFF”ON/OFF status judged from the door mirror remote control switch (switching to
RIGHT) signal is displayed.
MIR CHNG SW–L “ON/OFF”ON/OFF status judged from the door mirror remote control switch (switching to
LEFT) signal is displayed.
TELESCO SW-FR “ON/OFF” ON/OFF status judged from the telescoping switch (FR) signal is displayed.
TELESCO SW-RR “ON/OFF” ON/OFF status judged from the telescoping switch (RR) signal is displayed.
TILT SW-UP “ON/OFF” ON/OFF status judged from the tilt switch (UP) signal is displayed.
TILT SW-DOWN “ON/OFF” ON/OFF status judged from the tilt switch (DOWN) signal is displayed.
SET SW “ON/OFF” ON/OFF status judged from the setting switch signal is displayed.
MEMORY SW1 “ON/OFF” ON/OFF status judged from the seat memory switch 1 signal is displayed.
MEMORY SW2 “ON/OFF” ON/OFF status judged from the seat memory switch 2 signal is displayed.
P POSI SW “ON/OFF”The selector lever position “OFF (P position) / ON (other than P position)” judged
from the P range switch signal is displayed.
STARTER SW “ON/OFF”Ignition key switch ON (START, ON) /OFF (ignition switch IGN, ACC, or OFF)
status judged from the ignition switch signal is displayed.
SLIDE PULSE —Value (32768) when battery connects is as standard. If it moves backward, the
value increases. If it moves forward, the value decreases.
RECLN RULSE —Value (32768) when battery connects is as standard. If it moves backward, the
value increases. If it moves forward, the value decreases.
LIFT FR PULSE —Value (32768) when battery connects is as standard. If it moves DOWN, the value
increases. If it moves UP, the value decreases.
LIFT RR PULSE —Value (32768) when battery connects is as standard. If it moves DOWN, the value
increases. If it moves UP, the value decreases.
TILT SEN “V” The tilt position (voltage) judged from the tilt sensor signal is displayed.
TELESCO SEN “V”The telescoping position (voltage) judged from the telescoping sensor signal is
displayed.
MIR/SE RH R–L “V” Voltage output from RH door mirror sensor (LH/RH) is displayed.
MIR/SE RH U–D “V” Voltage output from RH door mirror sensor (UP/DOWN) is displayed.
MIR/SE LH R–L “V” Voltage output from LH door mirror sensor (LH/RH) is displayed.
MIR/SE LH U–D “V” Voltage output from LH door mirror sensor (UP/DOWN) is displayed.Monitor item [OPERATION or UNIT] Contents
Test item Description
TILT MOTOR The tilt motor is activated by receiving the drive signal.
TELESCO MOTOR The telescopic motor is activated by receiving the drive signal.
SEAT SLIDE The sliding motor is activated by receiving the drive signal.
SEAT RECLINING The reclining motor is activated by receiving the drive signal.
SEAT LIFTER FR The front end lifter motor is activated by receiving the drive signal.
SEAT LIFTER RR The rear end lifter motor is activated by receiving the drive signal.
MEMORY SW INDCTR The memory switch indicator is lit by receiving the drive signal.
Page 4172 of 4449
AUTOMATIC DRIVE POSITIONER
SE-43
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2004 November 2004 FX35/FX45
All the automatic operations do not operate.1. Detention switch (P range switch) circuit checkSE-82
2. Key switch and key lock solenoid circuit check (with
intelligent key)SE-83
3. Key switch circuit inspection (without intelligent key)SE-85
4. UART communication line circuit checkSE-89
5. Tilt sensor circuit checkSE-61
6. Telescopic sensor circuit checkSE-74
7. If all the above systems are normal, replace the auto-
matic drive positioner control unit.SE-15
A part of seat system does not operate (only manual
operation).1. Sliding switch circuit checkSE-67
2. Reclining switch circuit checkSE-68
3. Front lifting switch circuit checkSE-70
4. Rear lifting switch circuit checkSE-71
5. If the above systems are normal, replace the driver
seat control unit.SE-15
A part of steering tilt, telescopic and door mirror does not
operate (only manual operation).1. Door mirror remote control (change over switch) circuit
check SE-78
2. Door mirror remote control (mirror switch) switching cir-
cuit check SE-80
3. Tilt switch checkSE-76
4. Telescopic switch checkSE-74
5. If the above systems are normal, replace the automatic
drive positioner control unit.SE-15
Only memory switch operation dose not operate.1. Seat memory switch circuit checkSE-862. If the above systems are normal, replace the driver
seat control unit.SE-15
Seat memory indicator lamps 1 and 2 do not illuminate.1. Seat memory indicator lamp circuit checkSE-882. If all the above systems are normal, replace the driver
seat control unit.SE-15
The Entry/Exiting does not operated when door is opened
and closed.
(The Entry/Exiting operates with key switch)1. Front door switch (driver side) circuit checkSE-65
2. If all the above systems are normal, replace the BCMBCS-15
Only door mirror system dose not operated (only auto-
matic operation).Steering and door mirror sensor power supply and ground
circuit checkSE-64
Only seat sliding and seat reclining operation does not
operationSliding switch and reclining switch ground circuit checkSE-72
Only sear lifting (front and rear) operation does not opera-
tionFront lifting switch and rear lifting switch ground circuit
checkSE-73
Only lumber support does not operate Lumber support circuit checkSE-91
Symptom Diagnoses / service procedureReference
page
Page 4207 of 4449
SE-78
AUTOMATIC DRIVE POSITIONER
Revision: 2004 November 2004 FX35/FX45
Door Mirror Remote Control Switch (Changeover switch) Circuit CheckAIS003BY
1. CHECK FUNCTION
With CONSULT-II
Check the operation on “MIR CHNG SW-R” or “MIR CHNG SW-L”
in the DATA MONITOR.
Without CONSULT-II
1. Turn ignition switch to ACC position.
2. Check voltage between automatic drive positioner control unit
connector and ground.
OK
orNG
OK >> Door mirror remote control switch (changeover switch) circuit is OK.
NG >> GO TO 2.
2. CHECK CHANGEOVER SWITCH CIRCUIT HARNESS CONTINUITY
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit and door mirror remote control unit connector.
3. Check continuity between automatic drive positioner control unit
connector M49 terminal 2 (G/W), 18 (L/OR) and door mirror
remote control unit connector M18 terminal 5 (L/OR), 6 (G/W).
4. Check continuity between automatic drive positioner control unit
connector M49 terminal 2 (G/W), 18 (L/OR) and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness between automatic drive positioner control unit and door remote control
switch.
Monitor item [OPERATION or
UNIT]Contents
MIR CHNG SW–R“ON/
OFF”ON/OFF status judged from the door mirror
remote control switch (switching to RIGHT) sig-
nal is displayed.
MIR CHNG SW–L“ON/
OFF”ON/OFF status judged from the door mirror
remote control switch (switching to LEFT) sig-
nal is displayed.
PIIA0191E
ConnectorTerminals (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (-)
M192 (G/W)
GroundChangeover switch
RIGHT position0
Changeover switch
neutral position5
18 (L/OR)Changeover switch
LEFT position0
Changeover switch
neutral position5
PIIA4767E
2 (G/W) – 5 (L/OR) : Continuity should exist.
18 (L/OR) – 6 (G/W) : Continuity should exist.
2 (G/W) – Ground : Continuity should not exist.
18 (L/OR) – Ground : Continuity should not exist.
PIIA4768E
Page 4208 of 4449
AUTOMATIC DRIVE POSITIONER
SE-79
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2004 November 2004 FX35/FX45
3. CHECK DOOR MIRROR REMOTE CONTROL SWITCH GROUND CIRCUIT
Check continuity between door mirror remote control switch connector M18 terminal 7 (B) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness.
4. CHECK DOOR MIRROR REMOTE CONTROL SWITCH (CANGEOVER SWITCH)
Check continuity between door mirror remote control switch as follows.
OK or NG
OK >> Check the condition of the harness and the connector.

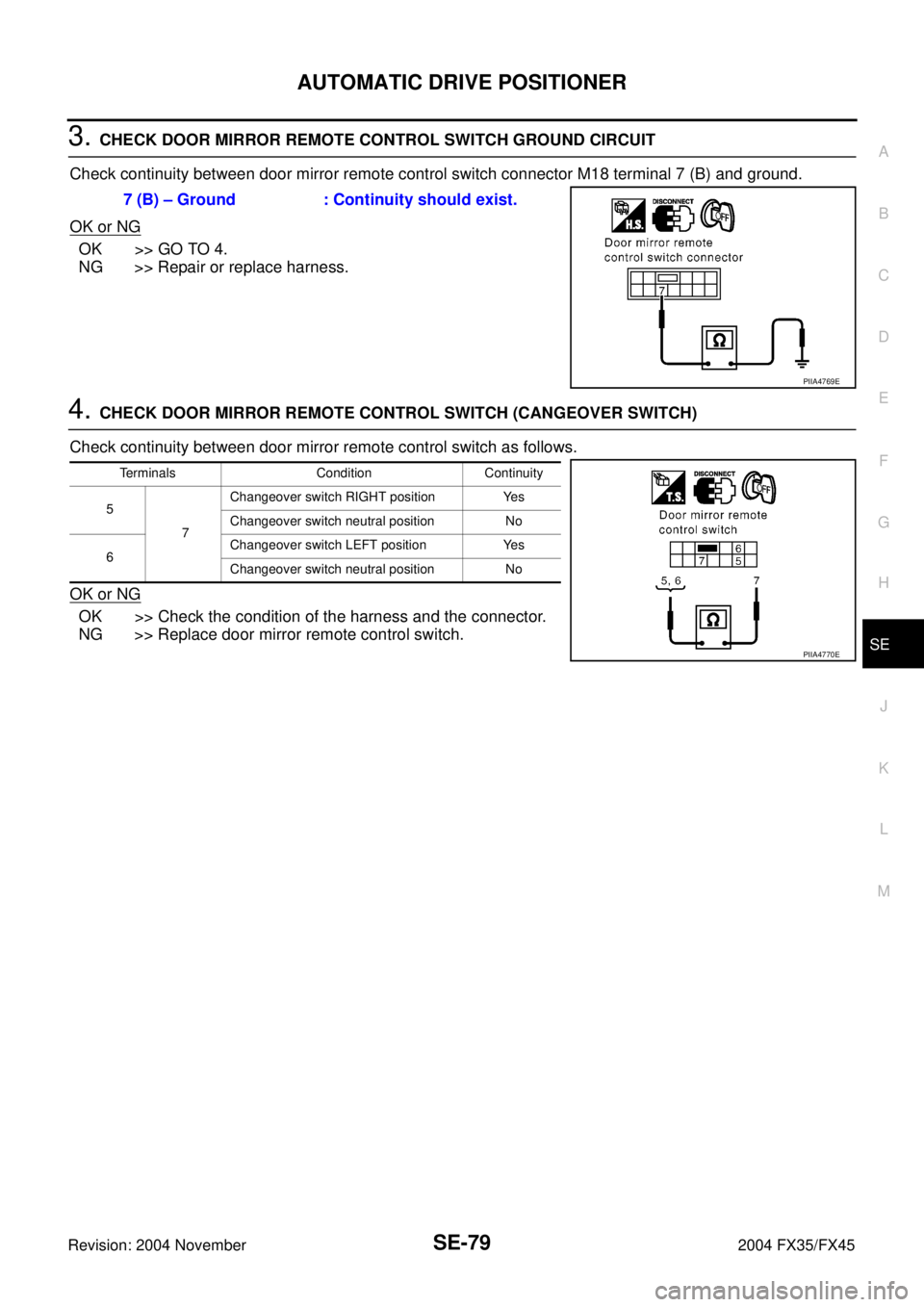

NG >> Replace door mirror remote control switch.7 (B) – Ground : Continuity should exist.
PIIA4769E
Terminals Condition Continuity
5
7Changeover switch RIGHT position Yes
Changeover switch neutral position No
6Changeover switch LEFT position Yes
Changeover switch neutral position No
PIIA4770E
Page 4209 of 4449
SE-80
AUTOMATIC DRIVE POSITIONER
Revision: 2004 November 2004 FX35/FX45
Door Mirror Remote Control Switch (Mirror Switch) Circuit CheckAIS003BZ
1. CHECK DOOR MIRROR REMOTE CONTROL SWITCH (MIRROR SWITCH) SIGNAL
With CONSULT-II
Check the operation on “MIR CON SW-UP/DN” and
“MIR CON SW-RH/LH” in the DATA MONITOR.
Without CONSULT-II
1. Turn ignition switch to ACC position.
2. Check voltage between automatic drive positioner control unit
connector and ground.
OK or NG
OK >> Door mirror remote control switch (mirror switch) circuit is OK.
NG >> GO TO 2.
Monitor item [OPERATION or
UNIT]Contents
MIR CON SW–UP“ON/
OFF”ON/OFF status judged from the door mirror
remote control switch (UP) signal is displayed.
MIR CON SW–DN“ON/
OFF”ON/OFF status judged from the door mirror
remote control switch (DOWN) signal is dis-
played.
MIR CON SW–RH“ON/
OFF”ON/OFF status judged from the door mirror
remote control switch (RIGHT) signal is dis-
played.
MIR CON SW–LH“ON/
OFF”ON/OFF status judged from the door mirror
remote control switch (LEFT) signal s displayed.
PIIA0199E
ConnectorTerminals (Wire color)
ConditionVoltage (V)
(Approx.)
(+) (-)
M193 (GY)
GroundMirror switch turned to upward 0
Mirror switch neutral position 5
4 (Y)Mirror switch turned to leftward 0
Mirror switch neutral position 5
19 (GY/L)Mirror switch turned to downward 0
Mirror switch neutral position 5
20 (PU)Mirror switch turned to rightward 0
Mirror switch neutral position 5
PIIA4771E
