drain bolt INFINITI FX35 2004 Workshop Manual

MA-30
CHASSIS AND BODY MAINTENANCE
Revision: 2004 November 2004 FX35/FX45
Changing A/T FluidALS000GC
1. Warm up ATF.
2. Stop engine.
3. Remove the tightening bolt for ATF level gauge.
4. Drain ATF from drain plug and refill with new ATF. Always refill same volume with drained fluid.

To replace the ATF, pour in new fluid at the charging pipe with the engine idling and at the same time
drain the old fluid from the radiator cooler hose return side.

When the color of the fluid coming out is about the same as the color of the new fluid, the replacement
is complete. The amount of new transmission fluid to use should be 30 to 50% increase of the stipu-
lated amount.
CAUTION:

Use only Genuine NISSAN Matic J ATF. Do not mix with other fluid.

Using automatic transmission fluid other than Genuine NISSAN Matic J ATF will cause deterio-
ration in driveability and automatic transmission durability, and may damage the automatic
transmission, which is not covered by the warranty.

When filling ATF, take care not to splash heat generating parts such as exhaust with ATF.

Do not reuse drain plug gasket.
5. Run engine at idle speed for 5 minutes.
6. Check fluid level and condition. Refer to MA-28, "
Checking A/T Fluid" . If fluid is still dirty, repeat step 2.
through 5.
7. Install the removed ATF level gauge in the fluid charging pipe.
Checking Transfer FluidALS000GD
Check for oil leakage and oil level.
CAUTION:
Never start engine while checking oil level.ATF: Genuine NISSAN Matic J ATF
Fluid capacity: 10.3 (10-7/8 US qt, 9-1/8 lmp qt)
Drain plug:
: 34 N·m (3.5 kg-m, 25 ft-lb)
Level gauge bolt:
: 5.1 N·m (0.52 kg-m, 45 in-lb)
Filler plug:
: 34.5 N·m (3.5 kg-m, 25 ft-lb)
SDIA2028E

PS-20
POWER STEERING GEAR AND LINKAGE
Revision: 2004 November 2004 FX35/FX45
7. Remove oil pipings (high pressure side and low pressure side)
from steering gear assembly, then drain fluid from pipings.
8. Remove mounting bolt of steering hydraulic piping bracket from
steering gear assembly.
9. Remove mounting bolt (lower side) of lower joint.
10. Remove mounting bolts of steering gear assembly with power
tool, and then remove steering gear assembly from vehicle.
INSTALLATION

Refer to PS-19, "Removal and Installation" for tightening torque. Install in the reverse order of removal.
NOTE:
Refer to component parts location and do not reuse non-reusable parts.

After removing/installing or replacing steering components, check wheel alignment. Refer to FSU-6,
"Wheel Alignment Inspection" .

After adjusting wheel alignment, adjust neutral position of steering angle sensor. Refer to BRC-6, "Adjust-
ment of Steering Angle Sensor Neutral Position" .
SGIA0541E
SGIA0545E
SGIA0542E
SGIA0546E

PS-32
POWER STEERING OIL PUMP
Revision: 2004 November 2004 FX35/FX45
1. Connect oil pressure gauge (SST) and oil pressure gauge
adapter (SST) between oil pump discharge connector and high
pressure hose and then bleed air from the hydraulic circuit.
2. Start engine. Allow engine to run until tank temperature reaches 50 to 80°C (122 to 176°F).
CAUTION:

Warm up engine with shut-off valve fully opened. If engine is started with shut-off valve closed,
fluid pressure in power steering pump increases to maximum. This will raise fluid temperature
excessively.

Be careful not to contact hose with belt when engine is started.
3. With engine at idle, close shut-off valve and read the relief oil pressure.
CAUTION:
Do not close shut-off valve of pressure gauge for more than 10 seconds.
4. After measurement, open shut-off valve slowly.
If relief oil pressure is outside the specification, disassemble and repair oil pump. Refer to PS-37, "
Disas-
sembly and Assembly (VK45DE models)" .
5. After inspection, disconnect oil pressure gauge (SST) and oil pressure gauge adapter (SST) from hydrau-
lic circuit, connect oil pump discharge connector and high pressure hose. Add fluid and bleed air from
hydraulic circuit thoroughly. Refer to PS-8, "
Air Bleeding Hydraulic System" .
Removal and Installation (VQ35DE models)AGS000HI
REMOVAL
1. Remove undercover from vehicle with power tool.
2. Loosen belt tensioner adjust screw, then remove belt from oil pump pulley. Refer to EM-15, "
DRIVE
BELTS" .
3. Drain power steering fluid from reservoir tank.
SGIA0570E
SST
Pressure gauge and shut-off valveKV48103500
(J26357 and
J26357-10)
Oil pump sideConnector A and
O-ringKV48105300-4
and 5295262U10
(—)
Eye-bolt and O-
ringKV48105300-3
and 5295262U00
(—)
High pressure
piping sideConnector B and
O-ringKV48105300-1
and 5295262U00
(—)
Nut KV48105300-2
( — )
SGIA0572E
Relief oil pressure:
9,900 - 10,700 kPa (101 - 109 kg/cm
2 , 1449 - 1564 psi)

POWER STEERING OIL PUMP
PS-33
C
D
E
F
H
I
J
K
L
MA
B
PS
Revision: 2004 November 2004 FX35/FX45
4. Remove piping of high pressure and low pressure (drain fluid from their pipings). Refer to PS-41,
"HYDRAULIC LINE" .
5. Remove mounting bolts, then remove power steering pump.
INSTALLATION
Refer to PS-41, "HYDRAULIC LINE" for tightening torque. Install in the reverse order removal.

After installation, adjust belt tension. Refer to EM-15, "DRIVE BELTS" .

After installation, bleed air. Refer to PS-8, "Air Bleeding Hydraulic System" .
Removal and Installation (VK45DE models)AGS000HJ
REMOVAL
1. Remove undercover from vehicle with power tool.
2. Remove power steering oil pump belt from auto tensioner. Refer to EM-169, "
DRIVE BELTS" .
3. Drain power steering fluid from reservoir tank.
4. Remove piping of high pressure and low pressure from power steering oil pump (drain fluid from their pip-
ings). Refer to PS-41, "
HYDRAULIC LINE" .
5. Remove mounting bolts, then remove power steering pump.
INSTALLATION
Refer to PS-41, "HYDRAULIC LINE" for tightening torque. Install in the reverse order removal.
After installation, bleed air. Refer to PS-8, "
Air Bleeding Hydraulic System" .
NOTE:
Adjustment of belt tension is no necessary because engine of this model equips auto tensioner.
Disassembly and Assembly (VQ35DE models)AGS000HE
INSPECTION BEFORE DISASSEMBLY
Disassemble power steering oil pump only if the following items are found.

Oil leakage from oil pump

Deformed or damaged pulley
1. Rear cover 2. Teflon ring 3. O-ring
4. Rear side plate 5. Rotor snap ring 6. Dowel pin
7. Cam ring 8. Rotor 9. Vane
10. Cartridge 11. Front side plate 12. O-ring
13. Flow control valve A 14. Spring 15. Flow control valve B assembly
16. Body assembly 17. Oil seal 18. Pulley
19. O-ring 20. Suction pipe 21. Bracket
SGIA0622E

SUNROOF
RF-27
C
D
E
F
G
H
J
K
L
MA
B
RF
Revision: 2004 November 2004 FX35/FX45
SUNROOF UNIT ASSEMBLY
Removal
CAUTION:

Always work with a helper.

When taking sunroof unit out, use clothes to protect the seats and trim from damage.

After installing the sunroof unit and glass lid, be sure to perform the leakage test and make sure
there is no malfunction.
1. Tilt up glass lid.
2. Remove the headlining. Refer to EI-42, "
Removal and Installation" .
3. Disconnect drain hoses.
4. Remove glass lid. Refer to RF-28, "
GLASS LID" .
5. Remove motor mounting screws. Remove sunroof motor
assembly and disconnect harness connector.
CAUTION:

Before removing sunroof motor assembly, make sure
that sunroof is fully closed.

After removing sunroof motor assembly, do not attempt
to rotate sunroof motor as a single unit.
6. Remove nuts on the front end and side rail.
7. Remove curtain air bag bracket bolts, then remove curtain air
bag bracket from the rail side. Refer to SRS-43, "
Removal and
Installation" .
8. Remove front/rear sunroof bracket bolts, then remove sunroof
unit assembly from roof panel.
9. Remove sunroof unit assembly through the passenger room while being careful not to damage the seats
and trim.
1. Glass lid 2. TORX bolt (T25) 3. Washer
4. Rear sunroof bracket 5. Front sunroof bracket 6. Wind deflector
7. Sunroof unit assembly 8. Noise cover 9. Sunroof motor assembly
10. Screw 11. Sunshade 12. Nut
13. Bolt 14. Drain plate 15. Sunshade stopper
16. Drain hose
PIIA6189E
PIIA6191E
PIIA6193E

TF-44
TRANSFER ASSEMBLY
Revision: 2004 November 2004 FX35/FX45

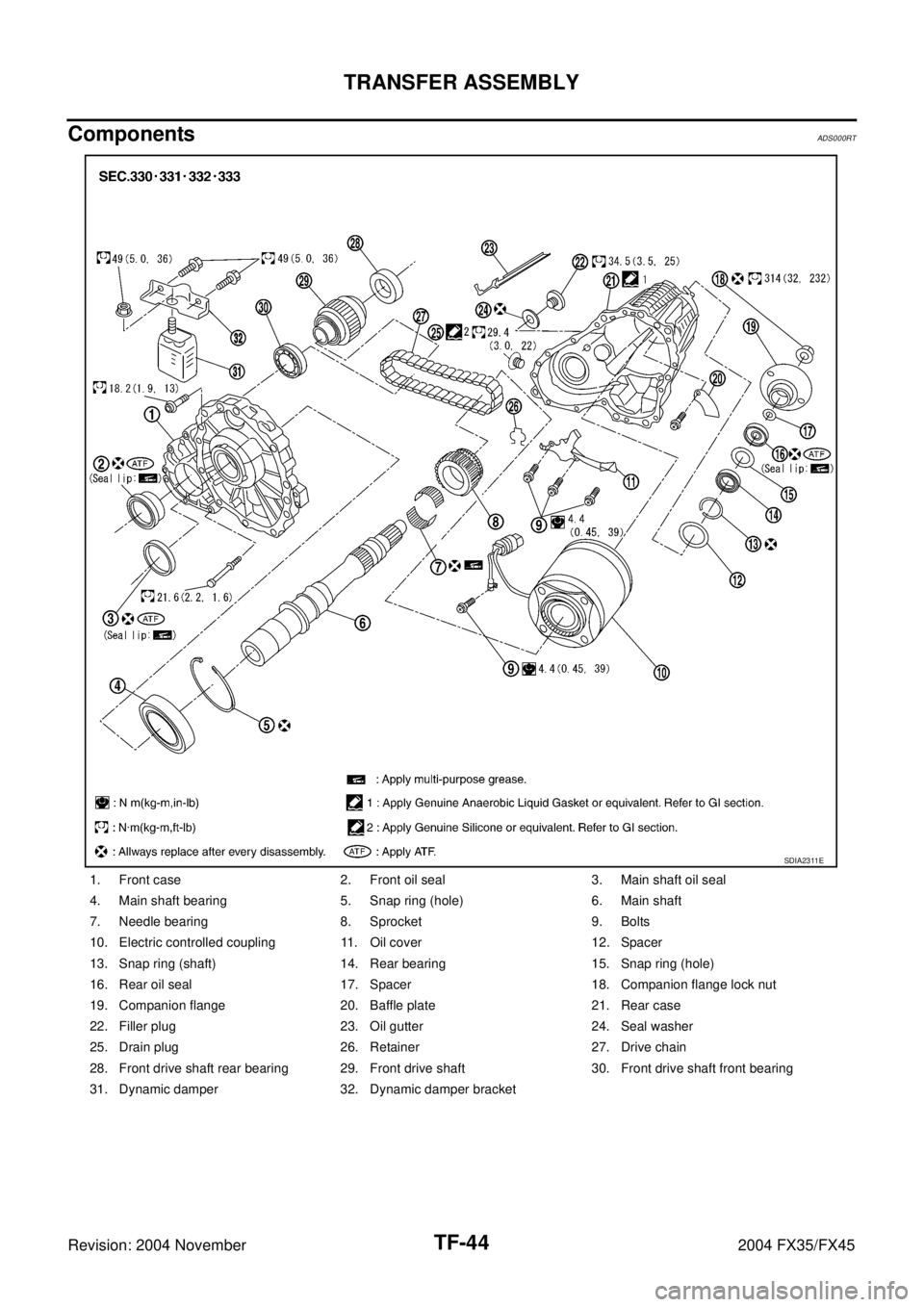

ComponentsADS000RT
1. Front case 2. Front oil seal 3. Main shaft oil seal
4. Main shaft bearing 5. Snap ring (hole) 6. Main shaft
7. Needle bearing 8. Sprocket 9. Bolts
10. Electric controlled coupling 11. Oil cover 12. Spacer
13. Snap ring (shaft) 14. Rear bearing 15. Snap ring (hole)
16. Rear oil seal 17. Spacer 18. Companion flange lock nut
19. Companion flange 20. Baffle plate 21. Rear case
22. Filler plug 23. Oil gutter 24. Seal washer
25. Drain plug 26. Retainer 27. Drive chain
28. Front drive shaft rear bearing 29. Front drive shaft 30. Front drive shaft front bearing
31. Dynamic damper 32. Dynamic damper bracket
SDIA2311E
