AUDIO ANTENNA
AV-51
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2004 November 2004 FX35/FX45
Terminals and Reference Value for Audio UnitAKS007WW
Antenna Amp. InspectionAKS007WX
1. CHECK ANTENNA FEEDER
Check with visual observation if antenna feeder between audio unit and antenna amp. has disconnection or
malfunction on the mounting part (engagement, looseness of shield earth, etc.).
OK or NG
OK >> GO TO 2
NG >> Replace antenna feeder.
2. CHECK ANTENNA SIGNAL
1. Turn the ignition switch ACC.
2. Check voltage between audio unit harness connector M58 ter-
minal 5 (R/W) and ground.
OK or NG
OK >> INSPECTION END (System is OK)
NG >> Replace audio unit.
Terminal
(wire color)
ItemSignal
input/
outputCondition
Reference valueExample of symp-
tom
+–Ignition
switchOperation
5 (R/
W)GroundAntenna sig-
nalOutput ACC – Approx. 12VReceiving status of
radio broadcast
becomes bad.
10
(LG/R)GroundACC power
supplyInput ACC – Battery voltageSystem does not
work properly
5 – Ground : Approx. 12V
SKIA6854E
Page 647 of 4449
AV-56
INTEGRATED DISPLAY SYSTEM
Revision: 2004 November 2004 FX35/FX45
DRIVE COMPUTER
Refer to Owner′s Manual for drive computer operating instructions.
TRIP Switch
When “TRIP” switch is pressed, display TRIP screen. As TRIP infor-
mation, it indicates journey time (TIME), trip odometer (DIST), aver-
age vehicle speed (AVG).
Pressing “TRIP” switch once cycles display from TRIP 1→TRIP
2→Display OFF→TRIP 1.
“TIME”
Journey time indication is performed by reset or battery connec-
tion.
When pushing “TRIP RESET” or “TRIP” switch more than
approximately 1.5 seconds, journey time will be reset.
If journey time is reset, journey distance and average speed will
be reset at the same time.
“DIST”
Trip odometer indication is performed by vehicle speed signal.
When pushing “TRIP RESET” or “TRIP” switch more than approximately 1.5 seconds, driving distance will
be reset.
If trip odometer is reset, journey time and average speed will be reset at the same time.
“AVG”
Average speed indication is performed by running distance and running time.
Indication will be renewed every 30 seconds.
When pushing “TRIP RESET” or “TRIP” switch more than approximately 1.5 seconds, average speed will
be reset.
After reset operation, the displays shows “ ” for 30 seconds.
FUEL ECON Switch
When “FUEL ECON” switch is pressed, display FUEL ECON screen.
As FUEL ECON information, it indicates average fuel consumption
(AVG), distance to empty (DTE).
Pressing “FUEL ECON” switch once cycles display from FUEL
ECON→Display OFF→FUEL ECON.
“AVG” (Average Fuel Consumption)
Average fuel consumption indication is performed by fuel con-
sumption signal and vehicle speed signal after system is reset.
Indication will be renewed every 30 seconds.
When pushing “TRIP RESET” or “FUEL ECON” switch more
than approximately 1.5 seconds, average fuel economy will be
reset.
After reset operation, the display shows “ . ” until the vehicle is driven 1,600 ft (500 m.) or 30 seconds
has passed.
“DTE” (Distance to Empty)
Distance to empty receives via CAN communication and indicates values calculated by meter.
Display range is maximum 999 miles (maximum 999 km).
If low-fuel WARNING is received from meter via CAN communication, distance to empty indication will be
“”.
Indication will be renewed every 30 seconds.
SKIA5916E
SKIA5917E
Page 663 of 4449
AV-72
INTEGRATED DISPLAY SYSTEM
Revision: 2004 November 2004 FX35/FX45
Terminals and Reference Value for Display UnitAKS00BOD
Terminal No.
(Wire color)
ItemSignal
input/
outputCondition
VoltageExample of
symptom
+–Ignition
switchOperation
1 (W/L) GroundBattery power
supplyInput OFF - Battery voltageSystem does not
work properly.
2 (LG/R) GroundACC power
supplyInput ACC - Battery voltageSystem does not
work properly.
3 (G/R) Ground Ignition signal Input ON - Battery voltageA/C operation is
not possible.
Vehicle informa-
tion setting is not
possible.
4 (R/L) GroundIllumination
signalInput OFFLighting switch is
ON .Approx. 12VScreen does not
switch to night-
time mode after
the lighting switch
is turned ON. Llighting switch is
OFF.Approx. 0V
6 (B) Ground Ground - ON - Approx. 0V -
7 (R/G) GroundVehicle speed
signal (8-pulse)Input ONWhen vehicle
speed is approx.
40 km/h (25 MPH)Drive computer
item is not dis-
played correctly.
8 (LG) Ground Audio TX Output ONOperate audio
volume.Audio does not
operate properly.
9 - Shield ground - - - - -
10 (B/Y) Ground Audio RX Input ONOperate audio
volume.Audio does not
operate properly.
11 (B/R) GroundCommunica-
tion signal (+)Input/
outputON -System does not
work properly.
12 - Shield ground - - - - -
PKIA1935E
SKIA4402E
SKIA4403E
SKIA0175E
Page 664 of 4449
INTEGRATED DISPLAY SYSTEM
AV-73
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2004 November 2004 FX35/FX45
Terminals and Reference Value for A/C and AV SwitchAKS00BOE
13 (W/R) GroundCommunica-
tion signal (-)Input/
outputON -System does not
work properly.
14 (L) - CAN-H - - - - -
15 (B) - Shield ground - - - - -
16 (R) - CAN-L - - - - -Terminal No.
(Wire color)
ItemSignal
input/
outputCondition
Voltag eExample of
symptom
+–Ignition
switchOperation
SKIA0176E
Terminal No.
(Wire color)
ItemSignal
input/
outputCondition
Vo l ta g eExample of
symptom
+–Ignition
switchOperation
1 (W/L) GroundBattery power
suoplyInput OFF - Battery voltageSystem does not
work properly.
2 (LG/R) GroundACC power
supply Input ACC - Battery voltageSystem does not
work properly.
5 (B) Ground Ground - ON - Approx. 0V -
6 (B/R) GroundCommunica-
tion signal (+)Input/
outputON -System does not
work properly.
7 - Shield ground - - - - -
8 (W/R) GroundCommunica-
tion signal (-)Input/
outputON -System does not
work properly.
12 (R/G) GroundRemote con-
troller AInput ONPress MODE
switch. Approx. 0V
Audio steering
wheel switches
do not function. Press SEEK UP
switch.Approx. 1.7V
Press VOL UP
switch.Approx. 3.3V
Except for above Approx. 5V
SKIA0175E
SKIA0176E
Page 670 of 4449
INTEGRATED DISPLAY SYSTEM
AV-79
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2004 November 2004 FX35/FX45
Power Supply and Ground Circuit Check for Display UnitAKS00BOJ
1. CHECK FUSE
Make sure that the following fuses in display unit are not blown.
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown be sure to eliminate case of malfunction before installing new fuse. Refer to PG-3,
"POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
Check voltage between display unit harness connector terminals
and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect display unit connector.
3. Check continuity between display unit harness connector M62
terminals 6 (B), 15 (B) and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
Unit Signal Fuse No.
Display unitBattery power supply 32
Ignition switch ACC or ON 6
Terminals Ignition switch position
(+)
(–) OFF ACC ON
ConnectorTerminal
(Wire color)
M621 (W/L) GroundBattery
voltageBattery
voltageBattery
voltage
2 (LG/R) Ground 0VBattery
voltageBattery
voltage
SKIB0373E
6, 15 – ground : Continuity should exist.
SKIA4986E
Page 671 of 4449
AV-80
INTEGRATED DISPLAY SYSTEM
Revision: 2004 November 2004 FX35/FX45
Power Supply and Ground Circuit Check for A/C and AV SwitchAKS00BOK
1. CHECK FUSE
Check if the following fuses in A/C and AV switch are blown.
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown be sure to eliminate case of malfunction before installing new fuse. Refer to PG-3,
"POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Check voltage between A/C and AV switch harness connector
terminals and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect A/C and AV switch connector.
3. Check continuity between A/C and AV switch harness connector
M64 terminal 5 (B) and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
Vehicle Speed Signal InspectionAKS00BOL
1. VEHICLE SPEED OPERATION CHECK
Does speedmeter is operated normally?
YES or NO
YES >> GO TO 2.
NO >> Check combination meter trouble diagnosis. Refer to DI-13, "
Diagnosis Flow" .
Unit Power source Fuse No.
A/C and AV switchBattery 32
Ignition switch ACC or ON 6
Terminals Ignition switch position
(+)
(–) OFF ACC ON
ConnectorTerminal
(Wire color)
M641 (W/L) GroundBattery
voltageBattery
voltageBattery
voltage
2 (LG/R) Ground 0VBattery
voltageBattery
voltage
SKIA8937E
5 – Ground : Continuity should exist.
SKIA4988E
Page 673 of 4449
AV-82
INTEGRATED DISPLAY SYSTEM
Revision: 2004 November 2004 FX35/FX45
Ignition Signal InspectionAKS00BON
1. CHECK IGNITION SIGNAL
1. Disconnect display unit connector.
2. Turn ignition switch ON.

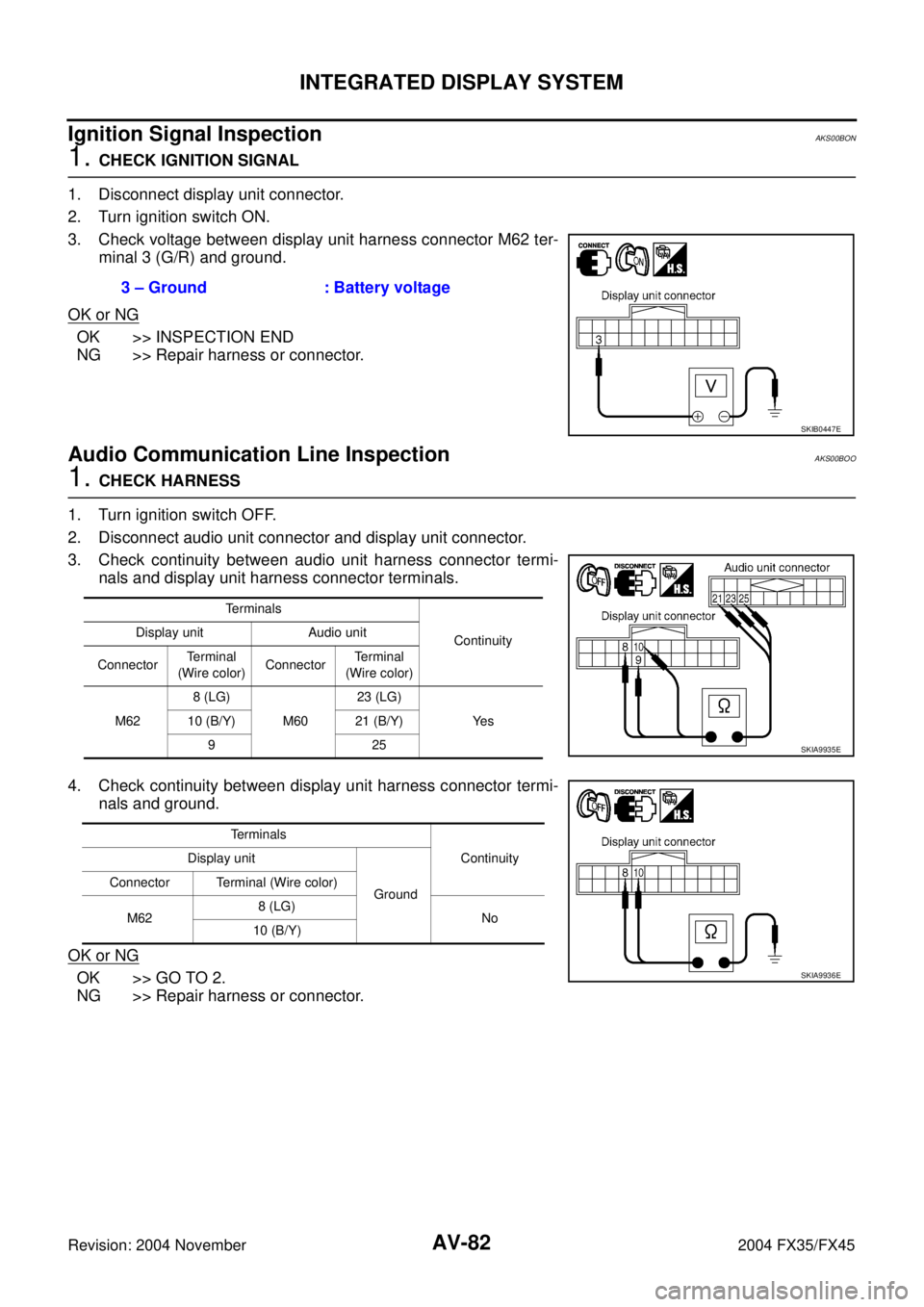

3. Check voltage between display unit harness connector M62 ter-
minal 3 (G/R) and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
Audio Communication Line InspectionAKS00BOO
1. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect audio unit connector and display unit connector.
3. Check continuity between audio unit harness connector termi-
nals and display unit harness connector terminals.
4. Check continuity between display unit harness connector termi-
nals and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair harness or connector.3 – Ground : Battery voltage
SKIB0447E
Terminals
Continuity Display unit Audio unit
ConnectorTerminal
(Wire color)ConnectorTerminal
(Wire color)
M628 (LG)
M6023 (LG)
Ye s 10 (B/Y) 21 (B/Y)
925
SKIA9935E
Terminals
Continuity Display unit
Ground Connector Terminal (Wire color)
M628 (LG)
No
10 (B/Y)
SKIA9936E
Page 712 of 4449
NAVIGATION SYSTEM
AV-121
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2004 November 2004 FX35/FX45
Terminals and Reference Value for NAVI Control UnitAKS00BMY
Terminal
(Wire color)
ItemSignal
input/
outputCondition
Reference valueExample of
symptom
+–Igni-
tion
switchOperation
1 (B) Ground Ground – ON – Approx. 0V –
2 (Y)
GroundBattery
power supplyInput OFF – Battery voltageSystem does not
work properly.
3 (Y)
4 (B) Ground Ground – ON – Approx. 0V –
6 (LG) GroundACC power
supplyInput ACC – Battery voltageSystem does not
work properly.
7 (LG) 8 (PU)Voice guide
signalOutput ONPress the “GUIDE/
VOICE”button.Only route guide
and operation
guide are not
heard.
9–Shield
ground–– – – –
14 –Shield
ground–– – – –
15 (B) 17RGB signal
(B: blue)Output ONSelect “Display
Diagnosis (NAVI)” of
CONFIRMATION/
ADJUSTMENT
function.NAVI screen
looks yellowish.
16 (G) 14RGB syn-
chronizing
signalOutput ONPress the “MAP”
button.NAVI screen is
rolling.
17 –Shield
ground–– – – –
18 (R) 17RGB signal
(R: red)Output ONSelect “Display
Diagnosis (NAVI)” of
CONFIRMATION/
ADJUSTMENT
function.NAVI screen
looks bluish.
21 (W) 17RGB signal
(G: green)Output ONSelect “Display
Diagnosis (NAVI)” of
CONFIRMATION/
ADJUSTMENT
function.NAVI screen
looks reddish.
SKIA0171J
SKIA4979E
SKIA0164E
SKIA4977E
SKIA4978E
Page 713 of 4449
AV-122
NAVIGATION SYSTEM
Revision: 2004 November 2004 FX35/FX45
25 (R) GroundIllumination
signalInput OFFLighting switch is
ON Approx. 12VNAVI control unit
illumination does
not change
when lighting
switch is turned
to 1st position. Lighting switch is
OFF Approx. 0V
26 (G) Ground Ignition signal Input ON – Battery voltageNavigation cur-
rent-location
mark does not
indicate the cor-
rect position.
27 (OR) GroundReverse
signalInput ONSelector lever in R
positionApprox. 12VThe navigation
current-location
mark moves
strangely when
the vehicle is
moving back-
wards. Selector lever
except R positionApprox. 0V
28 (GY) GroundVe h ic l e
speed signal
(8-pulse)Input ONWhen vehicle speed
is approx. 40 km/h
(25 MPH)Navigation cur-
rent-location
mark does not
indicate the cor-
rect position.
30 (BR) GroundIllumination
control signalInput OFF – Approx. 0V –
43 –Shield
ground–– – – –
44 (L) GroundCommunica-
tion signal (+)Input/
outputON –System does not
work properly.
45 (P) GroundCommunica-
tion signal (–)Input/
outputON –System does not
work properly.
66 67 GPS signal Input ONConnector is not
connected.Approx. 5VNavigation sys-
tem GPS correc-
tion is not
possible. Terminal
(Wire color)
ItemSignal
input/
outputCondition
Reference valueExample of
symptom
+–Igni-
tion
switchOperation
PKIA1935E
SKIA0175E
SKIA0176E
Page 714 of 4449
NAVIGATION SYSTEM
AV-123
C
D
E
F
G
H
I
J
L
MA
B
AV
Revision: 2004 November 2004 FX35/FX45
Terminals and Reference Value for Display Control UnitAKS00BMZ
Terminal
(Wire color)
ItemSignal
input/
outputCondition
Reference valueExample of
symptom
+–Igni-
tion
switchOperation
1 (W/L) GroundBattery
Power supplyInput OFF – Battery voltageSystem does not
work properly.
2 (W/G) GroundPower Sup-
ply (Inverter) Output ON – Approx. 9VScreen is not
shown
3 (B) Ground Ground – ON – Approx. 0V –
4 (BR/W) GroundPower Sup-
ply (Signal) Output ON – Approx. 9VScreen is not
shown
5 (P) Ground(Inverter)
Ground – ON – Approx. 0VScreen is not
shown
6 (OR) GroundReverse
signalInput ONSelector lever in R
positionApprox. 12V
Impossible to
gain direction of
vehicle. Selector lever
except R positionApprox. 0V
7 (P/L) Ground(Signal)
Ground – ON – Approx. 0V –
10 (LG/R) GroundACC power
supplyInput ACC – Battery voltageSystem does not
work properly.
12 (G/R) Ground Ignition signal Input ON – Battery voltageA/C operation is
not possible.
Vehicle informa-
tion setting is not
possible.
13 (B) Ground sysco – ON – Approx. 0V –
14 (R/L) GroundIllumination
signalInput OFFLighting switch is
ON.Approx. 12VAudio unit illumi-
nation does not
come on when
lighting switch is
ON. Lighting switch is
OFF.Approx. 0V
16 (R/G) GroundVehicle
speed signal
(8–pulse)Input ONWhen vehicle speed
is approx. 40 km/h
(25 MPH)Value of vehicle
information is
not accurately
displayed.
25 (L) – CAN H – – – – –
26 (R) – CAN L – – – – –
28 (B/R) GroundCommunica-
tion signal (+)Input/
OutputON –System does not
work properly.
29 –Shield
ground–– – – –
PKIA1935E
SKIA0175E
