NAVIGATION SYSTEM AV-175
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2005 July 2005 FX
Cause (condition) –: While driving ooo: Display Driving condition Remarks (correction, etc.)
Road config-
uration Y–intersections
At a Y intersection or similar gradual divi-
sion of roads, error the direction of travel
deduced by the sensor may result in the
current-location mark appearing on the
wrong road.
If after traveling about 10 km (6
miles) the correct location has
not been restored, perform
location correction and, if nec-
essary, direction correction.
Spiral roads
When driving on a large, continuous spiral
road (such as loop bridge), turning angle
error is accumulated and the vehicle mark
may deviate from the correct location.
Straight roads When driving on a long, straight road and
slow curve without stopping, map-match-
ing does not work effectively enough and
distance errors may accumulate. As a
result, the vehicle mark may deviate from
the correct location when the vehicle
turned at a corner.
Zigzag roads When driving on a zigzag road, the map
may be matched to other roads in the simi-
lar direction nearby at every turn, and the
vehicle mark may deviate from the correct
location.
Roads laid out in a grid pattern When driving at where roads are laid out in
a grid pattern, where many roads are run-
ning in the similar direction nearby, the
map may be matched to them by mistake
and the vehicle mark may deviate from the
correct location.
Parallel roads When two roads are running in parallel
(such as highway and sideway), the map
may be matched to the other road by mis-
take and the vehicle mark may deviate
from the correct location.
ELK0192D
ELK0193D
ELK0194D
ELK0195D
ELK0196D
ELK0197D

AV-176
NAVIGATION SYSTEM
Revision: 2005 July 2005 FX
Place In a parking lot When driving in a parking lot, or other loca-
tion where there are no roads on the map,
matching may place the vehicle mark on a
nearby road. When the vehicle returns to
the road, the vehicle mark may have devi-
ated from the correct location.
When driving in circle or turning the steer-
ing wheel repeatedly, direction errors accu-
mulate, and the vehicle mark may deviate
from the correct location.
If after traveling about 10km
(6miles) the correct location
has not been restored, perform
location correction and, if nec-
essary, direction correction.
Turn ta ble
When the ignition switch is OFF, the navi-
gation system cannot get the signal from
the gyroscope (angular speed sensor).
Therefore, the displayed direction may be
wrong and the correct road may not be
easily returned to after rotating the vehicle
on a turn table with the ignition OFF.
Slippery roads On snow, wet roads, gravel, or other roads where tires may slip easily, accumulated
mileage errors may cause the vehicle mark
to deviate from the correct road.
Slopes When parking in sloped garages, when traveling on banked roads, or in other
cases where the vehicle turns when tilted,
an error in the turning angle will occur, and
the vehicle mark may deviate from the
road.
Map data Road not displayed on the map screen
When driving on new roads or other roads
not displayed on the map screen, map
matching does not function correctly and
matches the location to a nearby road.
When the vehicle returns to a road which is
on the map, the vehicle mark may deviate
from the correct road.
Different road pattern
(Changed due to repair) If the road pattern stored in the map data
and the actual road pattern are different,
map matching does not function correctly
and matches the location to a nearby road.
The vehicle mark may deviate from the
correct road.
Vehicle Use of tire chains When tire chains are used, the mileage is
not correctly detected, and the vehicle
mark may deviate from the correct road. Drive the vehicle for a while. If
the distance is still deviated,
adjust it by using the distance
adjustment function. (If the tire
chain is removed, recover the
original value.)
Cause (condition) –: While driving ooo: Display Driving condition Remarks (correction, etc.)
SEL709V
SEL710V
SEL699V
ELK0201D

NAVIGATION SYSTEM AV-177
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2005 July 2005 FX
CURRENT LOCATION MARK SHOWS A POSITION WHICH IS COMPLETELY WRONG
In the following cases, the current-location mark may appear on completely different position in the map
depending on the GPS satellite signal receiving conditions. In this case, perform location correction and direc-
tion correction.

When location correction has not been done
–If the receiving conditions of the GPS satellite signal is poor, if the current-location mark becomes out of
place, it may move to a completely different location and not come back if location correction is not done.
The position will be corrected if the GPS signal can be received.

When the vehicle has traveled by ferry, or when the vehicle has been being towed
–Because calculation of the current location cannot be done when traveling with the ignition OFF, for exam-
ple when traveling by ferry or when being towed, the location before travel is displayed. If the precise loca-
tion can be detected with GPS, the location will be corrected.
CURRENT-LOCATION MARK JUMPS
In the following cases, the current-location mark may appear to jump as a result of automatic correction of the
current location.

When map matching has been done
–If the current location and the current-location mark are different when map matching is done, the current-
location mark may seem to jump. At this time, the location may be “corrected” to the wrong road or to a
location which is not on a road.

When GPS location correction has been done
–If the current location and the current-location mark are different when the location is corrected using GPS
measurements, the current-location mark may seem to jump. At this time, the location may be “corrected”
to a location which is not on a road.
Precautions
for driving Just after the engine is started
If the vehicle is driven off just after the
engine is started when the gyroscope
(angular speed sensor) correction is not
completed, the vehicle can lose its direc-
tion and may have deviated from the cor-
rect location. Wait for a short while before
driving after starting the engine.
Continuous driving without stopping When driving long distances without stop- ping, direction errors may accumulate, and
the current-location mark may deviate from
the correct road. Stop and adjust the orientation.
Abusive driving Spinning the wheels or engaging in other kinds of abusive driving may result in the
system being unable perform correct
detection, and may cause the vehicle mark
to deviate from the correct road. If after traveling about 10 km (6
miles) the correct location has
not been restored, perform
location correction and, if nec-
essary, direction correction.
How to cor-
rect location Position correction accuracy
If the accuracy of location settings is poor,
accuracy may be reduced when the correct
road cannot be found, particularly in places
where there are many roads. Enter in the road displayed on
the screen with an accuracy of
approx. 1mm.
Caution: Whenever possible,
use detailed map for the cor-
rection.
Direction when location is corrected
If the accuracy of location settings during
correction is poor, accuracy may be
reduced afterwards. Perform direction correction.
Cause (condition) –: While driving ooo: Display Driving condition Remarks (correction, etc.)
SEL701V
SEL702V

AV-178
NAVIGATION SYSTEM
Revision: 2005 July 2005 FX
CURRENT LOCATION MARK IS IN A RIVER OR SEA
The navigation system moves the current-location mark with no distinction between land and rivers or sea. If
the location mark is somehow out of place, it may appear that the vehicle is driving in a river or the sea.
WHEN DRIVING ON SAME ROAD, SOMETIMES CURRENT-LOCATION MARK IS IN RIGHT
PLACE AND SOMETIMES IT IS WRONG PLACE
The conditions of the GPS antenna (GPS data) and gyroscope (angular speed sensor) change gradually.
Depending on the road traveled and the operation of the steering wheel, the location detection results will be
different. Therefore, even on a road on which the location has never been wrong, conditions may cause the
vehicle mark to deviate.
LOCATION CORRECTION BY MAP-MATCHING IS SLOW

The map matching function needs to refer to the data of the surrounding area. It is necessary to drive
some distance for the function to work.

Because map matching operates on this principle, when there are many roads running in similar direc-
tions in the surrounding area, no matching determination may be made. The location may not be cor-
rected until some special feature is found.
ALTHOUGH GPS RECEIVING DISPLAY IS GREEN, VEHICLE MARK DOES NOT RETURN TO
CORRECT LOCATION

The GPS accuracy has an error of approximately 10 m (30 ft). In some cases the current-location mark
may not be on the correct street, even when GPS location-correction is done.

The navigation system compares the results of GPS location detection with the results from map-match-
ing location detection. The one which is determined to have higher accuracy is used.

GPS location correction may not be performed when the vehicle is stopped.
NAME OF CURRENT PLACE IS NOT DISPLAYED
The current place name may not be displayed if there are no place names displayed on the map screen.
CONTENTS OF DISPLAY DIFFER FOR BIRDVIEW™ AND THE (FLAT) MAP SCREEN
Difference of the BIRDVIEW™ screen from the Flat Map Screen are as Follows.

The current place name displays names which are primarily in the direction of vehicle travel.

The amount of time before the vehicle travel or turn angle is updated on the screen is longer than for the
(flat) map display.

The conditions for display of place names, roads, and other data are different for nearby areas and for
more distant areas.

Some thinning of the character data is done to prevent the display becoming to complex. In some cases
and in some locations, the display contents may differ.

The same place name, street name, etc. may be displayed multiple times.

NAVIGATION SYSTEM AV-179
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2005 July 2005 FX

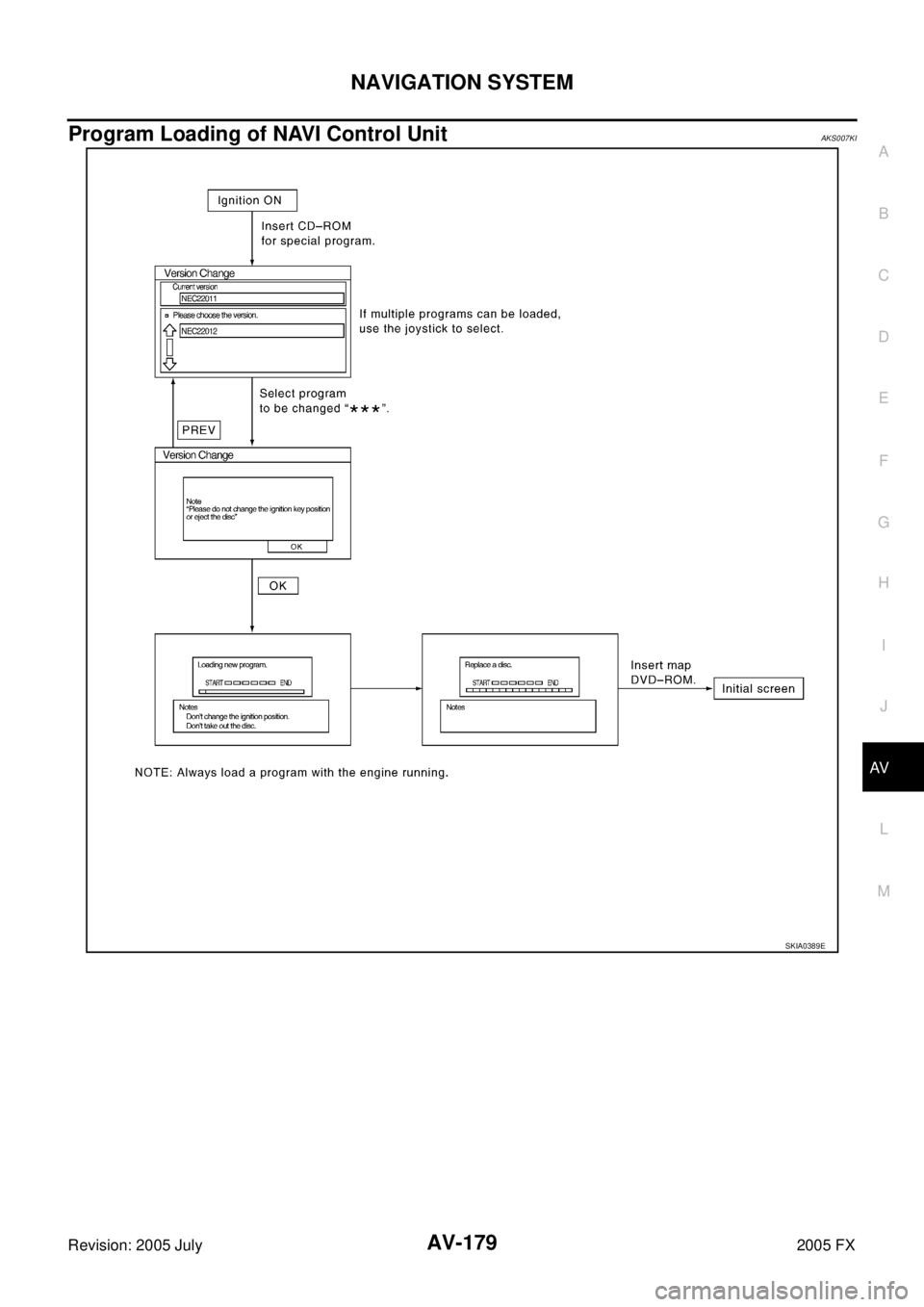

Program Loading of NAVI Control UnitAKS007KI
SKIA0389E

AV-180
NAVIGATION SYSTEM
Revision: 2005 July 2005 FX
Removal and Installation of NAVI Control UnitAKS007O9
REMOVAL
1. Remove passenger side seat. Refer to SE-100, "Removal and Installation"
2. Remove clips (4), and remove NAVI control unit cover.
3. Remove screws (2) and nut (1) with power tool, and remove NAVI control unit.
4. Remove screws (4) with power tool and remove bracket.
INSTALLATION
Installation is the reverse order of removal.
Removal and Installation of GPS AntennaAKS007OA
REMOVAL
1. Remove audio unit. Refer to AV- 4 7 , "Removal and Installation of
Audio Unit" .
2. Remove screw (1) and remove GPS antenna.
INSTALLATION
Installation is the reverse order of removal.
PKIA3129E
SKIA5822E
SKIA5823E
SKIA5824E

NAVIGATION SYSTEM AV-181
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2005 July 2005 FX
Removal and Installation of A/C and AV SwitchAKS007OB
For A/C and AV switch removal and installation procedures, refer to AV- 4 8 , "Removal and Installation for A/C
and AV Switch" .
Removal and Installation of Display UnitAKS007OC
For display unit removal and installation procedures, refer to AV- 4 7 , "Removal and Installation of Audio Unit" .
Removal and Installation of Display Control UnitAKS007OD
REMOVAL
1. Remove instrument passenger lower panel. Refer to IP-11,
"Removal and Installation" .
2. Remove screws (2) with power tool and remove display control unit.
3. Remove screws (4) with power tool and remove bracket.
INSTALLATION
Installation is the reverse order of removal.
SKIA5825E
SKIA5826E

POWER DOOR LOCK SYSTEM BL-23
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2005 July 2005 FX
Then key cylinder switch operation signal (lock) is supplied

through power window main switch terminal 14.

to BCM terminal 22
When the door is unlocked with key cylinder switch, ground is supplied

to power window main switch terminal 6

through key cylinder switch terminal 6 and 5

through grounds M35, M45 and M85.
Then key cylinder switch operation signal (unlock) is supplied

through power window main switch terminal 14.

to BCM terminal 22
BCM is connected to power window main switch and front power window switch (passenger side) as serial
link.
When the front door switch (driver side) is ON (door is OPEN), ground is supplied

to BCM terminal 62

through front door switch (driver side) terminal 1

through front door switch (driver side) case ground.
When the front door switch (passenger side) is ON (door is OPEN), ground is supplied

to BCM terminal 12

through front door switch (passenger side) terminal 1

through front door switch (passenger side) case ground.
When the rear door switch LH is ON (door is OPEN), ground is supplied

to BCM terminal 63

through front door switch LH terminal 1

through rear door switch LH case ground.
When the rear door switch RH is ON (door is OPEN), ground is supplied

to BCM terminal 13

through front door switch RH terminal 1

through rear door switch RH case ground.
When the back door switch is ON (door is OPEN), ground is supplied

to BCM terminal 58

through back door closure motor (door switch) terminal 7 and 8

through grounds B15 and B45.
OUTLINE
Functions Available by Operating the Door Lock and Unlock Switches on Driver's Door and
Passenger's Door

Interlocked with the locking operation of door lock and unlock switch, door lock actuators of all doors and
fuel lid lock actuator are locked.

Interlocked with the unlocking operation of door lock and unlock switch, door lock actuators of all doors
and fuel lid lock actuator are unlocked.
Functions Available by Operating the Key Cylinder Switch on Driver's

Interlocked with the locking operation of door key cylinder, door lock actuators of all doors and fuel lid lock
actuator are locked.
Select Unlock Operation

When door key cylinder is unlocked, door lock actuator driver side and fuel lid lock actuator are unlocked.

When door key cylinder is unlocked for the second time within 5 seconds after the first operation, door
lock actuators on all doors are unlocked.
Select unlock operation mode can be changed using “DOOR LOCK-UNLOCK SET” mode in “WORK
SUPPORT”. Refer to BL-38, "
Work Support" .
Select unlock operation mode can be changed also on the display.
Refer to AV- 6 0 , "
SETTING SCREEN" . (without navigation system)

BL-24
POWER DOOR LOCK SYSTEM
Revision: 2005 July 2005 FX
Refer to AV- 9 4 , "Vehicle Electronic Systems" . (with navigation system)
Key Reminder Door System
When door lock and unlock switch is operated to lock doors with ignition key put in key cylinder and any door
open, all door lock actuators are locked and then unlocked.
Key reminder door mode can be changed using “WORK SUPPORT” mode in “ANTI-LOCK OUT SET”.
Refer to BL-38, "
Work Support" .
CAN Communication System DescriptionAIS004LQ
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitAIS004RP
Refer to LAN-30, "CAN Communication Unit" .

BL-58
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2005 July 2005 FX
OPERATED PROCEDURE
Power Door Lock Operation
BCM receives a LOCK signal from key fob. BCM locks all doors with input of LOCK signal from key fob.
When an UNLOCK signal is sent from key fob once, driver's door will be unlocked.
Then, if an UNLOCK signal is sent from key fob again within 5 seconds, all other door will be unlocked.
Power door lock operation mode can be changed using “DOOR LOCK-UNLOCK SET” mode in “WORK SUP-
PORT” of “POWER DOOR LOCK SYSTEM”.
Refer to BL-68, "
Work Support" .
Power door lock operation mode can be changed also on the display.
Refer to AV- 6 0 , "
SETTING SCREEN" . (without navigation system)
Refer to AV- 9 4 , "
Vehicle Electronic Systems" . (with navigation system)
Hazard and Horn Reminder
When the doors are locked or unlocked by key fob, power is supplied to hazard warning lamp and lamp flash
as follows

LOCK operation: C mode (flash twice) or S mode (flash twice)

UNLOCK operation: C mode (flash once) or S mode (do not flash)
BCM outputs to IPDM E/R for horn reminder signal as DATA LINE (CAN H line and CAN L line).
The hazard and horn reminder has C mode (horn chirp mode) and S mode (non-horn chirp mode).
Operating function of hazard and horn reminder
Hazard and horn reminder do not operate if any door switch is ON (any door is OPEN).
How to change hazard and horn reminder mode
With CONSULT-II
Hazard and horn reminder can be changed using “MULTI ANSWER BACK SET” mode in “WORK SUPPORT”.
Refer to BL-68, "
Work Support" .
Without CONSULT-II
When LOCK and UNLOCK signals are sent from the key fob for more than 2 seconds at the same time, the
hazard and horn reminder mode is changed and hazard warning lamp flashes and horn sounds as follows:
Auto Door Lock Operation
Auto lock function signal is sent for operation when any of the following signals are not sent within 1 minute
after the unlock signal is sent from the key fob:

when door switch is turned ON for open.

when the key switch is turned ON.

when the lock signal is sent from the key fob.
Auto door lock mode can be changed using “AUTO LOCK SET” mode in “WORK SUPPORT”.
Refer to BL-68, "
Work Support" .
Auto door lock mode can be changed also on the display.
C mode S mode
Remote controller
operation Lock Unlock Lock Unlock
Hazard warning lamp
flash Twice Once Twice —
Horn sound Once — — —
SEL153WA
