Page 744 of 4731
NAVIGATION SYSTEM AV-145
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2005 July 2005 FX
Power Supply and Ground Circuit Check for A/C and AV SwitchAKS007J8
1. CHECK FUSE
Make sure the following fuses of the A/C and AV switch are not blown.
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate case of malfunction before installing new fuse. Refer to PG-3,
"POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
Check voltage between connector terminals and ground as follows.
OK or NG
OK >> GO TO 3.
NG >> Check harness for open or short between A/C and AV switch and fuse.
3. CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect A/C and AV switch connector.
3. Check continuity between A/C and AV switch and ground as fol- lows.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
Vehicle Speed Signal Check for NAVI Control UnitAKS007J9
1. VEHICLE SPEED OPERATION CHECK
Is speedmeter operated normally?
YES or NO
YES >> GO TO 2.
NO >> Check combination meter trouble diagnosis. Refer to DI-15, "
Trouble Diagnosis" .
Terminals
Power source Fuse No.
Connector Terminal (Wire color)
M64 1 (W/L) Battery power 32
2 (LG/R) ACC power 6
Terminals Ignition switch position
(+) (–) OFF ACC ON
Connector Te r m i n a l
(Wire color)
M64 1 (W/L)
Ground Battery
voltage Battery
voltage Battery
voltage
2 (LG/R) 0 V Battery
voltage Battery
voltage
SKIA8937E
Terminals Ignition switch Continuity
Connector Terminal (Wire color) Ground OFF Yes
M64 5 (B)
SKIA8938E
Page 745 of 4731
AV-146
NAVIGATION SYSTEM
Revision: 2005 July 2005 FX
2. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect NAVI control unit connector and unified meter and A/C amp. connector.
3. Check continuity between NAVI control unit harness connector B207 terminal 28 (GY) and unified meter and A/C amp. harness
connector M56 terminal 26 (R/G).
4. Check continuity between NAVI control unit harness connector B207 terminal 28 (GY) and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK VEHICLE SPEED SIGNAL
1. Connect NAVI control unit connector and unified meter and A/C amp. connector.
2. Start engine.
3. Drive vehicle at a constant speed.
4. Check signal between NAVI control unit harness connector B207 terminal 28 (GY) and ground with CONSULT-ll or oscillo-
scope.
OK or NG
OK >> Replace NAVI control unit.
NG >> Check combination meter system. Refer to DI-20, "
Vehicle Speed Signal Inspection" .
Vehicle Speed Signal Check for Display Control UnitAKS007JA
1. VEHICLE SPEED OPERATION CHECK
Is speedmeter operated normally?
YES or NO
YES >> GO TO 2.
NO >> Check combination meter trouble diagnosis. Refer to DI-15, "
Trouble Diagnosis" .
Continuity should exist.
Continuity should not exist.
PKIA2861E
28 (GY) - Ground : Refer to AV- 11 9 , "Terminals and
Reference Value for NAVI Control
Unit" .PKIB6610E
Page 746 of 4731
NAVIGATION SYSTEM AV-147
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2005 July 2005 FX
2. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect display control unit connector and unified meter and A/C amp. connector.
3. Check continuity between display control unit harness connector M75 terminal 16 (R/G) and unified meter and A/C amp. harness
connector M56 terminal 26 (R/G).
4. Check continuity between display control unit harness connector M75 terminal 16 (R/G) and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK VEHICLE SPEED SIGNAL
1. Connect display control unit connector and unified meter and A/ C amp. connector.
2. Start the engine.
3. Drive vehicle at a constant speed.
4. Check signal between display control unit harness connector M75 terminal 16 (R/G) and ground with CONSULT-ll or oscillo-
scope.
OK or NG
OK >> Replace display control unit.
NG >> Check unified meter and A/C amp. system. Refer to DI-20, "
Vehicle Speed Signal Inspection" .
Illumination Signal Check for NAVI Control UnitAKS00AUM
1. CHECK ILLUMINATION SIGNAL
Check voltage between NAVI control unit and ground.
OK or NG
OK >> Replace NAVI control unit.
NG >> Check harness for open or short between NAVI control unit and IPDM E/R. Continuity should exist.
Continuity should not exist.
PKIA2864E
16 (R/G) – Ground : Refer to AV- 1 2 1 , "Terminals and
Reference Value for Display Control
Unit" .PKIB6609E
Terminals
Condition Voltage
(+)
(–)
Connector Terminal
(Wire color)
B207 25 (R) Ground Lighting switch position
1st or 2nd position Approx. 12 V
Lighting switch OFF Approx. 0 V
SKIB0315E
Page 747 of 4731
AV-148
NAVIGATION SYSTEM
Revision: 2005 July 2005 FX
Illumination Signal Check for Display Control Unit AKS007JC
1. CHECK ILLUMINATION SIGNAL
Check voltage between display control unit and ground.
OK or NG
OK >> Replace display control unit.
NG >> Check harness for open or short between display control unit and IPDM E/R.
Ignition Signal Check for NAVI Control UnitAKS007JD
1. CHECK IGNITION SIGNAL
1. Turn ignition switch ON.
2. Check voltage between NAVI control unit harness connector B207 terminal 26 (G) and ground.
OK or NG
OK >> Replace NAVI control unit.
NG >> Check harness for open or short between NAVI control unit and fuse.
Ignition Signal Check for Display Control UnitAKS007JE
1. CHECK IGNITION SIGNAL
1. Turn ignition switch ON.
2. Check voltage between display control unit harness connector M75 terminal 12 (G/R) and ground.
OK or NG
OK >> Replace display control unit.
NG >> Check harness for open or short between display con-
trol unit and fuse.
Reverse Signal Check for NAVI Control UnitAKS007JF
1. CHECK REVERSE LAMP
1. Turn ignition switch ON.
2. Selector lever into R-position.
Does
“R” in the shift position indicator come on?
YES >> GO TO 2.
NO >> Check back-up lamp system. Refer to LT- 1 2 7 , "
BACK-UP LAMP" .
Terminals
Condition Voltage
(+)
(–)
Connector Te r m i n a l
(Wire color)
M75 14 (R/L) Ground Lighting switch position
1st or 2nd position Approx. 12 V
Lighting switch OFF Approx. 0 V
SKIB0316E
Battery voltage should exist.
SKIA8939E
Battery voltage should exist.
SKIA8940E
Page 748 of 4731
NAVIGATION SYSTEM AV-149
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2005 July 2005 FX
2. CHECK REVERSE SIGNAL
With the selector lever in R-position, check voltage between NAVI
control unit and ground.
OK or NG
OK >> Replace NAVI control unit.
NG >> Check harness for open or short between NAVI control unit and back-up lamp relay.
Reverse Signal Check for Display Control UnitAKS007JG
1. CHECK REVERSE LAMP
1. Turn ignition switch ON.
2. Selector lever into R-position.
Does
“R” in the shift position indicator come on?
YES >> GO TO 2.
NO >> Check back-up lamp system. Refer to LT- 1 2 7 , "
BACK-UP LAMP" .
2. CHECK REVERSE SIGNAL
With the selector lever in R-position, check voltage between display
control unit and ground.
OK or NG
OK >> Replace display control unit.
NG >> Check harness for open or short between display control unit and back-up lamp relay.
AV Communication Line Check (Between Display Control Unit and NAVI Control
Unit)
AKS007JH
1. CHECK POWER SUPPLY AND GROUND CIRCUIT
Check system of power supply and ground circuit NAVI control unit. Refer to AV- 1 4 2 , "
Power Supply and
Ground Circuit Check for NAVI Control Unit" .
OK or NG
OK >> GO TO 2.
NG >> Check the malfunctioning parts.
Terminals
Condition Voltage
(+)
(–)
Connector Terminal
(Wire color)
B207 27 (OR) Ground Select
lever R-position Approx. 12 V
Other than above Approx. 0 V
SKIA9498E
Terminals
Condition Voltage
(+)
(–)
Connector Te r m i n a l
(Wire color)
M75 6 (OR) Ground Select
lever R-position Approx. 12 V
Other than above Approx. 0 V
SKIA8942E
Page 749 of 4731
AV-150
NAVIGATION SYSTEM
Revision: 2005 July 2005 FX
2. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect NAVI control unit connector and display control unit connector.
3. Check continuity between NAVI control unit and display control unit.
4. Check continuity between NAVI control unit and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. SELF-DIAGNOSIS OF DCU
1. Replace same normal display control unit.
2. Connect NAVI control unit connector and display control unit connector.
3. Turn ignition switch ON.
4. Start self-diagnosis of DCU, and check the self-diagnosis result.
OK or NG
OK >> Replace display control unit.
NG >> Replace NAVI control unit.
Audio Communication Line Check (Between Display Control Unit and Audio
Unit)
AKS007JI
1. CHECK POWER SUPPLY AND GROUND CIRCUIT
Check power supply and ground circuit of audio unit. Refer to AV- 4 1 , "
Power Supply Circuit Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Check the malfunctioning parts.
Terminals
Continuity
NAVI control unit Display control unit
Connector Terminal
(Wire color) ConnectorTe r m i n a l
(Wire color)
B207 44 (L)
M76 32 (BR)
Ye s
45 (P) 34 (Y)
Te r m i n a l s Continuity
NAVI control unit
Connector Terminal (Wire color) Terminal
B207 44 (L)
Ground No
45 (P)
PKIA2873E
Page 750 of 4731
NAVIGATION SYSTEM AV-151
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2005 July 2005 FX
2. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect audio unit connector and display control unit connector.
3. Check continuity between audio unit and display control unit.
4. Check continuity between display control unit and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK 1: AUDIO-TX COMMUNICATION SIGNAL
1. Connect display control unit connector.
2. Turn ignition switch ON.
3. Check voltage between display control unit harness connector M76 terminal 40 (LG) and ground.
OK or NG
OK >> GO TO 4.
NG >> Replace display control unit.
4. CHECK 2: AUDIO-RX COMMUNICATION SIGNAL
1. Turn ignition switch OFF.
2. Connect audio unit connector.
3. Turn ignition switch ON.
4. Check voltage between display control unit harness connector M76 terminal 42 (B/Y) and ground.
OK or NG
OK >> GO TO 5.
NG >> Replace audio unit.
Terminals
Continuity
Display control unit Audio unit
Connector Terminal
(Wire color) Connector Terminal
(Wire color)
M76 40 (LG)
M60 23 (LG)
Ye s
42 (B/Y) 21 (B/Y)
Te r m i n a l s Continuity
Display control unit
—
Connector Terminal (Wire color)
M76 40 (LG)
Ground No
42 (B/Y)
PKIA2875E
Approx. 3.5 V or more
PKIA2876E
Approx. 3.5 V or more
PKIA2877E
Page 751 of 4731
AV-152
NAVIGATION SYSTEM
Revision: 2005 July 2005 FX

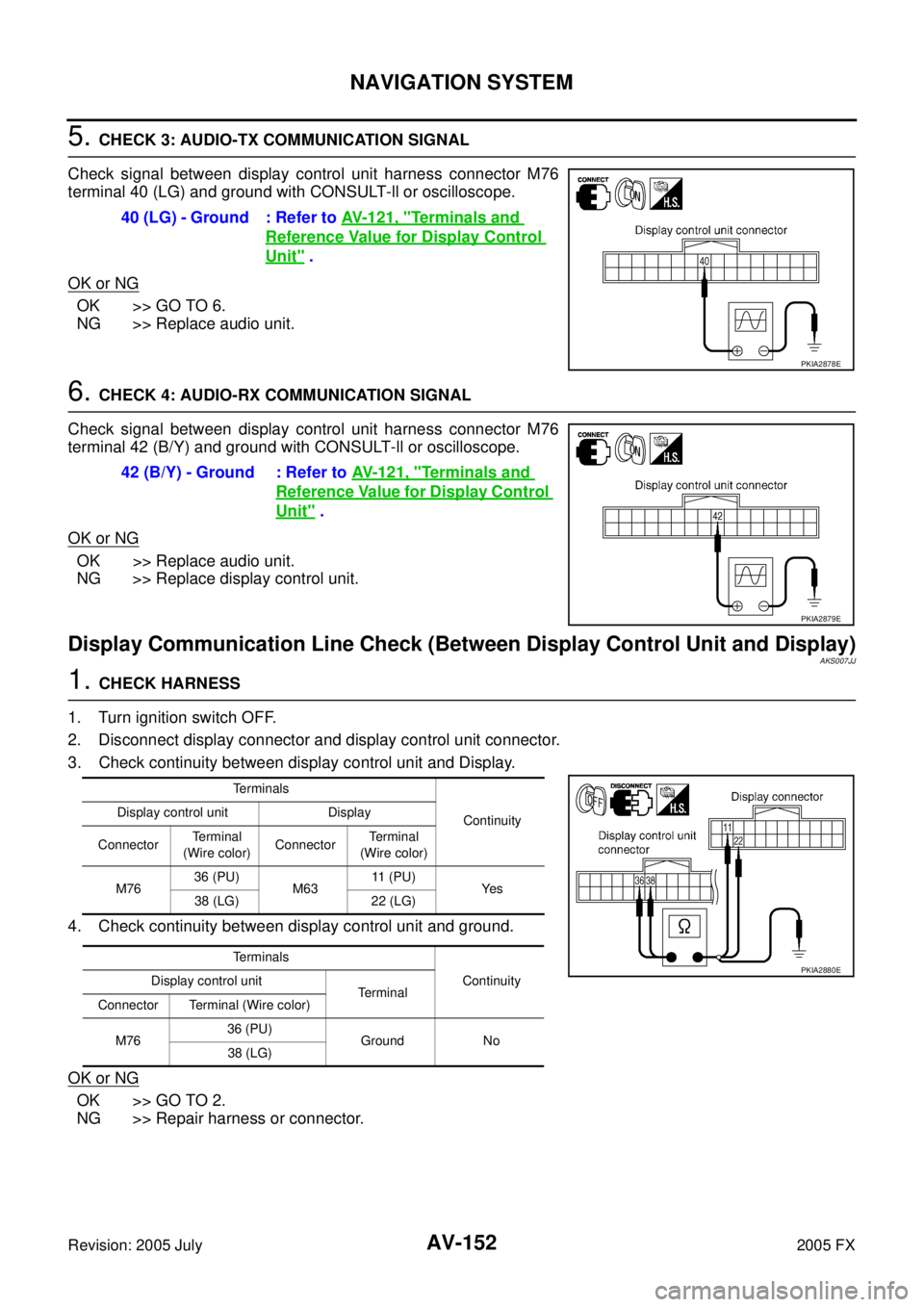

5. CHECK 3: AUDIO-TX COMMUNICATION SIGNAL
Check signal between display control unit harness connector M76
terminal 40 (LG) and ground with CONSULT-ll or oscilloscope.
OK or NG
OK >> GO TO 6.
NG >> Replace audio unit.
6. CHECK 4: AUDIO-RX COMMUNICATION SIGNAL
Check signal between display control unit harness connector M76
terminal 42 (B/Y) and ground with CONSULT-ll or oscilloscope.
OK or NG
OK >> Replace audio unit.
NG >> Replace display control unit.
Display Communication Line Check (Between Display Control Unit and Display)AKS007JJ
1. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect display connector and display control unit connector.
3. Check continuity between display control unit and Display.
4. Check continuity between display control unit and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair harness or connector. 40 (LG) - Ground : Refer to
AV- 1 2 1 , "
Terminals and
Reference Value for Display Control
Unit" .
PKIA2878E
42 (B/Y) - Ground : Refer to AV- 1 2 1 , "Terminals and
Reference Value for Display Control
Unit" .
PKIA2879E
Terminals
Continuity
Display control unit Display
Connector Terminal
(Wire color) Connector Te r m i n a l
(Wire color)
M76 36 (PU)
M63 11 ( P U )
Ye s
38 (LG) 22 (LG)
Terminals Continuity
Display control unit
Te r m i n a l
Connector Terminal (Wire color)
M76 36 (PU)
Ground No
38 (LG)
PKIA2880E
Page 752 of 4731
NAVIGATION SYSTEM AV-153
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2005 July 2005 FX
2. CHECK 1: COMMUNICATION SIGNAL (DCU–DSP)
1. Connect display connector.
2. Turn ignition switch ON.
3. Check voltage between display control unit harness connector M76 terminal 36 (PU) and ground.
OK or NG
OK >> GO TO 3.
NG >> Replace display control unit.
3. CHECK 2: COMMUNICATION SIGNAL (DSP–DCU)
1. Turn ignition switch OFF.
2. Disconnect display connector.
3. Connect display control unit connector.
4. Turn ignition switch ON.
5. Check voltage between display control unit harness connector M76 terminal 38 (LG) and ground.
OK or NG
OK >> GO TO 4.
NG >> Replace display control unit.
4. CHECK 3: COMMUNICATION SIGNAL (DCU–DSP)
1. Turn ignition switch OFF.
2. Connect display connector.
3. Turn ignition switch ON.
4. Check signal between display control unit harness connector M76 terminal 36 (PU) and ground with CONSULT-ll or oscillo-
scope.
OK or NG
OK >> GO TO 5.
NG >> Replace display control unit.
5. CHECK 4: COMMUNICATION SIGNAL (DSP–DCU)
Check signal between display control unit harness connector M76
terminal 38 (LG) and ground with CONSULT-ll or oscilloscope.
OK or NG
OK >> Replace display control unit.
NG >> Replace display. Approx. 4.2 V
PKIA2881E
Approx. 4.2 V
SKIB0317E
36 (PU) - Ground : Refer to
AV- 1 2 1 , "Terminals and
Reference Value for Display Control
Unit" .PKIA2883E
38 (LG) - Ground : Refer to AV- 1 2 1 , "Terminals and
Reference Value for Display Control
Unit" .
PKIA2884E
Page 753 of 4731
AV-154
NAVIGATION SYSTEM
Revision: 2005 July 2005 FX
AV Communication Line Check (Between Display Control Unit and A/C and AV
Switch)
AKS007JK
1. CHECK A/C AND AV SWITCH CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect display control unit connector and A/C and AV switch connector.
3. Check continuity between display control unit and A/C and AV switch.
4. Check continuity between display control unit and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair harness or connector.
2. SELF-DIAGNOSIS OF DCU
1. Replace same normal A/C and AV switch.
2. Connect display control unit connector and A/C and AV switch connector.
3. Turn ignition switch ON.
4. Start self-diagnosis of DCU, and check the self-diagnosis result.
OK or NG
OK >> Replace A/C and AV switch.
NG >> Replace display control unit.
Terminals
Continuity
Display control unit A/C and AV switch
Connector Te r m i n a l
(Wire color) Connector
Terminal
(Wire color)
M76 28 (B/R)
M64 6 (B/R)
Ye s
30 (W/R) 8 (W/R)
Terminals Continuity
Display control unit
—
Connector Terminal (Wire color)
M76 28 (B/R)
Ground No
30 (W/R)
PKIA2885E
