TROUBLE DIAGNOSIS AT-47
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX
DIAGNOSTIC WORKSHEET
Information from Customer
KEY POINTS

WHAT ..... Vehicle and A/T model

WHEN ..... Date, Frequencies

WHERE ..... Road conditions

HOW..... Operating conditions, Symptoms
Diagnostic Worksheet Chart
Customer name MR/MS Model and Year VIN
Trans. Model Engine Mileage
Malfunction Date Manuf. Date In Service Date
Frequency ❏ Continuous ❏ Intermittent ( times a day)
Symptoms ❏ Vehicle does not move. ( ❏ Any position ❏ Particular position)
❏ No up-shift ( ❏ 1st → 2nd ❏ 2nd → 3rd ❏ 3rd → 4th ❏ 4th → 5th)
❏ No down-shift ( ❏ 5th → 4th ❏ 4th → 3rd ❏ 3rd → 2nd ❏ 2nd → 1st)
❏ Lock-up malfunction
❏ Shift point too high or too low.
❏ Shift shock or slip ( ❏ N → D ❏ Lock-up ❏ Any drive position)
❏ Noise or vibration
❏ No kick down
❏ No pattern select
❏ Others
()
A/T CHECK indicator lamp Blinks for about 8 seconds. ❏ Continuously lit ❏ Not lit
Malfunction indicator lamp (MIL) ❏ Continuously lit ❏ Not lit
1 ❏ Read the item on cautions concerning fail-safe and understand the customer's complaint. AT- 4 3
2 ❏
A/T fluid inspection AT- 5 2❏ Leak (Repair leak location.)
❏ Sta t e
❏ Amount
3 ❏
Stall test and line pressure test AT- 5 2
, AT-
54❏ Stall test
❏ Torque converter one-way clutch
❏ Front brake
❏ High and low reverse clutch
❏ Low coast brake
❏ Forward brake
❏ Reverse brake
❏ Forward one-way clutch ❏
1st one-way clutch
❏ 3rd one-way clutch
❏ Engine
❏ Line pressure low
❏ Except for input clutch and direct
clutch, clutches and brakes OK
❏ Line pressure inspection - Suspected part:

AT-56
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
ROAD TEST
Description

The road test checks overall performance of the A/T and analyzes possible malfunction causes.

The road test is carried out in the following three stages.
1. Check before engine is started. Refer to AT- 5 6
.
2. Check at idle. Refer to AT- 5 7
.
3. Cruise test

Inspect all the items from Part 1 to Part 3. Refer to AT- 5 8 , AT- 6 0 , AT- 6 1 .

Before beginning the road test, check the test procedure and inspection items.

Test all inspection items until the symptom is uncovered. Diagnose NG items when all road tests are com-
plete.
Check Before Engine Is StartedACS002LZ
1. CHECK A/T CHECK INDICATOR LAMP
1. Park vehicle on level surface.
2. Move selector lever to “P” position.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
Does A/T CHECK indicator lamp light up for about 2 seconds?
YES >> GO TO 2.
NO >> Stop the road test and go to AT- 1 9 3 , "
A/T CHECK Indicator Lamp Does Not Come On" .
2. CHECK A/T CHECK INDICATOR LAMP
Does A/T CHECK indicator lamp flash for about 8 seconds?
YES >> For TCM fail-safe mode, perform self-diagnostics and record all NG items on the AT- 4 7 , "DIAG-
NOSTIC WORKSHEET" . Refer to AT- 9 3 , "SELF-DIAGNOSTIC RESULT MODE" , AT- 1 0 3 , "Diag-
nostic Procedure without CONSULT-II" .
NO >> 1. Turn ignition switch OFF.
2. Perform self-diagnostics and record all NG items on the AT- 4 7 , "
DIAGNOSTIC WORKSHEET"
. Refer to AT- 9 3 , "SELF-DIAGNOSTIC RESULT MODE" , AT- 1 0 3 , "Diagnostic Procedure with-
out CONSULT-II" .
3. Go to AT- 5 7 , "
Check at Idle" .
Stall speed Oil pressure does
not rise higher than
the oil pressure for
idle. Possible causes include a sensor malfunction or malfunction in the pressure adjustment function.
For example

Accelerator pedal position signal malfunction

TCM breakdown

Line pressure solenoid malfunction (shorting, sticking in ON state)

Pressure regulator valve or plug sticking

Pilot valve sticking or pilot filter clogged
The pressure rises,
but does not enter
the standard posi-
tion. Possible causes include malfunctions in the pressure supply system and malfunction in the pres-
sure adjustment function.
For example

Accelerator pedal position signal malfunction

Line pressure solenoid malfunction (sticking, filter clog)

Pressure regulator valve or plug sticking

Pilot valve sticking or pilot filter clogged
Only low for a spe-
cific position Possible causes include an oil pressure leak in a passage or device related to the position after
the pressure is distributed by the manual valve.
Judgement Possible cause

AT-58
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
6. CHECK “R” POSITION FUNCTIONS
1. Engage the brake.
2. Move selector lever to “R” position.
3. Disengage the brake for 4 to 5 seconds.
Does the vehicle creep backward?
YES >> GO TO 7.
NO >> Enter a check mark at “Vehicle Does Not Creep Backward In “R” Position” on the AT- 4 7 , "
DIAG-
NOSTIC WORKSHEET" , then continue the road test.
7. CHECK “D” POSITION FUNCTIONS
Inspect whether the vehicle creep forward when the transmission is put into the “D” position.
Does the vehicle creep forward in the
“D” position?
YES >> Go to AT- 5 8 , "Cruise Test - Part 1" , AT- 6 0 , "Cruise Test - Part 2" , and AT- 6 1 , "Cruise Test - Part
3" .
NO >> Enter a check mark at “Vehicle Does Not Creep Forward In “D” Position” on the AT- 4 7 , "
DIAG-
NOSTIC WORKSHEET" , then continue the road test.
Cruise Test - Part 1ACS002M1
1. CHECK STARTING OUT FROM D1
1. Drive the vehicle for about 10 minutes to warm up the engine oil and ATF. Appropriate temperature for the ATF: 50 to 80 °C (122 to 176 °F)
2. Park the vehicle on a level surface.
3. Move selector lever to “P” position.
4. Start the engine.
5. Move selector lever to “D” position.
6. Press the accelerator pedal about half way down to accelerate the vehicle.
With CONSULT-II
Read the gear positions. Refer to AT- 9 6 , "
DATA MONITOR MODE" .
Starts from D1?
YES >> GO TO 2.
NO >> Enter a check mark at “Vehicle Cannot Be Started From D1” on the AT- 4 7 , "
DIAGNOSTIC WORK-
SHEET" , then continue the road test.
2. CHECK SHIFT-UP D1 → D2
Press down the accelerator pedal about half-way and inspect if the vehicle shifts up (D1 → D2) at the appro-
priate speed.

Refer to AT- 6 2 , "Vehicle Speed at Which Gear Shifting Occurs" .
With CONSULT-II
Read the gear position, throttle degree of opening, and vehicle speed. Refer to AT- 9 6 , "
DATA MONITOR
MODE" .
Does the A/T shift-up D1
→ D2 at the correct speed?
YES >> GO TO 3.
NO >> Enter a check mark at “A/T Does Not Shift: D1 → D2” on the AT- 4 7 , "
DIAGNOSTIC WORK-
SHEET" , then continue the road test.

TROUBLE DIAGNOSIS AT-99
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX
1ST POSI IND (ON-OFF) — —
MANU MODE IND (ON-OFF) — —
POWER M LAMP (ON-OFF) — —
F-SAFE IND/L (ON-OFF) — —
ATF WARN LAMP (ON-OFF) — — Not mounted but displayed
BACK-UP LAMP (ON-OFF) — —
STARTER RELAY (ON-OFF) — —
PNP SW3 MON (ON-OFF) — —
C/V CLB ID1 — —
C/V CLB ID2 — —
C/V CLB ID3 — —
UNIT CLB ID1 — —
UNIT CLB ID2 — —
UNIT CLB ID3 — —
TRGT GR RATIO — —
TRGT PRES TCC (kPa) — —
TRGT PRES L/P (kPa) — —
TRGT PRES I/C (kPa) — —
TRGT PRE FR/B (kPa) — —
TRGT PRES D/C (kPa) — —
TRG PRE HLR/C (kPa) — —
SHIFT PATTERN — —
DRV CST JUDGE — —
START RLY MON — —
NEXT GR POSI — —
SHIFT MODE — —
MANU GR POSI — —
VEHICLE SPEED (km/h) — X Vehicle speed recognized by the TCM.
Voltage (V) — — Displays the value measured by the voltage
probe.
Frequency (Hz) — —
The value measured by the pulse probe is dis-
played.
DUTY-HI (high) (%) — —
DUTY-LOW (low) (%) — —
PLS WIDTH-HI (ms) — —
PLS WIDTH-LOW (ms) — — Monitored item (Unit)
Select Monitor Item
Remarks
ECU
INPUT
SIGNALS MAIN SIG-
NALS SELEC-
TION
FROM
MENU

TROUBLE DIAGNOSIS AT-103
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX
Diagnostic Procedure without CONSULT-IIACS008CZ
OBD-II SELF-DIAGNOSTIC PROCEDURE (WITH GST)
Refer to EC-144, "Generic Scan Tool (GST) Function" (for VQ35DE) or EC-835, "Generic Scan Tool (GST)
Function" (for VK45DE).
OBD-II SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)
Refer to EC-69, "Malfunction Indicator Lamp (MIL)" (for VQ35DE) or EC-760, "Malfunction Indicator Lamp
(MIL)" (for VK45DE).
TCM SELF-DIAGNOSTIC PROCEDURE (NO TOOLS)
Description
In the unlikely event of a malfunction in the electrical system, when the ignition switch is switched “ON”, the A/
T CHECK indicator lamp lights up for 2 seconds, then flashes for 8 seconds. If there is no malfunction, when
the ignition switch is turned “ON”, the indicator lamp lights up for 2 seconds. As a method for locating the sus-
pect circuit, when the self-diagnostics start signal is input, the memory for the malfunction location is output
and the A/T CHECK indicator lamp flashes to display the corresponding DTC.
Diagnostic Procedure
1. CHECK A/T CHECK INDICATOR LAMP
1. Start the engine with selector lever in “P” position. Warm engine to normal operating temperature.
2. Turn ignition switch “ON” and “OFF” at least twice, then leave it in the “OFF” position.
3. Wait 10 seconds.
4. Turn ignition switch “ON”. (Do not start engine.)
Does A/T CHECK indicator lamp come on for about 2 seconds?
YES >> GO TO 2.
NO >> GO TO AT- 1 9 3
.
2. JUDGEMENT PROCEDURE STEP 1
1. Turn ignition switch “OFF”.
2. Push shift lock release button.
3. Move selector lever from “P” to “D” position.
4. Release accelerator pedal. (Set the closed throttle position signal “ON”.)
5. Depress brake pedal. (Stop lamp switch signal “ON”.)
6. Turn ignition switch “ON”. (Do not start engine.)
7. Wait 3 seconds.
>> GO TO 3.
3. JUDGEMENT PROCEDURE STEP 2
1. Move the selector lever to the manual shift gate side. (Manual mode switch “ON”.)
2. Release brake pedal. (Stop lamp switch signal “OFF”.)
3. Move the selector lever to “D” position. (Manual mode switch “OFF”.)
4. Depress brake pedal. (Stop lamp switch signal “ON”.)
5. Release brake pedal. (Stop lamp switch signal “OFF”.)
6. Depress accelerator pedal fully and release it.
>> GO TO 4.

AT-106
DTC U1000 CAN COMMUNICATION LINE
Revision: 2005 July 2005 FX
DTC U1000 CAN COMMUNICATION LINEPFP:23710
DescriptionACS002MB
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent malfunction detection ability.
Many electronic control units are equipped onto a vehicle, and each control unit shares information and links
with other control units during operation (not independent). In CAN communication, control units are con-
nected with 2 communication lines (CAN H line, CAN L line) allowing a high rate of information transmission
with less wiring. Each control unit transmits/receives data but selectively reads required data only.
On Board Diagnosis LogicACS002MC

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “U1000 CAN COMM CIRCUIT” with CONSULT-II or 17th judgement flicker with-
out CONSULT-II is detected when TCM cannot communicate to other control units.
Possible CauseACS002MD

Harness or connectors
(CAN communication line is open or shorted.)
DTC Confirmation ProcedureACS002ME
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Start engine and wait for at least 6 seconds.
4. If DTC is detected, go to AT- 1 0 8 , "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
BCIA0030E

DTC P0615 START SIGNAL CIRCUIT AT-109
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX
DTC P0615 START SIGNAL CIRCUITPFP:25230
DescriptionACS003LO

TCM prohibits cranking other than at “P” or “N” position.
CONSULT-II Reference ValueACS003K2
On Board Diagnosis LogicACS002MH

This is not an OBD-II self-diagnostic item.

Diagnostic trouble code “P0615 STARTER RELAY/CIRC” with CONSULT-II or 14th judgement flicker
without CONSULT-II is detected when starter relay is switched ON other than at “P” or “N” position. (Or
when switched OFF at “P” or “N” position).
Possible CauseACS003LP

Harness or connectors
[Starter relay and TCM circuit is open or shorted.]

Starter relay circuit
DTC Confirmation ProcedureACS002MJ
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “SELECTION FROM MENU” in “DATA MONITOR” mode for “A/T” with CONSULT-II and check monitor “STARTER
RELAY” ON/OFF.
3. Start engine.
4. Drive vehicle for at least 2 consecutive seconds.
5. If DTC is detected, go to AT- 111 , "
Diagnostic Procedure" .
Item name Condition Display value
STARTER RELAY Selector lever in “N” and “P” positions. ON
Selector lever in other positions. OFF
BCIA0031E

DTC P0700 TCM AT-113
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX

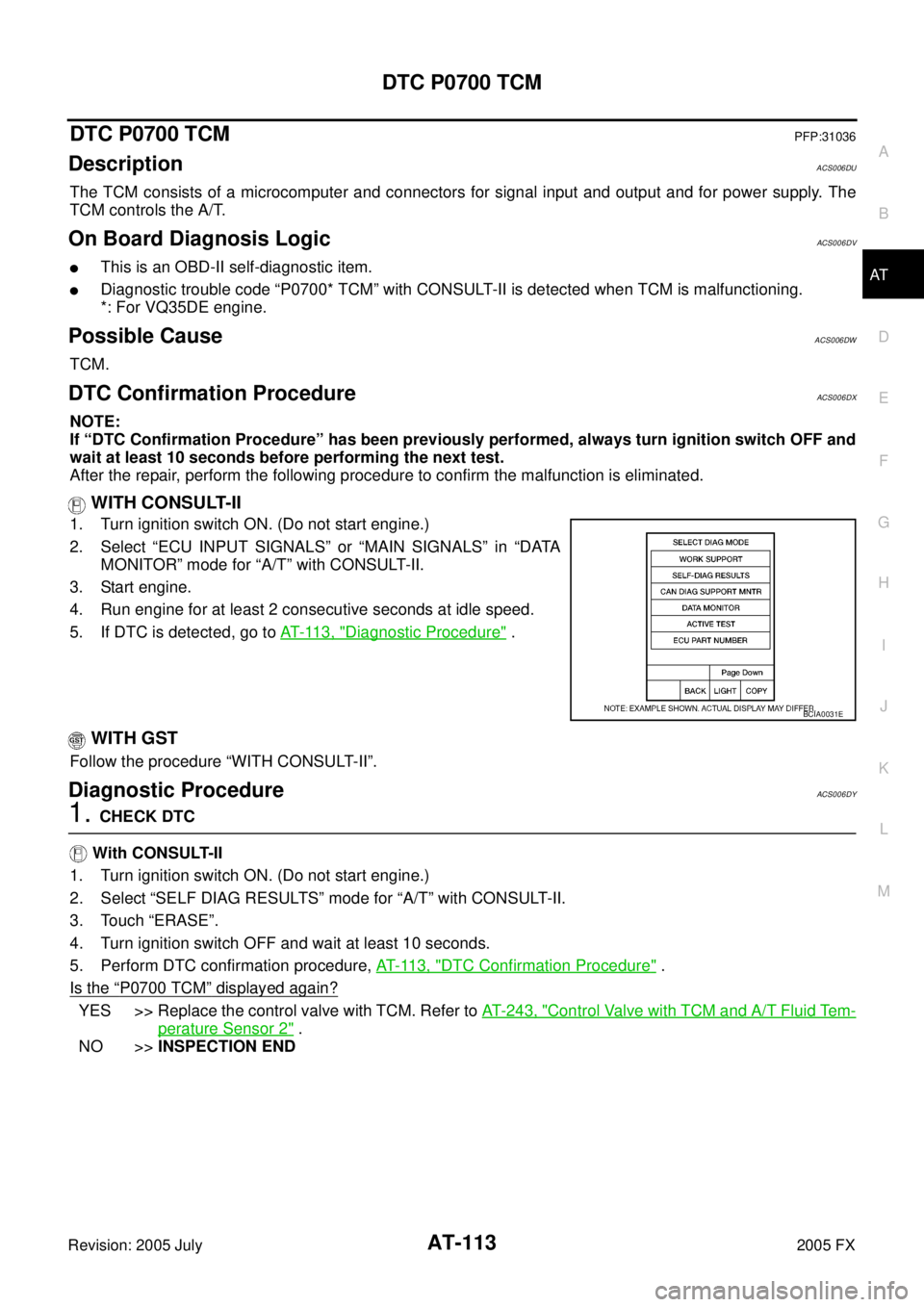

DTC P0700 TCMPFP:31036
DescriptionACS006DU
The TCM consists of a microcomputer and connectors for signal input and output and for power supply. The
TCM controls the A/T.
On Board Diagnosis LogicACS006DV

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P0700* TCM” with CONSULT-II is detected when TCM is malfunctioning.
*: For VQ35DE engine.
Possible CauseACS006DW
TCM.
DTC Confirmation ProcedureACS006DX
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “ECU INPUT SIGNALS” or “MAIN SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Start engine.
4. Run engine for at least 2 consecutive seconds at idle speed.
5. If DTC is detected, go to AT- 11 3 , "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
Diagnostic ProcedureACS006DY
1. CHECK DTC
With CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “SELF DIAG RESULTS” mode for “A/T” with CONSULT-II.
3. Touch “ERASE”.
4. Turn ignition switch OFF and wait at least 10 seconds.
5. Perform DTC confirmation procedure, AT- 11 3 , "
DTC Confirmation Procedure" .
Is the
“P0700 TCM” displayed again?
YES >> Replace the control valve with TCM. Refer to AT- 2 4 3 , "Control Valve with TCM and A/T Fluid Tem-
perature Sensor 2" .
NO >> INSPECTION END
BCIA0031E

AT-114
DTC P0705 PARK/NEUTRAL POSITION SWITCH
Revision: 2005 July 2005 FX
DTC P0705 PARK/NEUTRAL POSITION SWITCHPFP:32006
DescriptionACS002ML

The park/neutral position (PNP) switch includes a transmission range switch.

The transmission range switch detects the selector lever position and sends a signal to the TCM.
CONSULT-II Reference ValueACS003K3
On Board Diagnosis LogicACS002MM

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P0705 PNP SW/CIRC” with CONSULT-II or 9th judgement flicker without CON-
SULT-II is detected under the following conditions.
–When TCM does not receive the correct voltage signal from the PNP switches 1, 2, 3 and 4 based on the
gear position.
–When no other position but “P” position is detected from “N” position.
Possible CauseACS002MN

Harness or connectors
[Park/neutral position (PNP) switches 1, 2, 3 and 4 and TCM circuit is open or shorted.]

Park/neutral position (PNP) switches 1, 2, 3 and 4
DTC Confirmation ProcedureACS002MO
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “ECU INPUT SIGNALS” or “MAIN SHIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Start engine.
4. Drive vehicle and maintain the following conditions for at least 2 consecutive seconds.
THRTL POS SEN: More than 1.2V
5. If DTC is detected, go to AT- 11 6 , "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II”.
Item name Condition Display value
SLCT LVR POSI Selector lever in “N” and “P” positions. N/P
Selector lever in “R” position. R
Selector lever in “D” position. D
BCIA0031E

AT-118
DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)
Revision: 2005 July 2005 FX
DTC P0720 VEHICLE SPEED SENSOR A/T (REVOLUTION SENSOR)PFP:32702
DescriptionACS002MQ
The revolution sensor detects the revolution of the idler gear parking pawl lock gear and emits a pulse signal.
The pulse signal is sent to the TCM which converts it into vehicle speed.
CONSULT-II Reference ValueACS003K4
On Board Diagnosis LogicACS002MR

This is an OBD-II self-diagnostic item.

Diagnostic trouble code “P0720 VEH SPD SEN/CIR AT” with CONSULT-II or 1st judgement flicker without
CONSULT-II is detected under the following conditions.
–When TCM does not receive the proper voltage signal from the sensor.
–After ignition switch is turned ON, irregular signal input from vehicle speed sensor MTR before the vehicle
starts moving.
Possible CauseACS002MS

Harness or connectors
(Sensor circuit is open or shorted.)

Revolution sensor

Vehicle speed sensor MTR
DTC Confirmation ProcedureACS002MT
CAUTION:

Always drive vehicle at a safe speed.

Be careful not to rev engine into the red zone on the tachometer.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, always turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, perform the following procedure to confirm the malfunction is eliminated.
WITH CONSULT-II
1. Turn ignition switch ON. (Do not start engine.)
2. Select “ECU INPUT SIGNALS” in “DATA MONITOR” mode for “A/T” with CONSULT-II.
3. Touch “START”.
4. Drive vehicle and check for an increase of “VHCL/S SE·A/T” value in response to “VHCL/S SE·MTR” value.
If the check result is NG, go to AT- 1 2 1 , "
Diagnostic Procedure" .
If the check result is OK, go to following step.
5. Select “DATA MONITOR” mode for “A/T” with CONSULT-II.
6. Start engine and maintain the following conditions for at least 5 consecutive seconds.
VHCL SPEED SE: 30 km/h (19 MPH) or more
THRTL POS SEN: More than 1.0/8
Selector lever: “D” position
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
If the check result is NG, go to AT- 1 2 1 , "
Diagnostic Procedure" .
If the check result is OK, go to following step.
7. Maintain the following conditions for at least 5 consecutive seconds. ENGINE SPEED: 3,500 rpm or more
THRTL POS SEN: More than 1.0/8
Selector lever: “D” position
Item name Condition Display value (km/h)
VHCL/S SE·A/T During driving Approximately matches the speedometer reading.
BCIA0031E
