INFINITI FX35 2005 Service Manual

AT-278
OVERHAUL
Revision: 2005 July 2005 FX
OVERHAULPFP:00000

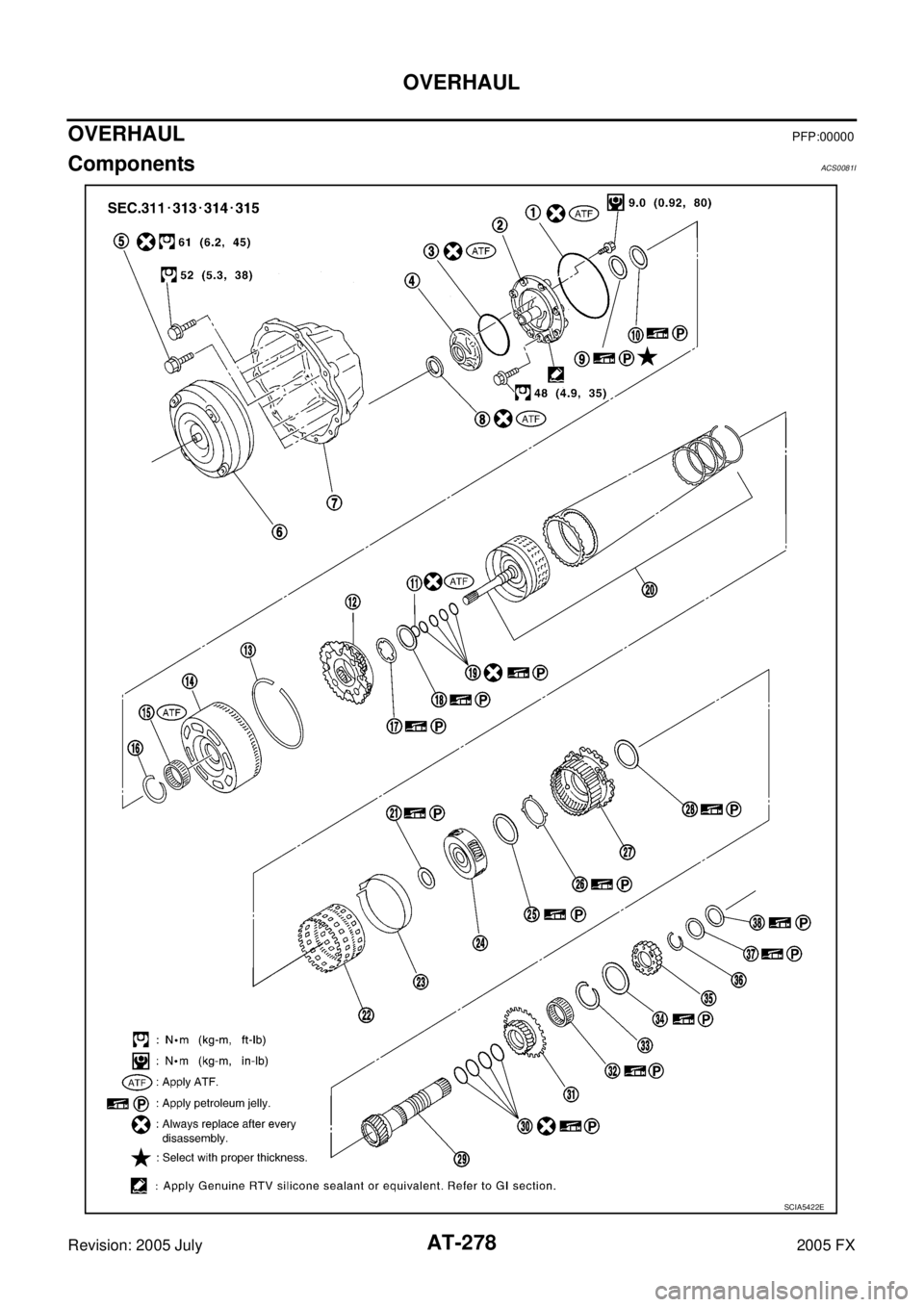

ComponentsACS0081I
SCIA5422E

OVERHAUL AT-279
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX
1. O-ring 2. Oil pump cover 3. O-ring
4. Oil pump housing 5. Self-sealing bolt 6. Torque converter
7. Converter housing 8. Oil pump housing oil seal 9. Bearing race
10. Needle bearing 11. O-ring 12. Front carrier assembly
13. Snap ring 14. Front sun gear 15. 3rd one-way clutch
16. Snap ring 17. Bearing race 18. Needle bearing
19. Seal ring 20. Input clutch assembly 21. Needle bearing
22. Rear internal gear 23. Brake band 24. Mid carrier assembly
25. Needle bearing 26. Bearing race 27. Rear carrier assembly
28. Needle bearing 29. Mid sun gear 30. Seal ring
31. Rear sun gear 32. 1st one-way clutch 33. Snap ring
34. Needle bearing 35. High and low reverse clutch hub 36. Snap ring
37. Bearing race 38. Needle bearing

AT-280
OVERHAUL
Revision: 2005 July 2005 FX

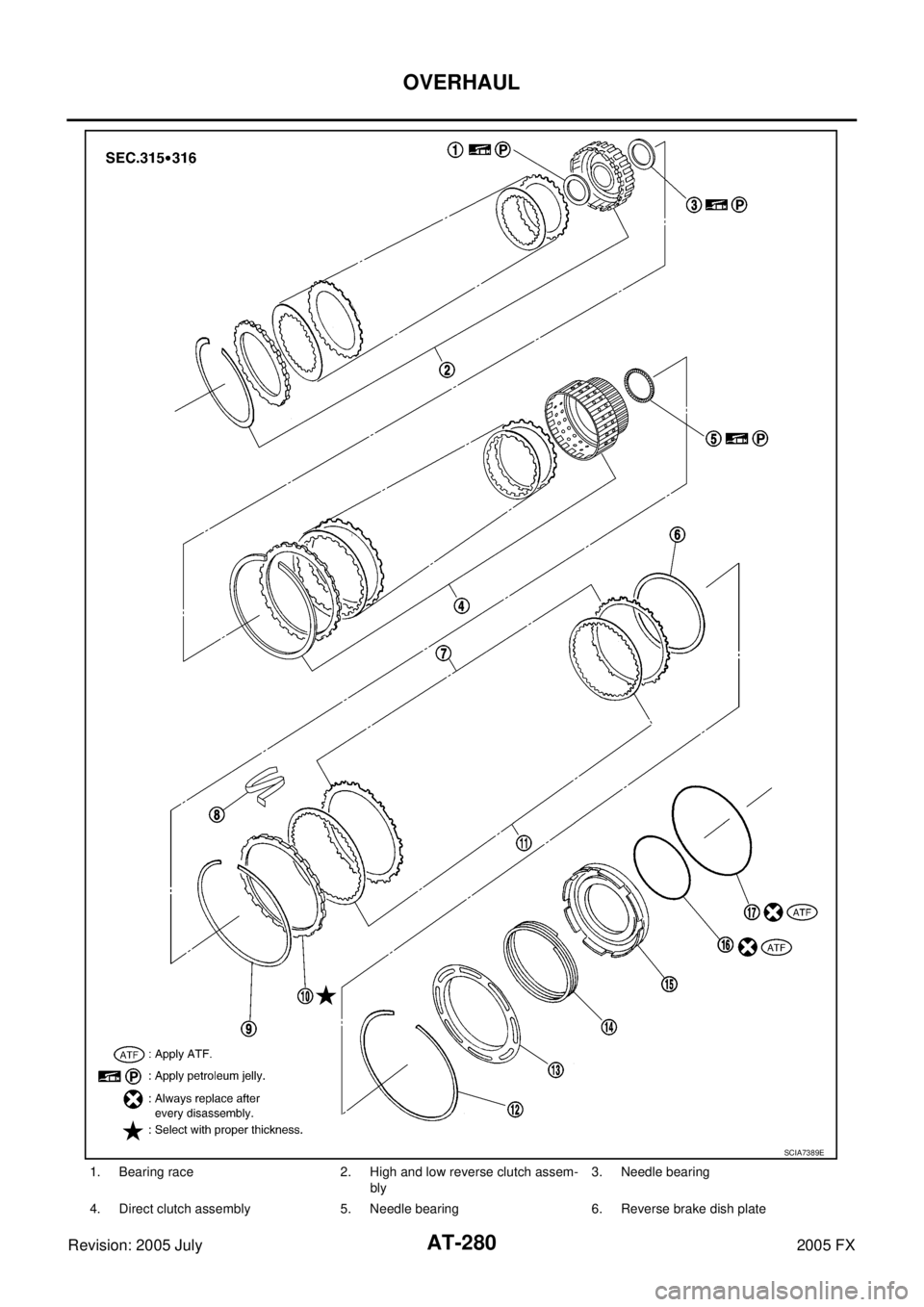

1. Bearing race 2. High and low reverse clutch assem-
bly 3. Needle bearing
4. Direct clutch assembly 5. Needle bearing 6. Reverse brake dish plate
SCIA7389E

OVERHAUL AT-281
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX
7. Reverse brake driven plate 8. N-sprig 9. Snap ring
10. Reverse brake retaining plate 11. Reverse brake drive plate 12. Snap ring
13. Spring retainer 14. Return spring 15. Reverse brake piston
16. D-ring 17. D-ring

AT-282
OVERHAUL
Revision: 2005 July 2005 FX

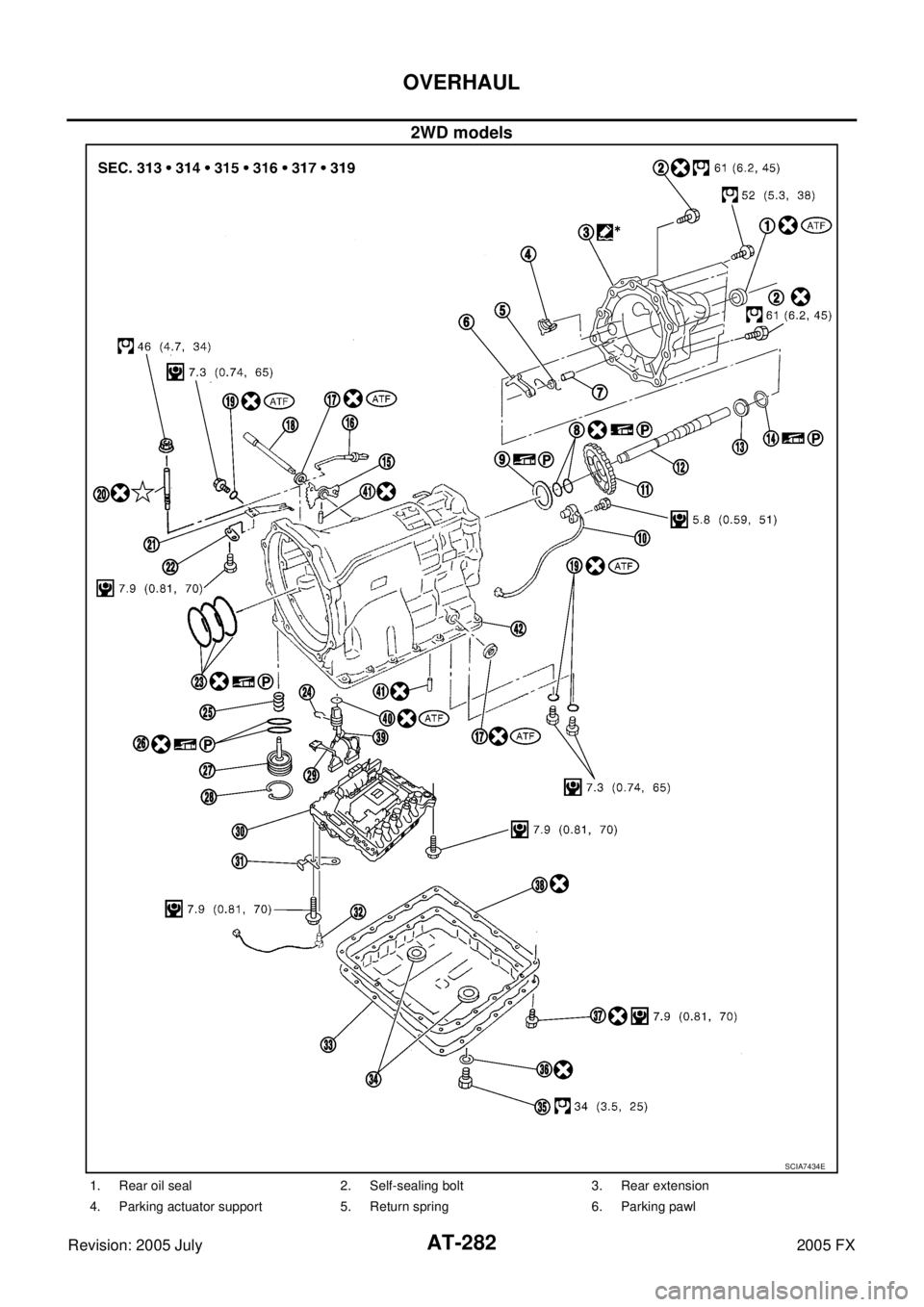

2WD models
SCIA7434E
1. Rear oil seal 2. Self-sealing bolt 3. Rear extension
4. Parking actuator support 5. Return spring 6. Parking pawl

OVERHAUL AT-283
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX
7. Pawl shaft 8. Seal ring 9. Needle bearing
10. Revolution sensor 11. Parking gear 12. Output shaft
13. Bearing race 14. Needle bearing 15. Manual plate
16. Parking rod 17. Manual shaft oil seal 18. Manual shaft
19. O-ring 20. Band servo anchor end pin 21. Detent spring
22. Spacer 23. Seal ring 24. Snap ring
25. Return spring 26. O-ring 27. Servo assembly
28. Snap ring 29. Sub-harness 30. Control valve with TCM
31. Bracket 32. A/T fluid temperature sensor 2 33. Oil pan
34. Magnet 35. Drain plug 36. Drain plug gasket
37. Oil pan mounting bolt 38. Oil pan gasket 39. Terminal cord assembly
40. O-ring 41. Retaining pin 42. Transmission case
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-10, "
Components" .
However, refer to the following symbol for others.
: Apply Genuine Anaerobic Gasket or equivalent. Refer to GI-48, "
Recommended Chemical Products and Sealants" .

AT-284
OVERHAUL
Revision: 2005 July 2005 FX

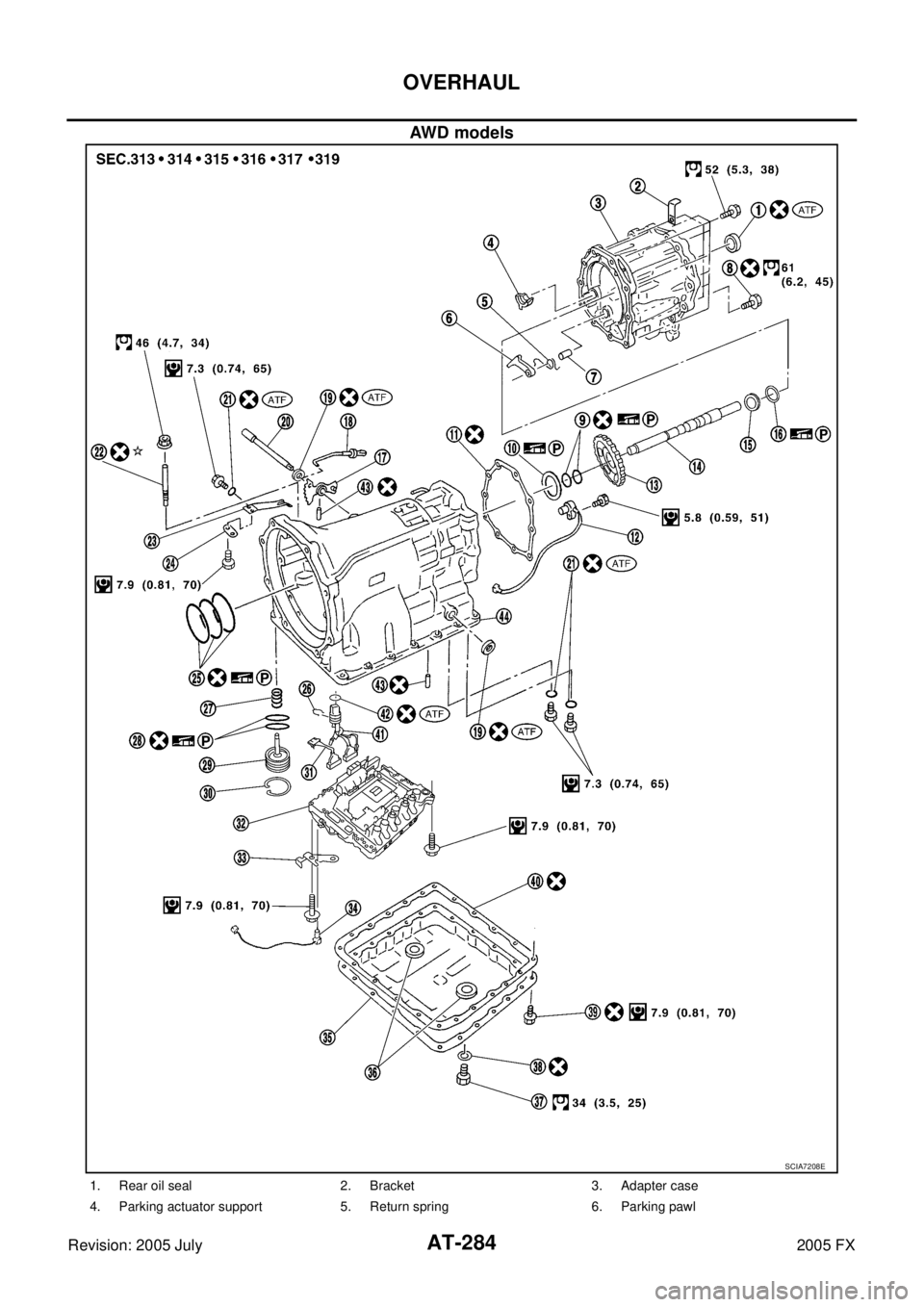

AWD models
SCIA7208E
1. Rear oil seal 2. Bracket 3. Adapter case
4. Parking actuator support 5. Return spring 6. Parking pawl

OVERHAUL AT-285
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX
7. Pawl shaft 8. Self-sealing bolt 9. Seal ring
10. Needle bearing 11. Gasket 12. Revolution sensor
13. Parking gear 14. Output shaft 15. Bearing race
16. Needle bearing 17. Manual plate 18. Parking rod
19. Manual shaft oil seal 20. Manual shaft 21. O-ring
22. Band servo anchor end pin 23. Detent spring 24. Spacer
25. Seal ring 26. Snap ring 27. Return spring
28. O-ring 29. Servo assembly 30. Snap ring
31. Sub-harness 32. Control valve with TCM 33. Bracket
34. A/T fluid temperature sensor 2 35. Oil pan 36. Magnet
37. Drain plug 38. Drain plug gasket 39. Oil pan mounting bolt
40. Oil pan gasket 41. Terminal cord assembly 42. O-ring
43. Retaining pin 44. Transmission case
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-10, "
Components" .
However, refer to the following symbol for others.
: Apply Genuine Anaerobic Gasket or equivalent. Refer to GI-48, "
Recommended Chemical Products and Sealants" .

AT-286
OVERHAUL
Revision: 2005 July 2005 FX
Oil ChannelACS0081J

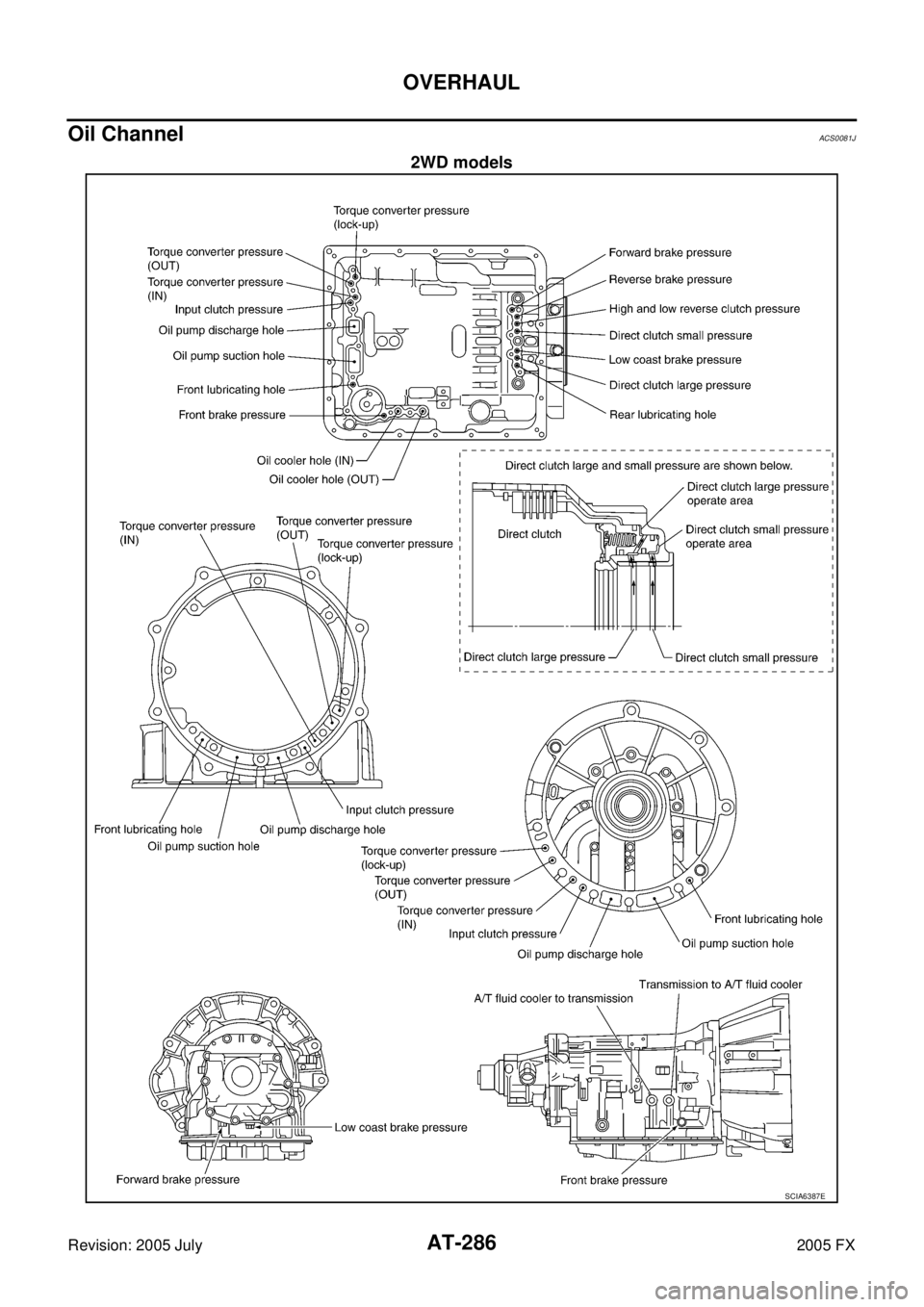

2WD models
SCIA6387E

OVERHAUL AT-287
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX

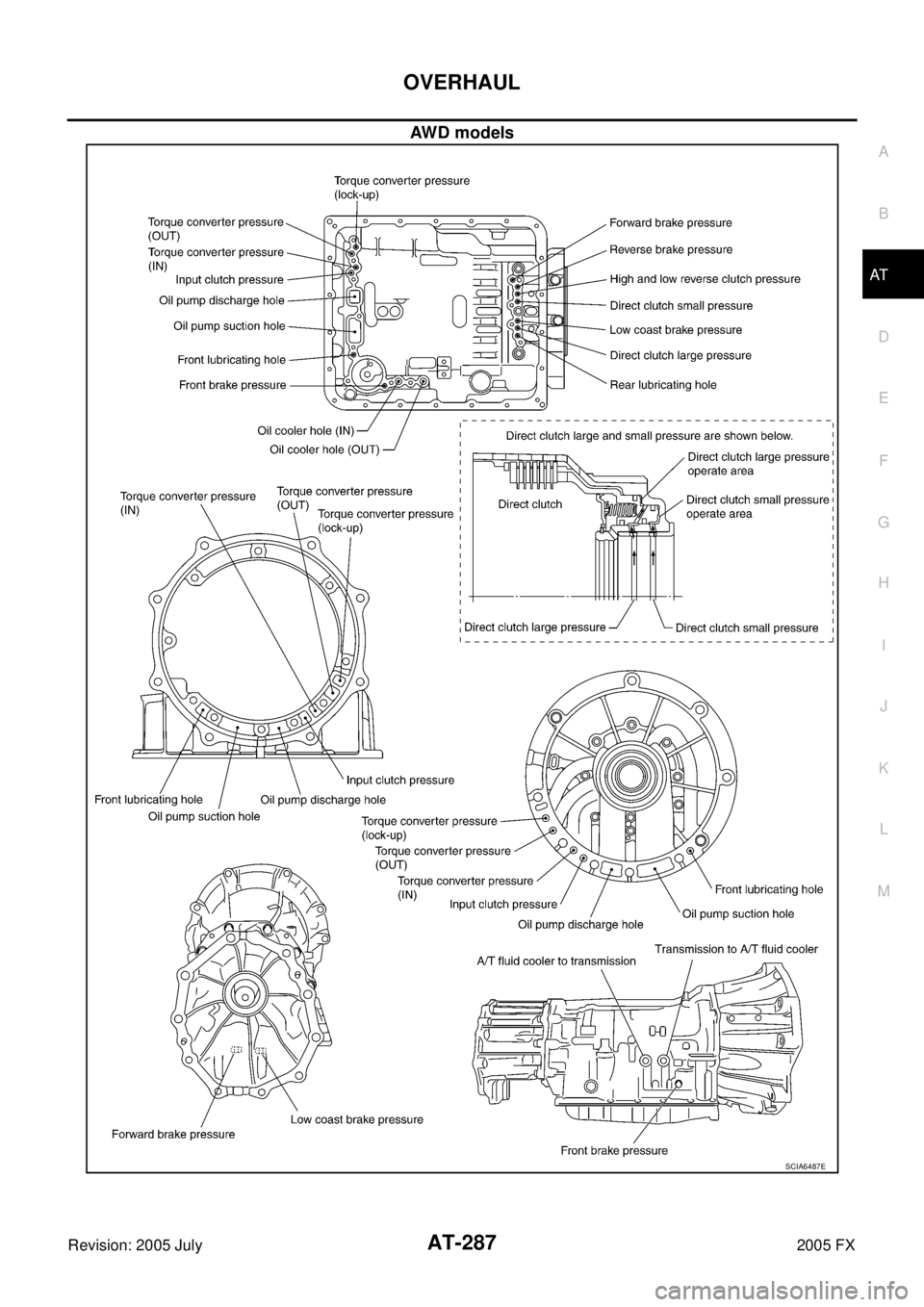

AWD models
SCIA6487E
