INFINITI FX35 2005 Service Manual

AT-288
OVERHAUL
Revision: 2005 July 2005 FX
Locations of Adjusting Shims, Needle Bearings, Thrust Washers and Snap
Rings
ACS0081K
2WD models
SCIA6535E

OVERHAUL AT-289
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX
AWD models
SCIA6488E

AT-290

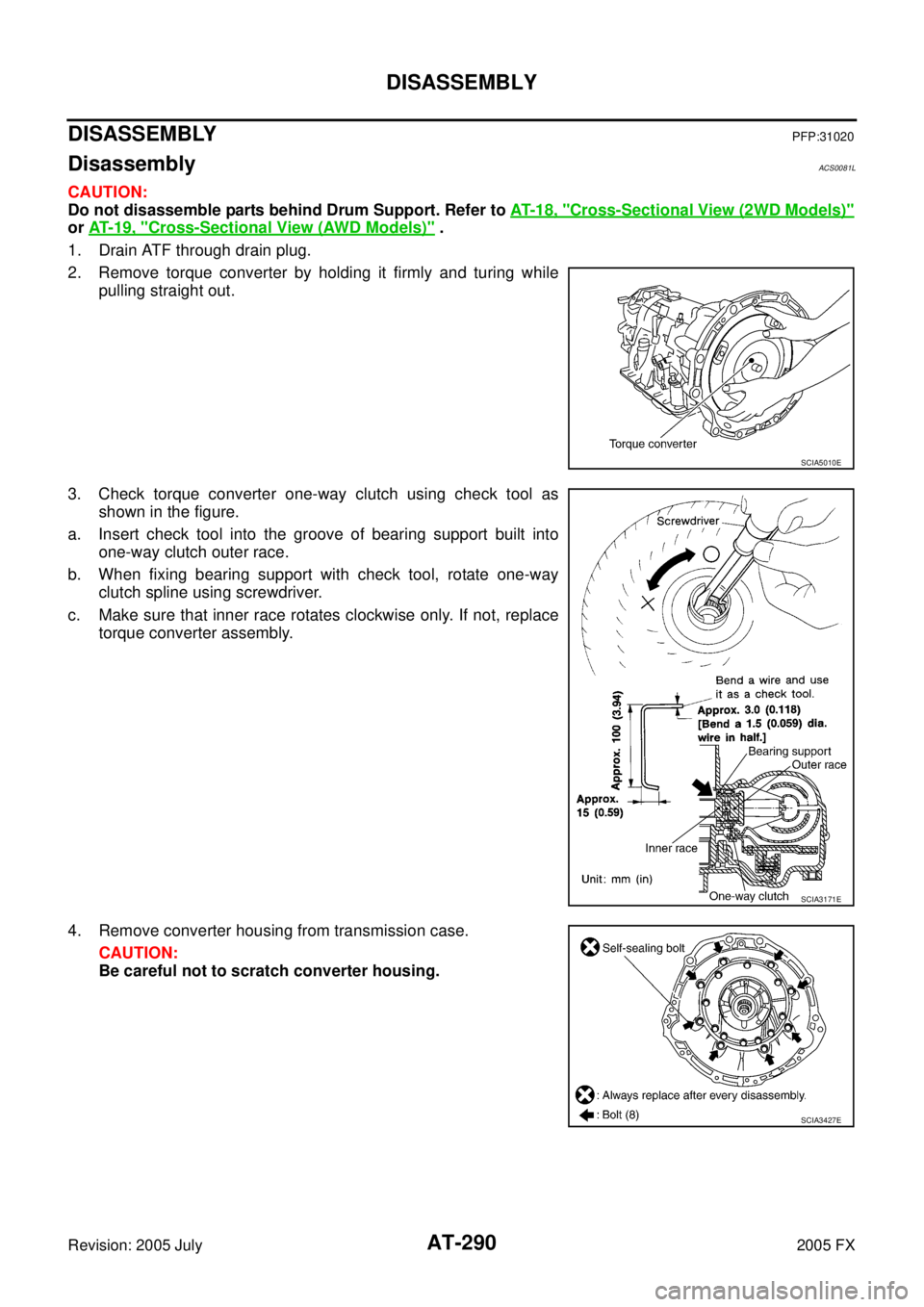

DISASSEMBLY
Revision: 2005 July 2005 FX
DISASSEMBLYPFP:31020
DisassemblyACS0081L
CAUTION:
Do not disassemble parts behind Drum Support. Refer to AT- 1 8 , "
Cross-Sectional View (2WD Models)"
or AT- 1 9 , "Cross-Sectional View (AWD Models)" .
1. Drain ATF through drain plug.
2. Remove torque converter by holding it firmly and turing while pulling straight out.
3. Check torque converter one-way clutch using check tool as shown in the figure.
a. Insert check tool into the groove of bearing support built into one-way clutch outer race.
b. When fixing bearing support with check tool, rotate one-way clutch spline using screwdriver.
c. Make sure that inner race rotates clockwise only. If not, replace torque converter assembly.
4. Remove converter housing from transmission case. CAUTION:
Be careful not to scratch converter housing.
SCIA5010E
SCIA3171E
SCIA3427E

DISASSEMBLY AT-291
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX
5. Remove O-ring from input clutch assembly.
6. Remove tightening bolts for oil pump assembly and transmis-
sion case.
7. Attach the sliding hammers to oil pump assembly and extract it evenly from transmission case.
CAUTION:

Fully tighten sliding hammer screw.

Make sure that bearing race is installed to the oil pump
assembly edge surface.
8. Remove O-ring from oil pump assembly.
SCIA5011E
SCIA2300E
SCIA5474E
SCIA5172E

AT-292
DISASSEMBLY
Revision: 2005 July 2005 FX
9. Remove bearing race from oil pump assembly.
10. Remove needle bearing from front sun gear.
11. Remove front sun gear assembly from front carrier assembly.
NOTE:
Remove front sun gear by rotating left/right.
12. Remove seal rings from input clutch assembly.
13. Remove front carrier assembly from rear carrier assembly. (With input clutch assembly and rear internal gear.)
CAUTION:
Be careful to remove it with needle bearing.
SCIA5252E
SCIA2808E
SCIA5014E
SCIA2470E
SCIA5015E

DISASSEMBLY AT-293
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX
14. Loosen lock nut and remove band servo anchor end pin from
transmission case.
15. Remove brake band from transmission case.

To prevent brake linings from cracking or peeling, do not
stretch the flexible band unnecessarily. When removing
the brake band, always secure it with a clip as shown in
the figure at right.
Leave the clip in position after removing the brake band.

Check brake band facing for damage, cracks, wear or
burns.
16. Remove mid carrier assembly and rear carrier assembly as a unit.
17. Remove mid carrier assembly from rear carrier assembly.
SCIA6512E
SCIA2580E
SAT655
SCIA5017E
SCIA5697E

AT-294
DISASSEMBLY
Revision: 2005 July 2005 FX
18. Remove needle bearing (front side) from mid carrier assembly.
19. Remove needle bearing (rear side) from mid carrier assembly.
20. Remove bearing race from rear carrier assembly.
21. Remove needle bearing from rear carrier assembly.
22. Remove mid sun gear assembly, rear sun gear assembly and high and low reverse clutch hub as a unit.
CAUTION:
Be careful to remove then with bearing race and needle
bearing.
SCIA2805E
SCIA2804E
SCIA5175E
SCIA2803E
SCIA5018E

DISASSEMBLY AT-295
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX
23. Remove high and low reverse clutch assembly from direct clutch
assembly.
CAUTION:
Make sure that needle bearing is installed to the high and
low reverse clutch assembly edge surface.
24. Remove direct clutch assembly from reverse brake.
25. Remove needle bearing from drum support.
26. Remove snap ring from A/T assembly harness connector.
27. Push A/T assembly harness connector. CAUTION:
Be careful not to damage connector.
SCIA2306E
SCIA5019E
SCIA5198E
SCIA5021E
SCIA5022E

AT-296
DISASSEMBLY
Revision: 2005 July 2005 FX
28. Remove oil pan and oil pan gasket.
29. Check foreign materials in oil pan to help determine causes of malfunction. If the A/T fluid is very dark, smells burned, or con-
tains foreign particles, the frictional material (clutches, band)
may need replacement. A tacky film that will not wipe clean indi-
cates varnish build up. Varnish can cause valves, servo, and
clutches to stick and can inhibit pump pressure.

If frictional material is detected, perform A/T fluid cooler
cleaning. Refer to AT- 1 5 , "
A/T Fluid Cooler Cleaning" .
30. Remove magnets from oil pan.
31. Disconnect A/T fluid temperature sensor 2 connector. CAUTION:
Be careful not to damage connector.
32. Straighten terminal clips to free terminal cord assembly and A/T fluid temperature sensor 2 harness.
SCIA2308E
SCIA5199E
SCIA5200E
SCIA5023E
SCIA5446E

DISASSEMBLY AT-297
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2005 July 2005 FX
33. Disconnect revolution sensor connector.
CAUTION:
Be careful not to damage connector.
34. Straighten terminal clips to free revolution sensor harness.
35. Remove bolts A, B and C from control valve with TCM.
36. Remove control valve with TCM from transmission case. CAUTION:
When removing, be careful with the manual valve notch and
manual plate height.Remove it vertically.
37. Remove A/T fluid temperature sensor 2 with bracket from con- trol valve with TCM.
SCIA5024E
SCIA5293E
Bolt symbol Length mm (in) Number of bolts
A 42 (1.65) 5
B 55 (2.17) 6
C 40 (1.57) 1
SCIA5025E
SCIA5260E
SCIA5301E
