TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2005 July 2005 FX
Connected from BCM terminal 45 to front combination lamp LH terminal 4.
Turn signal lamp turns ON
through front combination lamp LH terminal 8
to grounds E21, E50 and E51.
Connected from BCM terminal 45 to rear combination lamp control unit terminal 4.
Rear turn signal (LED) turns ON
through rear combination lamp control unit terminal 11
to rear combination lamp LH terminal 3,
through rear combination lamp LH terminal 4
to rear combination lamp control unit terminal 10.
BCM sends signal to the unified meter and A/C amp. through CAN communication lines, and turns ON turn
signal indicator lamp with combination meter.
When rear turn signal lamp (LED) does not turn ON, rear combination lamp control unit sends signal to combi-
nation meter. And then unified meter and A/C amp. ends turn LED burnout status signal to BCM through CAN
communication lines for speeding up turn signal blinking.
RH Turn Signal Lamp
When the turn signal switch is moved to right position, BCM output turn signal from BCM terminal 46, interpret-
ing it as turn signal is ON.
Connected from BCM terminal 46 to front combination lamp RH terminal 4.
Turn signal lamp turns ON
through front combination lamp RH terminal 8
to grounds E21, E50 and E51.
Connected form BCM terminal 46 to rear combination lamp control unit terminal 5.
Rear turn signal (LED) turns ON
through rear combination lamp control unit terminal 9
to rear combination lamp RH terminal 3,
through rear combination lamp RH terminal 4
to rear combination lamp control unit terminal 8.
BCM sends signal to the unified meter and A/C amp. through CAN communication lines, and turns ON turn
signal indicator lamp with combination meter.
When rear turn signal lamp (LED) does not turn ON, rear combination lamp control unit sends signal to combi-
nation meter. And then unified meter and A/C amp. ends turn LED burnout status signal to BCM through CAN
communication lines for speeding up turn signal blinking.
HAZARD LAMP OPERATION
Power is supplied at all times
through 50A fusible link (letter M, located in fuse, fusible link and relay box)
to BCM terminal 55,
through 10A fuse [No. 19, located in fuse block (J/B)]
to combination meter terminal 8,
through 10A fuse [No. 20, located in fuse block (J/B)]
to rear combination lamp control unit terminal 1.
Ground is supplied
through BCM terminals 49 and 52
to grounds M35, M45 and M85,
through rear combination lamp control unit terminal 7
to grounds E21, E50 and E51,
through combination meter terminals 5, 6 and 15
to grounds M35, M45 and M85.
When hazard switch is depressed, ground is supplied
to hazard switch terminal 2
through BCM terminal 29,
Page 3982 of 4731
TURN SIGNAL AND HAZARD WARNING LAMPS LT-93
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
to grounds M35, M45 and M85
through hazard switch terminal 1.
When the hazard switch is depressed, BCM output turn signal from BCM terminals 45 and 46, interpreting it as
turn signal is ON.
Connected from BCM terminal 45 and 46 to front combination lamp terminal 4.
Turn signal lamp turns ON
through front combination lamp terminal 8
to grounds E21, E50 and E51.
Connected form BCM terminals 45 and 46 to rear combination lamp control unit terminals 4 and 5.
Rear turn signal (LED) turns ON
through rear combination lamp control unit terminal 11
to rear combination lamp LH terminal 3,
through rear combination lamp LH terminal 4
to rear combination lamp control unit terminal 10,
through rear combination lamp control unit terminal 9
to rear combination lamp RH terminal 3,
through rear combination lamp RH terminal 4
to rear combination lamp control unit terminal 8.
BCM sends signal to the unified meter and A/C amp. through CAN communication lines, and turns ON turn
signal indicator lamp with combination meter.
When rear turn signal lamp (LED) does not turn ON, rear combination lamp control unit sends signal to combi-
nation meter. And then unified meter and A/C amp. ends turn LED burnout status signal to BCM through CAN
communication lines for speeding up turn signal blinking.
REMOTE CONTROL ENTRY SYSTEM OPERATION
Power is supplied at all times
through 50A fusible link (letter M, located in fuse, fusible link and relay box)
to BCM terminal 55,
through 10A fuse [No. 19, located in fuse block (J/B)]
to combination meter terminal 8,
through 10A fuse [No. 20, located in fuse block (J/B)]
to rear combination lamp control unit terminal 1.
Ground is supplied
to BCM terminals 49 and 52
through grounds M35, M45 and M85,
to rear combination lamp control unit terminal 7
through grounds E21, E50 and E51,
to combination meter terminals 5, 6 and 15
through grounds M35, M45 and M85.
When the remote control entry system is triggered by input from key fob, BCM output turn signal from BCM
terminals 45 and 46, interpreting it as turn signal is ON.
Connected from BCM terminals 45 and 46 to front combination lamp terminal 4.
Turn signal lamp turns ON
through front combination lamp terminal 8
to grounds E21, E50 and E51.
Connected form BCM terminals 45 and 46 to rear combination lamp control unit terminals 4 and 5.
Rear turn signal (LED) turns ON
through rear combination lamp control unit terminal 11
to rear combination lamp LH terminal 3,
through rear combination lamp LH terminal 4
to rear combination lamp control unit terminal 10,
through rear combination lamp control unit terminal 9
Page 3983 of 4731
LT-94
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2005 July 2005 FX
to rear combination lamp RH terminal 3,
through rear combination lamp RH terminal 4
to rear combination lamp control unit terminal 8.
BCM sends signal to the unified meter and A/C amp. through the CAN communication lines, and turns ON turn
signal indicator lamp with combination meter.
With power and input supplied, BCM controls the flashing of hazard warning lamps when key fob is used to
activate remote control entry system.
COMBINATION SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
CAN Communication System DescriptionAKS007CX
CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only.
CAN Communication UnitAKS0080W
Refer to LAN-30, "CAN Communication Unit" .
Page 3984 of 4731
TURN SIGNAL AND HAZARD WARNING LAMPS LT-95
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
SchematicAKS007CZ
TKWM0621E
Page 3985 of 4731
LT-96
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2005 July 2005 FX

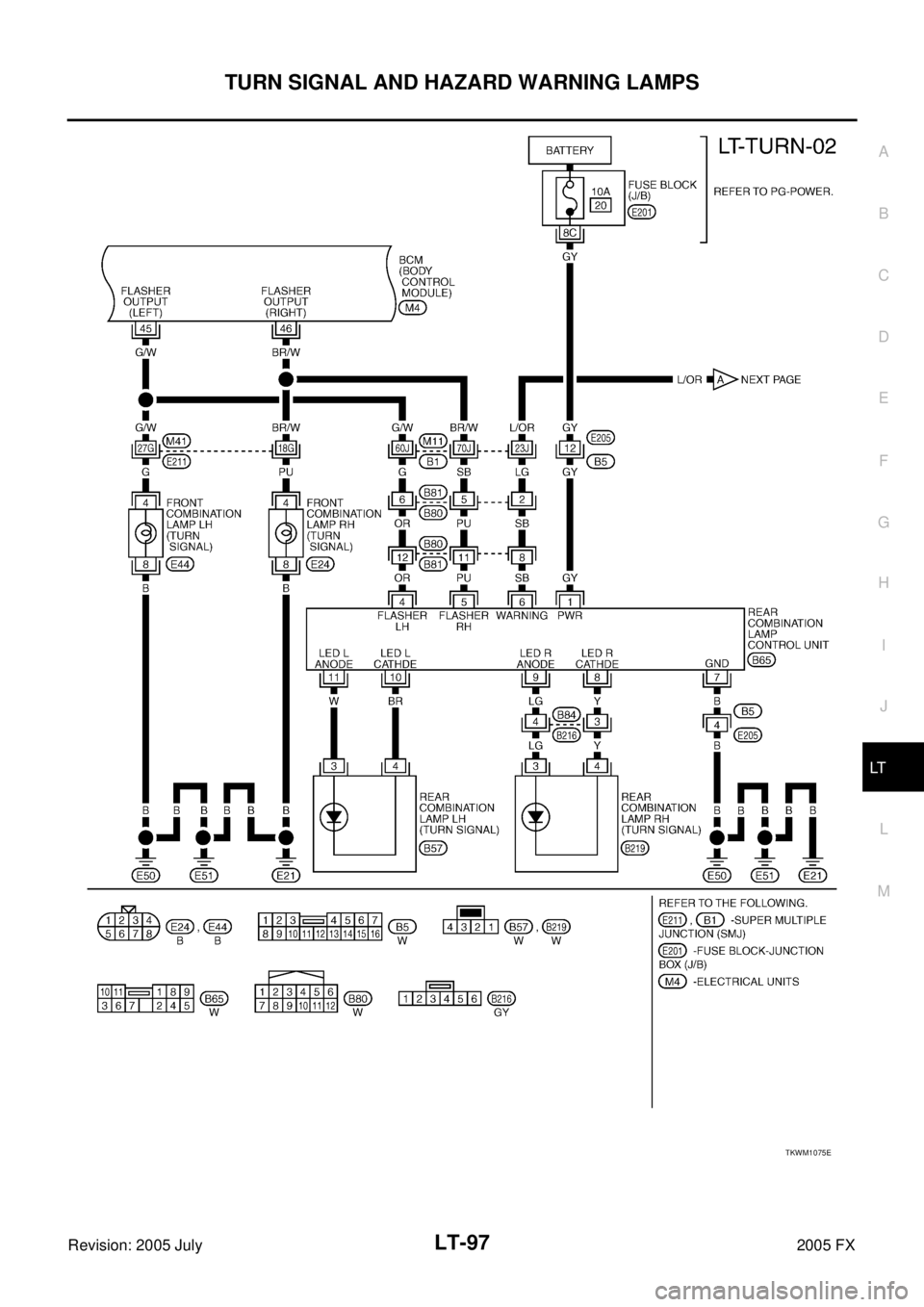

Wiring Diagram — TURN —AKS007D0
TKWM0820E
Page 3986 of 4731
TURN SIGNAL AND HAZARD WARNING LAMPS LT-97
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
TKWM1075E
Page 3987 of 4731
LT-98
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2005 July 2005 FX
TKWM0624E
Page 3988 of 4731
TURN SIGNAL AND HAZARD WARNING LAMPS LT-99
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
Terminals and Reference Values for BCMAKS007IB
Terminal
No. Wire
color Signal name Measuring condition
Reference value
Ignition
switch Operation or condition
2 GY Combination switch input 5 ON Lighting, turn, wiper OFF
Wiper dial position 4
3 L/B Combination switch input 4 ON Lighting, turn, wiper OFF
Wiper dial position 4
4 PU/W Combination switch input 3
5 Y/R Combination switch input 2
6 SB Combination switch input 1
11 LG/R Ignition switch (ACC) ACC — Battery voltage
29 G/Y Hazard switch signal OFF Hazard switch ON Approx. 0V
OFF Battery voltage
32 GY/R Combination switch output 5 ON Lighting, turn, wiper OFF
Wiper dial position 4
33 G Combination switch output 4 ON Lighting, turn, wiper OFF
Wiper dial position 4
34 W/B Combination switch output 3
35 W/G Combination switch output 2
36 W/R Combination switch output 1
38 W/L Ignition switch (ON) ON — Battery voltage
39 L CAN − H—— —
40 R CAN − L—— —
42 L/R Battery power supply OFF — Battery voltage
45 G/W Flasher output (left) ON Combination
switch Turn left
ON
46 BR/W Flasher output (right) ON Combination
switch Turn right
ON
PKIB3468E
PKIB3469E
PKIB3470E
PKIB3471E
SKIA3009J
SKIA3009J
Page 3989 of 4731
LT-100
TURN SIGNAL AND HAZARD WARNING LAMPS
Revision: 2005 July 2005 FX
How to Proceed With Trouble DiagnosisAKS007D2
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT- 9 1 , "
System Description" .
3. Perform preliminary check. Refer to LT- 1 0 0 , "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction.
5. Do turn signal and hazard warning lamps operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END
Preliminary CheckAKS007D3
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES
Check for blown fuses.
Refer to LT- 9 6 , "
Wiring Diagram — TURN —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
3, "POWER SUPPLY ROUTING CIRCUIT" .
49 B Ground ON — Approx. 0V
52 B Ground ON — Approx. 0V
55 G Battery power supply OFF — Battery voltage
Terminal
No. Wire
color Signal name Measuring condition
Reference value
Ignition
switch Operation or condition
Unit Power source Fuse and fusible link No.
BCM Battery
M
22
Ignition switch ON or START position 1 Ignition switch ACC or ON position 6
Rear combination lamp control unit Battery 20
Page 3990 of 4731
TURN SIGNAL AND HAZARD WARNING LAMPS LT-101
C
D E
F
G H
I
J
L
M A
B
LT
Revision: 2005 July 2005 FX
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check voltage between BCM harness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
Terminal Ignition switch position
(+) (-) OFF ACC ON
Connector Terminal
(Wire color)
M3 11 (LG/R)
Ground Approx. 0V
Battery
voltage Battery
voltage
38 (W/L) Approx. 0V Approx. 0V Battery
voltage
M4 42 (L/R)
Battery
voltage Battery
voltage Battery
voltage
55 (G) Battery
voltage Battery
voltage Battery
voltage
PKIB5197E
Terminal Continuity
Connector Terminal (Wire color) Ground Yes
M4 49 (B)
52 (B)
PKIB3545E
