Idle Mixture Ratio AdjustmentABS00E91
PREPARATION
1. Make sure that the following parts are in good order.

Battery

Ignition system

Engine oil and coolant levels

Fuses

ECM harness connector

Va c u u m h o s e s

Air intake system
(Oil filler cap, oil level gauge, etc.)

Fuel pressure

Engine compression

Throttle valve

Evaporative emission system
2. On air conditioner equipped models, checks should be carried out while the air conditioner is OFF.
3. On automatic transmission equipped models, when checking idle rpm, ignition timing and mixture ratio, checks should be carried out while selector lever is in P or N position.
4. When measuring CO percentage, insert probe more than 40 cm (15.7 in) into tail pipe.
5. Turn OFF headlamp, heater blower, rear window defogger.
6. Keep front wheels pointed straight ahead.

EC-108
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
2
P0037 P0038 P0057 P0058 Heated oxygen sensor 2 heater

P0138 P0139 P0158 P0159 P1146 P1147 P1166 P1167 Heated oxygen sensor 2

P0441 EVAP control system purge flow monitoring

P0444 P0445 P1444 EVAP canister purge volume control solenoid valve

P0447 P1446 EVAP canister vent control valve

P0451 P0452 P0453 EVAP control system pressure sensor

P0550 Power steering pressure sensor

P0710 P0720 P0725 P0740 P0744 P0745 P1705 P1716 P1730 P1752 P1754 P1757 P1759 P1762 P1764 P1767
P1769 P1772 P1774 A/T related sensors, solenoid valves and switches

P1031 P1032 P1051 P1052 Air fuel ratio (A/F) sensor 1 heater

P1065 ECM power supply

P 1111 P 11 3 6 I n ta k e v a l v e t i m i n g c o n t r o l s o l e n o i d v a l v e

P1122 Electric throttle control function

P1124 P1126 P1128 Electric throttle control actuator

P1217 Engine over temperature (OVERHEAT)

P1271 P1272 P1273 P1274 P1276 P1278 P1279 P1281 P1282 P1283 P1284 P1286 P1288 P1289 Air fuel ratio (A/
F) sensor 1

P1805 Brake switch
3

P0011 P0021 Intake valve timing control

P0171 P0172 P0174 P0175 Fuel injection system function

P0300 - P0306 Misfire

P0420 P0430 Three way catalyst function

P0442 P0455 P0456 EVAP control system

P0506 P0507 Idle speed control system

P1121 Electric throttle control actuator

P1148 P1168 Closed loop control

P1211 TCS control unit

P1212 TCS communication line

P1564 ICC steering switch/ASCD steering switch

P1568 ICC command valve

P1572 ICC brake switch/ASCD brake switch

P1574 ICC vehicle speed sensor/ASCD vehicle speed sensor
Priority Detected items (DTC)

TROUBLE DIAGNOSIS EC-123
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
ECM Harness Connector Terminal LayoutABS006KV
ECM Terminals and Reference ValueABS006KW
PREPARATION

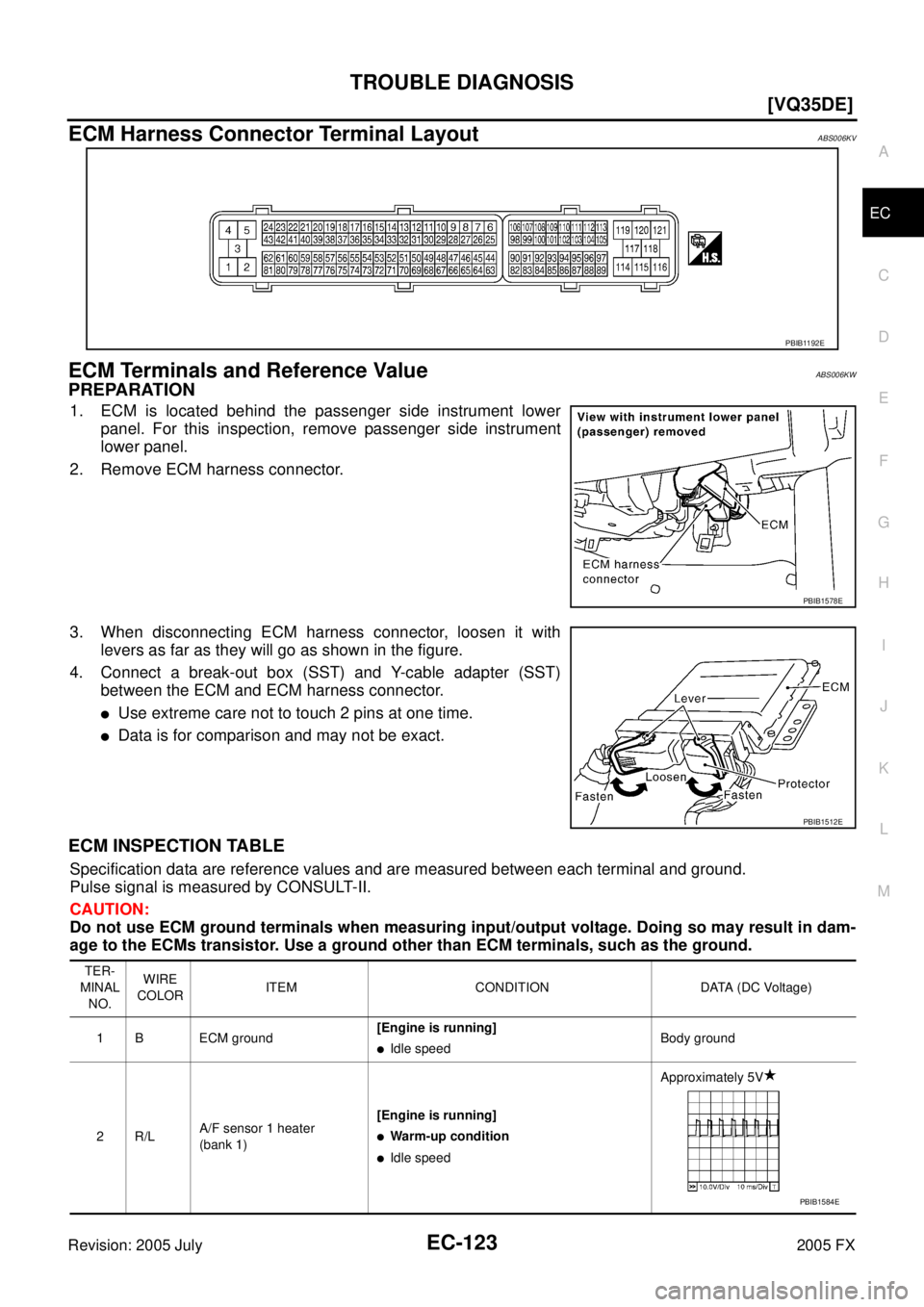

1. ECM is located behind the passenger side instrument lower
panel. For this inspection, remove passenger side instrument
lower panel.
2. Remove ECM harness connector.
3. When disconnecting ECM harness connector, loosen it with levers as far as they will go as shown in the figure.
4. Connect a break-out box (SST) and Y-cable adapter (SST) between the ECM and ECM harness connector.

Use extreme care not to touch 2 pins at one time.

Data is for comparison and may not be exact.
ECM INSPECTION TABLE
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.
PBIB1192E
PBIB1578E
PBIB1512E
TER-
MINAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
1 B ECM ground [Engine is running]

Idle speedBody ground
2R/L A/F sensor 1 heater
(bank 1) [Engine is running]

Warm-up condition

Idle speed Approximately 5V
PBIB1584E

EC-124
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
3R Throttle control motor relay
power supply [Ignition switch: ON] BATTERY VOLTAGE
(11 - 14V)
4L/W Throttle control motor
(Close) [Ignition switch: ON]

Engine stopped

Selector lever: D

Accelerator pedal: Fully released 0 - 14V
5L/B Throttle control motor
(Open) [Ignition switch: ON]

Engine stopped

Selector lever: D

Accelerator pedal: Fully depressed 0 - 14V
6R Heated oxygen sensor 2
heater (bank 2) [Engine is running]

Engine speed is below 3,600 rpm after the
following conditions are met
–Engine: after warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load 0 - 1.0V
[Ignition switch: ON]

Engine stopped
[Engine is running]

Engine speed is above 3,600 rpm BATTERY VOLTAGE
(11 - 14V)
10 OR Intake valve timing control
solenoid valve (bank 2) [Engine is running]

Warm-up condition

Idle speed
BATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

When revving engine up to 2,500 rpm
quickly 7 - 12V
11 B R Intake valve timing control
solenoid valve (bank 1) [Engine is running]

Warm-up condition

Idle speed
BATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

When revving engine up to 2,500 rpm
quickly 7 - 12V
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
PBIB1104E
PBIB1105E
PBIB1790E
PBIB1790E

EC-126
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
21
22
23 W
G
R Injector No. 5
Injector No. 3
Injector No. 1 [Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle BATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

Engine speed is 2,000 rpm BATTERY VOLTAGE
(11 - 14V)
24 L A/F sensor 1 heater
(Bank 2) [Engine is running]

Warm-up condition

Idle speed Approximately 5V
25 P Heated oxygen sensor 2
heater (bank 1) [Engine is running]

Engine speed is below 3,600 rpm after the
following conditions are met
–Engine: after warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load 0 - 1.0V
[Ignition switch: ON]

Engine stopped
[Engine is running]

Engine speed is above 3,600 rpm BATTERY VOLTAGE
(11 - 14V)
32 OR EVAP control system pres-
sure sensor [Ignition switch: ON]
Approximately 1.8 - 4.8V
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
SEC984C
SEC985C
PBIB1584E

EC-134
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
X: Applicable
*1: This item includes 1st trip DTCs.
*2: This mode includes 1st trip freeze frame data or freeze frame data. The items appear on CONSULT-II screen in freeze frame d ata
mode only if a 1st trip DTC or DTC is detected. For details, refer to EC-136
.
INSPECTION PROCEDURE
CAUTION:
If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be
detected in self-diagnosis depending on control unit which carry out CAN communication.
1. Turn ignition switch OFF.
2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located under LH dash panel near the
hood opener handle.
3. Turn ignition switch ON.
4. Touch “START (NISSAN BASED VHCL)”.
ENGINE CONTROL COMPONENT PARTS
OUTPUT
Fuel injector ×× ×
Power transistor (Ignition timing) ×× ×
Throttle control motor relay ×××
Throttle control motor ×
EVAP canister purge volume con-
trol solenoid valve ×××××
Air conditioner relay ××
Fuel pump relay ××××
Cooling fan relay ××××
Air fuel ratio (A/F) sensor 1 heater ××××
Heated oxygen sensor 2 heater ××××
EVAP canister vent control valve ×× ×××
Intake valve timing control solenoid
valve ××××
Calculated load value ×××
Item
DIAGNOSTIC TEST MODE
WORK SUP-
PORT SELF-DIAGNOSTIC
RESULTS DATA
MONI-
TOR DATA
MONI- TOR
(SPEC) ACTIVE
TEST DTC & SRT
CONFIRMATION
DTC*1 FREEZE
FRAME
DATA*2 SRT
STATUS DTC
WORK SUP-
PORT
PBIB1570E
BCIA0029E

EC-138
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
FUEL LEVEL SE
[V] ×
The signal voltage of the fuel level sensor is
displayed.
START SIGNAL
[ON/OFF] ××

Indicates start signal status [ON/OFF] com-
puted by the ECM according to the signals of
engine speed and battery voltage.
After starting the engine, [OFF] is
displayed regardless of the starter
signal.
CLSD THL POS
[ON/OFF] ××

Indicates idle position [ON/OFF] computed by
ECM according to the accelerator pedal posi-
tion sensor signal.
AIR COND SIG
[ON/OFF] ××

Indicates [ON/OFF] condition of the air condi-
tioner switch as determined by the air condi-
tioner signal.
P/N POSI SW
[ON/OFF] ××

Indicates [ON/OFF] condition from the park/
neutral position (PNP) switch signal.
PW/ST SIGNAL
[ON/OFF] ××

[ON/OFF] condition of the power steering sys-
tem (determined by the signal voltage of the
power steering pressure sensor signal) is indi-
cated.
LOAD SIGNAL
[ON/OFF] ××

Indicates [ON/OFF] condition from the electri-
cal load signal.
ON: Rear window defogger switch is ON and/
or lighting switch is in 2nd position.
OFF: Both rear window defogger switch and
lighting switch are OFF.
SNOW MODE SW
[ON/OFF]

Indicates [ON/OFF] condition from the snow
mode switch signal.
IGNITION SW
[ON/OFF] ×

Indicates [ON/OFF] condition from ignition
switch signal.
HEATER FAN SW
[ON/OFF] ×

Indicates [ON/OFF] condition from the heater
fan switch signal.
BRAKE SW
[ON/OFF] ×

Indicates [ON/OFF] condition from the stop
lamp switch signal.
INJ PULSE-B1
[msec] ×

Indicates the actual fuel injection pulse width
compensated by ECM according to the input
signals.
When the engine is stopped, a cer-
tain computed value is indicated.
INJ PULSE-B2
[msec]
IGN TIMING
[BTDC] ×

Indicates the ignition timing computed by
ECM according to the input signals.
When the engine is stopped, a cer-
tain value is indicated.
CAL/LD VALUE [%]

Calculated load value indicates the value of
the current air flow divided by peak air flow.
MASS AIRFLOW
[g·m/s]

Indicates the mass air flow computed by ECM
according to the signal voltage of the mass air
flow sensor.
PURG VOL C/V
[%]

Indicates the EVAP canister purge volume
control solenoid valve control value computed
by the ECM according to the input signals.

The opening becomes larger as the value
increases.
INT/V TIM (B1)
[ ° CA]

Indicates [ °CA] of intake camshaft advanced
angle.
INT/V TIM (B2)
[ ° CA] Monitored item
[Unit] ECM
INPUT SIG-
NALS MAIN
SIG-
NALS Description Remarks

TROUBLE DIAGNOSIS EC-139
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FXINT/V SOL (B1) [%]
The control condition of the intake valve tim-
ing control solenoid valve (determined by
ECM according to the input signals) is indi-
cated.

The advance angle becomes larger as the
value increases.
INT/V SOL (B2) [%]
AIR COND RLY
[ON/OFF] ×

The air conditioner relay control condition
(determined by ECM according to the input
signals) is indicated.
FUEL PUMP RLY
[ON/OFF] ×

Indicates the fuel pump relay control condition
determined by ECM according to the input
signals.
VENT CONT/V
[ON/OFF]

The control condition of the EVAP canister
vent control valve (determined by ECM
according to the input signals) is indicated.
ON: Closed
OFF: Open
THRTL RELAY
[ON/OFF] ×

Indicates the throttle control motor relay con-
trol condition determined by the ECM accord-
ing to the input signals.
COOLING FAN
[HI/MID/LOW/OFF] ×

The control condition of the cooling fan (deter-
mined by ECM according to the input signals)
is indicated.
HI: High speed operation
MID: Middle speed operation
LOW: Low speed operation
OFF: Stop
HO2S2 HTR (B1)
[ON/OFF]

Indicates [ON/OFF] condition of heated oxy-
gen sensor 2 heater determined by ECM
according to the input signals.
HO2S2 HTR (B2)
[ON/OFF]
I/P PULLY SPD
[rpm]

Indicates the engine speed computed from
the turbine revolution sensor signal.
VEHICLE SPEED
[km/h] or [MPH]

Indicates the vehicle speed computed from
the revolution sensor signal.
IDL A/V LEARN
[YET/CMPLT]

Display the condition of idle air volume learn-
ing
YET: Idle Air Volume Learning has not been
performed yet.
CMPLT: Idle Air Volume Learning has already
been performed successfully.
TRVL AFTER MIL
[km] or [mile]

Distance traveled while MIL is activated.
A/F S1 HTR (B1)
[%]

Air fuel ratio (A/F) sensor 1 heater control
value computed by ECM according to the
input signals.

The current flow to the heater becomes larger
as the value increases.
A/F S1 HTR (B2)
[%]
AC PRESS SEN
[V]

The signal voltage from the refrigerant pres-
sure sensor is displayed.
VHCL SPEED SE
[km/h] or [mph]

The vehicle speed computed from the vehicle
speed signal sent from TCM is displayed.
Monitored item
[Unit] ECM
INPUT SIG-
NALS MAIN
SIG-
NALS Description Remarks

EC-148
[VQ35DE]
TROUBLE DIAGNOSIS
Revision: 2005 July 2005 FX
LOAD SIGNAL
Ignition switch: ON Rear window defogger switch is ON
and/or lighting switch is in 2nd ON
Rear window defogger switch is OFF
and lighting switch is OFF OFF
SNOW MODE SW

Ignition switch: ON Snow mode switch: ON ON
Snow mode switch: OFF OFF
IGNITION SW

Ignition switch: ON → OFF → ON ON → OFF → ON
HEATER FAN SW

Engine: After warming up, idle
the engine Heater fan: Operating. ON
Heater fan: Not operating OFF
BRAKE SW

Ignition switch: ON Brake pedal: Fully released OFF
Brake pedal: Slightly depressed ON
INJ PULSE-B1
INJ PULSE-B2

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No-load Idle 2.0 - 3.0 msec
2,000 rpm 1.9 - 2.9 msec
IGN TIMING

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No-load Idle 13
° - 18 ° BTDC
2,000 rpm 25 ° - 45 ° BTDC
CAL/LD VALUE

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No-load Idle 5% - 35%
2,500 rpm 5% - 35%
MASS AIRFLOW

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No-load Idle 2.0 - 6.0 g·m/s
2,500 rpm 7.0 - 20.0 g·m/s
PURG VOL C/V

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No-load Idle
(Accelerator pedal is not depressed
even slightly, after engine starting) 0%
2,000 rpm —
INT/V TIM (B1)
INT/V TIM (B2)

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No-load Idle
−5° - 5 °CA
When revving engine up to 2,000 rpm
quickly Approx. 0
° - 30 °CA
INT/V SOL (B1)
INT/V SOL (B2)

Engine: After warming up

Selector lever: P or N

Air conditioner switch: OFF

No-load Idle 0% - 2%
When revving engine up to 2,000 rpm
quickly Approx. 0% - 50%
AIR COND RLY

Engine: After warming up, idle
the engine Air conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates) ON
FUEL PUMP RLY

For 1 second after turning ignition switch ON

Engine running or cranking ON

Except above conditions OFF
VENT CONT/V

Ignition switch: ON OFF
THRTL RELAY

Ignition switch: ON ON
MONITOR ITEM CONDITION SPECIFICATION

EC-178
[VQ35DE]
DTC P0037, P0038, P0057, P0058 HO2S2 HEATER
Revision: 2005 July 2005 FX
DTC P0037, P0038, P0057, P0058 HO2S2 HEATERPFP:226A0
DescriptionABS006LR
SYSTEM DESCRIPTION
The ECM performs ON/OFF control of the heated oxygen sensor 2 heater corresponding to the engine speed,
amount of intake air and engine coolant temperature.
OPERATION
CONSULT-II Reference Value in Data Monitor ModeABS006LS
Specification data are reference values.
On Board Diagnosis LogicABS006LT
Sensor Input signal to ECM ECM function Actuator
Camshaft position sensor (PHASE)
Crankshaft position sensor (POS) Engine speed
Heated oxygen sensor 2
heater control Heated oxygen sensor 2 heater
Engine coolant temperature sensor Engine coolant temperature
Mass air flow sensor Amount of intake air
Engine speed rpm Heated oxygen sensor 2 heater
Above 3,600 OFF
Below 3,600 rpm after the following conditions are met.

Engine: After warming up

Keeping the engine speed between 3,500 and 4,000 rpm for 1
minute and at idle for 1 minute under no load ON
MONITOR ITEM CONDITION SPECIFICATION
HO2S2 HTR (B1)
HO2S2 HTR (B2)

Engine speed is below 3,600 rpm after the following conditions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and
at idle for 1 minute under no load ON

Engine speed: Above 3,600 rpm OFF
DTC No.
Trouble diagnosis
name DTC detecting condition Possible cause
P0037
0037
(Bank 1) Heated oxygen
sensor 2 heater
control circuit low The current amperage in the heated oxygen sen-
sor 2 heater circuit is out of the normal range.
(An excessively low voltage signal is sent to ECM
through the heated oxygen sensor 2 heater.)

Harness or connectors
(The heated oxygen sensor 2 heater circuit is
open or shorted.)

Heater oxygen sensor 2 heater
P0057
0057
(Bank 2)
P0038
0038
(Bank 1) Heated oxygen
sensor 2 heater
control circuit high The current amperage in the heated oxygen sen-
sor 2 heater circuit is out of the normal range.
(An excessively high voltage signal is sent to
ECM through the heated oxygen sensor 2
heater.)

Harness or connectors
(The heated oxygen sensor 2 heater circuit is
shorted.)

Heater oxygen sensor 2 heater
P0058
0058
(Bank 2)
