DTC P0037, P0038, P0057, P0058 HO2S2 HEATER EC-179
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC Confirmation ProcedureABS006LU
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10.5V and 16V at
idle.
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.
2. Start engine and warm it up to the normal operating tempera- ture.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Start the engine and keep the engine speed between 3,500 rpm and 4,000 rpm for at least 1 minute under no load.
5. Let engine idle for 1 minute.
6. If 1st trip DTC is detected, go to EC-183, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
SEF176Y

EC-180
[VQ35DE]
DTC P0037, P0038, P0057, P0058 HO2S2 HEATER
Revision: 2005 July 2005 FX
Wiring DiagramABS006LV

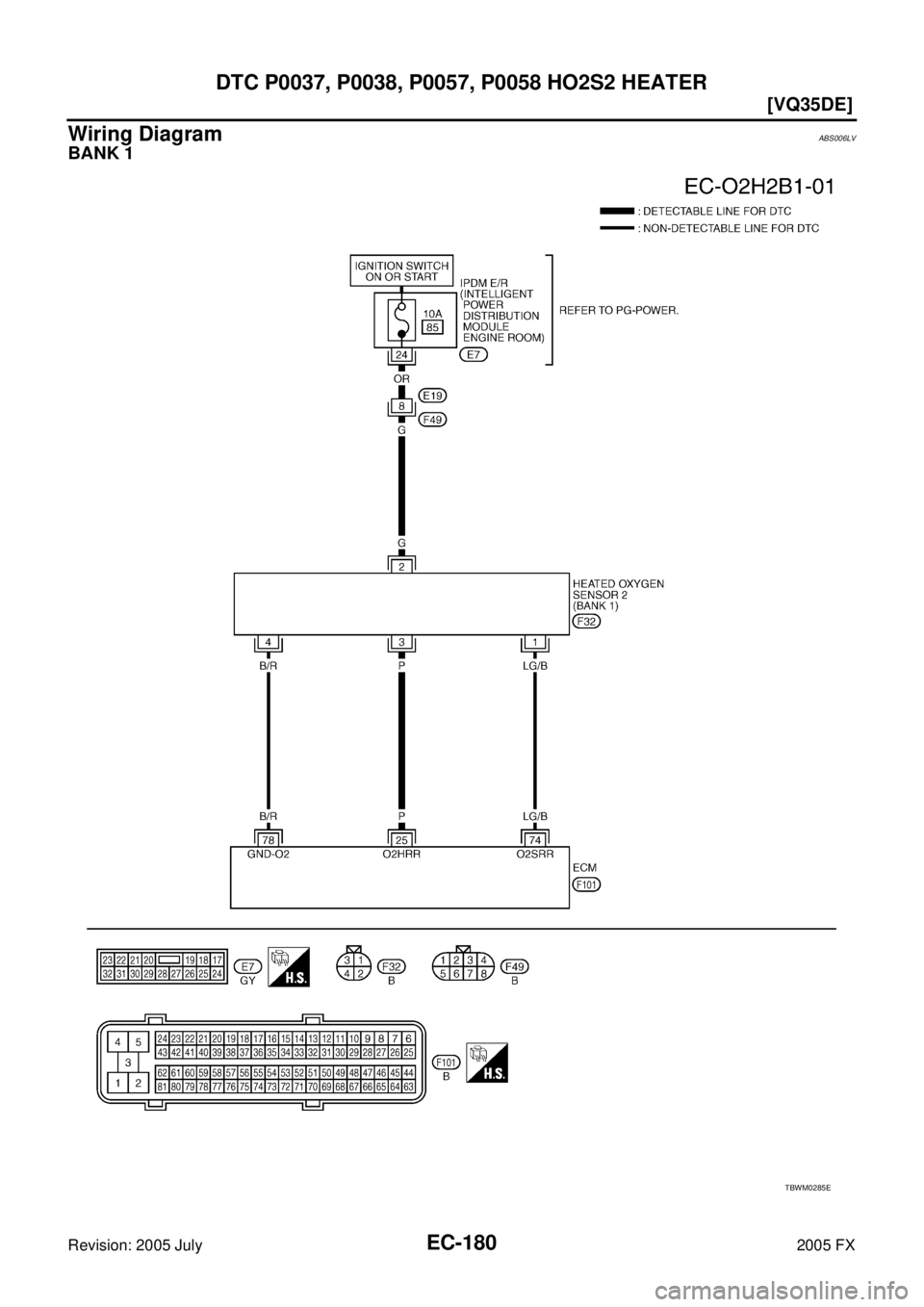

BANK 1
TBWM0285E

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER EC-181
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
25 P Heated oxygen sensor 2
heater (bank 1) [Engine is running]

Engine speed is below 3,600 rpm after the
following conditions are met
–Engine: after warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load 0 - 1.0V
[Ignition switch: ON]

Engine stopped
[Engine is running]

Engine speed is above 3,600 rpm BATTERY VOLTAGE
(11 - 14V)

EC-182
[VQ35DE]
DTC P0037, P0038, P0057, P0058 HO2S2 HEATER
Revision: 2005 July 2005 FX

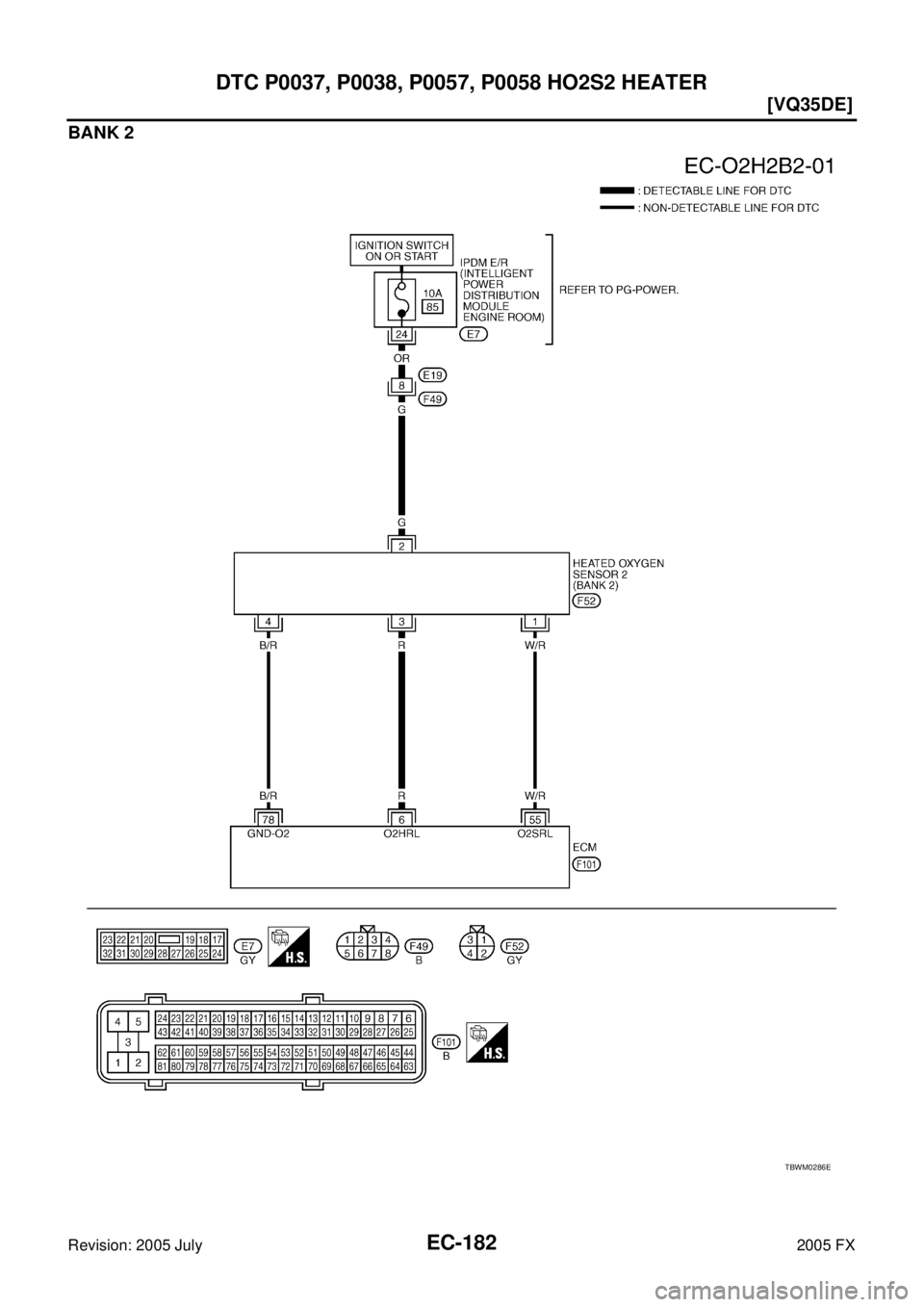

BANK 2
TBWM0286E

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER EC-183
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureABS006LW
1. CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground three screws on the body. Refer to EC-170, "
Ground Inspection" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
6R Heated oxygen sensor 2
heater (bank 2) [Engine is running]

Engine speed is below 3,600 rpm after the
following conditions are met.
–Engine: after warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load 0 - 1.0V
[Ignition switch: ON]

Engine stopped
[Engine is running]

Engine speed is above 3,600 rpm BATTERY VOLTAGE
(11 - 14V)
PBIB2625E

EC-184
[VQ35DE]
DTC P0037, P0038, P0057, P0058 HO2S2 HEATER
Revision: 2005 July 2005 FX
2. CHECK HO2S2 POWER SUPPLY CIRCUIT
1. Disconnect heated oxygen sensor 2 harness connector.
2. Turn ignition switch ON.
3. Check voltage between HO2S2 terminal 2 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E19, F49

IPDM E/R harness connector E7

10A fuse

Harness for open or short between heated oxygen sensor 2 and fuse
>> Repair open circuit or short ground or short to power in harness or connectors.
4. CHECK HO2S2 OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal and HO2S2 terminal as follows. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB1576E
Voltage: Battery voltage
PBIB0969E
DTC Terminals
Bank
ECM Sensor
P0037, P0038 25 3 1
P0057, P0058 6 3 2
Continuity should exist.

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER EC-185
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
5. CHECK HEATED OXYGEN SENSOR 2 HEATER
Refer to EC-185, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace malfunctioning heated oxygen sensor 2.
6. CHECK INTERMITTENT INCIDENT
Refer to EC-163, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>> INSPECTION END
Component InspectionABS006LX
HEATED OXYGEN SENSOR 2 HEATER
1. Check resistance between HO2S2 terminals as follows.
2. If NG, replace heated oxygen sensor 2.
CAUTION:

Discard any heated oxygen sensor which has been dropped
from a height of more than 0.5 m (19.7 in) onto a hard sur-
face such as a concrete floor; use a new one.

Before installing new oxygen sensor, clean exhaust system
threads using Oxygen Sensor Thread Cleaner tool J-43897-
18 or J-43897-12 and approved anti-seize lubricant.
Removal and InstallationABS006LY
HEATED OXYGEN SENSOR 2
Refer to EM-26, "EXHAUST MANIFOLD AND THREE WAY CATALYST" .
Terminal No. Resistance
2 and 3 5.0 - 7.0 Ω [at 25 °C (77 °F)]
1 and 2, 3, 4 ∞ Ω
(Continuity should not exist)
4 and 1, 2, 3
PBIB0970E

DTC P0300 - P0306 MULTIPLE CYLINDER MISFIRE, NO. 1 - 6 CYLINDER MIS- FIRE
EC-293
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
14. CHECK A/F SENSOR 1 INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect A/F sensor 1 harness connector.
3. Disconnect ECM harness connector.
4. Check harness continuity between the following terminals. Refer to Wiring Diagram.
5. Check harness continuity between the following terminals and ground. Refer to Wiring Diagram.
6. Also check harness for short to power or short to ground.
OK or NG
OK >> GO TO 15.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
15. CHECK A/F SENSOR 1 HEATER
Refer to EC-412, "
Component Inspection" .
OK or NG
OK >> GO TO 16.
NG >> Replace (malfunctioning) A/F sensor 1.
A/F sensor 1 terminal ECM terminal
Bank 1 116
275
535
656
Bank 2 176
277
557
658
Continuity should exist.
Bank 1 Bank 2
A/F sensor 1 terminal ECM terminal A/F sensor 1 terminal ECM terminal 116176
275277
535557
656658
Continuity should not exist.
PBIB2093E

DTC P1031, P1032, P1051, P1052 A/F SENSOR 1 HEATER EC-405
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
DTC P1031, P1032, P1051, P1052 A/F SENSOR 1 HEATERPFP:22693
DescriptionABS00A9L
SYSTEM DESCRIPTION
The ECM performs ON/OFF duty control of the air fuel ratio (A/F) sensor 1 heater corresponding to the engine
operating condition to keep the temperature of air fuel ratio (A/F) sensor 1 element at the specified range.
CONSULT-II Reference Value in Data Monitor ModeABS00A9M
Specification data are reference values.
On Board Diagnosis LogicABS00A9N
DTC Confirmation ProcedureABS00A9O
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is between 10.5V and 16V at
idle.
With CONSULT-II
WITH CONSULT-II
1. Turn ignition switch ON and select “DATA MONITOR” mode with
CONSULT-II.
2. Start engine and let it idle for at least 10 seconds.
3. If 1st trip DTC is detected, go to EC-410, "
Diagnostic Procedure"
.
Sensor Input Signal to ECM ECM function Actuator
Camshaft position sensor (PHASE)
Crankshaft position sensor (POS) Engine speed
Air fuel ratio (A/F) sensor 1
heater control Air fuel ratio (A/F) sensor 1 heater
Mass air flow sensor Amount of intake air
MONITOR ITEM CONDITION SPECIFICATION
A/F S1 HTR (B1)
A/F S1 HTR (B2)

Engine: After warming up, idle the engine 0 - 100%
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1031
1031
(Bank 1) Air fuel ratio (A/F) sensor
1 heater control circuit
low The current amperage in the heated air fuel ratio
(A/F) sensor 1 heater circuit is out of the normal
range.
(An excessively low voltage signal is sent to ECM
through the heated air fuel ratio (A/F) sensor 1
heater.)

Harness or connectors
(The air fuel ratio (A/F) sensor 1
heater circuit is open or shorted.)

Air fuel ratio (A/F) sensor 1 heater
P1051
1051
(Bank 2)
P1032
1032
(Bank 1) Air fuel ratio (A/F) sensor
1 heater control circuit
high The current amperage in the heated air fuel ratio
(A/F) sensor 1 heater circuit is out of the normal
range.
(An excessively high voltage signal is sent to ECM
through the heated air fuel ratio (A/F) sensor 1
heater.)

Harness or connectors
(The air fuel ratio (A/F) sensor 1
heater circuit is shorted.)

Air fuel ratio (A/F) sensor 1 heater
P1052
1052
(Bank 2)
SEF058Y

EC-406
[VQ35DE]
DTC P1031, P1032, P1051, P1052 A/F SENSOR 1 HEATER
Revision: 2005 July 2005 FX
WITH GST
Follow the procedure “WITH CONSULT-II” above.
