sensor INFINITI FX35 2005 Service Manual

REFRIGERANT PRESSURE SENSOR EC-675
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX

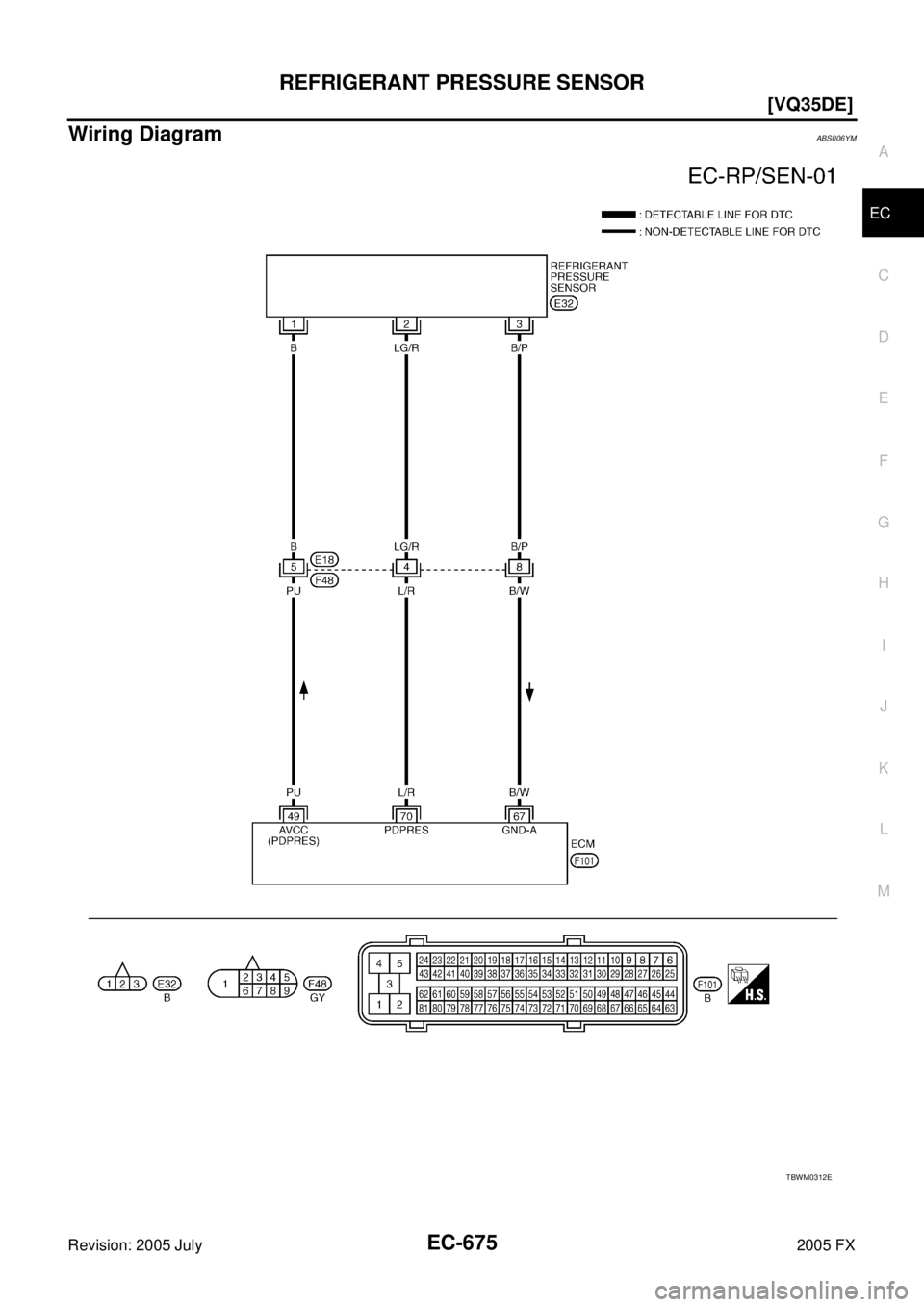

Wiring DiagramABS006YM
TBWM0312E

EC-676
[VQ35DE]
REFRIGERANT PRESSURE SENSOR
Revision: 2005 July 2005 FX
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureABS006YN
1. CHECK REFRIGERANT PRESSURE SENSOR OVERALL FUNCTION
1. Start engine and warm it up to normal operating temperature.
2. Turn A/C switch and blower switch ON.
3. Check voltage between ECM terminal 70 and ground with CON- SULT-II or tester.
OK or NG
OK >> INSPECTION END
NG >> GO TO 2.
2. CHECK GROUND CONNECTIONS
1. Turn A/C switch and blower switch OFF.
2. Stop engine.
3. Turn ignition switch OFF.
4. Loosen and retighten ground three screws on the body. Refer to EC-170, "
Ground Inspection" .
OK or NG
OK >> GO TO 3.
NG >> Repair or replace ground connections.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
49 PU Sensor power supply
(Refrigerant pressure sen-
sor) [Ignition switch: ON]
Approximately 5V
67 B/W Sensor ground [Engine is running]

Warm-up condition

Idle speed Approximately 0V
70 L/R Refrigerant pressure sensor [Engine is running]

Warm-up condition

Both A/C switch and blower switch are ON
(Compressor operates) 1.0 - 4.0V
Voltage: 1.0 - 4.0V
PBIB1188E
PBIB2625E

REFRIGERANT PRESSURE SENSOR EC-677
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
3. CHECK REFRIGERANT PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Disconnect refrigerant pressure sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between refrigerant pressure sensor terminal 1 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E18, F48

Harness for open or short between ECM and refrigerant pressure sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK REFRIGERANT PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between refrigerant pressure sensor terminal 3 and ECM terminal 67. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E18, F48

Harness for open or short between ECM and refrigerant pressure sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB2007E
Voltage: Approximately 5V
PBIB0188E
Continuity should exist.

EC-678
[VQ35DE]
REFRIGERANT PRESSURE SENSOR
Revision: 2005 July 2005 FX
7. CHECK REFRIGERANT PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Check harness continuity between ECM terminal 70 and refrigerant pressure sensor terminal 2. Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.
8. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E18, F48

Harness for open or short between ECM and refrigerant pressure sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
9. CHECK INTERMITTENT INCIDENT
Refer to EC-163, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace refrigerant pressure sensor.
NG >> Repair or replace.
Removal and InstallationABS006YO
REFRIGERANT PRESSURE SENSOR
Refer to ATC-156, "Removal and Installation of Refrigerant Pressure Sensor" .
Continuity should exist.

SERVICE DATA AND SPECIFICATIONS (SDS) EC-705
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
SERVICE DATA AND SPECIFICATIONS (SDS)PFP:00030
Fuel PressureABS006ZI
Idle Speed and Ignition TimingABS006ZJ
*1: Under the following conditions:

Air conditioner switch: OFF

Electric load: OFF (Lights, heater fan & rear window defogger)

Steering wheel: Kept in straight-ahead position
Calculated Load ValueABS006ZK
Mass Air Flow SensorABS006ZL
*: Engine is warmed up to normal operating temperature and running under no-load.
Intake Air Temperature SensorABS006ZM
Engine Coolant Temperature SensorABS006ZN
Air Fuel Ratio (A/F) Sensor 1 HeaterABS006ZO
Heated Oxygen sensor 2 HeaterABS006ZP
Crankshaft Position Sensor (POS)ABS006ZQ
Refer to EC-306, "Component Inspection" .
Camshaft Position Sensor (PHASE)ABS006ZR
Refer to EC-315, "Component Inspection" .
Throttle Control MotorABS006ZS
Fuel pressure at idling kPa (kg/cm2 , psi) Approximately 350 (3.57, 51)
Target idle speed
No-load*1 (in P or N position) 650
±50 rpm
Air conditioner: ON In P or N position 700 rpm or more
Ignition timing In P or N position 15 ° ± 5 ° BTDC
Calculated load value% (Using CONSULT-II or GST)
At idle 5 - 35
At 2,500 rpm 5 - 35
Supply voltageBattery voltage (11 - 14V)
Output voltage at idle 1.0 - 1.2*V
Mass air flow (Using CONSULT-II or GST) 2.0 - 6.0 g·m/sec at idle*
7.0 - 20.0 g·m/sec at 2,500 rpm*
Temperature °C ( °F) Resistance k Ω
25 (77) 1.94 - 2.06
80 (176) 0.295 - 0.349
Temperature °C ( °F) Resistance k Ω
20 (68) 2.1 - 2.9
50 (122) 0.68 - 1.00
90 (194) 0.236 - 0.260
Resistance [at 25°C (77 °F)] 2.3 - 4.3 Ω
Resistance [at 25°C (77 °F)] 5.0 - 7.0 Ω
Resistance [at 25°C (77 °F)] Approximately 1 - 15 Ω

INDEX FOR DTC EC-707
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
[VK45DE]INDEX FOR DTCPFP:00024
DTC No. IndexABS00E3V
NOTE:
If DTC U1000 or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000,
U1001. Refer to EC-862, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
DTC*1
Items
(CONSULT-II screen terms) Reference page
CONSULT-II
GST*
2ECM*3
No DTC Flashing*4NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED. EC-761
U1000
1000*5CAN COMM CIRCUIT EC-862
U1001
1001*5CAN COMM CIRCUIT EC-862
P0000 0000 NO DTC IS DETECTED.
FURTHER TESTING
MAY BE REQUIRED. —
P0011 0011 INT/V TIM CONT-B1 EC-865
P0021 0021 INT/V TIM CONT-B2 EC-865
P0031 0031 HO2S1 HTR (B1)EC-877
P0032 0032 HO2S1 HTR (B1)EC-877
P0037 0037 HO2S2 HTR (B1)EC-885
P0038 0038 HO2S2 HTR (B1)EC-885
P0051 0051 HO2S1 HTR (B2)EC-877
P0052 0052 HO2S1 HTR (B2)EC-877
P0057 0057 HO2S2 HTR (B2)EC-885
P0058 0058 HO2S2 HTR (B2)EC-885
P0101 0101 MAF SEN/CIRCUITEC-893
P0102 0102 MAF SEN/CIRCUITEC-902
P0103 0103 MAF SEN/CIRCUITEC-902
P0112 0112 IAT SEN/CIRCUITEC-909
P0113 0113 IAT SEN/CIRCUITEC-909
P0117 0117 ECT SEN/CIRCUITEC-914
P0118 0118 ECT SEN/CIRCUITEC-914
P0122 0122 TP SEN2/CIRC EC-920
P0123 0123 TP SEN2/CIRCEC-920
P0125 0125 ECT SENSOREC-927
P0127 0127 IAT SENSOREC-930
P0128 0128 THERMSTAT FNCTNEC-933
P0132 0132 HO2S1 (B1)EC-935
P0133 0133 HO2S1 (B1)EC-944
P0134 0134 HO2S1 (B1)EC-956
P0138 0138 HO2S2 (B1)EC-966
P0139 0139 HO2S2 (B1)EC-975
P0152 0152 HO2S1 (B2)EC-935
P0153 0153 HO2S1 (B2)EC-944
P0154 0154 HO2S1 (B2)EC-956

EC-708
[VK45DE]
INDEX FOR DTC
Revision: 2005 July 2005 FX
P0158 0158 HO2S2 (B2)EC-966
P0159 0159 HO2S2 (B2)EC-975
P0171 0171 FUEL SYS-LEAN-B1EC-986
P0172 0172 FUEL SYS-RICH-B1EC-995
P0174 0174 FUEL SYS-LEAN-B2EC-986
P0175 0175 FUEL SYS-RICH-B2EC-995
P0181 0181 FTT SENSOREC-1004
P0182 0182 FTT SEN/CIRCUITEC-1010
P0183 0183 FTT SEN/CIRCUITEC-1010
P0222 0222 TP SEN 1/CIRCEC-1015
P0223 0223 TP SEN 1/CIRCEC-1015
P0300 0300 MULTI CYL MISFIREEC-1022
P0301 0301 CYL 1 MISFIREEC-1022
P0302 0302 CYL 2 MISFIREEC-1022
P0303 0303 CYL 3 MISFIREEC-1022
P0304 0304 CYL 4 MISFIREEC-1022
P0305 0305 CYL 5 MISFIREEC-1022
P0306 0306 CYL 6 MISFIREEC-1022
P0307 0307 CYL 7 MISFIREEC-1022
P0308 0308 CYL 8 MISFIREEC-1022
P0327 0327 KNOCK SEN/CIRC-B1EC-1031
P0328 0328 KNOCK SEN/CIRC-B1EC-1031
P0332 0332 KNOCK SEN/CIRC-B2EC-1031
P0333 0333 KNOCK SEN/CIRC-B2EC-1031
P0335 0335 CKP SEN/CIRCUITEC-1036
P0340 0340 CMP SEN/CIRC-B1EC-1043
P0420 0420 TW CATALYST SYS-B1EC-1050
P0430 0430 TW CATALYST SYS-B2EC-1050
P0441 0441 EVAP PURG FLOW/MONEC-1056
P0442 0442 EVAP SMALL LEAKEC-1061
P0444 0444 PURG VOLUME CONT/VEC-1069
P0445 0445 PURG VOLUME CONT/VEC-1069
P0447 0447 VENT CONTROL VALVEEC-1076
P0451 0451 EVAP SYS PRES SENEC-1083
P0452 0452 EVAP SYS PRES SENEC-1086
P0453 0453 EVAP SYS PRES SENEC-1092
P0455 0455 EVAP GROSS LEAK EC-1100
P0456 0456 EVAP VERY SML LEAKEC-1108
P0460 0460 FUEL LEV SEN SLOSH E C - 111 7
P0461 0461 FUEL LEVEL SENSORE C - 111 9
P0462 0462 FUEL LEVL SEN/CIRCEC-1121
P0463 0463 FUEL LEVL SEN/CIRCEC-1121
DTC*1
Items
(CONSULT-II screen terms) Reference page
CONSULT-II
GST*
2ECM*3

INDEX FOR DTC EC-709
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FXP0500 0500
VEH SPEED SEN/CIRC*6EC-1123
P0506 0506 ISC SYSTEM EC-1125
P0507 0507 ISC SYSTEMEC-1127
P0550 0550 PW ST P SEN/CIRCEC-1129
P0605 0605 ECMEC-1134
P0700 0700 TCM AT- 11 3
P0705 0705 PNP SW/CIRCAT- 11 4
P0710 0710 ATF TEMP SEN/CIRCAT-136
P0720 0720
VEH SPD SEN/CIR AT*6AT- 11 8
P0740 0740 TCC SOLENOID/CIRC AT-125
P0744 0744 A/T TCC S/V FNCTNAT-127
P0745 0745 L/PRESS SOL/CIRCAT-129
P1065 1065 ECM BACK UP/CIRCUITEC-1137
P 1111 1111 I N T / V T I M V / C I R - B 1EC-1141
P1121 1121 ETC ACTR EC-1148
P1122 1122 ETC FUNCTION/CIRCEC-1150
P1124 1124 ETC MOT PWREC-1156
P1126 1126 ETC MOT PWREC-1156
P1128 1128 ETC MOTEC-1161
P1136 1136 INT/V TIM V/CIR-B2EC-1141
P1140 1140 INTK TIM S/CIRC-B1EC-1166
P1143 1143 HO2S1 (B1)EC-1174
P1144 1144 HO2S1 (B1)EC-1180
P1145 1145 INTK TIM S/CIRC-B2EC-1166
P1146 1146 HO2S2 (B1)EC-1187
P1147 1147 HO2S2 (B1)EC-1198
P1148 1148 CLOSED LOOP-B1EC-1209
P1163 1163 HO2S1 (B2) EC-1174
P1164 1164 HO2S1 (B2)EC-1180
P1166 1166 HO2S2 (B2)EC-1187
P1167 1167 HO2S2 (B2)EC-1198
P1168 1168 CLOSED LOOP-B2EC-1209
P1211 1211 TCS C/U FUNCTN EC-1211
P1212 1212 TCS/CIRCEC-1212
P1217 1217 ENG OVER TEMPEC-1213
P1225 1225 CTP LEARNINGEC-1225
P1226 1226 CTP LEARNINGEC-1227
P1229 1229 SENSOR POWER/CIRCEC-1229
P1444 1444 PURG VOLUME CONT/VEC-1233
P1446 1446 VENT CONTROL VALVEEC-1241
P1564 1564 ASCD SW EC-1247 (Models with ICC)
EC-1254
(Models with ASCD)
DTC*
1
Items
(CONSULT-II screen terms) Reference page
CONSULT-II
GST*
2ECM*3

EC-710
[VK45DE]
INDEX FOR DTC
Revision: 2005 July 2005 FX
*1: 1st trip DTC No. is the same as DTC No.
*2: This number is prescribed by SAE J2012.
*3: In Diagnostic Test Mode II (Self-diagnostic results), this number is controlled by NISSAN.
*4: When engine is running.
*5: The troubleshooting for this DTC needs CONSULT-II.
*6: When the fail-safe operations for both self-diagnoses occur at the same time, the MIL illuminates.
*7: Models with ICC. P1568 1568
ACC COMMAND VALUE*
7EC-1261
P1572 1572 ASCD BRAKE SW EC-1262 (Models with ICC)
EC-1271
(Models with ASCD)
P1574 1574 ASCD VHL SPD SEN EC-1279
(Models with ICC)
EC-1281
(Models with ASCD)
P1610 - P1615 1610 - 1615 NATS MALFUNCTION EC-744
P1706 1706 P-N POS SW/CIRCUITEC-1283
P1716 1716 TURBINE REV S/CIRC AT-141
P1720 1720 V/SP SEN(A/T OUT)EC-1288
P1730 1730 A/T INTERLOCK AT-145
P1752 1752 I/C SOLENOID/CIRCAT-150
P1754 1754 I/C SOLENOID FNCTNAT-152
P1757 1757 FR/B SOLENOID/CIRCAT-154
P1759 1759 FR/B SOLENOID FNCTAT-156
P1762 1762 D/C SOLENOID/CIRCAT-158
P1764 1764 D/C SOLENOID FNCTNAT-160
P1767 1767 HLR/C SOL/CIRCAT-162
P1769 1769 HLR/C SOL FNCTNAT-164
P1772 1772 LC/B SOLENOID/CIRCAT-166
P1774 1774 LC/B SOLENOID FNCTAT-168
P1780 1780 SHIFT SIG FNCTNEC-1290
P1800 1800 VIAS S/V CIRCEC-1292
P1805 1805 BRAKE SW/CIRCUITEC-1297
P2122 2122 APP SEN 1/CIRCEC-1302
P2123 2123 APP SEN 1/CIRCEC-1302
P2127 2127 APP SEN 2/CIRCEC-1309
P2128 2128 APP SEN 2/CIRCEC-1309
P2135 2135 TP SENSOREC-1316
P2138 2138 APP SENSOREC-1323
DTC*1
Items
(CONSULT-II screen terms) Reference page
CONSULT-II
GST*
2ECM*3

INDEX FOR DTC EC-711
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2005 July 2005 FX
Alphabetical IndexABS00E3W
NOTE:
If DTC U1000 or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000,
U1001. Refer to EC-862, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .
Items
(CONSULT-II screen terms) DTC*
1
Reference page
CONSULT-II
GST*
2ECM*3
A/T INTERLOCK P1730 1730 AT-145
A/T TCC S/V FNCTN P0744 0744AT-127
ACC COMMAND VALUE*7P1568 1568EC-1261
APP SEN 1/CIRC P2122 2122 EC-1302
APP SEN 1/CIRC P2123 2123EC-1302
APP SEN 2/CIRC P2127 2127EC-1309
APP SEN 2/CIRC P2128 2128EC-1309
APP SENSOR P2138 2138EC-1323
ASCD BRAKE SW P1572 1572 EC-1262 (Models with ICC)
EC-1271
(Models with ASCD)
ASCD SW P1564 1564 EC-1247
(Models with ICC)
EC-1254
(Models with ASCD)
ASCD VHL SPD SEN P1574 1574 EC-1279
(Models with ICC)
EC-1281
(Models with ASCD)
ATF TEMP SEN/CIRC P0710 0710 AT-136
BRAKE SW/CIRCUIT P1805 1805EC-1297
CAN COMM CIRCUIT U1000
1000*5EC-862
CAN COMM CIRCUIT U1001
1001*5EC-862
CKP SEN/CIRCUIT P0335 0335 EC-1036
CLOSED LOOP-B1 P1148 1148EC-1209
CLOSED LOOP-B2 P1168 1168EC-1209
CMP SEN/CIRC-B1 P0340 0340EC-1043
CTP LEARNING P1225 1225EC-1225
CTP LEARNING P1226 1226EC-1227
CYL 1 MISFIRE P0301 0301EC-1022
CYL 2 MISFIRE P0302 0302EC-1022
CYL 3 MISFIRE P0303 0303EC-1022
CYL 4 MISFIRE P0304 0304EC-1022
CYL 5 MISFIRE P0305 0305EC-1022
CYL 6 MISFIRE P0306 0306EC-1022
CYL 7 MISFIRE P0307 0307EC-1022
CYL 8 MISFIRE P0308 0308EC-1022
D/C SOLENOID FNCTN P1764 1764 AT-160
D/C SOLENOID/CIRC P1762 1762AT-158
ECM P0605 0605EC-1134
ECM BACK UP/CIRCUIT P1065 1065EC-1137
ECT SEN/CIRCUIT P0117 0117 EC-914
ECT SEN/CIRCUIT P0118 0118EC-914
ECT SENSOR P0125 0125EC-927
