change wheel INFINITI FX35 2005 Service Manual

QUICK REFERENCE CHART M35/M45
REAR WHEEL ALIGNMENT (Unladen*)
ELS0003Y
* : Fuel, engine coolant and engine oil full. Spare tire, jack, hand tools and mats in designated positions.
BRAKEELS0003Z
* : Under force of 490 N (50 kg, 110 lb) with engine running.
REFILL CAPACITIESELS00040
Camber
Degree minute (Decimal degree)Minimum – 1° 18′ (– 1.30°)
Nominal – 0° 48′ (– 0.80°)
Maximum – 0° 18′ (– 0.30°)
Total toe-inDistance ( A – B ) Minimum 2.4 mm (0.094 in)
Nominal 4.7 mm (0.185 in)
Maximum 7.0 mm (0.276 in)
Angle (left plus right )
Degree minute (Degree)Minimum 0° 05′ (0.08°)
Nominal 0° 10′ (0.17°)
Maximum 0° 15′ (0.25°)
Front brake Pad wear limit 2.0 mm (0.079 in)
Rotor repair limit 26.0 mm (1.024 in)
Rear brake Pad wear limit 2.0 mm (0.079 in)
Rotor repair limit 14.0 mm (0.551 in)
Pedal free height 161.5 - 171.5 mm (6.358 - 6.752 in)
Pedal depressed height* More than 80 mm (3.15 in)
UNITLiter US measure
Fuel tank90 23 - 3/4 gal
Coolant ( With reservoir tank )VQ35DE 8.6 9 - 1/8 qt
VK45DE 10.0 10 - 5/8 qt
Engine(VQ35DE)Drain and refill
With oil filter change 4.7 5 qt
Without oil filter change 4.4 4 - 5/8 qt
Dry engine (Overhaul) 5.4 5 - 3/4 qt
Engine(VK45DE)Drain and refill
With oil filter change 6.4 6 - 3/4 qt
Without oil filter change 5.8 6 - 1/8 qt
Dry engine (Overhaul) 7.2 7 - 5/8 qt
Transmission A/T 10.3 10 - 7/8 qt
Transfer1.25 2 - 5/8 pt
Differential carrierFront 0.65 1 - 3/8 pt
Rear 1.4 3 pt
Power steering system 1.0 1 - 1/8 qt
Air conditioning systemCompressor oil 0.18 6.0 fl oz
Refrigerant 0.55 kg 1.21 lb
2005

ACS-8
[ICC]
DESCRIPTION
Revision: 2005 July 2005 FX

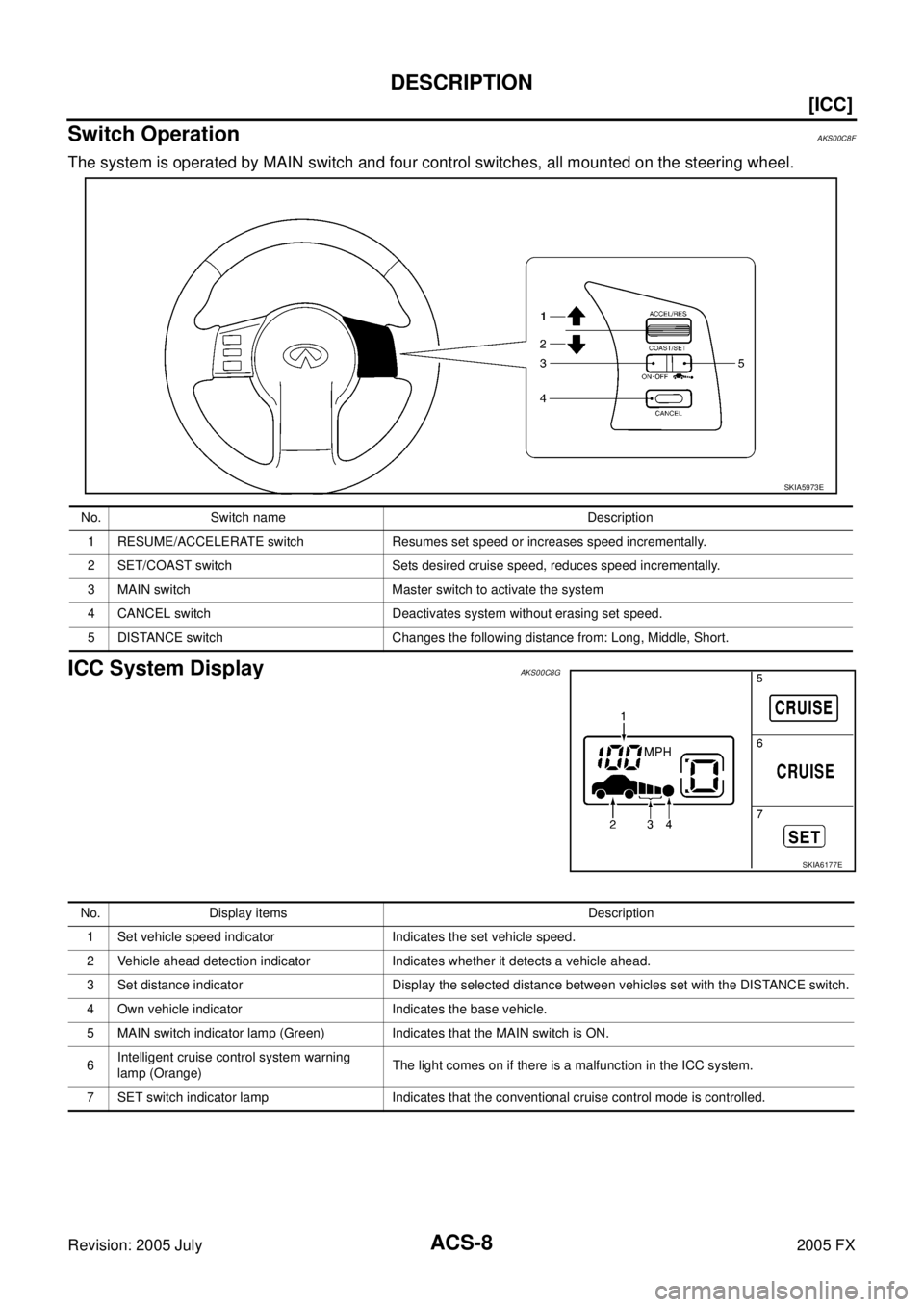

Switch OperationAKS00C8F
The system is operated by MAIN switch and four control switches, all mounted on the steering wheel.
ICC System DisplayAKS00C8G
No. Switch name Description
1 RESUME/ACCELERATE switch Resumes set speed or increases speed incrementally.
2 SET/COAST switch Sets desired cruise speed, reduces speed incrementally.
3 MAIN switch Master switch to activate the system
4 CANCEL switch Deactivates system without erasing set speed.
5 DISTANCE switch Changes the following distance from: Long, Middle, Short.
SKIA5973E
SKIA6177E
No. Display items Description 1 Set vehicle speed indicator Indicates the set vehicle speed.
2 Vehicle ahead detection indicator Indicates whether it detects a vehicle ahead.
3 Set distance indicator Display the selected distance between vehicles set with the DISTANCE switch.
4 Own vehicle indicator Indicates the base vehicle.
5 MAIN switch indicator lamp (Green) Indicates that the MAIN switch is ON.
6 Intelligent cruise control system warning
lamp (Orange) The light comes on if there is a malfunction in the ICC system.
7 SET switch indicator lamp Indicates that the conventional cruise control mode is controlled.

AV-1
AUDIO VISUAL, NAVIGATION & TELEPHONE SYS- TEM
K ELECTRICAL
CONTENTS
C
D E
F
G H
I
J
L
M
SECTION AV
A
B
AV
Revision: 2005 July 2005 FX
AUDIO VISUAL, NAVIGATION & TELEPHONE SYSTEM
PRECAUTIONS .......................................................... 5
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 5
PREPARATION ...................................................... ..... 6
Commercial Service Tools ................................... ..... 6
AUDIO .................................................................... ..... 7
Component Parts and Harness Connector Location ..... 7
System Description ............................................. ..... 8
BASE SYSTEM ................................................ ..... 8
BOSE SYSTEM ............................................... ..... 8
SPEED SENSITIVE VOLUME SYSTEM ......... ..... 9
Schematic - Base System - ................................. ... 10
Wiring Diagram - AUDIO - / Base System .......... .... 11
Schematic - BOSE System - With Navigation Sys-
tem ...................................................................... ... 16
Wiring Diagram – AUDIO – / BOSE System With
Navigation System .............................................. ... 17
Schematic - BOSE System - Without Navigation
System ................................................................ ... 25
Wiring Diagram – AUDIO – / BOSE System Without
Navigation System .............................................. ... 26
Terminals and Reference Value for Audio Unit .... ... 33
Terminals and Reference Value for BOSE Speaker
Amp. .................................................................... ... 34
Terminals and Reference Value for A/C and AV
Switch .................................................................. ... 36
Terminals and Reference Value for Woofer ......... ... 37
A/C and AV Switch Self-Diagnosis Function ....... ... 37
STARTING THE SELF-DIAGNOSIS MODE .... ... 37
EXITING THE SELF-DIAGNOSIS MODE ........ ... 37
DIAGNOSIS FUNCTION .................................. ... 37
Trouble Diagnosis ............................................... ... 38
MALFUNCTION WITH RADIO, TAPE AND CD ... 38
FOR RADIO ONLY ........................................... ... 39
FOR CASSETTE PLAYER ONLY .................... ... 39
FOR CD ONLY ................................................. ... 39
Noise Inspection .................................................. ... 40
TYPE OF NOISE AND POSSIBLE CAUSE ..... ... 40
Power Supply Circuit Inspection ......................... ... 41 Audio Steering Wheel Switch Inspection .............
... 42
A/C and AV Switch Inspection ............................. ... 44
BOSE Speaker Amp. Inspection ......................... ... 44
Vehicle Speed Signal Inspection ......................... ... 45
Locking CD Auto-Changer Mechanism ............... ... 46
DAMPER LOCK PROCEDURE ....................... ... 46
Removal and Installation of Audio Unit ................ ... 47
REMOVAL ........................................................ ... 47
INSTALLATION ................................................ ... 47
Disassembly and Assembly for Audio Unit .......... ... 47
DISASSEMBLY ................................................ ... 47
ASSEMBLY ...................................................... ... 47
Removal and Installation for A/C and AV Switch . ... 48
REMOVAL ........................................................ ... 48
INSTALLATION ................................................ ... 48
Removal and Installation for Front Door Speaker ... 48
REMOVAL ........................................................ ... 48
INSTALLATION ................................................ ... 48
Removal and Installation for Rear Door Speaker ... 49 REMOVAL ........................................................ ... 49
INSTALLATION ................................................ ... 49
Removal and Installation for Instrument Speaker ... 49 REMOVAL ........................................................ ... 49
INSTALLATION ................................................ ... 49
Removal and Installation for Tweeter .................. ... 49
REMOVAL ........................................................ ... 49
INSTALLATION ................................................ ... 49
Removal and Installation for Woofer (BOSE Sys-
tem) ..................................................................... ... 50
REMOVAL ........................................................ ... 50
INSTALLATION ................................................ ... 50
Removal and Installation for BOSE Speaker Amp. ... 50
REMOVAL ........................................................ ... 50
INSTALLATION ................................................ ... 50
AUDIO ANTENNA ................................................. ... 51
System Description .............................................. ... 51
Wiring Diagram — M/ANT — .............................. ... 52
Terminals and Reference Value for Audio Unit .... ... 53
Antenna Amp. Inspection .................................... ... 53
Location of Antenna ............................................. ... 54

AV-8
AUDIO
Revision: 2005 July 2005 FX
System DescriptionAKS005T3
BASE SYSTEM
Refer to Owner's Manual for audio system operating instructions.
Power is supplied at all times

through 15A fuse (No. 32, located in the fuse and fusible link block)

to audio unit terminal 6

to A/C and AV switch terminal 1

to display unit terminal 1 and

to option connector–2 for satellite radio receiver terminal 12.
With the ignition switch in the ACC or ON position, power is supplied

through 10A fuse [No. 6, located in the fuse block (J/B)]

to audio unit terminal 10

to A/C and AV switch terminal 2

to display unit terminal 2 and

to option connector–2 for satellite radio receiver terminal 11.
Ground is supplied through the case of the audio unit.
Ground is also supplied

to A/C and AV switch terminal 5 and

to display unit terminal 6 and 15

through body ground M35, M45 and M85,

to option connector–2 for satellite radio receiver terminal 10

through body ground B203 and B210.
Audio unit, A/C and audio controller are connected by FPC (Flexible Print Circuit).
A/C and audio controller integrates A/C switches and audio switches.
When A/C and audio controller is pushed to audio switch, it sends audio signal to audio unit. Then audio sig-
nals are supplied

through audio unit terminals 1, 2, 3, 4, 13, 14, 15, and 16

to terminals 1 and 2 of front door speaker LH and RH

to terminals 1 and 2 of rear door speaker LH and RH and

to terminals 1 and 2 of instrument speaker LH and RH.
When one of audio steering wheel switch is pushed to volume up, seek up, or mode ON, resistance in steering
switch circuit changes depending on which button is pushed.
When one of audio steering wheel switch is pushed to volume down, seek down, or power ON, resistance in
audio steering wheel switch circuit changes depending on which button is pushed.
BOSE SYSTEM
Refer to Owner's Manual for audio system operating instructions.
Power is supplied at all times

through 15A fuse (No. 32, located in the fuse and fusible link block)

to audio unit terminal 6

to woofer terminal 1

to A/C and AV switch terminal 1

to display control unit terminal 1 (with navigation system) or display unit terminal 1 (without navigation sys-
tem) and

to option connector–2 for satellite radio receiver terminal 12

through 20A fuse [No.17, located in the fuse block (J/B)]

to BOSE speaker amp. terminal 1.
With the ignition switch in the ACC or ON position, power is supplied

through 10A fuse [No. 6, located in the fuse block (J/B)]

to audio unit terminal 10

to A/C and AV switch terminal 2

AUDIO AV-9
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2005 July 2005 FX

to display control unit terminal 10 (with navigation system) or display unit terminal 2 (without navigation
system) and

to option connector–2 for satellite radio receiver terminal 11.
Ground is supplied through the case of the audio unit.
Ground is also supplied

to BOSE speaker amp. terminal 17

to woofer terminal 2 and

to option connector–2 for satellite radio receiver terminal 10

through body ground B203 and B210,

to A/C and AV switch terminal 5

to display control unit terminal 3 and 13 (with navigation system)

to display terminal 1 (with navigation system) and

to display unit terminal 6 and 15 (without navigation system)

through body ground M35, M45 and M85.
Audio unit, A/C and audio controller are connected by FPC (Flexible Print Circuit).
A/C and audio controller integrates A/C switches and audio switches.
When A/C and audio controller is pushed to audio switch, it send audio signal to audio unit.
Then audio signals are supplied

through audio unit terminals 1, 2, 3, 4, 13, 14, 15, and 16

to BOSE speaker amp. terminals 23, 24, 25, 26, 27, 28, 29, and 30.
Audio signals are amplified by the BOSE speaker amp.
The amplified audio signals are supplied

through BOSE speaker amp. terminals 2, 3, 4, 9,10,11,12, 13, 14, 15, 16, 18, 19 and 20

to terminals 1 and 2 of front door speaker LH and RH

to terminals 1 and 2 of rear door speaker LH and RH

to terminals 1 and 2 of tweeter LH and RH

to terminals 1 and 2 of instrument speaker LH, RH, and CENTER, and

to terminals 7 and 8 of woofer.
When one of audio steering wheel switch is pushed to volume up, seek up, or mode ON, resistance in audio
steering wheel switch circuit changes depending on which button is pushed.
When one of audio steering wheel switch is pushed to volume down, seek down, or power ON, resistance in
audio steering wheel switch circuit changes depending on which button is pushed.
SPEED SENSITIVE VOLUME SYSTEM
Volume level of this system gone up and down automatically in proportion to the vehicle speed. And the con-
trol level can be selected by the customer.

AV-36
AUDIO
Revision: 2005 July 2005 FX
Terminals and Reference Value for A/C and AV SwitchAKS00A2B
Terminal No.
(Wire color) Item Signal
input/
output Condition
Voltage Example of
symptom
+– Ignition
switch Operation
1 (W/L) Ground Battery power
supply Input OFF — Battery voltage System does not
work properly.
2 (LG/R) Ground ACC power
supply Input ACC — Battery voltage System does not
work properly.
3 (R/L) Ground Illumination
signal Input OFF Lighting switch is
ON (position 1). Approx. 12 V
A/C and AV
switch illumina-
tion does not
come on when
lighting switch is
ON (position 1).
Turn lighting switch
OFF. Approx. 0 V
4 (R/Y) Ground Illumination
control signal Output ON Illumination control
switch is operated
by lighting switch in 1st or 2nd position. Changes between approx.0 V
and approx.12 V Audio unit illumi-
nation can not be
controlled.
5 (B) Ground Ground — ON — Approx. 0 V —
6 (B/R) Ground Communica-
tion signal (+) Input/
Output ON — System does not
work properly.
7 — Shield — — — — —
8 (W/R) Ground Communica-
tion signal (–) Input/
Output ON —
System does not
work properly.
12 (R/G) Ground Steering SW
A Input ON Press MODE switch. Approx. 0 V
Steering wheel
audio controls do
not function
Press SEEK UP
switch. Approx. 1.7 V
Press VOL UP
switch. Approx. 3.3 V
Except for above Approx. 5 V
13 (G/W) Ground Steering SW
B Input ON Press POWER
switch. Approx. 0 V
Steering wheel
audio controls do
not function
Press SEEK DOWN
switch. Approx. 1.7 V
Press VOL DOWN
switch. Approx. 3.3 V
Except for above Approx. 5 V
14 (B/Y) — Steering SW
ground —— — — Steering wheel
audio controls do
not function.
SKIA0175E
SKIA0176E

AV-60
INTEGRATED DISPLAY SYSTEM
Revision: 2005 July 2005 FX
SETTING SCREEN

Setting of electric status can be changed by A/C and AV switch. The signal is sent to BCM through display
unit to change vehicle electric system setting.

Display unit is communicating with driver seat control unit.

Pressing “SETTING” switch once cycles display from DISPLAY →LANGUAGE →BEEP SET →SERVICE
ALERT →PERSONALIZED SETTINGS MENU →DISPLAY OFF →DISPLAY.

Using the joystick, setting of each item will become possible.
Adjustable Vehicle Status
NOTE:
Setting in factory shipment is ON. Setting items
Setting
variations Initial
setting Operation
DISPLAY ON/OFF ON It switches displayed/Non-displayed of the screen.
LANGUAGE ENGLISH/
FRANCAIS – It switches displayed language.
BEEP SET ON/OFF ON It selects beep sound ON/OFF during switch operation. How-
ever, even if beep is set OFF, beep for NO OPERATION and
for screen interception are not reset.
SERVICE ALERT ON/OFF OFF It switches displayed/Non-displayed of alert indication.

When the setting is ON, if engine oil or tire rotation will be
replace distance, alert is displayed.

When the setting is OFF, alert is not displayed.
PERSONALIZED
SETTING MENU SLIDE BACK DR
SEAT ON EXIT ON/OFF
ON
NOTEThe driver’s seat automatically moves back and returns to the
original position for exceptional ease of exit and entry. (Models
with automatic drive positioner.)
LIFT STEERING
WHEEL ON EXIT ON/OFF
ON
NOTEThe steering column automatically tilts up and returns to the
original position for exceptional ease of entry and exit. (Models
with automatic drive positioner.)
REMOTE UNLOCK
DOOR LOGIC DR-1ST/ALL DR-1ST This key can switch the unlock doors of the 1st unlocking oper-
ation as follows:

Only the driver side door ⇔All the doors
HORN CHIRP
WITH REMOTE ON/OFF ON This key changes the horn chirp mode occurring when pressing
the LOCK button on the keyfob.
LAMPS FLASH
WITH REMOTE ALL/LOCK/
UNLOCK/OFF ALLThis key changes the hazard indicator flash mode occurring
when pressing the LOCK or UNLOCK button on the keyfob.
AUTO RE-LOCK
TIME 5m/1m/OFF 1m The length of auto door re-lock time can be set. Select the
“Auto Re-Lock timer” key, then move the joystick to adjust the
time.
AUTO HEADLAMP
SENSITIVITY LEVEL 1/2/3/4 LEVEL 2 Automatic light illumination can be set as desired. Select the
“Auto Headlamp Sensitivity” key, then move the joystick to the
left (lower) or right (higher).
AUTO HEADLAMP
OFF DELAY OFF/30/45/60/
90/120/150/ 180 SEC 45 SEC This key can control how long it takes the automatic turn off
timer to extinguish the headlamps in “AUTO” position. Select
the “Auto Headlamp Off Delay” key, then move the joystick to
the left or right to adjust the timer.
SPEED SENSING
WIPER INTERVAL ON/OFF ON This key turns on and off the driving speed dependent intermit-
tent wiper function.
CONFIRM RESET
SETTINGS YES/NO NO When this key is selected and turned on using the “ENTER”
button, all settings mode by PERSONALIZED SETTINGS will
return to the initial conditions.

AV-74
INTEGRATED DISPLAY SYSTEM
Revision: 2005 July 2005 FX
On Board Self-Diagnosis FunctionAKS005U8
DESCRIPTION

Diagnosis function consists of the self-diagnosis mode performed automatically.

Self-diagnosis mode checks for connections between the units constituting this system, analyzes each
individual unit at the same time, and displays the results on the LCD screen.
DIAGNOSIS ITEM
Self-Diagnosis ModeAKS005U9
OPERATION PROCEDURES
1. Start the engine.
2. Turn the audio system off.
3. While pressing the “MUTE/ II ” switch, turn the volume control
dial clockwise or counterclockwise for 30 clicks or more. (When
the self-diagnosis mode is started, a short beep will be heard.)
4. Display unit connection check screen.
5. Select each connecting unit (CHANGER, SATELLITE RADIO).
13 (G/W) Ground Steering SW
B Input ON Press POWER
switch. Approx. 0 V
Audio steering
wheel switches
do not function.
Press SEEK
DOWN switch. Approx. 1.7 V
Press VOL DOWN
switch. Approx. 3.3 V
Except for above Approx. 5 V
14 (B/Y) — Steering SW
ground —— — — Audio steering
wheel switches
do not function.
Terminal No.
(Wire color) Item Signal
input/
output Condition
Voltage Example of
symptom
+– Ignition
switch Operation
Mode Item Description Reference page
Self-diagnosis NETWORK CHECK
Check network between control unit and switch connected
from display unit via communication line. AV-75, "
NETWORK CHECK"
PARTS CHECK
Perform diagnosis and setting of display unit.

Perform self-diagnosis for auto air conditioner system. AV- 7 5 , "PARTS CHECK"
VERSION CHECK Displays version of each unit.
AV- 7 6 , "VERSION CHECK"
CAN DIAG MNTR Display unit displays CAN communication status. AV- 7 6 , "CAN DIAG MNTR
(CAN DIAG MONITOR)"
PKIB4131E
SKIA5921E

AV-88
NAVIGATION SYSTEM
Revision: 2005 July 2005 FX

In map-matching, alternative routes to reach the destination will
be shown and prioritized, after the road on which the vehicle is
currently driven has been judged and the current-location mark
has been repositioned.
If there is an error in distance and/or direction, the alternative
routes will be shown in different order of priority, and the wrong
road can be avoided.
If two roads are running in parallel, they are of the same priority.
Therefore, the current-location mark may appear on either of
them alternately, depending on maneuvering of the steering
wheel and configuration of the road.

Map-matching does not function correctly when the road on
which the vehicle is driving is new and not recorded in the map
DVD-ROM, or when the road pattern stored in the map data and
the actual road pattern are different due to repair.
When driving on a road not present in the map, the map-match-
ing function may find another road and position the current-loca-
tion mark on it. Then, when the correct road is detected, the
current-location mark may leap to it.

Effective range for comparing the vehicle position and travel
direction calculated by the distance and direction with the road
data read from the map DVD-ROM is limited. Therefore, when
there is an excessive gap between the current vehicle position
and the position on the map, correction by map-matching is not possible.
GPS (GLOBAL POSITIONING SYSTEM)
GPS (Global Positioning System) has been developed and con-
trolled by the US Department of Defense. The system utilizes GPS
satellite (NAVSTAR), sending out radio waves while flying on an orbit
around the earth at the height of approx. 21,000 km (13,000 miles).
The GPS receiver calculates the vehicle's position in three dimen-
sions (latitude/longitude/altitude) according to the time lag of the
radio waves received from four or more GPS satellites (three-dimen-
sional positioning). If radio waves were received only from three
GPS satellites, the GPS receiver calculates the vehicle's position in
two dimensions (latitude/longitude), utilizing the altitude data calcu-
lated previously by using radio waves from four or more GPS satel-
lites (two–dimensional positioning).
Accuracy of the GPS will deteriorate under the following conditions.

In two–dimensional positioning, the GPS accuracy will deteriorate when the altitude of the vehicle position
changes.

There may be an error of approximately 10 m (30 ft) in position detected by three-dimensional positioning,
which is more accurate than two–dimensional positioning. The accuracy can be even lower depending on
the arrangement of the GPS satellites utilized for the positioning.

Position detection is not possible when the vehicle is in an area where radio waves from the GPS satellite
do not reach, such as in a tunnel, parking lot in a building, and under an elevated highway. Radio waves
from the GPS satellites may not be received when some object is located over the GPS antenna.

Position correction by GPS is not available while the vehicle is stopped.
SEL686V
SKIA0613E
SEL526V

AV-128
NAVIGATION SYSTEM
Revision: 2005 July 2005 FX
On Board Self-Diagnosis FunctionAKS007IZ
DESCRIPTION

Diagnosis function consists of the self-diagnosis mode performed automatically and the CONFIRMATION/
ADJUSTMENT mode operated manually.

Self-diagnosis mode checks for connections between the units constituting this system, analyzes each
individual unit at the same time, and displays the results on the LCD screen.

CONFIRMATION/ADJUSTMENT mode is used to perform trouble diagnosis that require operation and
judgment by an operator (malfunction that cannot be automatically judged by the system), to check/
change the set value, and to display the History of Errors of the navigation system.
DIAGNOSIS ITEM
NOTE:
Make the status that is set by D/N function be shown. Mode Description
Self-diagnosis (DCU) Display control unit diagnosis
Self-diagnosis (NAVI)

NAVI Control unit diagnosis (DVD-ROM drive will not be diagnosed
when no map DVD-ROM is in it.)

Analyzes connection between the NAVI control unit and the GPS
antenna connection between the NAVI control unit and each unit, and
operation of each unit.
Confirmation/
Adjustment Display diagnosis
On display control unit mode, color tone and shading of the screen can be
checked by the display of a color bar and a gray scale.
Vehicle signals On display control unit mode, analyzes the following vehicle signals: Vehi-
cle speed signal, light signal
NOTE , ignition switch signal, and reverse sig-
nal.
Auto Climate Control A/C self-diagnosis of A/C system.
Navigation Display diagnosis
On NAVI C/U mode, color tone and shading of the screen can be checked
by the display of a color bar and a gray scale.
Vehicle signals On NAVI C/U mode, analyzes the following vehicle signals: Vehicle speed
signal, light signal, ignition switch signal, and reverse signal.
History of Errors Diagnosis results previously stored in the memory (before turning ignition
switch ON) are displayed in this mode. Time and location when/where the
errors occurred are also displayed.
Navigation Display Longi-
tude & Latitude Display the map. Use the joystick to adjust position. Longitude and latitude
will be displayed.
Speed
Calibration Under ordinary conditions, the navigation system distance measuring
function will automatically compensate for minute decreases in wheel and
tire diameter caused by tire wear or low -pressure. Speed calibration
immediately restores system accuracy in cases such as when distance
calibration is needed because of the use of tire chains in inclement
weather.
Angle
adjustment Corrects difference between actual turning angle of a vehicle and turning
angle of the car mark on the display.
Initialize
Location This mode is for initializing the current location. Use when the vehicle is
transported a long distance on a trailer, etc.
CAN DIAG SUPPOPT MONITOR Display status of CAN communication.
