DTC P0603 ECM POWER SUPPLY EC-477
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
DTC P0603 ECM POWER SUPPLYPFP:23710
Component DescriptionNBS003TI
Battery voltage is supplied to the ECM even when the ignition switch
is turned OFF for the ECM memory function of the DTC memory, the
air-fuel ratio feedback compensation value memory, the idle air vol-
ume learning value memory, etc.
On Board Diagnosis LogicNBS003TJ
DTC Confirmation ProcedureNBS003TK
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
5. Repeat steps 3 and 4 for four times.
6. If 1st trip DTC is detected, go to EC-479, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
PBIB1164E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0603
0603 ECM power supply cir-
cuit ECM back-up RAM system does not function
properly.

Harness or connectors
[ECM power supply (back-up) circuit is
open or shorted.]

ECM
SEF058Y

EC-478
[VQ35DE]
DTC P0603 ECM POWER SUPPLY
Revision: 2006 December 2006 FX35/FX45
Wiring DiagramNBS003TL
TBWM1393E

DTC P0603 ECM POWER SUPPLY EC-479
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS003TM
1. CHECK ECM POWER SUPPLY
1. Turn ignition switch OFF.

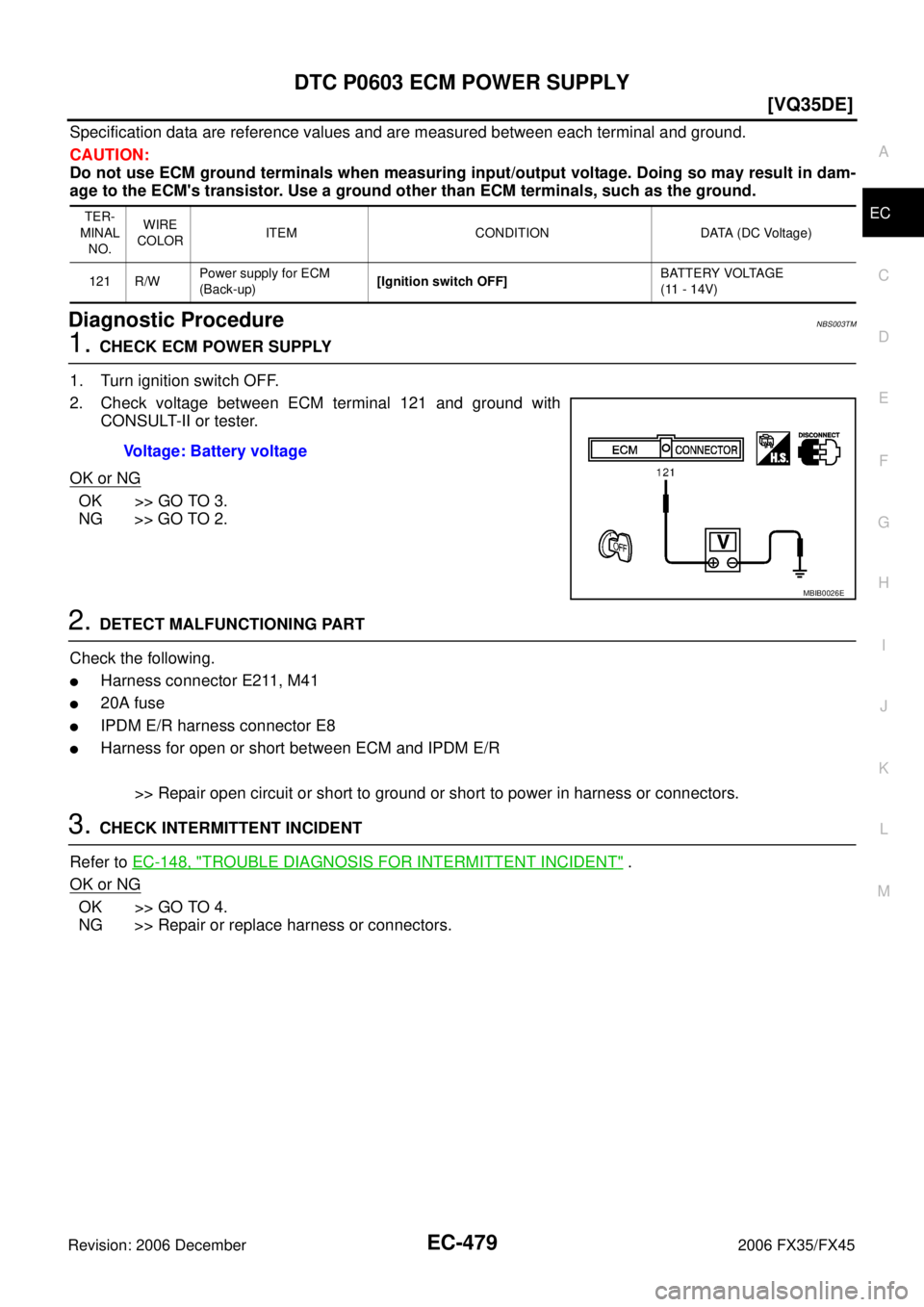

2. Check voltage between ECM terminal 121 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.

Harness connector E211, M41

20A fuse

IPDM E/R harness connector E8

Harness for open or short between ECM and IPDM E/R
>> Repair open circuit or short to ground or short to power in harness or connectors.
3. CHECK INTERMITTENT INCIDENT
Refer to EC-148, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 4.
NG >> Repair or replace harness or connectors.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
121 R/W Power supply for ECM
(Back-up) [Ignition switch OFF] BATTERY VOLTAGE
(11 - 14V)
Voltage: Battery voltage
MBIB0026E

EC-480
[VQ35DE]
DTC P0603 ECM POWER SUPPLY
Revision: 2006 December 2006 FX35/FX45
4. PERFORM DTC CONFIRMATION PROCEDURE
With CONSULT-II
1. Turn ignition switch ON.
2. Select “SELF DIAG RESULTS” mode with CONSULT-II.
3. Touch “ERASE”.
4. Perform DTC Confirmation Procedure.
See EC-477, "
DTC Confirmation Procedure" .
5. Is the 1st trip DTC P0603 displayed again?
With GST
1. Turn ignition switch ON.
2. Select Service $04 with GST.
3. Perform DTC Confirmation Procedure.
See EC-477, "
DTC Confirmation Procedure" .
4. Is the 1st trip DTC P0603 displayed again?
Ye s o r N o
Yes >> GO TO 5.
No >> INSPECTION END
5. REPLACE ECM
1. Replace ECM.
2. Perform initialization of IVIS(NATS) system and registration of all IVIS(NATS) ignition key IDs. Refer to BL-207, "
ECM Re-Communicating Function" .
3. Perform EC-83, "
VIN Registration" .
4. Perform EC-84, "
Accelerator Pedal Released Position Learning" .
5. Perform EC-84, "
Throttle Valve Closed Position Learning" .
6. Perform EC-84, "
Idle Air Volume Learning" .
>> INSPECTION END

DTC P0605 ECM EC-481
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
DTC P0605 ECMPFP:23710
Component DescriptionNBS003T6
The ECM consists of a microcomputer and connectors for signal
input and output and for power supply. The ECM controls the engine.
On Board Diagnosis LogicNBS003T7
This self-diagnosis has one or two trip detection logic.
FAIL-SAFE MODE
ECM enters fail-safe mode when the malfunction A is detected.
DTC Confirmation ProcedureNBS003T8
Perform “PROCEDURE FOR MALFUNCTION A” first. If the 1st trip DTC cannot be confirmed, perform
PROCEDURE FOR MALFUNCTION B. If there is no malfunction on PROCEDURE FOR MALFUNCTION
B, perform PROCEDURE FOR MALFUNCTION C.
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
PROCEDURE FOR MALFUNCTION A
With CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. If 1st trip DTC is detected, go to EC-482, "
Diagnostic Procedure"
.
With GST
Follow the procedure “With CONSULT-II” above.
PBIB1164E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0605
0605 Engine control module A) ECM calculation function is malfunctioning.

ECM
B) ECM EEP-ROM system is malfunctioning.
C) ECM self shut-off function is malfunctioning.
Detected items Engine operation condition in fail-safe mode
Malfunction A

ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5
degrees) by the return spring.

ECM deactivates ICC operation.

ECM deactivates ASCD operation.
SEF058Y

EC-482
[VQ35DE]
DTC P0605 ECM
Revision: 2006 December 2006 FX35/FX45

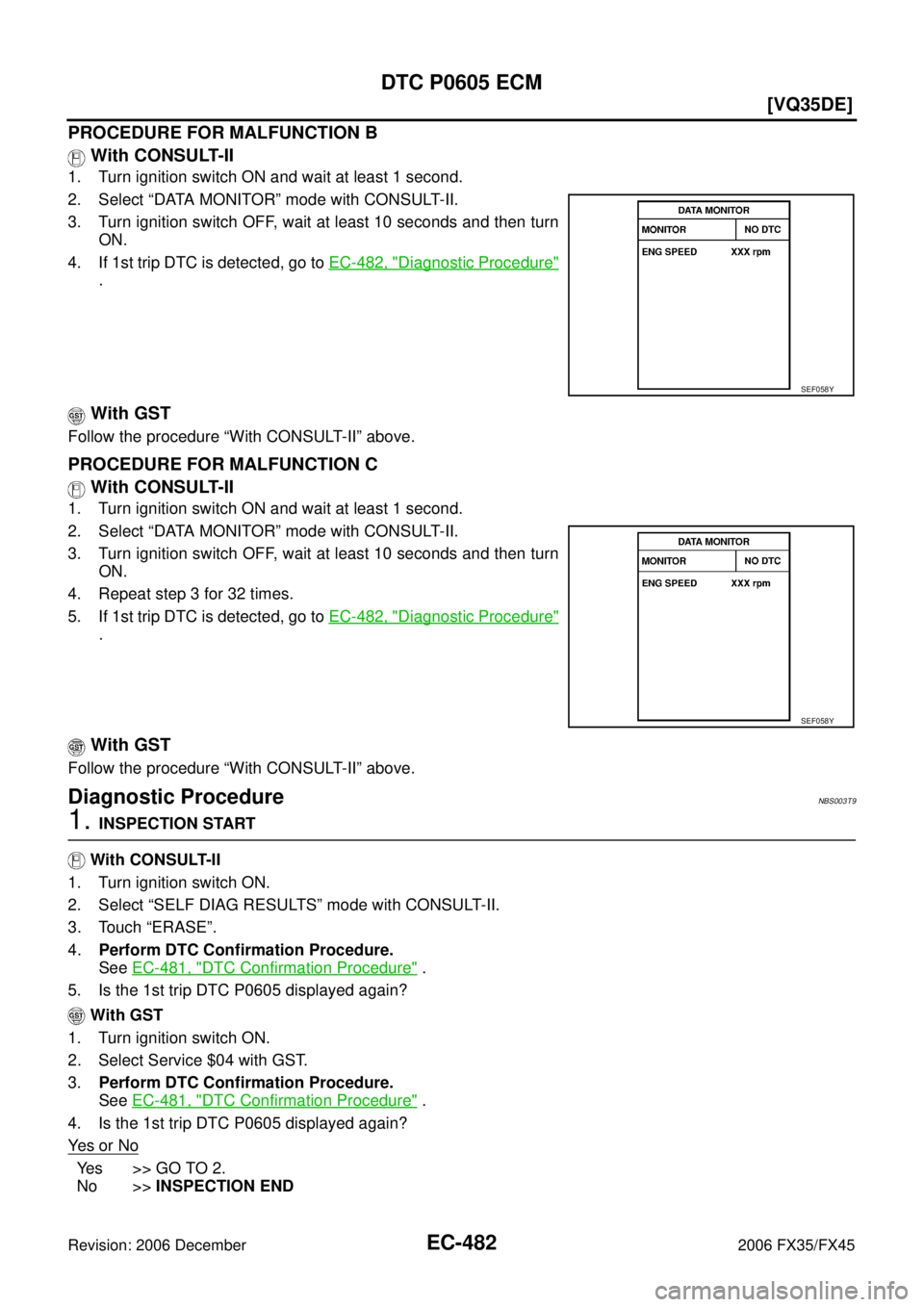

PROCEDURE FOR MALFUNCTION B With CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
4. If 1st trip DTC is detected, go to EC-482, "
Diagnostic Procedure"
.
With GST
Follow the procedure “With CONSULT-II” above.
PROCEDURE FOR MALFUNCTION C
With CONSULT-II
1. Turn ignition switch ON and wait at least 1 second.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
4. Repeat step 3 for 32 times.
5. If 1st trip DTC is detected, go to EC-482, "
Diagnostic Procedure"
.
With GST
Follow the procedure “With CONSULT-II” above.
Diagnostic ProcedureNBS003T9
1. INSPECTION START
With CONSULT-II
1. Turn ignition switch ON.
2. Select “SELF DIAG RESULTS” mode with CONSULT-II.
3. Touch “ERASE”.
4. Perform DTC Confirmation Procedure.
See EC-481, "
DTC Confirmation Procedure" .
5. Is the 1st trip DTC P0605 displayed again?
With GST
1. Turn ignition switch ON.
2. Select Service $04 with GST.
3. Perform DTC Confirmation Procedure.
See EC-481, "
DTC Confirmation Procedure" .
4. Is the 1st trip DTC P0605 displayed again?
Ye s o r N o
Yes >> GO TO 2.
No >> INSPECTION END
SEF058Y
SEF058Y

DTC P0605 ECM EC-483
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
2. REPLACE ECM
1. Replace ECM.
2. Perform initialization of IVIS(NATS) system and registration of all IVIS(NATS) ignition key IDs. Refer to BL-207, "
ECM Re-Communicating Function" .
3. Perform EC-83, "
VIN Registration" .
4. Perform EC-84, "
Accelerator Pedal Released Position Learning" .
5. Perform EC-84, "
Throttle Valve Closed Position Learning" .
6. Perform EC-84, "
Idle Air Volume Learning" .
>> INSPECTION END

EC-484
[VQ35DE]
DTC P0643 SENSOR POWER SUPPLY
Revision: 2006 December 2006 FX35/FX45
DTC P0643 SENSOR POWER SUPPLYPFP:18919
On Board Diagnosis LogicNBS003UZ
This self-diagnosis has the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureNBS003V0
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Start engine and let it idle for 1 second.
4. If DTC is detected, go to EC-487, "
Diagnostic Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-II” above.
DTC No. Trouble diagnosis
name DTC detecting condition Possible cause
P0643
0643 Sensor power supply
circuit short ECM detects a voltage of power source for
sensor is excessively low or high.

Harness or connectors
(APP sensor 1 circuit is shorted.)
(PSP sensor circuit is shorted.)
(Refrigerant pressure sensor circuit is
shorted.)
(EVAP control system pressure sensor circuit
is shorted.)

Accelerator pedal position sensor
(APP sensor 1)

EVAP control system pressure sensor

Power steering pressure sensor

Refrigerant pressure sensor
Engine operation condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) b y the return
spring.
SEF058Y

DTC P0643 SENSOR POWER SUPPLY EC-485
[VQ35DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Wiring DiagramNBS003V1
TBWM1400E

EC-486
[VQ35DE]
DTC P0643 SENSOR POWER SUPPLY
Revision: 2006 December 2006 FX35/FX45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TER-
MINAL NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
48 LG Sensor power supply
(EVAP control system pres-
sure sensor) [Ignition switch: ON]
Approximately 5V
49 PU Sensor power supply
(Refrigerant pressure sen-
sor) [Ignition switch: ON]
Approximately 5V
68 BR Sensor power supply
(Power steering pressure
sensor) [Ignition switch: ON]
Approximately 5V
82 B/W Sensor ground
(APP sensor 1, ASCD steer-
ing switch, ICC steering
switch) [Engine is running]

Warm-up condition

Idle speed
Approximately 0V
83 G/OR Sensor ground
(APP sensor 2) [Engine is running]

Warm-up condition

Idle speed
Approximately 0V
90 L/B Sensor power supply
(APP sensor 1) [Ignition switch: ON]
Approximately 5V
91 G Sensor power supply
(APP sensor 2) [Ignition switch: ON]
Approximately 5V
98 Y/R Accelerator pedal position
sensor 2 [Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully released
0.15 - 0.60V
[Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully depressed 1.95 - 2.40V
106 OR Accelerator pedal position
sensor 1 [Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully released
0.5 - 1.0V
[Ignition switch: ON]

Engine stopped

Accelerator pedal: Fully depressed 3.9 - 4.7V
