diagram INFINITI FX35 2006 Service Manual

POWER SUPPLY AND GROUND CIRCUIT EC-817
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
16. CHECK ECM GROUND CIRCUIT FOR OPEN AND SHORT-II
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminals 1, 115, 116 and ground. Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 18.
NG >> GO TO 17.
17. DETECT MALFUNCTIONING PART
Check the following.

Harness or connectors F102, M82

Harness for open or short between ECM and ground
>> Repair open circuit or short to power in harness or connectors.
18. CHECK INTERMITTENT INCIDENT
Refer to EC-811, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace IPDM E/R. Refer to PG-17, "IPDM E/R (INTELLIGENT POWER DISTRIBUTION MOD-
ULE ENGINE ROOM)" .
NG >> Repair open circuit or short to power in harness or connectors. Continuity should exist.

EC-820
[VK45DE]
DTC U1000, U1001 CAN COMMUNICATION LINE
Revision: 2006 December 2006 FX35/FX45
Wiring DiagramNBS0042M
TBWM1322E

DTC P0011, P0021 IVT CONTROL EC-827
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Wiring DiagramNBS0042S
BANK 1
TBWM1323E

EC-832
[VK45DE]
DTC P0011, P0021 IVT CONTROL
Revision: 2006 December 2006 FX35/FX45
5. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR GROUND CIRCUIT FOR OPEN AND
SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between intake valve timing control position sensor terminal 1 and ground. Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors F102, M82

Harness for open or short between intake valve timing control position sensor and ground
>> Repair open circuit or short to power in harness or connectors.
7. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN
AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between the following; ECM terminal 72 and intake valve timing control position sensor (bank 1) terminal 2 or
ECM terminal 53 and intake valve timing control position sensor (bank 2) terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 8.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
8. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR
Refer to EC-834, "
Component Inspection" .
OK or NG
OK >> GO TO 9.
NG >> Replace intake valve timing control position sensor. Continuity should exist.
Continuity should exist.

DTC P0011, P0021 IVT CONTROL EC-833
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
9. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
1. Reconnect ECM harness connector.
2. Disconnect intake valve timing control solenoid valve harness connector.
3. Turn ignition switch ON.
4. Check voltage between intake valve timing control solenoid valve terminal 2 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 11.
NG >> GO TO 10.
10. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E19, F49

Harness for open or short between intake valve timing control solenoid valve and IPDM E/R.
>> Repair open circuit or short to ground or short to power in harness or connectors.
11 . CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR
OPEN AND SHORT 1. Disconnect ECM harness connector.
2. Check harness continuity between the following; ECM terminal 10 and intake valve timing control solenoid valve (bank 1) terminal 1 or
ECM terminal 11 and intake valve timing control solenoid valve (bank 2) terminal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 12.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
12. CHECK INTAKE VALVE TIMING CONTROL SOLENOID VALVE
Refer to EC-834, "
Component Inspection" .
OK or NG
OK >> GO TO 13.
NG >> Replace intake valve timing control solenoid valve. Voltage: Battery voltage
PBIB1517E
PBIB0192E
Continuity should exist.

DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER EC-837
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45

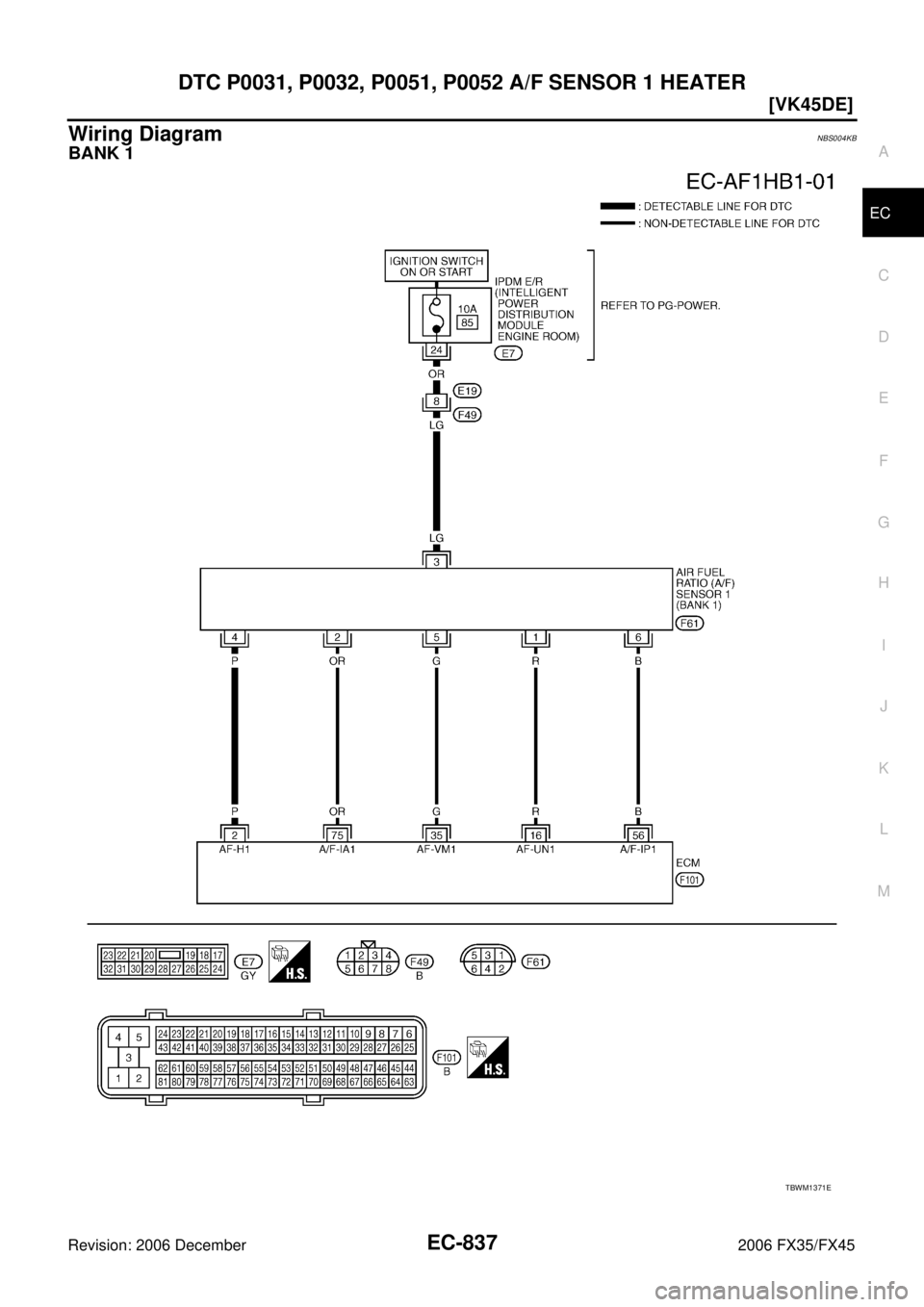

Wiring DiagramNBS004KB
BANK 1
TBWM1371E

DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER EC-841
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
2. CHECK AIR FUEL RATIO (A/F) SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect air fuel ratio (A/F) sensor 1 harness connector.
2. Turn ignition switch ON.
3. Check voltage between A/F sensor 1 terminal 3 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E19, F49

IPDM E/R connector E7

10A fuse

Harness for open or short between A/F sensor 1 and fuse
>> Repair or replace harness or connectors.
4. CHECK A/F SENSOR 1 HEATER OUTPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between the following; ECM terminal 2 and A/F sensor 1 (bank 1) terminal 4 or
ECM terminal 24 and A/F sensor 1 (bank 2) terminal 4.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
: Vehicle front 1. A/F sensor 1 (bank 2)
harness connector 2. A/F sensor 1 (bank 1)
harness connector
Voltage: Battery voltage
PBIB3246E
PBIB1683E
Continuity should exist.

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER EC-845
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
Wiring DiagramNBS00438
BANK 1
TBWM1325E

DTC P0037, P0038, P0057, P0058 HO2S2 HEATER EC-849
[VK45DE]
C
D E
F
G H
I
J
K L
M A
EC
Revision: 2006 December 2006 FX35/FX45
2. CHECK HO2S2 POWER SUPPLY CIRCUIT
1. Disconnect heated oxygen sensor 2 harness connector.
2. Turn ignition switch ON.
3. Check voltage between HO2S2 terminal 2 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.

Harness connectors E19, F49

IPDM E/R connector E7

10A fuse

Harness for open or short between heated oxygen sensor 2 and fuse
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK HO2S2 OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM terminal and HO2S2 terminal as follows. Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
PBIB1534E
Voltage: Battery voltage
PBIB0969E
DTC Te r m i n a l s
Bank
ECM Sensor
P0037, P0038 6 3 1
P0057, P0058 25 3 2
Continuity should exist.

EC-852
[VK45DE]
DTC P0075, P0081 IVT CONTROL SOLENOID VALVE
Revision: 2006 December 2006 FX35/FX45
Wiring DiagramNBS004AH
BANK 1
TBWM1342E
