INFINITI FX35 2006 Service Manual

TROUBLE DIAGNOSIS FOR SYMPTOMS AT-197
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 December 2006 FX35/FX45
5. DETECT MALFUNCTIONING ITEM
1. Disassemble A/T. Refer to AT- 2 9 4 , "
DISASSEMBLY" .
2. Check the following.
–Reverse brake. Refer to AT- 2 9 4 , "DISASSEMBLY" .
OK or NG
OK >> GO TO 9.
NG >> Repair or replace damaged parts.
6. CHECK LINE PRESSURE
Check the line pressure with the engine idling. Refer to AT- 5 4 , "
LINE
PRESSURE TEST" .
OK or NG
OK >> GO TO 9.
NG-1 >> Line pressure high: GO TO 7.
NG-2 >> Line pressure low: GO TO 8.
7. DETECT MALFUNCTIONING ITEM
1. Check control valve with TCM. Refer to AT- 2 3 9 , "
Control Valve with TCM and A/T Fluid Temperature Sen-
sor 2" .
2. Disassemble A/T. Refer to AT- 2 9 4 , "
DISASSEMBLY" .
3. Check the following.
–Oil pump assembly. Refer to AT- 3 1 2 , "Oil Pump" .
OK or NG
OK >> GO TO 9.
NG >> Repair or replace damaged parts.
8. DETECT MALFUNCTIONING ITEM
1. Check control valve with TCM. Refer to AT- 2 3 9 , "
Control Valve with TCM and A/T Fluid Temperature Sen-
sor 2" .
2. Disassemble A/T. Refer to AT- 2 9 4 , "
DISASSEMBLY" .
3. Check the following.
–Oil pump assembly. Refer to AT- 3 1 2 , "Oil Pump" .
–Power train system. Refer to AT- 2 9 4 , "DISASSEMBLY" .
–Transmission case. Refer to AT- 2 9 4 , "DISASSEMBLY" .
OK or NG
OK >> GO TO 9.
NG >> Repair or replace damaged parts.
SAT494G

AT-198
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2006 December 2006 FX35/FX45
9. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 3 9 , "
Control Valve with TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 5 3 , "
A/T Fluid Condition
Check" .
OK or NG
OK >> GO TO 10.
NG >> GO TO 13.
10. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 4 ,
"Symptom Chart" (Symptom No.43).
OK or NG
OK >> GO TO 11.
NG >> Repair or replace damaged parts.
11 . CHECK SYMPTOM
Check again. Refer to AT- 5 7 , "
Check at Idle" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 12.
12. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 8 9 , "
TCM Input/Output Signal Reference Values" .
2. If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
13. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 4 ,
"Symptom Chart" (Symptom No.43).
OK or NG
OK >> GO TO 11.
NG >> Repair or replace damaged parts.
SCIA5199E

TROUBLE DIAGNOSIS FOR SYMPTOMS AT-199
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 December 2006 FX35/FX45

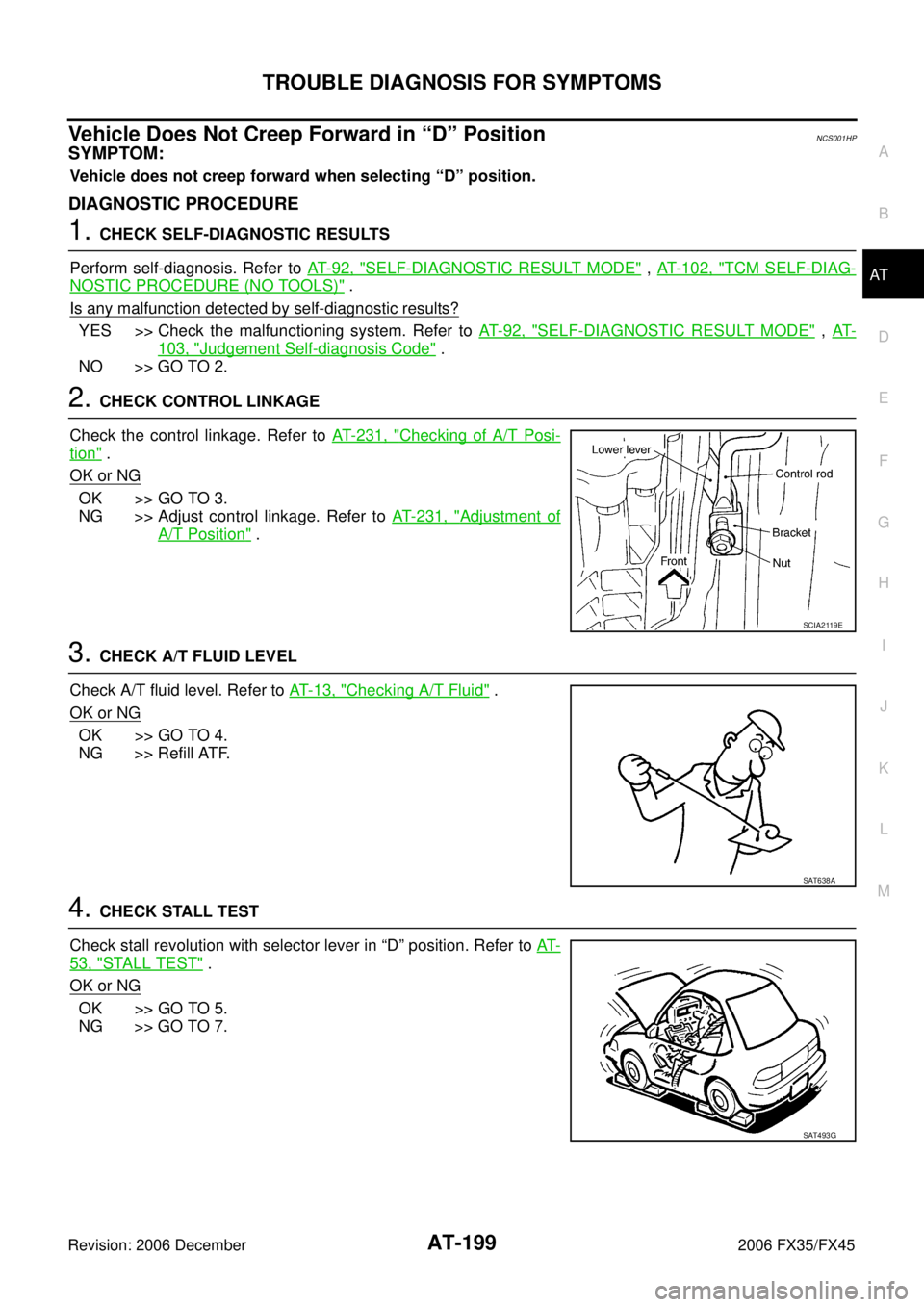

Vehicle Does Not Creep Forward in “D” PositionNCS001HP
SYMPTOM:
Vehicle does not creep forward when selecting “D” position.
DIAGNOSTIC PROCEDURE
1. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to AT- 9 2 , "
SELF-DIAGNOSTIC RESULT MODE" , AT- 1 0 2 , "TCM SELF-DIAG-
NOSTIC PROCEDURE (NO TOOLS)" .
Is any malfunction detected by self-diagnostic results?
YES >> Check the malfunctioning system. Refer to AT- 9 2 , "SELF-DIAGNOSTIC RESULT MODE" , AT-
103, "Judgement Self-diagnosis Code" .
NO >> GO TO 2.
2. CHECK CONTROL LINKAGE
Check the control linkage. Refer to AT- 2 3 1 , "
Checking of A/T Posi-
tion" .
OK or NG
OK >> GO TO 3.
NG >> Adjust control linkage. Refer to AT- 2 3 1 , "
Adjustment of
A/T Position" .
3. CHECK A/T FLUID LEVEL
Check A/T fluid level. Refer to AT- 1 3 , "
Checking A/T Fluid" .
OK or NG
OK >> GO TO 4.
NG >> Refill ATF.
4. CHECK STALL TEST
Check stall revolution with selector lever in “D” position. Refer to AT-
53, "STALL TEST" .
OK or NG
OK >> GO TO 5.
NG >> GO TO 7.
SCIA2119E
SAT638A
SAT493G

AT-200
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2006 December 2006 FX35/FX45
5. CHECK LINE PRESSURE
Check line pressure at idle with selector lever in “D” position. Refer
to AT- 5 4 , "
LINE PRESSURE TEST" .
OK or NG
OK >> GO TO 8.
NG-1 >> Line pressure high: GO TO 6.
NG-2 >> Line pressure low: GO TO 7.
6. DETECT MALFUNCTIONING ITEM
1. Check control valve with TCM. Refer to AT- 2 3 9 , "
Control Valve with TCM and A/T Fluid Temperature Sen-
sor 2" .
2. Disassemble A/T. Refer to AT- 2 9 4 , "
DISASSEMBLY" .
3. Check the following.
–Oil pump assembly. Refer to AT- 3 1 2 , "Oil Pump" .
OK or NG
OK >> GO TO 8.
NG >> Repair or replace damaged parts.
7. DETECT MALFUNCTIONING ITEM
1. Check control valve with TCM. Refer to AT- 2 3 9 , "
Control Valve with TCM and A/T Fluid Temperature Sen-
sor 2" .
2. Disassemble A/T. Refer to AT- 2 9 4 , "
DISASSEMBLY" .
3. Check the following.
–Oil pump assembly. Refer to AT- 3 1 2 , "Oil Pump" .
–Power train system. Refer to AT- 2 9 4 , "DISASSEMBLY" .
–Transmission case. Refer to AT- 2 9 4 , "DISASSEMBLY" .
OK or NG
OK >> GO TO 8.
NG >> Repair or replace damaged parts.
8. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 3 9 , "
Control Valve with TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 5 3 , "
A/T Fluid Condition
Check" .
OK or NG
OK >> GO TO 9.
NG >> GO TO 12.
SAT494G
SCIA5199E

TROUBLE DIAGNOSIS FOR SYMPTOMS AT-201
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 December 2006 FX35/FX45
9. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 4 ,
"Symptom Chart" (Symptom No.43).
OK or NG
OK >> GO TO 10.
NG >> Repair or replace damaged parts.
10. CHECK SYMPTOM
Check again. Refer to AT- 5 7 , "
Check at Idle" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 11.

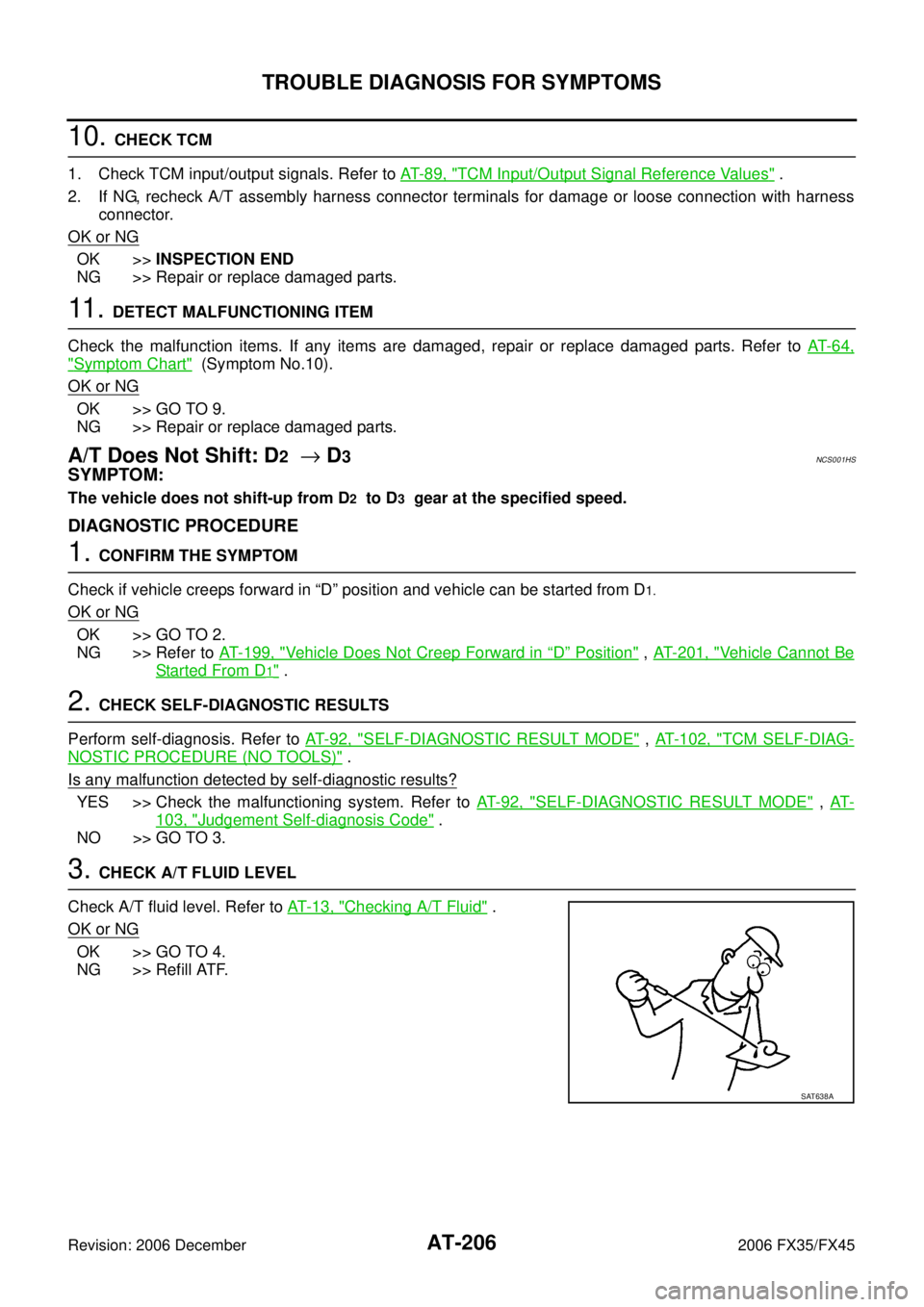

11 . CHECK TCM
1. Check TCM input/output signals. Refer to AT- 8 9 , "
TCM Input/Output Signal Reference Values" .
2. If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
12. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 4 ,
"Symptom Chart" (Symptom No.43).
OK or NG
OK >> GO TO 10.
NG >> Repair or replace damaged parts.
Vehicle Cannot Be Started From D1NCS001HQ
SYMPTOM:
Vehicle cannot be started from D1 on “Cruise Test - Part 1” and “Cruise Test - Part2”.
DIAGNOSTIC PROCEDURE
1. CONFIRM THE SYMPTOM
Check if vehicle creeps in “R” position.
OK or NG
OK >> GO TO 2.
NG >> Refer to AT- 1 9 6 , "
Vehicle Does Not Creep Backward in “R” Position" .
2. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to AT- 9 2 , "
SELF-DIAGNOSTIC RESULT MODE" , AT- 1 0 2 , "TCM SELF-DIAG-
NOSTIC PROCEDURE (NO TOOLS)"
Is any malfunction detected by self-diagnostic results?
YES >> Check the malfunctioning system. Refer to AT- 9 2 , "SELF-DIAGNOSTIC RESULT MODE" , AT-
103, "Judgement Self-diagnosis Code" .
NO >> GO TO 3.

AT-202
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2006 December 2006 FX35/FX45
3. CHECK ACCELERATOR POSITION SENSOR
Check accelerator pedal position sensor. Refer to AT- 1 3 1 , "
DTC P1705 THROTTLE POSITION SENSOR"
OK or NG
OK >> GO TO 4.
NG >> Repair or replace accelerator pedal position sensor.
4. CHECK A/T FLUID LEVEL
Check A/T fluid level. Refer to AT- 1 3 , "
Checking A/T Fluid" .
OK or NG
OK >> GO TO 5.
NG >> Refill ATF.
5. CHECK LINE PRESSURE
Check line pressure at the engine stall point. Refer to AT- 5 4 , "
LINE
PRESSURE TEST" .
OK or NG
OK >> GO TO 8.
NG-1 >> Line pressure high: GO TO 6.
NG-2 >> Line pressure low: GO TO 7.
6. DETECT MALFUNCTIONING ITEM
1. Check control valve with TCM. Refer to AT- 2 3 9 , "
Control Valve with TCM and A/T Fluid Temperature Sen-
sor 2" .
2. Disassemble A/T. Refer to AT- 2 9 4 , "
DISASSEMBLY" .
3. Check the following.
–Oil pump assembly. Refer to AT- 3 1 2 , "Oil Pump" .
OK or NG
OK >> GO TO 8.
NG >> Repair or replace damaged parts.
SAT638A
SAT494G

TROUBLE DIAGNOSIS FOR SYMPTOMS AT-203
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 December 2006 FX35/FX45
7. DETECT MALFUNCTIONING ITEM
1. Check control valve with TCM. Refer to AT- 2 3 9 , "
Control Valve with TCM and A/T Fluid Temperature Sen-
sor 2" .
2. Disassemble A/T. Refer to AT- 2 9 4 , "
DISASSEMBLY" .
3. Check the following.
–Oil pump assembly. Refer to AT- 3 1 2 , "Oil Pump" .
–Power train system. Refer to AT- 2 9 4 , "DISASSEMBLY" .
–Transmission case. Refer to AT- 2 9 4 , "DISASSEMBLY" .
OK or NG
OK >> GO TO 8.
NG >> Repair or replace damaged parts.
8. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 3 9 , "
Control Valve with TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 5 3 , "
A/T Fluid Condition
Check" .
OK or NG
OK >> GO TO 9.
NG >> GO TO 12.
9. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 4 ,
"Symptom Chart" (Symptom No.23).
OK or NG
OK >> GO TO 10.
NG >> Repair or replace damaged parts.
10. CHECK SYMPTOM
Check again. Refer to AT- 5 8 , "
Cruise Test - Part 1" , AT- 6 0 , "Cruise Test - Part 2" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 11.
11 . CHECK TCM
1. Check TCM input/output signals. Refer to AT- 8 9 , "
TCM Input/Output Signal Reference Values" .
2. If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
SCIA5199E

AT-204
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2006 December 2006 FX35/FX45
12. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 4 ,
"Symptom Chart" (Symptom No.23).
OK or NG
OK >> GO TO 10.
NG >> Repair or replace damaged parts.
A/T Does Not Shift: D1 → D2NCS001HR
SYMPTOM:
The vehicle does not shift-up from the D1 to D2 gear at the specified speed.
DIAGNOSTIC PROCEDURE
1. CONFIRM THE SYMPTOM
Check if vehicle creeps forward in “D” position and vehicle can be started from D
1.
OK or NG
OK >> GO TO 2.
NG >> Refer to AT- 1 9 9 , "
Vehicle Does Not Creep Forward in “D” Position" , AT- 2 0 1 , "Vehicle Cannot Be
Started From D1" .
2. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to AT- 9 2 , "
SELF-DIAGNOSTIC RESULT MODE" , AT- 1 0 2 , "TCM SELF-DIAG-
NOSTIC PROCEDURE (NO TOOLS)" .
Is any malfunction detected by self-diagnostic results?
YES >> Check the malfunctioning system. Refer to AT- 9 2 , "SELF-DIAGNOSTIC RESULT MODE" , AT-
103, "Judgement Self-diagnosis Code" .
NO >> GO TO 3.
3. CHECK A/T FLUID LEVEL
Check A/T fluid level. Refer to AT- 1 3 , "
Checking A/T Fluid" .
OK or NG
OK >> GO TO 4.
NG >> Refill ATF.
4. CHECK LINE PRESSURE
Check line pressure at the engine stall point. Refer to AT- 5 4 , "
LINE
PRESSURE TEST" .
OK or NG
OK >> GO TO 7.
NG-1 >> Line pressure high: GO TO 5.
NG-2 >> Line pressure low: GO TO 6.
SAT638A
SAT494G

TROUBLE DIAGNOSIS FOR SYMPTOMS AT-205
D E
F
G H
I
J
K L
M A
B
AT
Revision: 2006 December 2006 FX35/FX45
5. DETECT MALFUNCTIONING ITEM
1. Check control valve with TCM. Refer to AT- 2 3 9 , "
Control Valve with TCM and A/T Fluid Temperature Sen-
sor 2" .
2. Disassemble A/T. Refer to AT- 2 9 4 , "
DISASSEMBLY" .
3. Check the following.
–Oil pump assembly. Refer to AT- 3 1 2 , "Oil Pump" .
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
6. DETECT MALFUNCTIONING ITEM
1. Check control valve with TCM. Refer to AT- 2 3 9 , "
Control Valve with TCM and A/T Fluid Temperature Sen-
sor 2" .
2. Disassemble A/T. Refer to AT- 2 9 4 , "
DISASSEMBLY" .
3. Check the following.
–Oil pump assembly. Refer to AT- 3 1 2 , "Oil Pump" .
–Power train system. Refer to AT- 2 9 4 , "DISASSEMBLY" .
–Transmission case. Refer to AT- 2 9 4 , "DISASSEMBLY" .
OK or NG
OK >> GO TO 7.
NG >> Repair or replace damaged parts.
7. CHECK A/T FLUID CONDITION
1. Remove oil pan. Refer to AT- 2 3 9 , "
Control Valve with TCM and A/T Fluid Temperature Sensor 2" .
2. Check A/T fluid condition. Refer to AT- 5 3 , "
A/T Fluid Condition
Check" .
OK or NG
OK >> GO TO 8.
NG >> GO TO 11.
8. DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 4 ,
"Symptom Chart" (Symptom No.10).
OK or NG
OK >> GO TO 9.
NG >> Repair or replace damaged parts.
9. CHECK SYMPTOM
Check again. Refer to AT- 5 8 , "
Cruise Test - Part 1" , AT- 6 0 , "Cruise Test - Part 2" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 10.
SCIA5199E

AT-206
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2006 December 2006 FX35/FX45
10. CHECK TCM
1. Check TCM input/output signals. Refer to AT- 8 9 , "
TCM Input/Output Signal Reference Values" .
2. If NG, recheck A/T assembly harness connector terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
11 . DETECT MALFUNCTIONING ITEM
Check the malfunction items. If any items are damaged, repair or replace damaged parts. Refer to AT- 6 4 ,
"Symptom Chart" (Symptom No.10).
OK or NG
OK >> GO TO 9.
NG >> Repair or replace damaged parts.
A/T Does Not Shift: D2 → D3NCS001HS
SYMPTOM:
The vehicle does not shift-up from D2 to D3 gear at the specified speed.
DIAGNOSTIC PROCEDURE
1. CONFIRM THE SYMPTOM
Check if vehicle creeps forward in “D” position and vehicle can be started from D
1.
OK or NG
OK >> GO TO 2.
NG >> Refer to AT- 1 9 9 , "
Vehicle Does Not Creep Forward in “D” Position" , AT- 2 0 1 , "Vehicle Cannot Be
Started From D1" .
2. CHECK SELF-DIAGNOSTIC RESULTS
Perform self-diagnosis. Refer to AT- 9 2 , "
SELF-DIAGNOSTIC RESULT MODE" , AT- 1 0 2 , "TCM SELF-DIAG-
NOSTIC PROCEDURE (NO TOOLS)" .
Is any malfunction detected by self-diagnostic results?
YES >> Check the malfunctioning system. Refer to AT- 9 2 , "SELF-DIAGNOSTIC RESULT MODE" , AT-
103, "Judgement Self-diagnosis Code" .
NO >> GO TO 3.
3. CHECK A/T FLUID LEVEL
Check A/T fluid level. Refer to AT- 1 3 , "
Checking A/T Fluid" .
OK or NG
OK >> GO TO 4.
NG >> Refill ATF.
SAT638A
