ALPHABETICAL INDEX
Removal and installation (A/T) ...........
AT-266, AT-269
Removal and installation (Transfer) .................... TF-44
Revolution sensor (A/T) ...................... AT-118, AT-259
Rocker cover(VK45DE) ................................... EM-200
Rocker cover(VQ35DE) ..................................... EM-51
RP/SEN - Wiring diagram ................ EC-663, EC-1342
S
SAE J1979 - Service $01 - 09 ........... EC-130
, EC-714
Seal - See Exterior .............................................. EI-27
Seat belt inspection ............................................. SB-7
Seat belt, front ..................................................... SB-4
Seat, rear ......................................................... SE-105
Self-diagnosis (Transfer) .................................... TF-22
Self-diagnostic results ....................................... EC-71
SEN/PW - Wiring diagram ............... EC-485, EC-1150
SHIFT - Wiring diagram ................................... AT-233
Shift lock system .............................................. AT-232
Shift schedule .................................................. AT-359
Shock absorber (rear) ....................................... RSU-9
Side air bag (satellite) sensor .......................... SRS-47
Side curtain air bag .......................................... SRS-44
Side trim .............................................................. EI-37
SMJ (super multiple junction) ............................ PG-77
SNOW MODE SW ........................... EC-667, EC-1346
SNOWSW - Wiring diagram ............ EC-668, EC-1347
Spark plug replacement ..................................... MA-27
Spark plug replacement(VQ35DE) .................... MA-20
Spark plug(VK45DE) ....................................... EM-192
Spark plug(VQ35DE) ......................................... EM-43
Specification value ............................. EC-138, EC-801
Speedometer ........................................................ DI-5
Spiral cable ...................................................... SRS-40
SROOF - Wiring diagram ..................... BL-166, RF-13
SRS - See Supplemental Restraint System ...... SRS-5
SRS - Wiring diagram ...................................... SRS-12
SRS Trouble diagnoses ..................................... SRS-8
Stabilizer bar (rear) ......................................... RSU-16
Stall test (A/T) .................................................... AT-53
Standardized relay ............................................. PG-79
START - Wiring diagram ..................................... SC-9
Starter .................................................................. SC-8
Starting system .................................................... SC-8
Steering gear and linkage inspection ................ MA-36
Steering linkage ................................................. PS-17
Steering wheel and column ................... PS-10, PS-12
Steering wheel turning force .............................. PS-10
Stop lamp switch ............................. EC-551, EC-1229
STSIG - Wiring diagram .................................. AT-108
Sun roof, electric ................................................ RF-10
Sunload sensor ............................. ATC-109, ATC-118
Sunroof .................................................. RF-10, RF-23
Supplemental Restraint System ........................ SRS-5
Supplemental restraint system - Wiring diagram ..........
SRS-12
Suspension ........................................................ MA-37
Symbols and abbreviations ..................... GI-11, GI-24
Symptom matrix chart ........................................ EC-97
System readiness test (SRT) code ...... EC-60, EC-720
T
Tachometer ........................................................... DI-5
TCM circuit diagram ........................................... AT-52
TCM inspection table ......................................... AT-89
Thermostat(VK45DE) ....................................... CO-53
Thermostat(VQ35DE) ....................................... CO-27
Three way catalyst function (Bank 1) EC-377, EC-1044
Three way catalyst function (Bank 2) EC-377, EC-1044
Three way catalyst precautions ............................ GI-5
Three way catalyst(VK45DE) .......................... EM-183
Three way catalyst(VQ35DE) ........................... EM-26
Throttle control motor ....................... EC-568, EC-1247
Throttle control motor relay .............. EC-556, EC-1234
Throttle position sensor (TPS) .......... EC-215, EC-339,
EC-510
, EC-512, EC-589, EC-885, EC-1008, EC-1183,
EC-1185
, EC-1268
Throttle valve closed position learning . EC-84, EC-744
Tie-rod ............................................................... PS-17
Timing chain(VK45DE) ................................... EM-203
Timing chain(VQ35DE) ..................................... EM-64
Tire rotation ............................................. WT-9, MA-35
Top tether strap child restraint ........................... SB-11
Torque converter installation AT-267, AT-268, AT-272
Torque convertor clutch solenoid valve AT-125, AT-127
TPS1 - Wiring diagram .................... EC-341, EC-1010
TPS2 - Wiring diagram ...................... EC-217, EC-887
TPS3 - Wiring diagram .................... EC-591, EC-1270
Traction control system circuit (engine) .......... EC-495,
EC-496
Transfer control unit inspection table ................. TF-20
Transverse link (front) ...................................... FSU-14
TRNSCV - Wiring diagram ............................... BL-227
Trouble diagnoses .............................................. GI-12
Two trip detection logic ........................ EC-54, EC-714
Tyre pressure monitoring system - trouble diagnoses ..
WT-13
Tyre pressure monitoring system - wiring diagram .......
WT-14
U
Unified meter and A/C amp. ............................... DI-28
V
Vacuum hose (brake system) ............................ BR-17
Vacuum hose drawing (Engine control) ........... EC-107
Valve clearance(VK45DE) .............................. EM-222
Valve clearance(VQ35DE) ................................ EM-93
Valve guide ..................................................... EM-108
Valve guide(VK45DE) ..................................... EM-239
Valve lifter ......................................................... EM-87
Valve seat(VK45DE) ....................................... EM-241
Valve seat(VQ35DE) ...................................... EM-110
Valve spring(VK45DE) .................................... EM-242
Valve spring(VQ35DE) ................................... EM-111

IDX-8
ALPHABETICAL INDEX
Variable induction air control system (VIAS) EC-1224,
EC-1351
VDC -Wiring diagram ...................................... BRC-16
Vehicle security (theft warning) system ........... BL-180
Vehicle speed sensor (VSS) ........... EC-466, EC-1131,
EC-1223
VEHSEC - Wiring diagram ............................... BL-186
VENT/V - Wiring diagram EC-414, EC-421, EC-1080,
EC-1087
VIAS - Wiring diagram ................................... EC-1353
VIAS/V - Wiring diagram ................................ EC-1225
VIN registration .................................... EC-83, EC-743
VSS A/T - Wiring diagram ................................ AT-120
W
WARN - Wiring diagram ..................................... DI-40
Warning chime .................................................... DI-56
Warning lamps .................................................... DI-38
Water control valve(VK45DE) ........................... CO-53
Water pump(VK45DE) ...................................... CO-51
Water pump(VQ35DE) ...................................... CO-22
Water temperature gauge ..................................... DI-5
Wheel alignment (front) ..................................... FSU-6
Wheel alignment (rear) ..................................... RSU-5
Wheel balance ........................................ WT-8, MA-33
Wheel bearing (front) .............. FAX-4, FAX-10, RAX-5
Wheel hub (front) .................... FAX-4, FAX-10, RAX-5
Wheel sensor (VDC) ....................................... BRC-55
WINDOW - Wiring diagram ............................... GW-22
Window, door ...................................... GW-58, GW-62
Windshield ........................................................ GW-11
Wiring Diagram (Cell code) list .......................... PG-65
Wiring diagrams .................................................. GI-16
WT-T/WARN - Wiring diagram ......................... WT-14

IP-1
INSTRUMENT PANEL
I BODY
CONTENTS
C
D E
F
G H
J
K L
M
SECTION IP
A
B
IP
Revision: 2006 December 2006 FX35/FX45
INSTRUMENT PANEL
PRECAUTIONS ..................................................... ..... 2
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 2
Precautions ......................................................... ..... 2
PREPARATION ...................................................... ..... 3
Special Service Tools .......................................... ..... 3
Commercial Service Tools ................................... ..... 3
SQUEAK AND RATTLE TROUBLE DIAGNOSES ..... 4
Work Flow ........................................................... ..... 4
CUSTOMER INTERVIEW ................................ ..... 4
DUPLICATE THE NOISE AND TEST DRIVE .. ..... 5
CHECK RELATED SERVICE BULLETINS ...... ..... 5
LOCATE THE NOISE AND IDENTIFY THE
ROOT CAUSE ................................................. ..... 5
REPAIR THE CAUSE ...................................... ..... 5
CONFIRM THE REPAIR .................................. ..... 6
Generic Squeak and Rattle Troubleshooting ...... ..... 6 INSTRUMENT PANEL .....................................
..... 6
CENTER CONSOLE ........................................ ..... 6
DOORS ............................................................ ..... 6
TRUNK ............................................................. ..... 7
SUNROOF/HEADLINING ................................ ..... 7
SEATS .............................................................. ..... 7
UNDERHOOD .................................................. ..... 7

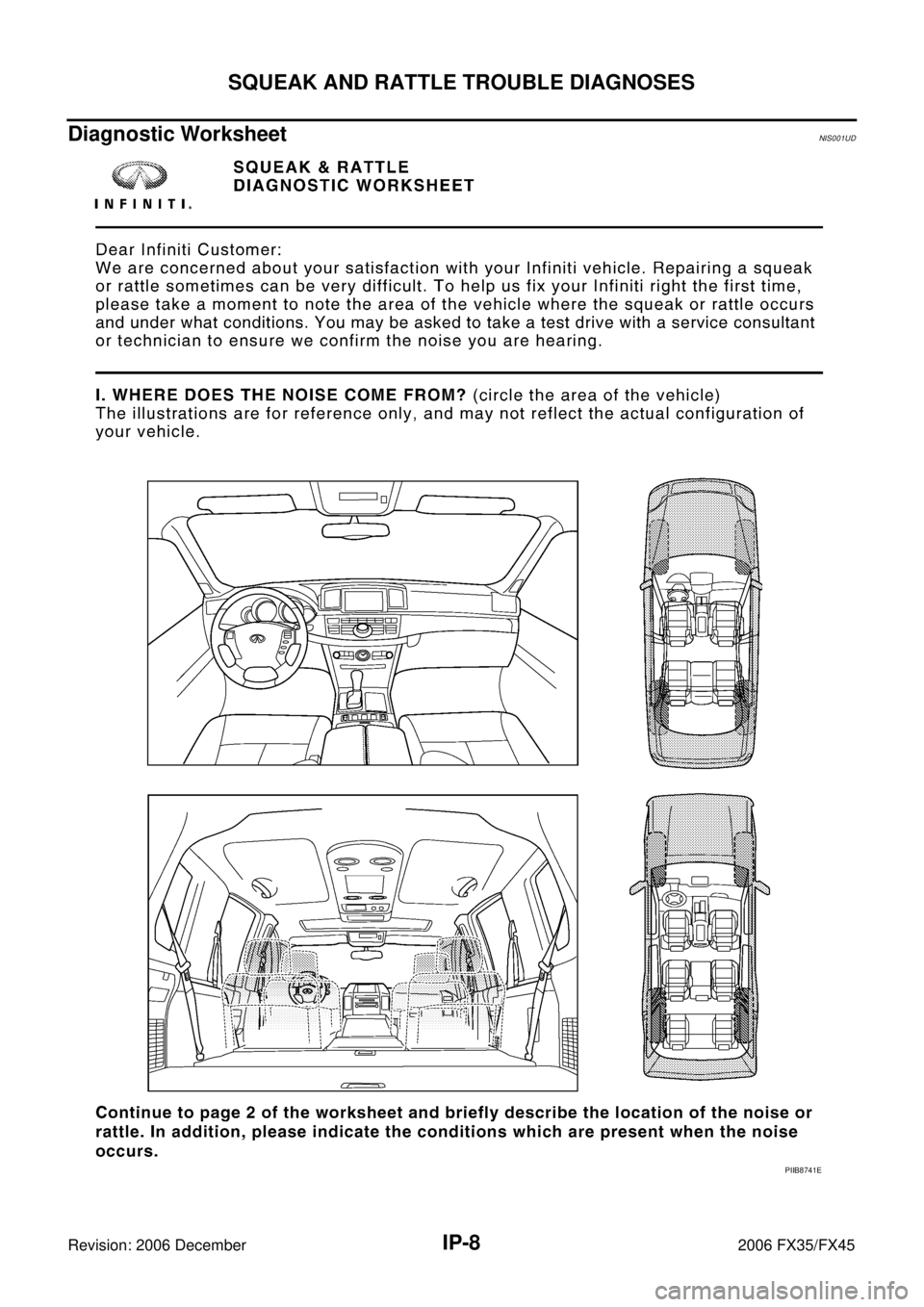

Diagnostic Worksheet .......................................... ..... 8
INSTRUMENT PANEL ASSEMBLY ...................... ... 10
Component Parts Drawing .................................. ... 10
Removal and Installation ..................................... ... 11
WORK STEP .................................................... ... 11
REMOVAL ........................................................ ... 12
INSTALLATION ................................................ ... 15
Disassembly and Assembly ................................. ... 16
A/T CONSOLE FINISHER ............................... ... 16
CENTER CONSOLE ........................................ ... 17
INSTRUMENT PASSENGER LOWER PANEL ... 18

IP-2
PRECAUTIONS
Revision: 2006 December 2006 FX35/FX45
PRECAUTIONSPFP:00001
Precautions for Supplemental Restraint System (SRS) “AIR BAG” and “SEAT
BELT PRE-TENSIONER”
NIS001U7
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:

To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be per-
formed by an authorized NISSAN/INFINITI dealer.

Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system. For removal of Spiral Cable and Air
Bag Module, see the SRS section.

Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or
harness connectors.
PrecautionsNIS001U8

Disconnect both battery cables in advance.

Disconnect air bag system line in advance.

Never tamper with or force air bag lid open, as this may adversely affect air bag performance.

Be careful not to scratch pad and other parts.

When removing or disassembling any part, be careful not to damage or deform it. Protect parts, which
may get in the way with cloth.

When removing parts with a screwdriver or other tool, protect parts by wrapping them with vinyl or tape.

Keep removed parts protected with cloth.

If a clip is deformed or damaged, replace it.

If an unreusable part is removed, replace it with a new one.

Tighten bolts and nuts firmly to the specified torque.

After re-assembly has been completed, make sure each part functions correctly.

Remove stains in the following way.
Water-soluble stains:
Dip a soft cloth in warm water, and then squeeze it tightly. After wiping the stain, wipe with a soft dry cloth.
Oil stain:
Dissolve a synthetic detergent in warm water (density of 2 to 3% or less), dip the cloth, then clean off the stain
with the cloth. Next, dip the cloth in fresh water and squeeze it tightly. Then clean off the detergent completely.
Then wipe the area with a soft dry cloth.

Do not use any organic solvent, such as thinner or benzine.

PREPARATION IP-3
C
D E
F
G H
J
K L
M A
B
IP
Revision: 2006 December 2006 FX35/FX45
PREPARATIONPFP:00002
Special Service ToolsNIS001U9
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolsNIS001UA
Tool number
(Kent-Moore No.)
Tool name Description
(J39570)
Chassis ear Locating the noise
(J43980)
NISSAN Squeak and Rattle
Kit Repairing the cause of noise
SIIA0993E
SIIA0994E
Tool name
Description
Engine ear Locating the noise
Power tool
SIIA0995E
PIIB1407E

IP-4
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Revision: 2006 December 2006 FX35/FX45
SQUEAK AND RATTLE TROUBLE DIAGNOSESPFP:00000
Work FlowNIS001UB
CUSTOMER INTERVIEW
Interview the customer if possible, to determine the conditions that exist when the noise occurs. Use the Diag-
nostic Worksheet during the interview to document the facts and conditions when the noise occurs and any
customer's comments; refer to IP-8, "
Diagnostic Worksheet" . This information is necessary to duplicate the
conditions that exist when the noise occurs.

The customer may not be able to provide a detailed description or the location of the noise. Attempt to
obtain all the facts and conditions that exist when the noise occurs (or does not occur).

If there is more than one noise in the vehicle, be sure to diagnose and repair the noise that the customer
is concerned about. This can be accomplished by test driving the vehicle with the customer.

After identifying the type of noise, isolate the noise in terms of its characteristics. The noise characteristics
are provided so the customer, service adviser and technician are all speaking the same language when
defining the noise.

Squeak —(Like tennis shoes on a clean floor)
Squeak characteristics include the light contact/fast movement/brought on by road conditions/hard sur-
faces=higher pitch noise/softer surfaces=lower pitch noises/edge to surface=chirping

Creak—(Like walking on an old wooden floor)
Creak characteristics include firm contact/slow movement/twisting with a rotational movement/pitch
dependent on materials/often brought on by activity.

Rattle—(Like shaking a baby rattle)
Rattle characteristics include the fast repeated contact/vibration or similar movement/loose parts/missing
clip or fastener/incorrect clearance.

Knock —(Like a knock on a door)
Knock characteristics include hollow sounding/sometimes repeating/often brought on by driver action.

Tick—(Like a clock second hand)
Tick characteristics include gentle contacting of light materials/loose components/can be caused by driver
action or road conditions.

Thump—(Heavy, muffled knock noise)
Thump characteristics include softer knock/dead sound often drought on by activity.

Buzz—(Like a bumble bee)
Buzz characteristics include high frequency rattle/firm contact.

Often the degree of acceptable noise level will vary depending upon the person. A noise that you may
judge as acceptable may be very irritating to the customer.

Weather conditions, especially humidity and temperature, may have a great effect on noise level.
SBT842

SQUEAK AND RATTLE TROUBLE DIAGNOSES IP-5
C
D E
F
G H
J
K L
M A
B
IP
Revision: 2006 December 2006 FX35/FX45
DUPLICATE THE NOISE AND TEST DRIVE
If possible, drive the vehicle with the customer until the noise is duplicated. Note any additional information on
the Diagnostic Worksheet regarding the conditions or location of the noise. This information can be used to
duplicate the same conditions when you confirm the repair.
If the noise can be duplicated easily during the test drive, to help identify the source of the noise, try to dupli-
cate the noise with the vehicle stopped by doing one or all of the following:
1) Close a door.
2) Tap or push/pull around the area where the noise appears to be coming from.
3) Rev the engine.
4) Use a floor jack to recreate vehicle “twist”.
5) At idle, apply engine load (electrical load, half-clutch on M/T model, drive position on A/T model).
6) Raise the vehicle on a hoist and hit a tire with a rubber hammer.

Drive the vehicle and attempt to duplicate the conditions the customer states exist when the noise occurs.

If it is difficult to duplicate the noise, drive the vehicle slowly on an undulating or rough road to stress the
vehicle body.
CHECK RELATED SERVICE BULLETINS
After verifying the customer concern or symptom, check ASIST for Technical Service Bulletins (TSBs) related
to that concern or symptom.
If a TSB relates to the symptom, follow the procedure to repair the noise.
LOCATE THE NOISE AND IDENTIFY THE ROOT CAUSE
1. Narrow down the noise to a general area. To help pinpoint the source of the noise, use a listening tool (Chassis Ear: J39570, Engine Ear and mechanics stethoscope).
2. Narrow down the noise to a more specific area and identify the cause of the noise by:

removing the components in the area that you suspect the noise is coming from.
Do not use too much force when removing clips and fasteners, otherwise clips and fastener can be broken
or lost during the repair, resulting in the creation of new noise.

tapping or pushing/pulling the component that you suspect is causing the noise.
Do not tap or push/pull the component with excessive force, otherwise the noise will be eliminated only
temporarily.

feeling for a vibration with your hand by touching the component(s) that you suspect is (are) causing the
noise.

placing a piece of paper between components that you suspect are causing the noise.

looking for loose components and contact marks.
Refer to IP-6, "
Generic Squeak and Rattle Troubleshooting" .
REPAIR THE CAUSE

If the cause is a loose component, tighten the component securely.

If the cause is insufficient clearance between components:
–separate components by repositioning or loosening and retightening the component, if possible.
–insulate components with a suitable insulator such as urethane pads, foam blocks, felt cloth tape or ure-
thane tape. A NISSAN Squeak and Rattle Kit (J43980) is available through your authorized NISSAN Parts
Department.
CAUTION:
Do not use excessive force as many components are constructed of plastic and may be damaged.
NOTE:
Always check with the Parts Department for the latest parts information.
The following materials are contained in the NISSAN Squeak and Rattle Kit (J43980). Each item can be
ordered separately as needed.
URETHANE PADS [1.5 mm (0.059 in) thick]
Insulates connectors, harness, etc.
76268-9E005: 100 × 135 mm (3.94 × 5.31 in )/ 76884-71L01 : 60 × 85 mm (2.36 × 3.35 in)/76884-71L02 : 15
× 25 mm (0.59 × 0.98 in)
INSULATOR (Foam blocks)
Insulates components from contact. Can be used to fill space behind a panel.
73982-9E000: 45 mm (1.77 in) thick, 50 × 50 mm (1.97 × 1.97 in)/73982-50Y00: 10 mm (0.39 in) think, 50
× 50 mm (1.97 × 1.97 in)

IP-6
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Revision: 2006 December 2006 FX35/FX45
INSULATOR (Light foam block)
80845 - 71L00 : 30 mm (1.18 in) thick, 30 × 50 mm (1.18 × 1.97 in)
FELT CLOTH TAPE
Used to insulate where movement does not occur.Ideal for instrument panel applications.
68370 - 4B000 : 15 × 25 mm (0.59 × 0.98 in) pad / 68239-13E00 : 5 mm (0.20 in) wide tape roll The following
materials, not found in the kit, can also be used to repair squeaks and rattles.
UHMW (TEFLON) TAPE
Insulates where slight movement is present. Ideal for instrument panel applications.
SILICONE GREASE
Used in of UHMW tape that will be visible or not fit.
Note: Will only last a few months.
SILICONE SPRAY
Use when grease cannot be applied.
DUCT TAPE
Use to eliminate movement.
CONFIRM THE REPAIR
Confirm that the cause of a noise is repaired by test driving the vehicle. Operate the vehicle under the same
conditions as when the noise originally occurred. Refer to the notes on the Diagnostic Worksheet.
Generic Squeak and Rattle TroubleshootingNIS001UC
Refer to Table of Contents for specific component removal and installation information.
INSTRUMENT PANEL
Most incidents are caused by contact and movement between:
1. The cluster lid A and instrument panel
2. Acrylic lens and combination meter housing
3. Instrument panel to front pillar garnish
4. Instrument panel to windshield
5. Instrument panel mounting pins
6. Wiring harnesses behind the combination meter
7. A/C defroster duct and duct joint
These incidents can usually be located by tapping or moving the components to duplicate the noise or by
pressing on the components while driving to stop the noise. Most of these incidents can be repaired by apply-
ing felt cloth tape or silicon spray (in hard to reach areas). Urethane pads can be used to insulate wiring har-
ness.
CAUTION:
Do not use silicone spray to isolate a squeak or rattle. If you saturate the area with silicone, you will
not be able to recheck the repair.
CENTER CONSOLE
Components to pay attention to include:
1. Shifter assembly cover to finisher
2. A/C control unit and cluster lid C
3. Wiring harnesses behind audio and A/C control unit
The instrument panel repair and isolation procedures also apply to the center console.
DOORS
Pay attention to the:
1. Finisher and inner panel making a slapping noise
2. Inside handle escutcheon to door finisher
3. Wiring harnesses tapping
4. Door striker out of alignment causing a popping noise on starts and stops
Tapping or moving the components or pressing on them while driving to duplicate the conditions can isolate
many of these incidents. You can usually insulate the areas with felt cloth tape or insulator foam blocks from
the NISSAN Squeak and Rattle Kit (J43980) to repair the noise.

SQUEAK AND RATTLE TROUBLE DIAGNOSES IP-7
C
D E
F
G H
J
K L
M A
B
IP
Revision: 2006 December 2006 FX35/FX45
TRUNK
Trunk noises are often caused by a loose jack or loose items put into the trunk by the owner.
In addition look for:
1. Trunk lid dumpers out of adjustment
2. Trunk lid striker out of adjustment
3. The trunk lid torsion bars knocking together
4. A loose license plate or bracket
Most of these incidents can be repaired by adjusting, securing or insulating the item(s) or component(s) caus-
ing the noise.
SUNROOF/HEADLINING
Noises in the sunroof/headlining area can often be traced to one of the following:
1. Sunroof lid, rail, linkage or seals making a rattle or light knocking noise
2. Sunvisor shaft shaking in the holder
3. Front or rear windshield touching headlining and squeaking
Again, pressing on the components to stop the noise while duplicating the conditions can isolate most of these
incidents. Repairs usually consist of insulating with felt cloth tape.
SEATS
When isolating seat noise it's important to note the position the seat is in and the load placed on the seat when
the noise is present. These conditions should be duplicated when verifying and isolating the cause of the
noise.
Cause of seat noise include:
1. Headrest rods and holder
2. A squeak between the seat pad cushion and frame
3. The rear seatback lock and bracket
These noises can be isolated by moving or pressing on the suspected components while duplicating the con-
ditions under which the noise occurs. Most of these incidents can be repaired by repositioning the component
or applying urethane tape to the contact area.
UNDERHOOD
Some interior noise may be caused by components under the hood or on the engine wall. The noise is then
transmitted into the passenger compartment.
Causes of transmitted underhood noise include:
1. Any component mounted to the engine wall
2. Components that pass through the engine wall
3. Engine wall mounts and connectors
4. Loose radiator mounting pins
5. Hood bumpers out of adjustment
6. Hood striker out of adjustment
These noises can be difficult to isolate since they cannot be reached from the interior of the vehicle. The best
method is to secure, move or insulate one component at a time and test drive the vehicle. Also, engine RPM
or load can be changed to isolate the noise. Repairs can usually be made by moving, adjusting securing, or
insulating the component causing the noise.

IP-8
SQUEAK AND RATTLE TROUBLE DIAGNOSES
Revision: 2006 December 2006 FX35/FX45
Diagnostic WorksheetNIS001UD
PIIB8741E
