Trouble DiagnosisNIS001SN
A trouble diagnosis of a automatic drive positioner interlocking door mirror is refer to SE-11, "AUTOMATIC
DRIVE POSITIONER" .

GW-92
DOOR MIRROR
Revision: 2006 December 2006 FX35/FX45
Removal and InstallationNIS001SO
CAUTION:
Be careful not to damage the mirror body.
REMOVAL
1. Remove the front door finisher. Refer to EI-35, "DOOR FINISHER" .
2. Remove the corner cover inner.
3. Remove the door mirror harness connector.
4. Remove the door mirror mounting nuts, and remove the door mirror assembly.
INSTALLATION
Install in the reverse order of removal.
Disassembly and AssemblyNIS001SP
DISASSEMBLY
1. Place the mirror body with mirror glass facing upward.
2. Put strip of protection tape on mirror body.
3. As shown in the figure insert a small flat-bladed screwdriver into the recess between mirror base (mirror holder) and mirror holder
bracket and push up pawls to remove mirror holder lower half
side.
NOTE:
When pushing up pawls do not attempt to use 1 recess only, be sure
to push up with both recesses.
Insert screwdriver into recesses, and push up while rotating (twist) to
make work easier.
4. Remove terminals of mirror heater attachment.
PIIA4738E

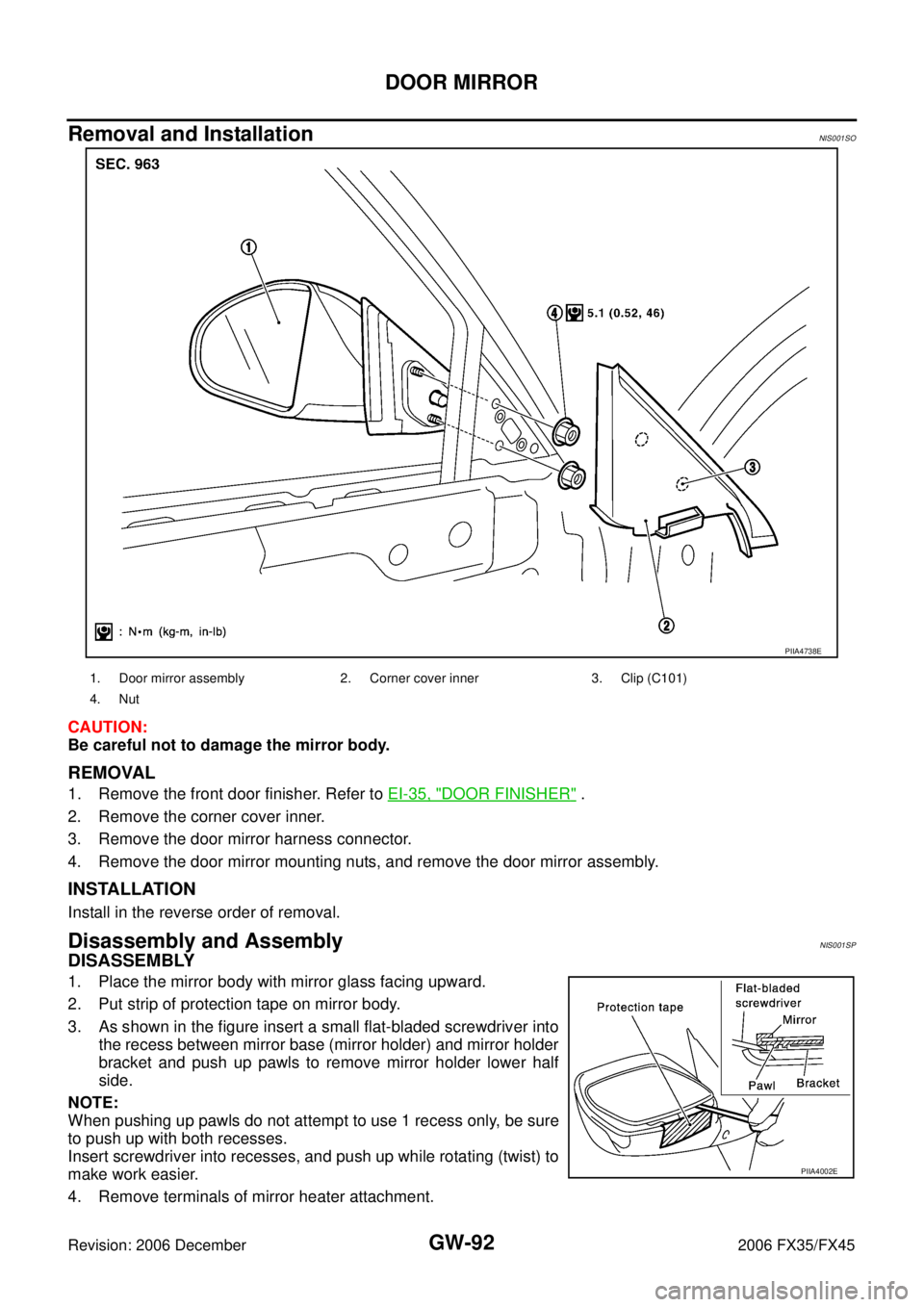

1. Door mirror assembly 2. Corner cover inner 3. Clip (C101)
4. Nut
PIIA4002E
