INFINITI FX35 2006 Service Manual

INFINITI MOBILE ENTERTAINMENT SYSTEM AV-165
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 December 2006 FX35/FX45
4. CHECK HARNESS
1. Disconnect audio unit connector.
2. Check continuity between DVD player harness connector M73 terminals 9 , 11 and audio unit harness connector M65 terminals 38 , 40.
3. Check continuity between DVD player harness connector M73 terminals 9 , 11 and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK CONTROL SIGNAL
1. Connect DVD player connector and audio unit connectors.
2. Turn ignition switch ACC.
3. Check voltage between DVD player harness connector M73 ter- minal 9 and ground.
OK or NG
OK >> GO TO 6.
NG >> Replace DVD player.
6. CHECK CONTROL SIGNAL
Check voltage between DVD player harness connector M73 terminal
11 and ground.
OK or NG
OK >> Replace DVD player.
NG >> Replace audio unit. 9 – 38 : Continuity should exist.
11 – 40 : Continuity should exist.
9 , 11 – Ground : Continuity should not exist.
Te r m i n a l s Condition Reference
value
(+) (–)
Connector Terminal Ground
M73 9 Ground Press “power” switch
of DVD player Approx. 5 V
SKIB0326E
Te r m i n a l s
Condition Reference
value
(+) (–)
Connector Terminal Ground
M73 11 Ground Press “power”
switch of DVD player Approx. 5 V
SKIB0328E

AV-166
INFINITI MOBILE ENTERTAINMENT SYSTEM
Revision: 2006 December 2006 FX35/FX45
Screen Is Not Shown (While Sounds Come Out of an Audio Speaker, Did Not Do
of a Head Phone)
NKS003E8
1. CHECK POWER SUPPLY CIRCUIT
1. Check voltage between DVD player harness connector B19 ter- minals 31, 32 and ground.
2. Turn ignition switch ACC.
3. Check voltage between DVD player harness connector B19 ter- minal 21 and ground.
OK or NG
OK >> GO TO 2.
NG >> Replace DVD player.
2. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect DVD display connector.
3. Check continuity between DVD player harness connector B19 terminals 21, 31, 32 and DVD display harness connector B61
terminals 5, 15, 16.
4. Check continuity between DVD player harness connector B19 terminals 21, 31, 32 and ground.
5. Check continuity between DVD player harness connector B19 terminals 19, 27 and DVD display harness connector B61 termi-
nals 6, 10, 12.
6. Check continuity between DVD player harness connector B19 terminals 19, 27 and ground.
OK or NG
OK >> Replace DVD display.
NG >> Repair harness or connector. 31 , 32 – Ground : Battery voltage
SKIA5850E
21 – Ground : Approx. 5 V
SKIA7021E
21 – 5 : Continuity should exist.
31 – 15 : Continuity should exist.
32 – 16 : Continuity should exist.
21, 31, 32 – Ground : Continuity should not exist.
19 – 6 : Continuity should exist.
27 – 10, 12 : Continuity should exist.
19, 27 – Ground : Continuity should not exist.
SKIA7032E
PKIB6543E

INFINITI MOBILE ENTERTAINMENT SYSTEM AV-167
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 December 2006 FX35/FX45
Screen Is not Shown (Sounds Come Out of Both an Audio Speaker and a Head
Phone)
NKS003E9
1. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect DVD player and DVD display connectors.
3. Check continuity between DVD player harness connector B19 terminals 23, 24 and DVD display harness connector B61 termi-
nals 7, 8.
4. Check continuity between DVD player harness connector B19 terminals 23, 24 and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair harness or connector.
2. CHECK VIDEO SIGNAL
1. Connect DVD player and DVD display connectors.
2. Turn ignition switch ACC.
3. Check the signal between DVD player harness connector B19 terminal 23 and 24 with CONSULT-II or oscilloscope.
OK or NG
OK >> GO TO 3.
NG >> Replace DVD player.
3. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect DVD player and DVD display connectors.
3. Check continuity between DVD player harness connector B19 terminal 29 and DVD display harness connector B61 terminal
13.
4. Check continuity between DVD player harness connector B19 terminal 29 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector. 23 – 7 : Continuity should exist.
24 – 8 : Continuity should exist.
23, 24 – Ground : Continuity should not exist.
SKIA7044E
Terminal Condition Reference value
(+) (–)
23 24 Play DVD video
SKIA7050E
SKIA8863J
29 – 13 : Continuity should exist.
29 – Ground : Continuity should not exist.
SKIB0333E

AV-168
INFINITI MOBILE ENTERTAINMENT SYSTEM
Revision: 2006 December 2006 FX35/FX45
4. CHECK DATA (DVD – LCD) SIGNAL
1. Connect DVD display and DVD player connectors.
2. Turn ignition switch ACC.
3. Check voltage between DVD display harness connector B61 ter- minal 13 and ground.
OK or NG
OK >> Replace DVD display.
NG >> Replace DVD player.
Head Phone Does Not SoundNKS003EA
1. CHECK HEAD PHONE AND SIGNAL
Check the inspection items below to diagnose the malfunction.

Check that the signal is received at the rear seat.

Check that transmission part has any seals or dirt that interrupts
signal.

Check that the head phone battery has run down.
OK or NG
OK >> GO TO 2.
NG >>

Receive signal with head phone at the rear seat.

Remove seal or dirt that is interrupting signal.

If the battery has run down, replace it with new one.
2. CHECK HEAD PHONE
Check that sound is heard with another head phone.
OK or NG
OK >> Replace malfunction head phone.
NG >> GO TO 3. 13 – 10:
SKIB0334E
SKIB0322E
SKIA5852E

INFINITI MOBILE ENTERTAINMENT SYSTEM AV-169
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 December 2006 FX35/FX45
3. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect DVD player and DVD display connectors.
3. Check continuity between DVD player harness connector B19 terminals 17, 18, 19, 20 and DVD display harness connector
B61 terminals 1, 2, 3, 4.
4. Check continuity between DVD player harness connector B19 terminals 17, 18, 19, 20 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK MES SOUND SIGNAL
1. Connect DVD player and DVD display connectors.
2. Turn the ignition switch ACC and Press “POWER” switch of DVD player.
3. Check the signal between DVD player harness connector B19 terminals 17, 18, 20 and 19 with CONSULT-II or oscilloscope.
OK or NG
OK >> Replace DVD display.
NG >> Replace DVD player.
Remote Controller Does Not WorkNKS003EB
1. CHECK DVD PLAYER OPERATION SWITCH
1. Turn ignition switch ACC.
2. Press “POWER” switch of DVD player and operate DVD player switch.
Dose the DVD player switches work?
YES >> Replace remote controller.
NO >> GO TO 2. 17 – 1 : Continuity should exist.
18 – 2 : Continuity should exist.
19 – 3 : Continuity should exist.
20 – 4 : Continuity should exist.
17, 18, 19, 20 – Ground : Continuity should not exist.
SKIA7033E
Te r m i n a l Condition Reference value
(+) (–)
17 19 Play CD or DVD video. Refer to
AV-161, "
Terminals and
Reference Value for DVD Player" .
18
20
SKIA7047E

AV-170
INFINITI MOBILE ENTERTAINMENT SYSTEM
Revision: 2006 December 2006 FX35/FX45
2. CHECK REMOTE CONTROLLER AND SENSOR
Check the inspection items below to diagnose the malfunction.

Check that remote controller is facing to the sensor.

Check that sensor does not have any seals or dirt that is inter-
rupting signal.

Check that the remote controller battery has run down.
OK or NG
OK >> GO TO 3.
NG >>

When operating, face remote controller to the sensor.

Remove seal or dirt that is interrupting signal.

If the battery has run down, replace it with new one.
3. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect DVD player and DVD display connectors.
3. Check continuity between DVD player harness connector B19 terminal 30 and DVD display harness connector B61 terminal
14.
4. Check continuity between DVD player harness connector B19 terminal 30 (BR) and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK DATA (LCD – DVD) SIGNAL
1. Connect DVD display connector.
2. Turn ignition switch ACC.
3. Check the signal between DVD player harness connector B19 terminal 30 and ground.
OK or NG
OK >> Replace DVD player.
NG >> Replace DVD display.
No CD·DVD Sound From All SpeakersNKS003EC
1. VERIFY THE PHENOMENON
1. Turn ignition switch ACC.
2. Turn on the radio, receive radio program, check that the sound is heard from all the speakers.
OK or NG
OK >> GO TO 2.
NG >> Replace audio unit.
SKIA5855E
30 – 14 : Continuity should exist.
30 – Ground : Continuity should not exist.
SKIB0335E
30 – Ground:
SKIA7043E
SKIA5832E

INFINITI MOBILE ENTERTAINMENT SYSTEM AV-171
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 December 2006 FX35/FX45
2. CHECK A/C AND AV SWITCH SELF-DIAGNOSIS
A/C and AV switch self-diagnosis. Check “REAR AV” switch. Refer to AV- 8 2 , "
A/C and AV Switch Self-Diagno-
sis Function" .
OK or NG
OK >> GO TO 3.
NG >> Replace A/C and AV switch.
3. CHECK HARNESS
1. Turn ignition switch OFF.
2. Disconnect DVD player and audio unit connectors.
3. Check continuity between DVD player harness connector M73 terminals 1, 2, 3, 4 and audio unit harness connector M65 termi-
nals 37, 39, 43, 42.
4. Check continuity between DVD player harness connector M73 terminals 1, 2, 3, 4 and ground.
OK or NG
OK >> GO TO 4.
NG >> Repair harness or connector.
4. CHECK MES SOUND SIGNAL
1. Connect DVD player and audio unit connectors.
2. Turn ignition switch ACC and Press “POWER” switch of DVD player.
3. Check the signal between DVD player harness connector M73 terminals 1 and 2, 3 and 4 with CONSULT-II or oscilloscope.
OK or NG
OK >> Replace audio unit.
NG >> Replace DVD player. 1 – 37 : Continuity should exist.
2 – 39 : Continuity should exist.
3 – 43 : Continuity should exist.
4 – 42 : Continuity should exist.
1, 2, 3, 4 – Ground : Continuity should not exist.
SKIA7034E
Terminal Condition Reference value
(+) (–)
12
Play CD or DVD video.
34
SKIA7035E
SKIA8863J

AV-172
INFINITI MOBILE ENTERTAINMENT SYSTEM
Revision: 2006 December 2006 FX35/FX45

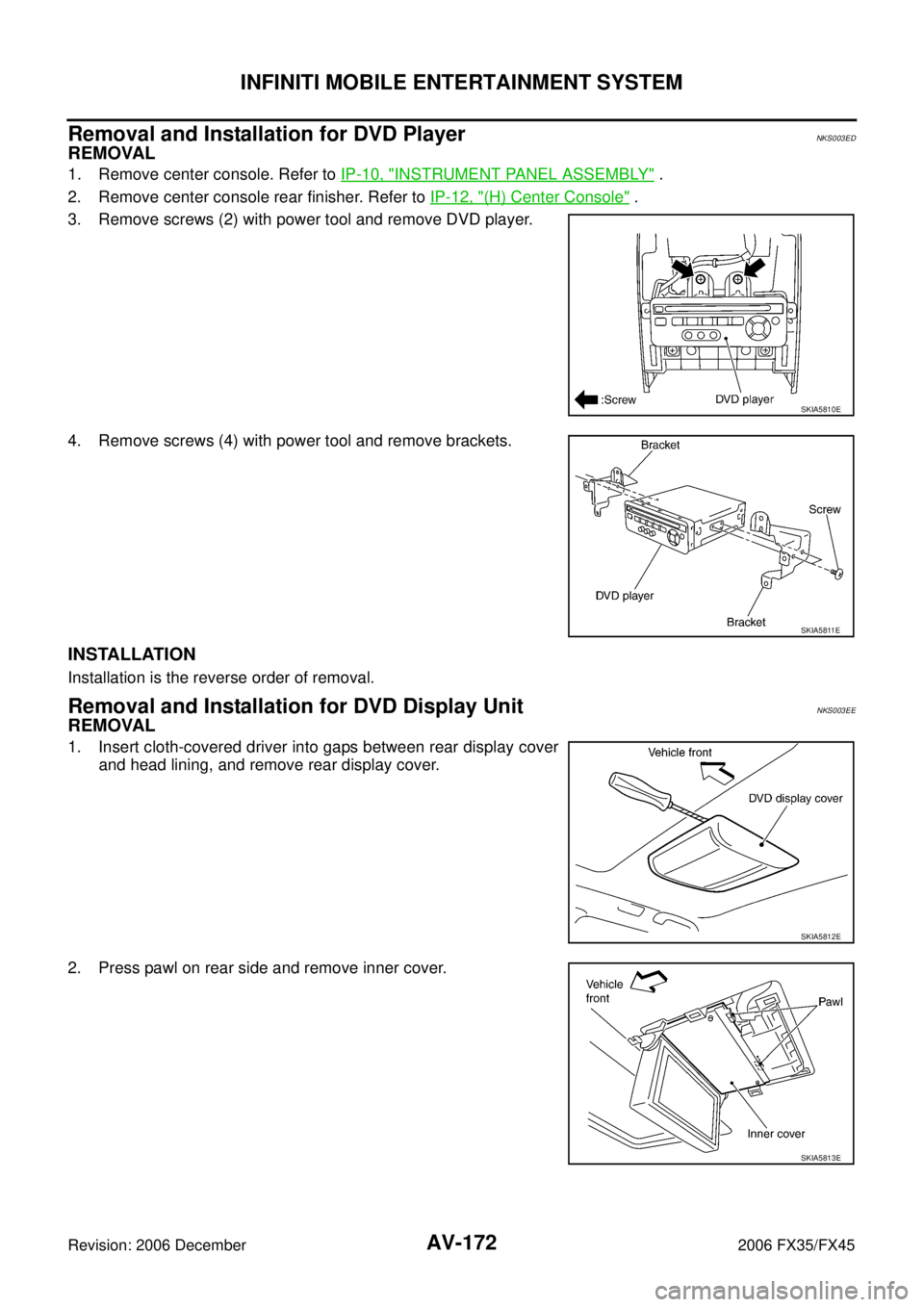

Removal and Installation for DVD PlayerNKS003ED
REMOVAL
1. Remove center console. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Remove center console rear finisher. Refer to IP-12, "
(H) Center Console" .
3. Remove screws (2) with power tool and remove DVD player.
4. Remove screws (4) with power tool and remove brackets.
INSTALLATION
Installation is the reverse order of removal.
Removal and Installation for DVD Display UnitNKS003EE
REMOVAL
1. Insert cloth-covered driver into gaps between rear display cover and head lining, and remove rear display cover.
2. Press pawl on rear side and remove inner cover.
SKIA5810E
SKIA5811E
SKIA5812E
SKIA5813E

INFINITI MOBILE ENTERTAINMENT SYSTEM AV-173
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 December 2006 FX35/FX45
3. Remove screws (4) with power tool.
4. Pull DVD display unit to downside, and remove rear display unit from mounting plate.
INSTALLATION
Installation is the reverse order of removal.
CAUTION:
Put metal clip hook in mounting plate, and press it securely.
SKIA5814E
SKIA5815E

AV-174
TELEPHONE
Revision: 2006 December 2006 FX35/FX45
TELEPHONEPFP:28342
System DescriptionNKS003IK
HANDS-FREE PHONE SYSTEM

For Hands-free phone system operation information, refer to Owner's Manual.

TEL adapter unit has Bluetooth module. It can perform wireless hands-free telephone calls using a cellu-
lar phone in vehicle compartment.

5 or less cellular phones can be registered into the TEL adapter unit.

Hands-free phone mode starts by transmitting switch signal to TEL adapter unit when pressing but-
ton.

Hands-free phone mode ends by transmitting switch signal to TEL adapter unit when pressing button.

When uttering to the microphone, microphone signal (audio signal) is transmitted from the microphone to
the TEL adapter unit and transmitted to the cellular phone with the Bluetooth
® communication.

Audio sound is muted when turning audio ON while hands-free phone system works.

Sound signal transmits to receiver's telephone through microphone unit, TEL adapter unit, and TEL
antenna when sending voice.

Sound signal outputs to front RH speakers through TEL antenna, TEL adapter unit, audio unit, and BOSE
speaker amp. when receiving voice.
SKIB8653E
