ATC-1
AUTOMATIC AIR CONDITIONER
J AIR CONDITIONER
CONTENTS
C
D E
F
G H
I
K L
M
SECTION AT C
A
B
AT C
Revision: 2006 December 2006 FX35/FX45
AUTOMATIC AIR CONDITIONER
PRECAUTIONS ..................................................... ..... 5
Precautions for Supplemental Restraint System
(SRS) “AIR BAG” and “SEAT BELT PRE-TEN-
SIONER” ............................................................. ..... 5
Precautions Necessary for Steering Wheel Rotation
After Battery Disconnect ..................................... ..... 5
OPERATION PROCEDURE ............................ ..... 5
Precautions for Procedures without Cowl Top Cover ..... 6
Precautions for Working with HFC-134a (R-134a) ..... 6
CONTAMINATED REFRIGERANT .................. ..... 7
General Refrigerant Precautions ......................... ..... 7
Precautions for Refrigerant Connection .............. ..... 8
ABOUT ONE-TOUCH JOINT ........................... ..... 8
FEATURES OF NEW TYPE REFRIGERANT
CONNECTION ................................................. ... 10
O-RING AND REFRIGERANT CONNECTION .... 11
Precautions for Servicing Compressor ................ ... 13
Precautions for Service Equipment ..................... ... 13
RECOVERY/RECYCLING EQUIPMENT ......... ... 13
ELECTRICAL LEAK DETECTOR .................... ... 13
VACUUM PUMP .............................................. ... 14
MANIFOLD GAUGE SET ................................. ... 14
SERVICE HOSES ............................................ ... 14
SERVICE COUPLERS ..................................... ... 15
REFRIGERANT WEIGHT SCALE ................... ... 15
CHARGING CYLINDER ................................... ... 15
Precautions for Leak Detection Dye .................... ... 16
IDENTIFICATION ............................................. ... 16
IDENTIFICATION LABEL FOR VEHICLE ........ ... 16
PREPARATION ...................................................... ... 17
Special Service Tools .......................................... ... 17
HFC-134a (R-134a) Service Tools and Equipment ... 18
Commercial Service Tools ................................... ... 20
REFRIGERATION SYSTEM .................................. ... 21
Refrigerant Cycle ................................................ ... 21
REFRIGERANT FLOW .................................... ... 21
FREEZE PROTECTION .................................. ... 21
Refrigerant System Protection ............................ ... 21
REFRIGERANT PRESSURE SENSOR .......... ... 21
PRESSURE RELIEF VALVE ............................ ... 21 V-6 Variable Displacement Compressor ..............
... 22
GENERAL INFORMATION .............................. ... 22
DESCRIPTION ................................................. ... 23
Component Layout .............................................. ... 26
LUBRICANT ........................................................... ... 27
Maintenance of Lubricant Quantity in Compressor ... 27
LUBRICANT ..................................................... ... 27
LUBRICANT RETURN OPERATION ............... ... 27
LUBRICANT ADJUSTING PROCEDURE FOR
COMPONENTS REPLACEMENT EXCEPT
COMPRESSOR ............................................... ... 28
LUBRICANT ADJUSTING PROCEDURE FOR
COMPRESSOR REPLACEMENT .................... ... 29
AIR CONDITIONER CONTROL ............................ ... 30
Description of Air Conditioner LAN Control System ... 30
System Construction ........................................... ... 30
OPERATION ..................................................... ... 30
TRANSMISSION DATA AND TRANSMISSION
ORDER ............................................................ ... 31
AIR MIX DOOR CONTROL (AUTOMATIC TEM-
PERATURE CONTROL) .................................. ... 32
FAN SPEED CONTROL ................................... ... 32
INTAKE DOOR CONTROL .............................. ... 32
MODE DOOR CONTROL ................................ ... 32
MAGNET CLUTCH CONTROL ........................ ... 33
SELF-DIAGNOSIS SYSTEM ........................... ... 33
Description of Control System ............................. ... 34
Control Operation ................................................ ... 34
DISPLAY SCREEN ........................................... ... 35
AUTO SWITCH ................................................ ... 35
TEMPERATURE CONTROL SWITCH (POTEN-
TIO TEMPERATURE CONTROL) (DRIVER
SIDE) ................................................................ ... 35
TEMPERATURE CONTROL SWITCH (POTEN-
TIO TEMPERATURE CONTROL) (PASSEN-
GER SIDE) ....................................................... ... 35
INTAKE SWITCH .............................................. ... 35
DEFROSTER (DEF) SWITCH .......................... ... 35
REAR WINDOW DEFOGGER SWITCH .......... ... 35
OFF SWITCH ................................................... ... 35

TROUBLE DIAGNOSIS ATC-51
C
D E
F
G H
I
K L
M A
B
AT C
Revision: 2006 December 2006 FX35/FX45
45 PU/W ECV (Electric Control Valve)
signal ON
Self-diagnosis. STEP-4
(Code No. 45)
46 L/W Power supply for IGN2 ON — Battery voltage
49 W/G Sensor ground ON — Approx. 0
50 LG Sunload sensor — — —
53 G Blower motor control signal ON Blower speed: 1st step
54 Y/R Power supply for each door
motor ON — Battery voltage
57 BR/Y Blower motor ON signal ON A/C switch: ON
(Blower motor operates.) Approx. 0
OFF switch: ON
(A/C system: OFF)
Terminal
No. Wire
color ItemIgnition
switch Condition Voltage
(V)
SJIA1607E
SJIA1454J
SJIA1474J

TROUBLE DIAGNOSIS ATC-53
C
D E
F
G H
I
K L
M A
B
AT C
Revision: 2006 December 2006 FX35/FX45
FUNCTION CONFIRMATION PROCEDURE
1. SET IN SELF-DIAGNOSIS MODE
1. Turn ignition switch ON.
2. Set in self-diagnosis mode as follows. Within 10 seconds after starting engine (ignition switch is turned ON.), press OFF switch for at least 5 seconds.
CAUTION:

If battery voltage drops below 12 V during diagnosis STEP-3, door motor speed becomes slower
and as a result, the system may generate an error even when operation is normal. To avoid this,
start engine before performing this diagnosis.

Former STEP-1 (LEDs and display screen are checked) does not exist in this self-diagnosis func-
tion.
>> GO TO 2.
2. STEP-2: SENSOR CIRCUITS ARE CHECKED FOR OPEN OR SHORT CIRCUIT
Does code No. 20 appear on the display?
YES >> GO TO 3.
NO >> GO TO 13.
3. CHECK TO ADVANCE SELF-DIAGNOSIS STEP-3
Press temperature control (UP) switch (driver side).
Advance to self
-diagnosis STEP-3?
YES >> GO TO 4.
NO >> Replace A/C and AV switch. (Temperature control switch is malfunctioning.)
4. CHECK TO RETURN SELF-DIAGNOSIS STEP-2
Press temperature control (DOWN) switch (driver side).
Return to self
-diagnosis STEP-2?
YES >> GO TO 5.
NO >> Malfunctioning A/C and AV switch or unified meter and A/C amp. Refer to ATC-101, "
Self-diagno-
sis" .
5. STEP-3: MODE DOOR AND INTAKE DOOR POSITIONS ARE CHECKED
Press temperature control (UP) switch (driver side).
Does code No. 30 appear on the display?
YES >> GO TO 6.
NO >> GO TO 14.
RJIA0219E
RJIA0220E

ATC-78
TROUBLE DIAGNOSIS
Revision: 2006 December 2006 FX35/FX45
SYSTEM DESCRIPTION
Component Parts
Fan speed control system components are:

Unified meter and A/C amp.

A/C LAN system (PBR built-in mode door motor, air mix door motor and intake door motor)

In-vehicle sensor

Ambient sensor

Sunload sensor

Intake sensor
System Operation
Automatic Mode
In the automatic mode, the blower motor speed is calculated by the unified meter and A/C amp. based on the
input from the PBR, in-vehicle sensor, sunload sensor, intake sensor and ambient sensor.
When the air flow is increased, the duty ratio of the blower fan motor’s drive signal is changed at 8%/sec. to
prevent a sudden increase in air flow.
In addition to manual air flow control and the usual automatic air flow control, starting air flow control, low
water temperature starting control and high passenger compartment temperature starting control are avail-
able.

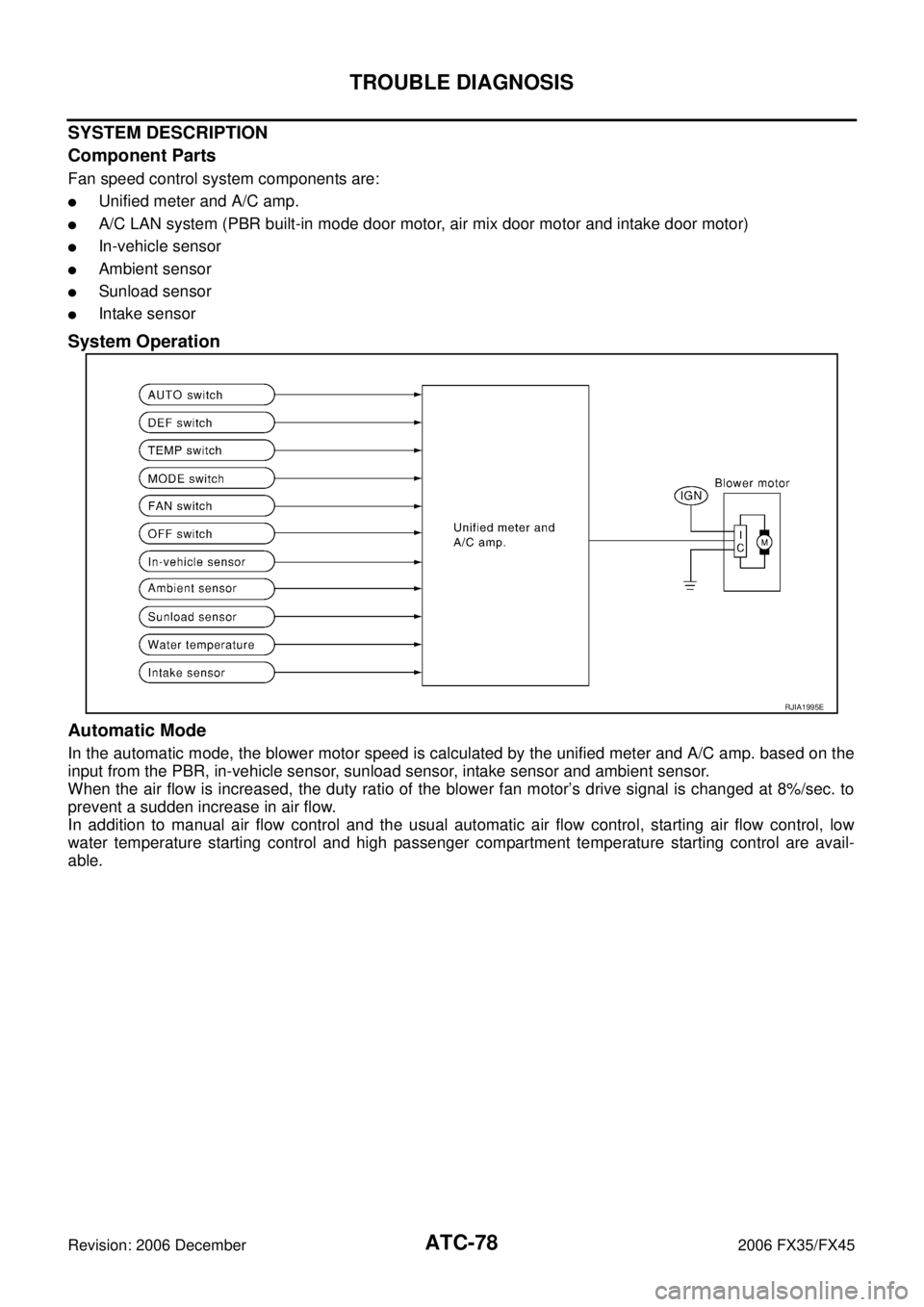

RJIA1995E

TROUBLE DIAGNOSIS ATC-103
C
D E
F
G H
I
K L
M A
B
AT C
Revision: 2006 December 2006 FX35/FX45
Ambient Sensor CircuitNJS000EF
COMPONENT DESCRIPTION
Ambient Sensor
The ambient sensor is attached on the hood lock stay. It detects
ambient temperature and converts it into a resistance value which is
then input into the unified meter and A/C amp.
AMBIENT TEMPERATURE INPUT PROCESS
The unified meter and A/C amp. includes a processing circuit for the ambient sensor input. However, when the
temperature detected by the ambient sensor increases quickly, the processing circuit retards the unified meter
and A/C amp. function. It only allows the unified meter and A/C amp. to recognize an ambient temperature
increase of 0.33 °C (0.6 °F) per 100 seconds.
As an example, consider stopping for a few minutes after high speed driving. Although the actual ambient tem-
perature has not changed, the temperature detected by the ambient sensor will increase. This is because the
heat from the engine compartment can radiate to the front grille area, location of the ambient sensor.
DIAGNOSIS PROCEDURE FOR AMBIENT SENSOR
SYMPTOM: Ambient sensor circuit is open or shorted. (21 or −21 is
indicated on unified meter and A/C amp. as a result of performing
self-diagnosis STEP-2.)
1. CHECK VOLTAGE BETWEEN AMBIENT SENSOR AND GROUND
1. Disconnect ambient sensor connector.
2. Turn ignition switch ON.
3. Check voltage between ambient sensor harness connector E34 terminal 1 and ground.
OK or NG
OK >> GO TO 2.
NG >> GO TO 4.
RJIA2016E
RJIA1461E
1 – Ground : Approx. 5 V
RJIA2017E

ATC-158
REFRIGERANT LINES
Revision: 2006 December 2006 FX35/FX45
CHECKING PROCEDURE
To prevent inaccurate or false readings, make sure there is no refrigerant vapor, shop chemicals, or cigarette
smoke in the vicinity of the vehicle. Perform the leak test in calm area (low air/wind movement) so that the
leaking refrigerant is not dispersed.
1. Stop engine.
2. Connect a suitable A/C manifold gauge set (SST: J-39183) to the A/C service valves.
3. Check if the A/C refrigerant pressure is at least 345 kPa (3.52 kg/cm
2 , 50 psi) above 16 °C (61 °F). If less
than specification, recover/evacuate and recharge the system with the specified amount of refrigerant.
NOTE:
At temperatures below 16 °C (61 °F), leaks may not be detected since the system may not reach 345 kPa
(3.52 kg/cm
2 , 50 psi).
4. Perform the leak test from the high-pressure side (compressor discharge a to evaporator inlet h) to the low-pressure side [evaporator drain hose i to shaft seal o (VK45DE) or n (VQ35DE)]. Refer to ATC-139,
"Components" . Perform a leak check for the following areas carefully. Clean the component to be
checked and move the leak detected probe completely around the connection/component.
Compressor
Check the fitting of high- and low-pressure flexible hoses, relief valve and shaft seal.
Condenser
Check the fitting of high-pressure flexible hose and pipe, refrigerant pressure sensor.
Liquid tank
Check the fitting of refrigerant connection.
Service valves
Check all around the service valves. Ensure service valve caps are secured on the service valves (to pre-
vent leaks).
NOTE:
After removing A/C manifold gauge set from service valves, wipe any residue from valves to prevent any
false readings by leak detector.
Cooling unit (Evaporator)
With engine OFF, turn blower fan on “High” for at least 15 seconds to dissipate any refrigerant trace in the
cooling unit. Wait a minimum of 10 minutes accumulation time (refer to the manufacturer’s recommended
procedure for actual wait time) before inserting the leak detector probe into the drain hose.
Keep the probe inserted for at least 10 seconds. Use caution not to contaminate the probe tip with water
or dirt that may be in the drain hose.
5. If a leak detector detects a leak, verify at least once by blowing compressed air into area of suspected leak, then repeat check as outlined above.
6. Do not stop when one leak is found. Continue to check for additional leaks at all system components. If no leaks are found, perform steps 7 - 10.
7. Start the engine.
8. Set the A/C control as follows;
a. A/C switch: ON
b. Mode door position: VENT (Ventilation)
c. Intake position: Recirculation
d. Temperature setting: Max. cold
e. Fan speed: High
9. Run engine at 1,500 rpm for at least 2 minutes.
10. Stop the engine and perform leak check again following steps 4 through 6 above.
Refrigerant leaks should be checked immediately after stopping
the engine. Begin with the leak detector at the compressor. The
pressure on the high-pressure side will gradually drop after
refrigerant circulation stops and pressure on the low-pressure
side will gradually rise, as shown in the graph. Some leaks are
more easily detected when pressure is high.
SHA839E

AV-94
NAVIGATION SYSTEM
Revision: 2006 December 2006 FX35/FX45
NAVIGATION SYSTEM
Location Detection Principle
The navigation system periodically calculates the vehicle's current
position according to the following three signals:

Travel distance of the vehicle as determined by the vehicle
speed sensor

Turning angle of the vehicle as determined by the gyroscope
(angular velocity sensor)

Direction of vehicle travel as determined by the GPS antenna
(GPS information)
The current position of the vehicle is then identified by comparing the
calculated vehicle position with map data read from the DVD-ROM,
which is stored in the DVD-ROM drive (map-matching), and indi-
cated on the screen as a current-location mark. More accurate data is judged and used by comparing vehicle
position detection results found by the GPS with the result by map-matching.
The current vehicle position will be calculated by detecting the dis-
tance the vehicle moved from the previous calculation point and its
direction.

Travel distance
Travel distance calculations are based on the vehicle speed
sensor input signal. Therefore, the calculation may become
incorrect as the tires wear down. To prevent this, an automatic
distance correction function has been adopted.

Travel direction
Change in the travel direction of the vehicle is calculated by a
gyroscope (angular velocity sensor) and a GPS antenna (GPS
information). They have both advantages and disadvantages.
More accurate traveling direction is selected because priorities are set for the signals from these two
devices according to the situation.
SKIB1058E
SEL684V
Type Advantage Disadvantage
Gyroscope (angular velocity sen-
sor) Can detect the vehicle's turning angle quite
accurately. Direction errors may accumulate when vehicle is
driven for long distances without stopping.
GPS antenna (GPS information) Can detect the vehicle's travel direction
(North/South/East/West). Correct direction cannot be detected when vehi-
cle speed is low.

NAVIGATION SYSTEM AV-97
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 December 2006 FX35/FX45
Component DescriptionNKS003K1
NAVI CONTROL UNIT

The gyro (angular speed sensor) and the DVD-ROM drive are
built-in units that control the navigation functions.

Signals are received from the gyro, the vehicle speed sensor,
and the GPS antenna. Vehicle location is determined by com-
bining this data with the data contained in the DVD-ROM map.
Locational information is shown on liquid crystal display panel.
DVD-ROM Drive
Maps, traffic control regulations, and other pertinent information can
be easily read from the DVD-ROM.
DVD-ROM

The DVD-ROM has maps, traffic control regulations, and other pertinent information.

To improve DVD-ROM map matching and route determination functions, the DVD-ROM uses an exclusive
Nissan format. Therefore, the use of a DVD-ROM provided by other manufacturers cannot be used.
Gyro (Angular Speed Sensor)

The oscillator gyro sensor is used to detect changes in vehicle steering angle.

The gyro is built into the navigation (NAVI) control unit.
GPS ANTENNA
The GPS antenna receives and amplifies the radio waves from the GPS satellites, and then transmits the GPS
signal to NAVI control unit.
DISPLAY CONTROL UNIT

Display control unit draws a status of the audio and air condi-
tioner, a TRIP screen, a FUEL ECONOMY screen, etc., and
transmits the image signals to the display screen.

It receives operation signals of audio and air conditioner from A/
C and AV switch, and transmits the operation signal of audio to
the audio unit via the communication line and transmits the
operation signal of air conditioner to the meter and A/C amp. via
CAN communication.
SKIB3892E
SKIB6982E
SKIB8638E

NAVIGATION SYSTEM AV-153
C
D E
F
G H
I
J
L
M A
B
AV
Revision: 2006 December 2006 FX35/FX45
DVD-ROM
ROUTE CALCULATION AND VISUAL GUIDANCE
The GPS indicator on the screen
remains gray. GPS signals cannot be received depending on
the vehicle location, such as in a parking
garage, on a road that has numerous tall build-
ings, etc. Drive on an open, straight road for a while.
A sufficient amount of GPS satellites is not
available. Please wait for the satellites to move to loca-
tions available for the navigation system.
The location of the vehicle mark is
misaligned from the actual posi-
tion. When using tire chains or replacing the tires,
speed calculations based on the speed sensor
may be incorrect. Drive the vehicle for a while [at approximately
30 km/h (19 MPH) for about 30 minutes] to
automatically correct the vehicle's mark posi-
tion. If this does not correct the vehicle mark
position, contact a NISSAN dealer or qualified
workshop.
The map data has a mistake or is incomplete
(the vehicle mark position is always misaligned
in the same area). Updated road information will be included in
the next version of the DVD-ROM.
Symptom Possible cause Possible solution
Symptom Possible cause Possible solution
The message “Error” appears. The DVD-ROM is dirty or partially damaged. Check the DVD-ROM and wipe it clean with a
soft cloth.
If any damage, replace the DVD-ROM.
Symptom Possible cause Possible solution
In the auto re-route calculation,
waypoints are not included. Waypoints that you have already passed are
not included in the auto re-route calculation. To go to that waypoint again, it is necessary to
edit the route.
Route information is not dis-
played. Route calculation has not yet been performed.
Set the destination and perform route calcula-
tion.
Vehicle is not driving on the suggested route. Drive on the suggested route.
Route guidance is set to off. Turn on the route guidance.
The auto re-route calculation (or
detour calculation) suggests the
same route as the one previously
suggested. Route calculations took priority conditions into
consideration, but the same route was calcu-
lated. This is not a malfunction.
A waypoint cannot be added. Five waypoints are already set on the route,
including the ones that you have already
passed. A maximum of 5 waypoints can be set on the
route. If you want to go to 6 or more waypoints,
perform route calculations several times, as
necessary.
The suggested route is not dis-
played. Roads near the destination cannot be calcu-
lated. Reset the destination to a main or ordinary
road, and recalculate the route.
The starting point and destination are too close. Set a more distant destination.
The starting point and destination are too far
away. Divide your trip by selecting one or two inter-
mediate destinations, and perform a global
route calculation based on multiple route cal-
culations.
There are time restricted roads (day of week,
time) near the current vehicle location or desti-
nation. Set [Use Time Restricted Roads] to off.
The part of the route already
passed is deleted. A route is managed by sections between way-
points. If passing the first waypoint, the section
between the starting point and the waypoint is
deleted. (It may not be deleted depending on
the area.) This is not a malfunction.

BRC-8
[VDC/TCS/ABS]
SYSTEM DESCRIPTION
Revision: 2006 December 2006 FX35/FX45
SYSTEM DESCRIPTIONPFP:00000
System DiagramNFS000N3
FunctionsNFS000N4
VDC

In addition to the TCS/ABS function, the driver steering amount and brake operation amount are detected
from steering angle sensor and pressure sensor, and the vehicle's driving status (amount of under steer-
ing / over steering) is determined from information from G sensor, wheel sensor, etc., and this information
is used to improve vehicle stability by controlling the braking and engine power to all four wheels.

SLIP indicator lamp flashes to inform the driver of VDC operation.

During VDC operation, body and brake pedal lightly vibrate and mechanical noises may be heard. This is
normal.

ABS warning lamp, VDC OFF indicator lamp, and SLIP indicator lamp might turn on when vehicle is sub-
ject to strong shaking or large vibration, such as when vehicle is on a turn table, a ship or a steep slope
such as bank while engine is running. In this case, restart engine on a normal road, and if ABS warning
lamp, VDC OFF indicator lamp, and SLIP indicator lamp turn off, there is no malfunction.
TCS

The wheel spin of the drive wheels is detected by ABS actuator and electric unit (control unit) from the
wheel speed signals from four wheels, so if wheel spin occurs, drive wheel right and left brake fluid pres-
sure control and engine fuel cut are performed while throttle value is restricted to reduce the engine
torque and decrease the amount of wheel spin. In addition, the degree throttle is opened is controlled to
achieve the optimum engine torque.

Depending on road circumstances, the driver may have a sluggish feel. This is normal, because the opti-
mum traction has the highest priority under TCS operation.

TCS may be activated any time vehicle suddenly accelerates, suddenly down/upshifts, or is driven on a
road with a varying surface friction coefficient.

During TCS operation, it informs a driver of system operation by flashing SLIP indicator lamp.
SFIA1160E
