INFINITI FX35 2007 Service Manual

TROUBLE DIAGNOSIS BRC-15
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
SchematicNFS000ND
TFWM0229E

BRC-16
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45

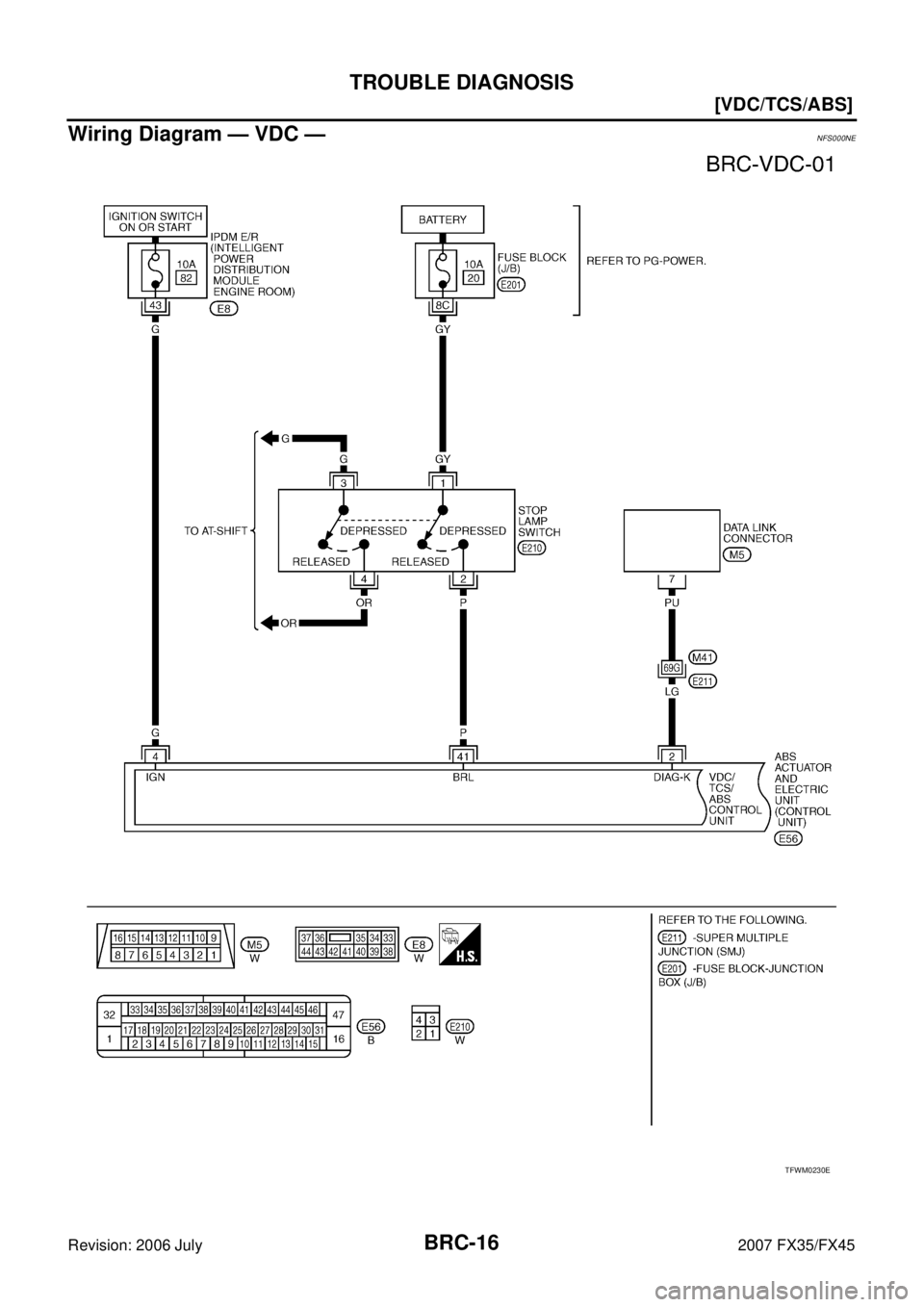

Wiring Diagram — VDC —NFS000NE

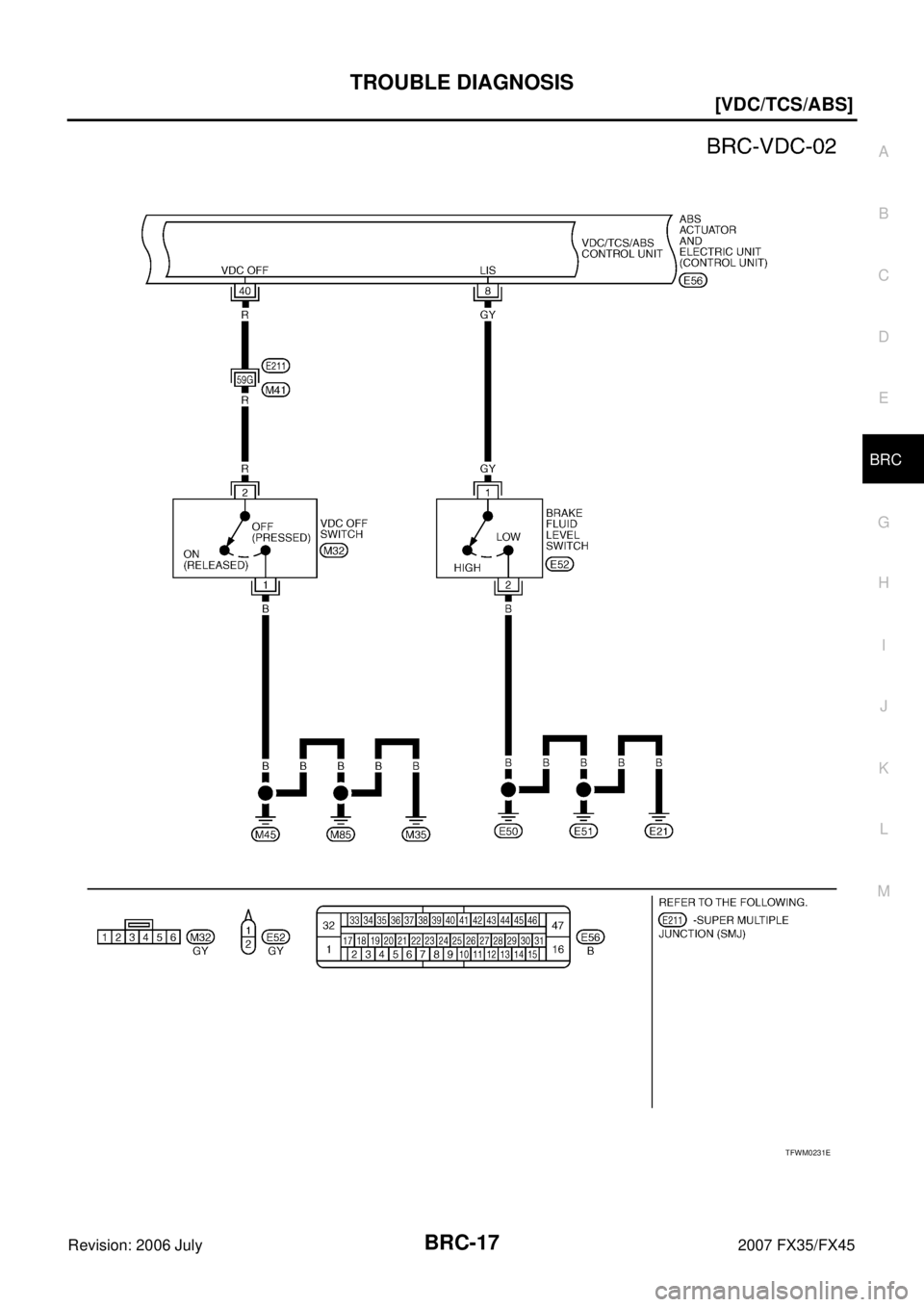

TFWM0230E

TROUBLE DIAGNOSIS BRC-17
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45

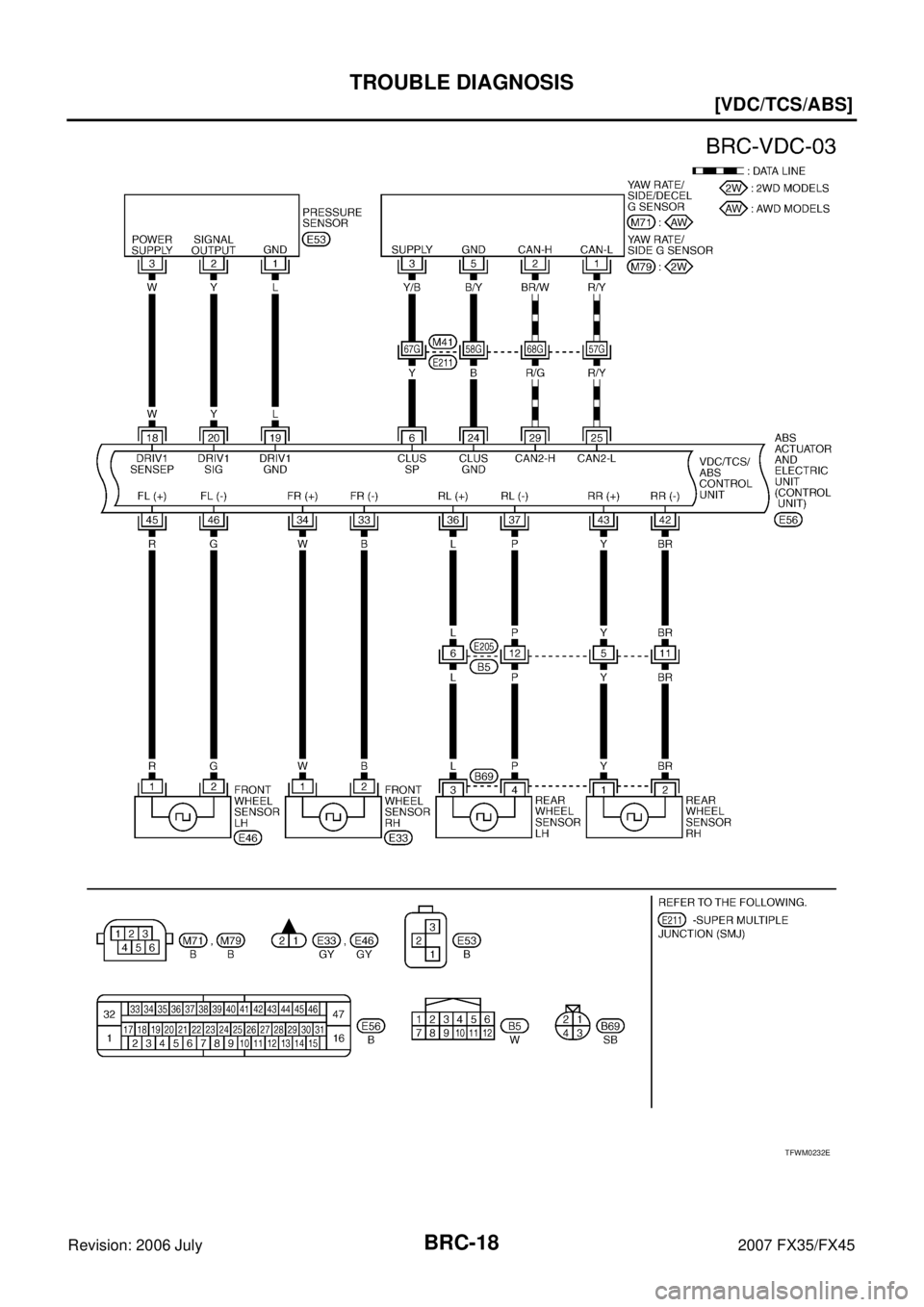

TFWM0231E

BRC-18
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45

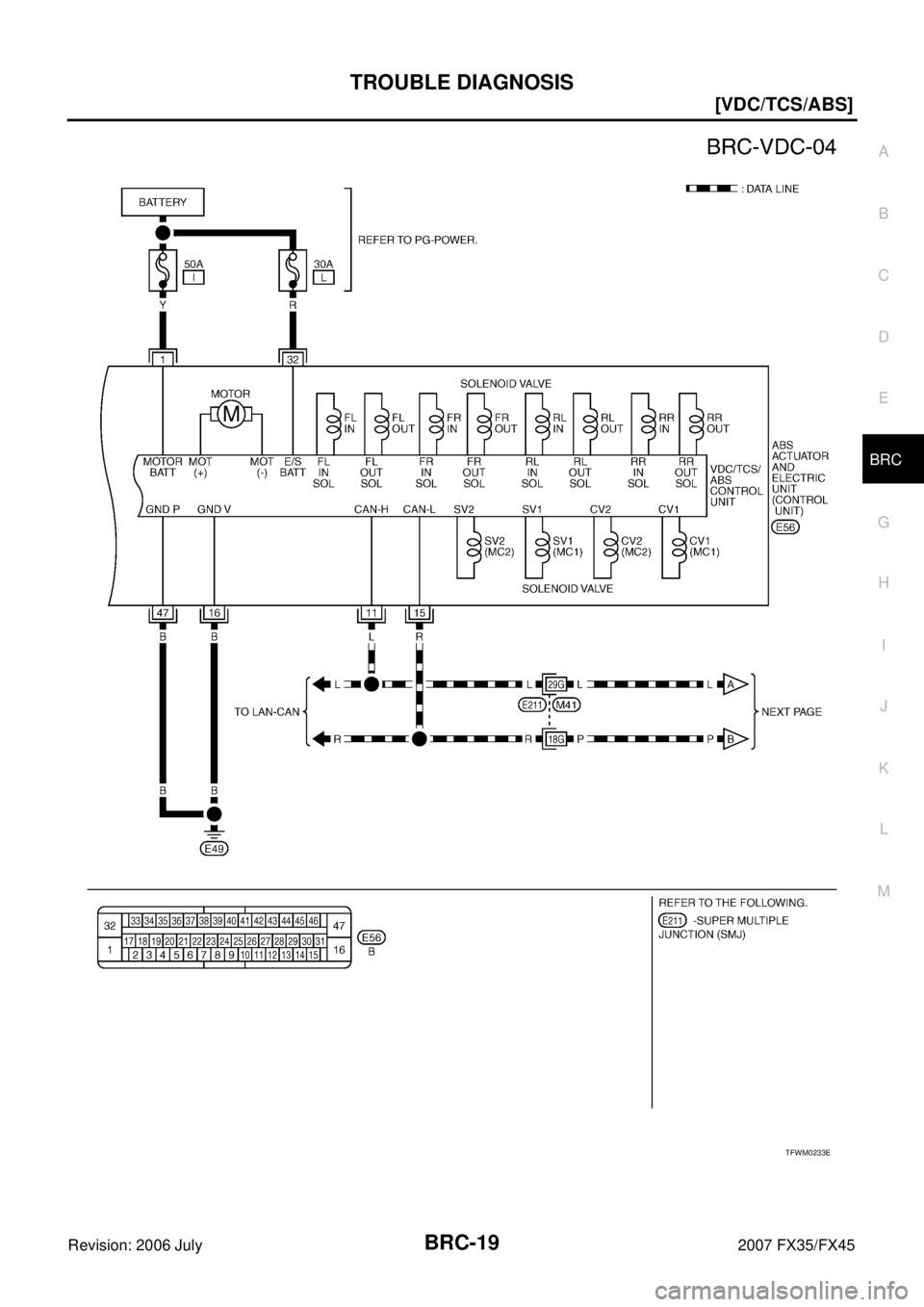

TFWM0232E

TROUBLE DIAGNOSIS BRC-19
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45

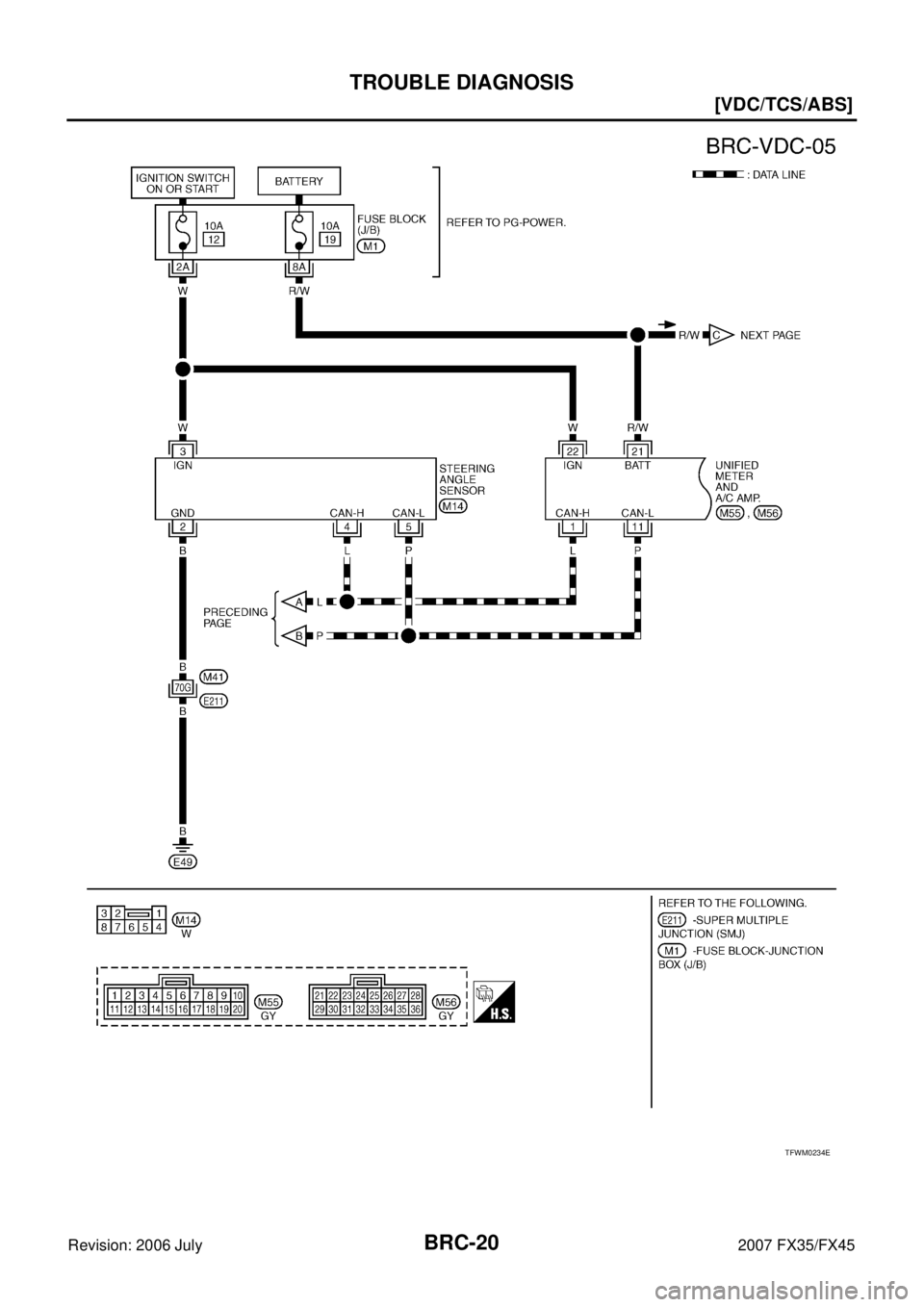

TFWM0233E

BRC-20
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45

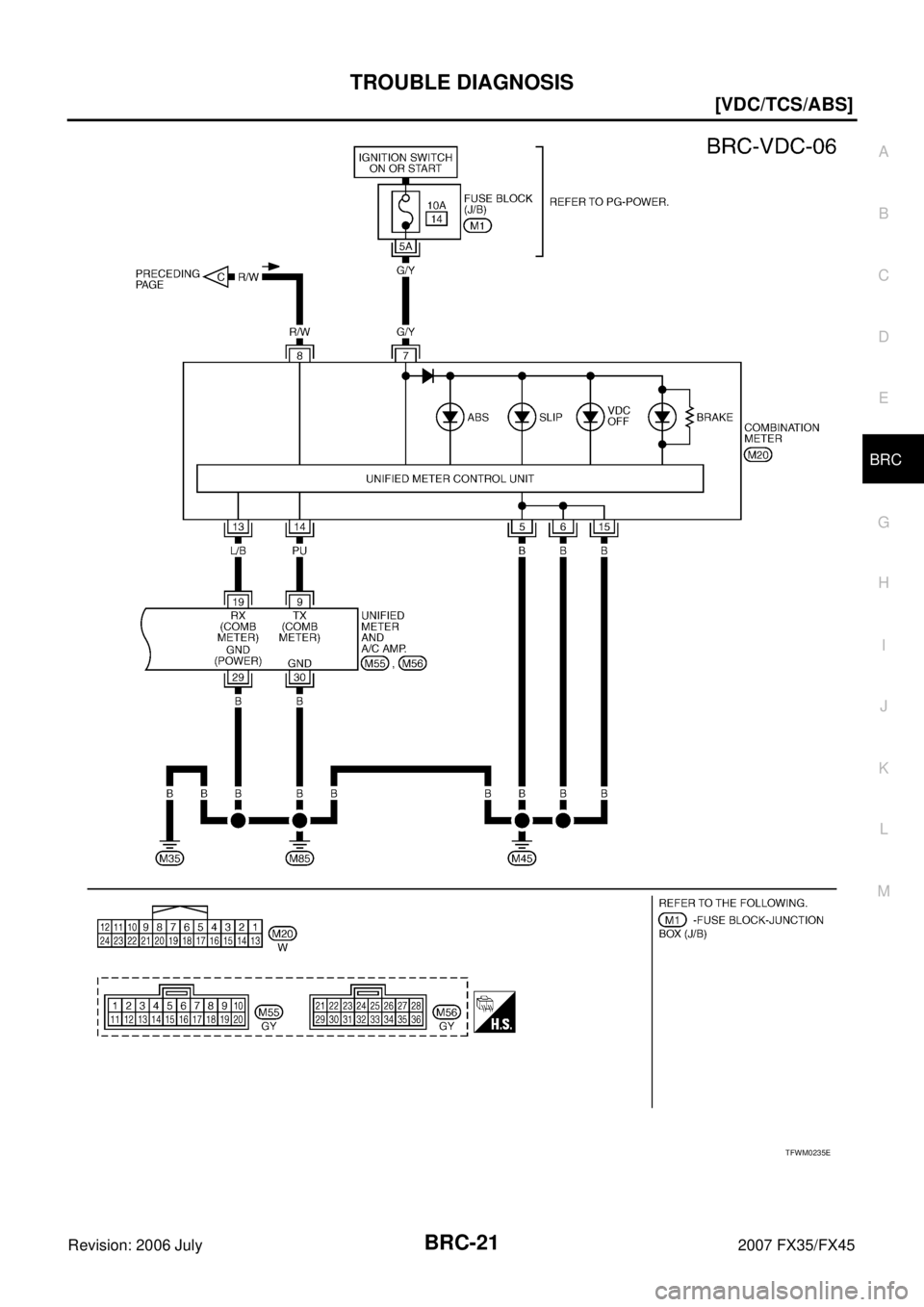

TFWM0234E

TROUBLE DIAGNOSIS BRC-21
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
TFWM0235E

BRC-22
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
Control Unit Input/Output Signal StandardNFS000NF
REFERENCE VALUE FROM CONSULT-II
CAUTION:
The display shows ABS actuator and electric unit (control unit) calculation data, so a normal value
might be displayed even in the event the output circuit (harness) is open or short-circuited.
Monitor item Display content Data monitor
Condition Reference value in
normal operation
SLCT LVR POSI A/T shift position P: P position
R: R position
N: N position
D: D position
GEAR A/T gear position 1: 1st gear
2: 2nd gear
3: 3rd gear
4: 4th gear
5: 5th gear
FR RH SENSOR
FR LH SENSOR
RR RH SENSOR
RR LH SENSOR Wheel speed Vehicle stopped 0 [km/h (MPH)]
Vehicle running (Note 1) Almost in accor-
dance with speedom-
eter display
(within ± 10 %)
ACCEL POS SIG Open/close condition of throttle valve
(linked with accelerator pedal) Accelerator pedal not depressed
(Engine stopped) 0 %
Depress accelerator pedal
(Engine stopped) 0 to 100 %
ENGINE SPEED With engine running With engine stopped 0 rpm
Engine running Almost in accor-
dance with tachome-
ter display
STR ANGLE SIG Steering angle detected by steering angle
sensor Straight-ahead Approx. 0 deg
Steering wheel turned –756 to 756 deg
YAW RATE SEN Yaw rate detected by yaw rate sensor Vehicle stopped Approx. 0 d/s
Vehicle running –100 to 100 d/s
SIDE G-SENSOR Transverse G detected by side G sensor Vehicle stopped
Approx. 0 m/s
2
Vehicle running–16.7 to 16.7 m/s2
PRESS SENSOR Brake fluid pressure detected by pressure
sensor With ignition switch turned ON and brake
pedal released Approx. 0 bar
With ignition switch turned ON and brake
pedal depressed 0 to 170 bar
BATTERY VOLT Battery voltage supplied to ABS actuator
and electric unit (control unit) Ignition switch ON 10 to 16 V
STOP LAMP SW Brake pedal operation Brake pedal depressed ON
Brake pedal not depressed OFF
OFF SW VDC OFF switch ON/OFF status VDC OFF switch ON
(When VDC OFF indicator lamp is ON) ON
VDC OFF switch OFF
(When VDC OFF indicator lamp is OFF) OFF
ABS WARN LAMP ABS warning lamp ON condition (Note 2) ABS warning lamp ON ON
ABS warning lamp OFF OFF

TROUBLE DIAGNOSIS BRC-23
[VDC/TCS/ABS]
C
D E
G H
I
J
K L
M A
B
BRC
Revision: 2006 July 2007 FX35/FX45
MOTOR RELAY Operation status of motor and motor relay Ignition switch ON or engine running
(ABS not operated) OFF
Ignition switch ON or engine running
(ABS operated) ON
ACTUATOR RLY Actuator relay operation status Actuator (solenoid) is active
(“ACTIVE TEST” with CONSULT-II) ON
When actuator relay is inactive
(in fail-safe mode) OFF
OFF LAMP VDC OFF indicator lamp status
(Note 3) When VDC OFF indicator lamp is ON ON
When VDC OFF indicator lamp is OFF OFF
SLIP LAMP SLIP indicator lamp status
(Note 4) When SLIP indicator lamp is ON ON
When SLIP indicator lamp is OFF OFF
FR LH IN SOL
FR LH OUT SOL
FR RH IN SOL
FR RH OUT SOL
RR RH IN SOL
RR RH OUT SOL
RR LH IN SOL
RR LH OUT SOL Solenoid valve operation Actuator (solenoid) is active (“ACTIVE
TEST” with CONSULT-II) and actuator
relay is active (ignition switch ON) ON
When actuator (solenoid) is not active or
actuator relay is inactive (in fail-safe
mode) OFF
CV1
CV2
SV1
SV2 VDC/TCS switch-over valve status When actuator (switch-over valve) is
active (“ACTIVE TEST” with CONSULT-II)
and actuator relay is active (ignition
switch ON) ON
When actuator (switch-over valve) is not
active or actuator relay is inactive (in fail-
safe mode) OFF
DECEL G-SEN Longitudinal acceleration detected by decel
G sensor (Note 5) Vehicle stopped Approx. 0 G
Vehicle running -1.7 to +1.7 G
FLUID LEV SW ON/OFF status of brake fluid level switch When brake fluid level switch ON ON
When brake fluid level switch OFF OFF
VDC FAIL SIG
TCS FAIL SIG
ABS FAIL SIG
EBD FAIL SIG Fail signal status VDC fail
TCS fail
ABS fail
EBD fail ON
VDC normal
TCS normal
ABS normal
EBD normal OFF
EBD WARN LAMP Brake warning lamp on condition
(Note 6) Brake warning lamp ON ON
Brake warning lamp OFF OFF
EBD SIGNAL EBD operation EBD active ON
EBD not active OFF
ABS SIGNAL ABS operation ABS active ON
ABS not active OFF
TCS SIGNAL TCS operation TCS active ON
TCS not active OFF
VDC SIGNAL VDC operation VDC active ON
VDC not active OFF
Monitor item Display content
Data monitor
Condition Reference value in
normal operation

BRC-24
[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
Note 1: Confirm tire pressure is normal.
Note 2: ON/OFF timing of ABS warning lamp
ON: Approx. Within 2 seconds after ignition switch is turned ON, or when a malfunction is detected.
OFF: Approx. 2 seconds after ignition switch is turned ON (when system is in normal operation) and VDC/TCS function is not activa ted.
Note 3: ON/OFF timing of VDC OFF indicator lamp
ON: Approx. Within 2 seconds after ignition switch is turned ON, or when a malfunction is detected and VDC OFF switch is ON.
OFF: Approx. 2 seconds after ignition switch is turned ON (when system is in normal operation.) And when VDC OFF switch is OFF.
Note 4: ON/OFF timing of SLIP indicator lamp
ON: Approx. Within 2 seconds after ignition switch is turned ON, or when a malfunction is detected and VDC/TCS function is activa ted
while driving.
OFF: Approx. 2 seconds after ignition switch is turned ON (when system is in normal operation) and VDC/TCS function is not activa ted.
Flashing: VDC/TCS function is active during driving
Note 5: Only AWD models.
Note 6: Serves as EBD warning lamp.
CONSULT-II Functions (ABS)NFS000NG
CONSULT-II MAIN FUNCTION
CONSULT-II can display each diagnostic item using the diagnostic test modes shown following.
CONSULT-II SETTING PROCEDURE
Refer to GI-38, "CONSULT-II Start Procedure" .
CRANKING SIG CRANKING status Cranking ON
Not cranking OFF
4WD FAIL REQ ETS fail status (Note 5) ETS fail ON
ETS normal OFF
2WD/4WD Drive axle 2WD model 2WD
AW D mod el AW D
Monitor item Display content
Data monitor
Condition Reference value in
normal operation
Diagnostic test mode Function Reference
WORK SUP-
PORT This mode enables a technician to adjust some devices faster and more accurately
by following the indications on CONSULT-II. BRC-6, "
ON-VEHICLE SER-
VICE"
SELF-DIAG
RESULTS Self-diagnostic results can be read and erased quickly.
BRC-25, "Self-Diagnosis"
DATA MONI-
TOR Input/Output data in the ABS actuator and electric unit (control unit) can be read.
BRC-29, "Data Monitor"
CAN DIAG
SUPPORT
MNTR The results of transmit/receive diagnosis of communication can be read.
LAN-44, "CAN Diagnostic
Support Monitor"
ACTIVE TEST Diagnostic Test Mode in which CONSULT-II drives some actuators apart from the
ABS actuator and electric unit (control unit) and also shifts some parameters in a
specified range. BRC-31, "Active Test"
FUNCTION
TEST Performed by CONSULT-II instead of a technician to determine whether each sys-
tem is “OK” or “NG”. —
ECU PART
NUMBER ABS actuator and electric unit (control unit) part number can be read. —
