INFINITI FX35 2007 Service Manual

POWER SOCKET WW-55
C
D E
F
G H
I
J
L
M A
B
WW
Revision: 2006 July 2007 FX35/FX45
POWER SOCKETPFP:253A2
Wiring Diagram — P/SCKT —NKS0033S
TKWM4490E

WW-56
POWER SOCKET
Revision: 2006 July 2007 FX35/FX45

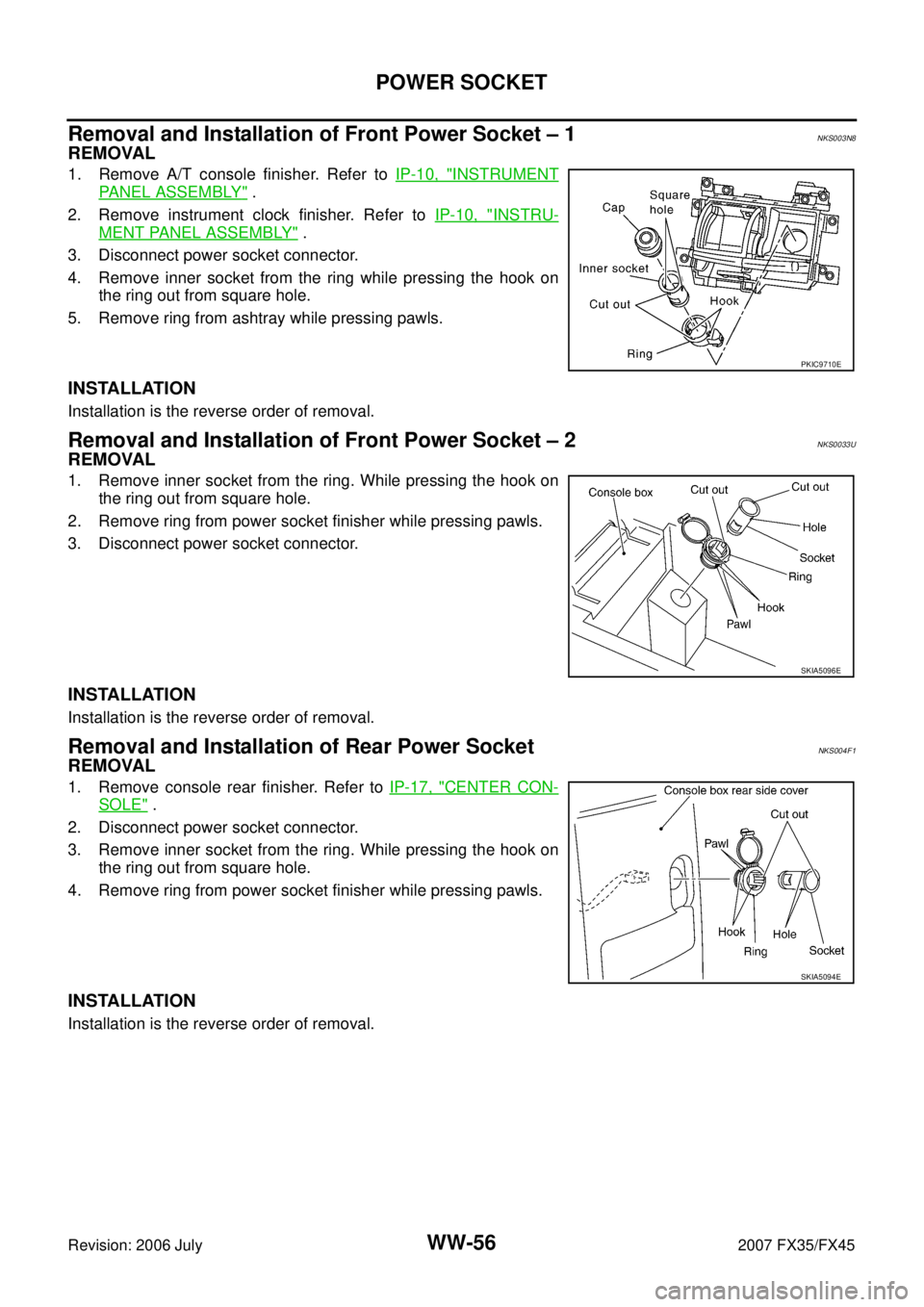

Removal and Installation of Front Power Socket – 1NKS003N8
REMOVAL
1. Remove A/T console finisher. Refer to IP-10, "INSTRUMENT
PANEL ASSEMBLY" .
2. Remove instrument clock finisher. Refer to IP-10, "
INSTRU-
MENT PANEL ASSEMBLY" .
3. Disconnect power socket connector.
4. Remove inner socket from the ring while pressing the hook on the ring out from square hole.
5. Remove ring from ashtray while pressing pawls.
INSTALLATION
Installation is the reverse order of removal.
Removal and Installation of Front Power Socket – 2NKS0033U
REMOVAL
1. Remove inner socket from the ring. While pressing the hook on the ring out from square hole.
2. Remove ring from power socket finisher while pressing pawls.
3. Disconnect power socket connector.
INSTALLATION
Installation is the reverse order of removal.
Removal and Installation of Rear Power SocketNKS004F1
REMOVAL
1. Remove console rear finisher. Refer to IP-17, "CENTER CON-
SOLE" .
2. Disconnect power socket connector.
3. Remove inner socket from the ring. While pressing the hook on the ring out from square hole.
4. Remove ring from power socket finisher while pressing pawls.
INSTALLATION
Installation is the reverse order of removal.
PKIC9710E
SKIA5096E
SKIA5094E

POWER SOCKET WW-57
C
D E
F
G H
I
J
L
M A
B
WW
Revision: 2006 July 2007 FX35/FX45

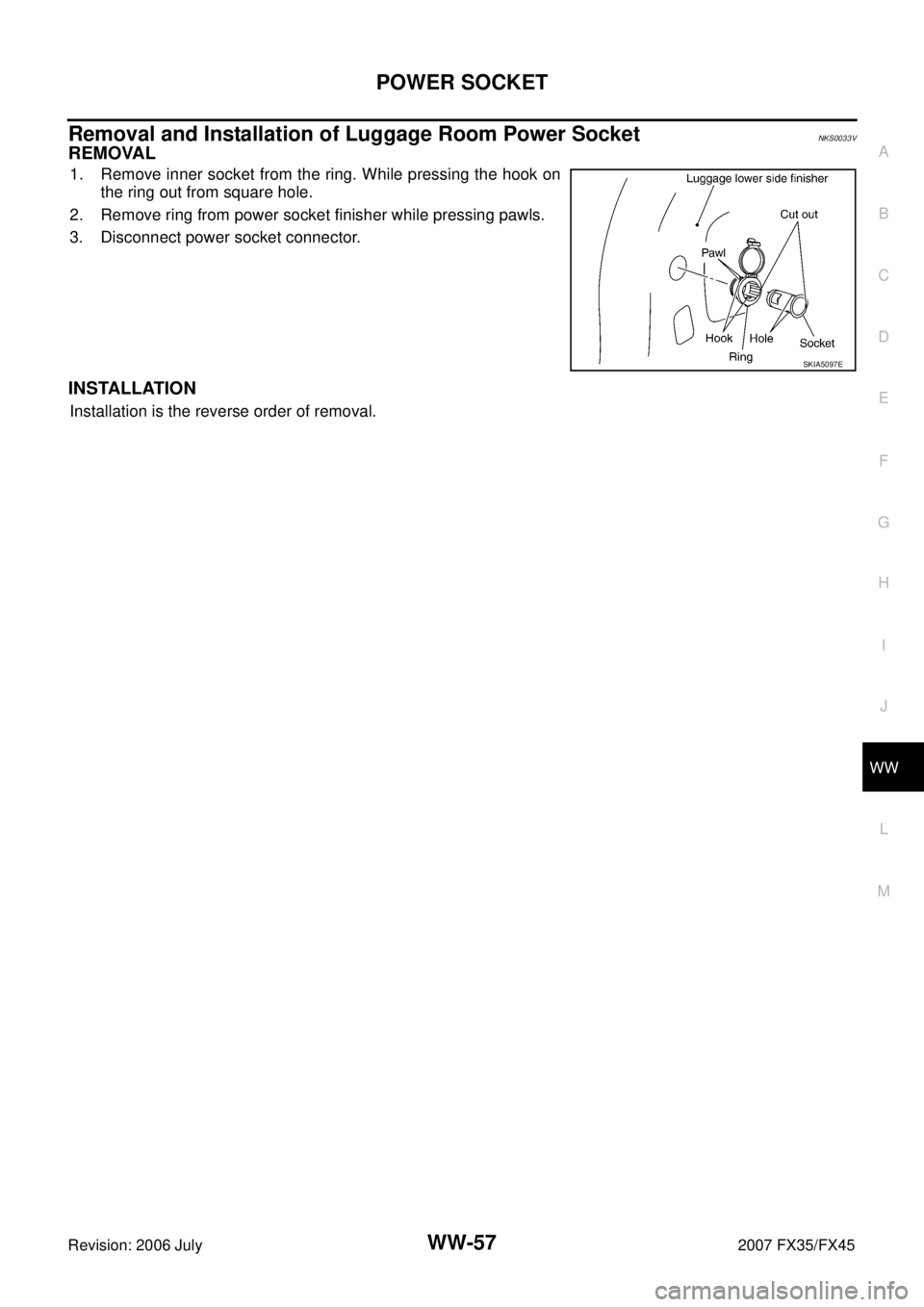

Removal and Installation of Luggage Room Power SocketNKS0033V
REMOVAL
1. Remove inner socket from the ring. While pressing the hook on
the ring out from square hole.
2. Remove ring from power socket finisher while pressing pawls.
3. Disconnect power socket connector.
INSTALLATION
Installation is the reverse order of removal.
SKIA5097E

WW-58
HORN
Revision: 2006 July 2007 FX35/FX45
HORNPFP:25610
Wiring Diagram — HORN —NKS0033W
TKWM4378E

HORN
WW-59
C
D E
F
G H
I
J
L
M A
B
WW
Revision: 2006 July 2007 FX35/FX45
Removal and InstallationNKS0033X
REMOVAL
1. Remove front grille. Refer to EI-22, "FRONT GRILLE" .
2. Disconnect all horn connectors.
3. Remove horn mounting bolt and remove horn from vehicle.
INSTALLATION
Installation is the reverse order of removal.

Tighten horn bolt to specified torque.
SKIA5093E
Horn mounting bolt : 5.8 N·m (0.59 kg-m, 51 in-lb)

WW-60
HORN
Revision: 2006 July 2007 FX35/FX45
