ACC INFINITI FX35 2007 User Guide

ACS-12
[ICC]
ACTION TEST
Revision: 2006 July 2007 FX35/FX45
Check For RESUME/ACCELERATE, SET/COAST, CANCEL Switches
1. Check if RESUME/ACCELERATE, SET/COAST, CANCEL switches are operated smoothly.
2. Check if buttons come up as hand is released from the buttons.
Check For Distance Switch
1. Start engine.
2. Press the MAIN switch for less than 1.5 seconds.
3. Press the DISTANCE switch.
4. Check if the set distance indicator changes display in order of: (Long) →(Middle) →(Short).
NOTE:
The set distance indicator shows (Long) immediately after the engine starts.
CONVENTIONAL (FIXED SPEED) CRUISE CONTROL MODE
Set Checking
1. Press the MAIN switch for more than 1.5 seconds.
2. Drive the vehicle between 40 km/h (25 MPH) and 144 km/h (90 MPH).
3. Push down the SET/COAST switch.
4. Confirm that the desired speed is set as hand is released from the SET/COAST switch.
NOTE:
ICC system display in the combination meter shows nothing.
SKIB8746E

ACTION TEST ACS-13
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2006 July 2007 FX35/FX45
Check For Increase Of Cruising Speed
1. Set the conventional (fixed speed) cruise control mode at desired speed.
2. Check if the set speed increases by 1.6 km/h (1 MPH) as RESUME/ACCELERATE switch is pushed up.
NOTE:

If the RESUME/ACCELERATE switch is kept pushing up during cruise control driving, the vehicle speed
increases until the switch is released.

The maximum set speed is 144 km/h (90 MPH).
Check For Decrease Of Cruising Speed
1. Set the conventional (fixed speed) cruise control mode at desired speed.
2. Check if the set speed decreases by 1.6 km/h (1 MPH) as SET/COAST switch is pushed down.
NOTE:

Conventional (fixed speed) cruise control mode is automatically turned off when the driving speed lowers
to 32 km/h (20 MPH).

The minimum set speed is 40 km/h (25 MPH).
Check For Cancellation Of Conventional (Fixed Speed) Cruise Control Mode (Normal Driving
Condition) In The Following Cases:
Refer to ACS-11, "Check For Cancellation Of Vehicle-To-Vehicle Distance Control Mode (Normal Driving Con-
dition) In The Following Cases:" .
Check For Restoring Speed That Is Set By Conventional (Fixed Speed) Cruise Control Mode
Before ICC Cancellation
Refer to ACS-11, "Check For Restoring Speed That Is Set By Vehicle-To-Vehicle Distance Control Mode
Before Cancellation" .
Check For MAIN Switch
1. Start engine. Then, check if the following operations are per-
formed correctly.
2. “CRUISE” lamp illuminates and ICC system indicator goes off when MAIN switch is pressed “ON” for more than 1.5 seconds,
and then ready for operation. The illumination goes off when
MAIN switch is turned to OFF.
3. “CRUISE” illumination go off when the ignition switch is turned to OFF while MAIN switch is ON.
Check For RESUME/ACCELERATE, SET/COAST, CANCEL Switches
1. Check if RESUME/ACCELERATE, SET/COAST, CANCEL switches are operated smoothly.
2. Check if buttons come up as hand is released from the buttons.
SKIB8560E

ACS-14
[ICC]
LASER BEAM AIMING ADJUSTMENT
Revision: 2006 July 2007 FX35/FX45
LASER BEAM AIMING ADJUSTMENTPFP:00026
OutlineNKS003EQ
Adjust the laser beam aiming every time the ICC sensor is removed or installed.
CAUTION:

Adjust laser beam aiming at a horizontal place as far as 12 m (39 ft) forward the vehicle can be
seen.

Adjust laser beam aiming 5 seconds after starting engine.

Never view ICC sensor integrated unit body window directly during laser beam aiming adjustment.

Follow the CONSULT-ll when adjusting the laser beam aiming (laser beam aiming adjustment can-
not be operated without CONSULT-ll).

Never ride on vehicle during laser beam aiming adjustment.

Idle and turn headlamps OFF during laser beam aiming adjustment.
PreparationNKS003ER

Adjust the tire pressure to the specified value.

See that there is no load in the vehicle.

Coolant, engine oil filled up to correct level and full fuel tank.

Shift the gear into “P” position and release the parking brake.

Clean the ICC sensor with a soft cloth.
Outline of Adjustment ProcedureNKS003ES
1. Set up the ICC target board [KV99110100 (J-45718)].
2. Adjust the sensor following the procedure on CONSULT-II. (Turn manually the screw for up-down position adjustment. ICC sensor automatically adjust the right-left position.)
Setting the ICC Target BoardNKS003ET
Accurate ICC target board setting is required for the laser beam aiming adjustment.
CAUTION:
ICC system does not function normally if laser beam aiming is not accurate.
ADJUSTING HEIGHT OF THE TARGET
1. Attach a triangle scale at the center.
SKIA6179E
SKIA5974E

LASER BEAM AIMING ADJUSTMENT ACS-17
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2006 July 2007 FX35/FX45
Aiming AdjustmentNKS003EU
CAUTION:
Complete all necessary work for laser beam adjustment until the adjustment completes as shown in
the procedure. If the procedure does not complete, the ICC system is inoperable.
NOTE:
CONSULT-II basic operation: Refer to GI-38, "
CONSULT-II Start Procedure" .
1. Touch “WORK SUPPORT”.
2. Touch “LASER BEAM ADJUST”.
3. Touch “START”. CAUTION:
If the adjustment screen does not appear on the CONSULT-
II screen in 10 seconds. After touching “LASER BEAM
ADJUST” screen, the following causes may be considered:

Target is not set accurately.

There is not enough space beside the target.

Deformation of vehicle or the surrounding equipment
unit, bracket, or the surrounding equipment is causing
inappropriate installation of sensor and aiming may be
set out of the adjustable range.

The area is not suitable for the adjustment work.

ICC sensor is not clean.
4. After the CONSULT-II displays “ADJUST THE VERTICAL OF LASER BEAM AIMING” turn the up-down direction adjusting
screw until “U/D CORRECT” value is set in the range of ±4.
CAUTION:
Turn the screw slowly. The value change on display is
slower than actual movement of the ICC sensor. Wait for 2
seconds every time the screw is turned half a rotation.
NOTE:
Turning the screw to the right lowers the aiming and to the left
lifts the aiming.
SKIA6191E
SKIA1220E
SKIA1221E
SKIA6181E

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION ACS-33
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2006 July 2007 FX35/FX45
DATA MONITOR
Operation Procedure
1. Touch “DATA MONITOR” on “SELECT DIAG MODE” screen. Refer to GI-38, "
CONSULT-II Start Procedure" .
2. Touch any of “ECU INPUT SIGNALS”, “MAIN SIGNALS” and “SELECTION FROM MENU” on selection screen.
3. Touch “START”.
4. Display the data monitor.
5. If necessary, touch “COPY” in turn, and print data.
Monitored Item
× : Applicable
PKIB0112E
Monitored Item
[unit] ECU INPUT
SIGNALS MAIN
SIGNALS SELEC-
TION FROM MENU Description
VHCL SPEED SE
[km/h] or [mph] ××× Indicates vehicle speed calculated from ICC unit through CAN
communication [ABS actuator and electric unit (control unit)
transmits wheel speed sensor signal through CAN communica-
tion].
SET VHCL SPD
[km/h] or [mph] ××Indicates set vehicle speed memorized in ICC unit.
THRTL OPENING
[%] ××× Indicates throttle angle read from ICC unit through CAN commu-
nication (ECM transmits throttle angle through CAN communi-
cation).
ENGINE RPM
[rpm] ×× Indicates engine speed read from ICC unit through CAN com-
munication (ECM transmits engine speed through CAN commu-
nication).
DISTANCE ADJ
[SHOR/MID/LONG] ××× Indicates set distance memorized in ICC unit.
WIPER SW
[OFF/LOW/HIGH] ×× Indicates wiper [OFF/LOW/HIGH] status (BCM transmits front
wiper request signal through CAN communication).
MAIN SW
[ON/OFF] ××× Indicates [ON/OFF] status as judged from ICC steering switch
signal (ECM transmits ICC steering switch signal through CAN
communication).
SET/COAST SW
[ON/OFF] ××× Indicates [ON/OFF] status as judged from ICC steering switch
signal (ECM transmits ICC steering switch signal through CAN
communication).
CANCEL SW
[ON/OFF] ××× Indicates [ON/OFF] status as judged from ICC steering switch
signal (ECM transmits ICC steering switch signal through CAN
communication).
RESUME/ACC SW
[ON/OFF] ××× Indicates [ON/OFF] status as judged from ICC steering switch
signal (ECM transmits ICC steering switch signal through CAN
communication).
CRUISE OPE
[ON/OFF] ××
Indicates whether controlling or not (ON means “controlling”).
BRAKE SW
[ON/OFF] ××× Indicates [ON/OFF] status as judged from ICC brake switch sig-
nal.
STOP LAMP SW
[ON/OFF] ××× Indicates [ON/OFF] status as judged from stop lamp switch sig-
nal.
RELEASE SW NO
[ON/OFF] ×× Indicates [ON/OFF] status as judged from release switch signal.
ON when brake is depressed.
OFF when brake is not depressed.

TROUBLE DIAGNOSIS — GENERAL DESCRIPTION ACS-37
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2006 July 2007 FX35/FX45
Self-Diagnostic FunctionNKS003F2
WITH CONSULT-II
1. Go to operation check after asking the customer for symptom information. Refer to ACS-11, "ACTION
TEST" .
2. Stop vehicle, turn ignition switch OFF, then connect CONSULT-II and CONSULT-II CONVERTER to data link connector.
3. With engine started, touch “START (NISSAN BASED VHCL)”, “ICC”, “SELF-DIAG RESULTS” on CON- SULT-II screen in this order.
CAUTION:
If “ICC” cannot be shown after several attempts, the ICC unit may have had malfunction. Repair or
replace it. Refer to GI-39, "
CONSULT-II Data Link Connector (DLC) Circuit" .
4. Self-diagnostic result appears on screen. If “NO DTC ···” is shown, check ICC warning lamp. If any mal- function is indicated, GO TO step 5.
5. According to ACS-42, "
Diagnostic Trouble Code (DTC) Chart" , perform appropriate check, and repair or
replace malfunctioning part as necessary.
6. Turn ignition switch OFF.
7. Start the engine and touch “START (NISSAN BASED VHCL)”, “ICC”, “SELF-DIAG RESULTS”, and “ERASE” on CONSULT-II display in turn to erase the memory.
CAUTION:
If the memory does not erase, go to 5.
8. Perform ICC system running test (drive vehicle with ICC system ON), and make sure that ICC warning lamp does not illuminate.
WITHOUT CONSULT-II
1. Go to operation check after asking the customer for symptom information. Refer to ACS-11, "ACTION
TEST" .
2. Stop the vehicle to start the self-diagnosis.
3. Turn ignition switch OFF.
4. From 5 seconds through 15 seconds after turning ignition switch ON, press RESUME/ACCELERATE switch 5 times, and SET/
COAST switch 5 times.
CAUTION:

Never start engine.

Never turn the MAIN switch ON.

When operation above is not completed from 5 seconds
through 15 seconds, start again from above go to 3.

If self-diagnosis mode cannot be started after several
attempts, the ICC unit may have had malfunction. Repair
or replace it. Refer to ACS-39, "
SELF-DIAGNOSIS BY ICC
SYSTEM DISPLAY WILL NOT RUN" .
PKIA9675E

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS ACS-43
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2006 July 2007 FX35/FX45
90 STOP LAMP RLY FIX×× ×
Normally open terminal of stop
lamp relay is stuck. ACS-55
92 ECM CIRCUIT
××××

ECM malfunction

Accelerator pedal position sensor
malfunction

ICC unit malfunction ACS-61
96 NP RANGE
×××

Park/neutral position switch har-
ness is open or shorted.

Park/neutral position switch mal-
function.

TCM malfunction ACS-62
97 AT CIRCUIT
×××
TCM malfunctionACS-64
98 GEAR POSITION ×××

TCM malfunction

AT turbine revolution sensor mal-
function

AT vehicle speed sensor malfunc-
tion ACS-64
102 RADAR STAIN
×× ×
ICC sensor body window has con-
tamination. ACS-65
103 LASER SENSOR FAIL
×× ×
ICC sensor internal malfunctionACS-65
104 LASER AIMING INCMP ×× ×
Laser beam aiming of ICC sensor
is not adjusted. ACS-66
107 LASER COMM FAIL
×× ×

CAN data received by ICC sensor
is strange (from ICC unit, combi-
nation meter or ECM). ACS-66
109 LASER HIGH TEMP
×× ×
Temperature around ICC sensor is
excessively high. ACS-66
DTC
No. CONSULT-II
screen terms ICC
system
warning
lamp Fail-safe
Malfunctions detected where... Refer-
ence
page
Vehicle-
to-
vehicle
distance control
mode Conven-
tional
(fixed
speed)
cruise
control mode Brake
assist (with
preview
function)

TROUBLE DIAGNOSIS FOR SYMPTOMS ACS-69
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2006 July 2007 FX35/FX45

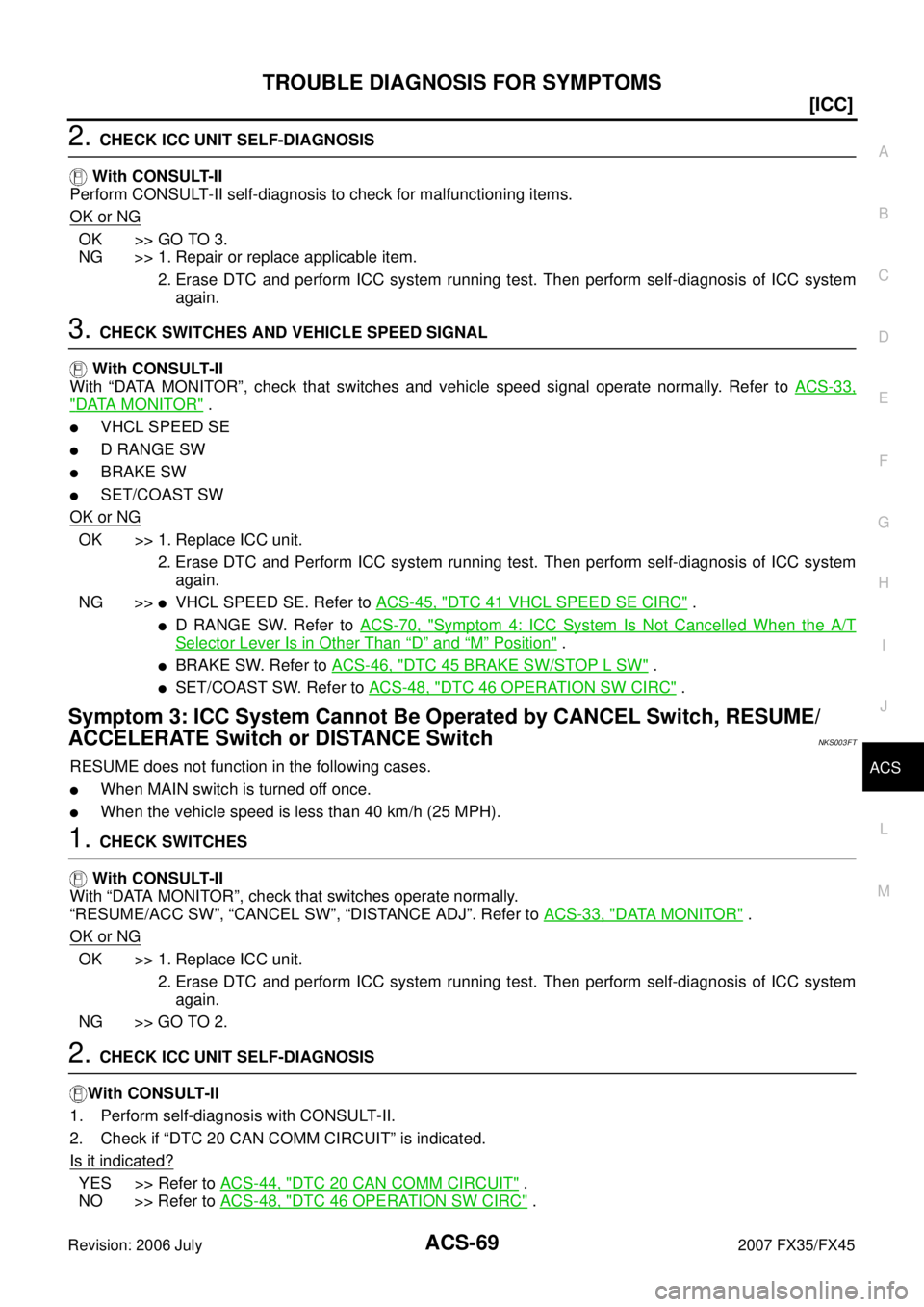

2. CHECK ICC UNIT SELF-DIAGNOSIS
With CONSULT-II
Perform CONSULT-II self-diagnosis to check for malfunctioning items.
OK or NG
OK >> GO TO 3.
NG >> 1. Repair or replace applicable item.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
3. CHECK SWITCHES AND VEHICLE SPEED SIGNAL
With CONSULT-II
With “DATA MONITOR”, check that switches and vehicle speed signal operate normally. Refer to ACS-33,
"DATA MONITOR" .

VHCL SPEED SE

D RANGE SW

BRAKE SW

SET/COAST SW
OK or NG
OK >> 1. Replace ICC unit. 2. Erase DTC and Perform ICC system running test. Then perform self-diagnosis of ICC system again.
NG >>

VHCL SPEED SE. Refer to ACS-45, "DTC 41 VHCL SPEED SE CIRC" .

D RANGE SW. Refer to ACS-70, "Symptom 4: ICC System Is Not Cancelled When the A/T
Selector Lever Is in Other Than “D” and “M” Position" .

BRAKE SW. Refer to ACS-46, "DTC 45 BRAKE SW/STOP L SW" .

SET/COAST SW. Refer to ACS-48, "DTC 46 OPERATION SW CIRC" .
Symptom 3: ICC System Cannot Be Operated by CANCEL Switch, RESUME/
ACCELERATE Switch or DISTANCE Switch
NKS003FT
RESUME does not function in the following cases.

When MAIN switch is turned off once.

When the vehicle speed is less than 40 km/h (25 MPH).
1. CHECK SWITCHES
With CONSULT-II
With “DATA MONITOR”, check that switches operate normally.
“RESUME/ACC SW”, “CANCEL SW”, “DISTANCE ADJ”. Refer to ACS-33, "
DATA MONITOR" .
OK or NG
OK >> 1. Replace ICC unit. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
NG >> GO TO 2.
2. CHECK ICC UNIT SELF-DIAGNOSIS
With CONSULT-II
1. Perform self-diagnosis with CONSULT-II.
2. Check if “DTC 20 CAN COMM CIRCUIT” is indicated.
Is it indicated?
YES >> Refer to ACS-44, "DTC 20 CAN COMM CIRCUIT" .
NO >> Refer to ACS-48, "
DTC 46 OPERATION SW CIRC" .

ACS-70
[ICC]
TROUBLE DIAGNOSIS FOR SYMPTOMS
Revision: 2006 July 2007 FX35/FX45
Symptom 4: ICC System Is Not Cancelled When the A/T Selector Lever Is in
Other Than “D” and “M” Position
NKS003FU
1. CHECK D RANGE SWITCH
With CONSULT-II
With “DATA MONITOR”, check that “D RANGE SW” operates normally. Refer to ACS-33, "
DATA MONITOR" .
OK or NG
OK >> 1. Replace ICC unit. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
NG >> GO TO 2.
2. CHECK ICC UNIT SELF-DIAGNOSIS
With CONSULT-II
1. Perform self-diagnosis with CONSULT-II.
2. Check if “DTC 20 CAN COMM CIRCUIT” is indicated.
Is it indicated?
YES >> Refer to ACS-44, "DTC 20 CAN COMM CIRCUIT" .
NO >> GO TO 3.
3. CHECK D RANGE SWITCH
With CONSULT-II
With TCM “DATA MONITOR”, check that “D” position switch operates normally.
OK or NG
OK >> 1. Replace ICC unit. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
NG >> 1. Repair or replace applicable item. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
Symptom 5: Chime Does Not SoundNKS003FV
The chime may not sound occasionally in the following cases even if the distance from the vehicle ahead is
short:

When the speed difference from that of the vehicle ahead is small (both vehicles driving at similar speed).

When the vehicle ahead drives at faster speed (the actual distance is increasing).

When depressing the accelerator.

Chime does not sound when the vehicle is not driving.

Chime does not sound when the system does not detect any vehicle ahead. (Diagnose the conditions
under which the system is detecting the vehicle ahead and when the system is malfunctioning. If there is
any malfunction in detecting the vehicle ahead, check the system following the ACS-71, "
Symptom 7: ICC
System Frequently Cannot Detect the Vehicle Ahead/ Detection Zone Is Short" .
1. CHECK ICC WARNING CHIME
With CONSULT-II
With “ACTIVE TEST”, check that ICC warning chime operates normally.
OK or NG
OK >> Determine preceding vehicle detection status when malfunction occurred. If chime should have sounded: after replacing ICC unit. Perform ICC system running test, and then perform self-diag-
nosis of ICC system again.
NG >> GO TO 2.

ELECTRICAL COMPONENT INSPECTION ACS-73
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2006 July 2007 FX35/FX45
ELECTRICAL COMPONENT INSPECTIONPFP:00000
ICC Steering SwitchNKS003FZ
1. Disconnect ICC steering switch.
2. Check resistance between ICC steering switch connector termi- nals by pressing each switch.
Booster SolenoidNKS003G1
Disconnect booster solenoid/release switch connector, and measure
resistance between terminals 4 and 6.
Release SwitchNKS003G2
Disconnect booster solenoid/release switch connector and check
resistance between the terminals.
NOTE:
If pedal is depressed insufficiently, resistance value may remain unchanged. Terminals Switch Condition Resistance [k
Ω]
14 15 MAIN
Pressed Approx. 0
Released Approx. 5.5
CANCEL Pressed Approx. 0.3
Released Approx. 5.5
DISTANCE Pressed Approx. 0.7
Released Approx. 5.5
SET/COAST Pressed Approx. 1.4
Released Approx. 5.5
RESUME/ACCELERATE Pressed Approx. 2.6
Released Approx. 5.5
PKIB4169E
Terminals Resistance [ Ω]
4 6 Approx. 1.4
PKIC5181E
Condition 1 - 3 1 - 2 2 - 3
Release
the brake pedal. Continuity should
exist. Continuity should
not exist. Continuity should
not exist.
Depress
the brake pedal. Continuity should
not exist. (Note) Continuity should
exist. (Note) Continuity should
not exist.
SKIA1256E
