boot INFINITI FX35 2007 User Guide

FRONT WHEEL HUB AND KNUCKLE FAX-5
[2WD]
C E F
G H
I
J
K L
M A
B
FA X
Revision: 2006 July 2007 FX35/FX45
6. Use a ball joint remover (SST) to remove steering outer socket
from steering knuckle. Be careful not to damage ball joint boot.
CAUTION:
Tighten temporarily mounting nut to prevent damage to
threads and to prevent ball joint remover (SST) from com-
ing off.
7. Remove cotter pin at transverse link, then loosen mounting nut.
8. Use a ball joint remover (SST) to remove transverse link from steering knuckle. Be careful not to damage ball joint boot.
CAUTION:
Tighten temporarily mounting nut to prevent damage to
threads and to prevent ball joint remover (SST) from com-
ing off.
9. Remove fixing bolts and nuts between strut assembly and steer- ing knuckle with power tool.
10. Remove steering knuckle from vehicle.
11. Remove fixing bolts between steering knuckle and wheel hub and bearing assembly with power tool.
12. Remove splash guard and wheel hub and bearing assembly from steering knuckle.
INSPECTION AFTER REMOVAL
Check for deformity, cracks and damage on each parts, replace if necessary.
Ball Joint Inspection

Check for boot breakage, axial looseness, and torque of transverse link and steering outer socket ball
joint. Refer to FSU-14, "
TRANSVERSE LINK" , PS-18, "POWER STEERING GEAR AND LINKAGE" .
INSTALLATION

Refer to FAX-4, "Removal and Installation" for tightening torque. Install in the reverse order of removal.
NOTE:
Refer to component parts location and do not reuse non-reusable parts.

After removing/installing or replacing axle components, check wheel alignment. Refer to FSU-6, "Wheel
Alignment Inspection" .

After adjusting wheel alignment, adjust neutral position of steering angle sensor. Refer to BRC-6, "Adjust-
ment of Steering Angle Sensor Neutral Position" .

Check the following item after service
–Installation condition of wheel sensor harness
SDIA1434E
SDIA1435E

FAX-8
[AWD]
PREPARATION
Revision: 2006 July 2007 FX35/FX45
PREPARATIONPFP:00002
Special Service Tools NDS000C1
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolsNDS000C2
Tool number
(Kent-Moore No.)
Tool name Description
HT72520000
(J −25730-A)
Ball joint remover
a: 33 mm (1.30 in)
b: 50 mm (1.97 in)
r: 11.5 mm (0.453 in)

Removing steering outer socket

Removing transverse link
KV40107300
(–)
Boot band crimping tool Installing boot band
KV38107900
(–)
Protector
a: 32 mm (1.26 in) dia. Installing drive shaft
KV38100500
(–)
Drift
a: 80 mm (3.15 in) dia.
b: 60 mm (2.36 in) dia. Installing drive shaft plug
KV38102200
(–)
Drift
a: 90 mm (3.54 in) dia.
b: 31 mm (1.22 in) dia. Installing drive shaft plug
NT546
ZZA1229D
ZZA0835D
ZZA0701D
ZZA0920D
Tool name
Description
Power tool Loosening bolt and nuts
PBIC0190E

FRONT WHEEL HUB AND KNUCKLE FAX-11
[AWD]
C E F
G H
I
J
K L
M A
B
FA X
Revision: 2006 July 2007 FX35/FX45
7. Use a ball joint remover (SST) to remove steering outer socket
from steering knuckle. Be careful not to damage ball joint boot.
CAUTION:
To prevent damage to threads and to prevent ball joint
remover (SST) from coming off suddenly, temporarily
tighten mounting nut.
8. Using a puller (suitable tool), remove wheel hub and bearing assembly from drive shaft. NOTE:

When removing wheel hub and bearing assembly, do not apply an excessive angle to drive shaft joint.
Also be careful not to excessively extend slide joint.

Do not hang over drive shaft with out support.
9. Remove wheel hub and bearing assembly fixing bolt.
10. Remove splash guard and wheel hub and bearing assembly from steering knuckle.
11. Remove strut assembly and steering knuckle fixing bolts and nuts.
12. Remove transverse link and steering knuckle fixing bolt and nut.
13. Remove steering knuckle from vehicle.
INSPECTION AFTER REMOVAL
Check for deformity, cracks and damage on each parts, replace if necessary.
Ball Joint Inspection
Check for boot breakage, axial looseness, and torque of transverse link and steering outer socket ball joint.
Refer to FSU-14, "
TRANSVERSE LINK" , PS-18, "POWER STEERING GEAR AND LINKAGE" .
INSTALLATION
CAUTION:
Be sure to replace the new differential side oil seal every removal of drive shaft. Refer to FFD-11,
"SIDE OIL SEAL" .

Refer to FAX-10, "Removal and Installation" for tightening torque. Install in the reverse order of removal.
NOTE:
Refer to component parts location and do not reuse non-reusable parts.

To assemble disc rotor and wheel hub and bearing assembly,
align the marks.
(When not using the alignment mark, refer to BR-20, "
Removal
and Installation of Brake Caliper Assembly" .)
SGIA0488E
SDIA1480E

FAX-12
[AWD]
FRONT DRIVE SHAFT
Revision: 2006 July 2007 FX35/FX45
FRONT DRIVE SHAFTPFP:39100
On-Vehicle Inspection NDS000G3

Check drive shaft mounting point and joint for looseness and other damage.

Check boot for cracks and other damage.
CAUTION:
Replace entire drive shaft assembly when noise or vibration occur from drive shaft.
DRIVE SHAFT BOOT REPLACEMENT
1. Remove tires from vehicle with power tool.
2. Remove undercover with power tool.
3. Remove cotter pin. Then remove lock nut from drive shaft with power tool.
CAUTION:
Do not depress brake pedal while brake caliper is removed.
4. Remove wheel sensor harness from strut assembly. Refer to BRC-57, "
WHEEL SENSORS" .
CAUTION:
Do not pull on wheel sensor harness.
5. Remove brake hose lock plate. Then remove brake hose from strut assembly. Refer to BR-11, "
BRAKE
TUBE AND HOSE" .
6. Remove fixing bolts and nuts between strut assembly and steering knuckle with power tool.
7. Remove drive shaft from wheel hub and bearing assembly.
8. Using a puller (suitable tool), remove drive shaft from steering knuckle.
CAUTION:
When removing drive shaft, do not apply an excessive
angle to drive shaft joint. Also be careful not to excessively
extend slide joint.
9. Remove boot bands, and then remove boot from joint sub-assembly.
10. Screw a drive shaft puller (suitable tool) into joint sub-assembly screw part to a length of 30 mm (1.18 in) or more. Support drive
shaft with one hand and pull out joint sub-assembly with a slid-
ing hammer (suitable tool) from shaft.
CAUTION:

Align a sliding hammer and drive shaft and remove them
by pulling firmly and uniformly.

If joint sub-assembly cannot be pulled out, try after
removing drive shaft from vehicle.
11. Remove the circular clip from shaft.
12. Remove boot from shaft.
13. Clean the old grease on joint sub-assembly with paper towels.
SDIA0972J
SDIA0881J
SDIA2489E

FRONT DRIVE SHAFT FAX-13
[AWD]
C E F
G H
I
J
K L
M A
B
FA X
Revision: 2006 July 2007 FX35/FX45
14. Apply the specified amount of grease (NISSAN genuine grease
or equivalent) inside joint sub-assembly serration hole until
grease begins to ooze from ball groove and serration hole. After
applying grease, use a shop cloth to wipe off old grease that has
oozed out.
15. Wrap serration on shaft with tape to protect the boot from dam- age. Install new boot and boot bands to shaft.
16. Remove the tape wrapped around the serration on shaft.
17. Position circular clip on groove at the shaft edge. Align both counter axles of the shaft edge and joint sub-assembly. Then,
assemble shaft with circular clip onto joint sub-assembly.
NOTE:
Drive joint inserter (suitable tool) is recommended when install-
ing circular clip.
18. Install joint sub-assembly to shaft using plastic hammer. CAUTION:
Confirm that joint sub-assembly is correctly engaged while
rotating drive shaft.
19. Apply the balance of the specified amount of grease (NISSAN genuine grease or equivalent) into the boot inside from large
diameter side of boot.
20. Install the boot securely into grooves (indicated by *marks) shown in the figure.
CAUTION:
If grease adheres to the boot mounting surface (with *mark)
on the shaft and joint sub-assembly, boot may come off.
Remove all grease from the surface.
21. To prevent from the deformation of the boot, adjust the boot installation length to the specified value shown below (L) by
inserting the flat-bladed screwdriver into inside of the boot from
the large diameter side of the boot and discharging the inside
air.
SDIA2775E
SFA800
SDIA2490E
Grease amount : 77 – 97 g (2.71 – 3.42 oz)
SDIA2372E
SDIA1760E

FAX-14
[AWD]
FRONT DRIVE SHAFT
Revision: 2006 July 2007 FX35/FX45
CAUTION:

If the boot mounting length is outside the standard, it may cause breakage in the boot.

Be careful not to touch the inside of the boot with a tip of a flat-bladed screwdriver.
22. Secure the large and small ends of the boot with new boot bands using the boot band crimping tool [SST: KV40107300
( – )] as shown in the figure.
NOTE:
Secure boot band so that dimension “M” meets the specification
as shown.
23. Secure joint sub-assembly and shaft, and then make sure that they are in the correct position when rotating boot. Install them
with new boot band when boot installation positions become
incorrect.
24. Insert drive shaft to wheel hub and bearing assembly, and then temporarily tighten hub lock nut.
25. Install nuts and bolts to steering knuckle and strut.
26. Install break hose bracket to strut assembly. BR-11, "
Removal and Installation of Front Brake Tube and
Brake Hose" .
27. Install wheel sensor to strut assembly. Refer to BRC-57, "
WHEEL SENSORS" .
28. Tighten the hub lock nut to the specified torque.
29. Install cotter pin.
30. Install tires to vehicle. Boot installation length (L) : 136 mm (5.35 in)
RAC1133D
Dimension “M” : 2.0 – 3.0 mm (0.079 – 0.118 in)
DSF0047D

FRONT DRIVE SHAFT FAX-15
[AWD]
C E F
G H
I
J
K L
M A
B
FA X
Revision: 2006 July 2007 FX35/FX45
Removal and Installation (Left Side)NDS000C6
COMPONENTS
REMOVAL
1. Remove tires from vehicle with power tool.
2. Remove undercover with power tool.
3. Remove cotter pin. Then remove lock nut from drive shaft with power tool.
4. Remove wheel sensor harness from strut assembly. Refer to BRC-57, "
WHEEL SENSORS" .
CAUTION:
Do not pull on wheel sensor harness.
5. Remove brake hose lock plate. Then remove brake hose from strut assembly. Refer to BR-11, "
BRAKE
TUBE AND HOSE" .
6. Remove fixing bolts and nuts between strut assembly and steering knuckle with power tool.
7. Using a puller (suitable tool), remove drive shaft from steering knuckle.
CAUTION:
When removing drive shaft, do not apply an excessive
angle to drive shaft joint. Also be careful not to excessively
extend slide joint.
8. Remove fixing bolt of front final drive side assembly drive shaft with power tool, then remove drive shaft from vehicle.
INSPECTION AFTER REMOVAL

Move joint up/down, left /right, and in the axial direction. Check for any rough movement or significant
looseness.

Check boot for cracks or other damage, and also for grease
leakage.

If a trouble is found, disassemble drive shaft, and then replace
with new one.
INSTALLATION

Refer to FAX-15, "Removal and Installation (Left Side)" for tightening torque. Install in the reverse order of
removal.
1. Cotter pin 2. Washer 3. Drive shaft
Refer to GI-11, "
Components" , for the symbols in the figure.
PDIA1218E
SDIA0972J
SDIA1046J

FRONT DRIVE SHAFT FAX-17
[AWD]
C E F
G H
I
J
K L
M A
B
FA X
Revision: 2006 July 2007 FX35/FX45

Check boot for cracks or other damage, and also for grease
leakage.

If a trouble is found, disassemble drive shaft, and then replace
with new one.
INSTALLATION

Refer to FAX-16, "Removal and Installation (Right Side)" for tightening torque. Install in the reverse order
of removal.
NOTE:
Refer to component parts location and do not reuse non-reusable parts.

Check the following item after service.
–Installation condition of wheel sensor harness.

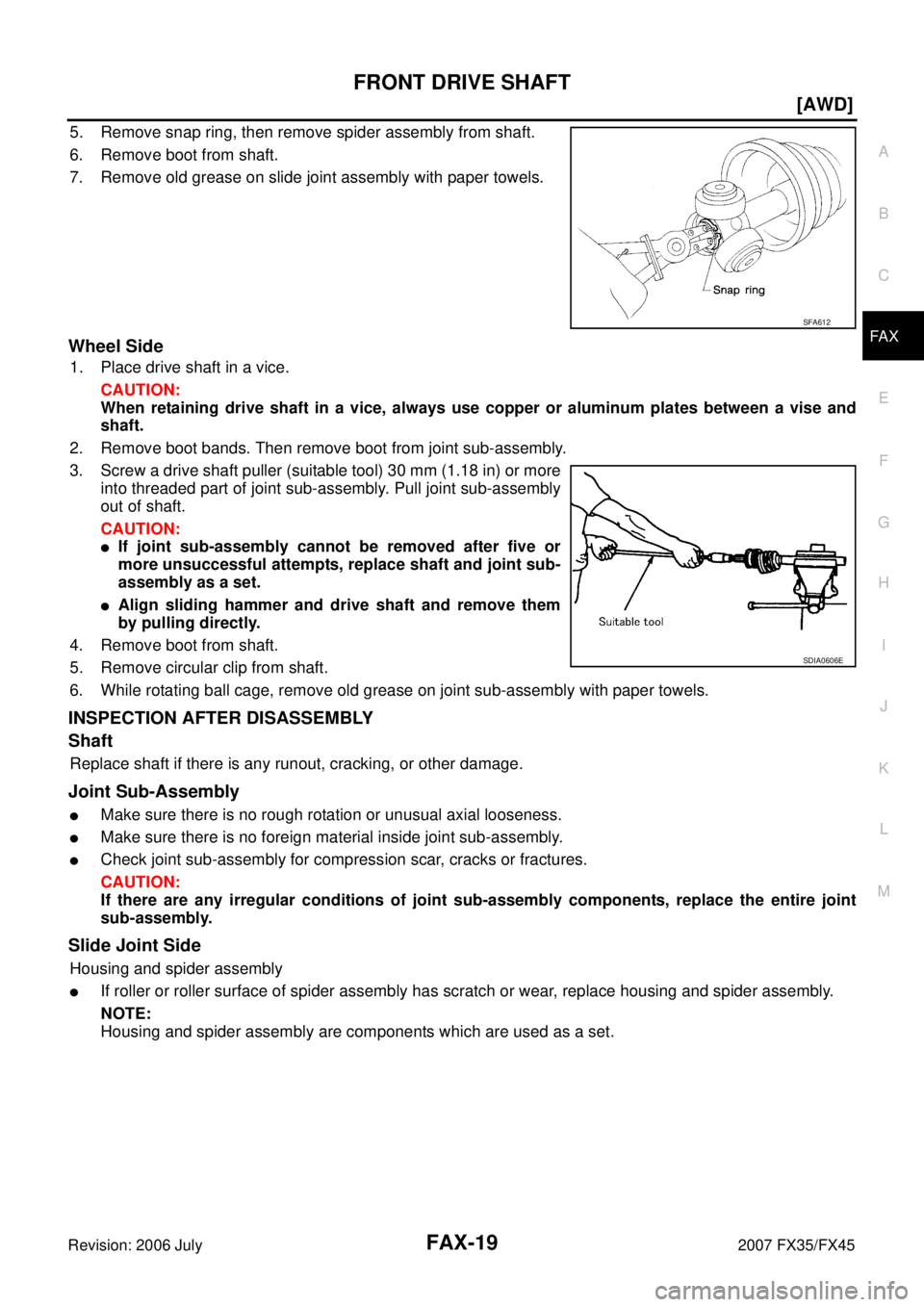

Place the protector [SST: KV38107900 ( – )] onto front final
drive assembly to prevent damage to the oil seal while inserting
drive shaft. Slide drive shaft sliding joint and tap with a hammer
to install securely. (right side)
CAUTION:
Be sure to check that circular clip is securely fastened.
SFA108A
SDIA0593E

FAX-18
[AWD]
FRONT DRIVE SHAFT
Revision: 2006 July 2007 FX35/FX45
Disassembly and Assembly (Left Side)NDS000C8
COMPONENTS
DISASSEMBLY
Front Final Drive Assembly Side
1. Press drive shaft in a vice.
CAUTION:
When retaining shaft in a vice, always use copper or aluminum plates between vise and shaft.
2. Remove boot bands.
3. If plug needs to be removed, move boot to wheel side, and drive it out with a plastic hammer.
4. Put matching marks on spider assembly and shaft. CAUTION:
Use paint for matching mark, but don’t damage to spider
assembly and drive shaft.
1. Plug 2. Housing 3. Snap ring
4. Spider assembly 5. Boot band 6. Boot
7. Shaft 8. Circular clip 9. Joint sub-assembly
Refer to GI-11, "
Components" and the following for the symbols in the figure.
: Fill Nissan genuine grease or equivalent.
PDIA1220E
SFA963

FRONT DRIVE SHAFT FAX-19
[AWD]
C E F
G H
I
J
K L
M A
B
FA X
Revision: 2006 July 2007 FX35/FX45
5. Remove snap ring, then remove spider assembly from shaft.
6. Remove boot from shaft.
7. Remove old grease on slide joint assembly with paper towels.
Wheel Side
1. Place drive shaft in a vice. CAUTION:
When retaining drive shaft in a vice, always use copper or aluminum plates between a vise and
shaft.
2. Remove boot bands. Then remove boot from joint sub-assembly.
3. Screw a drive shaft puller (suitable tool) 30 mm (1.18 in) or more into threaded part of joint sub-assembly. Pull joint sub-assembly
out of shaft.
CAUTION:

If joint sub-assembly cannot be removed after five or
more unsuccessful attempts, replace shaft and joint sub-
assembly as a set.

Align sliding hammer and drive shaft and remove them
by pulling directly.
4. Remove boot from shaft.
5. Remove circular clip from shaft.
6. While rotating ball cage, remove old grease on joint sub-assembly with paper towels.
INSPECTION AFTER DISASSEMBLY
Shaft
Replace shaft if there is any runout, cracking, or other damage.
Joint Sub-Assembly

Make sure there is no rough rotation or unusual axial looseness.

Make sure there is no foreign material inside joint sub-assembly.

Check joint sub-assembly for compression scar, cracks or fractures.
CAUTION:
If there are any irregular conditions of joint sub-assembly components, replace the entire joint
sub-assembly.
Slide Joint Side
Housing and spider assembly

If roller or roller surface of spider assembly has scratch or wear, replace housing and spider assembly.
NOTE:
Housing and spider assembly are components which are used as a set.
SFA612
SDIA0606E
