[CAN FUNDAMENTAL]
TROUBLE DIAGNOSES WORK FLOW
Revision: 2006 July 2007 FX35/FX45

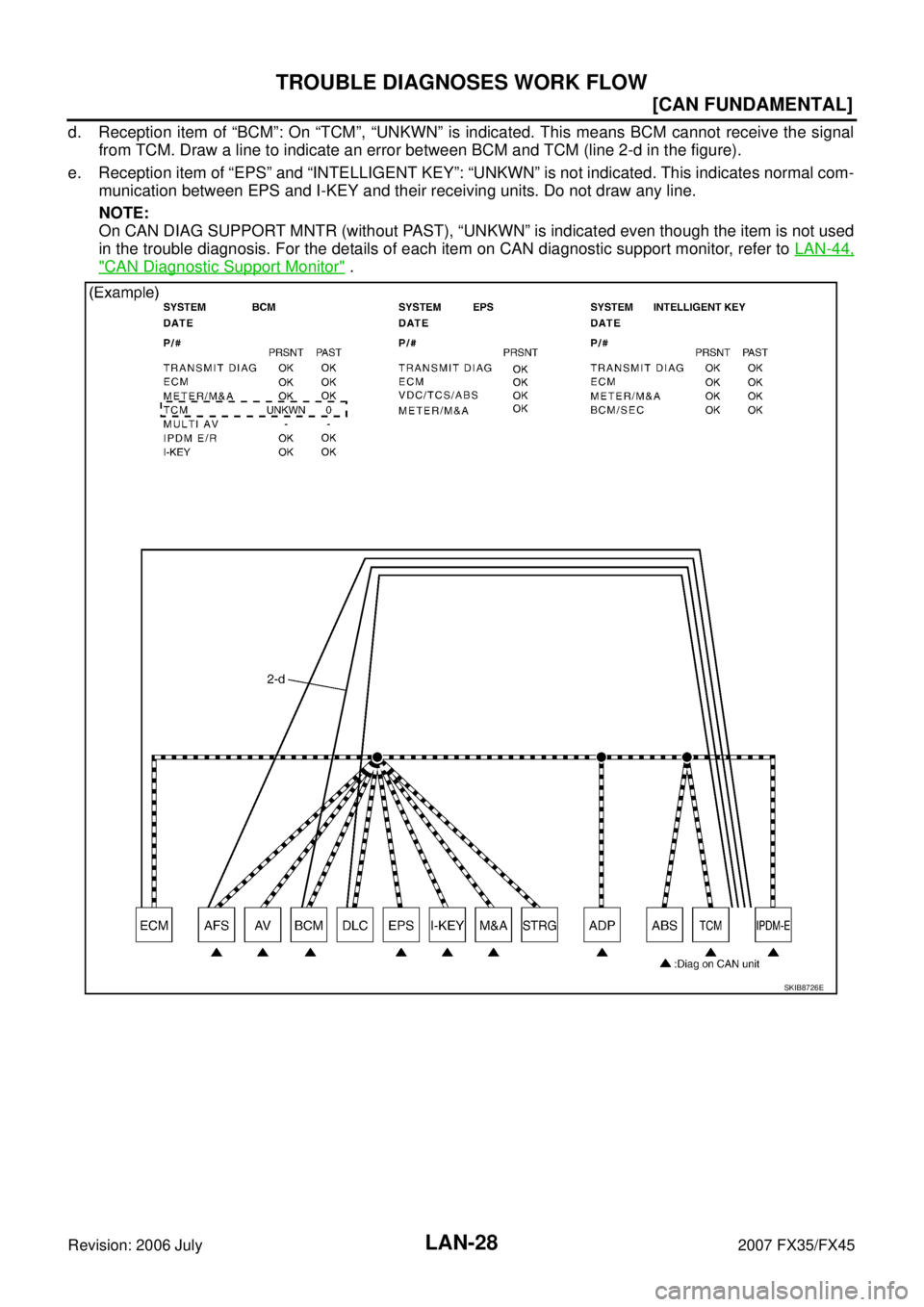

d. Reception item of “BCM”: On “TCM”, “UNKWN” is indicated. This means BCM cannot receive the signal
from TCM. Draw a line to indicate an error between BCM and TCM (line 2-d in the figure).
e. Reception item of “EPS” and “INTELLIGENT KEY”: “UNKWN” is not indicated. This indicates normal com- munication between EPS and I-KEY and their receiving units. Do not draw any line.
NOTE:
On CAN DIAG SUPPORT MNTR (without PAST), “UNKWN” is indicated even though the item is not used
in the trouble diagnosis. For the details of each item on CAN diagnostic support monitor, refer to LAN-44,
"CAN Diagnostic Support Monitor" .
SKIB8726E

HOW TO USE THIS SECTION LAN-41
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 July 2007 FX35/FX45
HOW TO USE THIS SECTIONPFP:00008
CautionNKS004ML

This section describes information peculiar to a vehicle, sheets for trouble diagnosis, and inspection pro-
cedures.

For trouble diagnosis procedure LAN-17, "Trouble Diagnosis Procedure" .
Abbreviation ListNKS004MM
Abbreviations in CAN communication signal chart, and the diagnosis sheet are as per the following list.
Abbreviation Unit name SELECT SYSTEM
(CONSULT-II) CAN DIAG SUPPORT MNTR
(CONSULT-II)
4WD AWD control unit ALL MODE AWD/4WD AWD/4WD
A-BAG Air bag diagnosis sensor unit AIR BAG –
ABS ABS actuator and electric unit (control unit) ABS VDC/TCS/ABS
ADP Driver seat control unit AUTO DRIVE POS. –
BCM BCM BCM BCM/SEC
DISP Display control unit – DISPLAY
DLC Data link connector – –
ECM ECM ENGINE ECM
ICC ICC unit ICC ICC
ICC/e4WD
I-KEY Intelligent Key unit INTELLIGENT KEY I-KEY
IPDM-E IPDM E/R IPDM E/R IPDM E/R LANE LDW camera unit LDW –
LASER ICC sensor – ICC SENSOR M&A Unified meter and A/C amp. METER A/C AMP METER/M&A
STRG Steering angle sensor – STRG TCM TCM A/T TCM

TROUBLE DIAGNOSIS LAN-45
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 July 2007 FX35/FX45
ICC Unit
NOTE:
Replace the unit when “NG” is indicated on the “INITIAL DIAG”.
TCM
NOTE:
Replace the unit when “NG” is indicated on the “INITIAL DIAG”.
BCM
NOTE:
Replace the unit when “NG” is indicated on the “INITIAL DIAG”.
SELECT SYS-
TEM CAN DIAG SUP-
PORT MNTR Description Normal Error
PRSNT
ICC INITIAL DIAG Status of CAN controller
OK NG
TRANSMIT DIAG Signal transmission status
UNKWN
ECM Signal receiving status from the ECM
VDC/TCS/ABS Signal receiving status from the ABS actuator and electric unit
(control unit)
TCM Signal receiving status from the TCM
METER/M&A Not used even though indicated
LANE KEEP
ECM(l)
ICC SENSOR Signal receiving status from the ICC sensor OK UNKWN
STRG
Not used even though indicated
METER/M&A(l)
ERROR(l)
LANE DETEC-
TOR
TCM(l)
BCM/SEC Signal receiving status from the BCM OK UNKWN
SELECT SYS- TEM CAN DIAG SUP-
PORT MNTR Description Normal Error
PRSNT
A/T INITIAL DIAG Status of CAN controller
OK NG
TRANSMIT DIAG Signal transmission status
UNKWN
ECM Signal receiving status from the ECM
VDC/TCS/ABS Signal receiving status from the ABS actuator and electric unit
(control unit)
METER/M&A Signal receiving status from the unified meter and A/C amp.
ICC/e4WD Signal receiving status from the ICC unit
AWD/4WD Signal receiving status from the AWD control unit
SELECT SYS- TEM CAN DIAG SUP-
PORT MNTR Description Normal Error
PRSNT
BCM INITIAL DIAG Status of CAN controller
OK NG
TRANSMIT DIAG Signal transmission status
UNKWN
ECM Signal receiving status from the ECM
IPDM E/R Signal receiving status from the IPDM E/R
METER/M&A Signal receiving status from the unified meter and A/C amp.
I-KEY Not used even though indicated

LAN-46
[CAN]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
Intelligent Key Unit
0: Error at present, 1 – 39: Error in the past (Number means the number of times the ignition switch is turned OFF →ON)
*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.
LDW Camera Unit
0: Error at present, 1 – 39: Error in the past (Number means the number of times the ignition switch is turned OFF →ON)
*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.
Unified Meter and A/C Amp.
0: Error at present, 1 – 39: Error in the past (Number means the number of times the ignition switch is turned OFF →ON)
*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased. SELECT SYS-
TEM CAN DIAG SUP-
PORT MNTR Description Normal Error
PRSNT PAST PRSNT PAST
INTELLIGENT
KEY TRANSMIT DIAG Signal transmission status
OK OK
or
1 – 39
*UNKWN 0
ECM Signal receiving status from the ECM
METER/M&A Signal receiving status from the unified
meter and A/C amp.
BCM/SEC Signal receiving status from the BCM
SELECT SYS- TEM CAN DIAG SUP-
PORT MNTR Description Normal Error
PRSNT PAST PRSNT PAST
LDW TRANSMIT DIAG Not used even though indicated
ECM Signal receiving status from the ECM
OK OK
or
1 – 39
*UNKWN 0
VDC/TCS/ABS
Signal receiving status from the ABS actu-
ator and electric unit (control unit)
BCM/SEC Signal receiving status from the BCM
TCM Signal receiving status from the TCM
SELECT SYS- TEM CAN DIAG SUP-
PORT MNTR Description Normal Error
PRSNT PAST PRSNT PAST
METER A/C AMP TRANSMIT DIAG Signal transmission status
OK OK
or
1 – 39
*UNKWN 0
ECM Signal receiving status from the ECM
TCM Signal receiving status from the TCM
BCM/SEC Signal receiving status from the BCM
VDC/TCS/ABS Signal receiving status from the ABS actu-
ator and electric unit (control unit)
IPDM E/R Not used even though indicated
DISPLAY Signal receiving status from the display
control unit OK OK
or
1 – 39
*UNKWN 0
I-KEY Signal receiving status from the Intelligent
Key unit
EPS Not used even though indicated
AW D/4 WD Signal receiving status from the AWD con-
trol unit OK OK
or
1 – 39
*UNKWN 0
e4WD Not used even though indicated
ICC Signal receiving status from the Intelligent
Key unit OK OK
or
1 – 39
*UNKWN 0
LANE KEEP Not used even though indicated
TIRE-P

TROUBLE DIAGNOSIS LAN-49
[CAN]
C
D E
F
G H
I
J
L
M A
B
LAN
Revision: 2006 July 2007 FX35/FX45
CAN System Specification ChartNKS004NO
Determine CAN system type from the following specification chart. Then choose the correct diagnosis sheet.
NOTE:
Refer to LAN-19, "
CHECK OF CAN SYSTEM TYPE (HOW TO USE CAN SYSTEM TYPE SPECIFICATION
CHART)" for how to use CAN system specification chart.
VEHICLE EQUIPMENT IDENTIFICATION INFORMATION
NOTE:
Check CAN system type from the vehicle shape and equipment.
Body type Wagon
Axle 2WD AWD
Engine VQ35DE VK45DE
Transmission A/T
Brake control VDC
ICC system ×××
Intelligent Key system ×× ××××
Lane departure warning system ×××
CAN system type 12345656
Diagnosis sheet LAN-69
LAN-70LAN-71LAN-72LAN-73LAN-74LAN-73LAN-74
CAN communication signal chart LAN-50, "TYPE 1/
TYPE 2"
LAN-52,
"TYPE 3"
LAN-54, "TYPE 4/
TYPE 5"
LAN-57,
"TYPE 6"
LAN-54,
"TYPE 4/
TYPE 5"
LAN-57,
"TYPE 6"
PKID0615E

LAN-50
[CAN]
TROUBLE DIAGNOSIS
Revision: 2006 July 2007 FX35/FX45
CAN Communication Signal ChartNKS004NP
Refer to LAN-15, "How to Use CAN Communication Signal Chart" for how to use CAN communication signal
chart.
TYPE 1/TYPE 2
