System DescriptionNIS001MI
INPUTS
Power is supplied at all times

to BCM terminal 55

through 50A fusible link (letter M , located in the fuse and fusible link box).

to BCM terminal 42

through 15A fuse [No. 22, located in the fuse block (J/B)].

to Horn relay terminal 2

through 15A fuse (No. 34, located in the fuse and fusible link box).
When the key switch is ON (key is inserted in ignition key cylinder), power is supplied

to BCM terminal 37

through key switch terminal 1 and 2

through 15A fuse [No. 22, located in the fuse block (J/B)].
When the ignition switch is ACC or ON, power is supplied

to BCM terminal 11

through 10A fuse [No. 6, located in the fuse block (J/B)].
When the ignition switch is ON or START, power is supplied

to BCM terminal 38

through 15A fuse [No. 1, located in the fuse block (J/B)].
When the front door switch (driver side) is ON (door is OPEN), ground is supplied

to BCM terminal 62

through front door switch (driver side) terminal 1

through front door switch (driver side) case ground.
When the front door switch (passenger side) is ON (door is OPEN), ground is supplied

to BCM terminal 12

through front door switch (passenger side) terminal 1

through front door switch (passenger side) case ground.
When the rear door switch LH is ON (door is OPEN), ground is supplied

to BCM terminal 63

through rear door switch LH terminal 1

through rear door switch LH case ground.
When the rear door switch RH is ON (door is OPEN), ground is supplied

to BCM meter terminal 13

through rear door switch RH terminal 1

through rear door switch RH case ground.
When the back door switch is ON (door is open), ground is supplied

to BCM terminal 58

through back door closure motor (door switch) terminals 7 and 8

through body grounds B15 and B45
Key fob signal is inputted to remote keyless entry receiver (the antenna of the system is built in remote keyless
entry receiver).

to BCM terminal 20

from remote keyless entry system controls operation of the
The remote keyless entry system controls operation of the

power door lock

hazard and horn reminder

auto door lock

panic alarm

keyless power window down (open)

BL-62
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 July 2007 FX35/FX45
Terminals and Reference Value for BCMNIS001MN
Te r m i -
nal Wire
Color Item Signal
Input/
output Condition
Voltage (V)
Approx.
1PU Key ring illumination output
signal Output Key ring illumination is lighting. Battery voltage
Key ring illumination is being
turned off. 0
11 LG Ignition switch Input Ignition switch is in ACC or ON
position Battery voltage
12 P/B Front door switch (Passen-
ger side) Input
ON (door open)
→ OFF (door
closed) 0
→ Battery voltage
13 P/L Rear door switch RH Input ON (door open)
→ OFF (door
closed) 0
→ Battery voltage
18 B Remote keyless entry
receiver (Ground) —— 0
19 R Remote keyless entry
receiver (Power supply) Output Key is inserted in IGN key cylinder 0
All door closed
20 Y Remote keyless entry
receiver (Signal) Input Key is inserted in IGN key cylinder 0
Waiting
(All door closed)
When signal is received
(All door closed)
37 B/W Key switch Input ON (Key is inserted in IGN key cyl-
inder) → OFF (Key is removed
from IGN key cylinder) Battery voltage
→ 0
38 W/L Ignition switch Input Ignition switch is in ON or START
position Battery voltage
39 L CAN H Input/
Output ——
40 P CAN L Input/
Output ——
41 R/B Battery saver output signal Output 30 minutes after ignition switch is
turned to OFF 0
Ignition switch is in ON position Battery voltage
42 L/R Battery power supply
(fuse) Input — Battery voltage
44 Y Driver door lock actuator
(Unlock) Output
Door lock / unlock switch
(Free → Unlock) 0
→ Battery voltage
OCC3881D
OCC3879D
OCC3880D

BL-70
REMOTE KEYLESS ENTRY SYSTEM
Revision: 2006 July 2007 FX35/FX45

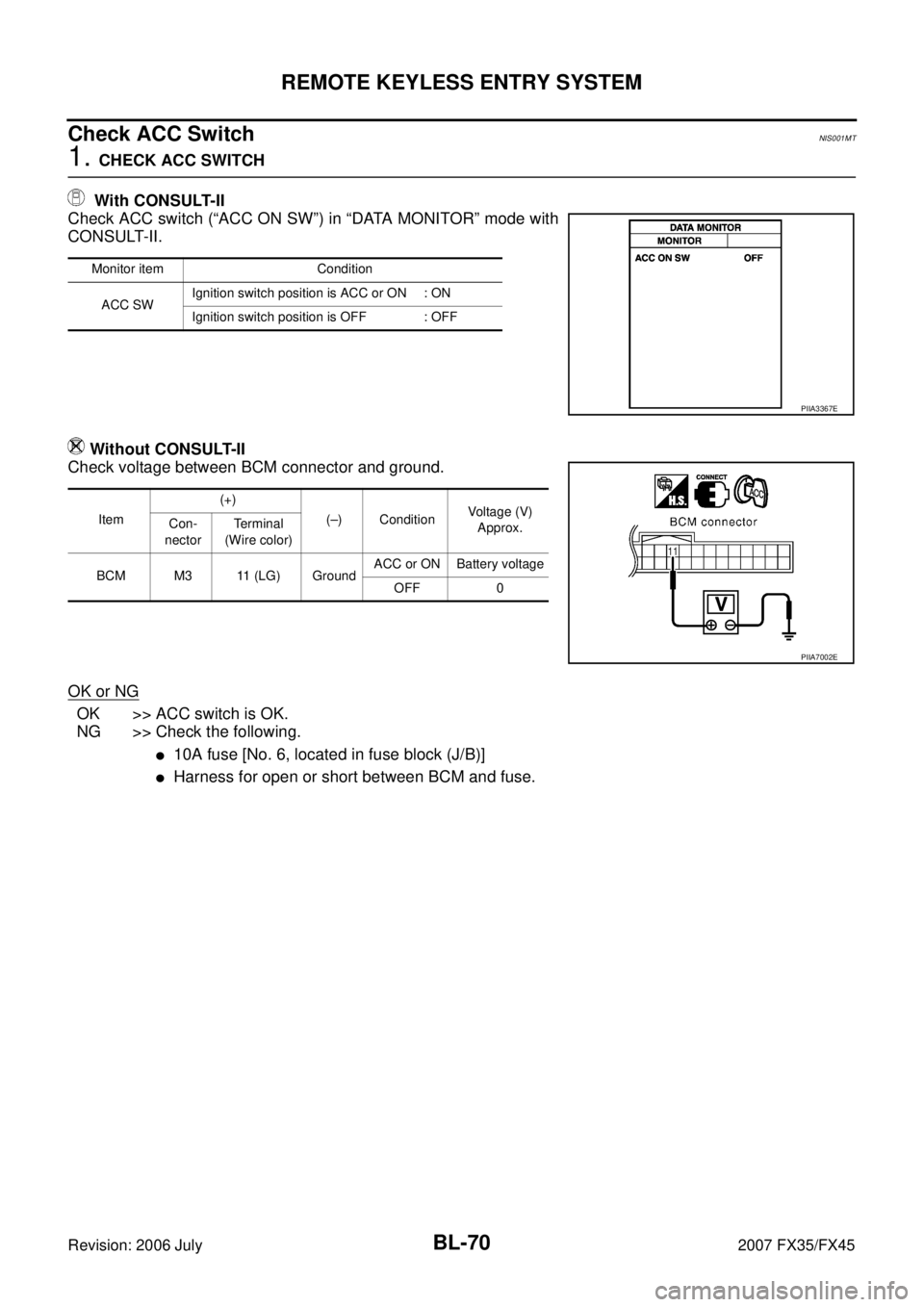

Check ACC SwitchNIS001MT
1. CHECK ACC SWITCH
With CONSULT-II
Check ACC switch (“ACC ON SW”) in “DATA MONITOR” mode with
CONSULT-II.
Without CONSULT-II
Check voltage between BCM connector and ground.
OK or NG
OK >> ACC switch is OK.
NG >> Check the following.

10A fuse [No. 6, located in fuse block (J/B)]

Harness for open or short between BCM and fuse.
Monitor item Condition
ACC SW Ignition switch position is ACC or ON : ON
Ignition switch position is OFF : OFF
PIIA3367E
Item (+)
(–) Condition Voltage (V)
Approx.
Con-
nector Terminal
(Wire color)
BCM M3 11 (LG) Ground ACC or ON Battery voltage
OFF 0
PIIA7002E

REMOTE KEYLESS ENTRY SYSTEM BL-75
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45

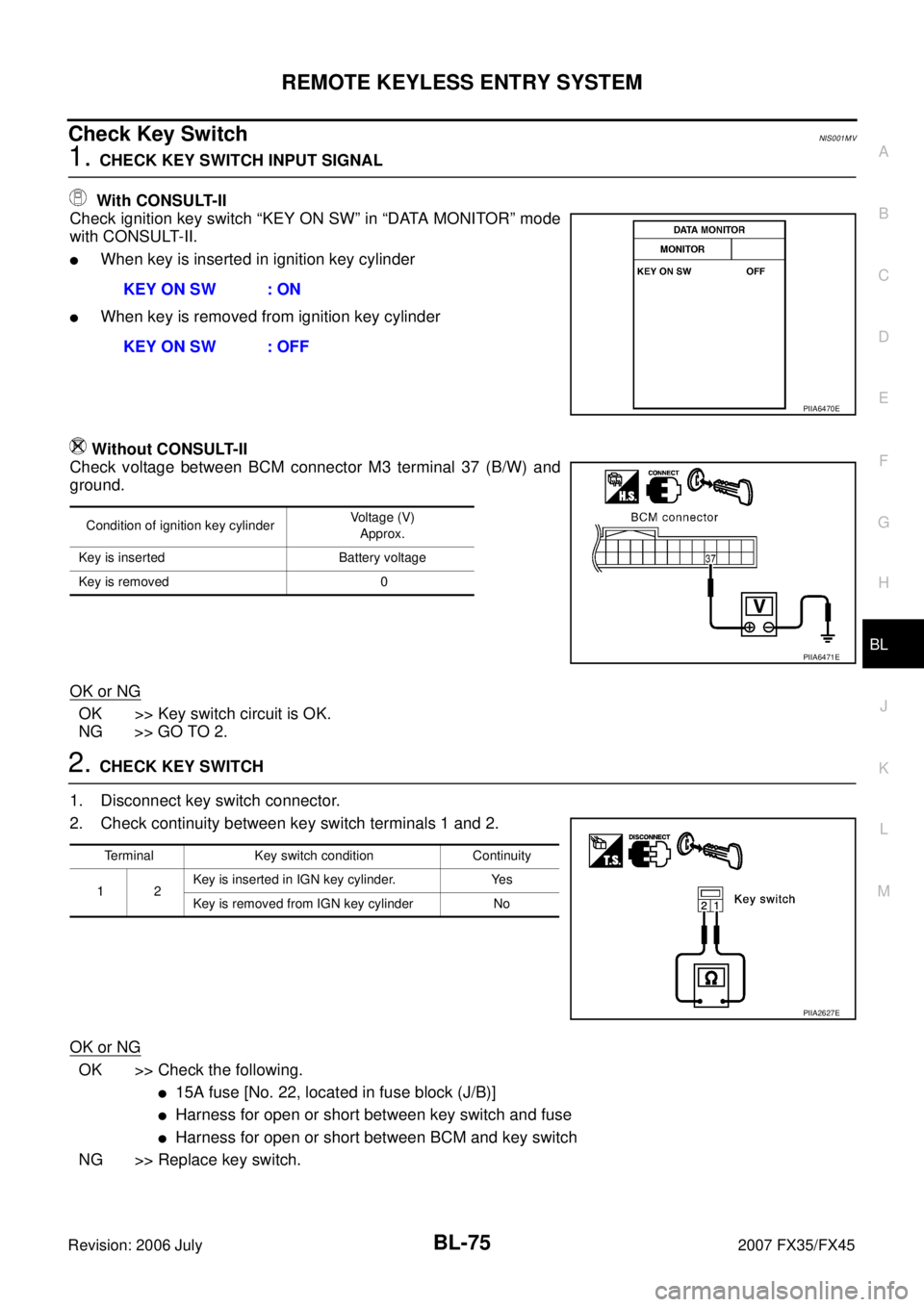

Check Key SwitchNIS001MV
1. CHECK KEY SWITCH INPUT SIGNAL
With CONSULT-II
Check ignition key switch “KEY ON SW” in “DATA MONITOR” mode
with CONSULT-II.

When key is inserted in ignition key cylinder

When key is removed from ignition key cylinder
Without CONSULT-II
Check voltage between BCM connector M3 terminal 37 (B/W) and
ground.
OK or NG
OK >> Key switch circuit is OK.
NG >> GO TO 2.
2. CHECK KEY SWITCH
1. Disconnect key switch connector.
2. Check continuity between key switch terminals 1 and 2.
OK or NG
OK >> Check the following.

15A fuse [No. 22, located in fuse block (J/B)]

Harness for open or short between key switch and fuse

Harness for open or short between BCM and key switch
NG >> Replace key switch. KEY ON SW : ON
KEY ON SW : OFF
PIIA6470E
Condition of ignition key cylinder Voltage (V)
Approx.
Key is inserted Battery voltage
Key is removed 0
PIIA6471E
Terminal Key switch condition Continuity
12 Key is inserted in IGN key cylinder. Yes
Key is removed from IGN key cylinder No
PIIA2627E

INTELLIGENT KEY SYSTEM BL-111
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
Terminals and Reference Value for INTELLIGENT KEY UNITNIS001NB
Te r -
minal Wire
color Item Signal
Input/
output Condition
Voltage (V) (Approx.)
Ignition
knob
position Operation or conditions
1R/W Steering lock unit power
supply Output LOCK — 5
2 L CAN-H Input/
Output —— —
3 P CAN-L Input/
Output —— —
4LG Intelligent Key warning
buzzer Output LOCK Operate remote
controller button
or door request switch. Buzzer
OFF Battery voltage
Sound
buzzer 0
5W/L Door request switch
(driver side) Input — Door request switch operation:
Press (ON). 0
Other than the above (OFF) 5
6 W Ignition switch (ON) Input ON or
START — Battery voltage
7 B/W key switch Input LOCK Insert mechanical key into igni-
tion key cylinder. Battery voltage
Remove mechanical key from
ignition key cylinder. 0
10 LG Ignition switch (ACC) Input ACC or
ON — Battery voltage
11 L/R Power source (Fuse) Input — — Battery voltage
12 B Ground — — — 0
13 P Inside key antenna (+)
(Luggage room) Output
LOCK Any door open
→ all doors shut
(Door switch: ON → OFF)
14 L Inside key antenna (-)
(Luggage room) Output
15 G Inside key antenna (+)
signal
(Dashboard) Output
LOCK Any door open
→ Close (Door
switch: ON → OFF)
Ignition knob switch: ON (press
ignition knob.)
16 R Inside key antenna (-)
signal
(Dashboard) Output
17 L Back door antenna (+) Output
LOCK Back door request switch opera-
tion (Switch: ON)
18 W/L Back door antenna (-) Output
SIIA1910J
SIIA1910J
SIIA1910J

INTELLIGENT KEY SYSTEM BL-113
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
Terminals and Reference Value for Steering Lock unitNIS001NC
Terminals and Reference Value for BCMNIS001ND
Te r -
minal Wire
color Item Signal
Input/
output Condition
Voltage (V)
(Approx.)
Ignition knob
position Operation or conditions
1 L/R Power source (Fuse) Input LOCK — Battery voltage
2R/W Steering lock unit
power supply Input LOCK — 5
3R/B Steering lock unit com-
munication signal Input LOCK Press ignition knob with
Intelligent Key inside vehi-
cle.
Other than the above 5
4Y/B Steering lock unit
ground —— — 0
SIIA1911J
Te r m i -
nal Wire
color Item Signal
Input/
output Condition
Voltage (V)
(Approx.)
1PU Key ring illumination
output signal Output Key ring illumination is lighting. Battery voltage
Key ring illumination is being turned off. 0
12 P/B Front door switch (Pas-
senger side) Input Door open (ON)
→ Close (OFF) 0 → Battery voltage
13 P/L Rear door switch RH Input Door open (ON) → Close (OFF) 0 → Battery voltage
37 B/W Key switch Input Insert mechanical key from ignition key
cylinder. Battery voltage
Remove mechanical key from ignition
key cylinder. 0
38 W/L Ignition switch (ON) Input Ignition switch is in ON or START posi-
tion Battery voltage
39 L CAN-H Input/
Output ——
40 P CAN-L Input/
Output ——
41 R/B Battery saver output
signal Output 30 minutes after ignition switch is turned
to OFF 0
Ignition switch is in ON position Battery voltage
42 L/R Power source (Fuse) Input — Battery voltage
44 Y Driver door lock actua-
tor (Unlock) Output
Door lock / unlock switch
(Free → Unlock) 0
→ Battery voltage
45 G/W Left turn signal lamp Output When door lock or unlock is operated
using Intelligent Key.*
1
(ON → OFF) Battery voltage
→ 0
46 BR/W Right turn signal lamp Output When door lock or unlock is operated
using Intelligent Key.*
1
(ON → OFF) Battery voltage
→ 0
47 Y/R Step lamp output sig-
nal Output Step lamp is lighting. 0
Step lamp is being turned off. Battery voltage

BL-126
INTELLIGENT KEY SYSTEM
Revision: 2006 July 2007 FX35/FX45

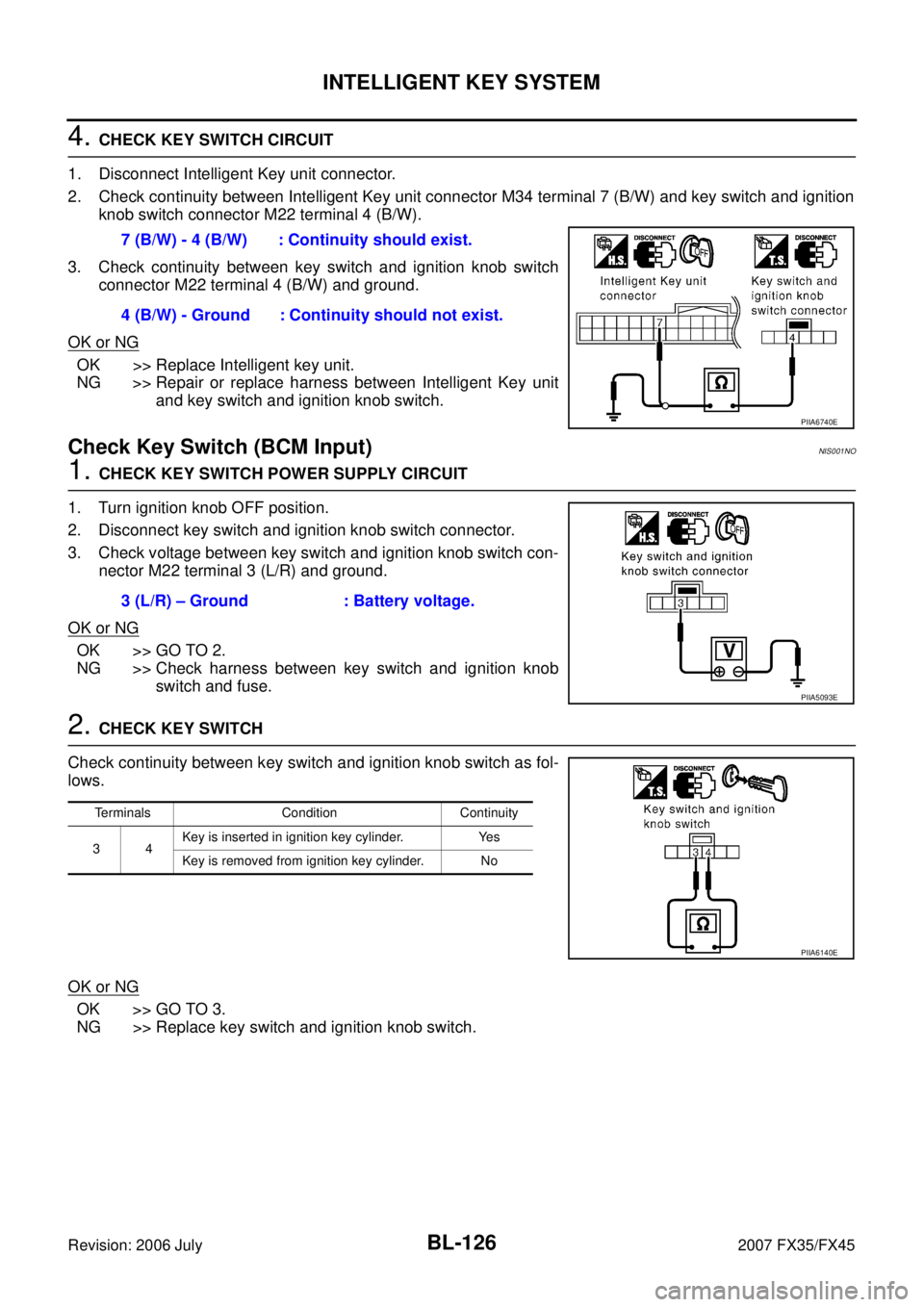

4. CHECK KEY SWITCH CIRCUIT
1. Disconnect Intelligent Key unit connector.
2. Check continuity between Intelligent Key unit connector M34 terminal 7 (B/W) and key switch and ignition knob switch connector M22 terminal 4 (B/W).
3. Check continuity between key switch and ignition knob switch connector M22 terminal 4 (B/W) and ground.
OK or NG
OK >> Replace Intelligent key unit.
NG >> Repair or replace harness between Intelligent Key unit
and key switch and ignition knob switch.
Check Key Switch (BCM Input)NIS001NO
1. CHECK KEY SWITCH POWER SUPPLY CIRCUIT
1. Turn ignition knob OFF position.
2. Disconnect key switch and ignition knob switch connector.
3. Check voltage between key switch and ignition knob switch con- nector M22 terminal 3 (L/R) and ground.
OK or NG
OK >> GO TO 2.
NG >> Check harness between key switch and ignition knob
switch and fuse.
2. CHECK KEY SWITCH
Check continuity between key switch and ignition knob switch as fol-
lows.
OK or NG
OK >> GO TO 3.
NG >> Replace key switch and ignition knob switch. 7 (B/W) - 4 (B/W) : Continuity should exist.
4 (B/W) - Ground : Continuity should not exist.
PIIA6740E
3 (L/R) – Ground : Battery voltage.
PIIA5093E
Terminals Condition Continuity
34 Key is inserted in ignition key cylinder. Yes
Key is removed from ignition key cylinder. No
PIIA6140E

INTELLIGENT KEY SYSTEM BL-141
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
4. CHECK STEERING LOCK UNIT COMMUNICATION CIRCUIT
1. Disconnect Intelligent Key unit and steering lock unit connectors.
2. Check continuity between Intelligent Key unit connector M34 terminals 1, 31, 32 and steering lock unit connector M26 terminals 2, 3, 4.
3. Check continuity between steering lock unit connector M26 ter- minals 2, 3, 4 and ground.
OK or NG
OK >> Replace steering lock unit.

After replacing steering lock unit, perform registration procedure. Refer to “CONSULT-II Opera-
tion Manual NATS-IVIS/NVIS”.
NG >> Repair or replace harness between steering lock unit and Intelligent Key unit.
Check Stop Lamp SwitchNIS001NX
1. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
1. Disconnect stop lamp switch connector.
2. Check voltage between stop lamp switch connector E210 termi- nal 1 (GY) and ground.
OK or NG
OK >> GO TO 2.
NG >> Repair or replace harness between stop lamp switch and fuse.
2. CHECK STOP LAMP SWITCH OPERATION
Check continuity between stop lamp switch connector E210 terminal
1 and 2.
OK or NG
OK >> GO TO 3.
NG >> Replace stop lamp switch. 1 (R/W) - 2 (R/W) : Continuity should exist.
31 (Y/B) - 4 (Y/B) : Continuity should exist.
32 (R/B) - 3 (R/B) : Continuity should exist.
2 (R/W) - Ground : Continuity should not exist. 3 (R/B) - Ground : Continuity should not exist.4 (Y/B) - Ground : Continuity should not exist.
PIIA6799E
1 (GY) - Ground : Battery voltage
PIIA6811E
1 - 2
Brake pedal depressed : Continuity should exist.
Brake pedal not
depressed : Continuity should not exist.
PIIA6800E

BL-168
BACK DOOR AUTO CLOSURE SYSTEM
Revision: 2006 July 2007 FX35/FX45
Terminals and Reference Value for Back Door Closure Control UnitNIS001OP
*, (): Models with Intelligent Key Termi-
nal Wire
color Item Signal
Input/
output Condition
Voltage (V)
(Approx.)
1 R Power source (Fuse) Input — Battery voltage
2 PU Closure motor (open) signal Output Fully close → fully open
3 G Closure motor (close) signal Output Fully open → fully close
4 B Ground — — 0
5 W
(B) Ground* — — 0*
Unlock sensor signal
(passenger side) Input Passenger side door lock is
locked 5
Passenger side door lock is
unlocked 0
6 Y
(LG) Back door opener switch
signal Input Back door opener switch is ON 0
Other than above 5
7 OR Half-latch switch signal Input Fully open → fully close
8 L Close switch signal Input Fully open → fully close
9 P Open switch signal Input Fully open → fully close
SIIA1480J
SIIA1480J
SIIA1479J
SIIA1478J
SIIA1481J

BACK DOOR AUTO CLOSURE SYSTEM BL-169
C
D E
F
G H
J
K L
M A
B
BL
Revision: 2006 July 2007 FX35/FX45
Work FlowNIS001OQ
1. Check the symptom and customer's requests.
2. Understand the outline of system. Refer to BL-164, "
System Description" .
3. Perform the preliminary check, Refer to BL-169, "
Preliminary Check"
4. According to the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to BL-169,
"Trouble Diagnosis Chart by Symptom" .
5. Does back door auto closure system operate normally? If Yes, GO TO 6, If No, GO TO 4.
6. INSPECTION END
Preliminary CheckNIS001OR
Remove the fuse No.18 for the back door closure with the back door closure inactive.
Check that the back door can be open / close normally.
CAUTION:
It is judged it is abnormal, discontinues closure operation, and drive lever returns to a neutral position
if not becoming full-latch within about three seconds after half-latch.
When this operation is done continuously three times, both back door closure and back door opener
switch are not operated because the function of back door closure is stopped.
Thing to reset power supply by pulling out and opening fuse in that case.
Trouble Diagnosis Chart by SymptomNIS001OS
Symptom Diagnostic procedure and repair order Refer to page
Back door closure does not operate. 1. Check back door closure motor power supply and
ground circuit BL-170
2. Check half-latch switch
BL-170
3. Check close switchBL-172
4. Check open switchBL-173
5. Check closure motorBL-179
6. Replace back door closure control unit.BL-179
Back door does not open (with Intelligent Key system). 1. Check Intelligent Key system
BL-1152. Check back door opener switchBL-174
Back door does not open 1. Check back door opener switch
BL-1762. Check unlock sensorBL-178
3. Replace back door closure control unit.BL-179
Back door does not enter fully closed states through
back door closure operates. 1. Back door fitting adjustment.
BL-158
2. Replace back door lock assembly.BL-162
