6. CHECK CIRCUIT BETWEEN IPDM E/R AND BCM
Select “BCM” on CONSULT-II, and perform self-diagnosis for
“BCM”.
Displayed self
-diagnosis results
NO DTC>>Replace BCM. Refer to BCS-14, "Removal and Installa-
tion of BCM" .
CAN COMM CIRCUIT>>Check CAN communication line of BCM. Refer to BCS-13, "
CAN Communication Inspection
Using CONSULT-II (Self-Diagnosis)" .
Front Wiper Does Not Return to Stop PositionNKS0032J
1. CHECK FRONT WIPER STOP SIGNAL
With CONSULT-ll
Select “IPDM E/R” on CONSULT-II. With “DATA MONITOR”, make
sure that “WIP AUTO STOP” turns “ACT P” - “STOP P” linked with
wiper operation.
Without CONSULT-ll
GO TO 2.
OK or NG
OK >> Replace IPDM E/R.
NG >> GO TO 2.
2. CHECK IPDM E/R
1. Turn ignition switch OFF.
2. Disconnect front wiper motor connector.
3. Turn ignition switch ON.
4. Check voltage between front wiper harness connector E57 ter- minal 5 and ground.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
PKIA7627E
PKIA7614E
5 – Ground : Battery voltage.
PKIA7662E

WW-26
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 July 2007 FX35/FX45
3. CHECK FRONT WIPER AUTO STOP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector.
3. Check continuity between IPDM E/R harness connector E7 ter- minal 32 and front wiper motor harness connector E57 terminal
5.
4. Check continuity between IPDM E/R harness connector E7 ter- minal 32 and ground.
OK or NG
OK >> Replace IPDM E/R.
NG >> Repair harness or connector.
4. CHECK IPDM E/R
1. Connect IPDM E/R connector and front wiper motor connector.
2. Turn ignition switch ON.
3. Check voltage between IPDM E/R harness connector and ground while front wiper motor is stopped and while it is operat-
ing.
OK or NG
OK >> Replace IPDM E/R.
NG >> Replace front wiper motor.
Only Front Wiper Low Does Not OperateNKS0032K

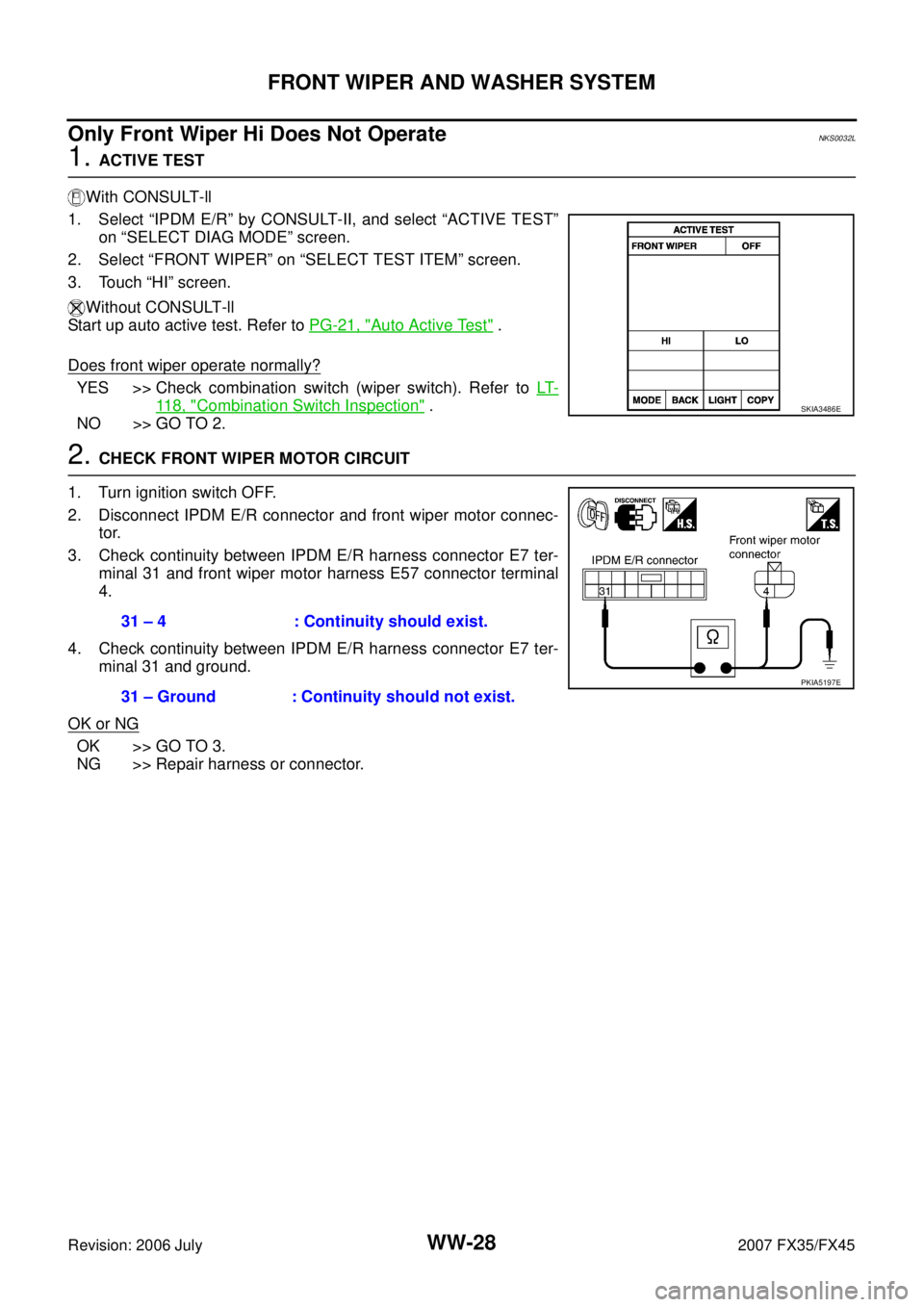

1. ACTIVE TEST
With CONSULT-ll
1. Select “IPDM E/R” by CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Select “FRONT WIPER” on “SELECT TEST ITEM” screen.
3. Touch “LO” screen.
Without CONSULT-ll
Start up auto active test. Refer to PG-21, "
Auto Active Test"
Does front wiper operate normally?
YES >> Check combination switch (wiper switch). Refer to LT-
11 8 , "Combination Switch Inspection" .
NO >> GO TO 2. 32 – 5 : Continuity should exist.
32 – Ground : Continuity should not exist.
PKIA5195E
(+) (-) Condition Voltage
IPDM E/R connector Terminal
E7 32 Ground Wiper stopped Approx. 0 V
Wiper operating Battery voltage
PKIA5196E
SKIA3486E

FRONT WIPER AND WASHER SYSTEM WW-27
C
D E
F
G H
I
J
L
M A
B
WW
Revision: 2006 July 2007 FX35/FX45

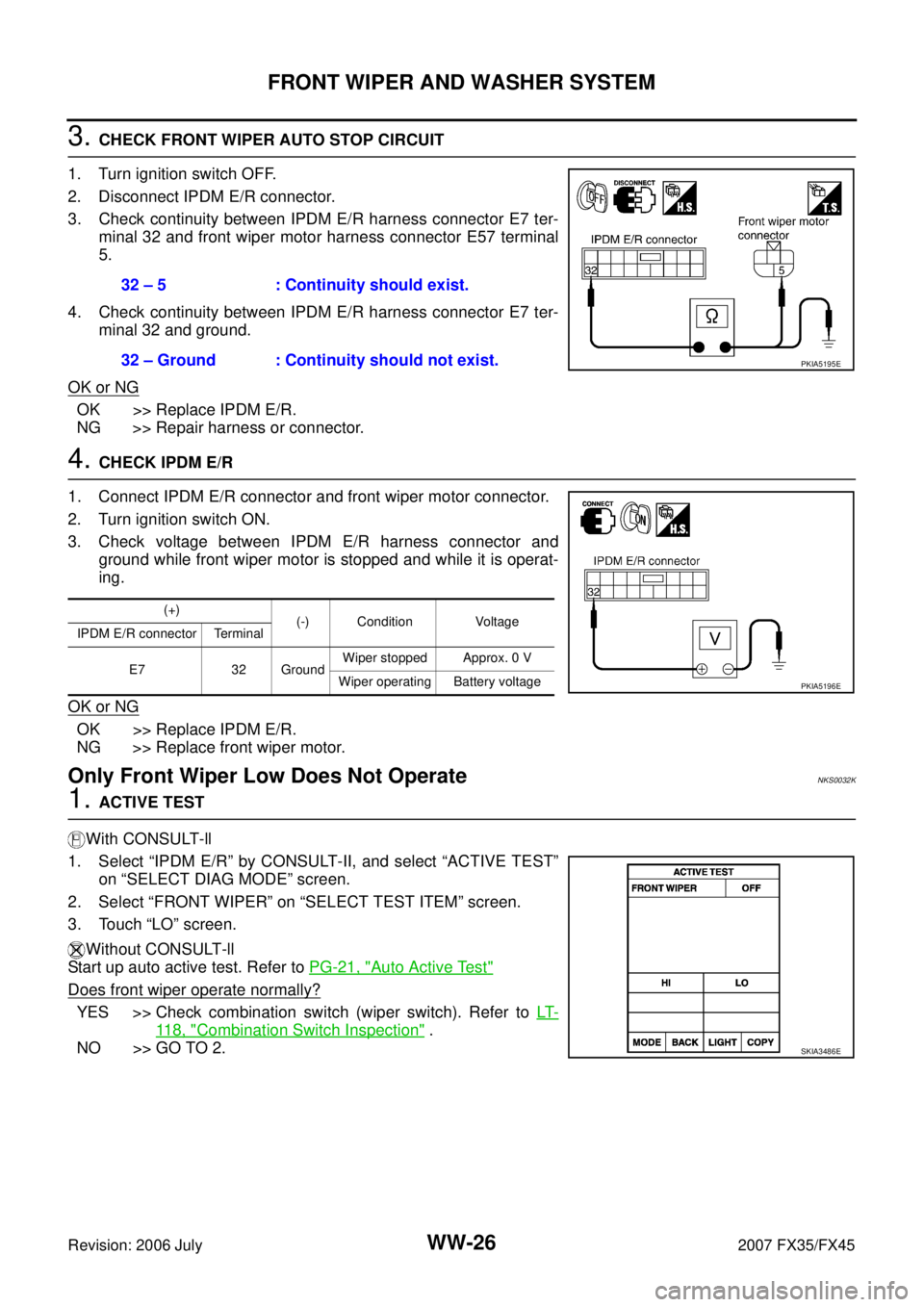

2. CHECK FRONT WIPER MOTOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and front wiper motor connec- tor.
3. Check continuity between IPDM E/R harness connector E7 ter- minal 21 and front wiper motor harness E57 connector terminal
1.
4. Check continuity between IPDM E/R harness connector E7 ter- minal 21 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.

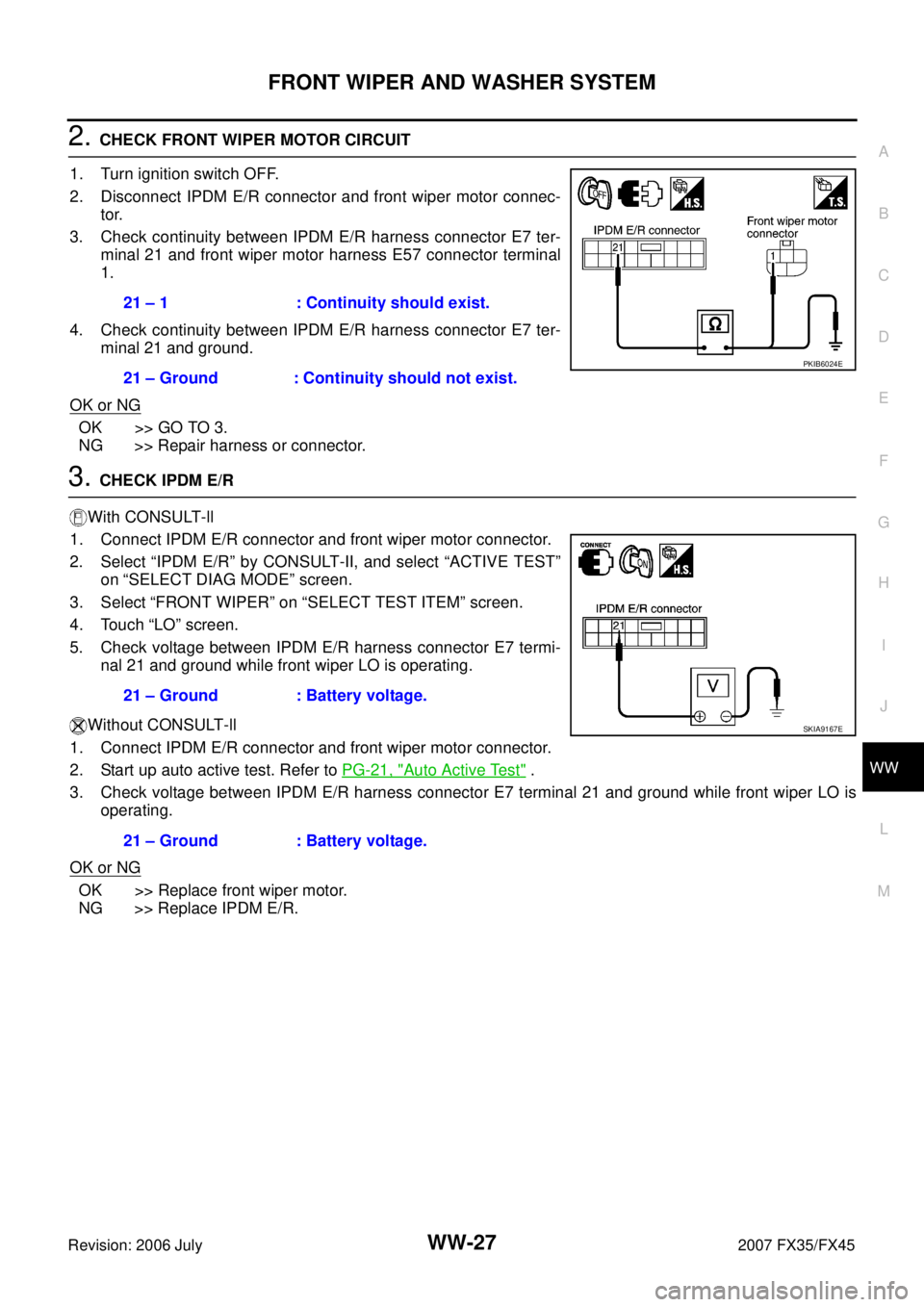

3. CHECK IPDM E/R
With CONSULT-ll
1. Connect IPDM E/R connector and front wiper motor connector.
2. Select “IPDM E/R” by CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
3. Select “FRONT WIPER” on “SELECT TEST ITEM” screen.
4. Touch “LO” screen.
5. Check voltage between IPDM E/R harness connector E7 termi- nal 21 and ground while front wiper LO is operating.
Without CONSULT-ll
1. Connect IPDM E/R connector and front wiper motor connector.
2. Start up auto active test. Refer to PG-21, "
Auto Active Test" .
3. Check voltage between IPDM E/R harness connector E7 terminal 21 and ground while front wiper LO is operating.
OK or NG
OK >> Replace front wiper motor.
NG >> Replace IPDM E/R. 21 – 1 : Continuity should exist.
21 – Ground : Continuity should not exist.
PKIB6024E
21 – Ground : Battery voltage.
21 – Ground : Battery voltage.
SKIA9167E

WW-28
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 July 2007 FX35/FX45
Only Front Wiper Hi Does Not OperateNKS0032L
1. ACTIVE TEST
With CONSULT-ll
1. Select “IPDM E/R” by CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
2. Select “FRONT WIPER” on “SELECT TEST ITEM” screen.
3. Touch “HI” screen.
Without CONSULT-ll
Start up auto active test. Refer to PG-21, "
Auto Active Test" .
Does front wiper operate normally?
YES >> Check combination switch (wiper switch). Refer to LT-
11 8 , "Combination Switch Inspection" .
NO >> GO TO 2.
2. CHECK FRONT WIPER MOTOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and front wiper motor connec- tor.
3. Check continuity between IPDM E/R harness connector E7 ter- minal 31 and front wiper motor harness E57 connector terminal
4.
4. Check continuity between IPDM E/R harness connector E7 ter- minal 31 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
SKIA3486E
31 – 4 : Continuity should exist.
31 – Ground : Continuity should not exist.
PKIA5197E

FRONT WIPER AND WASHER SYSTEM WW-29
C
D E
F
G H
I
J
L
M A
B
WW
Revision: 2006 July 2007 FX35/FX45
3. CHECK IPDM E/R
With CONSULT-ll
1. Connect IPDM E/R connector and front wiper motor connector.
2. Select “IPDM E/R” by CONSULT-II, and select “ACTIVE TEST” on “SELECT DIAG MODE” screen.
3. Select “FRONT WIPER” on “SELECT TEST ITEM” screen.
4. Touch “HI” screen.
5. Check voltage between IPDM E/R harness connector E7 termi- nal 31 and ground while front wiper HI is operating.
Without CONSULT-ll
1. Connect IPDM E/R connector and front wiper motor connector.
2. Start up auto active test. Refer to PG-21, "
Auto Active Test" .
3. Check voltage between IPDM E/R harness connector E7 terminal 31 and ground while front wiper HI is operating.
OK or NG
OK >> Replace front wiper motor.
NG >> Replace IPDM E/R.
Only Front Wiper Intermittent Does Not OperateNKS0032M
1. CHECK COMBINATION SWITCH
With CONSULT-ll
1. Select “BCM” on CONSULT-II, and select “WIPER” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen. Make sure that “FR WIPER INT”, turn ON-OFF according to
wiper switch operation.
Without CONSULT-ll
Refer to LT- 11 8 , "
Combination Switch Inspection" .
OK or NG
OK >> Replace BCM. Refer to BCS-14, "Removal and Installa-
tion of BCM" .
NG >> Check combination switch (wiper switch) Refer to LT-
11 8 , "Combination Switch Inspection" .
Front Wiper Interval Time Is Not Controlled by Vehicle SpeedNKS0032N
1. CHECK FUNCTION OF COMBINATION METER
Confirm that speedometer operates normally.
Does front wiper operate normally?
YES >> GO TO 2.
NO >> Combination meter vehicle speed system malfunction. Refer to DI-19, "
Vehicle Speed Signal
Inspection" .
31 – Ground : Battery voltage.
31 – Ground : Battery voltage.
PKIA5198E
PKIB0110E

WW-30
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 July 2007 FX35/FX45
2. CHECK CAN COMMUNICATION BETWEEN BCM AND COMBINATION METER
Select “BCM” on CONSULT-II, and perform self-diagnosis for
“BCM”.
Displayed self
-diagnosis results
NO DTC>>Replace BCM. Refer to BCS-14, "Removal and Installa-
tion of BCM" .
CAN COMM CIRCUIT>>Check CAN communication line of BCM. Refer to BCS-13, "
CAN Communication Inspection
Using CONSULT-II (Self-Diagnosis)" .
Front Wiper Intermittent Operation Switch Position Cannot Be AdjustedNKS0032O
1. CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
With CONSULT-ll
1. Select “BCM” on CONSULT-II, and select “WIPER” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen. Make sure that “INT VOLUME”, changes in order form 1 to 7
according to wiper switch operation.
Without CONSULT-ll
Refer to LT- 11 8 , "
Combination Switch Inspection" .
OK or NG
OK >> Replace BCM. Refer to BCS-14, "Removal and Installa-
tion of BCM" .
NG >> Check combination switch (wiper switch). Refer to LT-
11 8 , "Combination Switch Inspection" .
Wiper Does Not Wipe When Front Washer OperatesNKS0032P
1. CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
With CONSULT-ll
1. Select “BCM” on CONSULT-II, and select “WIPER” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen. Make sure that “FR WASHER SW” turn ON-OFF according to
front wiper switch operation.
Without CONSULT-ll
Refer to LT- 11 8 , "
Combination Switch Inspection" .
OK or NG
OK >> Replace BCM Refer to BCS-14, "Removal and Installa-
tion of BCM" .
NG >> Check combination switch (wiper switch). Refer to LT-
11 8 , "Combination Switch Inspection" .
PKIA7627E
PKIB0110E
PKIB0110E

FRONT WIPER AND WASHER SYSTEM WW-31
C
D E
F
G H
I
J
L
M A
B
WW
Revision: 2006 July 2007 FX35/FX45
After Front Wiper Operate for 10 Seconds, They Stop for 20 Seconds, and After
Repeating the Operations Five Times, They Become Inoperative
NKS0032Q
CAUTION:

When auto-stop signal has not varied for 10 seconds or longer while IPDM E/R is operating front
wipers, IPDM E/R considers that front wipers are locked, and stops wiper output. That causes this
symptom.

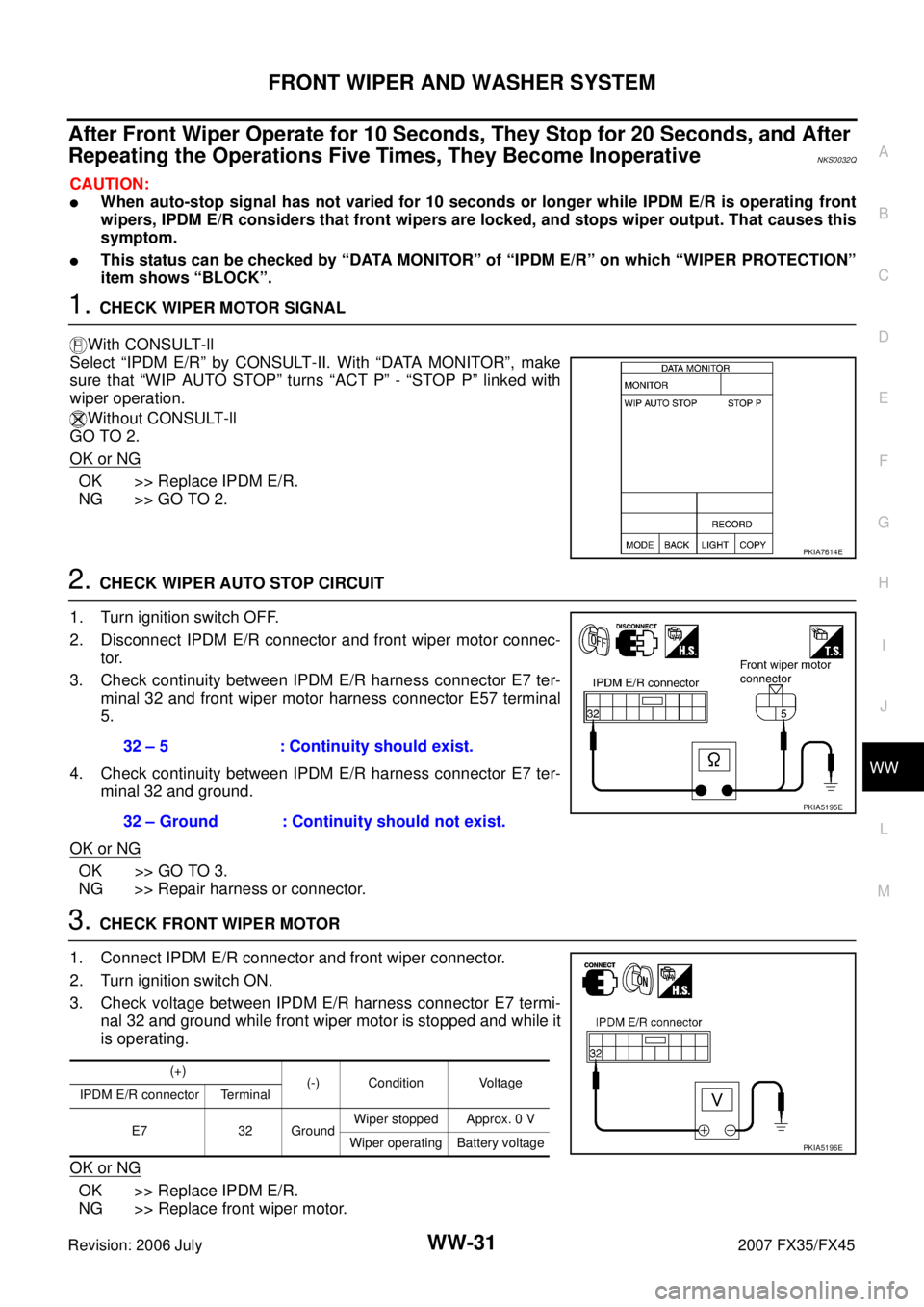

This status can be checked by “DATA MONITOR” of “IPDM E/R” on which “WIPER PROTECTION”
item shows “BLOCK”.
1. CHECK WIPER MOTOR SIGNAL
With CONSULT-ll
Select “IPDM E/R” by CONSULT-II. With “DATA MONITOR”, make
sure that “WIP AUTO STOP” turns “ACT P” - “STOP P” linked with
wiper operation.
Without CONSULT-ll
GO TO 2.
OK or NG
OK >> Replace IPDM E/R.
NG >> GO TO 2.
2. CHECK WIPER AUTO STOP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R connector and front wiper motor connec- tor.
3. Check continuity between IPDM E/R harness connector E7 ter- minal 32 and front wiper motor harness connector E57 terminal
5.
4. Check continuity between IPDM E/R harness connector E7 ter- minal 32 and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK FRONT WIPER MOTOR
1. Connect IPDM E/R connector and front wiper connector.
2. Turn ignition switch ON.
3. Check voltage between IPDM E/R harness connector E7 termi- nal 32 and ground while front wiper motor is stopped and while it
is operating.
OK or NG
OK >> Replace IPDM E/R.
NG >> Replace front wiper motor.
PKIA7614E
32 – 5 : Continuity should exist.
32 – Ground : Continuity should not exist.
PKIA5195E
(+) (-) Condition Voltage
IPDM E/R connector Terminal
E7 32 Ground Wiper stopped Approx. 0 V
Wiper operating Battery voltage
PKIA5196E

WW-32
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 July 2007 FX35/FX45
Front Wiper Does Not StopNKS0032R
1. CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
With CONSULT-ll
1. Select “BCM” on CONSULT-II, and select “WIPER” on “SELECT TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen. Make sure that “FR WIPER INT”, “FR WIPER LOW”, “FR
WIPER HI”, and “FR WASHER SW” turn ON-OFF according to
front wiper switch operation.
Without CONSULT-ll
Refer to LT- 11 8 , "
Combination Switch Inspection" .
OK or NG
OK >> Replace IPDM E/R.
NG >> Check combination switch (wiper switch). Refer to LT-
11 8 , "Combination Switch Inspection" .
PKIB0110E

FRONT WIPER AND WASHER SYSTEM WW-33
C
D E
F
G H
I
J
L
M A
B
WW
Revision: 2006 July 2007 FX35/FX45
Removal and Installation of Front Wiper Arms, Adjustment of Wiper Arms Stop
Location
NKS004OX
REMOVAL
1. Turn front wiper switch ON to operate wiper motor, and then turn front wiper switch OFF (auto stop).
2. Open hood, remove front wiper arm caps, and remove washer tube from washer tube joint.
3. Remove front wiper arm nuts.
4. Raise front wiper arms, and remove front wiper arms from the vehicle.
INSTALLATION
1. Clean up the pivot area as shown in the figure. This will reduce possibility of front wiper arm nuts looseness.
2. Prior to front wiper arms installation, turn front wiper switch ON to operate wiper motor, and then turn front wiper switch OFF
(auto stop).
3. Install washer tube to washer tube joint.
4. Lift the blade up and then set it down onto windshield glass sur- face to set the blade center to clearance “L1” & “L2” immedi-
ately.
5. Tighten front wiper arm nuts to specified torque.
6. Spray washer fluid. Turn on wiper switch ON to operate wiper motor, and then turn front wiper switch OFF (auto stop).
7. Make sure that wiper blades stop within clearance “L1” & “L2”.
8. Install front wiper arm caps.
Removal and Installation of Front Wiper Drive Assembly NKS004OY
REMOVAL
1. Remove front wiper arms. Refer to WW-33, "REMOVAL" .
2. Remove cowl top cover. Refer to EI-23, "
COWL TOP" .
3. Remove washer tube.
4. Disconnect wiper motor connector.
5. Remove front wiper drive assembly mounting bolts, and remove front wiper drive assembly from the vehicle.
SEL024J
Front wiper arm nuts : 23.6 N·m (2.4 kg-m, 17 ft-lb)
Clearance “L1” : 49.4 ± 5.0 mm (1.945 ± 0.2 in)
Clearance “L2” : 43.0 ± 5.0 mm (1.693 ± 0.2 in)
PKIA9951E
SKIA5070E

WW-34
FRONT WIPER AND WASHER SYSTEM
Revision: 2006 July 2007 FX35/FX45
INSTALLATION
1. Install front wiper drive assembly to the vehicle.
2. Connect wiper motor connector. Turn front wiper switch ON to operate wiper motor, and then turn front
wiper switch OFF (auto stop).
3. Install washer tube to washer tube joint.
4. Install cowl top cover. Refer to EI-23, "
COWL TOP" .
5. Install front wiper arms and arm caps. Refer to WW-33, "
INSTALLATION" .
6. Install front wiper arm washer tube.
Disassembly and Assembly of Front Wiper Drive AssemblyNKS004OZ
DISASSEMBLY
1. Remove wiper linkages from wiper motor and motor frame.
2. Remove wiper motor mounting bolts, and remove wiper motor from wiper motor mounting frame.
CAUTION:
Be careful not to bend wiper linkages and not to damage the resin part of ball joint when removing
wiper linkages.
ASSEMBLY
1. Connect wiper motor connector. Turn front wiper switch ON to operate wiper motor, and then turn front
wiper switch OFF (auto stop).
2. Disconnect wiper motor connector.
3. Install wiper motor to wiper motor mounting frame.
4. Install wiper linkages to wiper frame and wiper motor.
CAUTION:

Never drop the wiper motor or cause it to interfere with other parts.

Check joint of motor arm and wiper linkages (at retainer) for grease conditions. Apply grease if
necessary. Front wiper drive assembly mounting bolt : 4.5 N·m (0.46 kg-m, 40 in-lb)
1. Wiper linkage 2 2. Wiper linkage 1 3. Wiper motor frame mounting bolt
4. Wiper motor mounting frame 5. Wiper motor 6. Wiper motor mounting bolt : N·m (kg-m, in-lb)
: Should be lubricated with grease.
PKIC9716E
Wiper motor mounting bolts :4.5 N·m (0.46 kg-m, 40 in-lb)
