TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS ACS-43
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2006 July 2007 FX35/FX45
90 STOP LAMP RLY FIX×× ×
Normally open terminal of stop
lamp relay is stuck. ACS-55
92 ECM CIRCUIT
××××

ECM malfunction

Accelerator pedal position sensor
malfunction

ICC unit malfunction ACS-61
96 NP RANGE
×××

Park/neutral position switch har-
ness is open or shorted.

Park/neutral position switch mal-
function.

TCM malfunction ACS-62
97 AT CIRCUIT
×××
TCM malfunctionACS-64
98 GEAR POSITION ×××

TCM malfunction

AT turbine revolution sensor mal-
function

AT vehicle speed sensor malfunc-
tion ACS-64
102 RADAR STAIN
×× ×
ICC sensor body window has con-
tamination. ACS-65
103 LASER SENSOR FAIL
×× ×
ICC sensor internal malfunctionACS-65
104 LASER AIMING INCMP ×× ×
Laser beam aiming of ICC sensor
is not adjusted. ACS-66
107 LASER COMM FAIL
×× ×

CAN data received by ICC sensor
is strange (from ICC unit, combi-
nation meter or ECM). ACS-66
109 LASER HIGH TEMP
×× ×
Temperature around ICC sensor is
excessively high. ACS-66
DTC
No. CONSULT-II
screen terms ICC
system
warning
lamp Fail-safe
Malfunctions detected where... Refer-
ence
page
Vehicle-
to-
vehicle
distance control
mode Conven-
tional
(fixed
speed)
cruise
control mode Brake
assist (with
preview
function)

ACS-44
[ICC]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: 2006 July 2007 FX35/FX45
DTC 11 CONTROL UNITNKS003F4
1. CHECK ICC UNIT SELF-DIAGNOSIS
1. Perform self-diagnosis.
2. Check if any item other than “DTC 11 CONTROL UNIT” is indicated on self-diagnosis display.
Is any indicated?
YES >> 1. Repair or replace applicable item. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
NO >> 1. Replace ICC unit. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
DTC 20 CAN COMM CIRCUITNKS003F5
1. CHECK CAN COMMUNICATION
With CONSULT-II
1. Perform self-diagnosis.
2. Print self-diagnostic result.
>> After printing self-diagnostic result, go to “CAN system”. Refer to LAN-49, "
CAN System Specifi-
cation Chart" .
DTC 31 POWER SUPPLY CIR, DTC 34 POWER SUPPLY CIR 2NKS003F6
1. CHECK CONNECTOR ICC UNIT
1. Turn ignition switch OFF.
2. Disconnect ICC unit connector, and connect it securely again.
3. Erase DTC and perform ICC running test. Then perform self-diagnosis of ICC system again.
Is malfunction indicated?
YES >> GO TO 2.
NO >> Poor connector connection
1. Check connector. (Check connector housing for disconnected, loose, bent, and collapsed ter- minals. If any malfunction is detected, repair applicable part.)
2. Erase DTC and perform ICC running test. Then perform self-diagnosis of ICC system again.
2. CHECK POWER SUPPLY CIRCUIT FOR ICC UNIT
1. Turn ignition switch ON.
2. Check voltage between ICC unit harness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> 1. Repair ICC unit power supply harness. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
ICC unit connector Terminal
Voltage (Approx.)
(+) ( −)
M89 33
Ground Battery voltage
42
SKIA1173E

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS ACS-45
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2006 July 2007 FX35/FX45
3. CHECK GROUND CIRCUIT FOR ICC UNIT
1. Turn ignition switch OFF.
2. Disconnect ICC unit connector.
3. Check continuity between ICC unit harness connector and ground.
OK or NG
OK >> 1. Replace ICC unit. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
NG >> 1. Repair ICC unit ground harness. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
DTC 41 VHCL SPEED SE CIRCNKS003F7
1. CHECK ICC UNIT SELF-DIAGNOSIS
1. Perform self-diagnosis.
2. Check if “DTC 43 ABS/TCS/VDC CIRC” or “DTC 20 CAN COMM CIRCUIT” other than “DTC 41 VHCL SPEED SE CIRC” is indicated in self-diagnosis item in the display.
Is any indicated?
YES >> 1. Repair or replace applicable item. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
NO >> GO TO 2.
2. CHECK AT VEHICLE SPEED SENSOR
With CONSULT-II
With “DATA MONITOR”, check “VHCL SPD AT” operates normally. Refer to ACS-33, "
DATA MONITOR" .
OK or NG
OK >> 1. Replace ICC unit. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
NG >> 1. Perform “A/T” self-diagnosis. 2. After repairing or replacing applicable item, erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
ICC unit con-
nector Terminal
Ground Continuity
M88 19
Ye s
20
M89 46
SKIA6650E

ACS-46
[ICC]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: 2006 July 2007 FX35/FX45
DTC 43 ABS/TCS/VDC CIRCNKS003F8
1. CHECK ICC UNIT SELF-DIAGNOSIS
With CONSULT-II
1. Perform self-diagnosis.
2. Check if “DTC 20 CAN COMM CIRCUIT” other than “DTC 43 ABS/TCS/VDC CIRC” is indicated in self- diagnosis item in the display.
Is it indicated?
YES >> 1. Repair or replace applicable item. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
NO >> GO TO 2.
2. CHECK ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT) SELF-DIAGNOSIS
With CONSULT-II
1. Perform self-diagnosis of ABS actuator and electric unit (control unit). Refer to BRC-11, "
TROUBLE
DIAGNOSIS" .
2. Check if malfunction is indicated.
Is malfunction indicated?
YES >> 1. Repair or replace applicable item. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
NO >> 1. Replace ICC unit. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
DTC 45 BRAKE SW/STOP L SWNKS003F9
1. CHECK CONNECTOR FOR ICC UNIT
1. Turn ignition switch OFF.
2. Disconnect ICC unit connector, and connect it securely again.
3. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
Is malfunction indicated?
YES >> GO TO 2.
NO >> Poor connector connection
1. Check connector. (Check connector housing for disconnected, loose, bent, and collapsed ter- minals. If any malfunction is detected, repair applicable part.)
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
2. CHECK STOP LAMP SWITCH AND ICC BRAKE SWITCH
With CONSULT-II
With “DATA MONITOR”, check if “STOP LAMP SW” and “BRAKE SW” are operated normally. Refer to ACS-
33, "DATA MONITOR" .
OK or NG
OK >> 1. Replace ICC unit. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
NG >>

BRAKE SW: GO TO 3.

STOP LAMP SW: GO TO 5.

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS ACS-47
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2006 July 2007 FX35/FX45
3. CHECK BRAKE SWITCH INSTALLATION AND ADJUSTMENT
Check brake switch for proper installation, and adjust the switch if necessary. Refer to BR-6, "
BRAKE PEDAL"
.
OK or NG
OK >> GO TO 4.
NG >> After adjustment, erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
4. CHECK ICC BRAKE SWITCH
Check ICC brake switch. Refer to ACS-74, "
ICC Brake Switch and Stop Lamp Switch" .
OK or NG
OK >> 1. Replace ICC unit. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
NG >> 1. Replace ICC brake switch. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
5. CHECK STOP LAMP ILLUMINATION
Check stop lamp illumination.
OK or NG
OK >> GO TO 6.
NG >> 1. Check stop lamp circuit.
2. After repairing, erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
6. CHECK ICC BRAKE HOLD RELAY
1. Turn ignition switch OFF.
2. Remove ICC brake hold relay.
3. Check ICC brake hold relay. Refer to ACS-74, "
ICC Brake Hold Relay"
OK or NG
OK >> GO TO 7.
NG >> 1. Replace brake hold relay.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.

ACS-48
[ICC]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: 2006 July 2007 FX35/FX45
7. CHECK ICC BRAKE HOLD RELAY CIRCUIT
1. Disconnect ICC unit connector and stop lamp switch connector.
2. Check continuity between ICC unit harness connector and ICC brake hold relay harness connector.
3. Check continuity between ICC unit harness connector and ground.
OK or NG
OK >> GO TO 8.
NG >> 1. Repair harness between ICC unit and ICC brake hold relay.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
8. CHECK STOP LAMP SWITCH CIRCUIT
Check continuity between ICC unit harness connector and stop lamp
switch harness connector.
OK or NG
OK >> 1. Replace ICC unit. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
NG >> 1. Repair harness between ICC unit and stop lamp switch.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
DTC 46 OPERATION SW CIRCNKS003FA
1. CHECK CONNECTOR FOR ECM
1. Turn ignition switch OFF.
2. Disconnect ECM connector, and connect it securely again.
3. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
Is malfunction indicated?
YES >> GO TO 2.
NO >> Poor connector connection
1. Check connector. (Check connector housing for disconnected, loose, bent, and collapsed ter- minals. If any malfunction is detected, repair applicable part.)
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
ICC unit connector Terminal ICC brake hold
relay connector Terminal Continuity
M89 38 E14 7 Yes
ICC unit connector Terminal Ground Continuity
M89 38 No
PKIA9907E
ICC unit connector Terminal Stop lamp switch
connector Terminal Continuity
M89 38 E210 2 Yes
PKIB4163E

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS ACS-49
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2006 July 2007 FX35/FX45
2. CHECK ICC STEERING SWITCH
Check ICC steering switch. Refer to ACS-73, "
ICC Steering Switch" .
OK or NG
OK >> GO TO 3.
NG >> 1. Replace ICC steering switch.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.

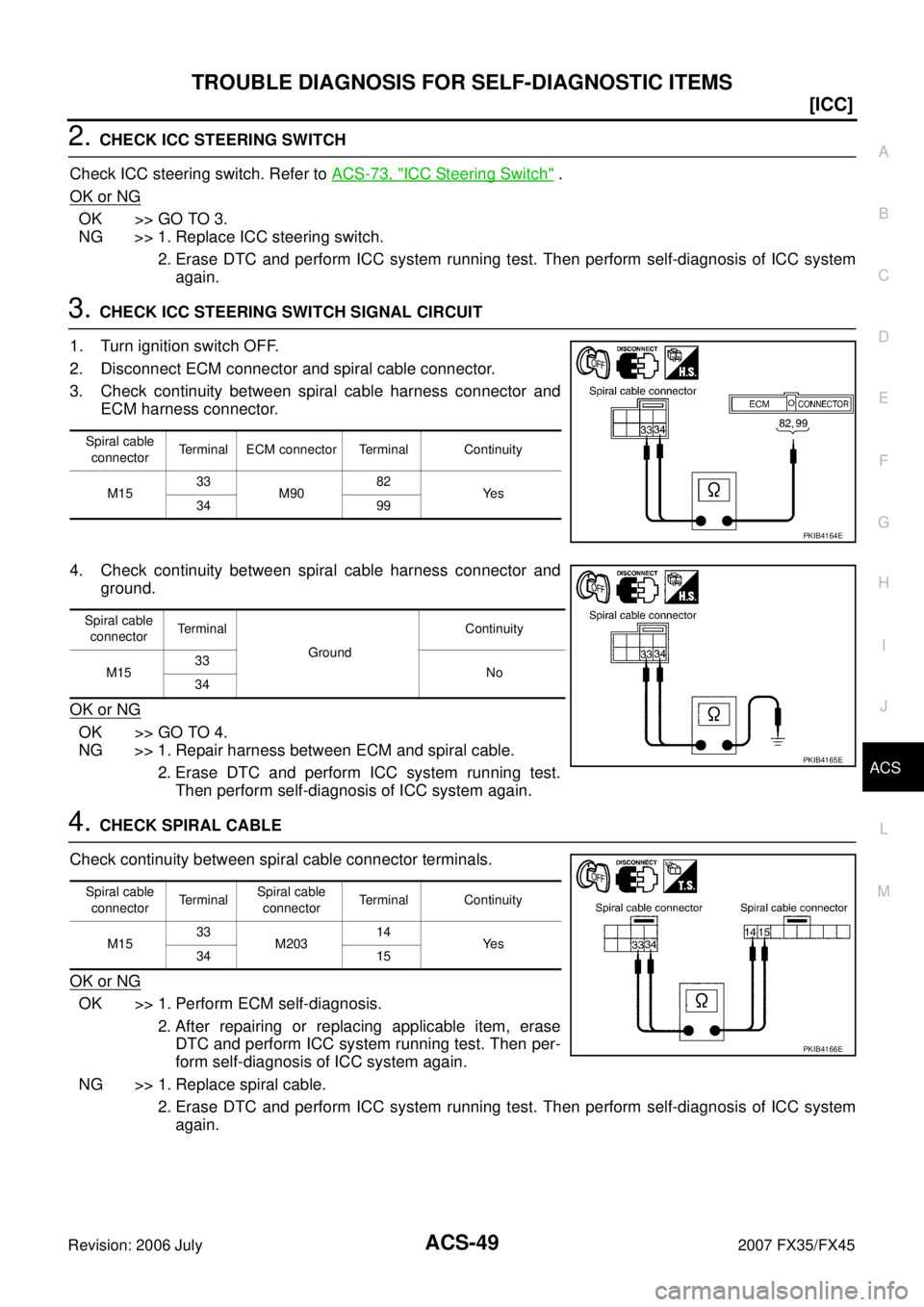

3. CHECK ICC STEERING SWITCH SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect ECM connector and spiral cable connector.
3. Check continuity between spiral cable harness connector and ECM harness connector.
4. Check continuity between spiral cable harness connector and ground.
OK or NG
OK >> GO TO 4.
NG >> 1. Repair harness between ECM and spiral cable.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
4. CHECK SPIRAL CABLE
Check continuity between spiral cable connector terminals.
OK or NG
OK >> 1. Perform ECM self-diagnosis. 2. After repairing or replacing applicable item, erase DTC and perform ICC system running test. Then per-
form self-diagnosis of ICC system again.
NG >> 1. Replace spiral cable. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
Spiral cable
connector Terminal ECM connector Terminal Continuity
M15 33
M90 82
Ye s
34 99
PKIB4164E
Spiral cable
connector Terminal
Ground Continuity
M15 33
No
34
PKIB4165E
Spiral cable
connector TerminalSpiral cable
connector Terminal Continuity
M15 33
M203 14
Ye s
34 15
PKIB4166E

ACS-50
[ICC]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: 2006 July 2007 FX35/FX45
DTC 61 PRESS SEN CIRCUITNKS003FB
1. CHECK CONNECTOR BRAKE PRESSURE SENSOR AND ICC UNIT
1. Turn ignition switch OFF.
2. Disconnect brake pressure sensor connector and ICC unit connector, and connect them securely again.
3. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
Is malfunction indicated?
YES >> GO TO 2.
NO >> Poor connector connection
1. Check connector. (Check connector housing for disconnected, loose, bent, and collapsed ter- minals. If any malfunction is detected, repair applicable part.)
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
2. CHECK HARNESS BETWEEN BRAKE PRESSURE SENSOR AND ICC UNIT
1. Turn ignition switch OFF.
2. Disconnect ICC unit connector and brake pressure sensor con- nector.
3. Check continuity between brake pressure sensor harness con- nector and ICC unit harness connector.
4. Check continuity between ICC unit harness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> 1. Repair harness between brake pressure sensor and ICC unit.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
Brake pressure
sensor connector Terminal ICC unit
connector Terminal Continuity
E142 1
M88 24
Ye s
217
38
SKIA6652E
ICC unit connector Terminal
Ground Continuity
M88 8
No
17
24
PKIB1444E

TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS ACS-51
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2006 July 2007 FX35/FX45
3. CHECK POWER SUPPLY CIRCUIT FOR BRAKE PRESSURE SENSOR
1. Connect ICC unit connector.
2. Turn ignition switch ON.
3. Check voltage between ICC unit harness connector terminals.
OK or NG
OK >> 1. Replace brake pressure sensor. Refer to BR-13,
"BRAKE MASTER CYLINDER" .
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
NG >> 1. Replace ICC unit. 2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
DTC 62 BOOSTER SOL/V CIRCUITNKS003FC
1. CHECK SOLENOID/RELEASE SWITCH AND ICC UNIT CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect brake booster connector and ICC unit connector, and connect them securely again.
3. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
Is malfunction indicated?
YES >> GO TO 2.
NO >> Poor connector connection
1. Check connector. (Check connector housing for disconnected, loose, bent, and collapsed ter- minals. If any malfunction is detected, repair applicable part.)
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
ICC unit connector Terminal
Voltage (Approx.)
(+) ( −)
M88 8 24 5 V
SKIA6653E

ACS-52
[ICC]
TROUBLE DIAGNOSIS FOR SELF-DIAGNOSTIC ITEMS
Revision: 2006 July 2007 FX35/FX45
2. CHECK HARNESS BETWEEN SOLENOID/RELEASE SWITCH AND ICC UNIT
1. Turn ignition switch OFF.
2. Disconnect ICC unit connector and brake booster connector.
3. Check continuity between ICC unit harness connector (A) and brake booster harness connector (B).
4. Check continuity between ICC unit harness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> 1. Repair harness between brake booster and ICC unit.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
3. CHECK BOOSTER SOLENOID
Check booster solenoid. Refer to ACS-73, "
Booster Solenoid" .
OK or NG
OK >> 1. Replace ICC unit.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
NG >> Booster solenoid malfunction 1. Replace brake booster.
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
DTC 63 RELEASE SW CIRCUITNKS003FD
1. CHECK SOLENOID/RELEASE SWITCH AND ICC UNIT CONNECTOR
1. Turn ignition switch OFF.
2. Disconnect brake booster connector and ICC unit connector, and connect them securely again.
3. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
Is malfunction indicated?
YES >> GO TO 2.
NO >> Poor connector connection
1. Check connector. (Check connector housing for disconnected, loose, bent, and collapsed ter- minals. If any malfunction is detected, repair applicable part.)
2. Erase DTC and perform ICC system running test. Then perform self-diagnosis of ICC system again.
AB Continuity
Connector Terminal Connector Terminal
M88 10
E54 4
Ye s
12 6
PKIC5179E
ICC unit
connector Terminal
Ground Continuity
M88 10
No
12
PKIB4148E
