INFINITI FX35 2007 Owner's Manual

ACTION TEST ACS-13
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2006 July 2007 FX35/FX45
Check For Increase Of Cruising Speed
1. Set the conventional (fixed speed) cruise control mode at desired speed.
2. Check if the set speed increases by 1.6 km/h (1 MPH) as RESUME/ACCELERATE switch is pushed up.
NOTE:

If the RESUME/ACCELERATE switch is kept pushing up during cruise control driving, the vehicle speed
increases until the switch is released.

The maximum set speed is 144 km/h (90 MPH).
Check For Decrease Of Cruising Speed
1. Set the conventional (fixed speed) cruise control mode at desired speed.
2. Check if the set speed decreases by 1.6 km/h (1 MPH) as SET/COAST switch is pushed down.
NOTE:

Conventional (fixed speed) cruise control mode is automatically turned off when the driving speed lowers
to 32 km/h (20 MPH).

The minimum set speed is 40 km/h (25 MPH).
Check For Cancellation Of Conventional (Fixed Speed) Cruise Control Mode (Normal Driving
Condition) In The Following Cases:
Refer to ACS-11, "Check For Cancellation Of Vehicle-To-Vehicle Distance Control Mode (Normal Driving Con-
dition) In The Following Cases:" .
Check For Restoring Speed That Is Set By Conventional (Fixed Speed) Cruise Control Mode
Before ICC Cancellation
Refer to ACS-11, "Check For Restoring Speed That Is Set By Vehicle-To-Vehicle Distance Control Mode
Before Cancellation" .
Check For MAIN Switch
1. Start engine. Then, check if the following operations are per-
formed correctly.
2. “CRUISE” lamp illuminates and ICC system indicator goes off when MAIN switch is pressed “ON” for more than 1.5 seconds,
and then ready for operation. The illumination goes off when
MAIN switch is turned to OFF.
3. “CRUISE” illumination go off when the ignition switch is turned to OFF while MAIN switch is ON.
Check For RESUME/ACCELERATE, SET/COAST, CANCEL Switches
1. Check if RESUME/ACCELERATE, SET/COAST, CANCEL switches are operated smoothly.
2. Check if buttons come up as hand is released from the buttons.
SKIB8560E

ACS-14
[ICC]
LASER BEAM AIMING ADJUSTMENT
Revision: 2006 July 2007 FX35/FX45
LASER BEAM AIMING ADJUSTMENTPFP:00026
OutlineNKS003EQ
Adjust the laser beam aiming every time the ICC sensor is removed or installed.
CAUTION:

Adjust laser beam aiming at a horizontal place as far as 12 m (39 ft) forward the vehicle can be
seen.

Adjust laser beam aiming 5 seconds after starting engine.

Never view ICC sensor integrated unit body window directly during laser beam aiming adjustment.

Follow the CONSULT-ll when adjusting the laser beam aiming (laser beam aiming adjustment can-
not be operated without CONSULT-ll).

Never ride on vehicle during laser beam aiming adjustment.

Idle and turn headlamps OFF during laser beam aiming adjustment.
PreparationNKS003ER

Adjust the tire pressure to the specified value.

See that there is no load in the vehicle.

Coolant, engine oil filled up to correct level and full fuel tank.

Shift the gear into “P” position and release the parking brake.

Clean the ICC sensor with a soft cloth.
Outline of Adjustment ProcedureNKS003ES
1. Set up the ICC target board [KV99110100 (J-45718)].
2. Adjust the sensor following the procedure on CONSULT-II. (Turn manually the screw for up-down position adjustment. ICC sensor automatically adjust the right-left position.)
Setting the ICC Target BoardNKS003ET
Accurate ICC target board setting is required for the laser beam aiming adjustment.
CAUTION:
ICC system does not function normally if laser beam aiming is not accurate.
ADJUSTING HEIGHT OF THE TARGET
1. Attach a triangle scale at the center.
SKIA6179E
SKIA5974E

LASER BEAM AIMING ADJUSTMENT ACS-15
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2006 July 2007 FX35/FX45
2. Adjust the height of the target board stand so that the point of
the triangle aims the center of the ICC sensor.
ADJUSTING THE RIGHT-LEFT POSITION OF THE TARGET
1. Attach a scale [at least 350 mm (14 in) or longer] or stick asshown in the figure.
2. Suspend a thread with weight on the tip of the thread to 310 mm (12.2 in) left side of the target board from the center of the tar-
get board on top.
SETTING THE TARGET
1. Suspend a thread with weight on tip to splice the center of the front and rear bumpers. Then, mark the
center point on the ground as each weight points.
2. Link the front and rear bumpers center points marked on the ground, and mark a point 5 m (16.4 ft) ahead of the sensor, on the extended line of the previous link line of the bumper center points. Then, adjust the
position of the target board so that the weight come on the top of the marked point [5 m (16.4 ft) ahead of
the sensor] and face to the vehicle.
3. Adjust the position of the target board so that the extended line that links the center of the rear window glass (the center of the
rear window defogger pattern) and the center of the windshield
(the setting part of the room mirror) align with the weight sus-
pended from the board.
4. Remove the thread suspended to the left side of board and sus- pend a thread with weight on tip on the center of the target
board. Then mark the point of weight on the ground.
SKIA6180E
SKIA1211E
SKIA5975E
SKIA1213E

ACS-16
[ICC]
LASER BEAM AIMING ADJUSTMENT
Revision: 2006 July 2007 FX35/FX45
5. Pivot the edge of the target board 20° to either side.
NOTE:
Approx. 50 mm (1.97 in) shift rates the 20 ° movement.
6. Do not place anything in the space shown in the figure (view from top). NOTE:
In case the space shown in the figure is not available, make space by covering the side of the target board
with a 400 mm (15.75 in)-size frosted black board or black cloth.
PKIA2589E
SKIA5976E
SKIA1216E

LASER BEAM AIMING ADJUSTMENT ACS-17
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2006 July 2007 FX35/FX45
Aiming AdjustmentNKS003EU
CAUTION:
Complete all necessary work for laser beam adjustment until the adjustment completes as shown in
the procedure. If the procedure does not complete, the ICC system is inoperable.
NOTE:
CONSULT-II basic operation: Refer to GI-38, "
CONSULT-II Start Procedure" .
1. Touch “WORK SUPPORT”.
2. Touch “LASER BEAM ADJUST”.
3. Touch “START”. CAUTION:
If the adjustment screen does not appear on the CONSULT-
II screen in 10 seconds. After touching “LASER BEAM
ADJUST” screen, the following causes may be considered:

Target is not set accurately.

There is not enough space beside the target.

Deformation of vehicle or the surrounding equipment
unit, bracket, or the surrounding equipment is causing
inappropriate installation of sensor and aiming may be
set out of the adjustable range.

The area is not suitable for the adjustment work.

ICC sensor is not clean.
4. After the CONSULT-II displays “ADJUST THE VERTICAL OF LASER BEAM AIMING” turn the up-down direction adjusting
screw until “U/D CORRECT” value is set in the range of ±4.
CAUTION:
Turn the screw slowly. The value change on display is
slower than actual movement of the ICC sensor. Wait for 2
seconds every time the screw is turned half a rotation.
NOTE:
Turning the screw to the right lowers the aiming and to the left
lifts the aiming.
SKIA6191E
SKIA1220E
SKIA1221E
SKIA6181E

ACS-18
[ICC]
LASER BEAM AIMING ADJUSTMENT
Revision: 2006 July 2007 FX35/FX45
5. When “U/D CORRECT” value indicates ±4, confirm that the margin of value remains within ±4 at least for
2 seconds with no equipment or hand touching the ICC sensor.
When “COMPLETED THE VERTICAL AIMING OF LASER
BEAM” appears on screen, touch “END”.
CAUTION:
Be sure that the margin of “U/D CORRECT” is within ±4 with
ICC sensor unit is untouched.
6. Confirm that “ADJUSTING AUTOMATIC HORIZONTAL LASER BEAM AIMING” is on screen and wait for a while (maximum: 10
seconds).
7. Confirm that “NORMALLY COMPLETED” is displayed on CON- SULT-II and close the aiming adjustment procedure by touching
“END”.
CAUTION:
Complete all the procedures once “LASER BEAM ADJUST”
mode is entered in CONSULT-II. When the procedure is dis-
continued, the ICC system is inoperable.
CHECK AFTER THE ADJUSTMENT
Test the ICC system operation by running test. Refer to ACS-11, "ICC System Running Test" .
SKIA1223E
SKIA1224E
SKIA1225E

ELECTRICAL UNITS LOCATION ACS-19
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2006 July 2007 FX35/FX45

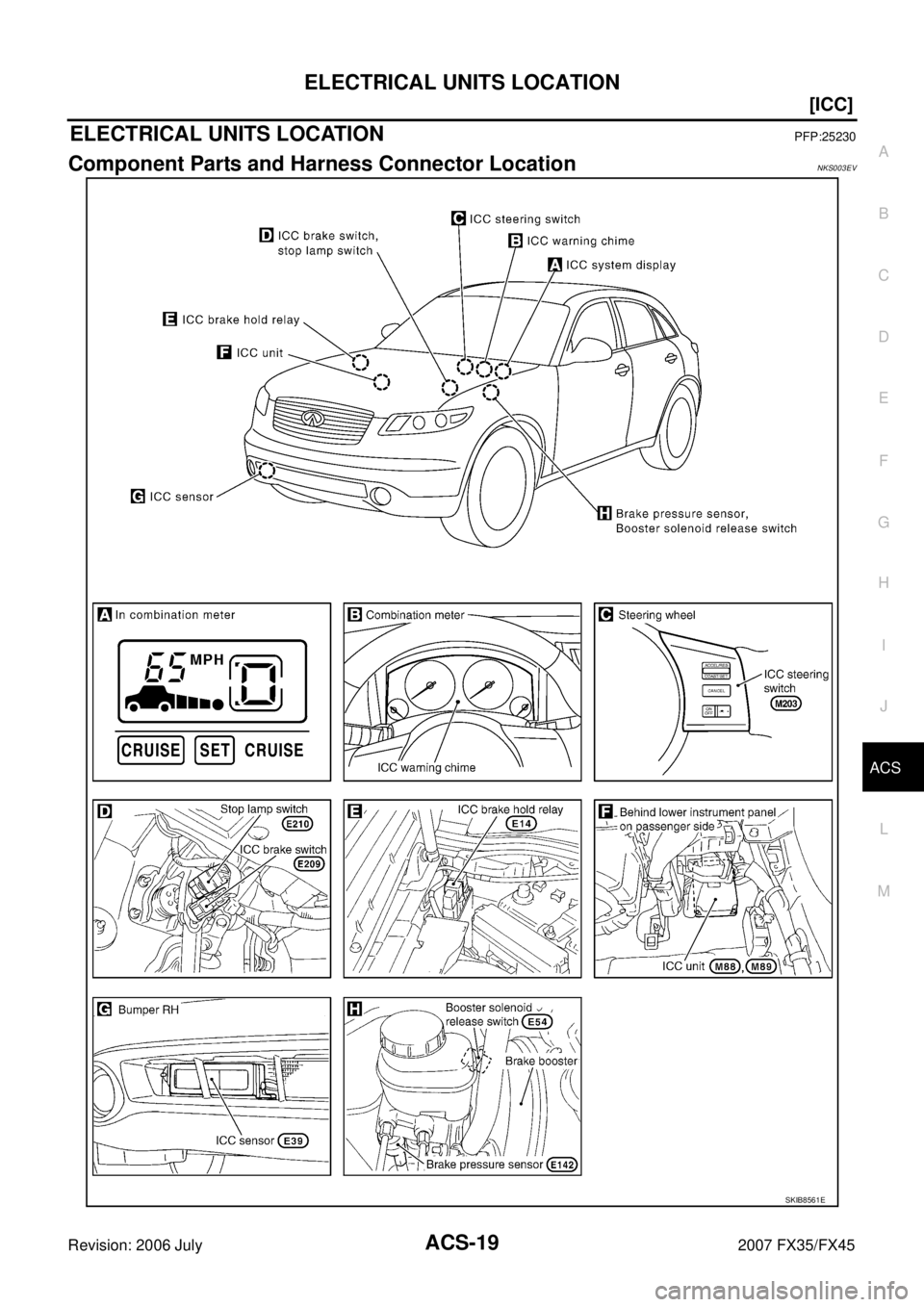

ELECTRICAL UNITS LOCATIONPFP:25230
Component Parts and Harness Connector LocationNKS003EV
SKIB8561E

ACS-20
[ICC]
WIRING DIAGRAM
Revision: 2006 July 2007 FX35/FX45
WIRING DIAGRAMPFP:00000
SchematicNKS003EW
TKWM4441E

WIRING DIAGRAM ACS-21
[ICC]
C
D E
F
G H
I
J
L
M A
B
ACS
Revision: 2006 July 2007 FX35/FX45
Wiring Diagram — ICC —NKS003EX
TKWM4442E

ACS-22
[ICC]
WIRING DIAGRAM
Revision: 2006 July 2007 FX35/FX45
TKWM4443E
