DTC P0443 EVAP CANISTER PURGE VO
LUME CONTROL SOLENOID VALVE
On Board Diagn osis Logic
INFOID:0000000001326768
DTC Confirmation ProcedureINFOID:0000000001326769
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Always perform test at a temperature of 5 °C (41 °F) or more.
WITH CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Select “PURG VOL CN/V P1444” of “EVAPORATIVE SYSTEM” in “DTC WORK SUPPORT” mode with
CONSULT-III.
5. Touch “START”.
6. Start engine and let it idle until “TESTING” on CO NSULT-III changes to “COMPLETED”. (It will take
approximately 10 seconds.)
If “TESTING” is not displayed afte r 5 minutes, retry from step 2.
7. Make sure that “OK” is displayed after touching “ SELF-DIAG RESULTS”. If “NG” is displayed, refer to EC-
936, "Diagnosis Procedure".
WITH GST
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and let it idle for at least 20 seconds.
4. Select “Service $07” with GST.
5. If 1st trip DTC is detected, go to EC-936, "
Diagnosis Procedure".
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0443
0443 EVAP canister purge
volume control solenoid
valve The canister purge flow is detected during the
specified driving conditions, even when EVAP
canister purge volume control solenoid valve is
completely closed.  EVAP control system pressure sensor
 EVAP canister purge volume control so-
lenoid valve
(The valve is stuck open.)
 EVAP canister vent control valve
 EVAP canister
 Hoses (Hoses are connected incorrectly or
clogged.)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DTC P0451 EVAP CONTROL SYSTEM PRESSURE SENSOR
EC-957
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0451 EVAP CONTROL SYSTEM PRESSURE SENSOR

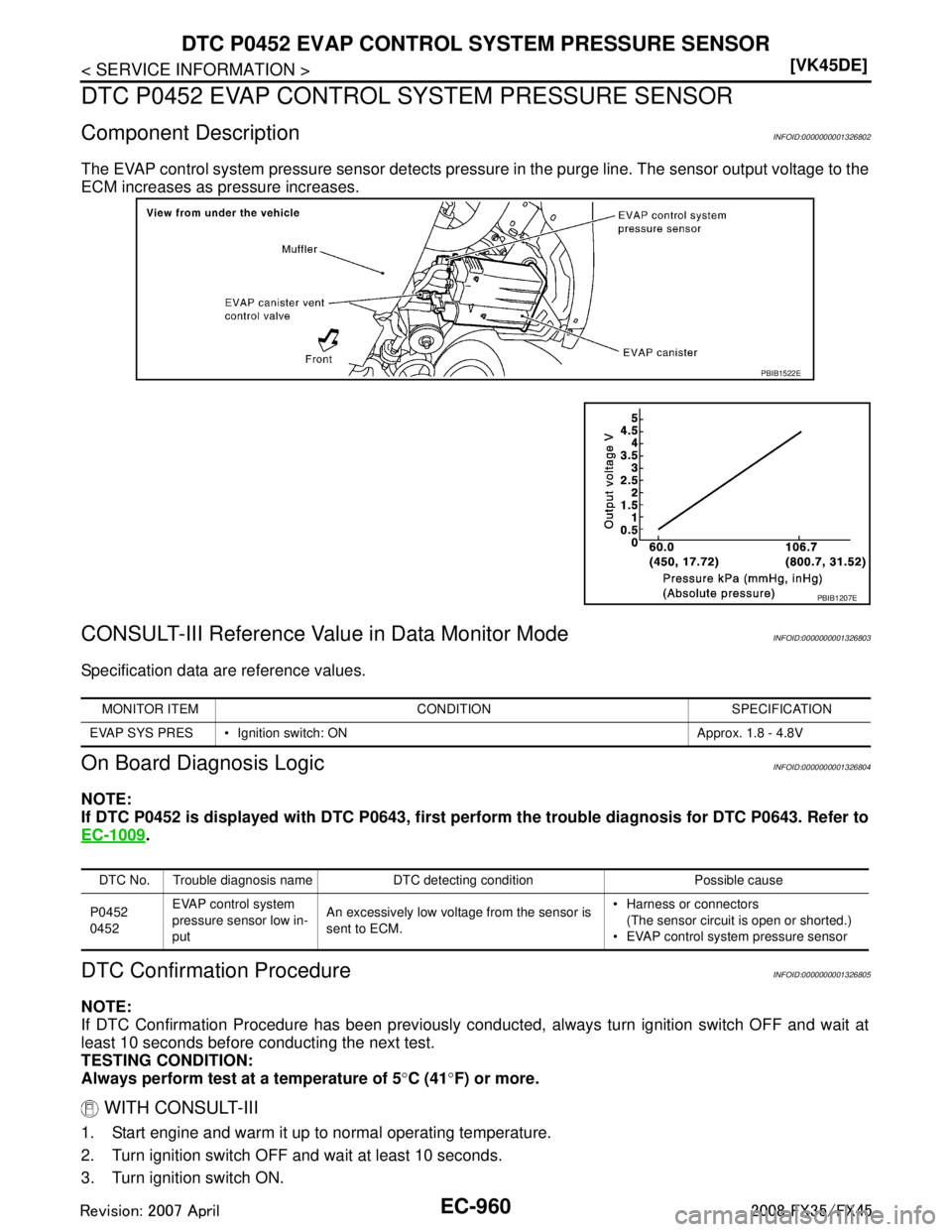

Component DescriptionINFOID:0000000001326796
The EVAP control system pressure sens
or detects pressure in the purge line. The sensor output voltage to the
ECM increases as pressure increases.
CONSULT-III Reference Val ue in Data Monitor ModeINFOID:0000000001326797
Specification data are reference values.
On Board Diagnosis LogicINFOID:0000000001326798
NOTE:
If DTC P0451 is displayed with DTC P0643, first pe rform the trouble diagnosis for DTC P0643. Refer to
EC-1009
.
DTC Confirmation ProcedureINFOID:0000000001326799
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-III
1. Turn ignition switch OFF and wait at least 10 seconds.
2. Start engine and wait at least 40 seconds. NOTE:
Do not depress accelerator pedal even slightly.
3. Check 1st trip DTC.
PBIB1522E
PBIB1207E
MONITOR ITEM CONDITION SPECIFICATION
EVAP SYS PRES  Ignition switch: ON Approx. 1.8 - 4.8V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0451
0451 EVAP control system
pressure sensor perfor-
mance ECM detects a sloshing signal from the EVAP
control system pressure sensor
 Harness or connectors
 EVAP control system pressure sensor
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-960
< SERVICE INFORMATION >[VK45DE]
DTC P0452 EVAP CONTROL
SYSTEM PRESSURE SENSOR
DTC P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR
Component DescriptionINFOID:0000000001326802
The EVAP control system pressure sens or detects pressure in the purge line. The sensor output voltage to the
ECM increases as pressure increases.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001326803
Specification data are reference values.
On Board Diagn osis LogicINFOID:0000000001326804
NOTE:
If DTC P0452 is displayed with DTC P0643, first pe rform the trouble diagnosis for DTC P0643. Refer to
EC-1009
.
DTC Confirmation ProcedureINFOID:0000000001326805
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Always perform test at a temperature of 5 °C (41 °F) or more.
WITH CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
PBIB1522E
PBIB1207E
MONITOR ITEM CONDITION SPECIFICATION
EVAP SYS PRES  Ignition switch: ON Approx. 1.8 - 4.8V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0452
0452 EVAP control system
pressure sensor low in-
put An excessively low voltage from the sensor is
sent to ECM.  Harness or connectors
(The sensor circuit is open or shorted.)
 EVAP control system pressure sensor
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-966
< SERVICE INFORMATION >[VK45DE]
DTC P0453 EVAP CONTROL
SYSTEM PRESSURE SENSOR
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
Component DescriptionINFOID:0000000001326809
The EVAP control system pressure sens or detects pressure in the purge line. The sensor output voltage to the
ECM increases as pressure increases.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001326810
Specification data are reference values.
On Board Diagn osis LogicINFOID:0000000001326811
NOTE:
If DTC P0453 is displayed with DTC P0643, first pe rform the trouble diagnosis for DTC P0643. Refer to
EC-1009
.
DTC Confirmation ProcedureINFOID:0000000001326812
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Always perform test at a temperature of 5 °C (41 °F) or more.
WITH CONSULT-III
PBIB1522E
PBIB1207E
MONITOR ITEM CONDITION SPECIFICATION
EVAP SYS PRES  Ignition switch: ON Approx. 1.8 - 4.8V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0453
0453 EVAP control system
pressure sensor high in-
put An excessively high voltage from the sensor is
sent to ECM.  Harness or connectors
(The sensor circuit is open or shorted.)
 EVAP control system pressure sensor
 EVAP canister vent control valve
 EVAP canister
 Rubber hose from EVAP canister vent control valve to vehicle frame
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-974
< SERVICE INFORMATION >[VK45DE]
DTC P0455 EVAP CONTROL SYSTEM

Make sure that EVAP hoses are connected to EVAP canister purge volume control solenoid valve
properly.
 If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
 Perform “DTC WORK SUPPORT” when the fuel level is between 1/4 and 3/4 full, and vehicle is placed
on flat level surface.
 Open engine hood before conducting the following procedures.
WITH CONSULT-III
1. Tighten fuel filler cap secure ly until ratcheting sound is heard.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-III.
5. Make sure that the following conditions are met. COOLAN TEMP/S: 0 - 70 °C (32 - 158 °F)
INT/A TEMP SE: 0 - 60 °C (32 - 140 °F)
6. Select “EVAP SML LEAK P0442/P1442” of “EV APORATIVE SYSTEM” in “DTC WORK SUPPORT” mode
with CONSULT-III.
Follow the instruction displayed.
NOTE:
If the engine speed cannot be maintained within t he range displayed on the CONSULT-III screen, go to
EC-658, "
Basic Inspection".
7. Make sure that “OK” is displayed. If “NG” is displayed, select “SELF-DIAG RE SULTS” mode and make sure that “EVAP GROSS LEAK
[P0455]” is displayed. If it is displayed, refer to EC-974, "
Diagnosis Procedure".
If P0442 is displayed, perform Diagnostic Procedure for DTC P0442 EC-927, "
Diagnosis Procedure".
WITH GST
NOTE:
Be sure to read the explanation of EC-633, "
Emission-related Diagnostic Information" before driving vehicle.
1. Start engine.
2. Drive vehicle according to EC-633, "
Emission-related Diagnostic Information".
3. Stop vehicle.
4. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
5. Select “Service $07” with GST.  If P0455 is displayed on the screen, go to EC-974, "
Diagnosis Procedure".
 If P0442 is displayed on the screen, go to EC-927, "
Diagnosis Procedure".
 If P0441 is displayed on the screen, go to EC-922, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001326818
1.CHECK FUEL FILLER CAP DESIGN
1. Turn ignition switch OFF.
2. Check for genuine NISSAN fuel filler cap design.
OK or NG
OK >> GO TO 2.
NG >> Replace with genuine NISSAN fuel filler cap.
2.CHECK FUEL FILLER CAP INSTALLATION
Check that the cap is tightened proper ly by rotating the cap clockwise.
SEF915U
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-980
< SERVICE INFORMATION >[VK45DE]
DTC P0456 EVAP CONTROL SYSTEM
DTC Confirmation Procedure
INFOID:0000000001326820
NOTE:
 If DTC P0456 is displayed with P0442, firs t perform trouble diagnosis for DTC P0456.
 After repair, make sure that the hoses and clips are installed properly.
 If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
 Open engine hood before conducting following procedure.
 If any of following conditions are met just befo re the DTC confirmation procedure, leave the vehicle
for more than 1 hour.
- Fuel filler cap is removed.
- Fuel is refilled or drained.
- EVAP component parts is/are removed.
 Before performing the following procedure, confirm that battery voltage is more than 11V at idle.
WITH CONSULT-III
1. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-III.
2. Make sure the following conditions are met.
FUEL LEVEL SE: 0.25 - 1.4V
COOLAN TEMP/S: 0 - 32 °C (32 - 90 °F)
FUEL T/TMP SE: 0 - 35 °C (32 - 95 °F)
INT/A TEMP SE: More than 0 °C (32 °F)
If NG, turn ignition switch OFF and leave the vehicle in a cool place (soak the vehicle) or refilling/draining
fuel until the output voltage condition of the “FUE L LEVEL SE” meets within the range above and leave
the vehicle for more than 1 hour. Then start from step 1).
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select “EVAP V/S LEAK P0456/P1456” of “EVAPO RATIVE SYSTEM” in “DTC WORK SUPPORT” mode
with CONSULT-III.
Follow the instruction displayed.
6. Make sure that “OK” is displayed. If “NG” is displayed, refer to EC-981, "
Diagnosis Procedure".
NOTE:
 If the engine speed cannot be maintained with in the range displayed on CONSULT-III screen, go
to EC-658, "
Basic Inspection".
 Make sure that EVAP hoses are connected to EVAP canister purge volume control solenoid
valve properly.
Overall Function CheckINFOID:0000000001326821
WITH GST
Use this procedure to check the overall function of the EV AP very small leak function. During this check, a 1st
trip DTC might not be confirmed.
CAUTION:
 Do not use compressed air, doing so may damage the EVAP system.
 Do not start engine.
 Do not exceeded 4.12 kPa (0.042 kg/cm
2, 0.6 psi).
1. Attach the EVAP service port adapter securely to the EVAP ser- vice port (2).
 EVAP canister purge volume control solenoid valve (1)

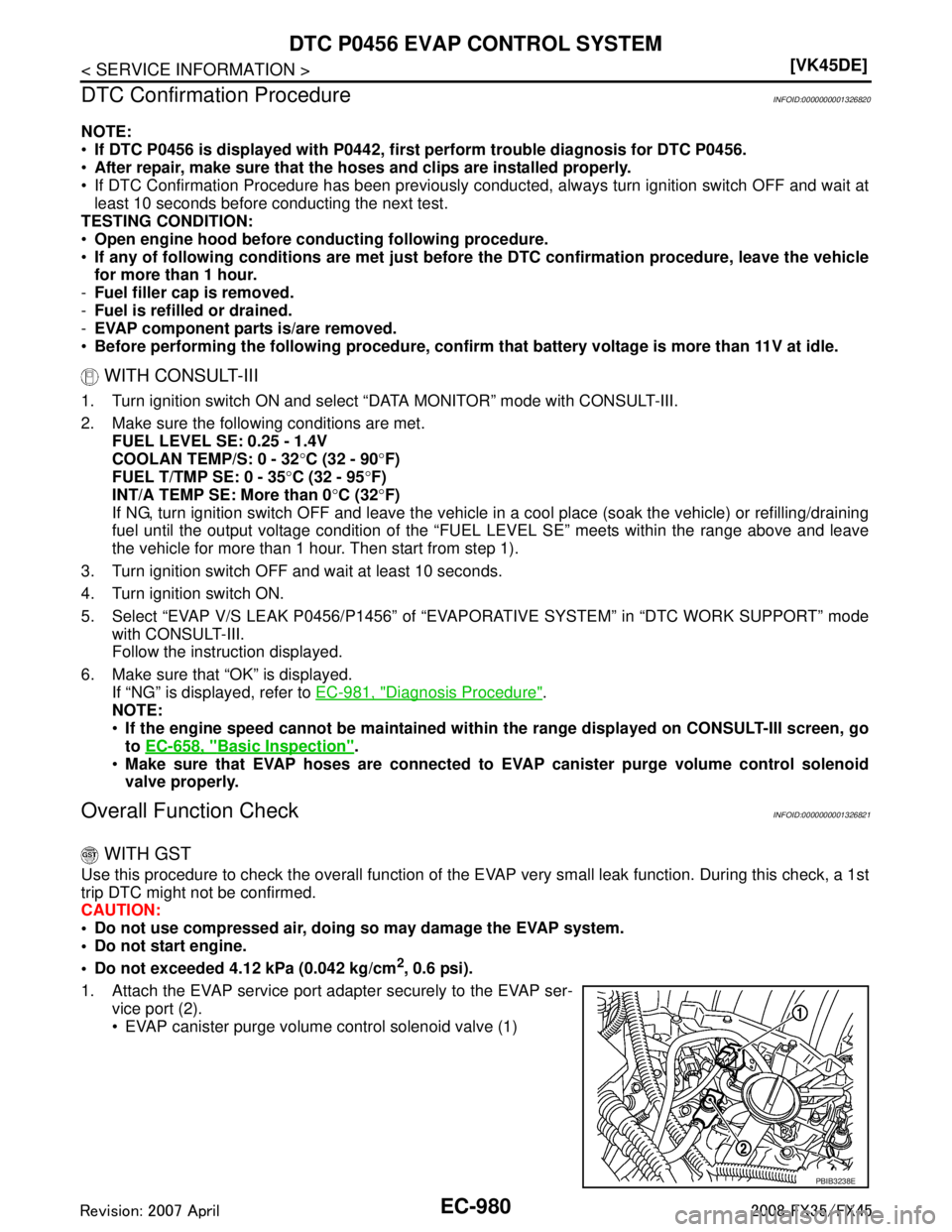

PBIB3238E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-986
< SERVICE INFORMATION >[VK45DE]
DTC P0460 FUEL LEVEL SENSOR
DTC P0460 FUEL LEVEL SENSOR
Component DescriptionINFOID:0000000001326823
The fuel level sensor is mounted in the fuel level sensor unit. The
sensor detects a fuel level in the fuel tank and transmits a signal to
the “unified meter and A/C amp.”. The “unified meter and A/C amp.”
sends the fuel level sensor signal to the ECM through CAN commu-
nication line.
It consists of two parts, one is mechanical float and the other is vari-
able resistor. Fuel level sensor output voltage changes depending on
the movement of the fuel mechanical float.
On Board Diagn
osis LogicINFOID:0000000001326824
NOTE:
If DTC P0460 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-724
.
 If DTC P0460 is displayed with DTC U1010, first pe rform the trouble diagnosis for DTC U1010. Refer
to EC-726
.
When the vehicle is parked, naturally the fuel level in the fuel tank is stable. It means that output signal of the
fuel level sensor does not change. If ECM senses sloshi ng signal from the sensor, fuel level sensor malfunc-
tion is detected.
DTC Confirmation ProcedureINFOID:0000000001326825
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
1. Start engine and wait maximum of 2 consecutive minutes.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to EC-986, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001326826
1.CHECK DTC WITH “UNIFIED METER AND A/C AMP.”
Refer to DI-27, "
CONSULT-III Function (METER/M&A)".
OK or NG
OK >> GO TO 2.
NG >> Go to DI-19, "
Fuel Level Sensor Signal Inspection".
2.CHECK INTERMITTENT INCIDENT
Refer to EC-717
.
>> INSPECTION END
PBIB1508E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0460
0460 Fuel level sensor circuit
noise Even though the vehicle is parked, a signal be-
ing varied is sent from the fuel level sensor to
ECM.  Harness or connectors
(The CAN communication line is open or
shorted)
 Harness or connectors
(The sensor circuit is open or shorted)
 Unified meter and A/C amp.
 Fuel level sensor
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-988
< SERVICE INFORMATION >[VK45DE]
DTC P0461 FUEL LEVEL SENSOR
DTC P0461 FUEL LEVEL SENSOR
Component DescriptionINFOID:0000000001326828
The fuel level sensor is mounted in the fuel level sensor unit. The
sensor detects a fuel level in the fuel tank and transmits a signal to
the “unified meter and A/C amp.”. The “unified meter and A/C amp.”
sends the fuel level sensor signal to the ECM through CAN commu-
nication line.
It consists of two parts, one is mechanical float and the other is vari-
able resistor. Fuel level sensor output voltage changes depending on
the movement of the fuel mechanical float.
On Board Diagn
osis LogicINFOID:0000000001326829
NOTE:
If DTC P0461 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-724
.
 If DTC P0461 is displayed with DTC U1010, first pe rform the trouble diagnosis for DTC U1010. Refer
to EC-726
.
Driving long distances naturally affect fuel gauge level.
This diagnosis detects the fuel gauge malfunction of the gauge not moving even after a long distance has
been driven.
Overall Function CheckINFOID:0000000001326830
Use this procedure to check the overall function of the f uel level sensor function. During this check, a 1st trip
DTC might not be confirmed.
WARNING:
When performing following procedure, be sure to observe the handling of the fuel. Refer to FL-10
.
TESTING CONDITION:
Before starting overall function check, preparation of draining fuel and refilling fuel is required.
WITH CONSULT-III
NOTE:
Start from step 10, if it is possibl e to confirm that the fuel cannot be drained by 30 (7-7/8 US gal, 6-5/
8 Imp gal) in advance.
1. Prepare a fuel container and a spare hose.
2. Release fuel pressure from fuel line, refer to EC-665, "
Fuel Pressure Check".
3. Remove the fuel feed hose on the fuel level sensor unit.
4. Connect a spare fuel hose where the fuel feed hose was removed.
5. Turn ignition switch OFF and wait at least 10 seconds then turn ON.
6. Select “FUEL LEVEL SE” in “DAT A MONITOR” mode with CONSULT-III.
7. Check “FUEL LEVEL SE” output voltage and note it.
8. Select “FUEL PUMP” in “ACTIVE TEST” mode with CONSULT-III.
9. Touch “ON” and drain fuel approximately 30 (7-7/8 US gal, 6-5/8 Imp gal) and stop it.
PBIB1508E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0461
0461 Fuel level sensor circuit
range/performance The output signal of the fuel level sensor does
not change within the specified range even
though the vehicle has been driven a long dis-
tance.  Harness or connectors
(The CAN communication line is open or
shorted)
 Harness or connectors
(The sensor circuit is open or shorted)
 Unified meter and A/C amp.
 Fuel level sensor
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-990
< SERVICE INFORMATION >[VK45DE]
DTC P0462, P0463
FUEL LEVEL SENSOR
DTC P0462, P0463 FUEL LEVEL SENSOR
Component DescriptionINFOID:0000000001326833
The fuel level sensor is mounted in the fuel level sensor unit. The
sensor detects a fuel level in the fuel tank and transmits a signal to
the “unified meter and A/C amp.”. The “unified meter and A/C amp.”
sends the fuel level sensor signal to the ECM through CAN commu-
nication line.
It consists of two parts, one is mechanical float and the other is vari-
able resistor. Fuel level sensor output voltage changes depending on
the movement of the fuel mechanical float.
On Board Diagnosis LogicINFOID:0000000001326834
NOTE:
If DTC P0462 or P0463 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for
DTC U1000, U1001. Refer to EC-724
.
 If DTC P0462 is displayed with DTC U1010, first pe rform the trouble diagnosis for DTC U1010. Refer
to EC-726
.
This diagnosis indicates the former, to detect open or short circuit malfunction.
DTC Confirmation ProcedureINFOID:0000000001326835
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 11V at ignition
switch ON.
1. Turn ignition switch ON and wait at least 5 seconds.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to EC-990, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001326836
1.CHECK DTC WITH “UNIFIED METER AND A/C AMP.”
Refer to DI-27, "
CONSULT-III Function (METER/M&A)".
OK or NG
OK >> GO TO 2.
NG >> Go to DI-19, "
Fuel Level Sensor Signal Inspection".
2.CHECK INTERMITTENT INCIDENT
Refer to EC-717
.
>> INSPECTION END
PBIB1508E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0462
0462 Fuel level sensor circuit
low input An excessively low voltage from the sensor is
sent to ECM.  Harness or connectors
(The CAN communication line is open or
shorted)
 Harness or connectors (The sensor circuit is open or shorted)
 Unified meter and A/C amp.
 Fuel level sensor
P0463
0463
Fuel level sensor circuit
high input An excessively high voltage from the sensor is
sent to ECM.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-992
< SERVICE INFORMATION >[VK45DE]
DTC P0500 VSS
DTC P0500 VSS
DescriptionINFOID:0000000001326838
NOTE:

If DTC P0500 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-724
.
 If DTC P0500 is displayed with DTC U1010, first pe rform the trouble diagnosis for DTC U1010. Refer
to EC-726
.
The vehicle speed signal is sent to the “unified meter and A/C amp.” from the “ABS actuator and electric unit
(control unit)” by CAN communication line. The “unifi ed meter and A/C amp.” then sends a signal to the ECM
by CAN communication line.
On Board Diagn osis LogicINFOID:0000000001326839
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode.
DTC Confirmation ProcedureINFOID:0000000001326840
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Steps 1 and 2 may be conducted with the drive wheels li fted in the shop or by driving the vehicle. If a
road test is expected to be easier, it is unnecessary to lift the vehicle.
WITH CONSULT-III
1. Start engine (VDC switch OFF).
2. Read “VHCL SPEED SE” in “DATA MONITOR” m ode with CONSULT-III. The vehicle speed on CON-
SULT-III should exceed 10 km/h (6 MPH) when rotating wheels with suitable gear position.
If NG, go to EC-993, "
Diagnosis Procedure".
If OK, go to following step.
3. Select “DATA MONITOR” mode with CONSULT-III.
4. Warm engine up to normal operating temperature.
5. Maintain the following conditions for at least 60 consecutive seconds.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0500
0500 Vehicle speed sensor The almost 0 km/h (0 MPH) signal from
vehicle speed sensor is sent to ECM even
when vehicle is being driven.  Harness or connectors
(The CAN communication line is open or short-
ed)
 Harness or connectors (The vehicle speed signal circuit is open or
shorted)
 Wheel sensor
 Unified meter and A/C amp.
 ABS actuator and electric unit (control unit)
Detected items Engine operating condition in fail-safe mode
Vehicle speed sensor When the fail-safe system for vehicle speed sensor is activated, the cooling fan operates (High) while
engine is running.
ENG SPEED 1,600 - 6,000 rpm
COOLAN TEMP/S More than 70
°C (158 °F)
B/FUEL SCHDL 4.5 - 31.8 msec
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
