sensor INFINITI FX35 2008 Service Manual

DTC P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR
EC-963
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

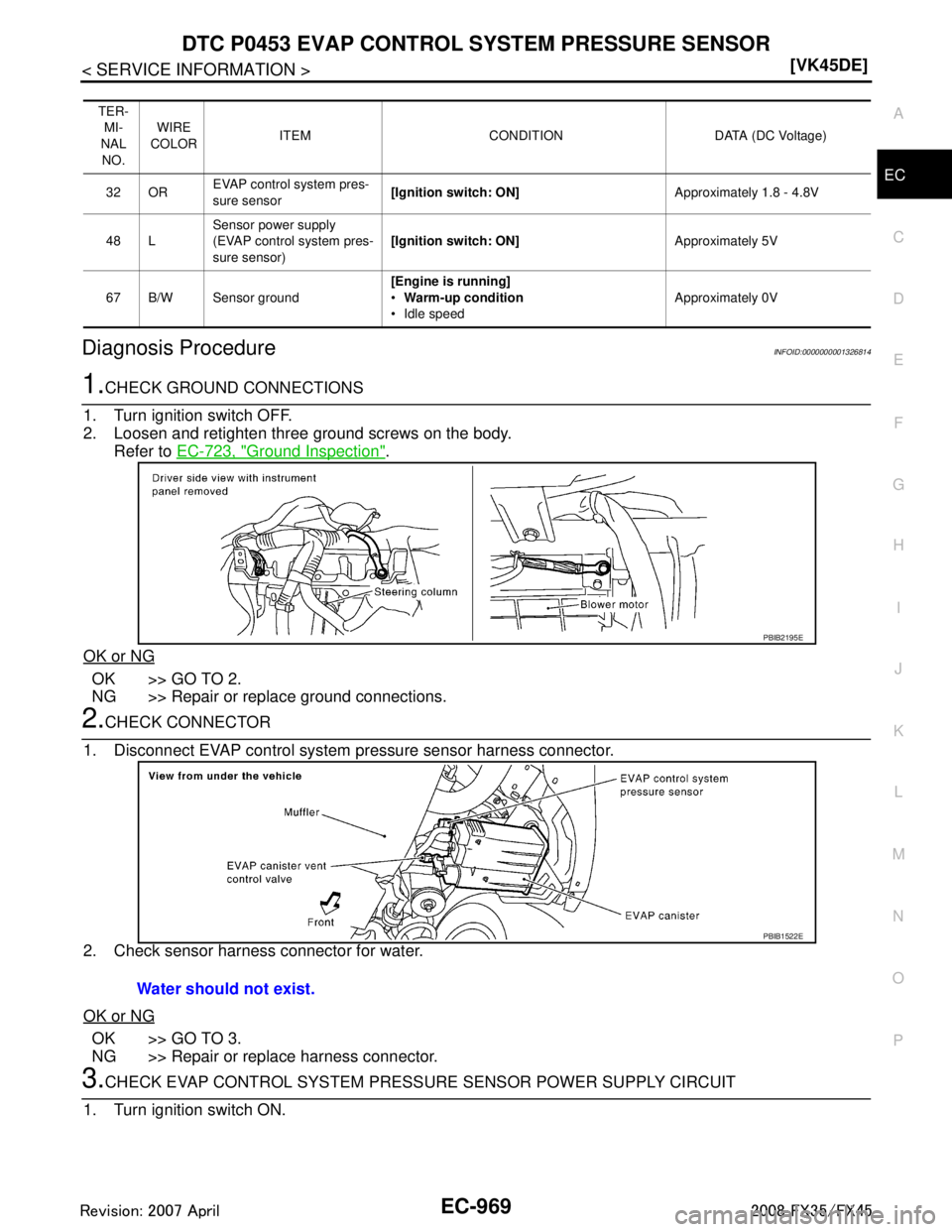

Diagnosis ProcedureINFOID:0000000001326807
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-723, "
Ground Inspection".
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2.CHECK CONNECTOR
1. Disconnect EVAP control system pressure sensor harness connector.
2. Check sensor harness connector for water.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness connector.
3.CHECK EVAP CONTROL SYS TEM PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
TER- MI-
NAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
32 OR EVAP control system pres-
sure sensor [Ignition switch: ON]
Approximately 1.8 - 4.8V
48 L Sensor power supply
(EVAP control system pres-
sure sensor) [Ignition switch: ON]
Approximately 5V
67 B/W Sensor ground [Engine is running]

Warm-up condition
 Idle speed Approximately 0V
PBIB2195E
Water should not exist.
PBIB1522E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-964
< SERVICE INFORMATION >[VK45DE]
DTC P0452 EVAP CONTROL
SYSTEM PRESSURE SENSOR
2. Check voltage between EVAP control system pressure sensor
terminal 3 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4.DETECT MALFUNCTIONING PART
Check the following.
 Harness connectors B201, M81
 Harness connectors M82, F102
 Harness for open or short between EVAP control system pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between EVAP control sy stem pressure sensor terminal 1 and ECM terminal
67.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6.DETECT MALFUNCTIONING PART
Check the following.
 Harness connectors B201, M81
 Harness connectors M82, F102
 Harness for open or short between EVAP control system pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
7.CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND
SHORT
1. Check harness continuity between ECM terminal 32 and EVAP control system pressure sensor terminal
2.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.
8.DETECT MALFUNCTIONING PART
Check the following.
 Harness connectors B201, M81
 Harness connectors M82, F102 Voltage: Approximately 5V
PBIB0138E
Continuity should exist.
Continuity should exist.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DTC P0452 EVAP CONTROL SYSTEM PRESSURE SENSOR
EC-965
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
 Harness for open or short between EVAP c
ontrol system pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
9.CHECK EVAP CONTROL SYS TEM PRESSURE SENSOR
Refer to EC-965, "
Component Inspection".
OK or NG
OK >> GO TO 10.
NG >> Replace EVAP control system pressure sensor.
10.CHECK INTERMITTENT INCIDENT
Refer to EC-717
.
>> INSPECTION END
Component InspectionINFOID:0000000001326808
EVAP CONTROL SYSTEM PRESSURE SENSOR
1. Remove EVAP control system pr essure sensor with its harness connec tor connected from EVAP canister.
Always replace O-ring with a new one.
2. Install a vacuum pump to EVAP control system pressure sensor.
3. Turn ignition switch ON and check output voltage between ECM terminal 32 and ground under the following conditions.
CAUTION:
 Always calibrate the vacuum pu mp gauge when using it.
 Do not apply below -93.3 kPa (-0.952 kg/cm
2, -13.53 psi) or
pressure over 101.3 kPa (1.033 kg/cm
2, 14.69 psi).
4. If NG, replace EVAP control system pressure sensor.
Applied vacuum kPa
(kg/cm2, psi) Voltage V
Not applied 1.8 - 4.8
-26.7 (-0.272, -3.87) 2.1 to 2.5V lower than above value
PBIB1173E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-966
< SERVICE INFORMATION >[VK45DE]
DTC P0453 EVAP CONTROL
SYSTEM PRESSURE SENSOR
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
Component DescriptionINFOID:0000000001326809
The EVAP control system pressure sens or detects pressure in the purge line. The sensor output voltage to the
ECM increases as pressure increases.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001326810
Specification data are reference values.
On Board Diagn osis LogicINFOID:0000000001326811
NOTE:
If DTC P0453 is displayed with DTC P0643, first pe rform the trouble diagnosis for DTC P0643. Refer to
EC-1009
.
DTC Confirmation ProcedureINFOID:0000000001326812
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Always perform test at a temperature of 5 °C (41 °F) or more.
WITH CONSULT-III
PBIB1522E
PBIB1207E
MONITOR ITEM CONDITION SPECIFICATION
EVAP SYS PRES  Ignition switch: ON Approx. 1.8 - 4.8V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0453
0453 EVAP control system
pressure sensor high in-
put An excessively high voltage from the sensor is
sent to ECM.  Harness or connectors
(The sensor circuit is open or shorted.)
 EVAP control system pressure sensor
 EVAP canister vent control valve
 EVAP canister
 Rubber hose from EVAP canister vent control valve to vehicle frame
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
EC-967
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON.
4. Make sure that “FUEL T/TMP SE” is more than 0
°C (32 °F).
5. Start engine and wait at least 20 seconds.
6. Check 1st trip DTC.
7. If 1st trip DTC is detected, go to EC-969, "
Diagnosis Procedure".
WITH GST
1. Start engine and warm it up to normal operating temperature.
2. Check that voltage between ECM terminal 107 (Fuel tank tem-
perature sensor signal) and ground is less than 4.2V.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Start engine and wait at least 20 seconds.
5. Select “Service $07” with GST.
6. If 1st trip DTC is detected, go to EC-969, "
Diagnosis Procedure".
PBIB1110E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-968
< SERVICE INFORMATION >[VK45DE]
DTC P0453 EVAP CONTROL
SYSTEM PRESSURE SENSOR
Wiring Diagram
INFOID:0000000001326813
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring in put/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
TBWM1340E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
EC-969
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Diagnosis ProcedureINFOID:0000000001326814
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-723, "
Ground Inspection".
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2.CHECK CONNECTOR
1. Disconnect EVAP control system pressure sensor harness connector.
2. Check sensor harness connector for water.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace harness connector.
3.CHECK EVAP CONTROL SYS TEM PRESSURE SENSOR POWER SUPPLY CIRCUIT
1. Turn ignition switch ON.
TER- MI-
NAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
32 OR EVAP control system pres-
sure sensor [Ignition switch: ON]
Approximately 1.8 - 4.8V
48 L Sensor power supply
(EVAP control system pres-
sure sensor) [Ignition switch: ON]
Approximately 5V
67 B/W Sensor ground [Engine is running]

Warm-up condition
 Idle speed Approximately 0V
PBIB2195E
Water should not exist.
PBIB1522E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-970
< SERVICE INFORMATION >[VK45DE]
DTC P0453 EVAP CONTROL
SYSTEM PRESSURE SENSOR
2. Check voltage between EVAP control system pressure sensor
terminal 3 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4.DETECT MALFUNCTIONING PART
Check the following.
 Harness connectors B201, M81
 Harness connectors M82, F102
 Harness for open or short between EVAP control system pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
5.CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between EVAP control sy stem pressure sensor terminal 1 and ECM terminal
67.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6.DETECT MALFUNCTIONING PART
Check the following.
 Harness connectors B201, M81
 Harness connectors M82, F102
 Harness for open or short between EVAP control system pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
7.CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND
SHORT
1. Check harness continuity between ECM terminal 32 and EVAP control system pressure sensor terminal
2.
Refer to Wiring Diagram.
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 9.
NG >> GO TO 8.
8.DETECT MALFUNCTIONING PART
Check the following.
 Harness connectors B201, M81
 Harness connectors M82, F102 Voltage: Approximately 5V
PBIB0138E
Continuity should exist.
Continuity should exist.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
EC-971
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
 Harness for open or short between EVAP c
ontrol system pressure sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
9.CHECK RUBBER TUBE
1. Disconnect rubber tube connected to EV AP canister vent control valve.
2. Check the rubber tube for clogging.
OK or NG
OK >> GO TO 10.
NG >> Clean the rubber tube using an air blower, repair or replace rubber tube.
10.CHECK EVAP CANISTER VENT CONTROL VALVE
Refer to EC-949, "
Component Inspection".
OK or NG
OK >> GO TO 11.
NG >> Replace EVAP canister vent control valve.
11 .CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR
Refer to EC-972, "
Component Inspection".
OK or NG
OK >> GO TO 12.
NG >> Replace EVAP control system pressure sensor.
12.CHECK IF EVAP CANISTER SATURATED WITH WATER
1. Remove EVAP canister with EVAP canister vent c ontrol valve and EVAP control system pressure sensor
attached.
2. Does water drain from the EVAP canister?
Ye s o r N o
Yes >> GO TO 13.
No >> GO TO 15.
13.CHECK EVAP CANISTER
Weigh the EVAP canister with the EV AP canister vent control valve and EVAP control system pressure sensor
attached.
The weight should be less than 2.1 kg (4.6 lb).
OK or NG
OK >> GO TO 15.
NG >> GO TO 14.
14.DETECT MALFUNCTIONING PART
Check the following.
 EVAP canister for damage
 EVAP hose between EVAP canister and vehi cle frame for clogging or poor connection
>> Repair hose or replace EVAP canister.
15.CHECK INTERMITTENT INCIDENT
Refer to EC-717
.
>> INSPECTION END
PBIB1031E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

EC-972
< SERVICE INFORMATION >[VK45DE]
DTC P0453 EVAP CONTROL
SYSTEM PRESSURE SENSOR
Component Inspection
INFOID:0000000001326815
EVAP CONTROL SYSTEM PRESSURE SENSOR
1. Remove EVAP control system pressure sensor wit h its harness connector connected from EVAP canister.
Always replace O-ring with a new one.
2. Install a vacuum pump to EVAP control system pressure sensor.
3. Turn ignition switch ON and check output voltage between ECM terminal 32 and ground under the following conditions.
CAUTION:
 Always calibrate the vacuum pump gauge when using it.
 Do not apply below -93.3 kPa (-0.952 kg/cm
2, -13.53 psi) or
pressure over 101.3 kPa (1.033 kg/cm
2, 14.69 psi).
4. If NG, replace EVAP control system pressure sensor.
Applied vacuum kPa
(kg/cm2, psi) Voltage V
Not applied 1.8 - 4.8
-26.7 (-0.272, -3.87) 2.1 to 2.5V lower than above value
PBIB1173E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
