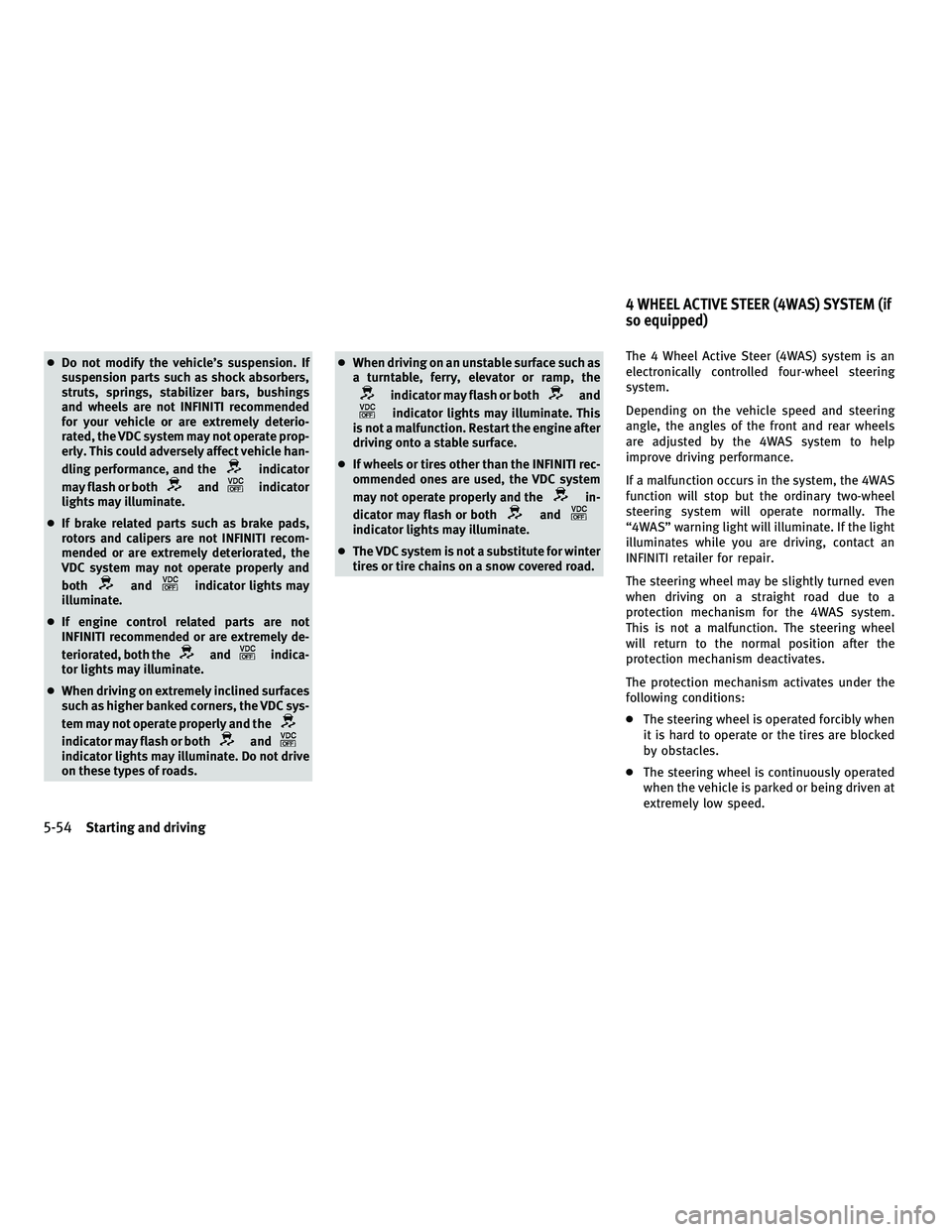

●Do not modify the vehicle’s suspension. If
suspension parts such as shock absorbers,
struts, springs, stabilizer bars, bushings
and wheels are not INFINITI recommended
for your vehicle or are extremely deterio-
rated, the VDC system may not operate prop-
erly. This could adversely affect vehicle han-
dling performance, and the
indicator
may flash or both
andindicator
lights may illuminate.
● If brake related parts such as brake pads,
rotors and calipers are not INFINITI recom-
mended or are extremely deteriorated, the
VDC system may not operate properly and
both
andindicator lights may
illuminate.
● If engine control related parts are not
INFINITI recommended or are extremely de-
teriorated, both the
andindica-
tor lights may illuminate.
● When driving on extremely inclined surfaces
such as higher banked corners, the VDC sys-
tem may not operate properly and the
indicator may flash or bothandindicator lights may illuminate. Do not drive
on these types of roads. ●
When driving on an unstable surface such as
a turntable, ferry, elevator or ramp, the
indicator may flash or bothand
indicator lights may illuminate. This
is not a malfunction. Restart the engine after
driving onto a stable surface.
● If wheels or tires other than the INFINITI rec-
ommended ones are used, the VDC system
may not operate properly and the
in-
dicator may flash or both
andindicator lights may illuminate.
● The VDC system is not a substitute for winter
tires or tire chains on a snow covered road. The 4 Wheel Active Steer (4WAS) system is an
electronically controlled four-wheel steering
system.
Depending on the vehicle speed and steering
angle, the angles of the front and rear wheels
are adjusted by the 4WAS system to help
improve driving performance.
If a malfunction occurs in the system, the 4WAS
function will stop but the ordinary two-wheel
steering system will operate normally. The
“4WAS” warning light will illuminate. If the light
illuminates while you are driving, contact an
INFINITI retailer for repair.
The steering wheel may be slightly turned even
when driving on a straight road due to a
protection mechanism for the 4WAS system.
This is not a malfunction. The steering wheel
will return to the normal position after the
protection mechanism deactivates.
The protection mechanism activates under the
following conditions:
●
The steering wheel is operated forcibly when
it is hard to operate or the tires are blocked
by obstacles.
● The steering wheel is continuously operated
when the vehicle is parked or being driven at
extremely low speed.
4 WHEEL ACTIVE STEER (4WAS) SYSTEM (if
so equipped)
5-54Starting and driving
—
—
04/29/10—pattie


●The steering wheel is forcibly turned beyond
its operation limits.
● The battery voltage is reduced.
Repeated steering maneuvers that may activate
the protection mechanism will damage the
4WAS system.
WARNING
The 4WAS system, although a sophisticated
device, cannot prevent accidents resulting
from careless or dangerous driving techniques.
Ultimately the responsibility for safety of self
and others rests in the hands of the driver.
Therefore only through attentive and careful
driving methods can the 4WAS system be fully
appreciated and safety optimized.
FREEING A FROZEN DOOR LOCK
To prevent a door lock from freezing, apply
deicer through the key hole. If the lock becomes
frozen, heat the key before inserting it into the
key hole or use the Intelligent Key system.
ANTIFREEZE
In the winter when it is anticipated that the
outside temperature will drop below 32°F (0°C),
check antifreeze to assure proper winter protec-
tion. For additional information, see “ENGINE
COOLING SYSTEM” in the “8. Maintenance and
do-it-yourself” section.
BATTERY
If the battery is not fully charged during ex-
tremely cold weather conditions, the battery
fluid may freeze and damage the battery. To
maintain maximum efficiency, the battery
should be checked regularly. For additional
information, see “BATTERY” in the “8. Mainte-
nance and do-it-yourself” section.
DRAINING OF COOLANT WATER
If the vehicle is to be left outside without
antifreeze, drain the cooling system, including
the engine block. Refill before operating the
vehicle. For details, see “ENGINE COOLING SYS-
TEM” in the “8. Maintenance and do-it-yourself”
section.
TIRE EQUIPMENT
SUMMER tires have a tread designed to provide
superior performance on dry pavement. How-
ever, the performance of these tires will be
substantially reduced in snowy and icy condi-
tions. If you operate your vehicle on snowy or
icy roads, INFINITI recommends the use of MUD
& SNOW or ALL SEASON tires on all four wheels.
Consult an INFINITI retailer for the tire type,
size, speed rating and availability information.
For additional traction on icy roads, studded
tires may be used. However, some U.S. states
and Canadian provinces prohibit their use.
Check local, state and provincial laws before
installing studded tires.
Skid and traction capabilities of studded snow
tires, on wet or dry surfaces, may be poorer than
that of non-studded snow tires.
Tire chains may be used. For details, see “TIRE
CHAINS” in the “8. Maintenance and do-it-
yourself” section of this manual.
For all-wheel drive
If you install snow tires, they must also be the
same size, brand, construction and tread pat-
tern on all four wheels.
COLD WEATHER DRIVING
Starting and driving5-55
—
—
04/29/10—pattie


SPECIAL WINTER EQUIPMENT
It is recommended that the following items be
carried in the vehicle during winter:
●A scraper and stiff-bristled brush to remove
ice and snow from the windows and wiper
blades.
● A sturdy, flat board to be placed under the
jack to give it firm support.
● A shovel to dig the vehicle out of snowdrifts.
● Extra window washer fluid to refill the reser-
voir tank.
DRIVING ON SNOW OR ICE
WARNING
● Wet ice (32°F, 0°C and freezing rain), very
cold snow or ice can be slick and very hard to
drive on. The vehicle will have much less
traction or “grip” under these conditions.
Try to avoid driving on wet ice until the road
is salted or sanded.
● Whatever the condition, drive with caution.
Accelerate and slow down with care. If accel-
erating or downshifting too fast, the drive
wheels will lose even more traction. ●
Allow more stopping distance under these
conditions. Braking should be started
sooner than on dry pavement.
● Allow greater following distances on slip-
pery roads.
● Watch for slippery spots (glare ice). These
may appear on an otherwise clear road in
shaded areas. If a patch of ice is seen ahead,
brake before reaching it. Try not to brake
while on the ice, and avoid any sudden steer-
ing maneuvers.
● Do not use the cruise control on slippery
roads.
● Snow can trap dangerous exhaust gases un-
der your vehicle. Keep snow clear of the ex-
haust pipe and from around your vehicle.
ENGINE BLOCK HEATER (if so
equipped)
Engine block heaters are used to assist in cold
temperature starting.
The engine block heater should be used when
the outside temperature is 20°F (7°C) or
lower.
To use the engine block heater
1. Turn the engine off.
2. Open the hood and unwrap the engine block heater cord.
3. Plug the engine block heater cord into a grounded 3-wire, 3-pronged extension
cord.
4. Plug the extension cord into a Ground Fault Interrupt (GFI) protected, grounded
110-volt AC (VAC) outlet.
5. The engine block heater must be plugged in for at least2-4hours, depending on
outside temperatures, to properly warm
the engine coolant. Use an appropriate
timer to turn the engine block heater on.
6. Before starting the engine, unplug and properly store the cord to keep it away
from moving parts.
5-56Starting and driving
—
—
04/29/10—pattie

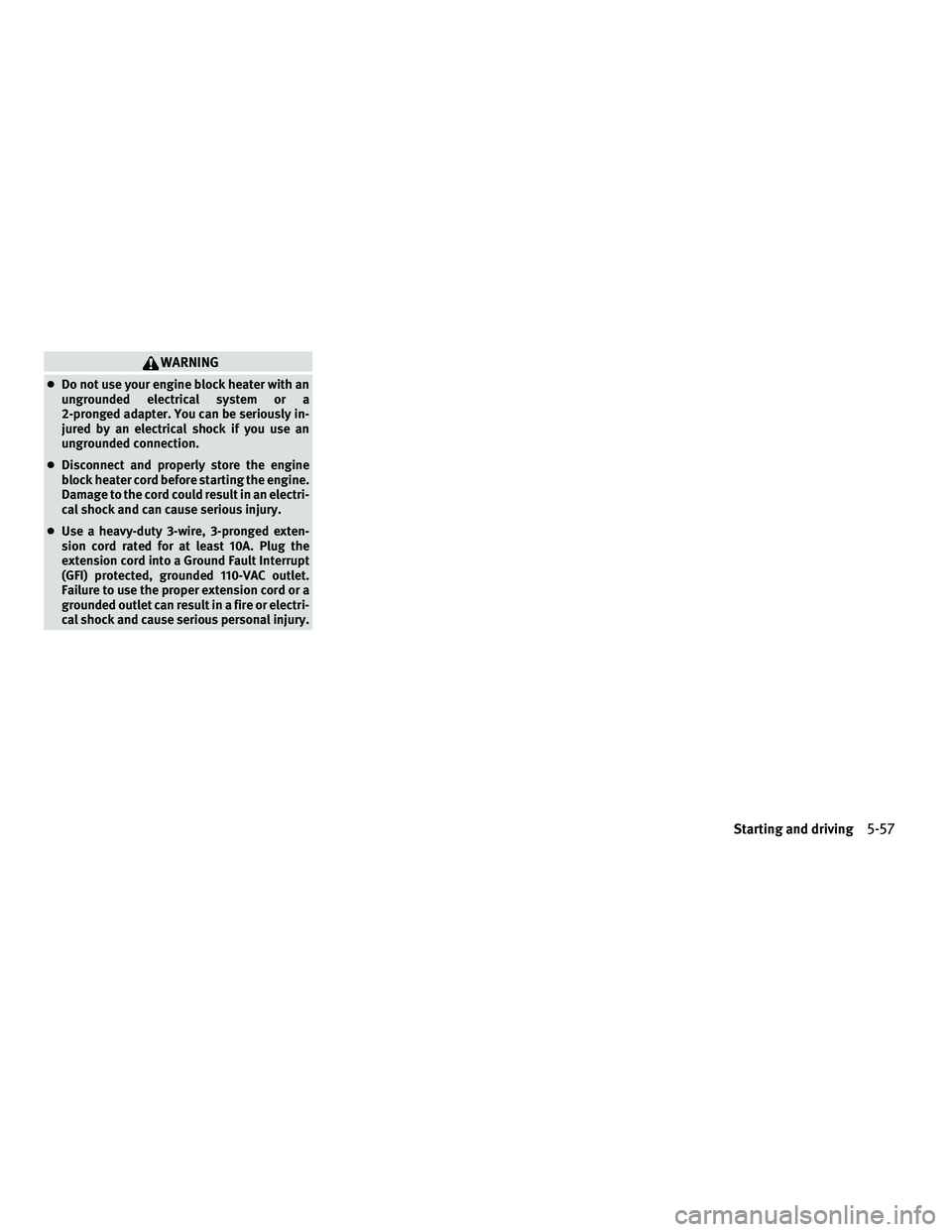

WARNING
●Do not use your engine block heater with an
ungrounded electrical system or a
2-pronged adapter. You can be seriously in-
jured by an electrical shock if you use an
ungrounded connection.
● Disconnect and properly store the engine
block heater cord before starting the engine.
Damage to the cord could result in an electri-
cal shock and can cause serious injury.
● Use a heavy-duty 3-wire, 3-pronged exten-
sion cord rated for at least 10A. Plug the
extension cord into a Ground Fault Interrupt
(GFI) protected, grounded 110-VAC outlet.
Failure to use the proper extension cord or a
grounded outlet can result in a fire or electri-
cal shock and cause serious personal injury.
Starting and driving5-57
—
—
04/29/10—pattie

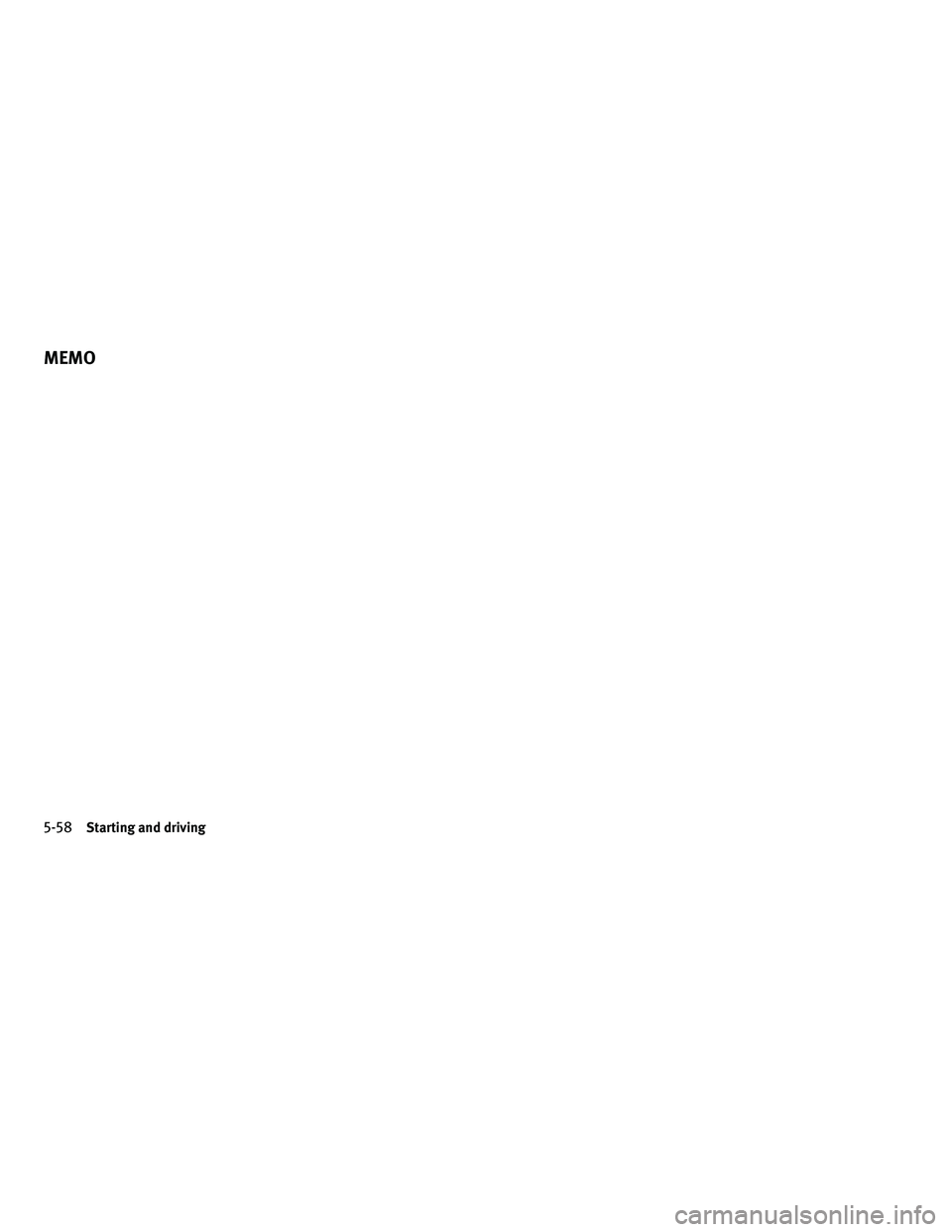

5-58Starting and driving
MEMO

6 In case of emergency
Roadside assistance program...................... 6-2
Flat tire ........................................... 6-2
Tire Pressure Monitoring System (TPMS) ......... 6-2
Changing a flat tire ............................. 6-3
Jump starting ..................................... 6-7 Push starting
..................................... 6-9
If your vehicle overheats .......................... 6-10
Towing your vehicle ............................... 6-11
Towing recommended by INFINITI ...............6-12
Vehicle recovery (Freeing a stuck vehicle) .......6-13
—
—
04/29/10—pattie


In the event of a roadside emergency, Roadside
Assistance Service is available to you. Please
refer to your Warranty Information Booklet
(U.S.) or Warranty & Roadside Assistance Infor-
mation Booklet (Canada) for details.Emergency engine shut off
To shut off the engine in an emergency situation
while driving perform the following procedure:
− Rapidly push the push-button ignition switch3 consecutive times, or
− Push and hold the push-button ignition for more than 2 seconds.
TIRE PRESSURE MONITORING SYSTEM
(TPMS)
This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS). It monitors tire
pressure of all tires except the spare. When the
low tire pressure warning light is lit, one or
more of your tires is significantly under-
inflated. If the vehicle is being driven with low
tire pressure, the TPMS will activate and warn
you of it by the low tire pressure warning light.
This system will activate only when the vehicle
is driven at speeds above 16 MPH (25 km/h). For
more details, see “WARNING/INDICATOR LIGHTS
AND AUDIBLE REMINDERS” in the “2. Instru-
ments and controls” section and “TIRE PRES-
SURE MONITORING SYSTEM (TPMS)” in the “5.
Starting and driving” section.
WARNING
●If the low tire pressure warning light illumi-
nates while driving, avoid sudden steering
maneuvers or abrupt braking, reduce vehicle
speed, pull off the road to a safe location and
stop the vehicle as soon as possible. Driving
with under-inflated tires may permanently
damage the tires and increase the likelihood
of tire failure. Serious vehicle damage could
occur and may lead to an accident and could
result in serious personal injury. Check the
tire pressure for all four tires. Adjust the tire
pressure to the recommended COLD tire
pressure shown on the Tire and Loading In-
formation label to turn the low tire pressure
warning light OFF. If the light still illumi-
nates while driving after adjusting the tire
pressure, a tire may be flat. If you have a flat
tire, replace it with a spare tire as soon as
possible.
● When a spare tire is mounted or a wheel is
replaced, the TPMS will not function and the
low tire pressure warning light will flash for
approximately 1 minute. The light will re-
main on after 1 minute. Contact your INFINITI
retailer as soon as possible for tire replace-
ment and/or system resetting.
ROADSIDE ASSISTANCE PROGRAM FLAT TIRE
6-2In case of emergency
—
—
04/21/10—debbie


●Replacing tires with those not originally
specified by INFINITI could affect the proper
operation of the TPMS.
● Do not inject any tire liquid or aerosol tire
sealant into the tires, as this may cause a
malfunction of the tire pressure sensors.
CHANGING A FLAT TIRE
If you have a flat tire, follow the instructions
below.
Stopping the vehicle
1. Safely move the vehicle off the road and
away from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking brake. Move the selector lever to
the P (Park) position (Automatic transmis-
sion models). Move the shift lever to the R
(Reverse) gear (Manual transmission
models).
4. Turn off the engine.
5. Raise the hood to warn other traffic, and to signal professional road assistance
personnel that you need assistance. 6. Have all passengers get out of the vehicle
and stand in a safe place, away from
traffic and clear of the vehicle.
WARNING
●Make sure the parking brake is securely ap-
plied and the manual transmission is shifted
into R (Reverse), or the automatic transmis-
sion into P (Park).
● Never change tires when the vehicle is on a
slope, ice or slippery areas. This is
hazardous.
● Never change tires if oncoming traffic is
close to your vehicle. Wait for professional
road assistance.
Blocking wheels
Place suitable blocks1at both the front and
back of the wheel diagonally opposite the flat
tire to prevent the vehicle from moving when it
is jacked up.
WARNING
Be sure to block the wheel as the vehicle may
move and result in personal injury.
MCE0001A
In case of emergency6-3
—
—
04/21/10—debbie


Getting the spare tire and tools
Raise the trunk floor cover1using the tabA.
Remove jacking tools located inside the trunk
as illustrated.
The spare tire is located under the jacking tools.
Remove the cap
2holding the spare tire.
Jacking up the vehicle and removing
the damaged tire
WARNING
● Never get under the vehicle while it is sup-
ported only by the jack. If it is necessary to
work under the vehicle, support it with
safety stands.
● Use only the jack provided with your vehicle
to lift the vehicle. Do not use the jack pro-
vided with your vehicle on other vehicles.
The jack is designed for lifting only your ve-
hicle during a tire change.
● Use the correct jack-up points. Never use any
other part of the vehicle for jack support.
● Never jack up the vehicle more than
necessary.
● Never use blocks on or under the jack.
● Do not start or run the engine while vehicle is
on the jack, as it may cause the vehicle to
move. This is especially true for vehicles
with limited slip differentials.
● Do not allow passengers to stay in the ve-
hicle while it is on the jack.
Carefully read the caution label attached to the
jack body and the following instructions.
Jacking tools — Sedan
SCE0659
Jacking tools — Coupe
SCE0695
Spare — Sedan and Coupe
SCE0702
6-4In case of emergency
—
—
04/21/10—debbie

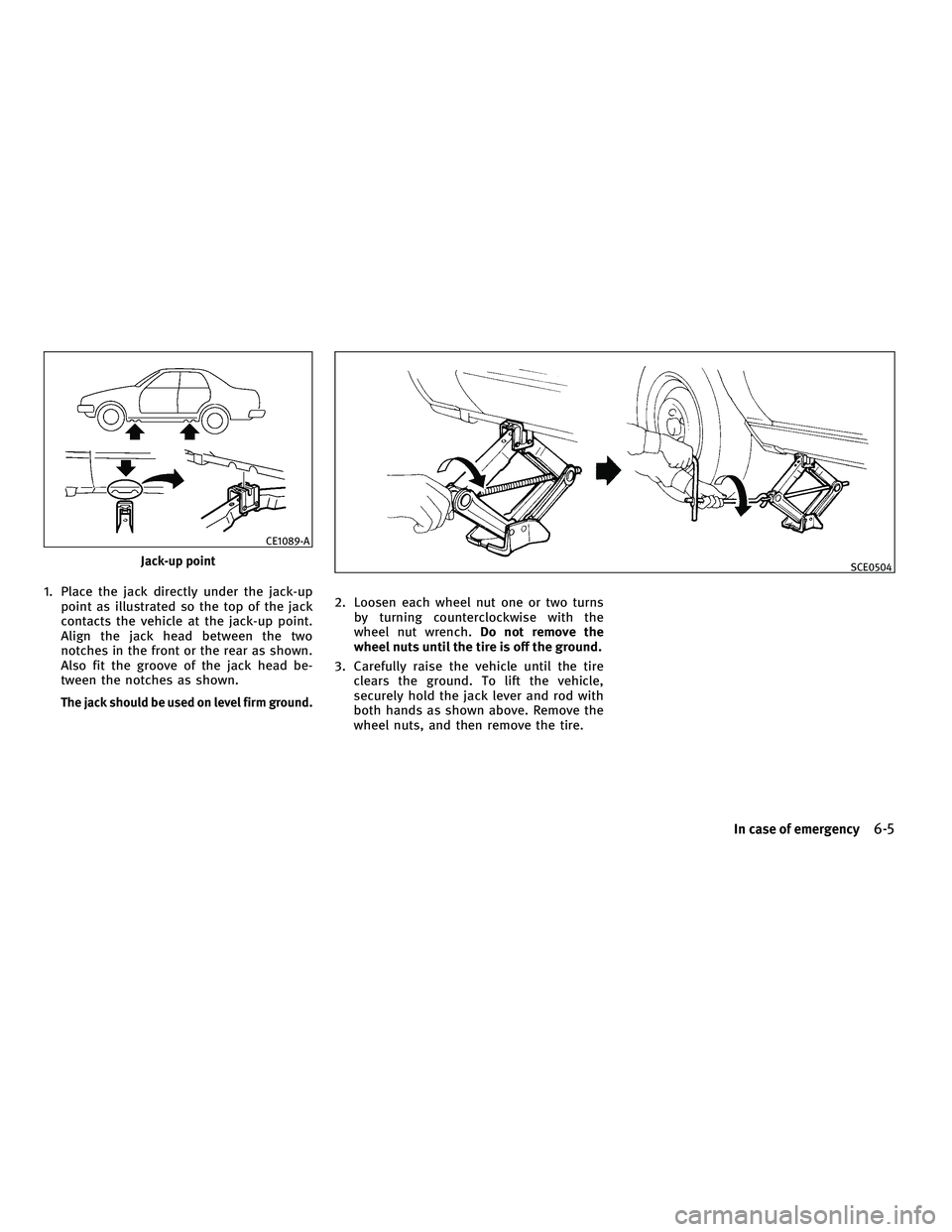

1. Place the jack directly under the jack-uppoint as illustrated so the top of the jack
contacts the vehicle at the jack-up point.
Align the jack head between the two
notches in the front or the rear as shown.
Also fit the groove of the jack head be-
tween the notches as shown.
The jack should be used on level firm ground.
2. Loosen each wheel nut one or two turns by turning counterclockwise with the
wheel nut wrench. Do not remove the
wheel nuts until the tire is off the ground.
3. Carefully raise the vehicle until the tire clears the ground. To lift the vehicle,
securely hold the jack lever and rod with
both hands as shown above. Remove the
wheel nuts, and then remove the tire.
Jack-up point
CE1089-A
SCE0504
In case of emergency6-5
—
—
04/21/10—debbie
