INFINITI G 2010 Owners Manual

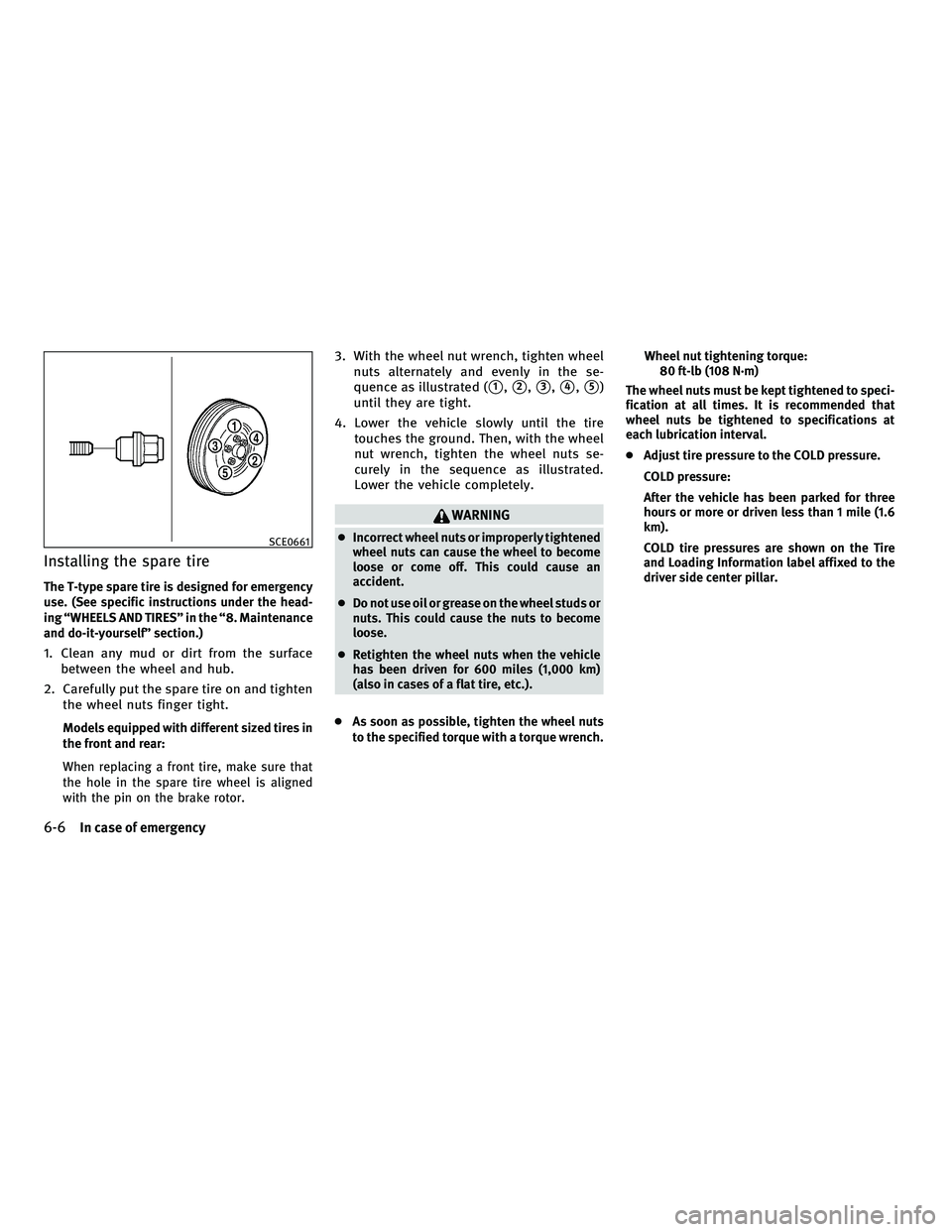

Installing the spare tire
The T-type spare tire is designed for emergency
use. (See specific instructions under the head-
ing “WHEELS AND TIRES” in the “8. Maintenance
and do-it-yourself” section.)
1. Clean any mud or dirt from the surfacebetween the wheel and hub.
2. Carefully put the spare tire on and tighten the wheel nuts finger tight.
Models equipped with different sized tires in
the front and rear:
When replacing a front tire, make sure that
the hole in the spare tire wheel is aligned
with the pin on the brake rotor.
3. With the wheel nut wrench, tighten wheelnuts alternately and evenly in the se-
quence as illustrated (
1,2,3,4,5)
until they are tight.
4. Lower the vehicle slowly until the tire touches the ground. Then, with the wheel
nut wrench, tighten the wheel nuts se-
curely in the sequence as illustrated.
Lower the vehicle completely.
WARNING
●Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to become
loose or come off. This could cause an
accident.
● Do not use oil or grease on the wheel studs or
nuts. This could cause the nuts to become
loose.
● Retighten the wheel nuts when the vehicle
has been driven for 600 miles (1,000 km)
(also in cases of a flat tire, etc.).
● As soon as possible, tighten the wheel nuts
to the specified torque with a torque wrench. Wheel nut tightening torque:
80 ft-lb (108 N·m)
The wheel nuts must be kept tightened to speci-
fication at all times. It is recommended that
wheel nuts be tightened to specifications at
each lubrication interval.
● Adjust tire pressure to the COLD pressure.
COLD pressure:
After the vehicle has been parked for three
hours or more or driven less than 1 mile (1.6
km).
COLD tire pressures are shown on the Tire
and Loading Information label affixed to the
driver side center pillar.SCE0661
6-6In case of emergency
—
—
04/21/10—debbie


5. Securely store the flat tire and jackingequipment in the vehicle.
6. Place the spare tire cover and the trunk floor carpeting over the damaged tire.
7. Close the trunk.
WARNING
● Always make sure that the spare tire and
jacking equipment are properly secured af-
ter use. Such items can become dangerous
projectiles in an accident or sudden stop.
● The T-type spare tire and small size spare
tire are designed for emergency use. See
specific instructions under the heading
“WHEELS AND TIRES” in the “8. Maintenance
and do-it-yourself” section.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty Information
Booklet (Canada). To start your engine with a booster battery, the
instructions and precautions below must be
followed.
WARNING
●
If done incorrectly, jump starting can lead to
a battery explosion, resulting in severe in-
jury or death. It could also damage your
vehicle.
● Explosive hydrogen gas is always present in
the vicinity of the battery. Keep all sparks
and flames away from the battery.
● Do not allow battery fluid to come into con-
tact with eyes, skin, clothing or painted sur-
faces. Battery fluid is a corrosive sulphuric
acid solution which can cause severe burns.
If the fluid should come into contact with
anything, immediately flush the contacted
area with water.
● Keep the battery out of the reach of children.
● The booster battery must be rated at 12
volts. Use of an improperly rated battery can
damage your vehicle.
Sedan
SCE0662
Coupe
SCE0696
JUMP STARTING
In case of emergency6-7
—
—
04/21/10—debbie


●Whenever working on or near a battery, al-
ways wear suitable eye protectors (for ex-
ample, goggles or industrial safety spec-
tacles) and remove rings, metal bands, or
any other jewelry. Do not lean over the bat-
tery when jump starting.
● Do not attempt to jump start a frozen battery.
It could explode and cause serious injury.
● Your vehicle has an automatic engine cool-
ing fan. It could come on at any time. Keep
hands and other objects away from it.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty Information
Booklet (Canada).
WARNING
Always follow the instructions below. Failure to
do so could result in damage to the charging
system and cause personal injury.
1. If the booster battery is in another vehicle
A, position the two vehicles (AandB)
to bring their batteries into close proxim-
ity to each other.
Do not allow the two vehicles to touch.
2. Apply parking brake. Move the selector lever to the P (Park) position (Automatic
transmission models). Move the shift le-
ver to the N (Neutral) position (Manual
transmission models). Switch off all un-
necessary electrical systems (light,
heater, air conditioner, etc.).
3. Remove vent caps on the battery (if so equipped). Cover the battery with a firmly
wrung out moist cloth
Cto reduce explo-
sion hazard.
SCE0653
6-8In case of emergency
—
—
04/21/10—debbie


4. Connect jumper cables in the sequence asillustrated (
1→2→3→4).
If the battery is disconnected or discharged,
the steering wheel will lock and cannot be
turned. Supply power using jumper cables
before pushing the ignition switch and dis-
engaging the steering lock.
CAUTION
●Always connect positive (+) to positive (+)
and negative () to body ground (as illus-
trated) — not to the battery.
● Make sure the jumper cables do not touch
moving parts in the engine compartment and
that clamps do not contact any other metal.
5. Start the engine of the booster vehicleA
and let it run for a few minutes.
6. Keep the engine speed of the booster vehicle
Aat about 2,000 rpm, and start
the engine of the vehicle being jump
started
B.
CAUTION
Do not keep the starter motor engaged for more
than 10 seconds. If the engine does not start
right away, push the ignition switch to the OFF
position and wait 10 seconds before trying
again.
7. After starting your engine, carefully dis- connect the negative cable and then the
positive cable (
4→3→2→1).
8. Replace the vent caps (if so equipped). Be sure to dispose of the cloth used to cover
the vent holes as it may be contaminated
with corrosive acid.
9. Put the battery cover on.
Do not attempt to start the engine by pushing.
CAUTION
● Automatic transmission models cannot be
push-started or tow-started. Attempting to
do so may cause transmission damage.
● Three way catalyst equipped models should
not be started by pushing since the three
way catalyst may be damaged.
● Never try to start the vehicle by towing it;
when the engine starts, the forward surge
could cause the vehicle to collide with the
tow vehicle.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada).
PUSH STARTING
In case of emergency6-9
—
—
04/21/10—debbie


CAUTION
●Do not continue to drive if your vehicle over-
heats. Doing so could cause engine damage
or a vehicle fire.
● To avoid the danger of being scalded, never
remove the radiator cap while the engine is
still hot. When the radiator cap is removed,
pressurized hot water will spurt out, possi-
bly causing serious injury.
● Do not open the hood if steam is coming out.
If your vehicle is overheating (indicated by an
extremely high temperature gauge reading), or
if you feel a lack of engine power, detect
abnormal noise, etc., take the following steps:
1. Move the vehicle safely off the road, apply the parking brake and move the selector
lever to the P (Park) position (Automatic
transmission models). Move the shift lever
to the N (Neutral) position (Manual trans-
mission models).
Do not stop the engine.
2. Turn off the climate control. Open all the windows, move the heater or air condi-
tioner temperature control to maximum
hot and fan control to high speed. 3. If engine overheating is caused by climb-
ing a long hill on a hot day, run the engine
at a fast idle (approximately 1,500 rpm)
until the temperature gauge indication
returns to normal.
4. Get out of the vehicle. Look and listen for steam or coolant escaping from the radia-
tor before opening the hood. (If steam or
coolant is escaping, turn off the engine.)
Do not open the hood further until no
steam or coolant can be seen.
5. Open the engine hood.
WARNING
If steam or water is coming from the engine,
stand clear to prevent getting burned.
6. Visually check drive belts for damage or looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is leak-
ing or the cooling fan does not run, stop
the engine.
WARNING
Be careful not to allow your hands, hair, jewelry
or clothing to come into contact with, or get
caught in, engine belts or the engine cooling
fan. The engine cooling fan can start at any
time.
7. After the engine cools down, check thecoolant level in the reservoir tank with the
engine running. Add coolant to the reser-
voir tank if necessary. Have your vehicle
repaired at the nearest INFINITI retailer.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada).
IF YOUR VEHICLE OVERHEATS
6-10In case of emergency
—
—
04/21/10—debbie

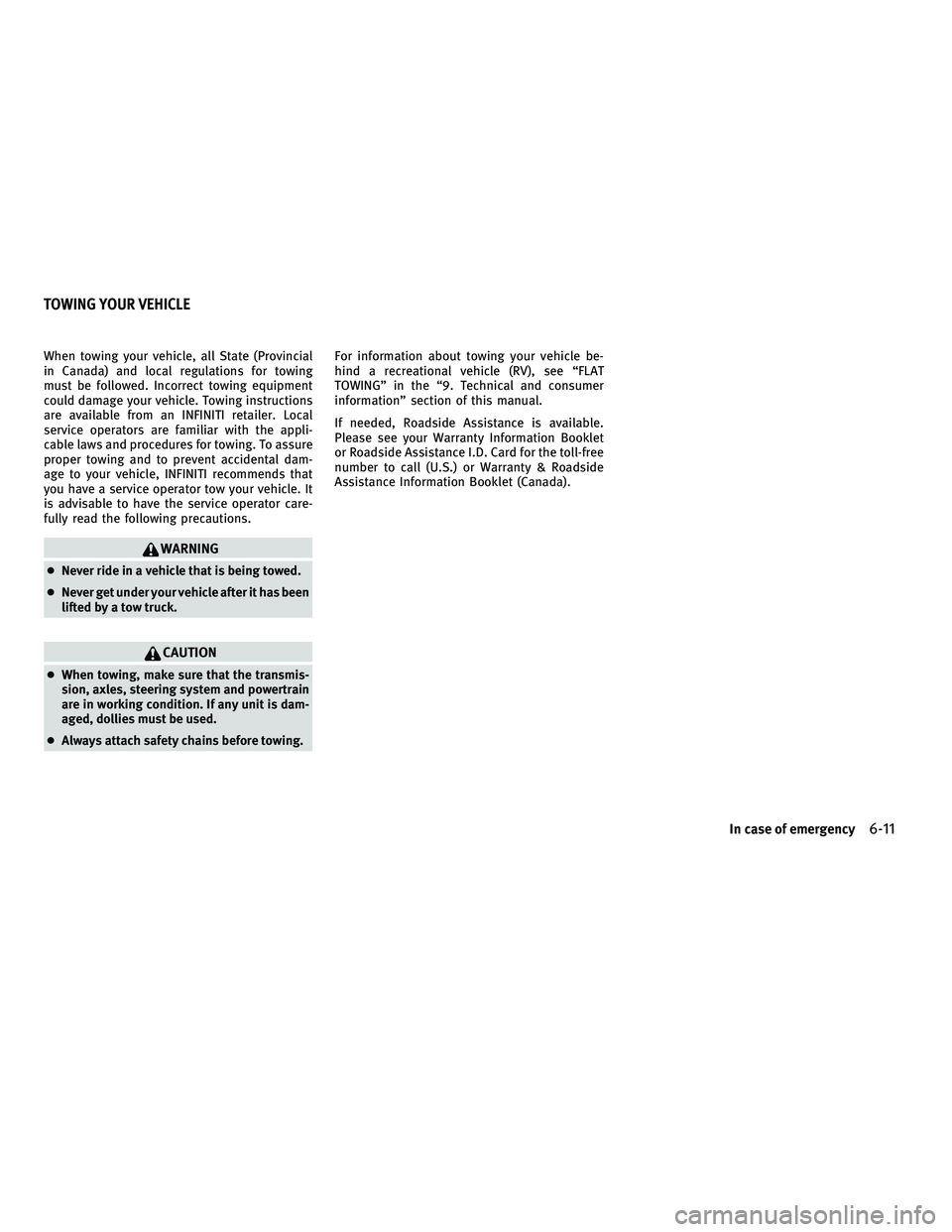

When towing your vehicle, all State (Provincial
in Canada) and local regulations for towing
must be followed. Incorrect towing equipment
could damage your vehicle. Towing instructions
are available from an INFINITI retailer. Local
service operators are familiar with the appli-
cable laws and procedures for towing. To assure
proper towing and to prevent accidental dam-
age to your vehicle, INFINITI recommends that
you have a service operator tow your vehicle. It
is advisable to have the service operator care-
fully read the following precautions.
WARNING
●Never ride in a vehicle that is being towed.
● Never get under your vehicle after it has been
lifted by a tow truck.
CAUTION
● When towing, make sure that the transmis-
sion, axles, steering system and powertrain
are in working condition. If any unit is dam-
aged, dollies must be used.
● Always attach safety chains before towing. For information about towing your vehicle be-
hind a recreational vehicle (RV), see “FLAT
TOWING” in the “9. Technical and consumer
information” section of this manual.
If needed, Roadside Assistance is available.
Please see your Warranty Information Booklet
or Roadside Assistance I.D. Card for the toll-free
number to call (U.S.) or Warranty & Roadside
Assistance Information Booklet (Canada).
TOWING YOUR VEHICLE
In case of emergency6-11
—
—
04/21/10—debbie

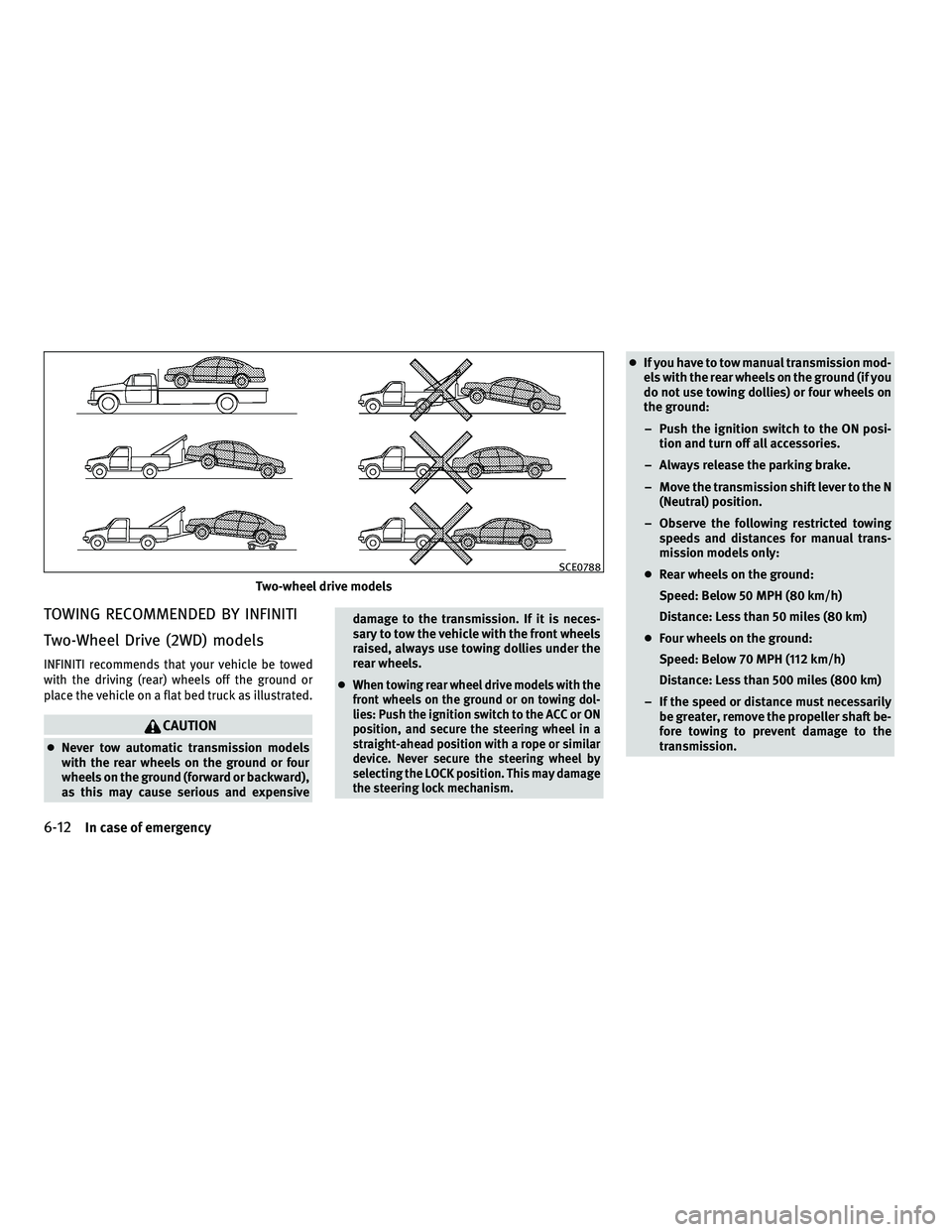

TOWING RECOMMENDED BY INFINITI
Two-Wheel Drive (2WD) models
INFINITI recommends that your vehicle be towed
with the driving (rear) wheels off the ground or
place the vehicle on a flat bed truck as illustrated.
CAUTION
●Never tow automatic transmission models
with the rear wheels on the ground or four
wheels on the ground (forward or backward),
as this may cause serious and expensive damage to the transmission. If it is neces-
sary to tow the vehicle with the front wheels
raised, always use towing dollies under the
rear wheels.
●
When towing rear wheel drive models with the
front wheels on the ground or on towing dol-
lies: Push the ignition switch to the ACC or ON
position, and secure the steering wheel in a
straight-ahead position with a rope or similar
device. Never secure the steering wheel by
selecting the LOCK position. This may damage
the steering lock mechanism.
● If you have to tow manual transmission mod-
els with the rear wheels on the ground (if you
do not use towing dollies) or four wheels on
the ground:
– Push the ignition switch to the ON posi- tion and turn off all accessories.
– Always release the parking brake.
– Move the transmission shift lever to the N (Neutral) position.
– Observe the following restricted towing speeds and distances for manual trans-
mission models only:
● Rear wheels on the ground:
Speed: Below 50 MPH (80 km/h)
Distance: Less than 50 miles (80 km)
● Four wheels on the ground:
Speed: Below 70 MPH (112 km/h)
Distance: Less than 500 miles (800 km)
– If the speed or distance must necessarily be greater, remove the propeller shaft be-
fore towing to prevent damage to the
transmission.
Two-wheel drive models
SCE0788
6-12In case of emergency
—
—
04/21/10—debbie

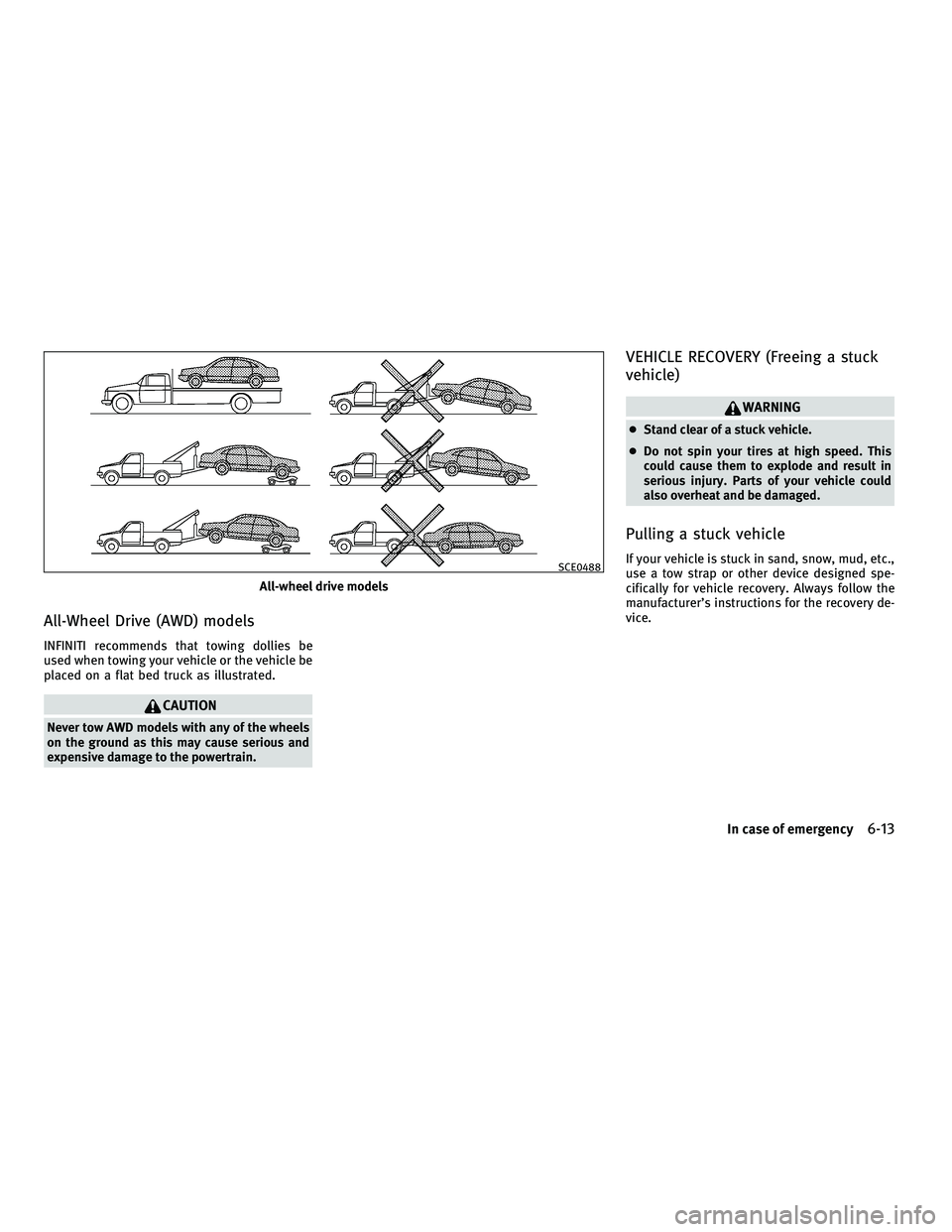

All-Wheel Drive (AWD) models
INFINITI recommends that towing dollies be
used when towing your vehicle or the vehicle be
placed on a flat bed truck as illustrated.
CAUTION
Never tow AWD models with any of the wheels
on the ground as this may cause serious and
expensive damage to the powertrain.
VEHICLE RECOVERY (Freeing a stuck
vehicle)
WARNING
●Stand clear of a stuck vehicle.
● Do not spin your tires at high speed. This
could cause them to explode and result in
serious injury. Parts of your vehicle could
also overheat and be damaged.
Pulling a stuck vehicle
If your vehicle is stuck in sand, snow, mud, etc.,
use a tow strap or other device designed spe-
cifically for vehicle recovery. Always follow the
manufacturer’s instructions for the recovery de-
vice.
All-wheel drive models
SCE0488
In case of emergency6-13
—
—
04/21/10—debbie


Front:
1. To remove the hook cover from thebumper with a suitable tool, insert the
tool into the mesh and take off the remov-
able part.
2. Securely install the vehicle recovery hook
1stored with jacking tools as illustrated.
Attach the tow strap to the recovery hook.
Make sure that the hook is properly secured
in the original place after use.
Sedan
SCE0892
Coupe
SCE0893
6-14In case of emergency
—
—
04/21/10—debbie

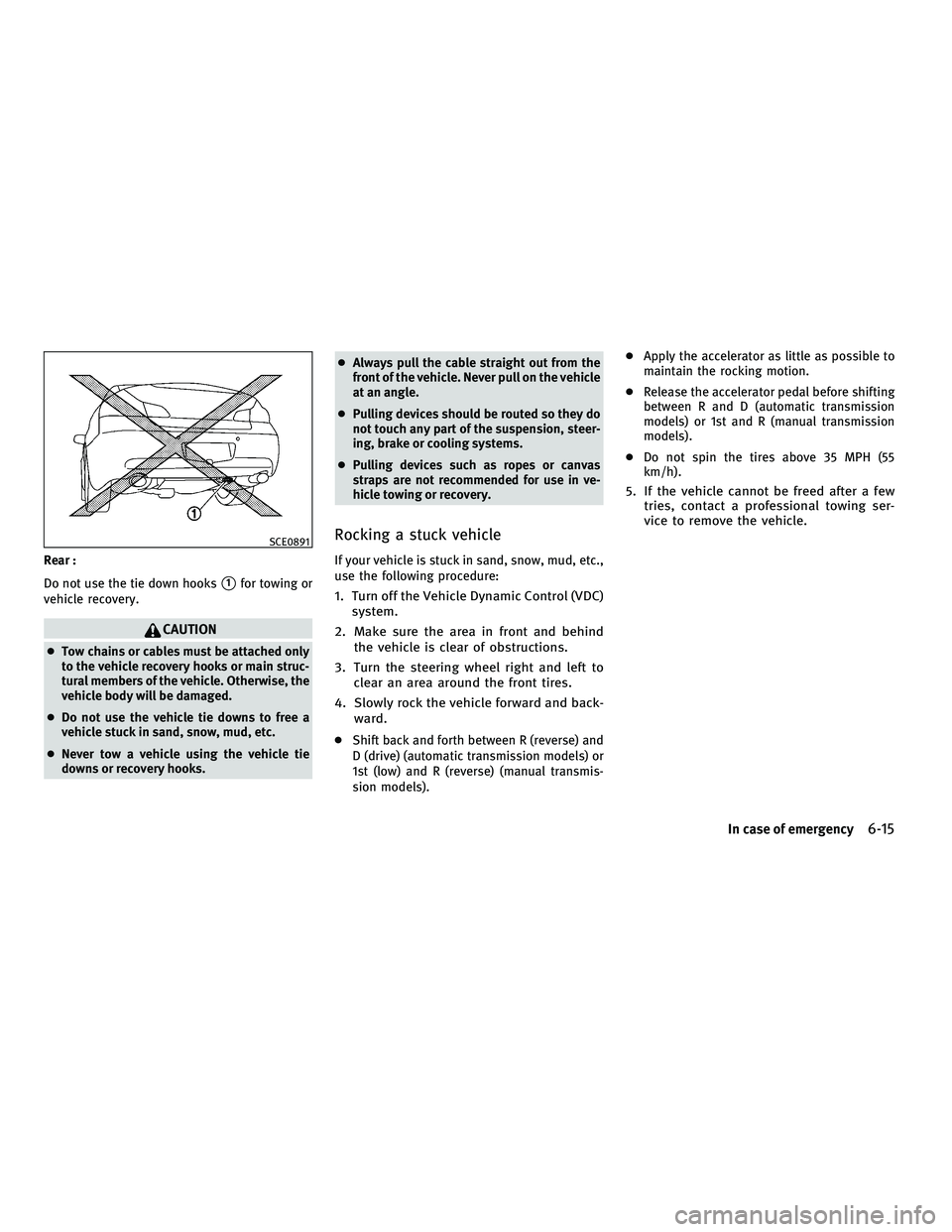

Rear :
Do not use the tie down hooks
1for towing or
vehicle recovery.
CAUTION
● Tow chains or cables must be attached only
to the vehicle recovery hooks or main struc-
tural members of the vehicle. Otherwise, the
vehicle body will be damaged.
● Do not use the vehicle tie downs to free a
vehicle stuck in sand, snow, mud, etc.
● Never tow a vehicle using the vehicle tie
downs or recovery hooks. ●
Always pull the cable straight out from the
front of the vehicle. Never pull on the vehicle
at an angle.
● Pulling devices should be routed so they do
not touch any part of the suspension, steer-
ing, brake or cooling systems.
● Pulling devices such as ropes or canvas
straps are not recommended for use in ve-
hicle towing or recovery.
Rocking a stuck vehicle
If your vehicle is stuck in sand, snow, mud, etc.,
use the following procedure:
1. Turn off the Vehicle Dynamic Control (VDC)
system.
2. Make sure the area in front and behind the vehicle is clear of obstructions.
3. Turn the steering wheel right and left to clear an area around the front tires.
4. Slowly rock the vehicle forward and back- ward.
●Shift back and forth between R (reverse) and
D (drive) (automatic transmission models) or
1st (low) and R (reverse) (manual transmis-
sion models). ●
Apply the accelerator as little as possible to
maintain the rocking motion.
● Release the accelerator pedal before shifting
between R and D (automatic transmission
models) or 1st and R (manual transmission
models).
● Do not spin the tires above 35 MPH (55
km/h).
5. If the vehicle cannot be freed after a few tries, contact a professional towing ser-
vice to remove the vehicle.
SCE0891
In case of emergency6-15
—
—
04/21/10—debbie
