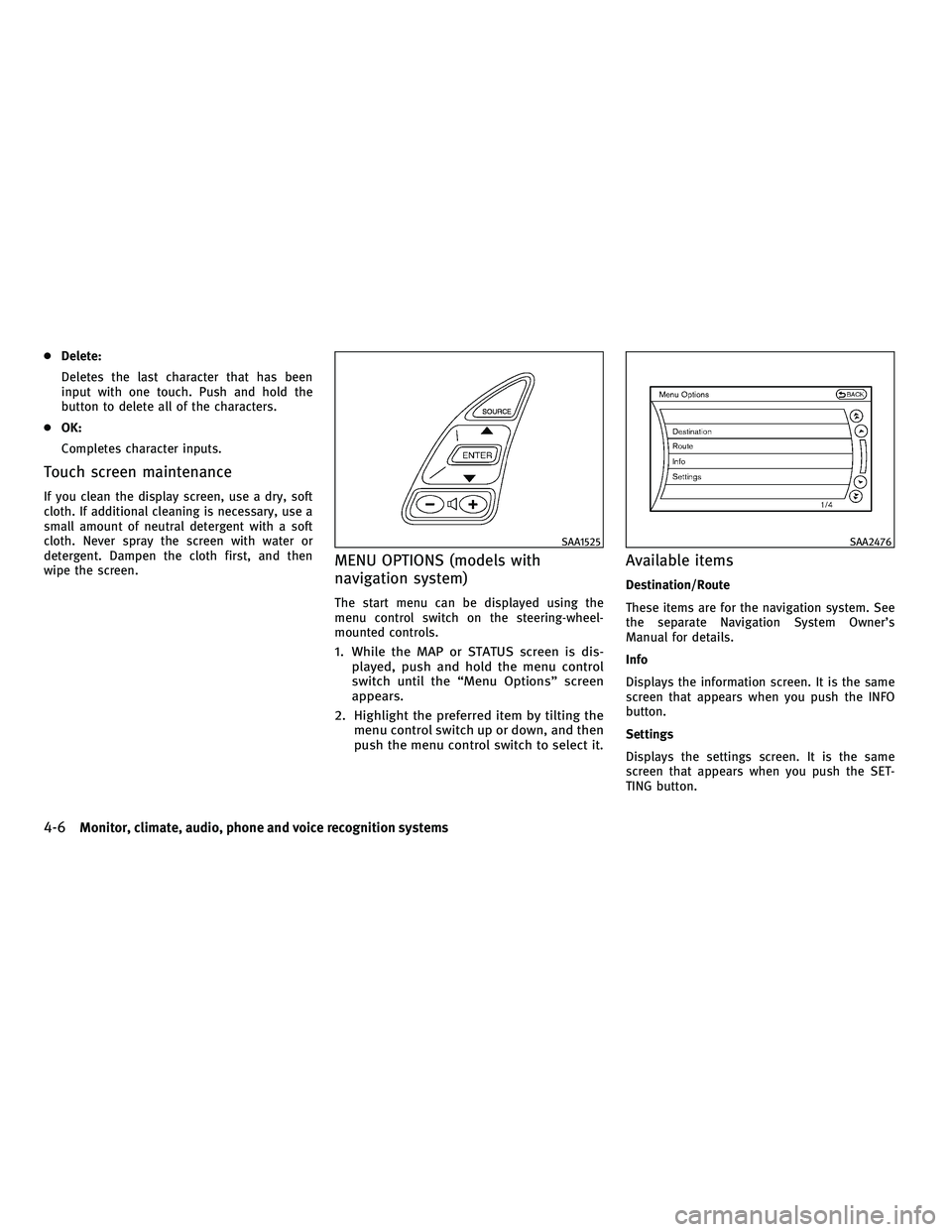

●Delete:
Deletes the last character that has been
input with one touch. Push and hold the
button to delete all of the characters.
● OK:
Completes character inputs.
Touch screen maintenance
If you clean the display screen, use a dry, soft
cloth. If additional cleaning is necessary, use a
small amount of neutral detergent with a soft
cloth. Never spray the screen with water or
detergent. Dampen the cloth first, and then
wipe the screen.
MENU OPTIONS (models with
navigation system)
The start menu can be displayed using the
menu control switch on the steering-wheel-
mounted controls.
1. While the MAP or STATUS screen is dis- played, push and hold the menu control
switch until the “Menu Options” screen
appears.
2. Highlight the preferred item by tilting the menu control switch up or down, and then
push the menu control switch to select it.
Available items
Destination/Route
These items are for the navigation system. See
the separate Navigation System Owner’s
Manual for details.
Info
Displays the information screen. It is the same
screen that appears when you push the INFO
button.
Settings
Displays the settings screen. It is the same
screen that appears when you push the SET-
TING button.
SAA1525SAA2476
4-6Monitor, climate, audio, phone and voice recognition systems
—
—
04/28/10—pattie

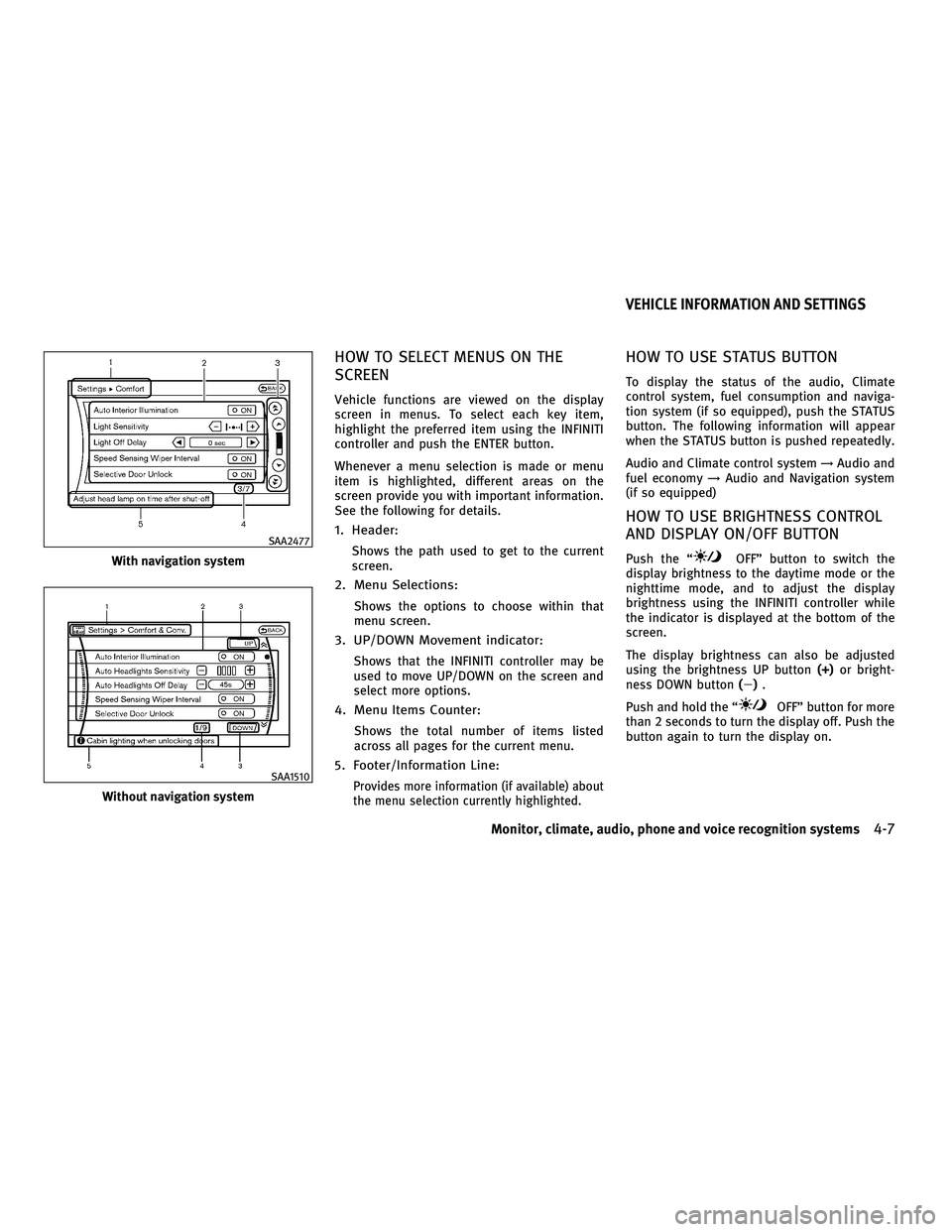

HOW TO SELECT MENUS ON THE
SCREEN
Vehicle functions are viewed on the display
screen in menus. To select each key item,
highlight the preferred item using the INFINITI
controller and push the ENTER button.
Whenever a menu selection is made or menu
item is highlighted, different areas on the
screen provide you with important information.
See the following for details.
1. Header:
Shows the path used to get to the current
screen.
2. Menu Selections:
Shows the options to choose within that
menu screen.
3. UP/DOWN Movement indicator:
Shows that the INFINITI controller may be
used to move UP/DOWN on the screen and
select more options.
4. Menu Items Counter:
Shows the total number of items listed
across all pages for the current menu.
5. Footer/Information Line:
Provides more information (if available) about
the menu selection currently highlighted.
HOW TO USE STATUS BUTTON
To display the status of the audio, Climate
control system, fuel consumption and naviga-
tion system (if so equipped), push the STATUS
button. The following information will appear
when the STATUS button is pushed repeatedly.
Audio and Climate control system→Audio and
fuel economy →Audio and Navigation system
(if so equipped)
HOW TO USE BRIGHTNESS CONTROL
AND DISPLAY ON/OFF BUTTON
Push the “OFF” button to switch the
display brightness to the daytime mode or the
nighttime mode, and to adjust the display
brightness using the INFINITI controller while
the indicator is displayed at the bottom of the
screen.
The display brightness can also be adjusted
using the brightness UP button (+)or bright-
ness DOWN button ().
Push and hold the “
OFF” button for more
than 2 seconds to turn the display off. Push the
button again to turn the display on.
With navigation system
SAA2477
Without navigation system
SAA1510
VEHICLE INFORMATION AND SETTINGS
Monitor, climate, audio, phone and voice recognition systems4-7
—
—
04/28/10—pattie

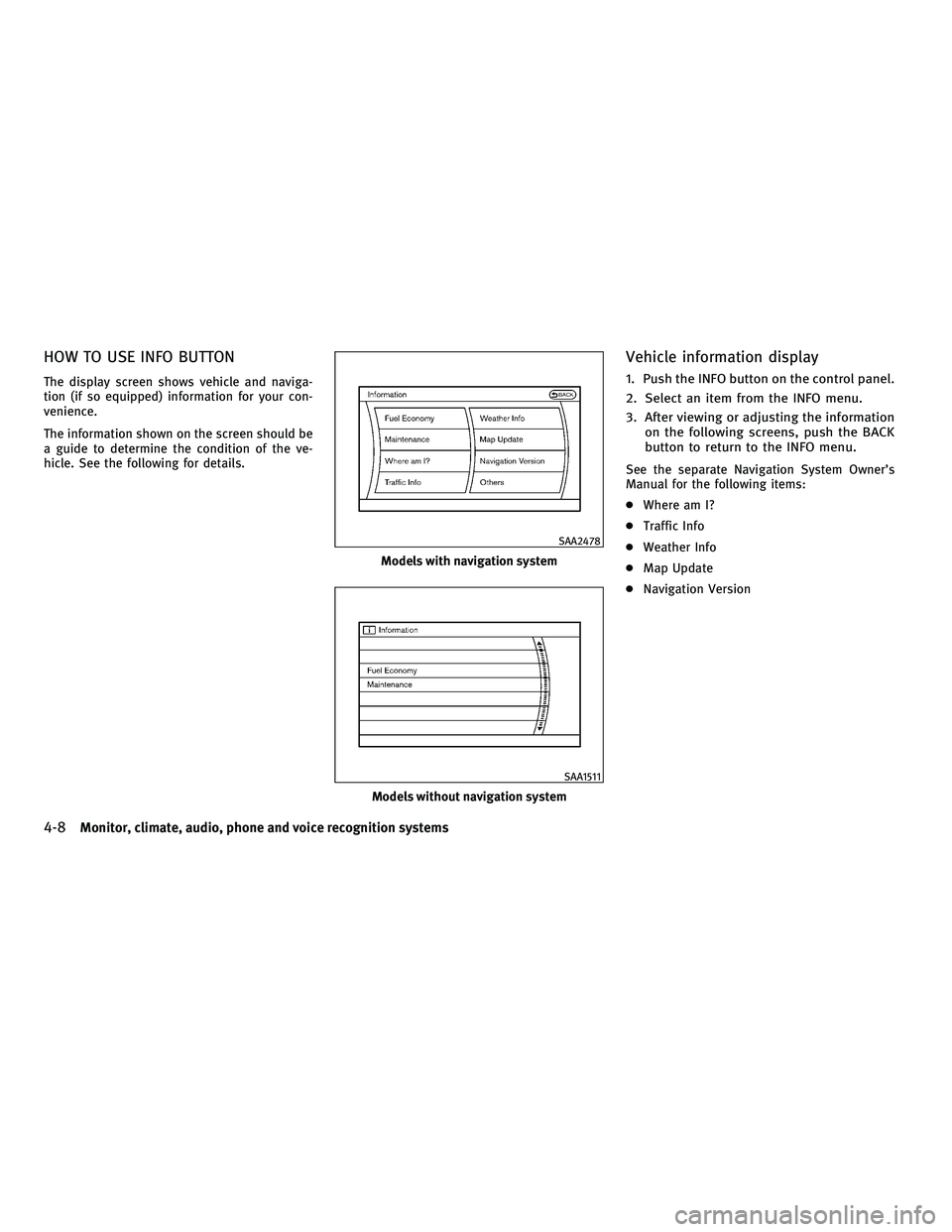

HOW TO USE INFO BUTTON
The display screen shows vehicle and naviga-
tion (if so equipped) information for your con-
venience.
The information shown on the screen should be
a guide to determine the condition of the ve-
hicle. See the following for details.
Vehicle information display
1. Push the INFO button on the control panel.
2. Select an item from the INFO menu.
3. After viewing or adjusting the informationon the following screens, push the BACK
button to return to the INFO menu.
See the separate Navigation System Owner’s
Manual for the following items:
●Where am I?
● Traffic Info
● Weather Info
● Map Update
● Navigation Version
Models with navigation system
SAA2478
Models without navigation system
SAA1511
4-8Monitor, climate, audio, phone and voice recognition systems
—
—
04/28/10—pattie

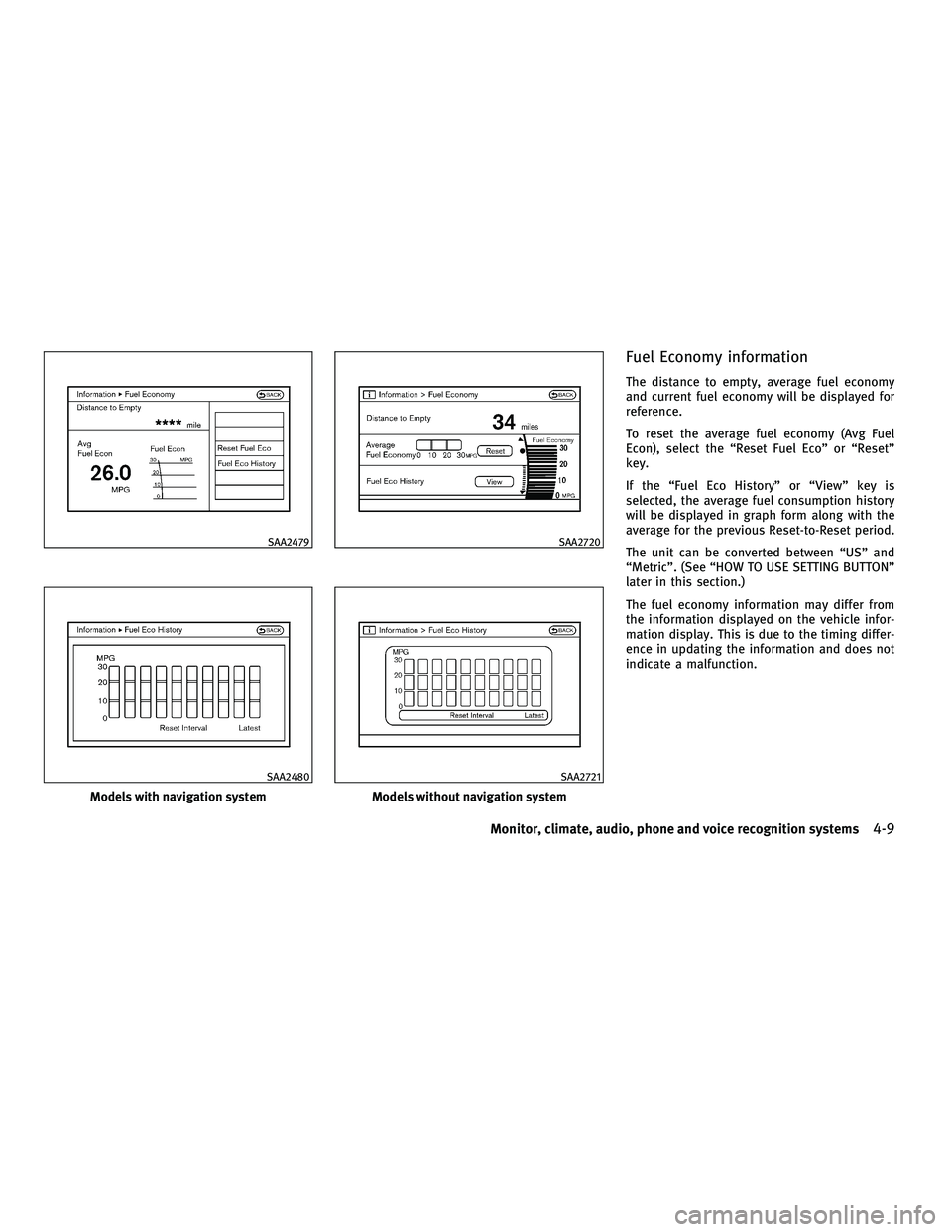

Fuel Economy information
The distance to empty, average fuel economy
and current fuel economy will be displayed for
reference.
To reset the average fuel economy (Avg Fuel
Econ), select the “Reset Fuel Eco” or “Reset”
key.
If the “Fuel Eco History” or “View” key is
selected, the average fuel consumption history
will be displayed in graph form along with the
average for the previous Reset-to-Reset period.
The unit can be converted between “US” and
“Metric”. (See “HOW TO USE SETTING BUTTON”
later in this section.)
The fuel economy information may differ from
the information displayed on the vehicle infor-
mation display. This is due to the timing differ-
ence in updating the information and does not
indicate a malfunction.
SAA2479
Models with navigation system
SAA2480
SAA2720
Models without navigation system
SAA2721
Monitor, climate, audio, phone and voice recognition systems4-9
—
—
04/28/10—pattie


Maintenance information
The maintenance intervals can be displayed for
the engine oil, oil filter, tire and other reminders.
To set a maintenance interval, select a preferred
item from the list.
You can also set to display a message to remind
you that the maintenance needs to be performed.
The following example shows how to set the
engine oil maintenance information. Use the
same steps to set the other maintenance infor-
mation.
1.Set the interval (mileage) of the mainte-
nance schedule. To determine the recom-
mended maintenance interval, refer to your
“INFINITI Service and Maintenance Guide”.
2. To display the reminder automatically when the desired distance is reached,
select the “Reminder” key.
3. Reset the driving distance to the new maintenance schedule.
4. To return to the previous screen, push the BACK button.
The unit can be converted between “US” and
“Metric”. (See “HOW TO USE SETTING BUTTON”
later in this section.)
SAA2481
Models with navigation system
SAA2482
SAA1554
Models without navigation system
SAA2722
4-10Monitor, climate, audio, phone and voice recognition systems
—
—
04/28/10—pattie

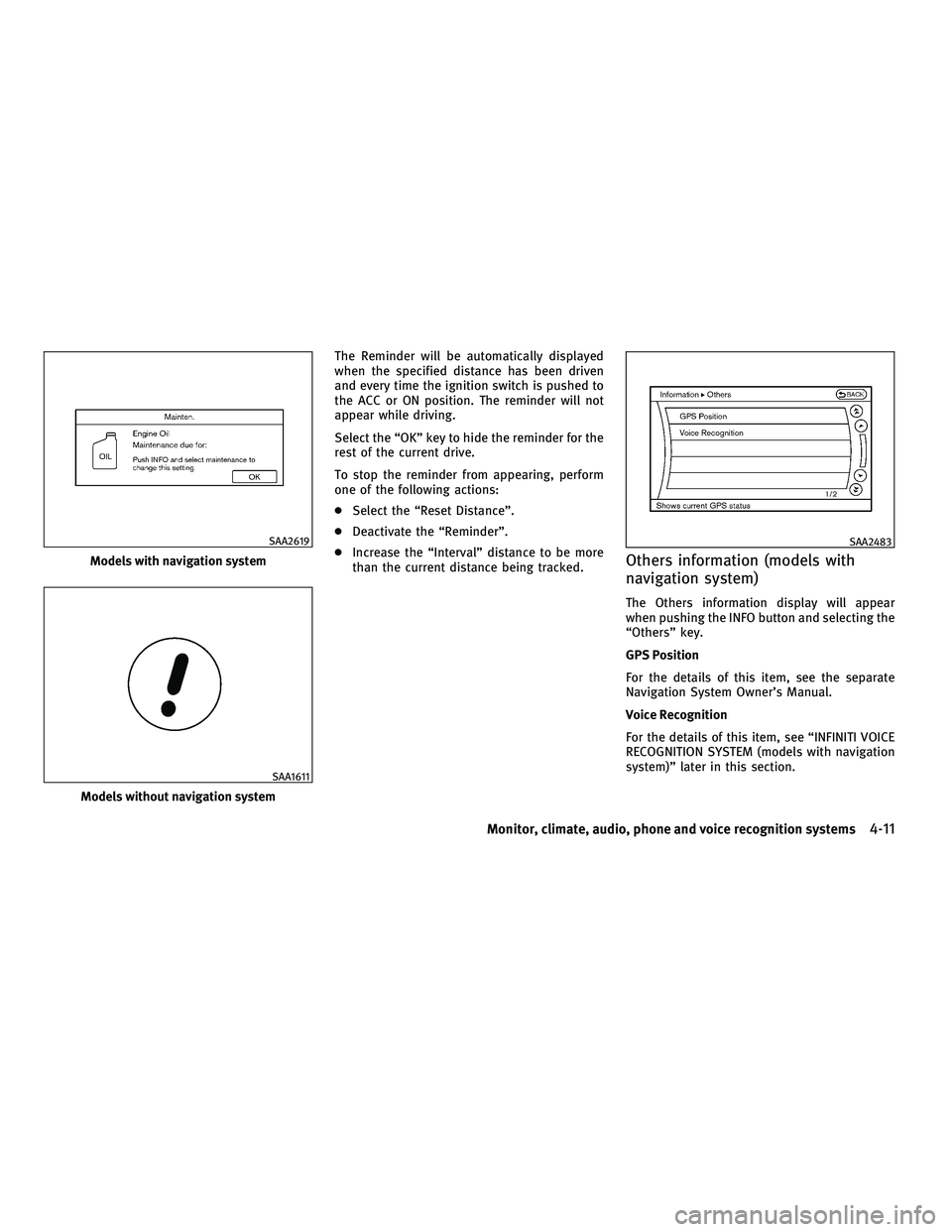

The Reminder will be automatically displayed
when the specified distance has been driven
and every time the ignition switch is pushed to
the ACC or ON position. The reminder will not
appear while driving.
Select the “OK” key to hide the reminder for the
rest of the current drive.
To stop the reminder from appearing, perform
one of the following actions:
●Select the “Reset Distance”.
● Deactivate the “Reminder”.
● Increase the “Interval” distance to be more
than the current distance being tracked.
Others information (models with
navigation system)
The Others information display will appear
when pushing the INFO button and selecting the
“Others” key.
GPS Position
For the details of this item, see the separate
Navigation System Owner’s Manual.
Voice Recognition
For the details of this item, see “INFINITI VOICE
RECOGNITION SYSTEM (models with navigation
system)” later in this section.
Models with navigation system
SAA2619
Models without navigation system
SAA1611
SAA2483
Monitor, climate, audio, phone and voice recognition systems4-11
—
—
04/28/10—pattie

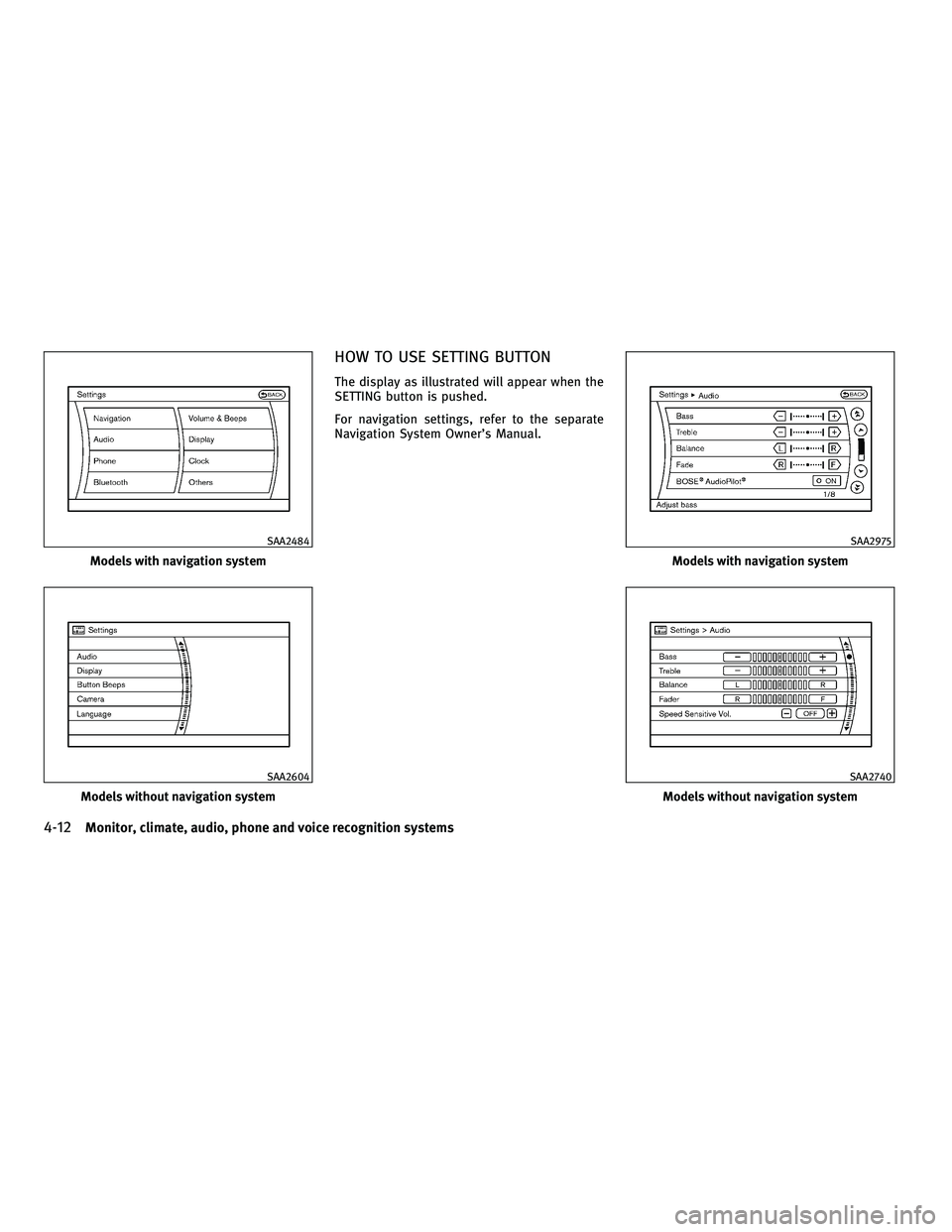

HOW TO USE SETTING BUTTON
The display as illustrated will appear when the
SETTING button is pushed.
For navigation settings, refer to the separate
Navigation System Owner’s Manual.
Models with navigation system
SAA2484
Models without navigation system
SAA2604
Models with navigation system
SAA2975
Models without navigation system
SAA2740
4-12Monitor, climate, audio, phone and voice recognition systems
—
—
04/28/10—pattie


Audio settings
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Audio” key.
Bass/Treble/Balance/Fade
To adjust the speaker tone quality and sound
balance, select the “Bass”, “Treble”, “Balance”
or “Fade” key and adjust it with the INFINITI
controller.
These items can also be adjusted by pushing
and turning the AUDIO knob.
Precision Phased Audio (if so equipped)
When this item is turned to ON, super high pitch
sound and super low pitch sound are empha-
sized and midrange sound is played naturally.
Speed Sensitive Vol. (if so equipped)
The audio system’s volume is increased with
the vehicle speed. Select the “Speed Sensitive
Vol.” and adjust the effect level with the INFINITI
controller. The Speed Sensitive Volume function
is turned off when the level is set to OFF.
Increasing the value will cause the volume to
increase faster with vehicle speed.BOSE
AudioPilot (if so equipped)
When this item is turned to ON, AudioPilot
monitors noise in the passenger compartment
with a microphone and compensates for any
unpleasant noise.
Surround Vol. (if so equipped)
To adjust the surround sound volume, select
“Surround Vol.” and adjust it with the INFINITI
controller.
DivX Registration Code (models with naviga-
tion system)
The registration code for a device that is used to
download DivX files will be displayed on the
screen. If a disc is loaded or a USB memory is
connected to the audio system, this function
will not be activated.
Display Album Cover Art (models with naviga-
tion system)
When this item is turned to ON, the album cover
image is displayed when playing iPod or MP3
music files through a CD, DVD or USB memory.
When the image is not properly embedded in
the file or device, the image will not be dis-
played.
Phone settings (models with
navigation system)
For details of the “Phone” settings, see
“BLUETOOTH HANDS-FREE PHONE SYSTEM
(models with navigation system)” later in this
section.
Bluetooth settings (for models with
navigation system)
For details of the “Bluetooth” settings, see
“BLUETOOTH HANDS-FREE PHONE SYSTEM
(models with navigation system)” later in this
section.
Monitor, climate, audio, phone and voice recognition systems4-13
—
—
04/28/10—pattie


Volume and Beeps settings (models
with navigation system)
The display as illustrated will appear when
pushing the SETTING button, selecting the “Vol-
ume & Beeps” key.
Audio Volume
To increase or decrease the audio volume,
select the “Audio Volume” and adjust it with the
INFINITI controller. You can also adjust the
audio volume by turning the VOLUME control
knob.Guidance Volume
To adjust the guidance voice volume louder or
softer, select the “Guidance Volume” and ad-
just it with the INFINITI controller.
You can also adjust the guidance voice volume
by turning the VOLUME control knob while voice
guidance is being announced.
Ringtone/Incoming Call/Outgoing Call
For the details of these items, see “BLUETOOTH
HANDS-FREE PHONE SYSTEM (models with navi-
gation system)” later in this section.
Switch Beeps
When this item is turned to ON, you will hear a
beep sound when you use a button.
Guidance Voice
When this item is turned to ON, you will hear
voice guidance in the navigation operation or in
other operations.
NOTE:
When the voice guidance is being announced
during audio playback, turning the volume knob
does not adjust the music level; it adjusts the
guidance volume level. If voice guidance is not
being heard, please check the Guidance Volume
level.Button BEEPS settings (models
without navigation system)
The “Button Beeps” screen will appear when
pushing the
SETTINGbutton, selecting the “But-
ton Beeps” key with the INFINITI controller and
pushing the ENTERbutton.
Button Beeps
When this item is turned to ON, you will hear a
beep sound when you use a button.
SAA2554SAA2605
4-14Monitor, climate, audio, phone and voice recognition systems
—
—
04/28/10—pattie

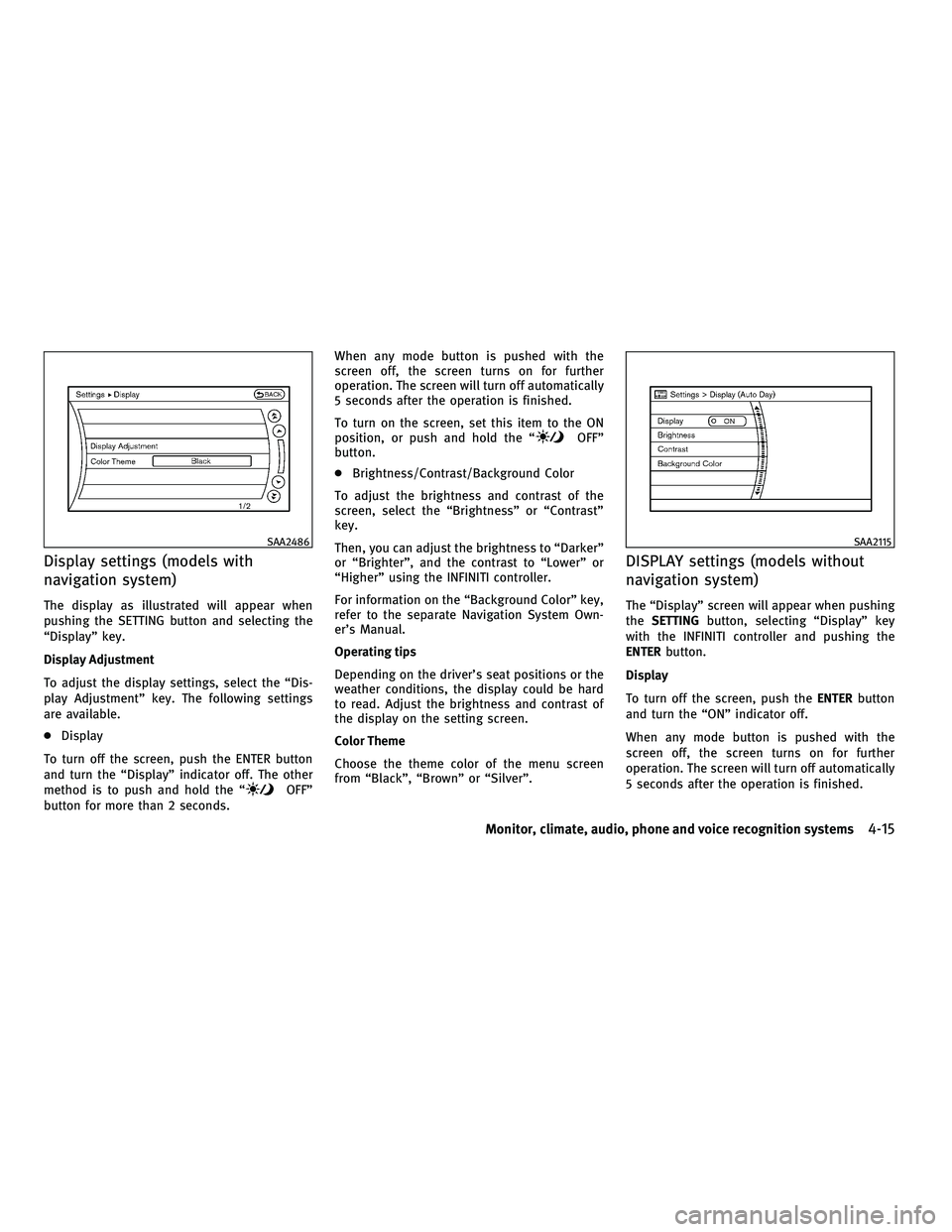

Display settings (models with
navigation system)
The display as illustrated will appear when
pushing the SETTING button and selecting the
“Display” key.
Display Adjustment
To adjust the display settings, select the “Dis-
play Adjustment” key. The following settings
are available.
●Display
To turn off the screen, push the ENTER button
and turn the “Display” indicator off. The other
method is to push and hold the “
OFF”
button for more than 2 seconds. When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off automatically
5 seconds after the operation is finished.
To turn on the screen, set this item to the ON
position, or push and hold the “
OFF”
button.
● Brightness/Contrast/Background Color
To adjust the brightness and contrast of the
screen, select the “Brightness” or “Contrast”
key.
Then, you can adjust the brightness to “Darker”
or “Brighter”, and the contrast to “Lower” or
“Higher” using the INFINITI controller.
For information on the “Background Color” key,
refer to the separate Navigation System Own-
er’s Manual.
Operating tips
Depending on the driver’s seat positions or the
weather conditions, the display could be hard
to read. Adjust the brightness and contrast of
the display on the setting screen.
Color Theme
Choose the theme color of the menu screen
from “Black”, “Brown” or “Silver”.
DISPLAY settings (models without
navigation system)
The “Display” screen will appear when pushing
the SETTING button, selecting “Display” key
with the INFINITI controller and pushing the
ENTER button.
Display
To turn off the screen, push the ENTERbutton
and turn the “ON” indicator off.
When any mode button is pushed with the
screen off, the screen turns on for further
operation. The screen will turn off automatically
5 seconds after the operation is finished.
SAA2486SAA2115
Monitor, climate, audio, phone and voice recognition systems4-15
—
—
04/28/10—pattie
